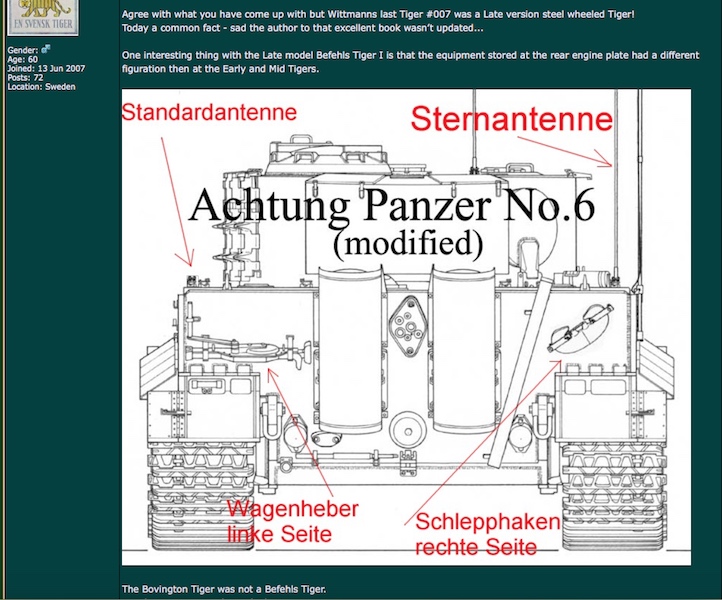

- Says this is a late tiger rear hull view .
Tiger tank command version
Forum rules
If your question is electronics related please post it in one of the relevant boards here: viewforum.php?f=31
If your question is electronics related please post it in one of the relevant boards here: viewforum.php?f=31
Tiger tank command version
Hi As the Tiger 1 command tank has 3 aerials ,question is where are the other 2 storage tubes ? This is the only pic of an aerial tube thats not in the normal place i can find.
-
jarndice
- Colonel
- Posts: 8398
- Joined: Mon Sep 03, 2012 11:27 am
- Location: the mountains of hertfordshire
Re: Tiger tank command version
The two regular radio aerials (One on the Left side of the Tank body and one on the right) share the tank body aerial stowage tube,
The Command Star aerial which is mounted on the Turret roof is stored in a stowage tube slung across the rear panel on the right of the exhaust shrouds.
It was also often found slung across the left side of the exhaust shrouds,
.What interests me is that the Starting handle and the Jack have been mounted on the opposite side to normal, The picture is not reversed as it shows the escape hatch and the Cupola in their proper place.
The Command Star aerial which is mounted on the Turret roof is stored in a stowage tube slung across the rear panel on the right of the exhaust shrouds.
It was also often found slung across the left side of the exhaust shrouds,
.What interests me is that the Starting handle and the Jack have been mounted on the opposite side to normal, The picture is not reversed as it shows the escape hatch and the Cupola in their proper place.
I think I am about to upset someone
