Asia Team Board- RX-18 2,4Ghz Connection Problems

[Peettriple]

Hello Community,

Maybe someone of you can help me. At the moment I am building an M10 Wolverine out of a HL Sherman (a version with a Gen.3 RX-18 with 2,4Ghz). So far so good, now I have started to do something on the electronics. In fact that I cannot use the original BB-unit due to the open turret, my plan was to install a servo to move the cannon up and down- the rest of the controls can be accomplished with the original controls (like turret rotation etc). For this reason I bought a circuit board which can be combined with the original RX-18 board. Sadly, I didn't know that there are differences, and looking at the manual of this product shows me that it only works with the standard HL RX-18 or the version of Taigen. Here is a link to the product, I post it because maybe someone has experiences with it: http://www.asiatam.com/product_info.php ... aigen.html

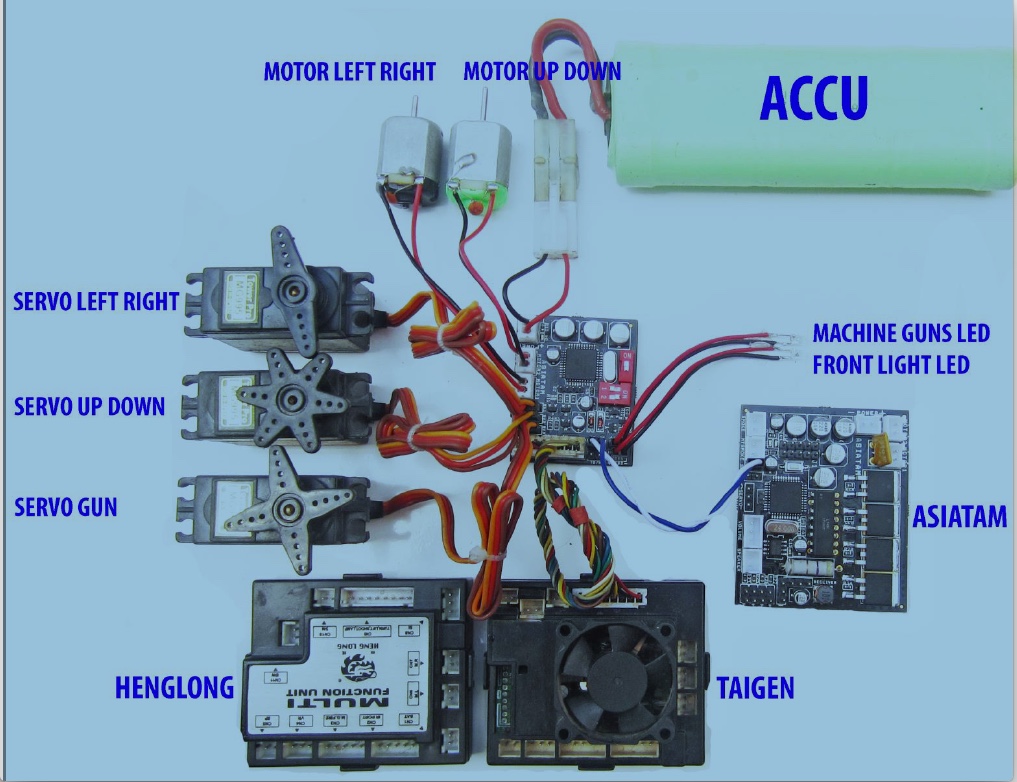

The problem is: I have to put a cable on the underside of the RX-18 to connect it to the new board- in the picture below you see an original RX-18 (left) which I had handy (but cannot use it because the receiver is not included in this board) and the 2,4Ghz RX-18 which I'd like to use:


Does anybody know where I have to connect the cable in the right board? Or maybe I can connect it on the upper side with a connector, the Taigen board can be connected with a simple cable with plugs- which I tried as well, but it does not work.

Sorry my lack of being specific, but electronics are not my strength- maybe someone has or had exactly the same issue and has some tips for me.

Kind regards
Peet

[43rdRecceReg]

Wie gehts, Peet?
Have you seen this video from Asiatam, and downloaded the relevant pdfs from the Asiatam website? The MFU illustrated in the video is a Taigen 2,4ghz one, along with a (matched) stock Taigen TX. Ideally, that is what you should have. I imagine the pdf will show you where to attach the essential wires; but if not...ask Herr Tam for instructions.

phpBB [video]

[43rdRecceReg]

Hmm..typical Asiatam. The 9-page pdf for the servo unit is impossible to find on the website, but here is a link for a download:
http://www.asiatam.com/media/products/0 ... 493123.pdf

You may need (judging by the video) to run a red and black connector cable from the corner two pin power socket on the asiatam board, to the base of the power input terminals on the Taigen MFU (also red /black)..
But check and double check.

[Peettriple]

First of all, thanks for the answers. I have the manual, I also found the video you posted here. But the problem is: I have neither the Taigen Board nore the Heng Long stock RX-18. But I will try my luck by trying to connect the cables like on the Taigen.
I already soldered a cable to bring power to both boards; the funny thing is, I can control the servo as gun servo (the recoil thing) if I put the cables in the positions for it. But it does not work for the elevation control.

Anyway, I will check, double check and even triple check once more- I want so see my Wolverine running

Regards, Peet

[43rdRecceReg]

First of all, thanks for the answers. I have the manual, I also found the video you posted here. But the problem is: I have neither the Taigen Board nore the Heng Long stock RX-18. But I will try my luck by trying to connect the cables like on the Taigen.
I already soldered a cable to bring power to both boards; the funny thing is, I can control the servo as gun servo (the recoil thing) if I put the cables in the positions for it. But it does not work for the elevation control.

Anyway, I will check, double check and even triple check once more- I want so see my Wolverine running

Regards, Peet

You're welcome, or course. Peet.
It seems as if you have a mismatch of parts. If I were you, I'd buy a Taigen controller kit, with matching Radio TX. I think I read lately on the (Florida based) Taigentanks website, that their controller/MFU can be matched to any other Taigen T5 transmitter. In any event, Kits are relatively cheap compared with 6-channel setups. Thing is, once you've got all those servos working nicely, what will you do about the sounds? I suppose you could add the Beier
sound card, but then it's going to be cramped in there. By the way, your English is excellent.
Regards,
Roy.

[Peettriple]

Thanks for the compliment about my English- I knew it makes sense watching movies only in English with English subtitles

I will check out the Taigen Controller Kit as you mentioned (do you have some links for that?). I tried it once more lately and it still does not work. About the sounds: in fact that I will use the tanks primarily for videos (with up to 600FPS) I don't need sounds at all. Usually I record the sounds from video games like War Thunder; I add them later into the videos, along with some pyro effects if available.

Regards, Peet

[43rdRecceReg]

http://www.rctank.de/ELECTRONIC-BOARDS
Dominique at RCtank (above) sells all the bits you need. His is a popular outlet for RC tanks on this forum. I saw your video, by the way, and liked the grainy monochrome effects. Well edited too. The extra tanks were added seamlessly
I see you're a fan of Triumph motorcycles. I had an old Police BMW T80RT, but always wanted the Norton 'Interpol'. Sadly, where Triumph has been resurrected..Norton- Es war einmal ein weltbekannter marque von Motorrad..ist Heute kaput.
Ich kann (hoch)Deutsch, and een lütte beten Plattdeutsch. ( Englisch und Platt sind eng miteinander verbunden. Friesiche is even closer!).
I am a regular visitor to Zürich, where my son lives; but find 'Schwiizertüütsch' almost impossible to follow! Mind you, the same can be said for English speaking foreigners visiting Glasgow!!
