Tamiya Early Tiger 1 Static to RC Build

User avatar
PainlessWolf
Lieutenant-Colonel
Posts: 7601
Joined: Sun Feb 26, 2012 9:09 pm
Location: Southern Colorado Rocky Mountains

Re: Tamiya Early Tiger 1 Static to RC Build

Post by PainlessWolf »

Good morning, Gentlemen,
It is Winter here in the high valleys of the Rockies ( regardless of what the Calendar says ) and I find I am colder and slower to get going and socked into a Project. Thank you for the kind words, they are really appreciated. I want to get Mike's Tiger completed and set aside to await his arrival next Spring to pick it up. That will be some happy times! ;o) Then I can dive into a build of my own ( in what spare time the Holidays leave me ) Having heard nothing from Axels in Germany, I went ahead and cut the offending Schumo 'S' mine mount apart and put it back together so it would fit. Works and doesn't look too bad. Now I can go on with the rest of the Deck. Speaker and enclosure are on their way courtesy of Maxx Mekker . ;o) Pic:
Attachments
Mount taken apart then drilled and pinned back together
Mount taken apart then drilled and pinned back together
Mount taken apart then drilled and pinned back together.JPG (84.87 KiB) Viewed 3225 times
...Here for the Dawn...
User avatar
PainlessWolf
Lieutenant-Colonel
Posts: 7601
Joined: Sun Feb 26, 2012 9:09 pm
Location: Southern Colorado Rocky Mountains

Re: Tamiya Early Tiger 1 Static to RC Build

Post by PainlessWolf »

After the dishes were done and as an incentive for Pie ( Keylime with whipped creme ) I sat down to work with the Tamiya Jack Block. The Aber piece is wood but is way oversized and would need a ton of filing and sanding. So, combo part time again. I sanded off the face of the Tamiya part where the ( admittedly excellent ) molding of the latch was at. There was no carry handle tho' so off it came. Some bending, tweezing and squinting through the Magnifier and the parts are ready for paint. More deck fun with tools tomorrow or Saturday. Pics:
Attachments
Neat little mount point with ABER welding detail on the back
Neat little mount point with ABER welding detail on the back
Neat little mount point with ABER welding detail on the back.JPG (83.33 KiB) Viewed 3211 times
Jack block with latch and carry handle
Jack block with latch and carry handle
Jack block with latch and carry handle.JPG (88.14 KiB) Viewed 3211 times
...Here for the Dawn...
User avatar
Ecam
Warrant Officer 1st Class
Posts: 2200
Joined: Sun Jul 13, 2014 6:30 pm
Location: Lake of the Ozarks, USA

Re: Tamiya Early Tiger 1 Static to RC Build

Post by Ecam »

Your work is inspiring and depressing at the same time. Fantastic work that inspires. Trying to match the skill......depressing.
"Don't believe everything you see on the internet" - George S. Patton

Eric
User avatar
HERMAN BIX
Major-General
Posts: 11313
Joined: Sun Jan 12, 2014 12:15 am
Location: Gold Coast,Australia

Re: Tamiya Early Tiger 1 Static to RC Build

Post by HERMAN BIX »

Its driven me to drink !!............................(ok, its a short drive but hey)
HL JAGDPANTHER,HL TIGER 1,HL PzIII MUNITIONSCHLEPPER, HL KT OCTOPUS,HL PANTHER ZU-FUSS,HL STuG III,HL T34/85 BEDSPRING,
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
User avatar
Tiggr
Staff Sergeant
Posts: 819
Joined: Wed Jul 13, 2016 6:19 pm
Location: North Wales near Chester

Re: Tamiya Early Tiger 1 Static to RC Build

Post by Tiggr »

Is the finished tank due to be a "fresh out of the factory" build Mr Wolf ?
Tiger 1 Early Taigen,
Tiger 1 Mid Torro,
Tiger 1 Late Taigen,
King Tiger Taigen (P)
Jagdtiger Torro
King Tiger (H)
King Tiger Torro (H)
Tiger 1 late Torro
Panther G Taigen
User avatar
Raminator
Warrant Officer 2nd Class
Posts: 1309
Joined: Tue Aug 11, 2015 9:57 am
Location: Newcastle, Australia

Re: Tamiya Early Tiger 1 Static to RC Build

Post by Raminator »

Top-notch as always, Painless. You've more than earned your pie!

I also learned something today. I'd always assumed that the S-mine launchers on Tigers were smoke dischargers, I never made the mental connection that a panzer's S-mine was no different to a regular S-mine; a bouncing betty. I'm sure that'd discourage any attempts at hitting it with a sticky bomb or RPG-43. Crikey!
HERMAN BIX wrote:Its driven me to drink !!............................(ok, its a short drive but hey)
It's less about the journey and more about the destination, right?
User avatar
PainlessWolf
Lieutenant-Colonel
Posts: 7601
Joined: Sun Feb 26, 2012 9:09 pm
Location: Southern Colorado Rocky Mountains

Re: Tamiya Early Tiger 1 Static to RC Build

Post by PainlessWolf »

Evening, Gentlemen,
Thank you guys. I can't afford a swelled head, the magnifiers won't fit. ;o) *bows to all* Ecam, Herman, your work is in a class all by itself. Stuff that I aspire to. Tiggr, this will be a fairly fresh tank with all of it's bits and bobs, not long off the ship and barely off the dock. Raminator, the pie was delicious. ;o) Yep, the Wehrmacht soon went to a single rotating weapon on the roof of the turret that could be reloaded from inside the tank. Unlike those previous first efforts at infantry control. Tonight, after a busy day, I sat down and cleaned up and painted the tools. I'll try to get them on by the first of the week. I still need to build up some of the ABER brass for mounts for a couple of them. Pics:

P.S. You guys will be sick of me and Tamiya Tigers. I just ordered my Xmas last night, a full option Tamiya with desert Tiger sprues and metal add-ons. I plan on building myself one like Mike's. ;o)
Attachments

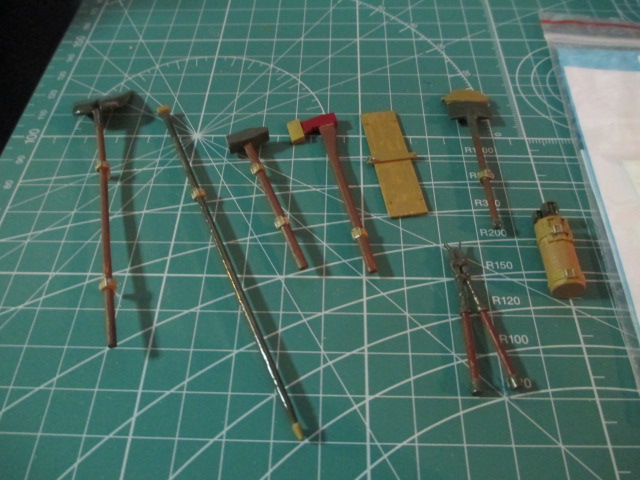

Tools ready to mount, painted, labeled and flats applied
Tools ready to mount, painted, labeled and flats applied
Excellent Archer Dry-Apply Tetra extinguisher labels
Excellent Archer Dry-Apply Tetra extinguisher labels
Excellent Archer Dry-Apply Tetra extinguisher labels.JPG (88.59 KiB) Viewed 3155 times
Intial paint
Intial paint
Tamiya tools and extinguisher
Tamiya tools and extinguisher
...Here for the Dawn...
Aussie
Corporal
Posts: 471
Joined: Sat Aug 13, 2016 11:49 pm
Location: Darwin , N.T. , Australia.

Re: Tamiya Early Tiger 1 Static to RC Build

Post by Aussie »

Looking good.
Top effort.
Don't get your panties in a bunch , we still got hand weapons and the fifty!
User avatar
PainlessWolf
Lieutenant-Colonel
Posts: 7601
Joined: Sun Feb 26, 2012 9:09 pm
Location: Southern Colorado Rocky Mountains

Re: Tamiya Early Tiger 1 Static to RC Build

Post by PainlessWolf »

Aussie, many thanks! ;o) This afternoon, I sat down to make mounts for some of the tools and do some more detail painting. I looked up and night had fallen but I am satisfied with the results of these Tamiya\ABER combo mounts. Mike shouldn't lose any tools when he runs the tank. Pics:
Attachments
Another view of the extinguisher
Another view of the extinguisher
Another view of the extinguisher.JPG (91.81 KiB) Viewed 3144 times
Combo Tamiya and ABER mount and details
Combo Tamiya and ABER mount and details
Combo Tamiya and ABER mount and details.JPG (97.07 KiB) Viewed 3144 times
Prybar and plate cover, all Tamiya
Prybar and plate cover, all Tamiya
Prybar and plate cover, all Tamiya.JPG (91.67 KiB) Viewed 3144 times
Cutters closeup with combo Tamiya and ABER mounting points
Cutters closeup with combo Tamiya and ABER mounting points
Cutters closeup with combo Tamiya and ABER mounting points.JPG (78.24 KiB) Viewed 3144 times
Closeup of hammer
Closeup of hammer
Closeup of hammer.JPG (92.51 KiB) Viewed 3144 times
Closeup of tools
Closeup of tools
Closeup of tools.JPG (92.12 KiB) Viewed 3144 times
Closeup of the jack block and back of ABER shovel mount
Closeup of the jack block and back of ABER shovel mount
Closeup of the jack block and back of ABER shovel mount.JPG (92.67 KiB) Viewed 3144 times
Jack block closeup with ABER details
Jack block closeup with ABER details
Jack block closeup with ABER details.JPG (93.6 KiB) Viewed 3144 times
Painted and mounted jack block and tools
Painted and mounted jack block and tools
...Here for the Dawn...
sassgrunt
Staff Sergeant
Posts: 750
Joined: Wed Oct 29, 2008 9:08 am
Location: Hawaii, USA

Re: Tamiya Early Tiger 1 Static to RC Build

Post by sassgrunt »

Wow! Those Tetra decals really make the fire extinguisher -pop- to the eye! I know that the initial plan was to have something that could be detailed and still be a runner...but with all of the hard work you've put into it, I think I'm going to want to run it very gingerly and infrequently.

So, you now have the makings of one for yourself as well - great! Since you're planning on an early version as well, are you going to use the same paint scheme and number them sequentially; or are you planning on replicating one from a different theater of operations?
