The batteries are running together but they're not connected in parallel...

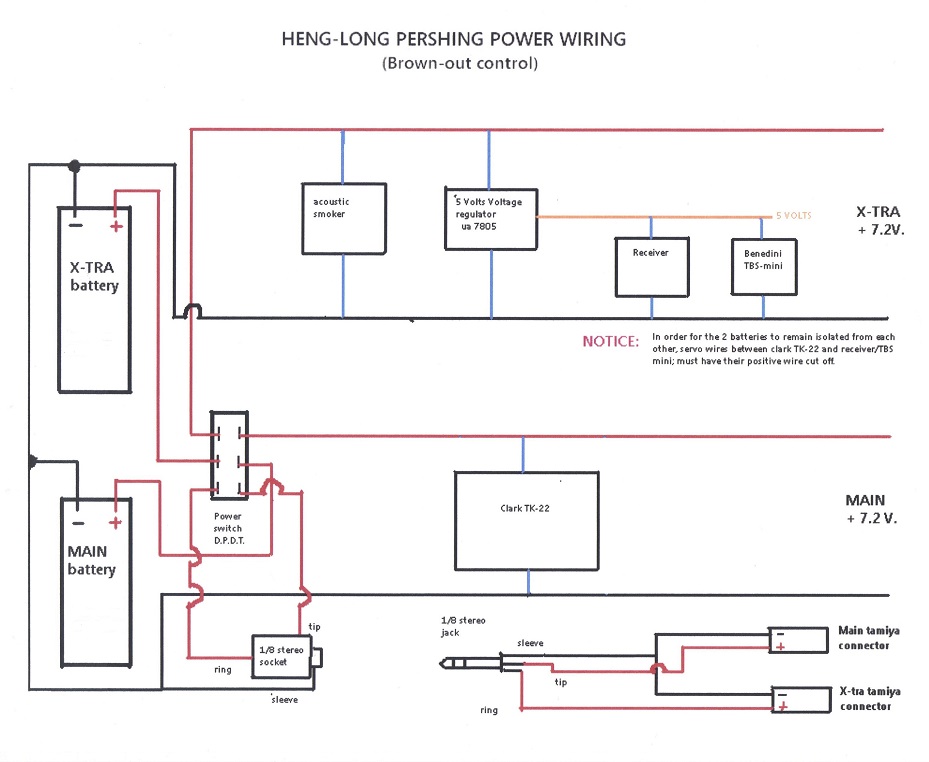

Each battery is powering a section of the whole system as per this wiring diagram:
Winter project
-
edpanzer
- Warrant Officer 2nd Class
- Posts: 1317
- Joined: Tue Jan 06, 2015 9:59 pm
- Location: Peterborough Cambridgeshire UK
Re: Winter project
Thanks for that I will save that on my computer if that's OK?
Taigen Tiger 1 full option rctank.de special edition airbrush paint IR equipped
Type 90 1/24
WSN T34
Heng long leopard 2a6
Heng long panzer 4 platinum
Heng long sherman
Grantham Light Armoured Division RCTC
Type 90 1/24
WSN T34
Heng long leopard 2a6
Heng long panzer 4 platinum
Heng long sherman
Grantham Light Armoured Division RCTC
Re: Winter project

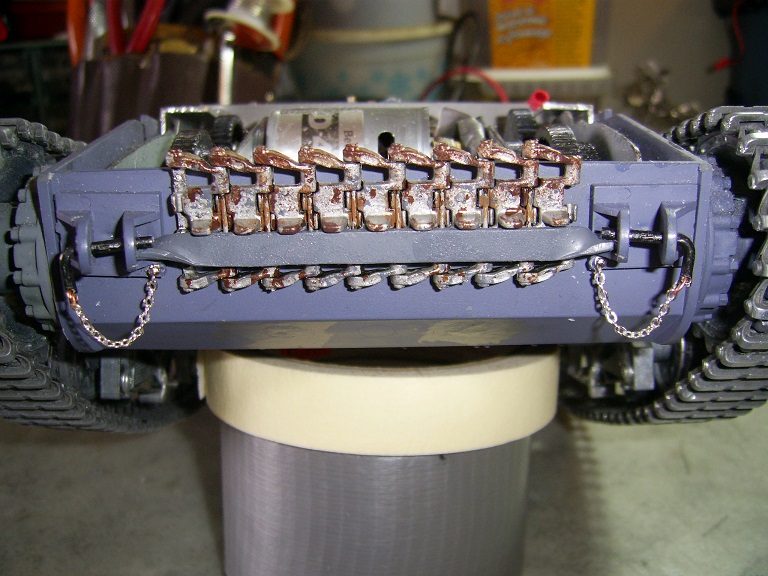

Wonder how long those are gonna last when driving in the grass??
- Attachments
-
-
Heated debates on climate changes contribute to global warming!!!
-
spongehoobtank82
- Sergeant
- Posts: 610
- Joined: Fri Aug 08, 2014 1:23 am
Re: Winter project
I made some for my panzer IV and surprisingly they have not broken or been ripped off yet (touch wood!)
Sponghoobtank82-panzerIII, panther V, tiger VI early and late and another early tiger,leopard 2a6, panzer IV F2,challenger 2
