board name?

[glenny25]

hi lads rewiring my HL panzer 3 today , went to add new mg and lights, but when I went to solder the new wires the board fell apart, what is the name of the board at the front where you solder the lights mg, and has the 2 plugs on? and where can I get one, so close but still so far from done. thanks glen

[Horses45]

Glenn's if you can put a pic up I have a few spare HL parts in a spares box and might have one you can have but can't promise , but you might have to be quick as I'm away in Lincoln for a weeks course from Monday and can check when I'm back if you can put the pic up

[Dietrich]

I only have an 'Old' panzer III but the little square board on mine is for the turret.
I think that you mean THIS piece... which is for sale on Ebay by a member here called Forgebear... I hope that he does not mind me copying his photo.
He calls it a 'Square solder board' which pretty much sums it up.
http://www.ebay.co.uk/itm/Square-Solder ... 259b630b93

It is just a bare board so surely you can reuse yours... but I suspect from reading the part that 'the board fell apart' that you might need to know the order of the wires?

[glenny25]

Hi Horses45, if you can send me a hello on email I will send a pic back not too sure how you send them here , also dietrich, no it is not that one, it has 3 pin plug and a 8 pin plug on the top, and bottom was where all the mg,and lights were solderd

[glenny25]

sorry email glen.broo25@talktalk.net

[MichaelC]

You mean this ?


[MichaelC]

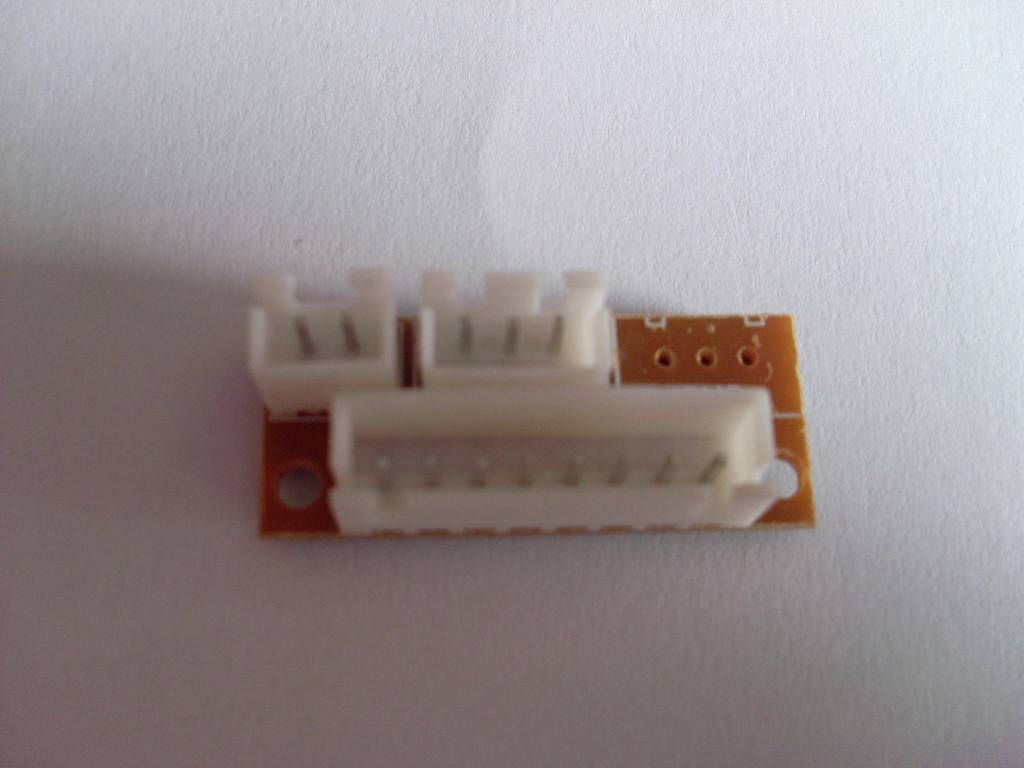

Or this ?


[glenny25]

Hi Michaelc, yep the bottom one, 2 smll plugs 1 large and the light / mg wires on the back

[MichaelC]

glenny25,

The pic is from Forgebear's listing on eBay and here is the link:

http://www.ebay.ca/itm/8-Pin-Connector- ... 58bb5e0a1c

MichaelC.

[glenny25]

thanks Michael, just got that , all well will get the lights and mg working
