info for servo recoil !

If you have a tank query and you can't find the answer anywhere else, post here. (TIP - Check for answers in FAQ, use the 'search' facility or even check this board before posting here).
Forum rules
If your question is electronics related please post it in one of the relevant boards here: viewforum.php?f=31
Post Reply
User avatar
MichaelC
2nd Lieutenant
Posts: 2449
Joined: Tue Oct 16, 2012 4:03 pm
Location: Toronto, Canada

Re: info for servo recoil !

Post by MichaelC »

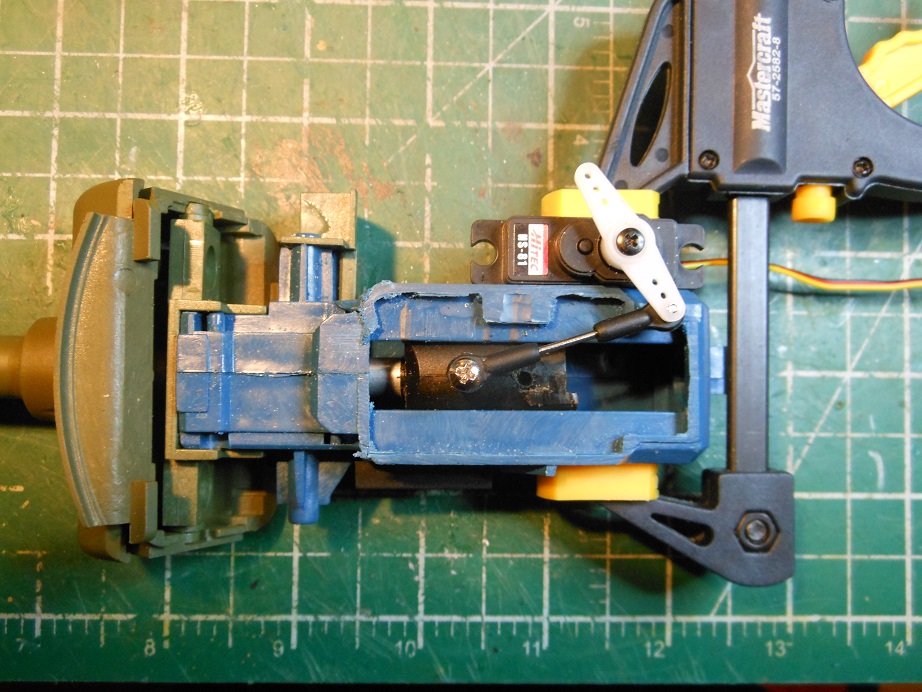

Sorry MM.... this is it for now. I am installing the clark board tonight and will be able to test the recoil. I usually just super glue the servo to the side of the recoil unit, that's why it is only clamped right now to make sure that it is the travel distance I want. I suppose I can also adjust the linkage rod length but this is easier since I need to test it anyway. I will try to post a video of the recoil once I have everything up and running.
Top
madman
Recruit
Posts: 24
Joined: Wed Jan 01, 2014 3:00 am

Re: info for servo recoil !

Post by madman »

did you remove gears from airsoft unit , or just disable them ???? MM
Top
User avatar
MichaelC
2nd Lieutenant
Posts: 2449
Joined: Tue Oct 16, 2012 4:03 pm
Location: Toronto, Canada

Re: info for servo recoil !

Post by MichaelC »

Gutted the sucker, remove the air valve and the wing tip from the cam and cut off the bottom piece altogether so you can get at the cam with the servo arm. I think there is a thread somewhere on how to do that with a HL recoil unit and that's what I used to do, but I find that the BB unit is actually much better. It has a larger "cam" for the recoil, and also you can get much longer travel after cutting off the bottom.

Had some config issue with the clark last night but will post video once I have it going.

MichaelC
Top
User avatar
MichaelC
2nd Lieutenant
Posts: 2449
Joined: Tue Oct 16, 2012 4:03 pm
Location: Toronto, Canada

Re: info for servo recoil !

Post by MichaelC »

madman, here it is....... the Sherman turret is tiny so I have to re-position the servo just so that elevation is not affected.

http://www.youtube.com/watch?v=JKqfAMdYekI

Good enough for now but if my parts comes in soon enough I can switch to a shorter linkage rod and may get couple more mm of travel out of it.

MichaelC
Top
madman
Recruit
Posts: 24
Joined: Wed Jan 01, 2014 3:00 am

Re: info for servo recoil !

Post by madman »

Good grief, Charlie Brown , Looks to me, to be a plenty re-------c o i l !!!!!!!!!!!!!!!!!!!!!! If i can get half that , I'd be a better man for it ! Well I'm gonna get out thy ole rubber hammer , and go at it ! You say, gut the gears, OK.... HI flash,enough room for that too, I need all info. i can get !!! Thanks MM
Top
User avatar
MichaelC
2nd Lieutenant
Posts: 2449
Joined: Tue Oct 16, 2012 4:03 pm
Location: Toronto, Canada

Re: info for servo recoil !

Post by MichaelC »

My last one was a much better recoil....... :-)

http://www.youtube.com/watch?v=vCa6IzeVMjQ

The Sherman is dgsselkirk and he is okay with the recoil since it is a 105mm short barrel howitzer and won't have much recoil in real life anyway so I am leaving it as is. The HI flash bulb won't fit thru so I have to do the good old snip and patch to get the bulb in the barrel from the muzzle end. Send me PM if you need more detail info.

Good luck !

MichaelC
Top
madman
Recruit
Posts: 24
Joined: Wed Jan 01, 2014 3:00 am

Re: info for servo recoil !

Post by madman »

Thanks for great posts! I asked, and I received ! MM
