M10 Tank Destroyer

[Boris Plotnikoff]

Hi,

When I was young in end of August of 1944, I've left the liberation of Gex in south of Jura and I wanted to make this tank :



Here, is my M10 TD finished :

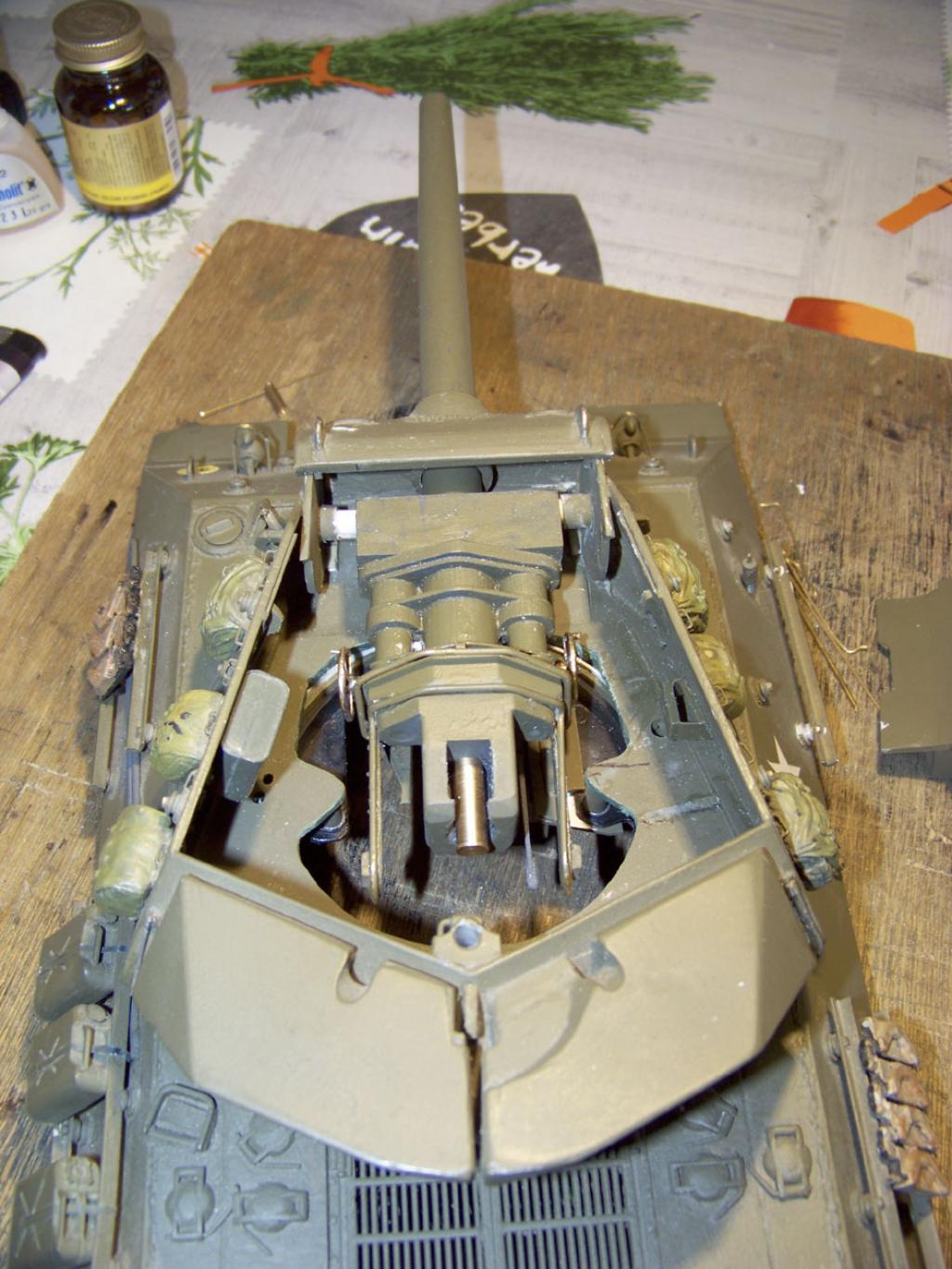

But I've changed the Heng Long breech for a true one :



And with the M12 A2 panoramic telescope on M21 mount :



On the nex post I will shows the details of the construction.

Boris

[Ad Lav]

Wow!

[MichaelC]

Boris, that is amazing scratch build and love the details. Top notch job on something really unique.

MichaelC.

[AlwynTurner]

Very well executed and different model - well done! Alwyn

[PainlessWolf]

Good afternoon!
Well done! Mato will have to hope that the one that they are bringing to market is even a quarter as good as this. Again, Well Done!
regards,
Painless

[palepainter]

Really fantastic work. Love the gun details and the entire build. Congrats. Would love to see some video of it if you ever get any of it in action.

[Boris Plotnikoff]

Hi,

as I've said yesterday, I post some pictures of the construction of my M10 TD :











All the upper hull and turret are made of 2mm thick plastic card. The base of turret and the gun are made from an H.L. Pantatiger.





























http://img.xooimage.com/files97/d/0/7/1 ... e54001.jpg























I've changed the H.L. elevation device for a simple servomotor without pot.

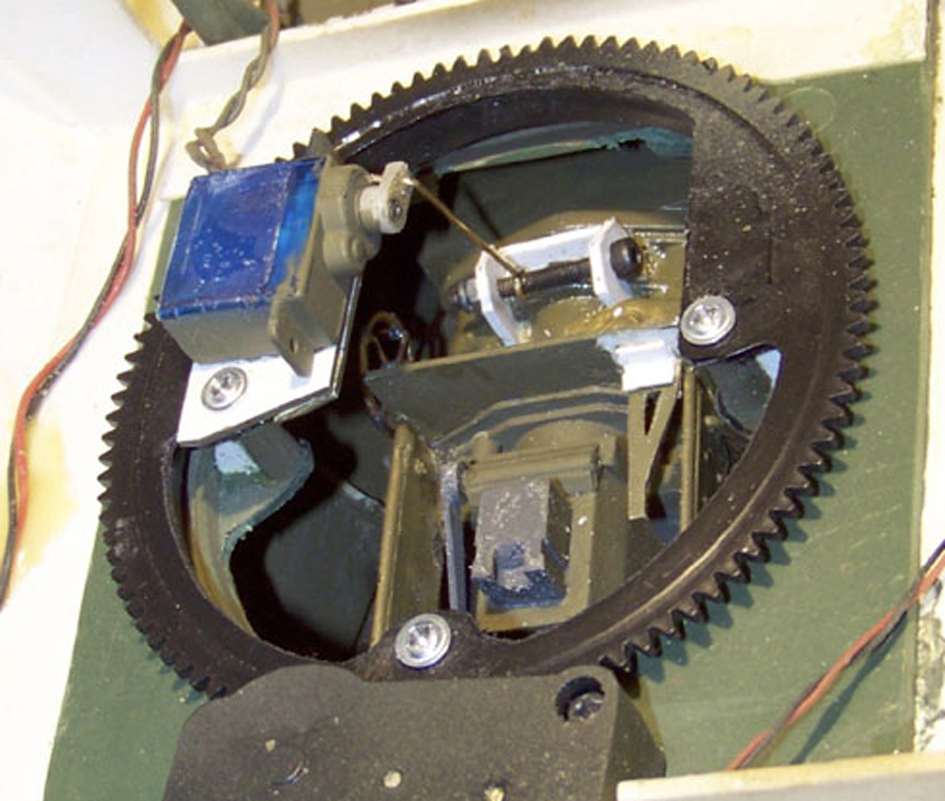

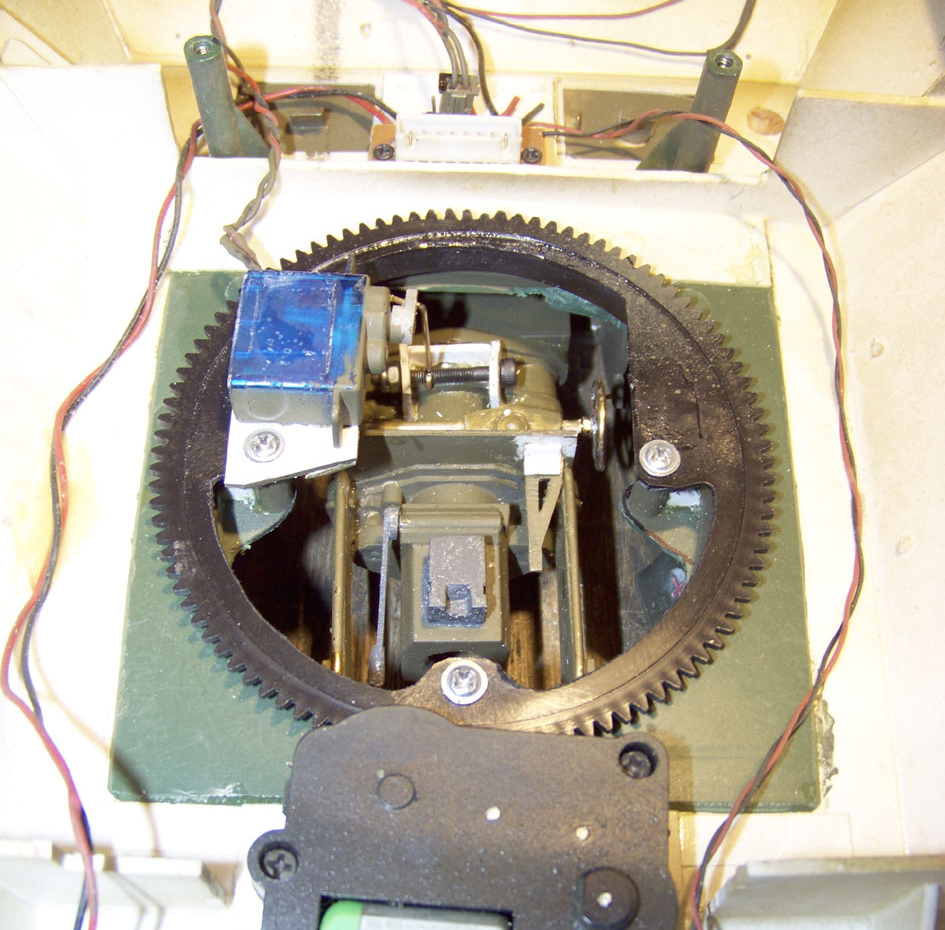

When I've changed the H.L. breech for the true one, I've modified the gun elevation system, now, located under the turret :





I hope that pictures shows suffisantly clearly the steps of the construction and gives ideas for other constuctors !

Boris

[AlwynTurner]

An excellent step-by-step guide on how-to Boris! Great build. Alwyn

[MichaelC]

Amazingwrok again. Thanks for posting. Detail to attention on the overall dimension and look is spot on which is tough to do.

[HERMAN BIX]

Staggering
