Gun elevetion inop

[Ludwig von wigbearer]

Hi all, I have an issue with the elevation on my torro sturmtiger, it was working but not anymore, I have spent a couple
of hours this afternoon pulling out the little hair I have left.
1/ the motor works from a battery
2/ there is power on the turret elevation pins

[Ludwig von wigbearer]

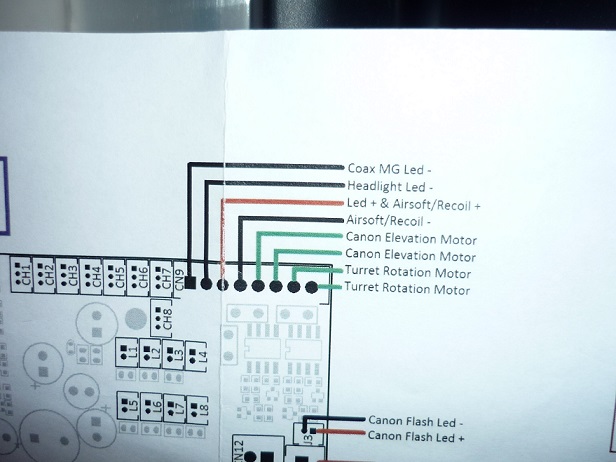

The elevation is green and brown.

[Ludwig von wigbearer]


[Ludwig von wigbearer]

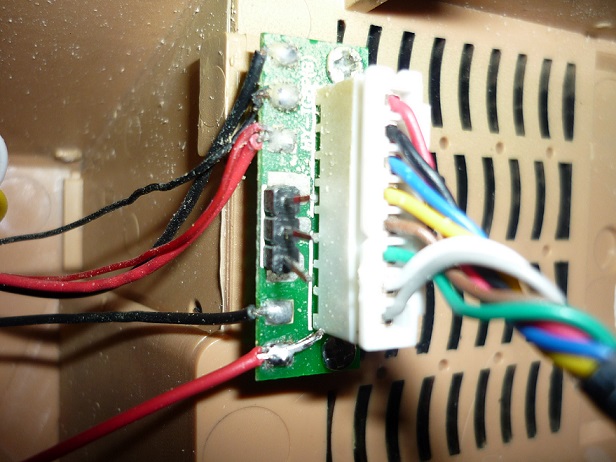

the two motor wires and the attachment plug, am I missing off an earth wire?

any help welcome.

regards john

[Ludwig von wigbearer]

Hi, elevation motor is fine when connected to a separate battery

[Ludwig von wigbearer]

The muck is just some plastic filings from hacking off the mudgards,
1/ there as power at the mfu
2/ there is power at the pins when tested with voltmeter
3/the barrel elevates when connected to a battery
4/no broken wires

regards john

[Ludwig von wigbearer]

motor tested with upper body totally disconnected from mfu

[Ludwig von wigbearer]

Hi, 7.6 ish on the sturms battery and the same on the test battery both nimh

[Ludwig von wigbearer]

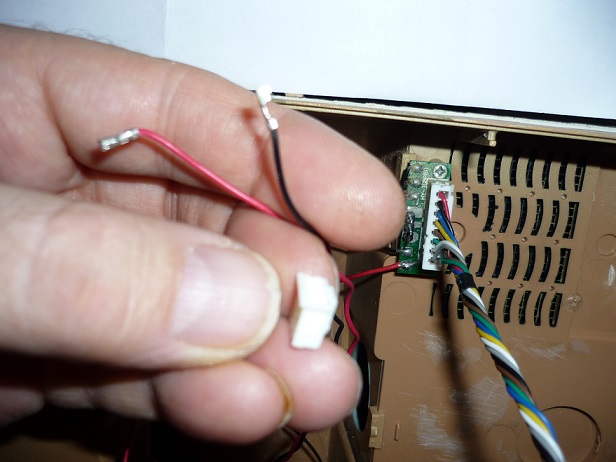

An odd one this, the two wires in my fingers go directly to the turret elevation motor, when I touch them on the spare
battery the turret elevation works, there is 7.6 ish volts at the first two pins, will have a fresh look at this tomorrow as
its now doin my ead in

regards john

[Ludwig von wigbearer]

At one point the 3 pin plug ( in my fingers) had another wire that I removed, it did still work after though.
