Slip Ring in HL Pershing

Post by strmnd54 »

Finally made some early progress on the "smoking gun project" using my HL Pershing as a test bed ...( Replacing the Panzer IV) ...
The early phases of the project involved fitting an Asiatam recoil system in the Pershing( which was easier said than done ); and the installation of a 12 Wires 2 Amps Slip Ring for a 360 degrees turret rotation ....
The recoil still needs some fine tuning ; but the turret rotation is a blast .... :lolno: :lolno: :lolno:
Here's some early results ....
Heated debates on climate changes contribute to global warming!!!
Top
strmnd54
Lance Corporal
Posts: 214
Joined: Mon May 24, 2010 3:00 am

Re: Slip Ring in HL Pershing

Post by strmnd54 »

Here's the link on e-bay where I bought mine : http://www.ebay.ca/itm/Slip-Ring-12x2A- ... 2395wt_910

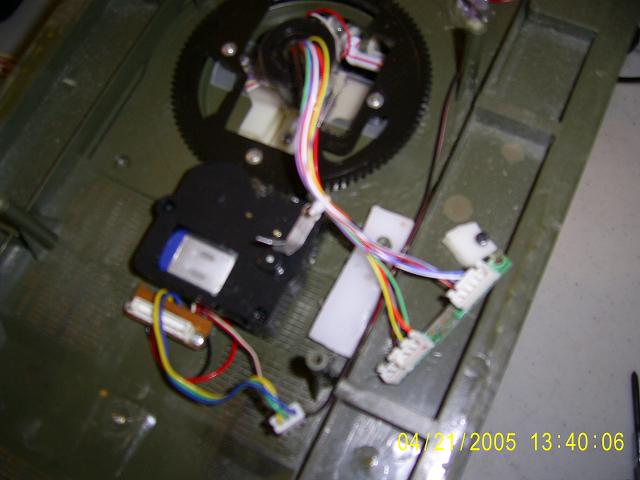

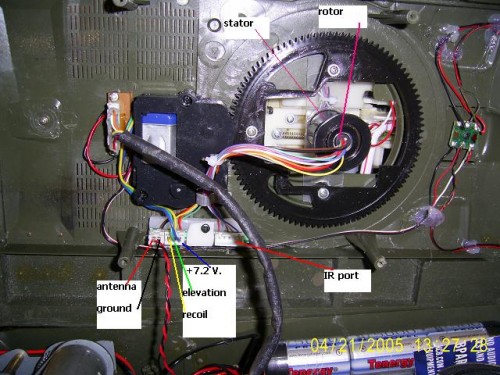

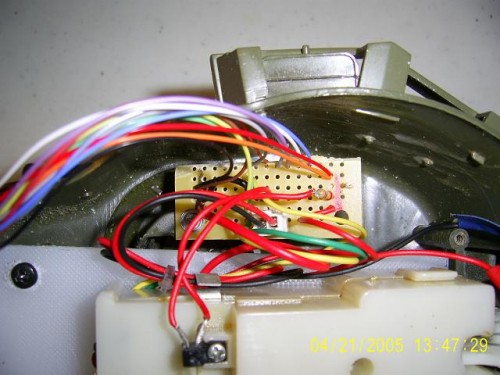

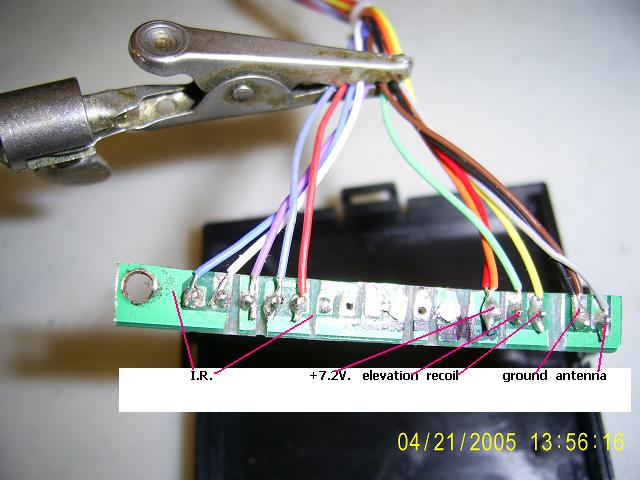

And here's a couple of pics how I installed it with an Asiatam recoil unit...
Attachments
Heated debates on climate changes contribute to global warming!!!
Top
strmnd54
Lance Corporal
Posts: 214
Joined: Mon May 24, 2010 3:00 am

Re: Slip Ring in HL Pershing

Post by strmnd54 »

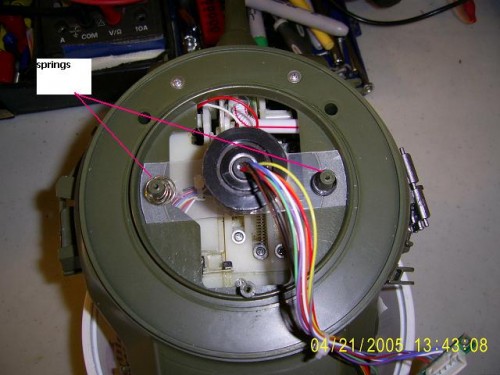

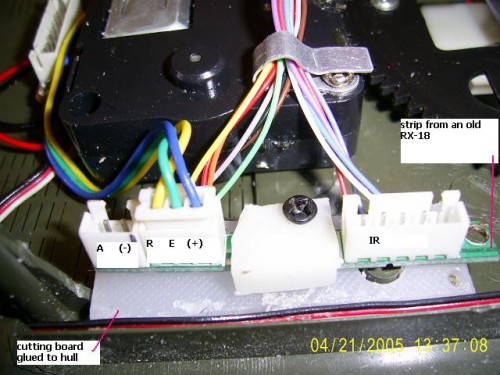

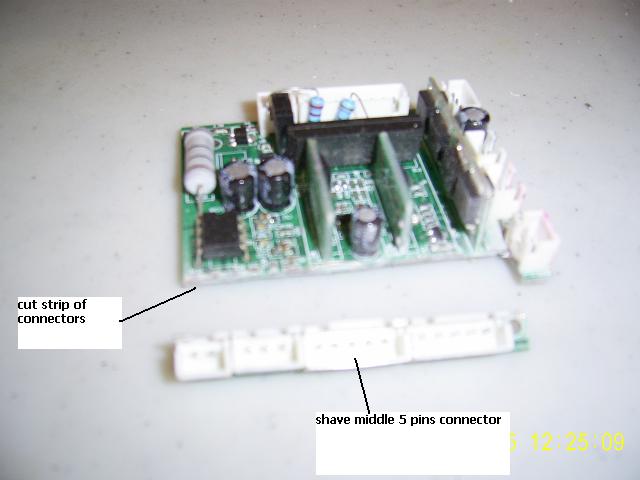

More pics... :haha: :haha: :haha:
Attachments
Heated debates on climate changes contribute to global warming!!!
Top
strmnd54
Lance Corporal
Posts: 214
Joined: Mon May 24, 2010 3:00 am

Re: Slip Ring in HL Pershing

Post by strmnd54 »

Your choice depends of the number of wires and the Amperage that you need for your projects ... 8)
Heated debates on climate changes contribute to global warming!!!
Top
User avatar
ausf
Lance Corporal
Posts: 245
Joined: Fri Apr 06, 2012 1:30 am
Location: New York

Re: Slip Ring in HL Pershing

Post by ausf »

Once again, excellent work. :thumbup:

Some sharp driving there too. 8)
What, me worry?
Top
strmnd54
Lance Corporal
Posts: 214
Joined: Mon May 24, 2010 3:00 am

Re: Slip Ring in HL Pershing

Post by strmnd54 »

ausf wrote:Once again, excellent work. :thumbup:

Some sharp driving there too. 8)

Thanks ...Those 3:1 Asiatam gearboxes in the Pershing are giving a good low speed control ; even when using the "toy like " stock H.L. transmitter . :D :D :D
