Taigen IR board
Posted: Wed Feb 09, 2022 7:25 pm
by leopardgreece
Hello everybody, can anyone show me the Wiring diagram of this board IR but without use the 360° slip ring?
?????
?? SM-N950F
???????????? Tapatalk
Re: Taigen IR board
Posted: Wed Feb 09, 2022 11:16 pm
by Jofaur86

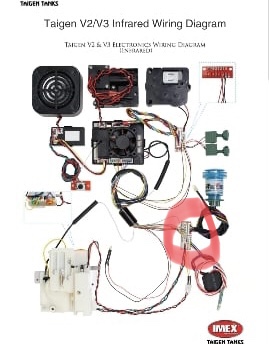

yes, think the attached photo should suffice
Disconnected connectors together (red circle) and connected directly to the plate, in the corresponding plugs
- EACF15F0-20AC-4877-843F-B518B9934DE9.jpeg (37.16 KiB) Viewed 1878 times
the black wire alone on the Asiatam recoil is a minus, and connects with the right black of the plate black wire alone on the Asiatam recoil is a minus, and connects with the right black of the plate
Re: Taigen IR board
Posted: Wed Feb 09, 2022 11:37 pm
by Jofaur86
Could this be easier to understand?
Re: Taigen IR board
Posted: Thu Feb 10, 2022 5:23 am
by leopardgreece
Ok i understand i just wonder if it will work with V2/3 board. I have noticed the V1 wiring diagram. Thank you very much
?????
?? SM-N950F
???????????? Tapatalk
Re: Taigen IR board
Posted: Thu Feb 10, 2022 10:04 am
by Jofaur86
Bjr, no worries it will work, if you connect the cord of the IR mushroom on the plate in CN2 (IR Port)
you have to use this cord, the led goes in the hole that must exist on the manteler of the barrel, to check the operation, use your laptop in camera function, otherwise nothing visible.
https://www.rctank.de/Connection-system ... -HL-Taigen
Re: Taigen IR board
Posted: Thu Feb 10, 2022 5:18 pm
by Jofaur86
no worries, V1/2/3 works perfectly, provided you use an identical plate on the other tank
Re: Taigen IR board
Posted: Thu Feb 10, 2022 5:21 pm
by leopardgreece
I will try. Thank you very much
?????
