Tagien recoil connection

Post by LO72 »

Hi all,

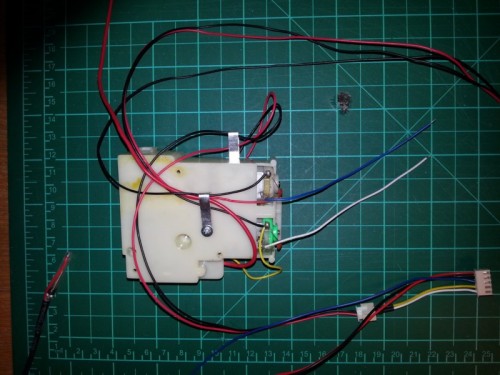

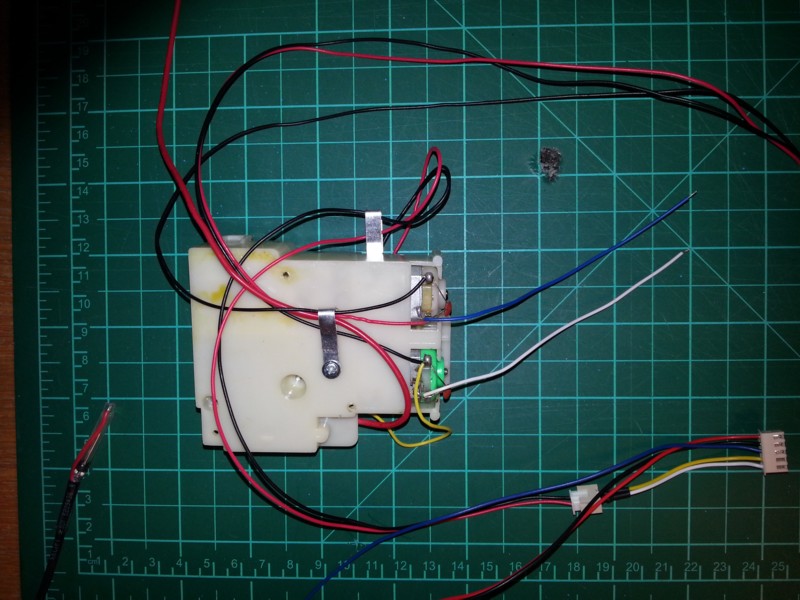

I have upgraded my Tiger I with an ElMod control unit and Taigen/AsiaTam recoil unit.

I get the elevation motor and the flash LED to work but not the recoil motor, it is a white lead to the recoil motor,
shall this be conneted somewhere and in that case where?

And the blue one, shall that be connected somewhere
I have connected the thick red lead to the negative side of the battery.
Best Regards
Top
User avatar
Wildboar44
Corporal
Posts: 392
Joined: Sun Jan 13, 2013 10:28 pm
Location: Kent England UK.

Re: Tagien recoil connection

Post by Wildboar44 »

From what I have read from the Guy's n Girls posts , the thin white and blue wires need to be soldered together.
These would have gone to an on/off switch if present .

Wait till you have another member confirm this L07 , I have to fit a Recoil to my BB Tiger 1 at some stage so have
looked at the posts and this is what i seem to recall

.
Yesterday is our history, Tomorrow is an eternal mistery, Today is a gift, its why its called "The Present".
Top
User avatar
LO72
Recruit
Posts: 7
Joined: Tue Jan 15, 2013 7:02 pm

Re: Tagien recoil connection

Post by LO72 »

Thanks!

That solved it.
Next problem is that the recoil continues if I do not flip the fire trigger back.
I saw that some else had that problem, with the micro swith.
But this is a minor issue, just remember to flip back the switch on the Tx.

Regards
