Renault FT17 in 1/10 scale
Re: Renault FT17 in 1/10 scale

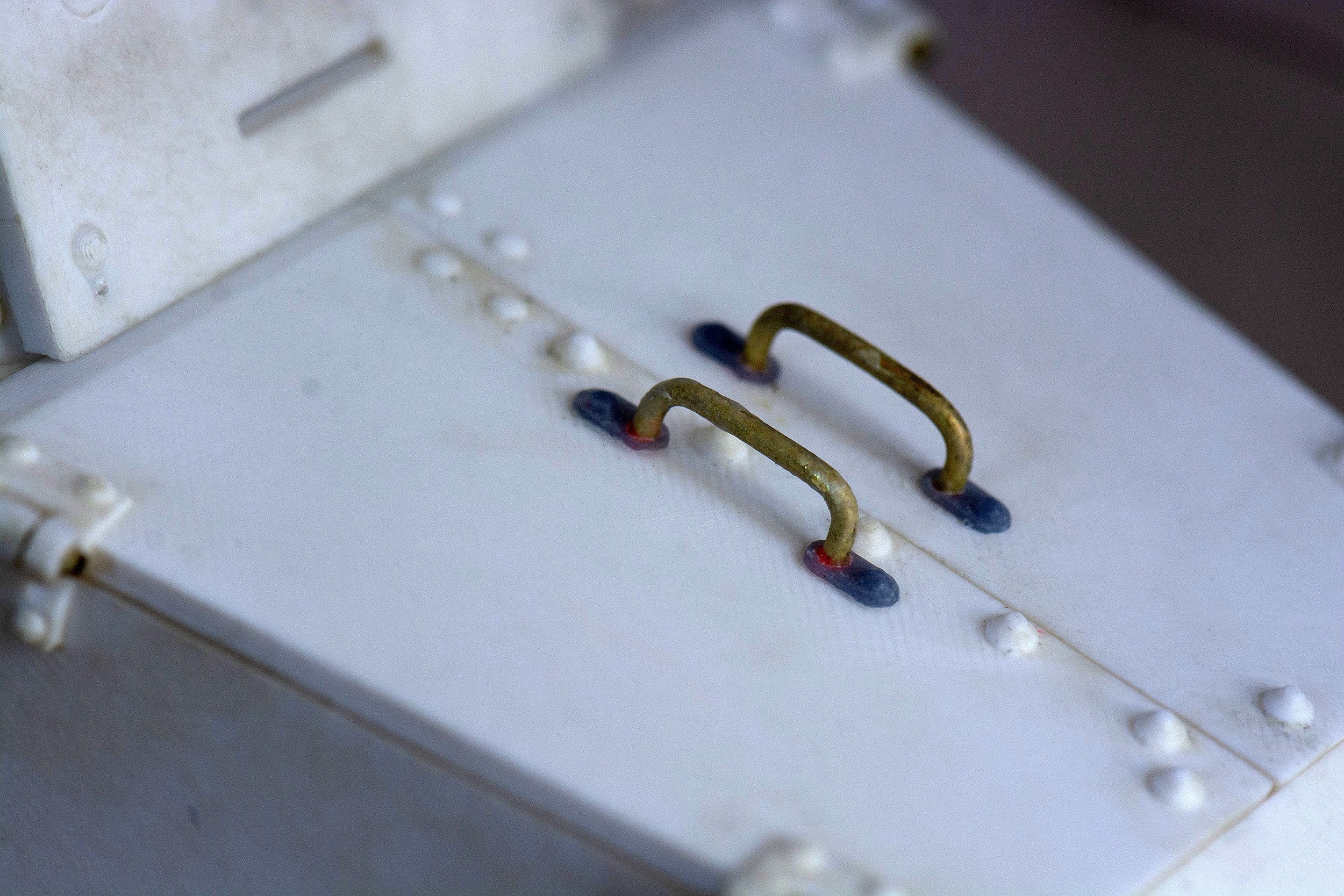

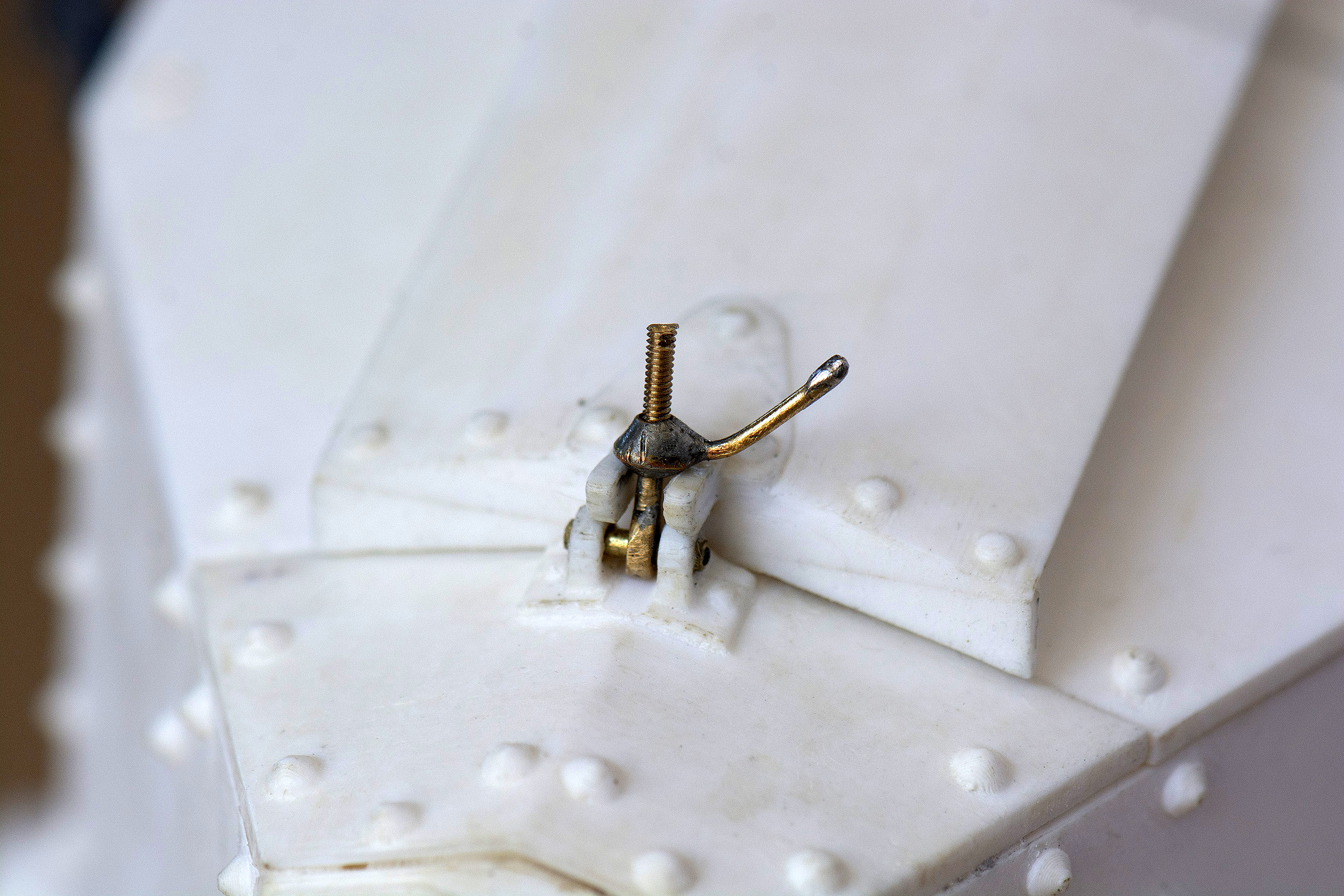

A bit of details to other hatches as well. Riveted plates for handles were resin printed. With a bit of soldering I made a lock for the central engine hatch.
- Attachments
-
- DSC_1699 copy 2.jpg (1.45 MiB) Viewed 362 times
-
- DSC_1690 copy 2.jpg (1.16 MiB) Viewed 362 times
Re: Renault FT17 in 1/10 scale
Looking good. Been thinking of a 1/6th version because our local museum that lets us battle there has and FT17.
Derek
Too many project builds to list...
Too many project builds to list...
Re: Renault FT17 in 1/10 scale

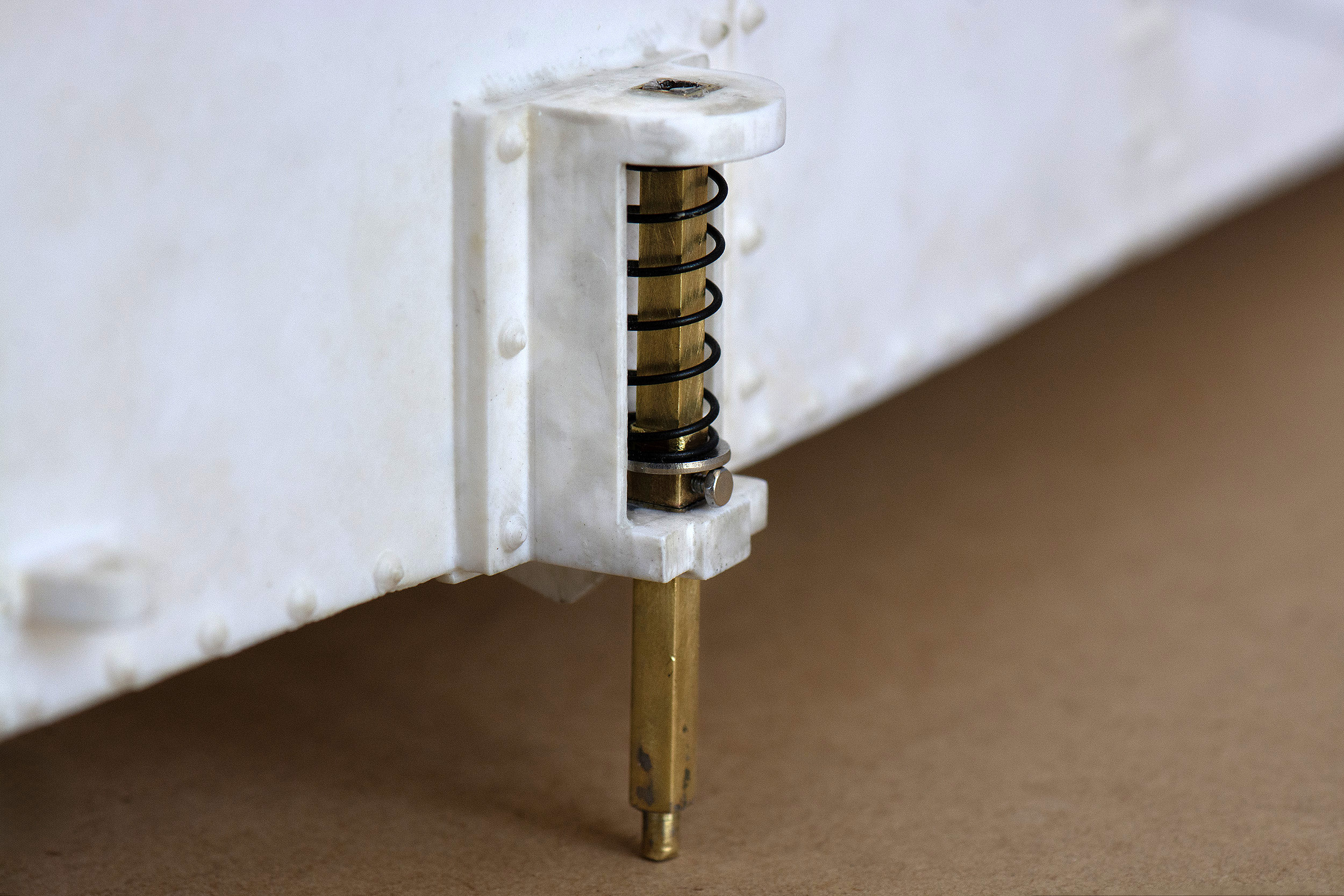

Probably the trickiest part was to make working suspension rods with a square profile. I use a 5x5mm square tube to reinforce holes in the plastic and a 4x4mm tube as the suspension shaft. It would be locked with drive trains by 3mm round rods on top and bottom. The washer is held up by a piece of 5x5mm tube, it is about 6mm long with rounded edges for the top 3mm (to fit the washer). M1.6 bolt holds all pieces together; if I unscrew it, the shaft can be pulled out and the whole suspension disassembled.
- Attachments
-
- DSC_1697 copy 2.jpg (1.25 MiB) Viewed 357 times
-
- DSC_1695 copy 2.jpg (1.04 MiB) Viewed 357 times
Re: Renault FT17 in 1/10 scale

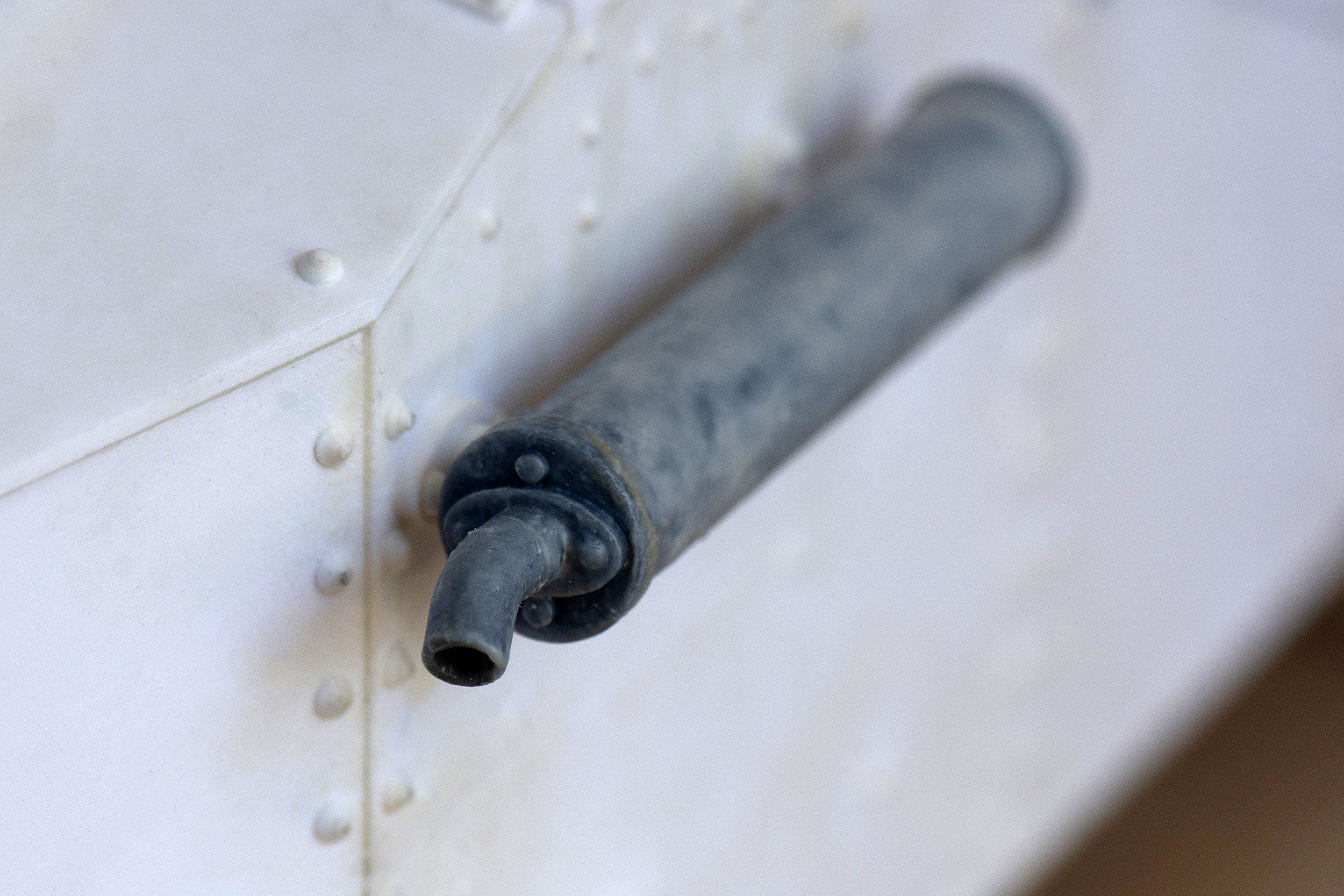

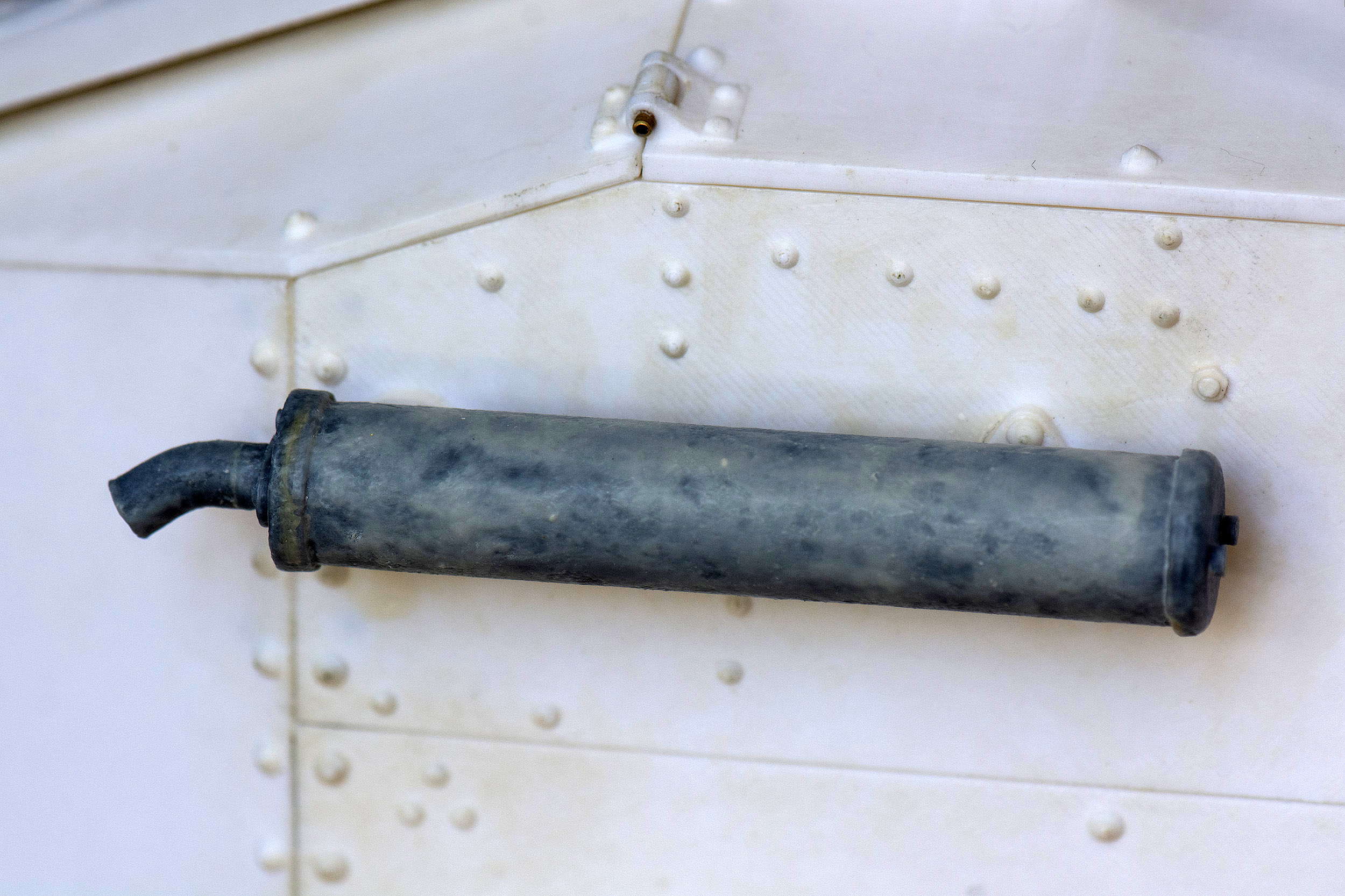

Finally, some texture was added to the exhaust pipe, and it is ready to be primed and painted.
- Attachments
-
- DSC_1694 copy 2.jpg (1.26 MiB) Viewed 357 times
-
- DSC_1692 copy 2.jpg (1.17 MiB) Viewed 357 times
Re: Renault FT17 in 1/10 scale
Yeah, in 1/6 it would be nice. Actually, I think there is a model in 1/6 scale on Cult3D for printing. It is a pretty good model too, with some extra mods.
Unfortunately, 1/6 is too big for me, I'll stick to 1/10 scale.
-
Stormbringer
- Sergeant
- Posts: 630
- Joined: Wed Aug 06, 2025 8:24 am
- Location: Near Edinburgh Scotland
Re: Renault FT17 in 1/10 scale
great progress on this
Cheers
Alan
Let slip the cats of war!!!!
Taigen Panther G
Taigen T34/85
Heng Long King Tiger
Heng Long Tiger 1
Heng Long Jagdpanther
Coolbank Crusader III
Alan
Let slip the cats of war!!!!
Taigen Panther G
Taigen T34/85
Heng Long King Tiger
Heng Long Tiger 1
Heng Long Jagdpanther
Coolbank Crusader III
-
Xiaoshan_Sailor
- Sergeant
- Posts: 747
- Joined: Thu Apr 12, 2018 3:04 pm
- Location: Hangzhou, China
Re: Renault FT17 in 1/10 scale
Excellent detailing!
The 1/6 FT-17 offered on Cults is by Minialand & was his very first foray into AFV models.
The 1/6 FT-17 offered on Cults is by Minialand & was his very first foray into AFV models.
-
HERMAN BIX
- Major-General
- Posts: 11760
- Joined: Sun Jan 12, 2014 12:15 am
- Location: Gold Coast,Australia
Re: Renault FT17 in 1/10 scale
Hell of a job Mr Hogus innovative solution to the suspension.
HL JAGDPANTHER,HL TIGER 1,HL PzIII MUNITIONSCHLEPPER, HL KT OCTOPUS,HL PANTHER ZU-FUSS,HL STuG III,HL T34/85 BEDSPRING,
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
-
Herr Dr. Professor
- Major
- Posts: 5894
- Joined: Mon Apr 22, 2019 10:48 pm
- Location: Southern Wisconsin USA
Re: Renault FT17 in 1/10 scale
"With a bit of ASB/PETG glue added, it is pretty good to create surface texture (with stabbing brush motion)." Thank you for the great tip!
Re: Renault FT17 in 1/10 scale
Thank you
Yes, you're right. I'm only interested in 1/10 scale, so I forgot who did it.The 1/6 FT-17 offered on Cults is by Minialand & was his very first foray into AFV models.
He's got RENAULT R35, which I really want in my collection, but not ready for downscaling it to 1/10 yet.
I'm thinking about designing Hotchkiss H39 in 1/10 next year myself.
