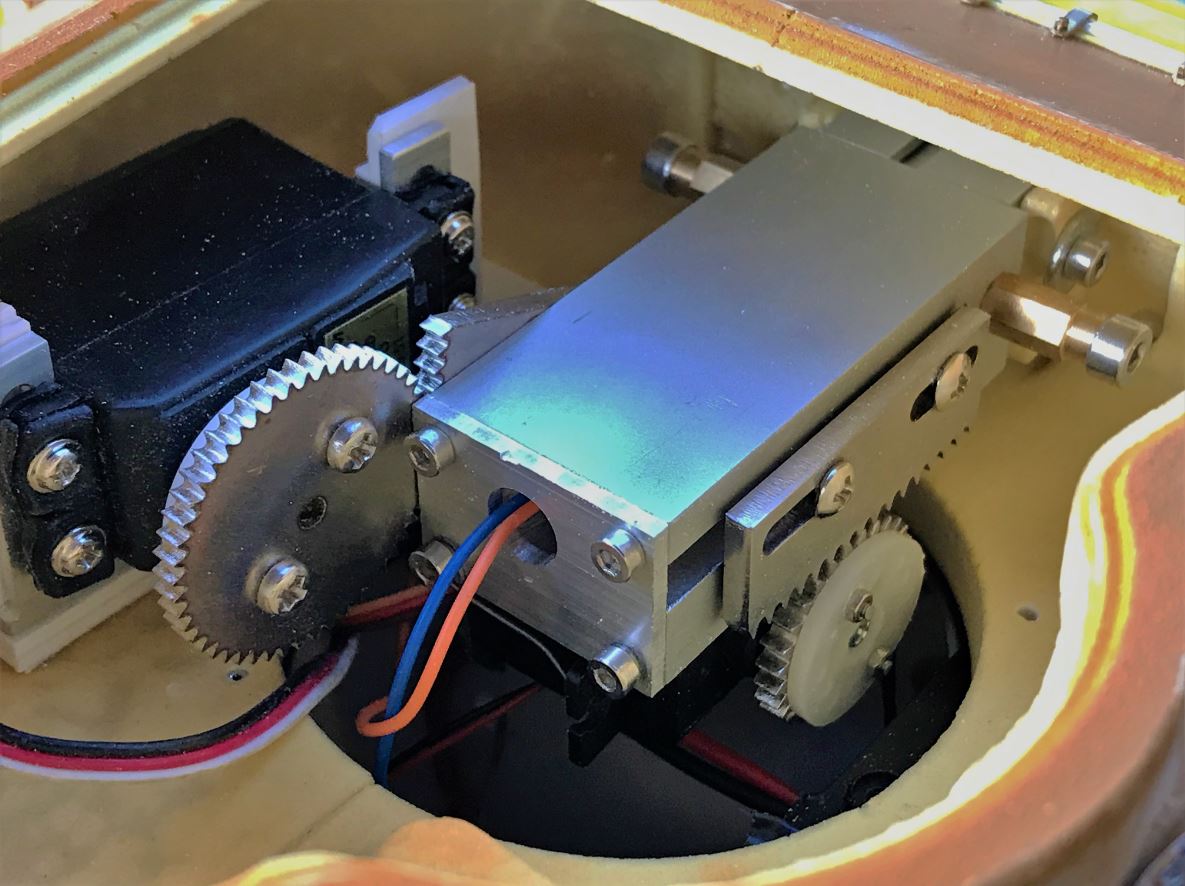

Nice work, the turret recoil unit is very smart and should work well. Quite a heavy unit though.
Are you putting side skirts on?
Are you putting side skirts on?
Re: Israeli Centurion - Shot Kal Gimel - IDF 1980s - Build
Definitely. The model is probably still only at 60% completion.Ad Lav wrote:Are you putting side skirts on?
thanks
Louis
- HERMAN BIX
- Brigadier
- Posts: 10427
- Joined: Sun Jan 12, 2014 12:15 am
- Location: Gold Coast,Australia
Re: Israeli Centurion - Shot Kal Gimel - IDF 1980s - Build
The mesh you used around the racks , what did you use ?
I found brass mesh used to restore fly screen windows in my local chain hardware outlet, you might have a similar type of stuff up there. It has the weave I think you are after
I found brass mesh used to restore fly screen windows in my local chain hardware outlet, you might have a similar type of stuff up there. It has the weave I think you are after
HL JAGDPANTHER,HL TIGER 1,HL PzIII MUNITIONSCHLEPPER, HL KT OCTOPUS,HL PANTHER ZU-FUSS,HL STuG III,HL T34/85 BEDSPRING,
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
Re: Israeli Centurion - Shot Kal Gimel - IDF 1980s - Build
Its leftover engine grill from Verlinden 1/15 Tiger that i built 25 years ago...HERMAN BIX wrote:The mesh you used around the racks , what did you use ?
Continuing with the build.
This post is for the installation of the turret and main electronics, with a short gunnery video at the end.
The Clark gun flash is installed. I do not understand why they make the wire so short, it always need to be lenghtened.

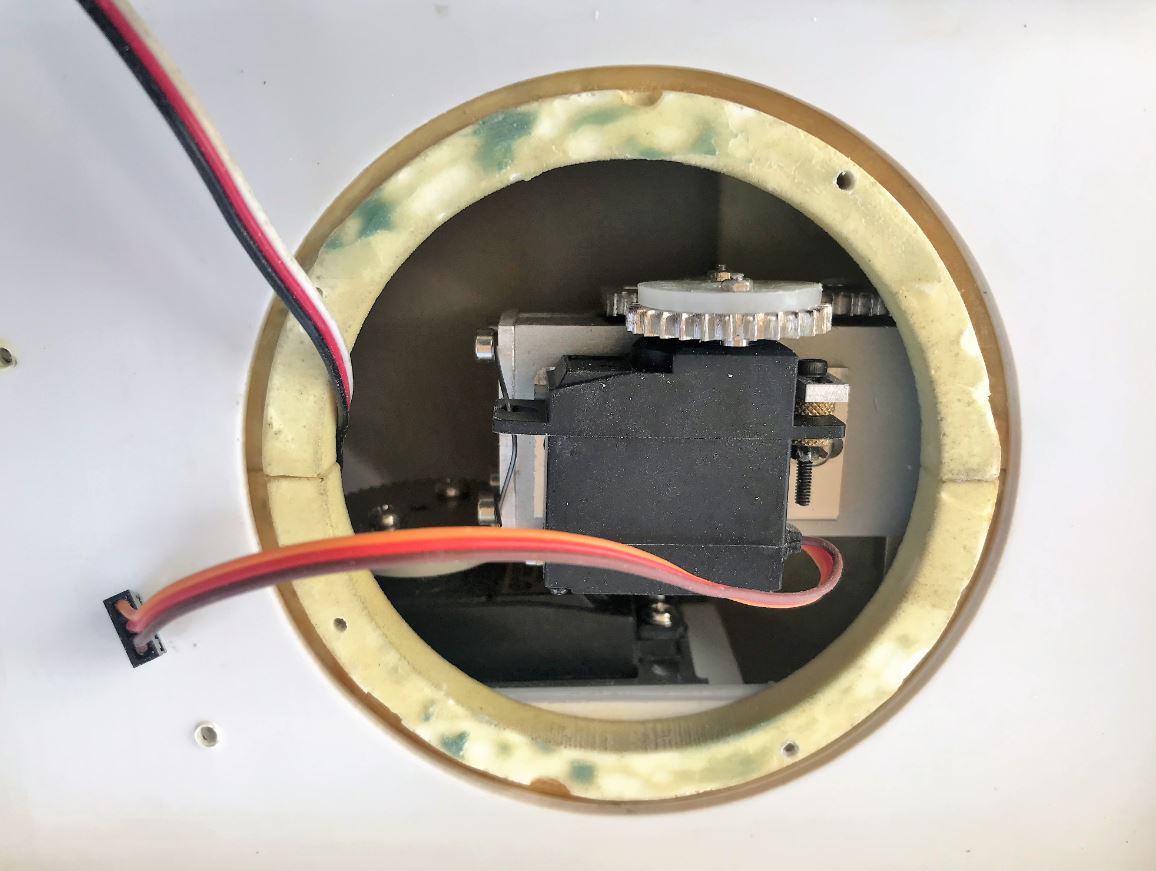

The turret ring is smaller than the hole on the upper hull, allowing for a Heng Long turret rotation ring to simply fit in there, with the rim inside the groove. No need to do anything complicated or try to find a way to reuse the HL holes.

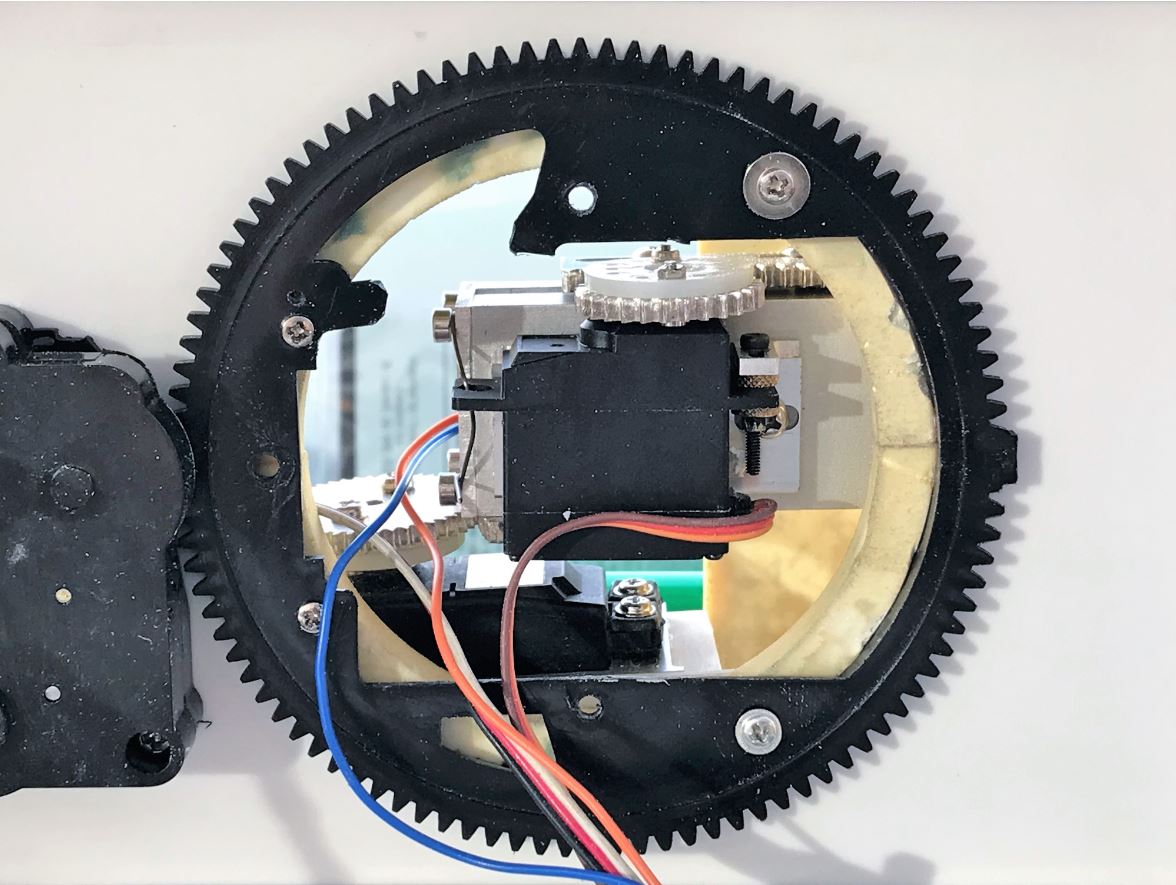

New holes and spare screws can be used to fix the rotation ring to the turret for a tight and perfect fit with the hull top. A standard HL rotation motor unit is used at the back.

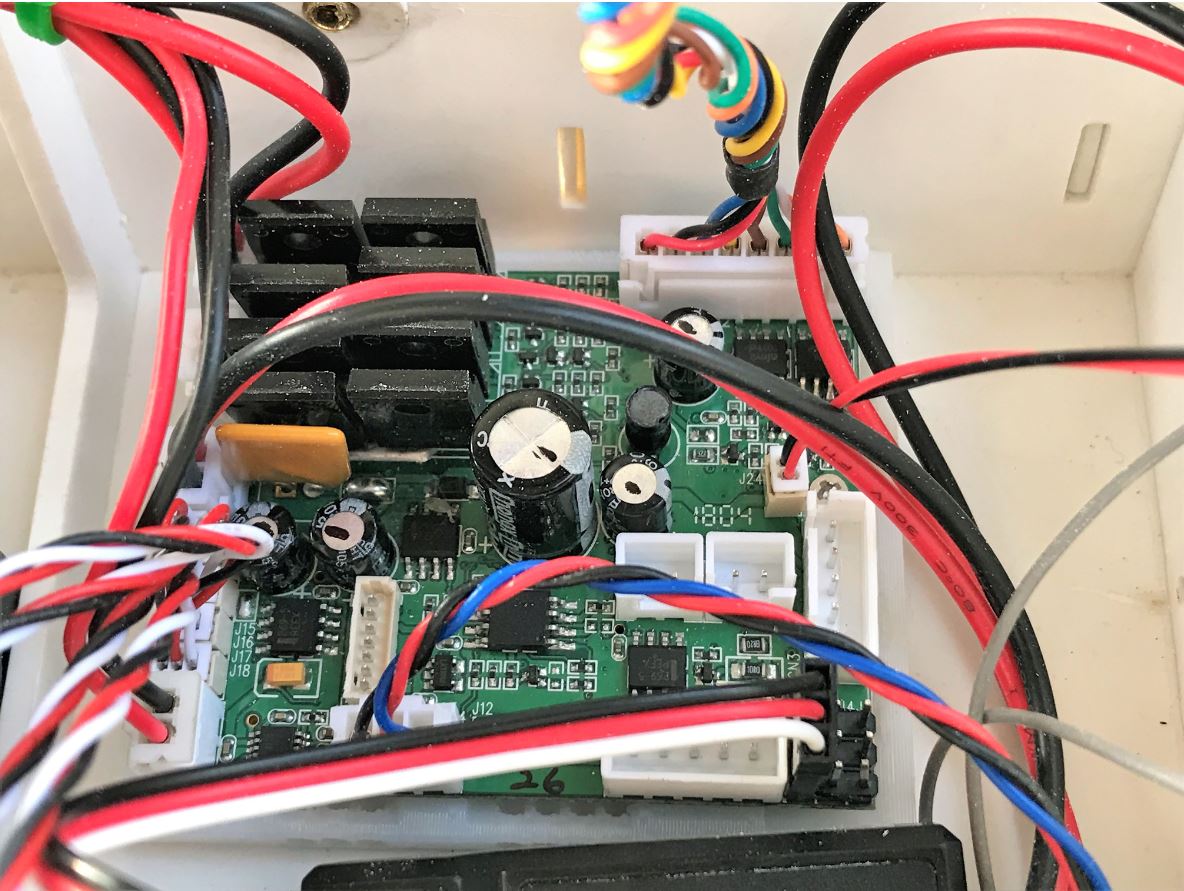

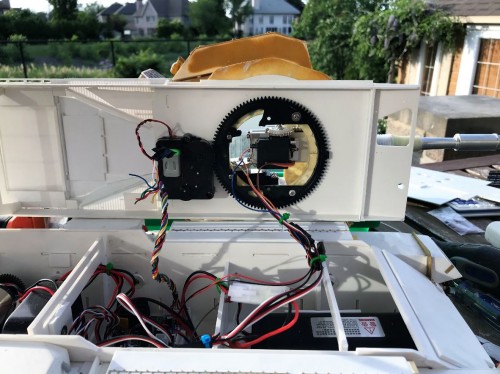

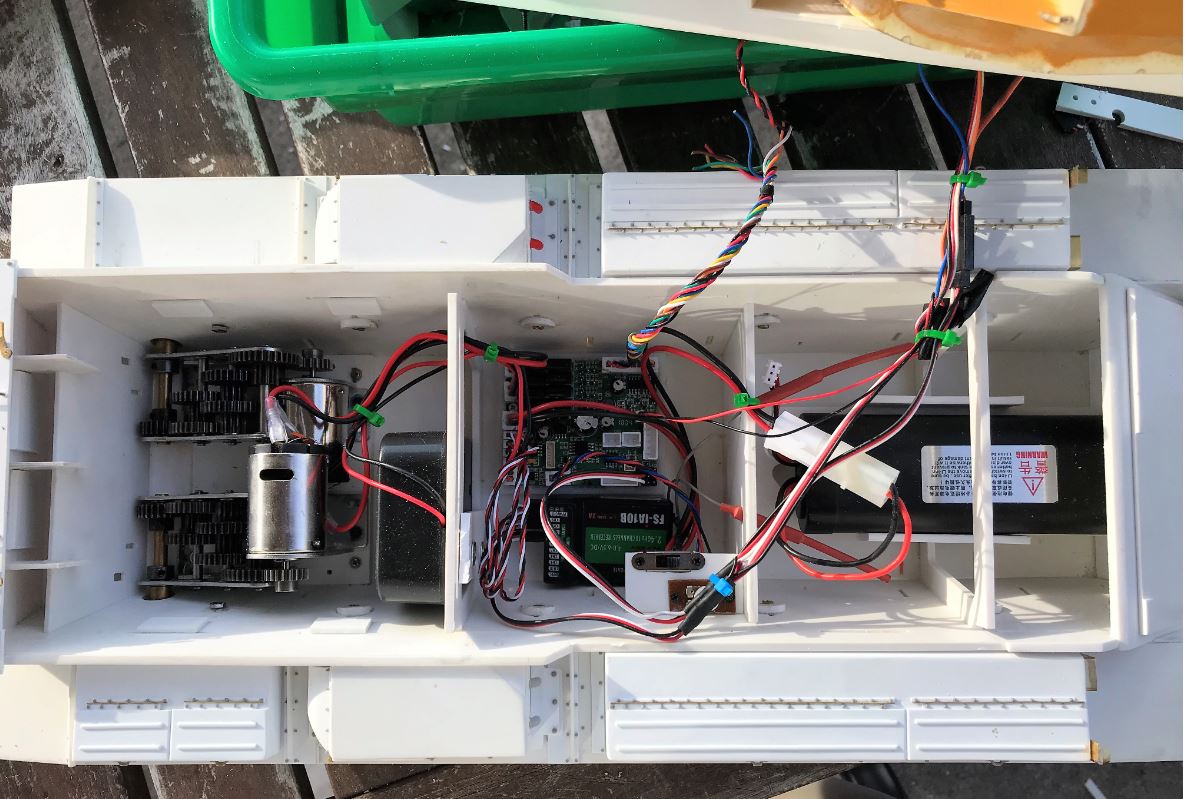

Overview of the electronics under the hood. Nothing fancy here; Mato gearbox, HL speaker, Clark TK-22 control board, Flysky 10 channel receiver, HL switch, HL volume control and a bulkhead and battery tray at the front.
Gun elevation is linked to channel 6 on the VRB knob.
A Clark M-26 Pershing TK-22 is used.

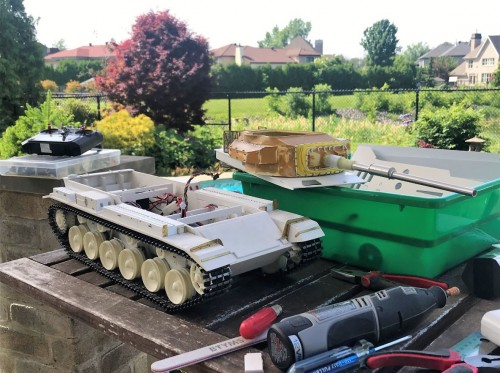

Testing underway
Here is a short YouTube video of the turret rotation, gun elevation and recoil.
https://youtu.be/WY8TrtmrI-E
Regards, Louis
Last edited by lmcq11 on Thu Jun 27, 2019 12:12 pm, edited 1 time in total.
Re: Israeli Centurion - Shot Kal Gimel - IDF 1980s - Build
Hi,
This is a short post for the driver's hatch.

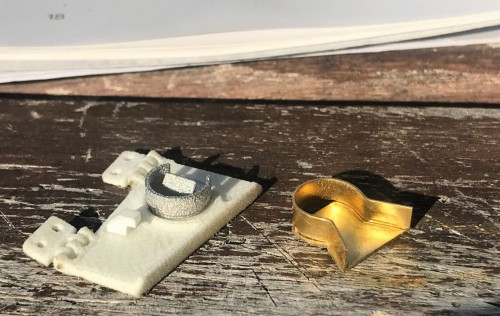

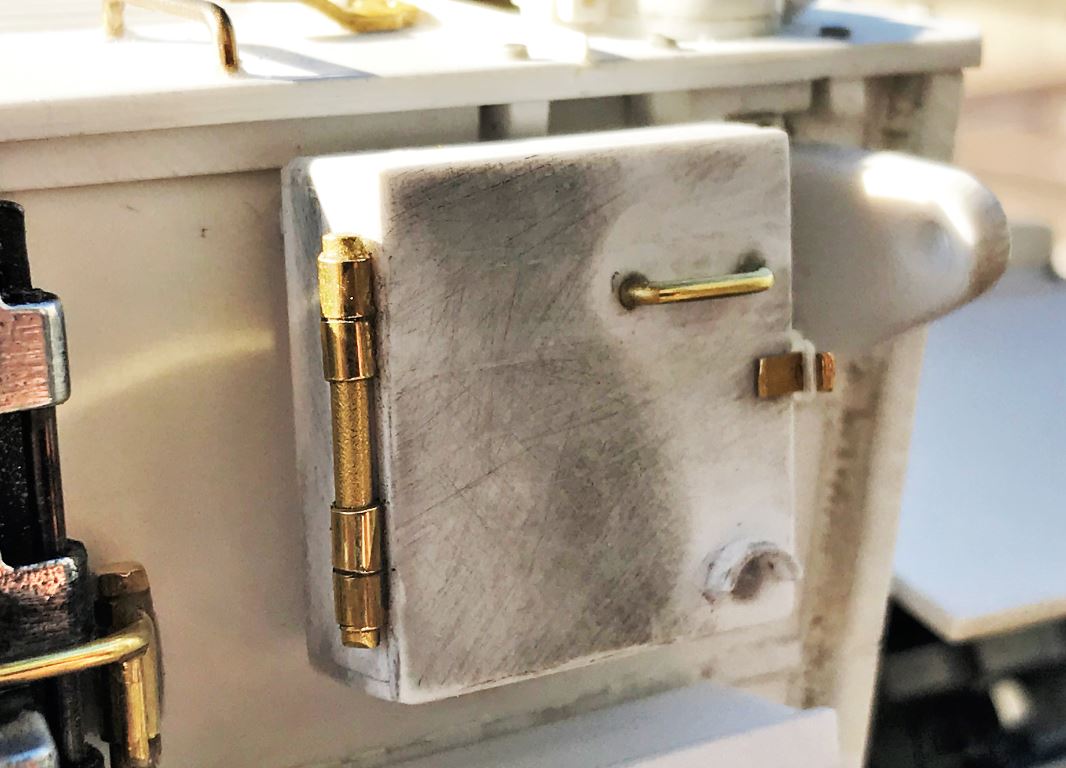

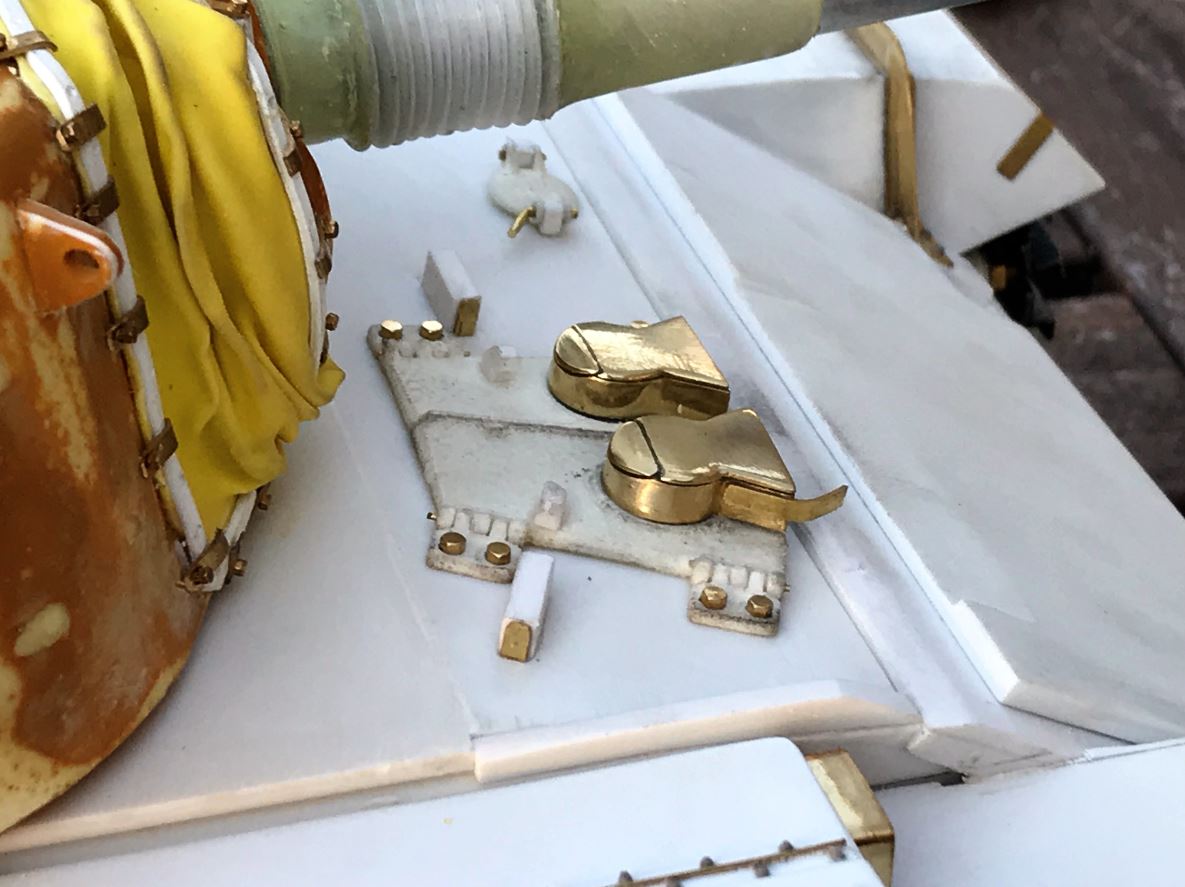

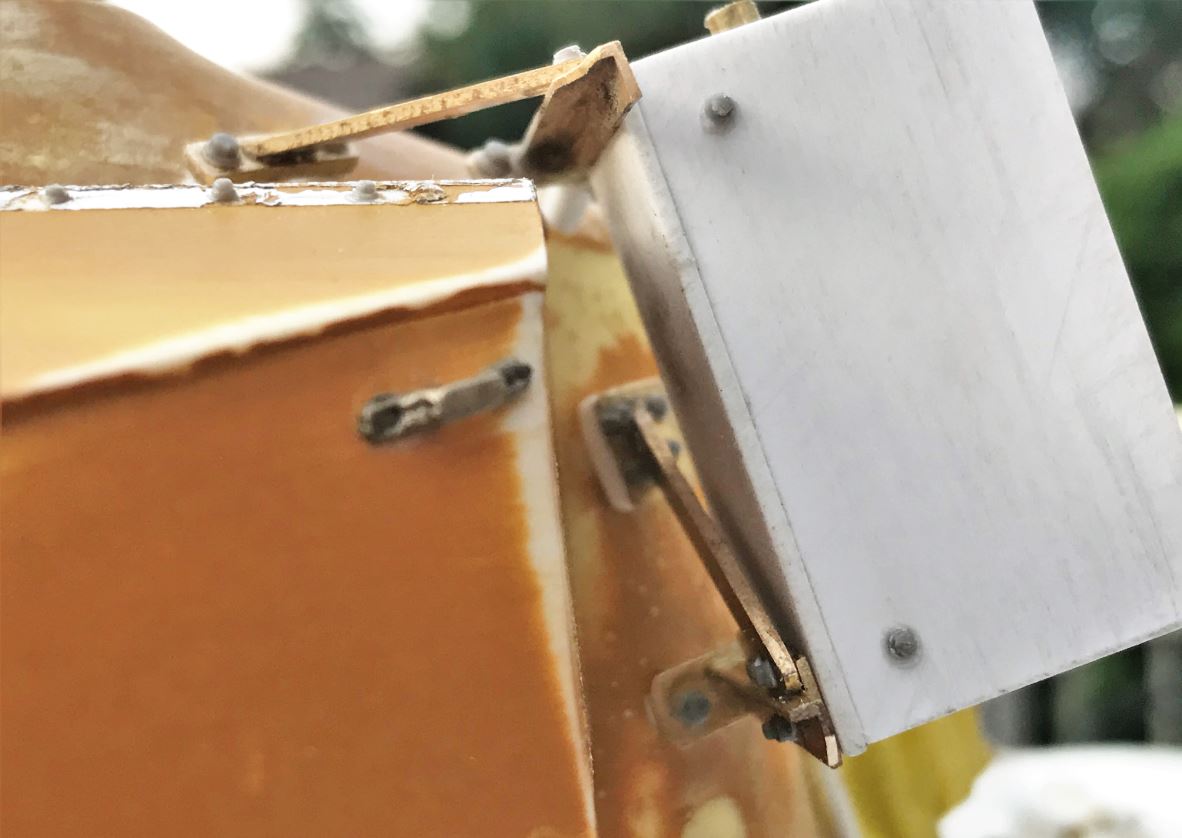

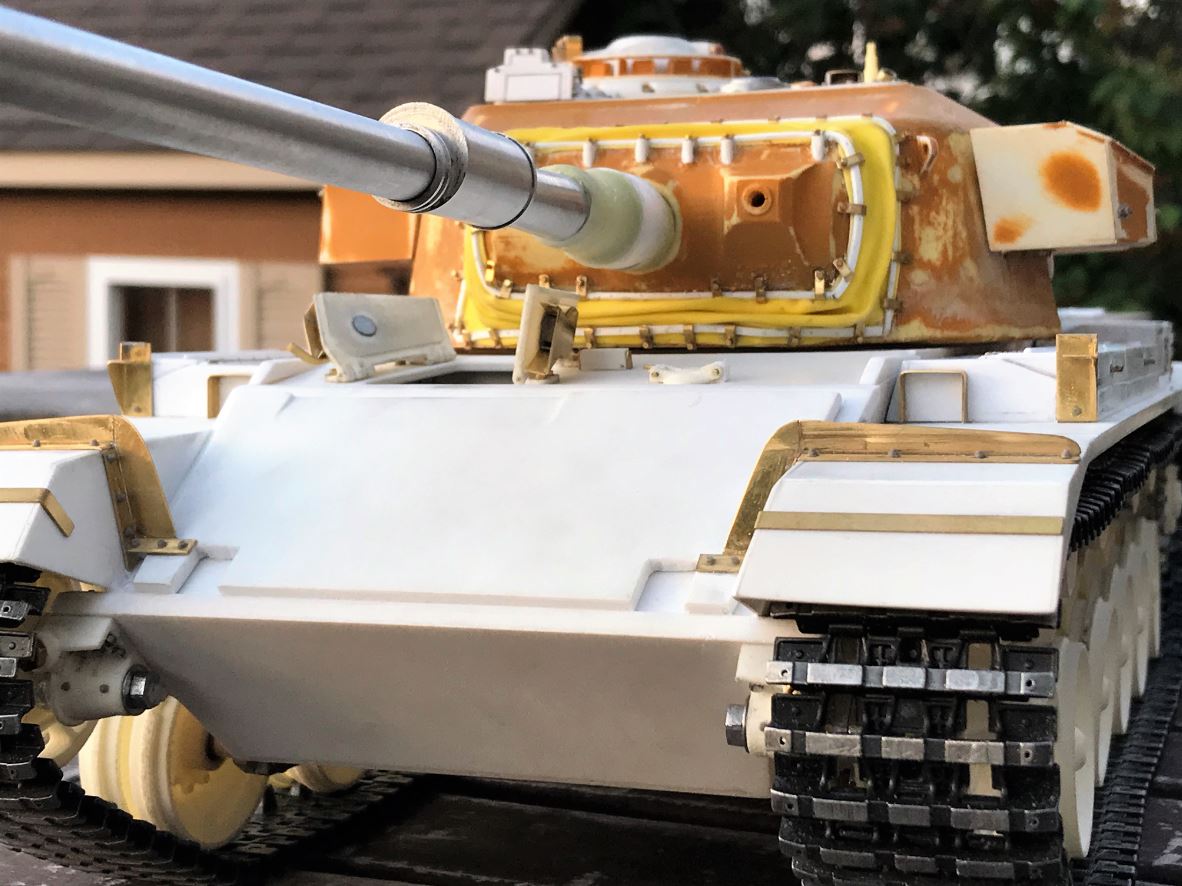

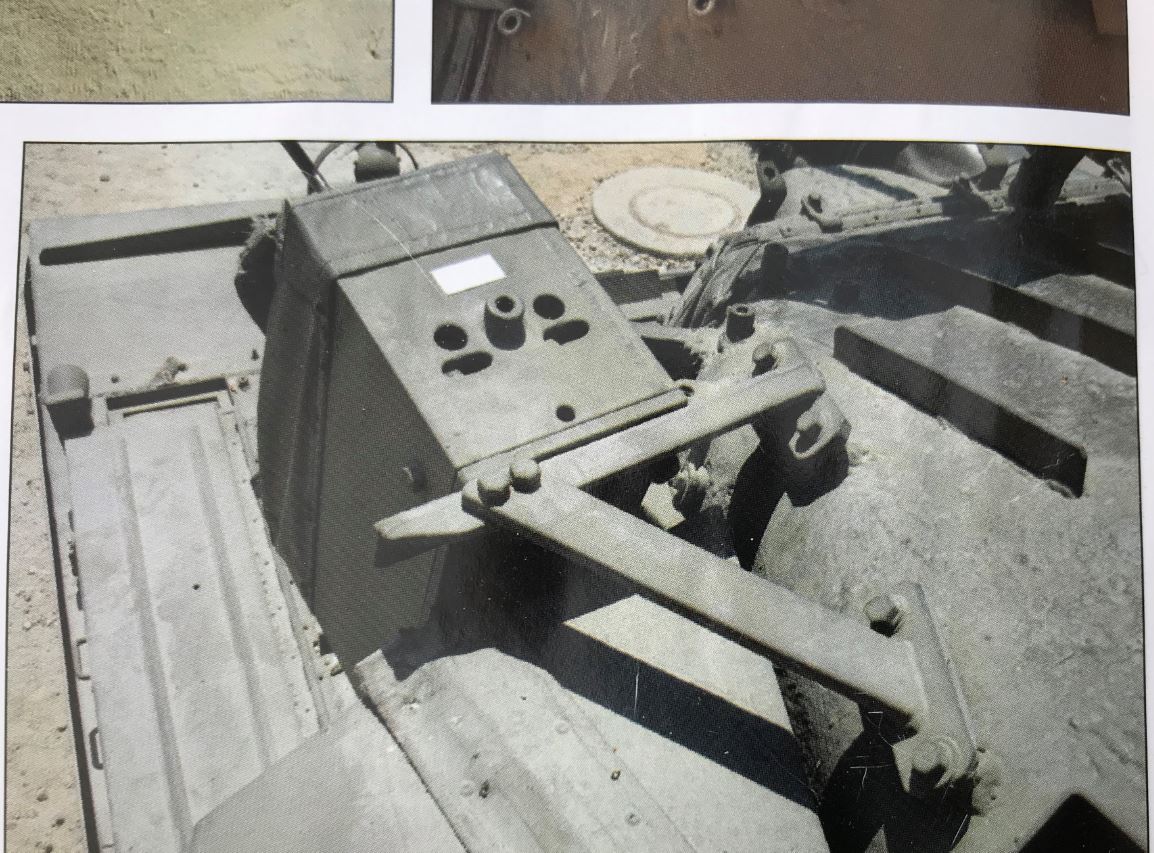

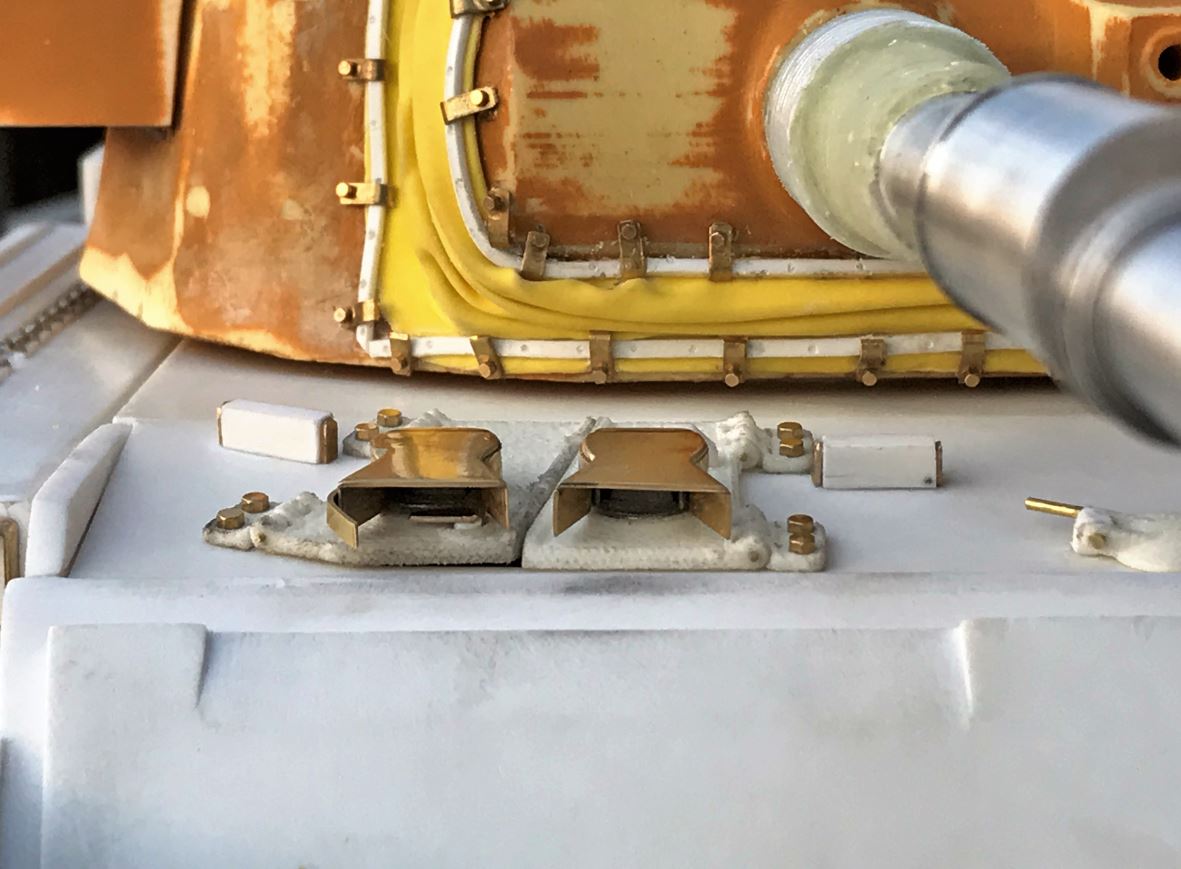

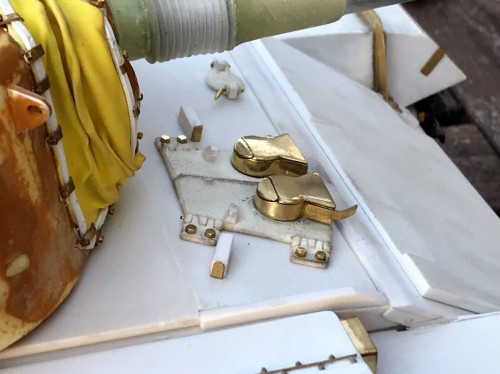

The 3D printed Ludwig hatch opening is made functional with the provided hinges. The IDF Centurion have a different external periscope cover. I saw two kinds of cover in murky, partial and rare references. I did some interpretations and repro one version in brass as an overlay cover for both sides.

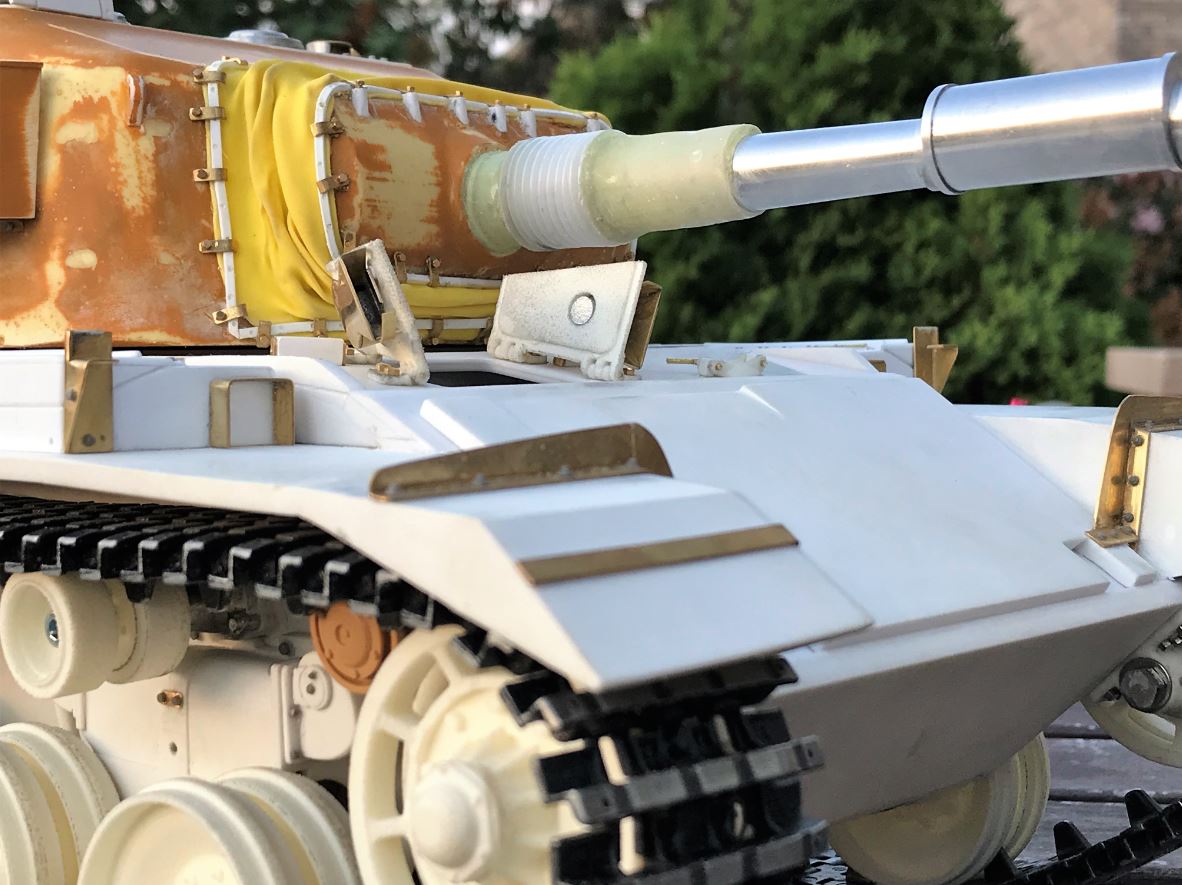

The frontal arrangement for the hull top sitting on the chassis has been reworked, and 2 plasticard parts has been added on both side. I am noticing now I forgot the putty job.
Regards, Louis
This is a short post for the driver's hatch.
The 3D printed Ludwig hatch opening is made functional with the provided hinges. The IDF Centurion have a different external periscope cover. I saw two kinds of cover in murky, partial and rare references. I did some interpretations and repro one version in brass as an overlay cover for both sides.
The frontal arrangement for the hull top sitting on the chassis has been reworked, and 2 plasticard parts has been added on both side. I am noticing now I forgot the putty job.
Regards, Louis
Re: Israeli Centurion - Shot Kal Gimel - IDF 1980s - Build
Hi,
Now that the heavy construction is over, I will spend some weeks going around the vehicle and installing all the individual detailed components.

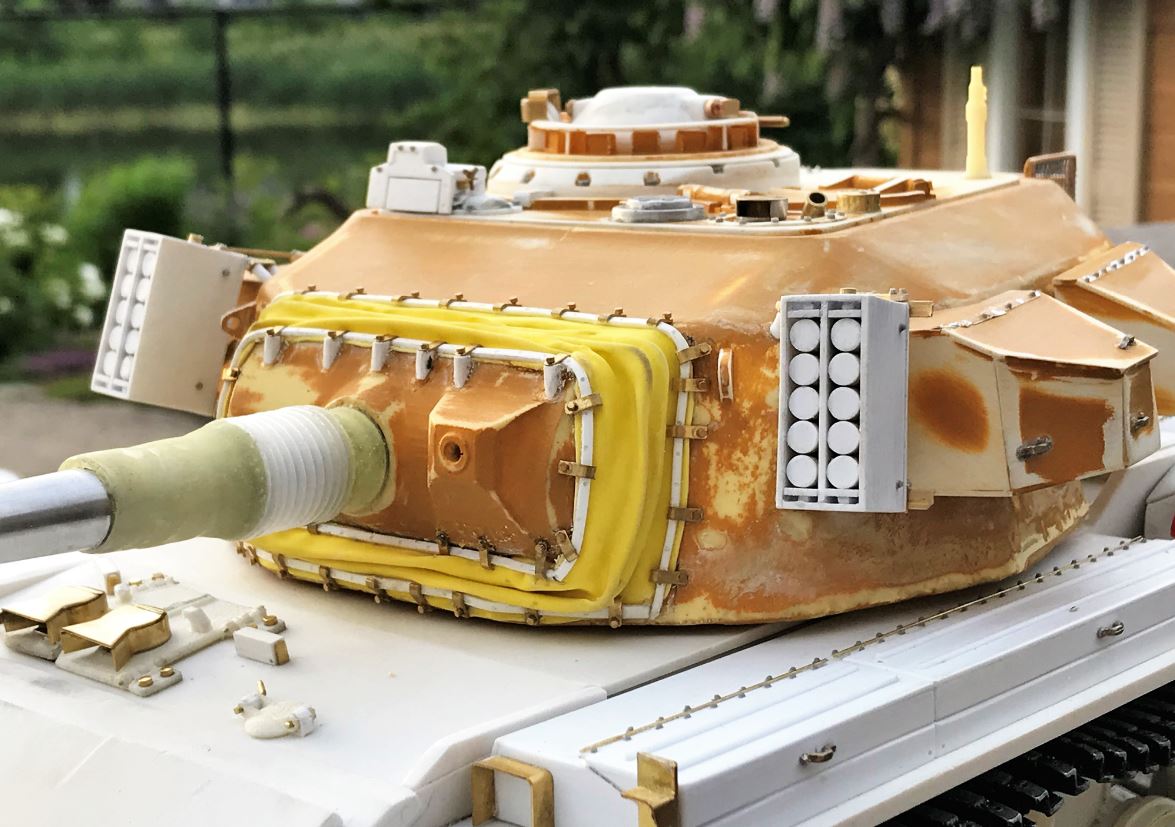

Here are the smoke dischargers bins.

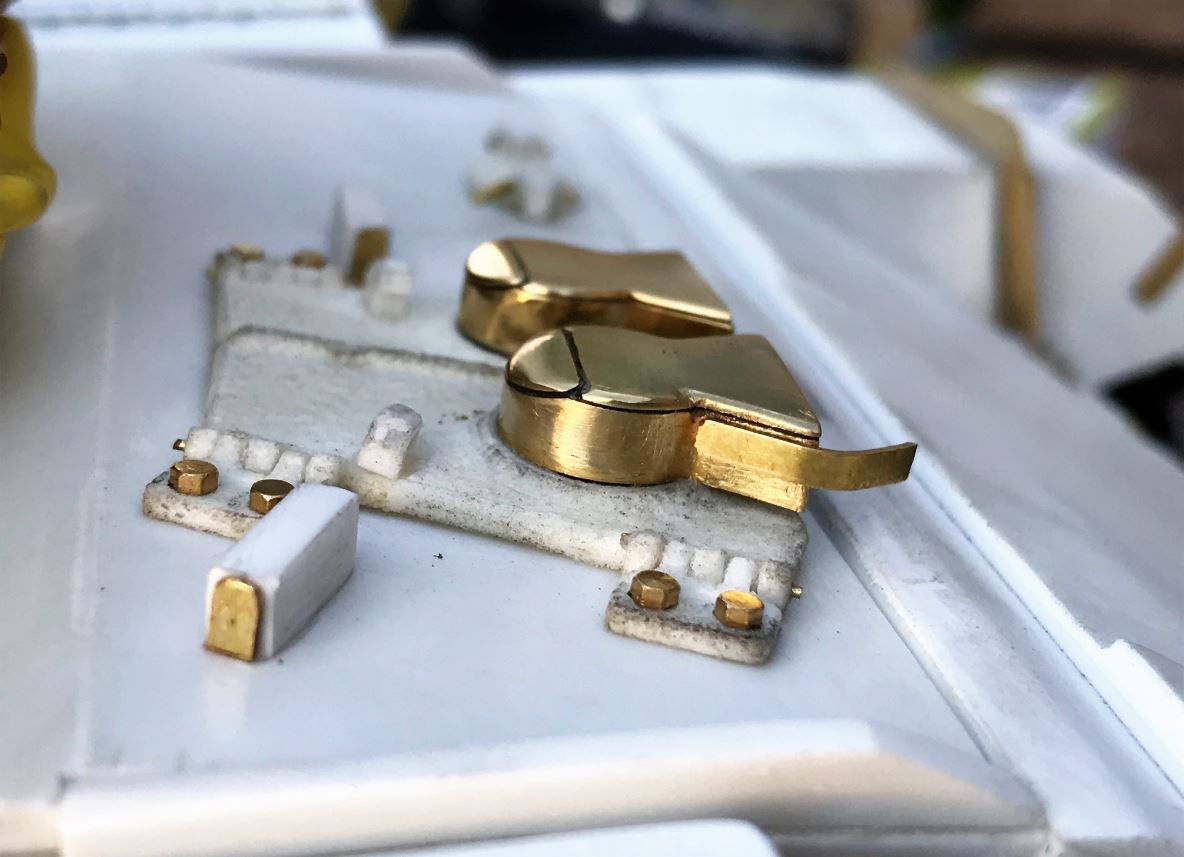

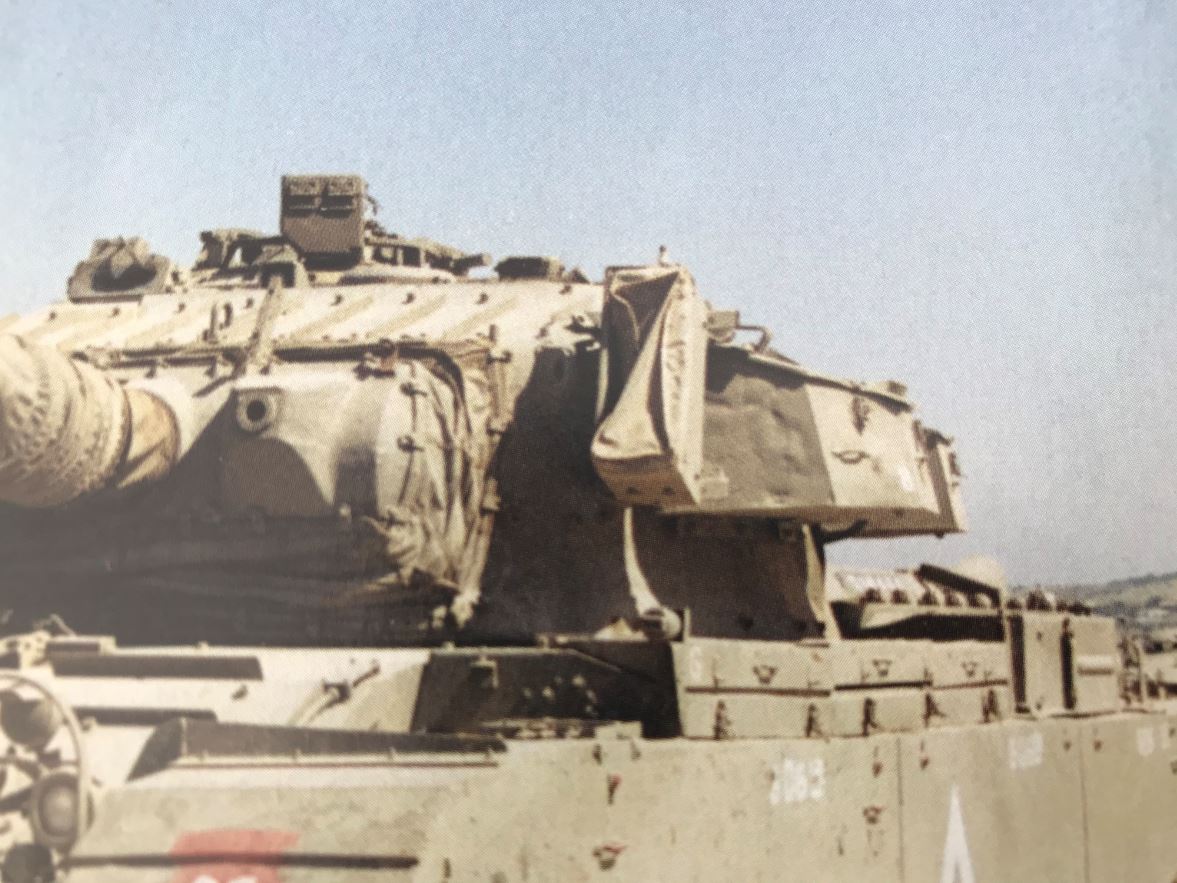

For an accurate Sho't Kal, the Mark 3 smoke grenade launchers need to be discarded and replaced by bins containing 10 smoke canisters each on both side of the mantlet. When not in combat, they are covered with a canvas that can be removed with a zipper.

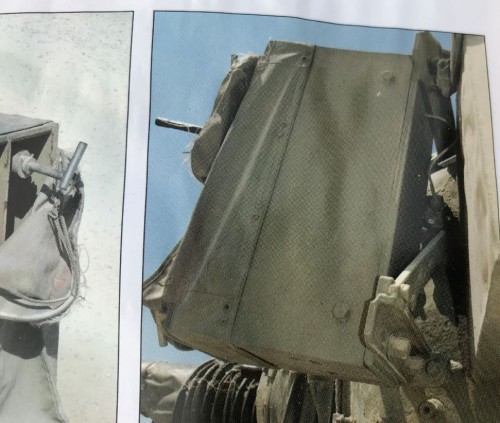

I am extremely grateful for the book "Centurion of the IDF Vol 7" for having provided 2 full pages of detailed shots of the bins and attachments. This book is a must for this build and highly recommended.

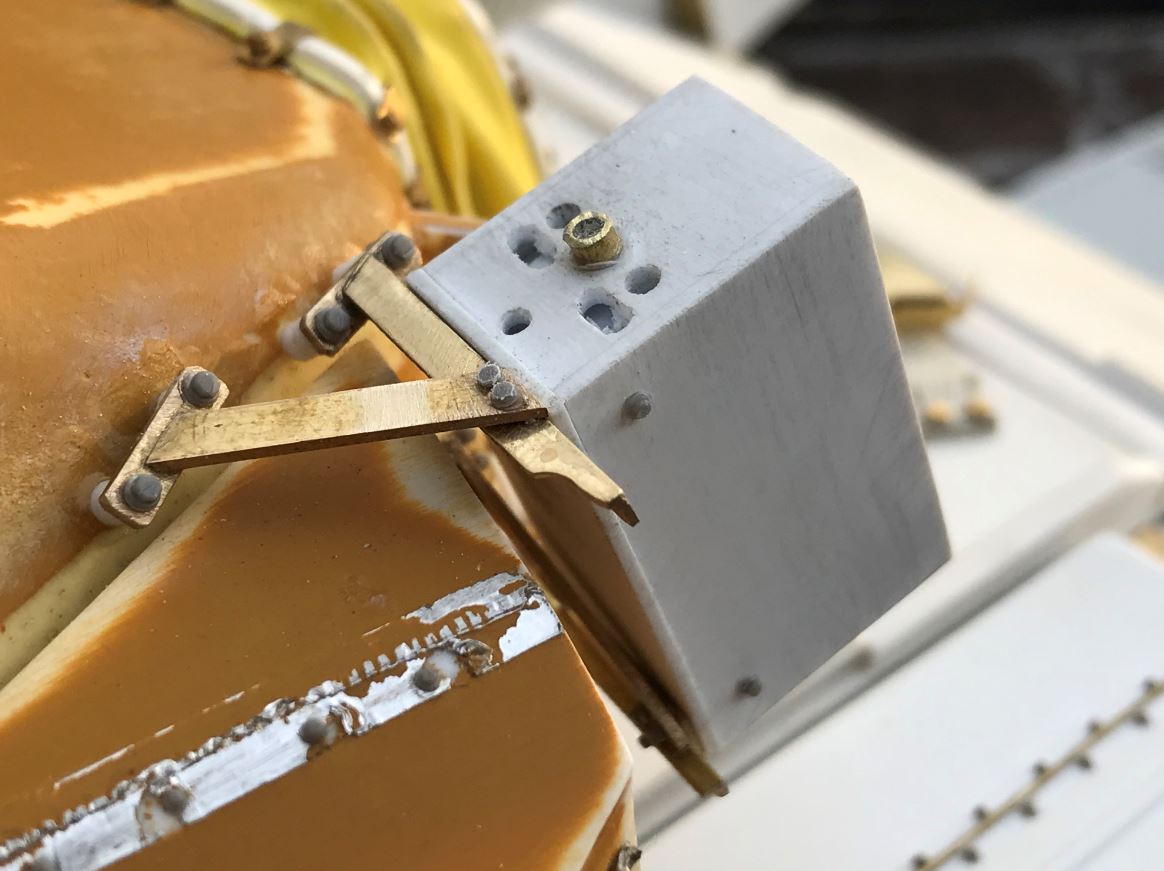

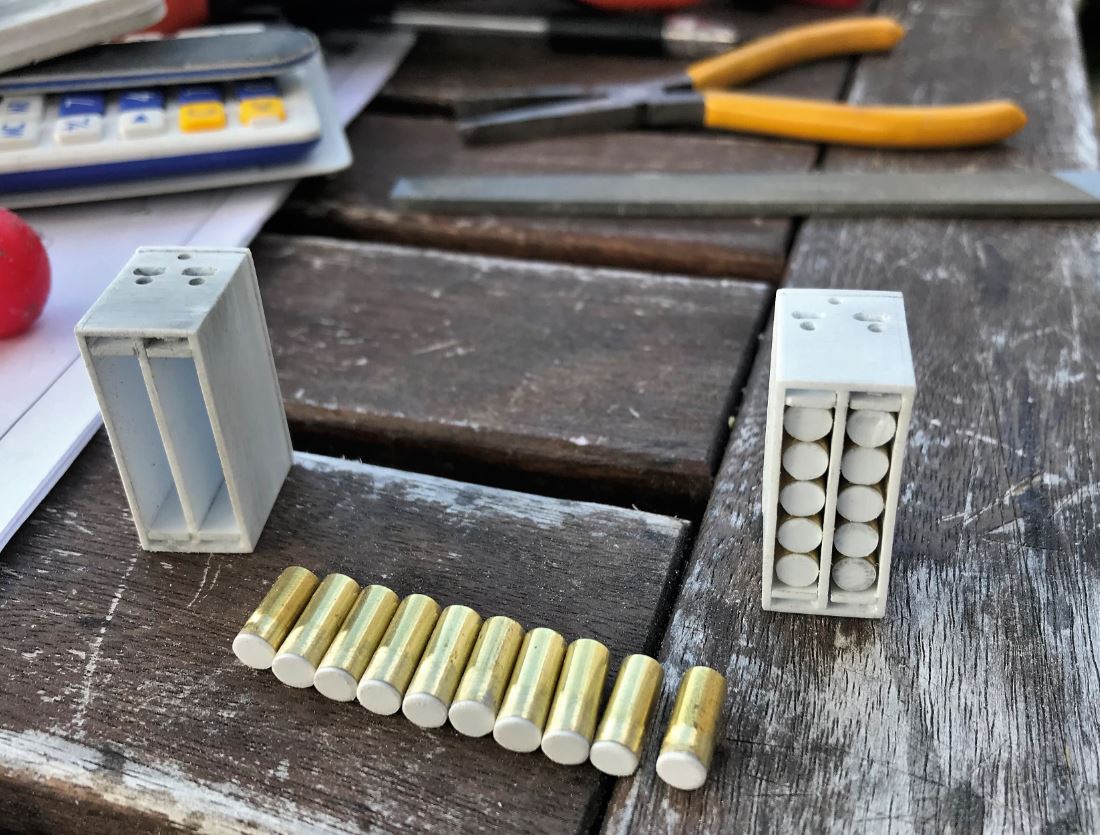

The bins are built using measurements derived from the 1/35 AFV Club kit. These are rectangular and simple to make.

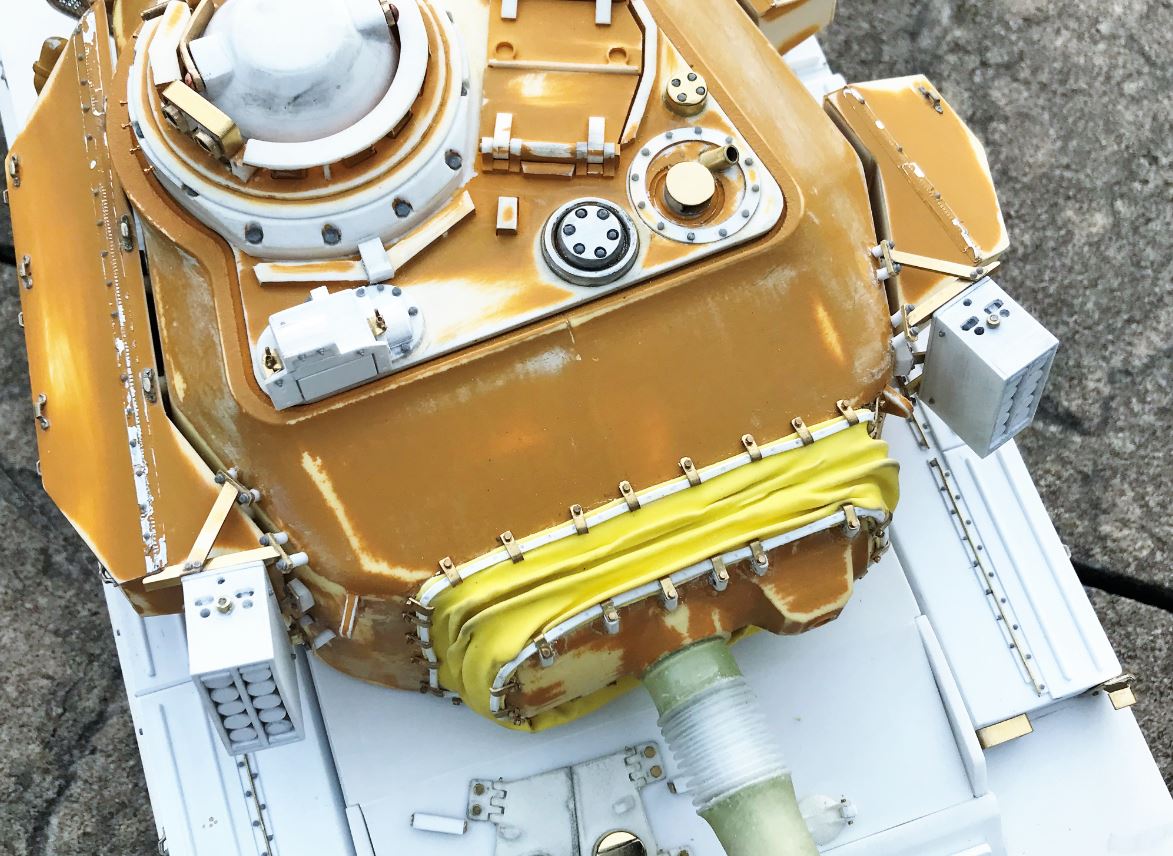

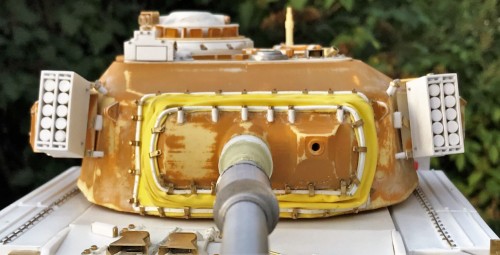

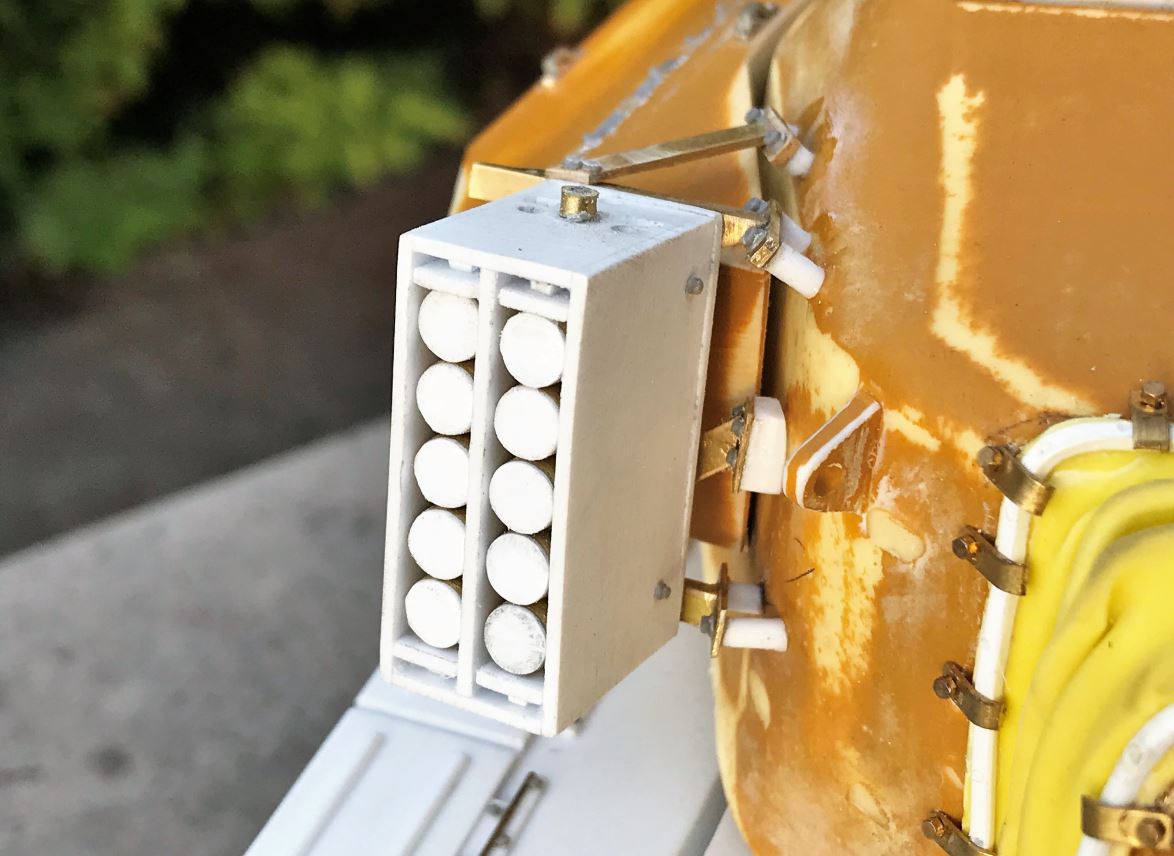

The smoke canister bins are built and installed. Although I will represent the bins with the canvas covers removed at the front, the side of the a canvas need to be installed but only after painting.
Positioning the bins is complicated and takes a few attempts. There is an angle, and the bottom of the smoke bin needs to be aligned with the bottom of the side stowage bins.
Regards, Louis
Now that the heavy construction is over, I will spend some weeks going around the vehicle and installing all the individual detailed components.
Here are the smoke dischargers bins.
For an accurate Sho't Kal, the Mark 3 smoke grenade launchers need to be discarded and replaced by bins containing 10 smoke canisters each on both side of the mantlet. When not in combat, they are covered with a canvas that can be removed with a zipper.
I am extremely grateful for the book "Centurion of the IDF Vol 7" for having provided 2 full pages of detailed shots of the bins and attachments. This book is a must for this build and highly recommended.
The bins are built using measurements derived from the 1/35 AFV Club kit. These are rectangular and simple to make.
The smoke canister bins are built and installed. Although I will represent the bins with the canvas covers removed at the front, the side of the a canvas need to be installed but only after painting.
Positioning the bins is complicated and takes a few attempts. There is an angle, and the bottom of the smoke bin needs to be aligned with the bottom of the side stowage bins.
Regards, Louis
Re: Israeli Centurion - Shot Kal Gimel - IDF 1980s - Build
Great work Louis!
The Grenade Launchers look fantastic.
Barry
The Grenade Launchers look fantastic.
Barry
"Details make perfection, and perfection is not a detail."
Leonardo Da Vinci
Leonardo Da Vinci
- HERMAN BIX
- Brigadier
- Posts: 10427
- Joined: Sun Jan 12, 2014 12:15 am
- Location: Gold Coast,Australia
Re: Israeli Centurion - Shot Kal Gimel - IDF 1980s - Build
Im not sure which is the most outstanding achievement..........the actual construction of the details, or the scintillating pictures that portray them in every aspect.
Certainly is an epic build that we have been spoiled with again.
Certainly is an epic build that we have been spoiled with again.
HL JAGDPANTHER,HL TIGER 1,HL PzIII MUNITIONSCHLEPPER, HL KT OCTOPUS,HL PANTHER ZU-FUSS,HL STuG III,HL T34/85 BEDSPRING,
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
Re: Israeli Centurion - Shot Kal Gimel - IDF 1980s - Build
Thank you Mr Herman and Barry for your encouragements. In my case, the wait for a Centurion is over.

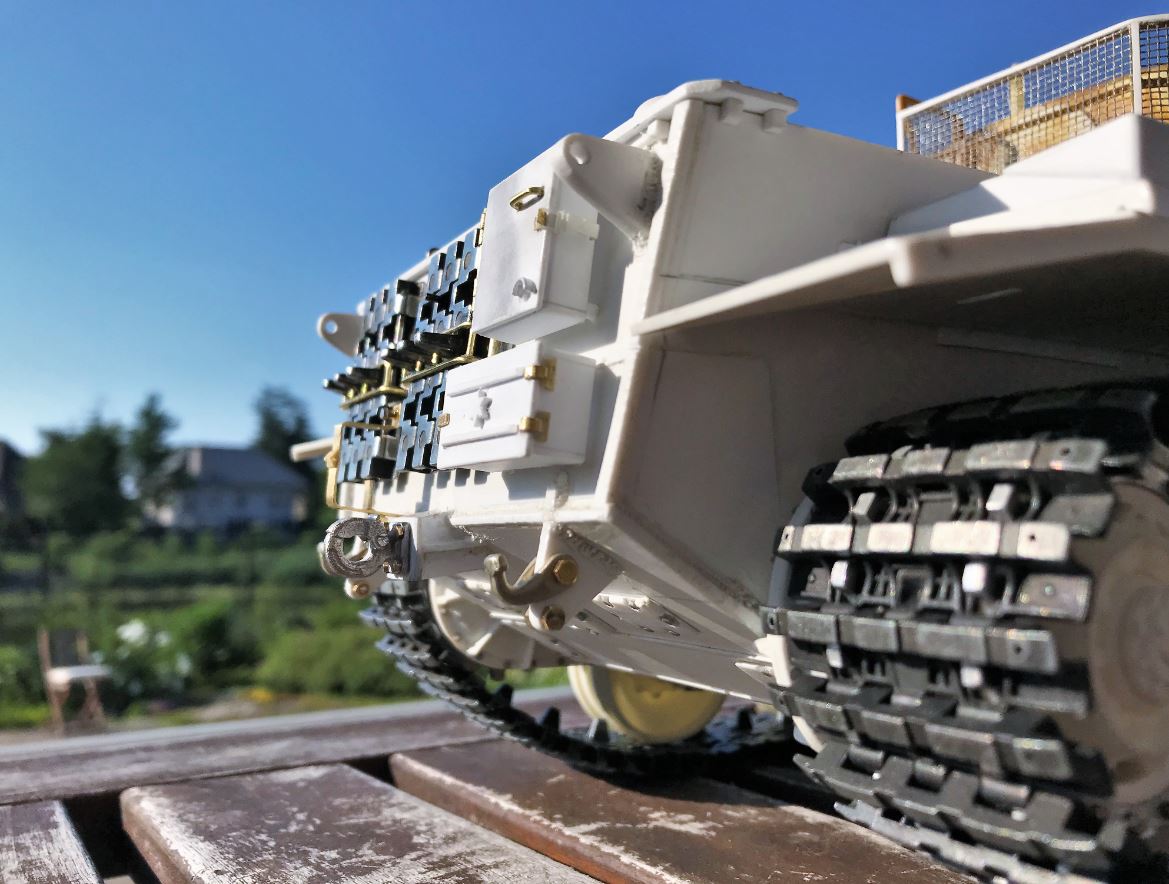

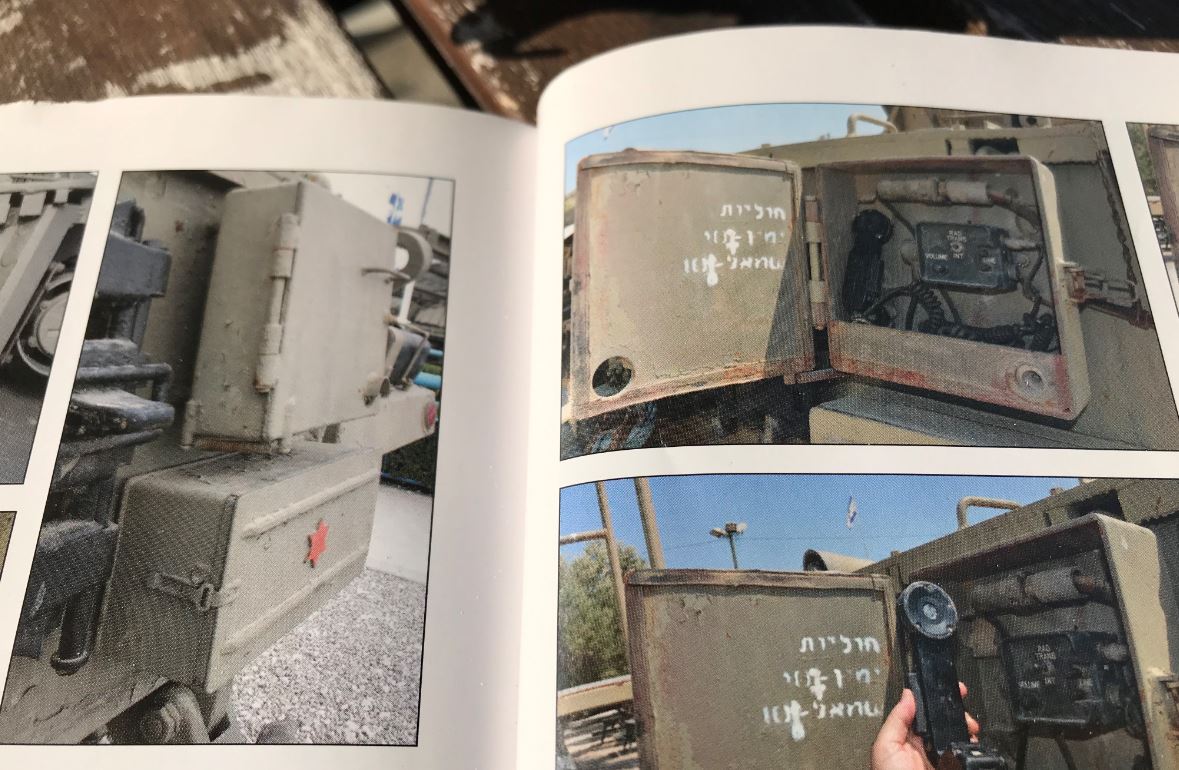

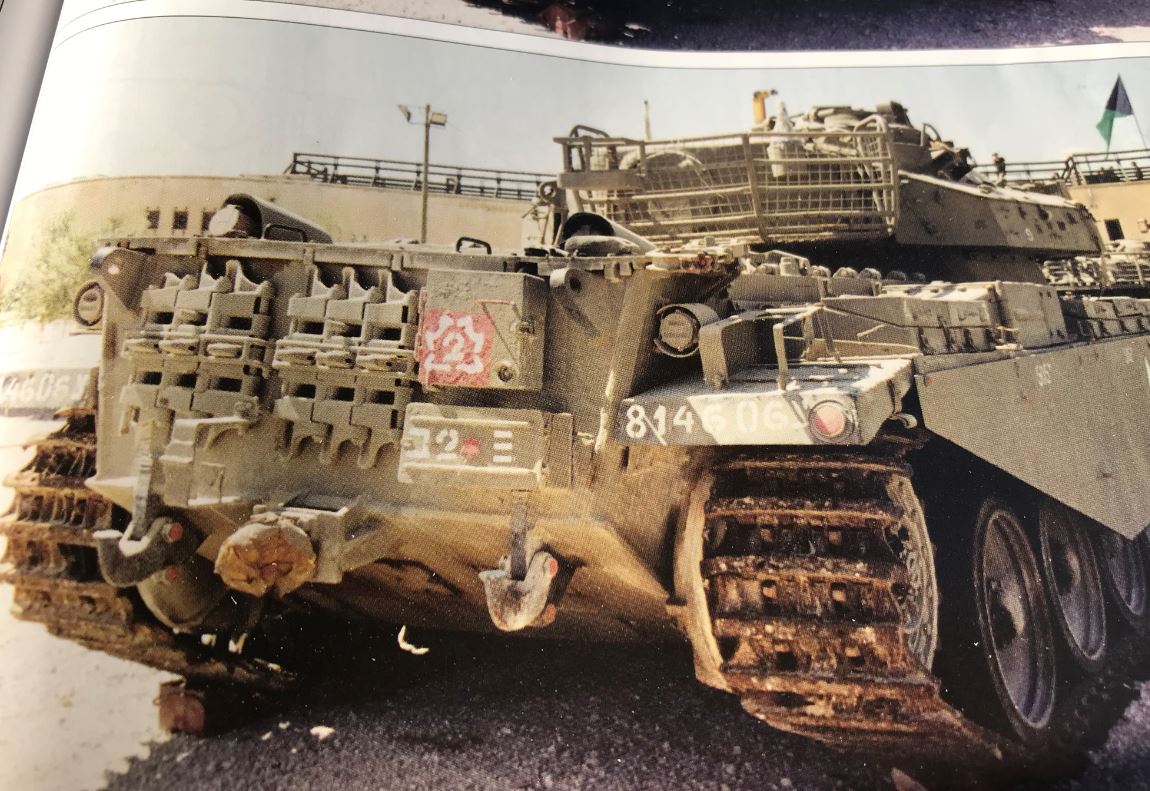

Here is the back of the Sho't Kal. It has almost nothing to do anymore with the original Centurion Mark 3, with many American items common with the M48/M60 being used.

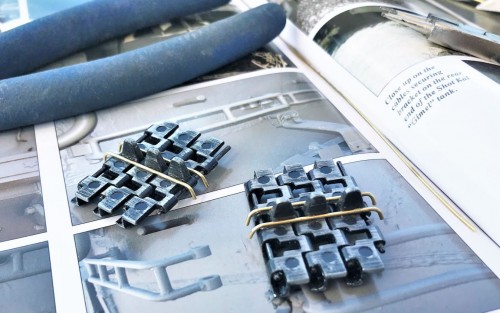

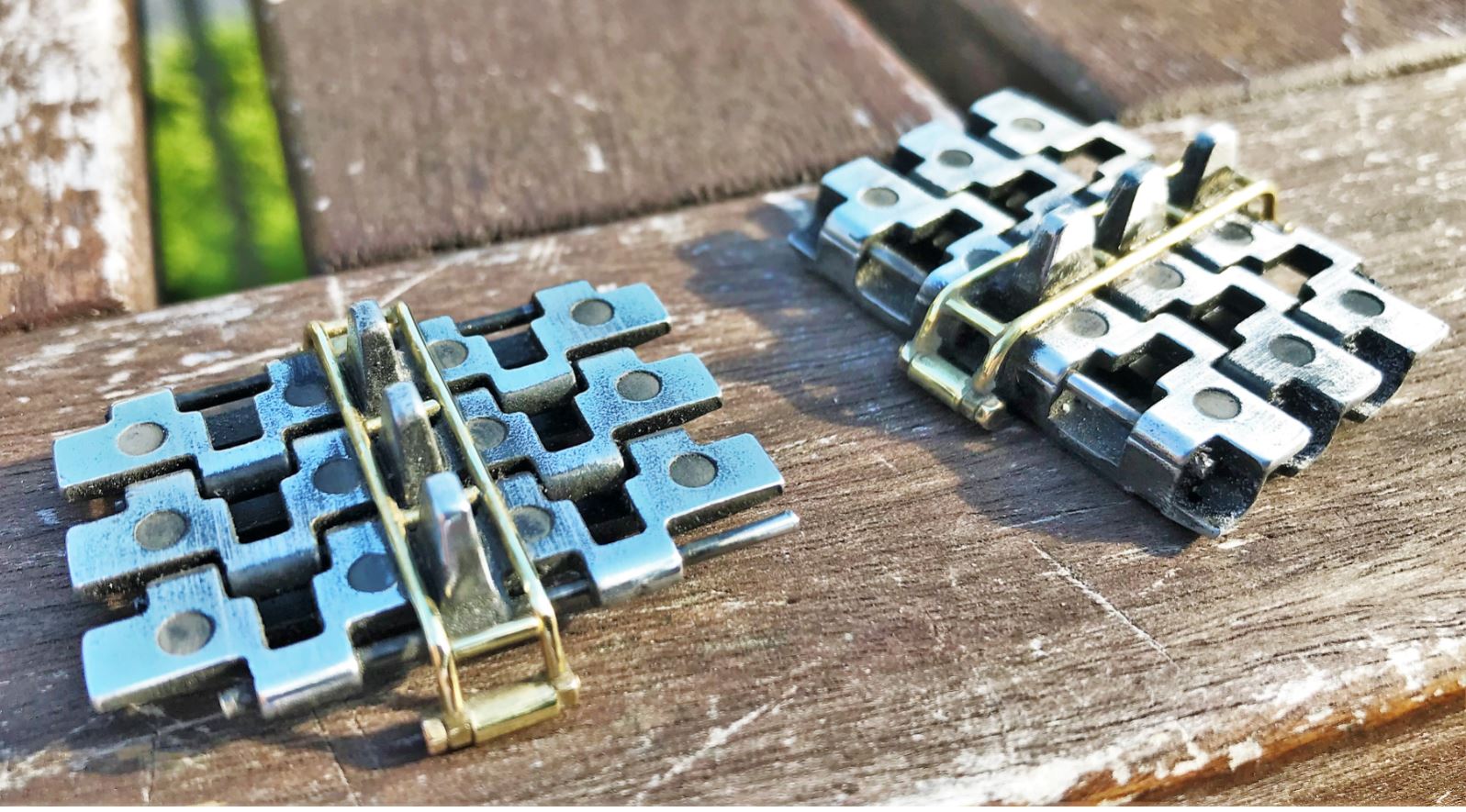

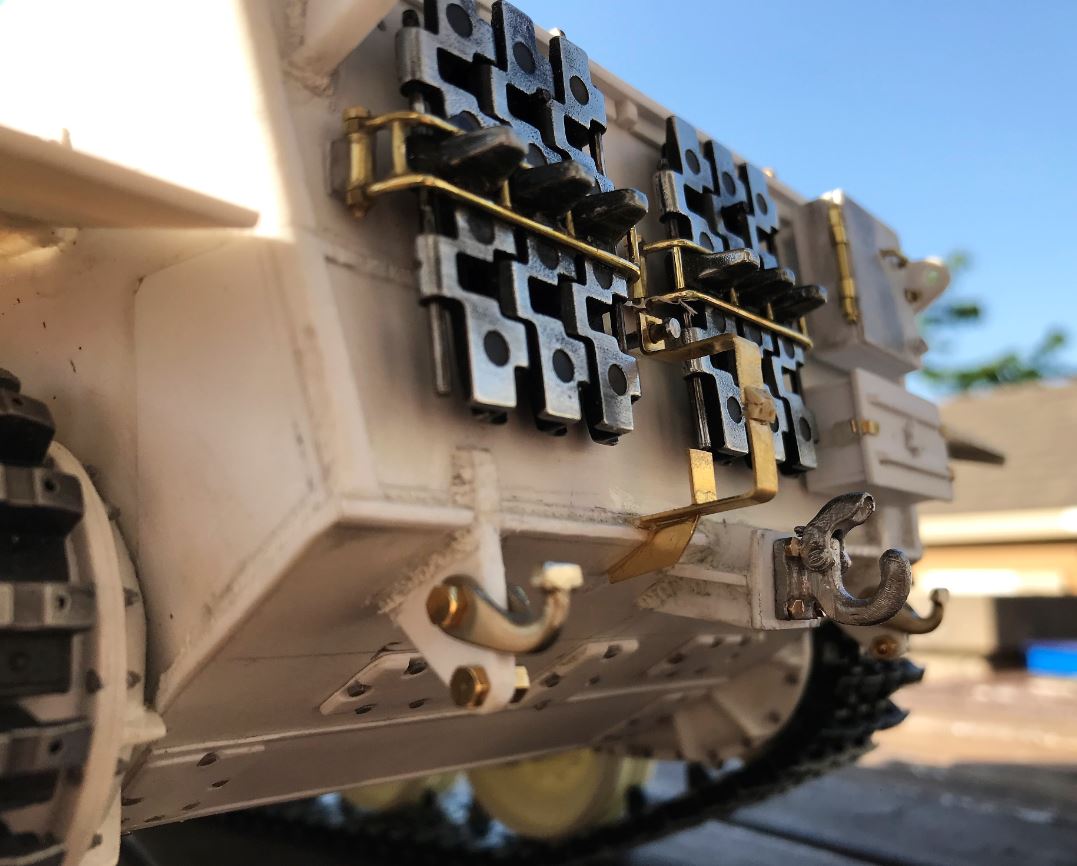

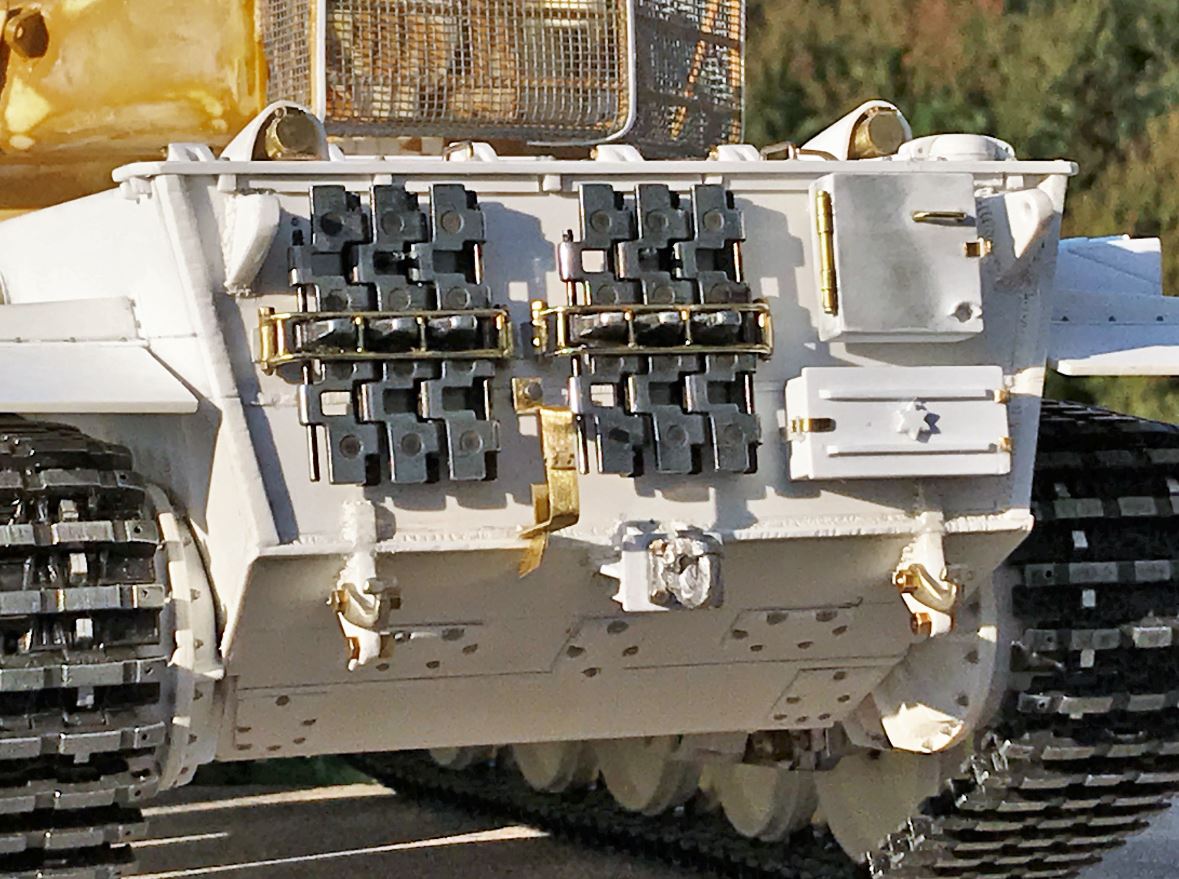

The spare track holders are scratch built by using the tracks as the base to which the components are then super glued to for a solid arrangement. Three "male" tracks are selected and assembledfrom the available Elefant spares in order to mimic as much as possible the Centurion tracks.
Here is the back of the Sho't Kal model.

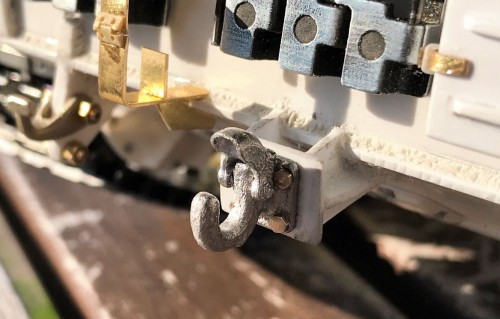

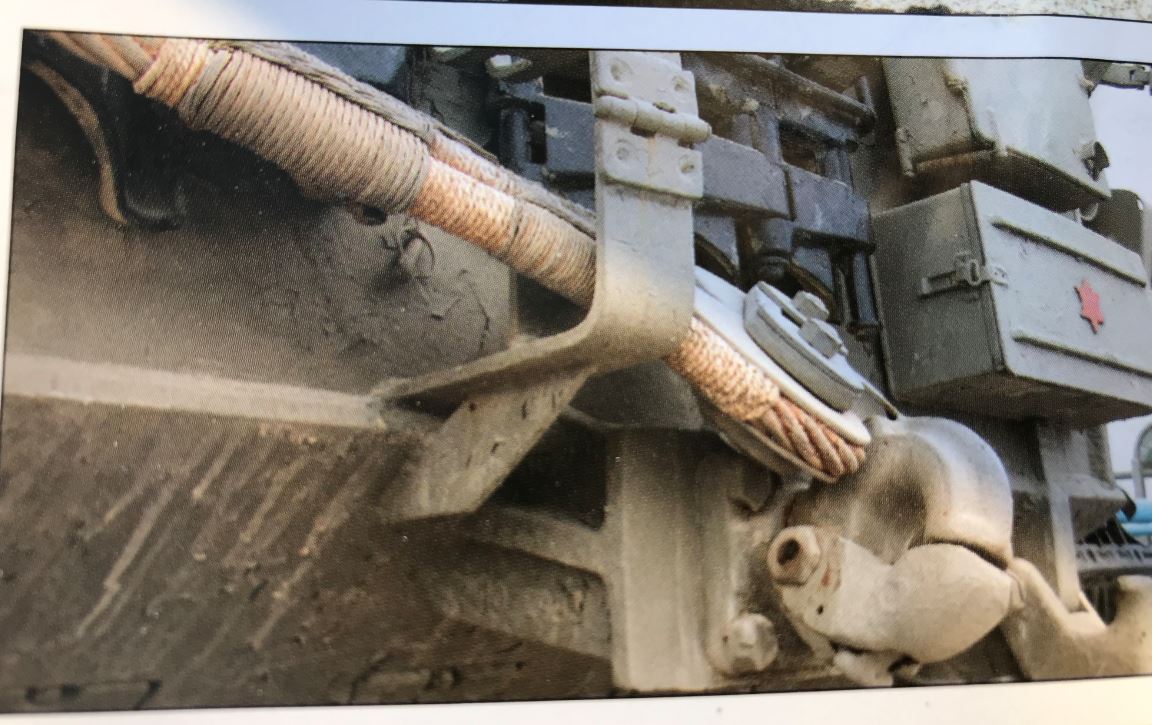

The American hook was purchased from Dioramaparts from Ebay Germany. It is a perfect match and is operable.
