New 3D printer to the fold! ARRIVED!

[Max-U52]

I've seen engines mounted in 16th scale tanks, but they take up a lot of room and usually require that you totally re-configure the layout of stuff inside the tank. I think with an engine in place you would definitely lose the smoker, but a lot of guys don't really care about that. Where you can really get the detail to shine is in 1/6th scale, but that can get really hard on the bank account. But, I imagine if you scale it up to 1/6 you might find customers that want to buy one.

[Will01Capri]

I've seen engines mounted in 16th scale tanks, but they take up a lot of room and usually require that you totally re-configure the layout of stuff inside the tank. I think with an engine in place you would definitely lose the smoker, but a lot of guys don't really care about that. Where you can really get the detail to shine is in 1/6th scale, but that can get really hard on the bank account. But, I imagine if you scale it up to 1/6 you might find customers that want to buy one.

I have idea to hide electronics board or smoker under the engine.
But yeah I totally understand.

1/6 scale I reckon I need more detailed drawings to make it look better when blown up

[Woz]

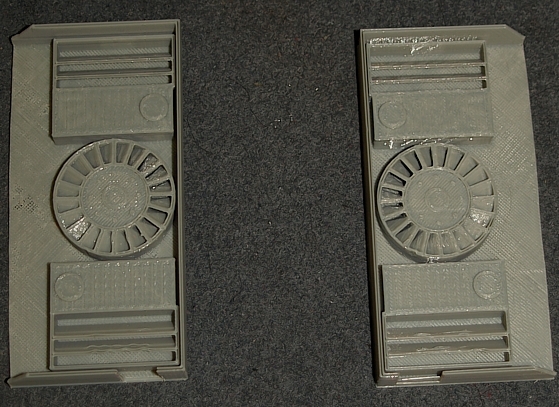

I made some cooling parts for my Panther that you could see through the grills. Slightly flattened so they fit I was going to paint them up to give a more 3D look but in the end I didn't get round to using them.

[Will01Capri]

I made some cooling parts for my Panther that you could see through the grills. Slightly flattened so they fit I was going to paint them up to give a more 3D look but in the end I didn't get round to using them.


That looks great

On my Tiger Mid production i have cut that hatches and made them open, but where you have the fans i will actually have laptop cooling fans instead and a faux top to make them look like yours.
I want to be able to open the hatches to access different things like a smoker switch and smoker oil and maybe other electronics.

[*rakey*]

Hi guys,
Gunner, thanks for your research on 210s and 230s , I can relax now!
Will, they are excellent Cads, really looking nice and detailed, can't wait to see the 210 ( no pressure but I want one!) Also I'm now thinking half track, supercharger, flame job. Wermacht mad Max style, I'm sure Mr Bix gets it!

[HERMAN BIX]

Yeah go on Will , I dare ya !

[Will01Capri]

Yeah go on Will , I dare ya !

You laugh, but i fancy giving this a go for my next rat rod!

https://www.google.co.uk/search?q=rat+r ... KucrcUB5M:

Badass

[Will01Capri]

Some Tiger 1 230 engine parts printed
Parts printed so far for 1/16 Tiger1 Tank Maybach engine. This is a 230 variant engine. Layer to follow an early 210 triple filter variant. Plus I may also attempt a Tiger2 engine by Will Pattinson, on Flickr

Flywheel & pin
Parts printed so far for 1/16 Tiger1 Tank Maybach engine. This is a 230 variant engine. Layer to follow an early 210 triple filter variant. Plus I may also attempt a Tiger2 engine by Will Pattinson, on Flickr

Reaction plate
Parts printed so far for 1/16 Tiger1 Tank Maybach engine. This is a 230 variant engine. Layer to follow an early 210 triple filter variant. Plus I may also attempt a Tiger2 engine by Will Pattinson, on Flickr

Believe it is a coolant take off?
More parts for the Tiger1 230 engine by Will Pattinson, on Flickr

Exhaust cast manifolds
More parts for the Tiger1 230 engine by Will Pattinson, on Flickr

Oil catch tank?
More parts for the Tiger1 230 engine by Will Pattinson, on Flickr

Intake setup
Parts printed so far for 1/16 Tiger1 Tank Maybach engine. This is a 230 variant engine. Layer to follow an early 210 triple filter variant. Plus I may also attempt a Tiger2 engine by Will Pattinson, on Flickr

Carbs& manifold
Parts printed so far for 1/16 Tiger1 Tank Maybach engine. This is a 230 variant engine. Layer to follow an early 210 triple filter variant. Plus I may also attempt a Tiger2 engine by Will Pattinson, on Flickr

Carbs & air filters
Parts printed so far for 1/16 Tiger1 Tank Maybach engine. This is a 230 variant engine. Layer to follow an early 210 triple filter variant. Plus I may also attempt a Tiger2 engine by Will Pattinson, on Flickr

[Will01Capri]

Blocks to appear tomorrow!
They are going to take some filament!

My photo skills are awlful, but i am really pleased with the parts. Printing everything at 0.1mm 25% fill.

Plan to mock it up in my Tiger Mid production.
I will do a 210 triple filter setup for my wife's Early Production Tiger

[Son of a gun-ner]

Gunner, thanks for your research on 210s and 230s , I can relax now!

Was the least I could do to help

I also checked online, the information I found was the same, probably came from the same source I have lol.
