BurgerPatrol,
Welcome back from your absence. Good Health and Happy Holidays, Doc!
regards,
Painless

[c.rainford73]

hello Mr Burger glad you are feeling a bit better Nice to see you back again Hope to see your contributions on the forum

Carl

[Burger_Patrol1]

Looks like I was trying to make all items and hardware for rear hull before my accident. Sorry if I jump around...have a little ADD going on.

These first pics are of me making bolts for rear exhaust shroud covers, using brass rod and some ABER bolt heads.

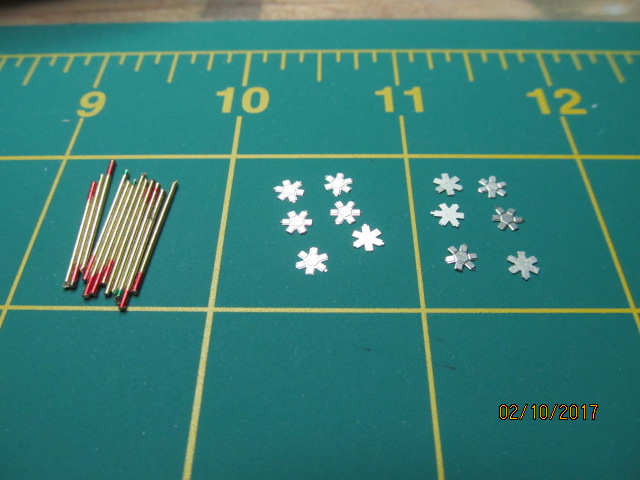

Brass Rods & ABER bolt heads

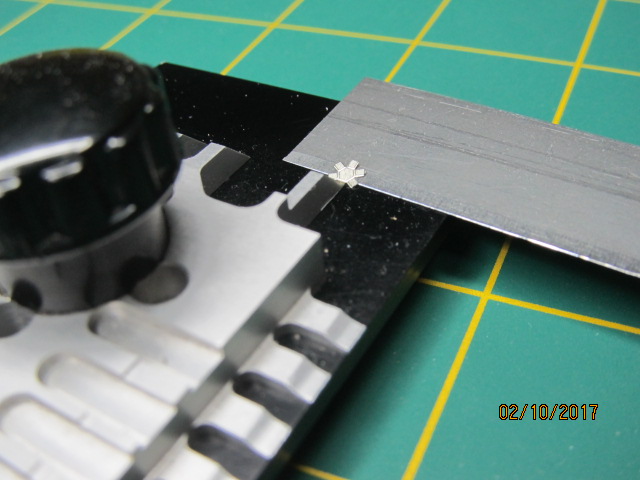

Bending ABER HEX Heads with brake

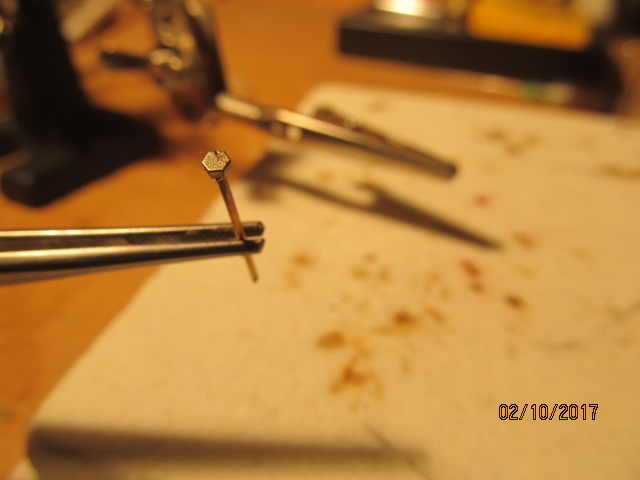

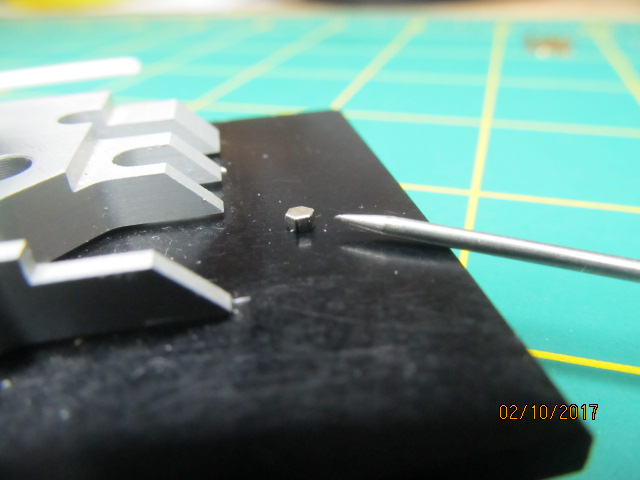

Completed HEX Head...now for 11 more...

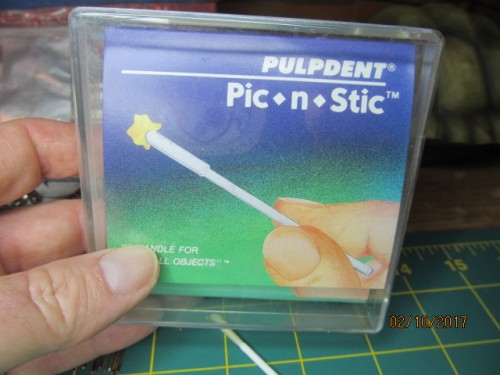

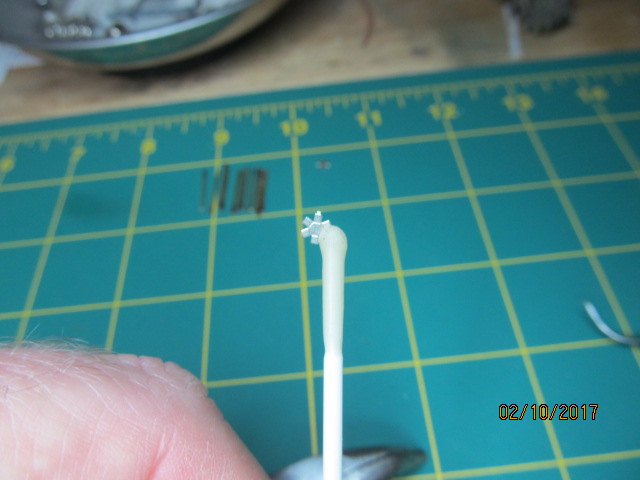

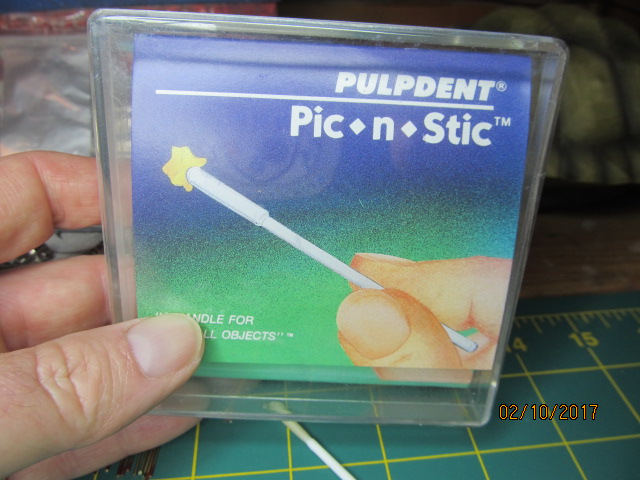

Using Pic-N-Stics helps with small parts

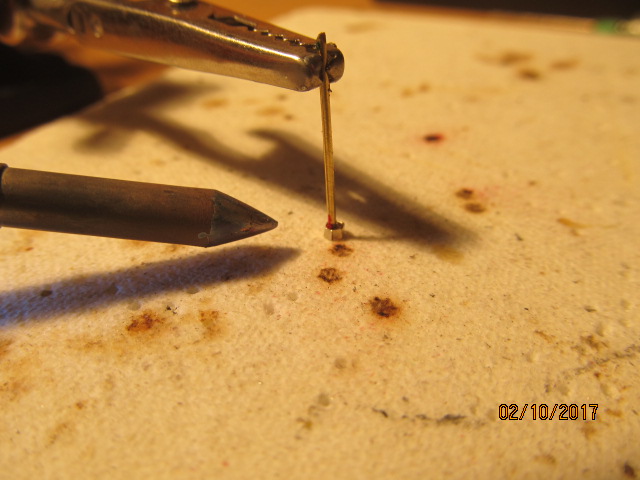

Soldering HEX Head to brass rods

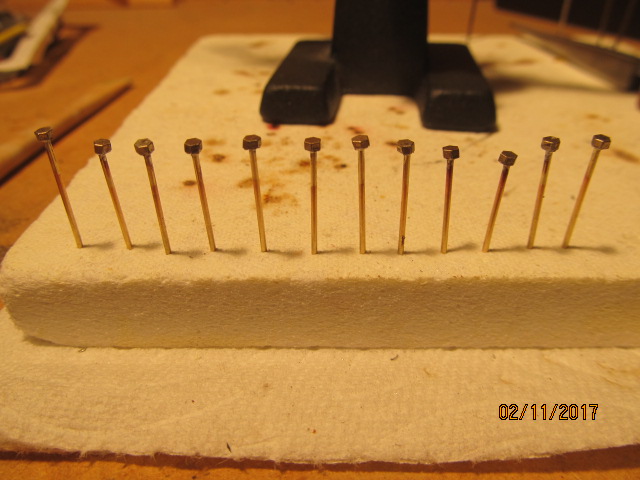

All 12 HEX Heads completed. Will Install at later date.

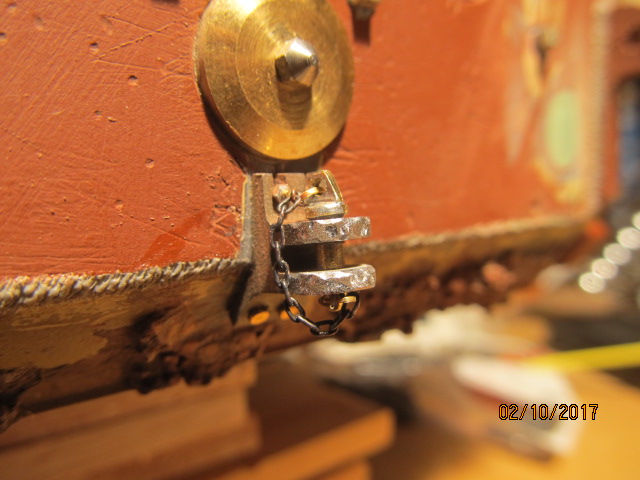

Attached retaining chain to rear hitch pin.

[Burger_Patrol1]

BurgerPatrol,
Welcome back from your absence. Good Health and Happy Holidays, Doc!
regards,
Painless

Thanks so much Painless!!! Happy Holidays to as well!!!

[Burger_Patrol1]

hello Mr Burger glad you are feeling a bit better Nice to see you back again Hope to see your contributions on the forum

Carl

Thanks Carl!!! Its defiantly nice to be back at my one favorite hobby!!!

[Burger_Patrol1]

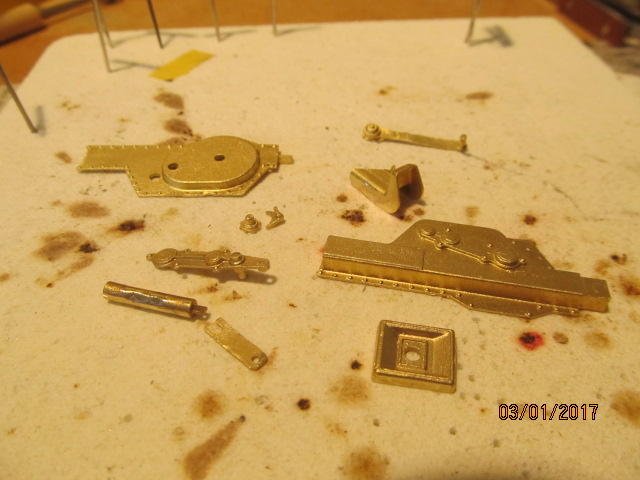

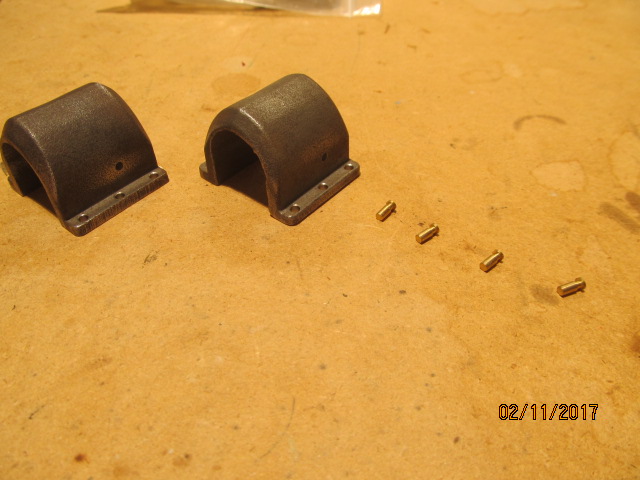

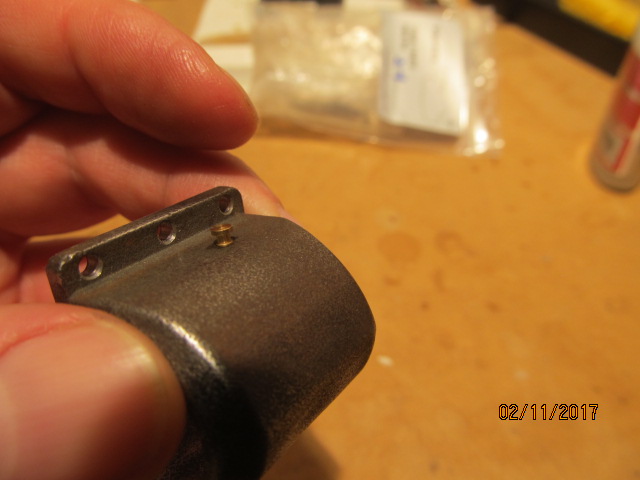

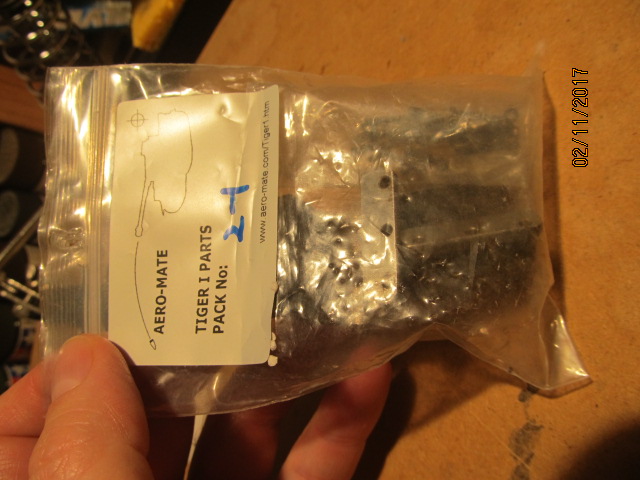

Here are some nice detailed cast parts from Aero-Mate. Exhaust protection pots.

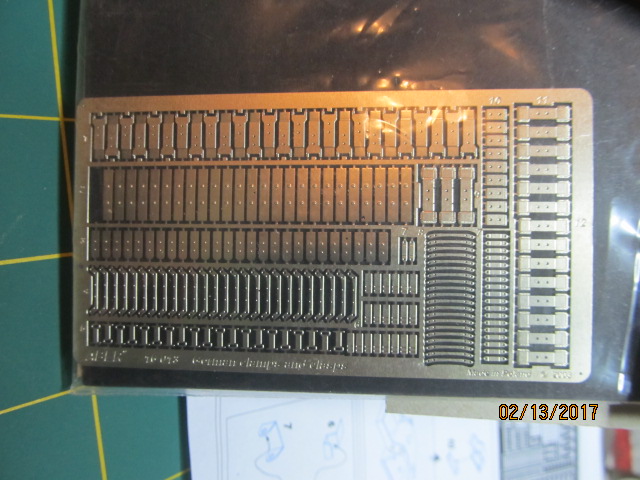

Next I put together some ABER german clamps for rear engine crank handle.

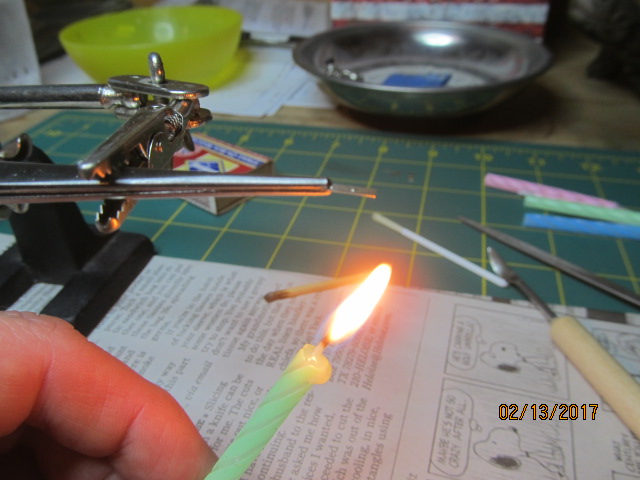

Annealing with a candle for easier bending.

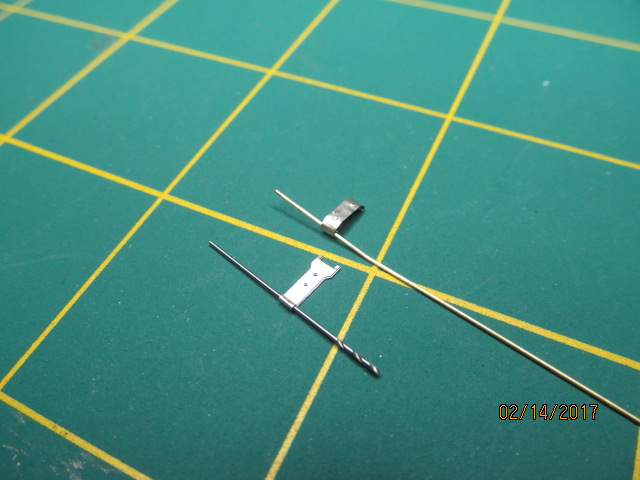

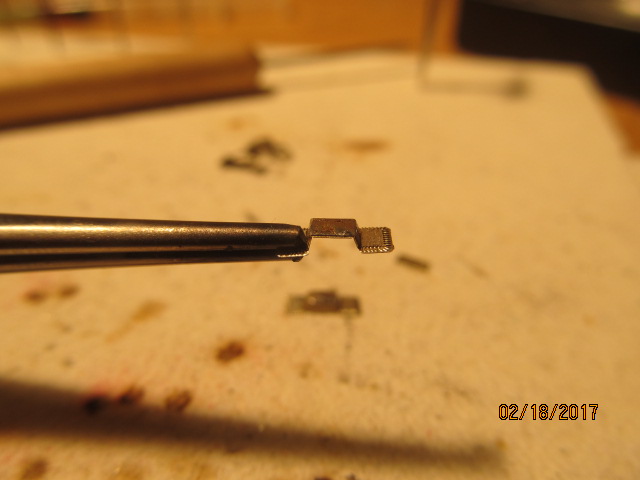

Using micro drill bits to roll brass around for hinge point.

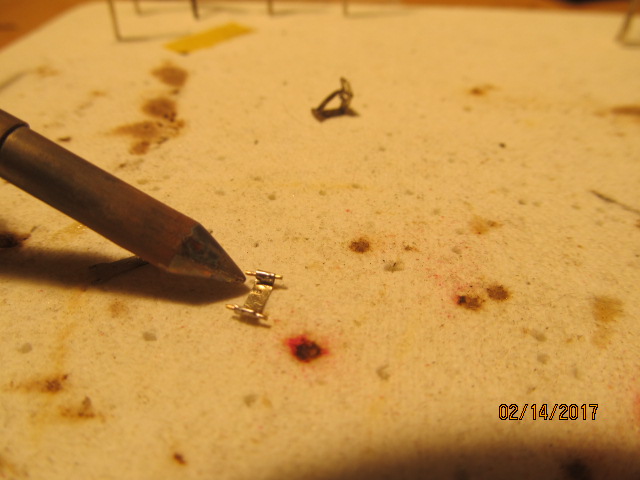

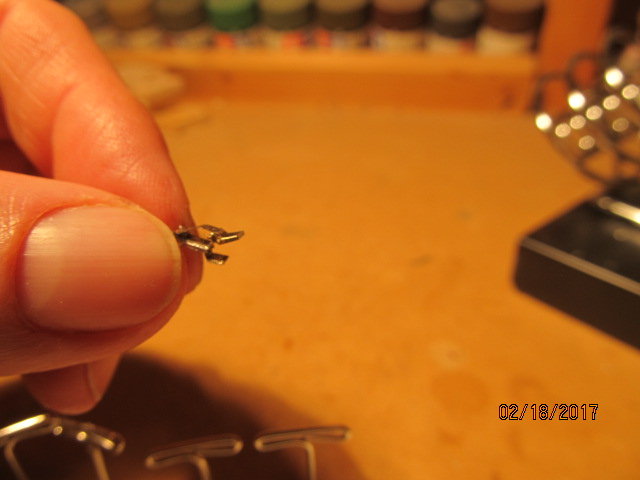

Soldering brass rod in place.


[Burger_Patrol1]

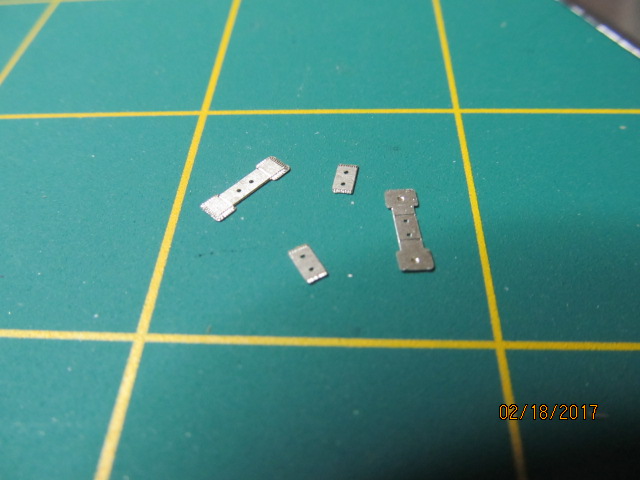

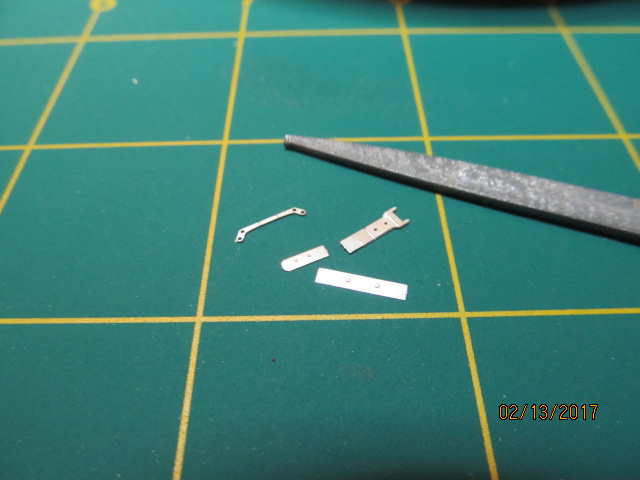

Cleaning up base plates for clamps.

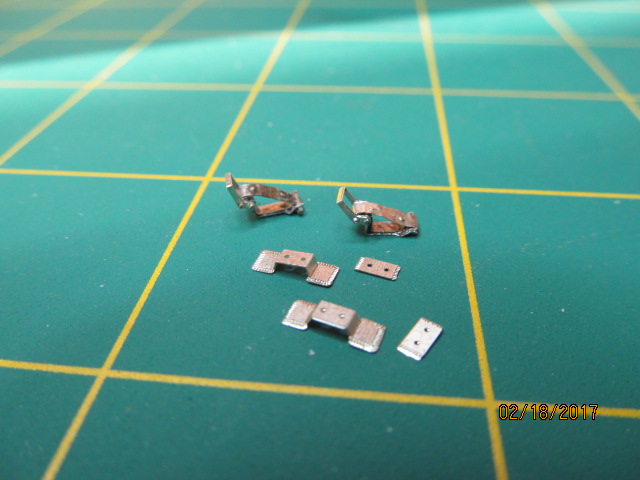

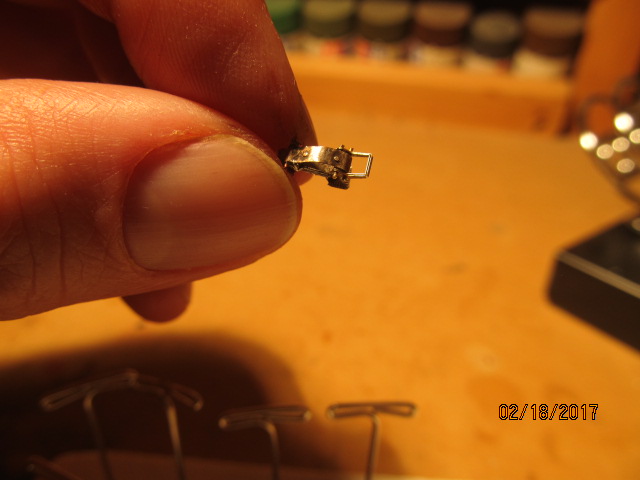

Base plates bending complete and clamps assembled.

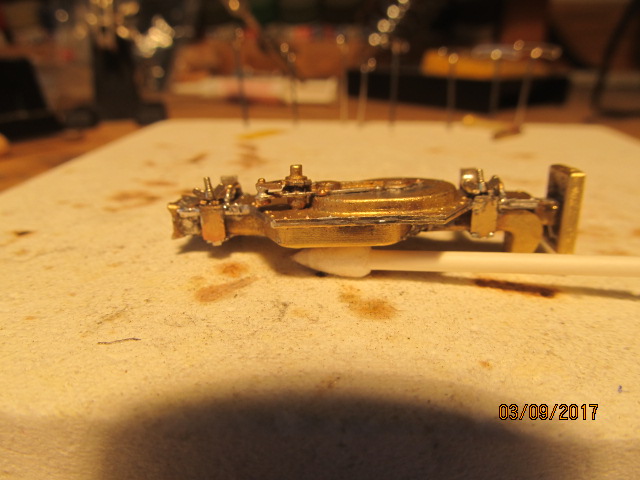

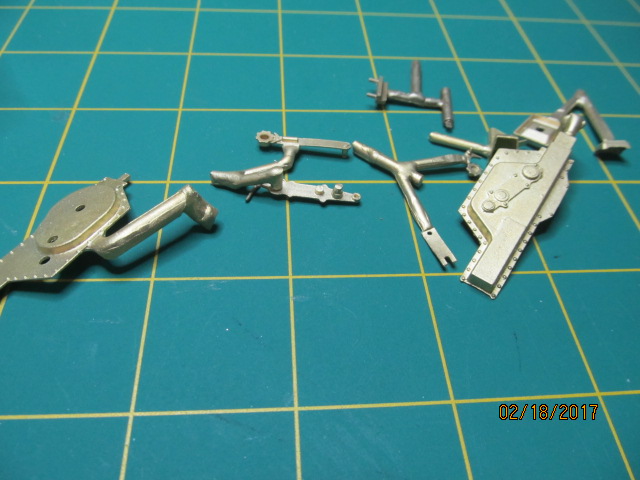

Next I got a new rear jack, very detailed!



[Burger_Patrol1]

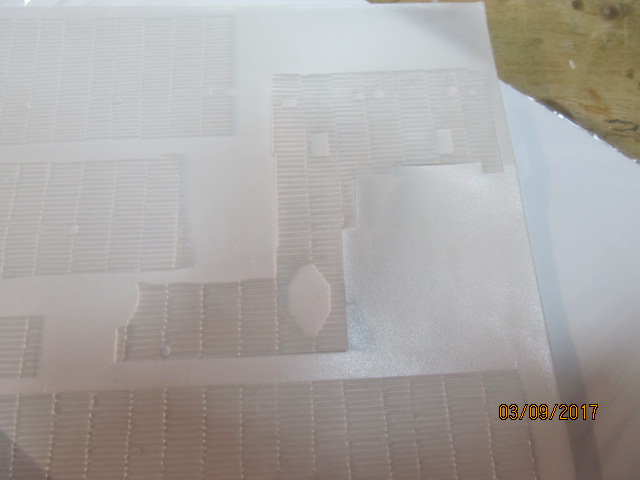

Next I custom fit Atek Zimmerit sheet to rear hull and trimmed around parts.


Trimming zimmerit sheet around idler adjustment cover.

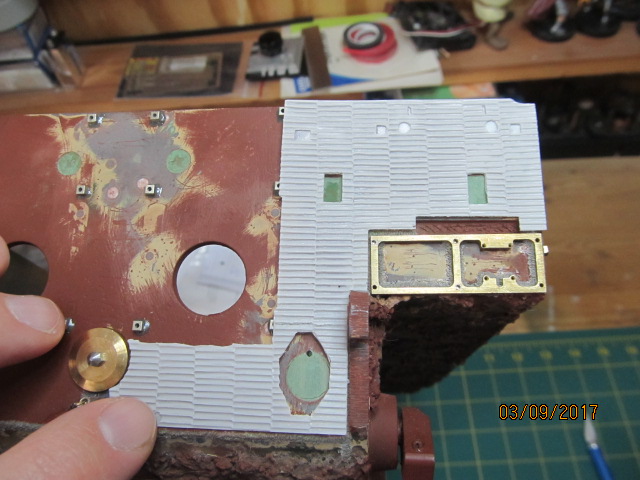

Fitting to rear hull.

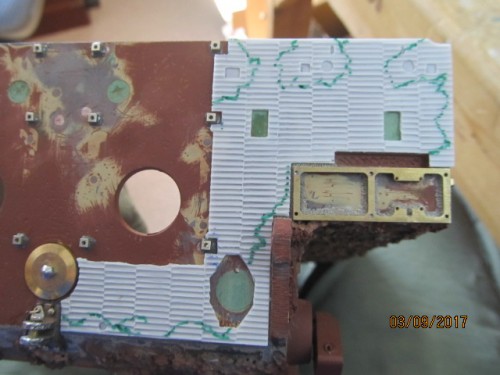

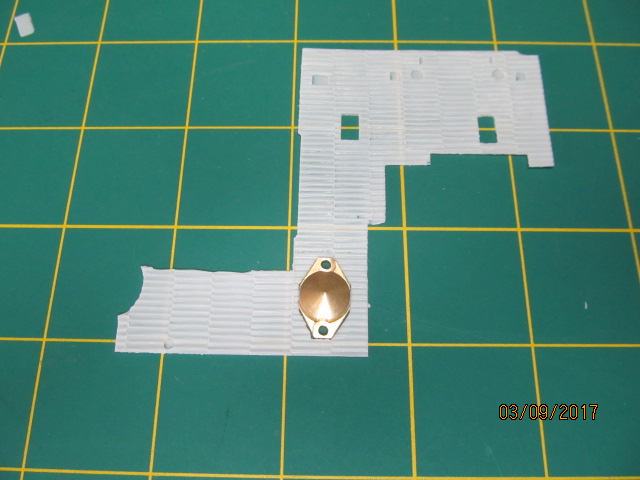

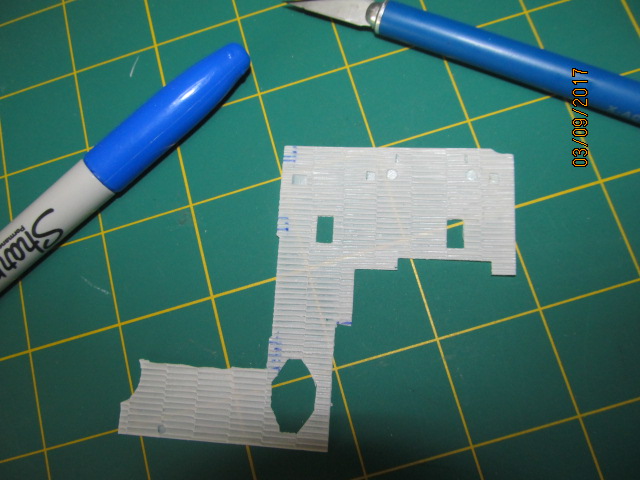

Marking cut out areas for exhaust shrouds.

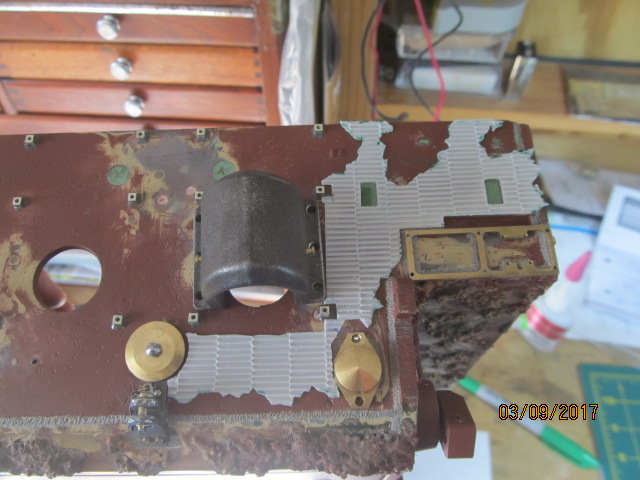

Marking damaged Zimmerit.

Damage always adds some character.

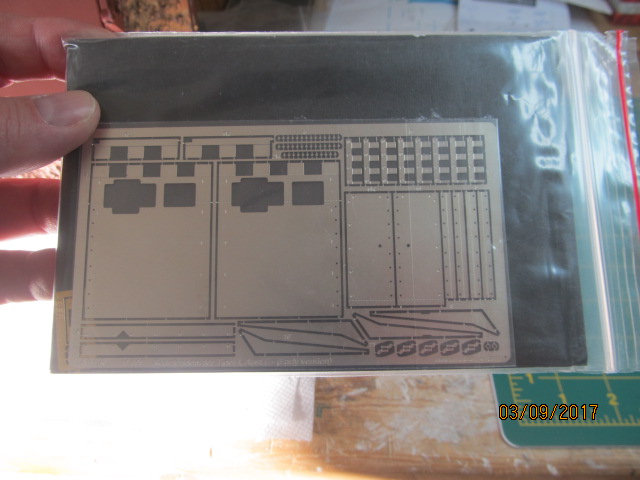

Next working on some ABER rear fenders.

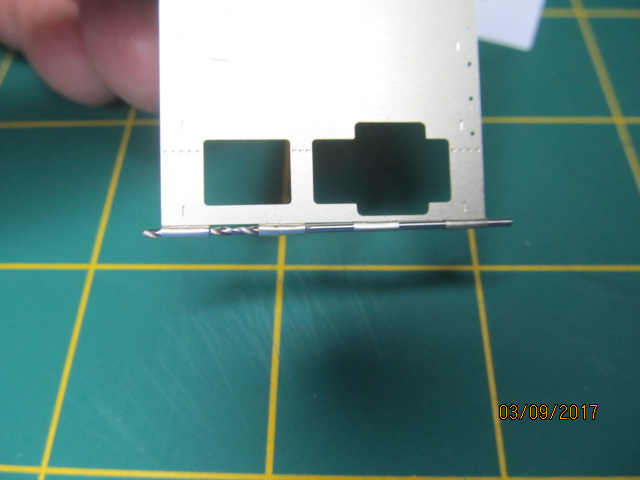

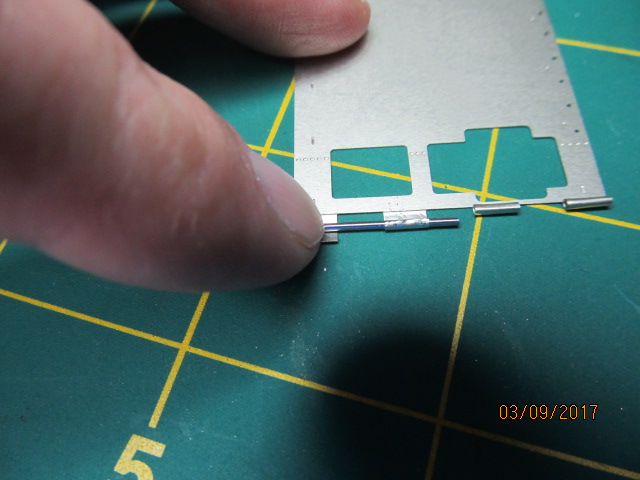

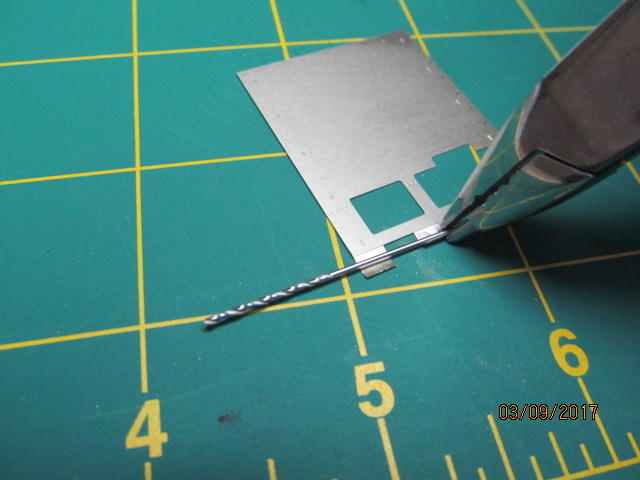

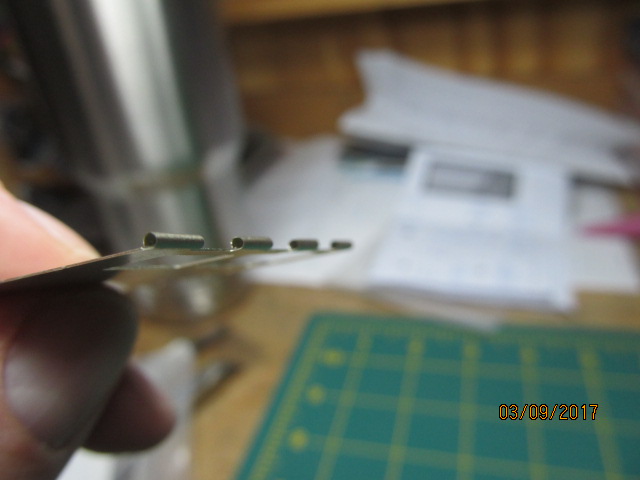

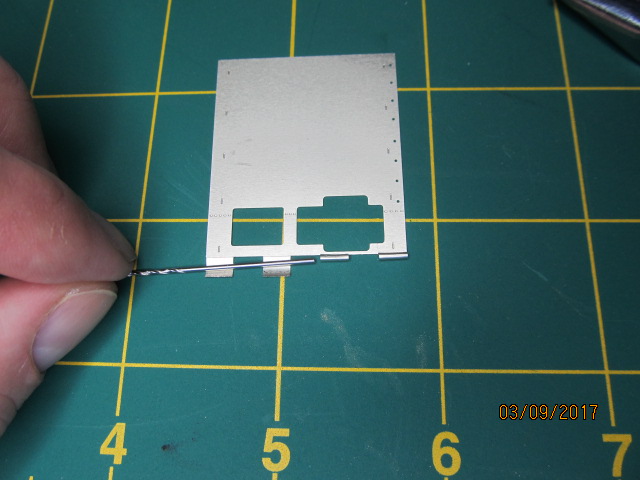

Annealed these tabs and now rolling with micro drill bit.



[Burger_Patrol1]

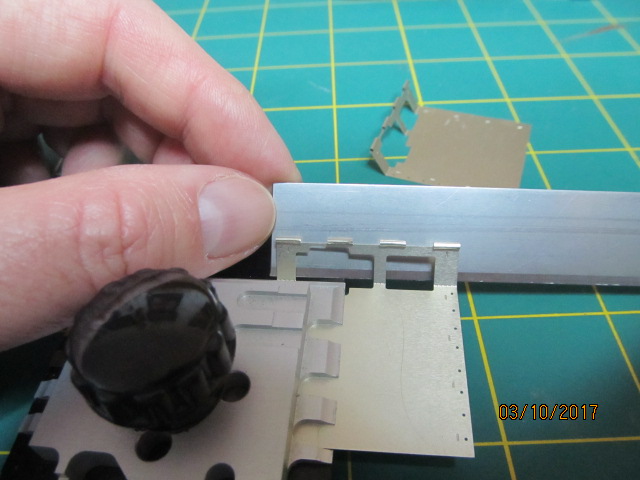

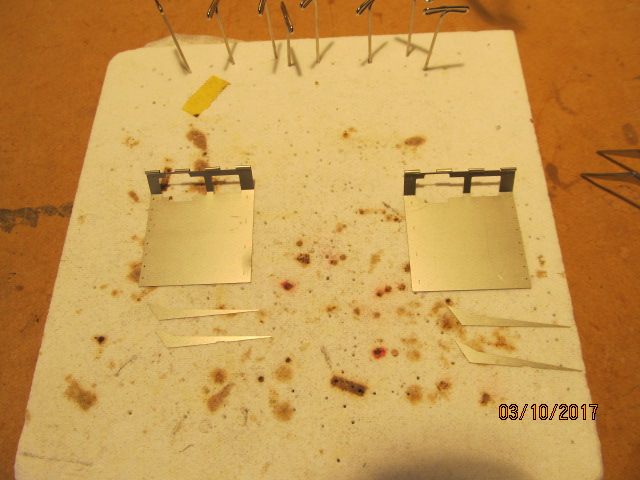

Bending mounting angle on brake.

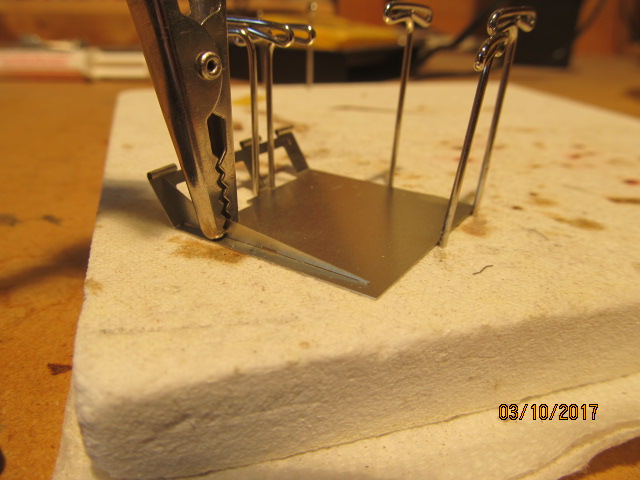

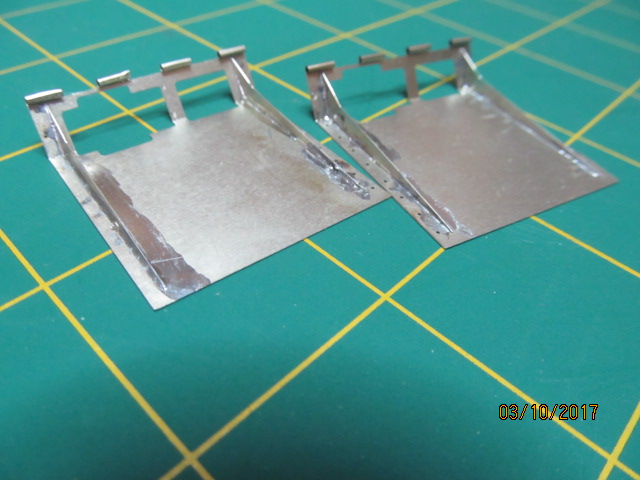

Soldering rear fender support fins in place.



Thats it for now...more to come, as long as I don't have another mishap!!!

[Raminator]

Had a bit of an accident and had a couple surgeries. 2017 has been not very good for me!!

Judging by your finely detailed brass work, all that time spent around surgeons has paid off; you've put it together with surgical precision! Fantastic stuff.

Hope you're doing well Burgy, glad to see you back in action mate. All the best for a safe and speedy recovery!
