1944 M36 B1 Tank Destroyer

If you have a tank query and you can't find the answer anywhere else, post here. (TIP - Check for answers in FAQ, use the 'search' facility or even check this board before posting here).
Forum rules
If your question is electronics related please post it in one of the relevant boards here: viewforum.php?f=31
User avatar
PainlessWolf
Lieutenant-Colonel
Posts: 7587
Joined: Sun Feb 26, 2012 9:09 pm
Location: Southern Colorado Rocky Mountains

Re: 1944 M36 B1 Tank Destroyer

Post by PainlessWolf »

Carl, Good morning!,
Considering how long it took me to timidly approach the idea, I'm pleased with the level of detail it adds. As always, on a runner, you have to modify parts and exercise some self control with brass add-ons. Mr. Herman, I think it is too late for all of us. Yah.
regards,
Painless
...Here for the Dawn...
User avatar
Dr Phibes
Corporal
Posts: 300
Joined: Wed Sep 23, 2015 9:38 pm
Location: Southampton, England, UK

Re: 1944 M36 B1 Tank Destroyer

Post by Dr Phibes »

Very nice work Painless, I have those Schumo periscope guards too and they are much better than the overly thick Mato parts. I love what you done there with the underside periscope/hatch detailing too, that's going to look great when the hatches are open (and I freely confess I may well copy! :D ). Just wondering, what are the leather pads you refer to though (excuse my ignorance of these matters :S )?
User avatar
PainlessWolf
Lieutenant-Colonel
Posts: 7587
Joined: Sun Feb 26, 2012 9:09 pm
Location: Southern Colorado Rocky Mountains

Re: 1944 M36 B1 Tank Destroyer

Post by PainlessWolf »

Good morning, Doc,
The quarter moon shaped black leather pads were installed on the undersides of the Driver and Radiomans hatches to prevent head injuries. They are standard on the newer large hatch design of the M4A3 Sherman which is why it was surprising to find them missing on photos of the M36B1( which uses the M4A3 Lower hull ) The M10 hull hatches are also missing any leather padding. Interesting...
regards,
Painless
...Here for the Dawn...
User avatar
c.rainford73
Major
Posts: 6104
Joined: Thu Aug 25, 2016 7:34 pm
Location: Connecticut USA

Re: 1944 M36 B1 Tank Destroyer

Post by c.rainford73 »

As always good stuff Mr Painless
Tanks alot.... :wave:
User avatar
PainlessWolf
Lieutenant-Colonel
Posts: 7587
Joined: Sun Feb 26, 2012 9:09 pm
Location: Southern Colorado Rocky Mountains

Re: 1944 M36 B1 Tank Destroyer

Post by PainlessWolf »

Last night was Laundry Night so I had little time to pursue detailing the M36B1. I did get enough time to file down the face of the headlight leds to fit a couple of neat lenses. I usually prefer Tamiya lenses for this but had ordered these new types last year. They have a chrome backing and look just like real light covers but some prep must be performed to have them work with back lighting. I was going to sand the chrome off but this would have left me with just a plastic lens ( ala Tamiya ) I decided to drill out a bulb space in the center of the backing that goes into the clear area. If I am right, once it is lit by the led behind it, it should act like a bulb in a car lamp and illuminate the rest of the clear lens. I'll see when I test. The back, red leds will get paint on the right hand lamp to make it into the standard rear blackout\convoy configuration once I am doing the detail paint. Pics:
Attachments

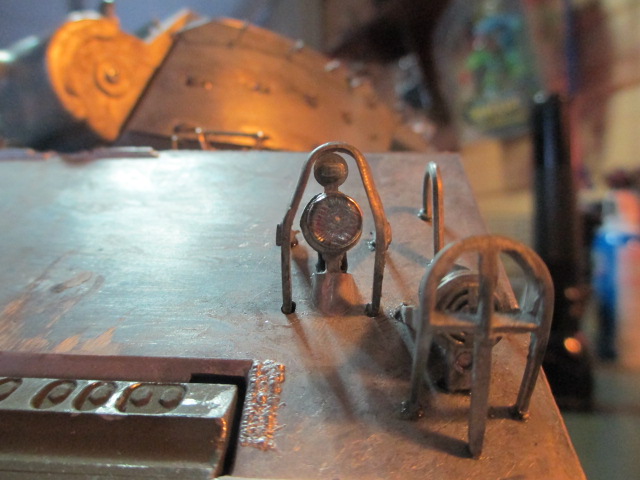

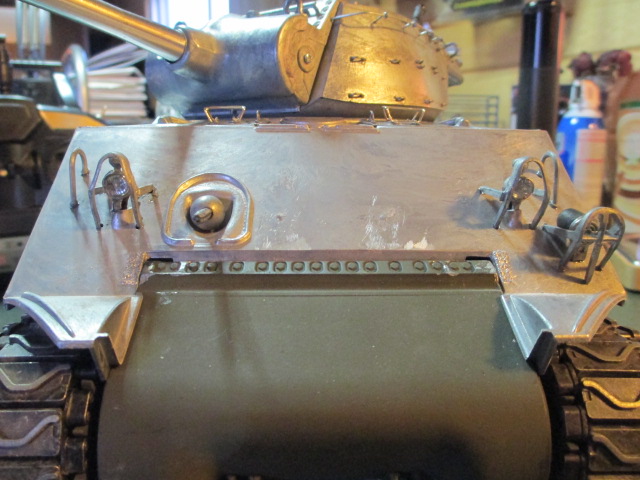

Both in place
Both in place

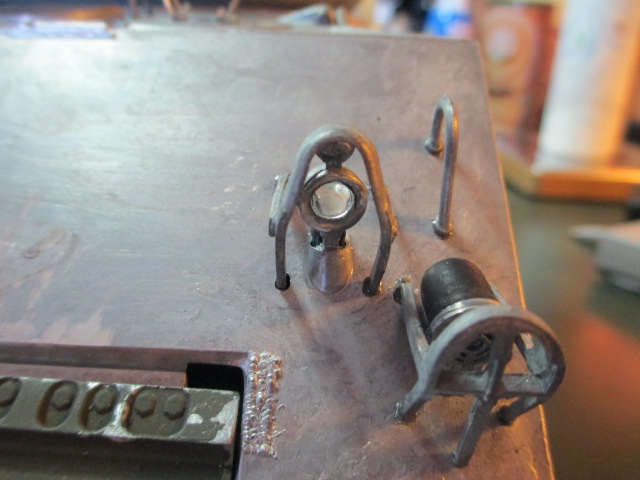

Closeup of mounted headlight cover and lens
Closeup of mounted headlight cover and lens
Led diamond-filed flat
Led diamond-filed flat
Led diamond-filed flat.JPG (96.09 KiB) Viewed 2589 times

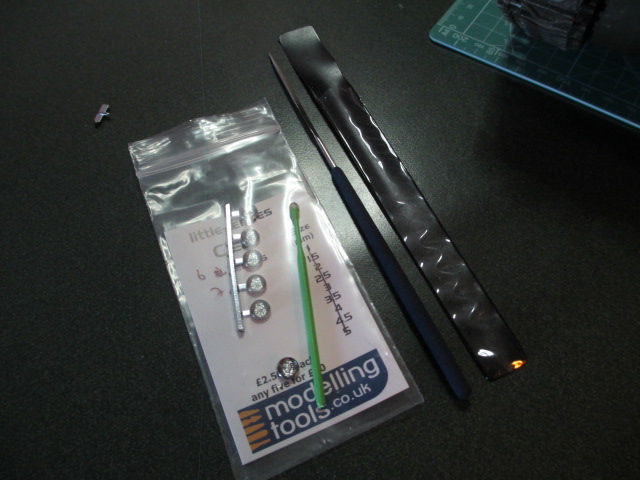

New ideas (for me anyway) and new ways of doing lights on tanks
New ideas (for me anyway) and new ways of doing lights on tanks
New ideas (for me anyway) and new ways of doing lights on tanks.JPG (98.67 KiB) Viewed 2589 times
...Here for the Dawn...
Ludwig von wigbearer
Staff Sergeant
Posts: 856
Joined: Sat Oct 29, 2016 8:57 pm
Location: Retford Nottinghamshire

Re: 1944 M36 B1 Tank Destroyer

Post by Ludwig von wigbearer »

The lenses look great, a big improvement on the standard lamp. :thumbup:

regards john.
User avatar
HERMAN BIX
Major-General
Posts: 11288
Joined: Sun Jan 12, 2014 12:15 am
Location: Gold Coast,Australia

Re: 1944 M36 B1 Tank Destroyer

Post by HERMAN BIX »

Certainly makes the front look.
How is working with metal medium as to plastic ?
HL JAGDPANTHER,HL TIGER 1,HL PzIII MUNITIONSCHLEPPER, HL KT OCTOPUS,HL PANTHER ZU-FUSS,HL STuG III,HL T34/85 BEDSPRING,
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
User avatar
PainlessWolf
Lieutenant-Colonel
Posts: 7587
Joined: Sun Feb 26, 2012 9:09 pm
Location: Southern Colorado Rocky Mountains

Re: 1944 M36 B1 Tank Destroyer

Post by PainlessWolf »

John, I'm crossing my fingers that they perform as I hope since they really do look good on the fixtures. Herman, I bought a Tamiya Diamond File to work with brass. It does a great job on this mystery metal as well. No issues drilling where needed tho' the standard Pin Vise drill bits are only used to make starter holes for the carbon tipped ones. To make up for the small amount of work performed yesterday, a great deal more detailing was done up tonight. ;o) Pics:
Attachments
I found a spare HL .50 cal Infantry use base.
I found a spare HL .50 cal Infantry use base.

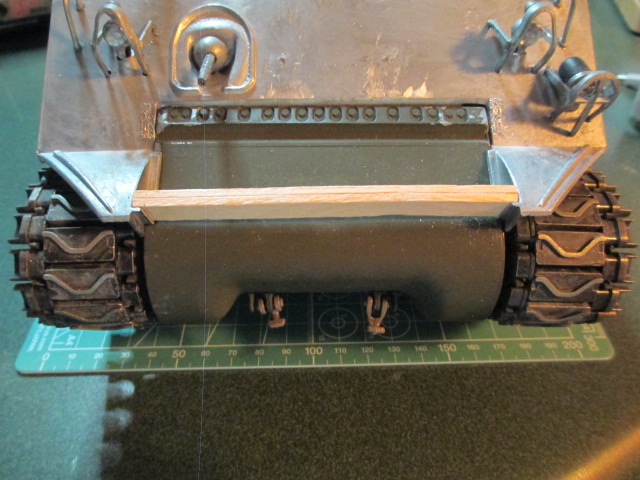

Glued and trimmed a couple of popsicle sticks to make a scale front board for stowage.  It will need a little staining and weathering.
Glued and trimmed a couple of popsicle sticks to make a scale front board for stowage. It will need a little staining and weathering.

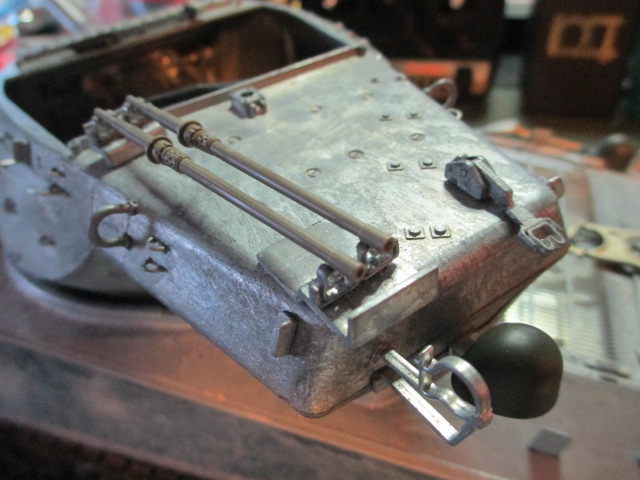

the rear turret barrel stowage rack as detail.
the rear turret barrel stowage rack as detail.

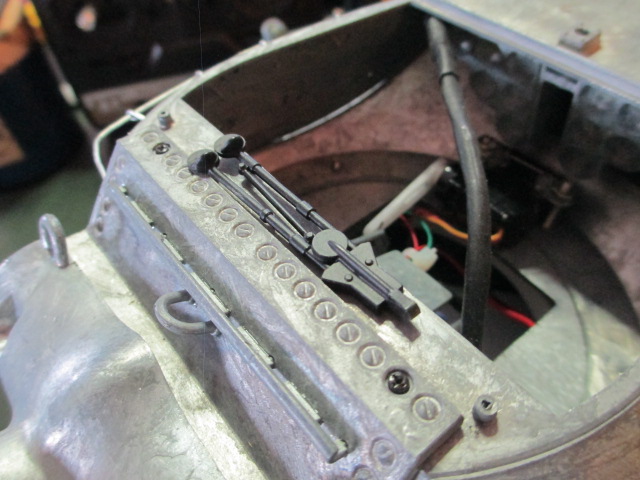

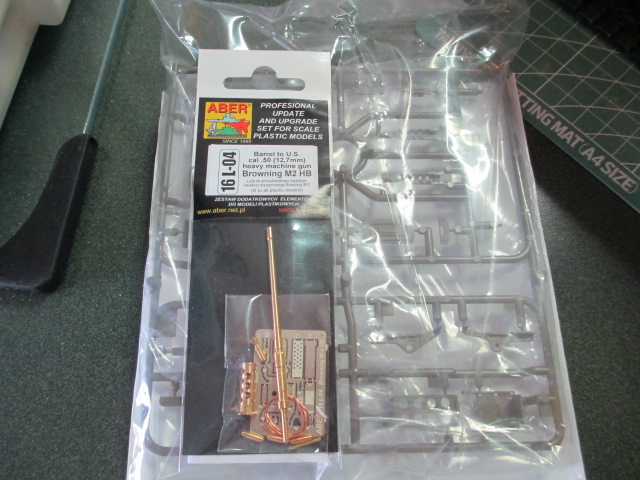

I have brass ones courtesy of Sassgrunt so felt all right in using the spare Tamiya plastic pieces on...
I have brass ones courtesy of Sassgrunt so felt all right in using the spare Tamiya plastic pieces on...

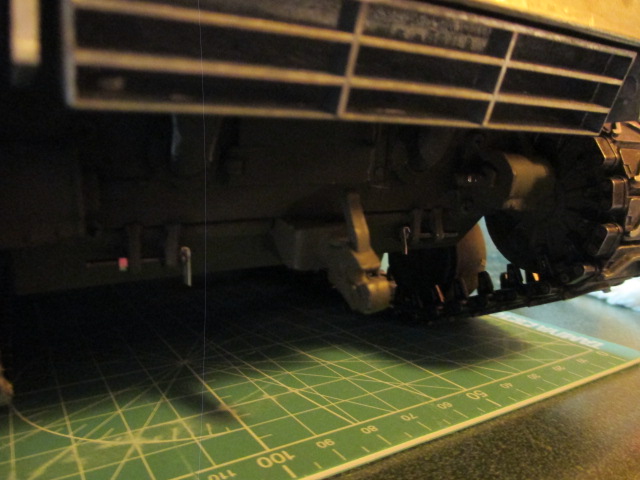

Used 1mm bolts and nuts with some fitted brass handles for the rear tow shackles.
Used 1mm bolts and nuts with some fitted brass handles for the rear tow shackles.

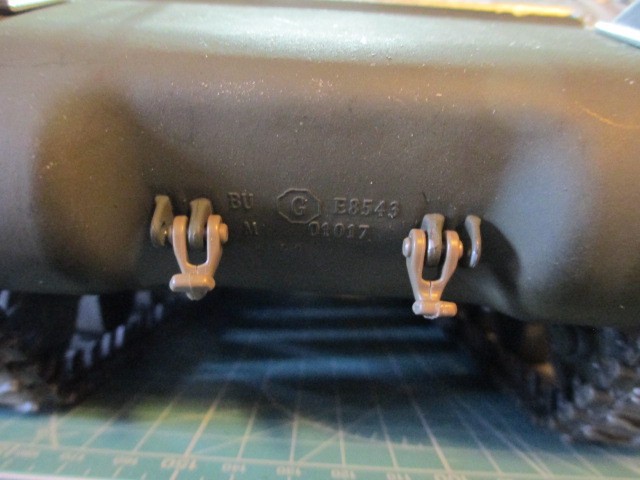

Rounded up a couple of Tamiya sets for the front tow shackles
Rounded up a couple of Tamiya sets for the front tow shackles
Rounded up a couple of Tamiya sets for the front tow shackles.JPG (90.62 KiB) Viewed 2562 times
Both installed and awaiting paint.
Both installed and awaiting paint.

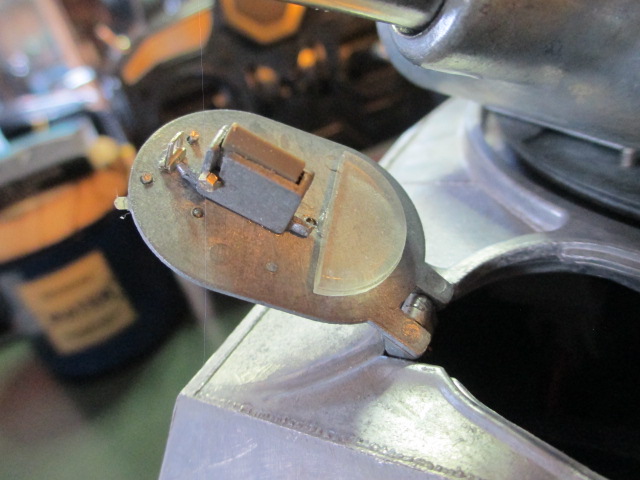

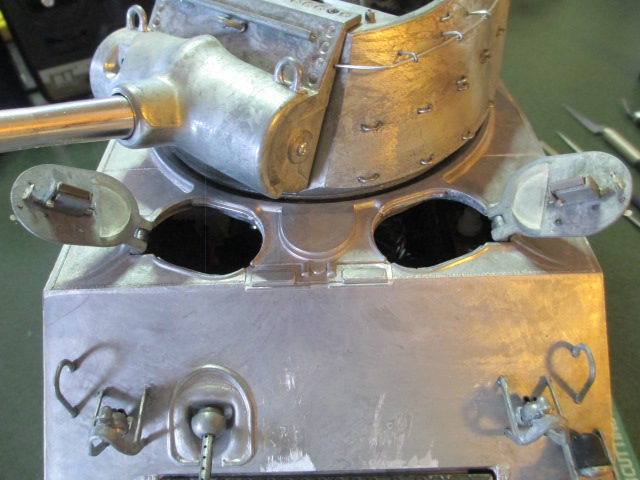

I went ahead with the leather 'pads'  using trimmed self stick dots to stand in for the pieces.
I went ahead with the leather 'pads' using trimmed self stick dots to stand in for the pieces.
...Here for the Dawn...
User avatar
Dr Phibes
Corporal
Posts: 300
Joined: Wed Sep 23, 2015 9:38 pm
Location: Southampton, England, UK

Re: 1944 M36 B1 Tank Destroyer

Post by Dr Phibes »

Some great work here Painless, and very informative (for me at least) too! I was wondering what was meant to be stowed on those racks on the rear of the turret - I Didn't think of the obvious of course, spare M.2 barrels (lucky for me I got one or two left over from the Tamiya sprues I pillaged for my M.2, I just need to source those shackles now! :D ). The leather pads on the hatches look good too, give a much more substantial and detailed look I think.
User avatar
PainlessWolf
Lieutenant-Colonel
Posts: 7587
Joined: Sun Feb 26, 2012 9:09 pm
Location: Southern Colorado Rocky Mountains

Re: 1944 M36 B1 Tank Destroyer

Post by PainlessWolf »

Good morning, Doc,
Thank you, Sir. The real fun is coming as bits and bobs I have found for the turret interior start to show up. MATO has not left an inordinate amount of room to work with and I don't want to cut the turret floor apart to give the partial turret basket effect. Hopefully I can give the impression of a full turret at a glance when the TD is running without it's crew cover. All of these various detail bits I have added should come together with paint and slight weathering. ( I like my tanks Depot fresh! Or at least as close as field expedient as possible )
regards,
Painless
...Here for the Dawn...
