Bristol Armoured Division

[silversurfer1947]

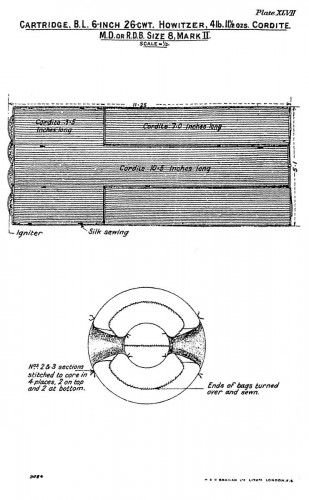

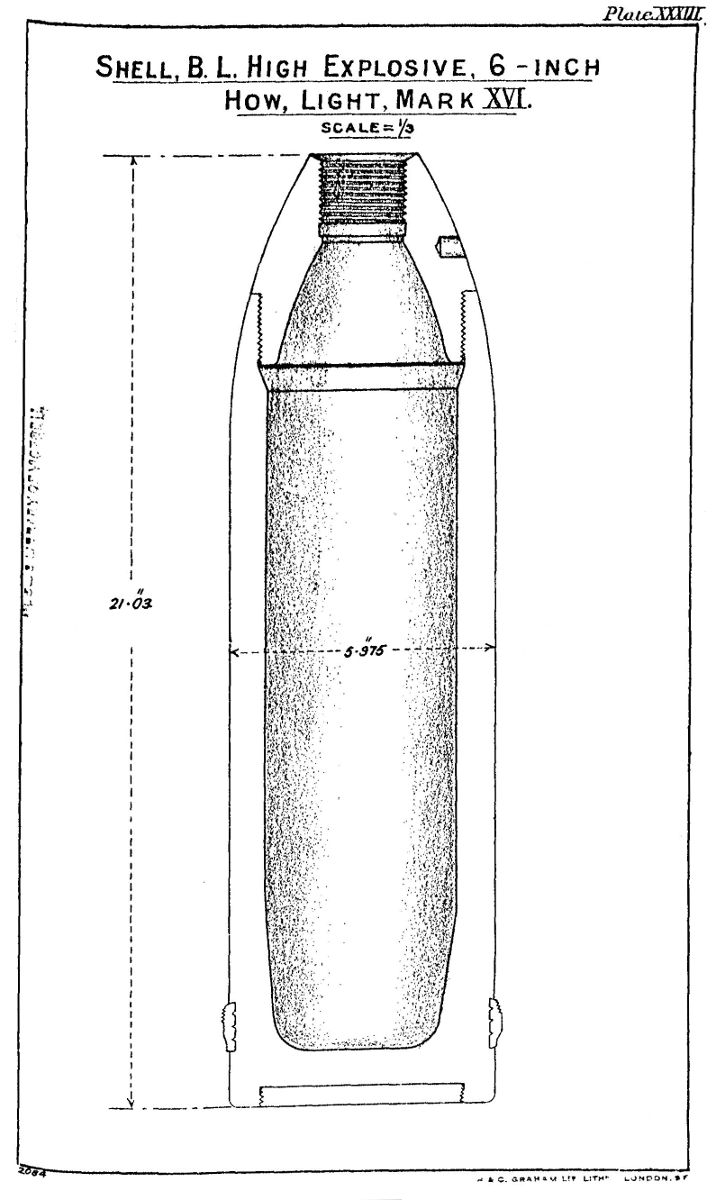

I also found a couple of diagrams, though these relate to the WW1 ammunition.

It's the only image of the cordite charge I have found so far.

[wibblywobbly]

That is the 6", mine is the 7.2". The diameter would be 7.2", but I can't see the length anywhere for these?

[silversurfer1947]

Sorry, I thought it was the 6". I'll try again.

[silversurfer1947]

http://nigelef.tripod.com/72inchsheet.htm This gives the shell details. In the absence of any other data, I would scale up the cordite charge for the 6".

Total gun crew was 13 as I guess it took several just to lift the shell into place. The 6" howitzer had a sort of tray, with 4 lifting handle. Then at least 2 to ram the shell home.

[silversurfer1947]

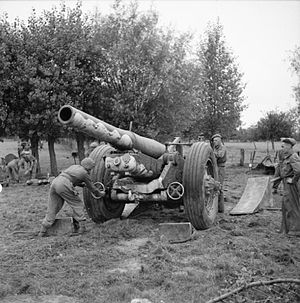

This shows two massive recoil ramps.


[wibblywobbly]

I must be on drugs, maybe its the heat, I did indeed do the 6".

[silversurfer1947]

I thought I was the one with the best excuse for a senior moment.

[wibblywobbly]

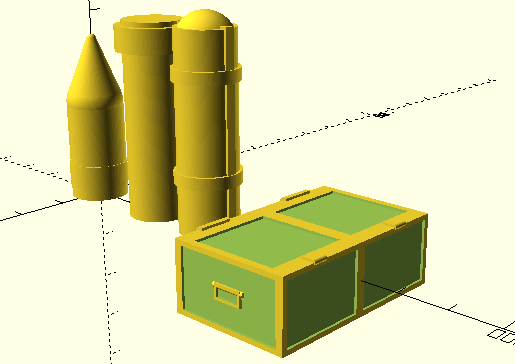

Well this is what I can print. The shells look stumpy compared to the ones in the pic above, but they are scale 7.2" shells, even if the profile isn't right.

The other bits and pieces are copies but sized so that the shells would fit in them, which they won't because they aren't hollow.

[Artyfist]

Normally the shell is longer than the cart case or often similar.

[wibblywobbly]

Can you explain that in words that a complete imbecile would understand?
