Re: Something I've been doing the past days

Post by ALPHA »

atcttge wrote:LOL! Thanks Alpha. Doing the grab handles will put me really behind schedule bwuhahahahahaha!
Actually I was kidding...said that because I'm still doing mine...FOUR more to go!!!! and I'm taking short cuts :lolno:

Wouldn't be so bad if they were easy like old tanks...this one has some fancy ones..all contorted...makes my eyes bug out :crazy:

ALPHA

PS. Maybe just the gunner's hatch ..that handle is totally different ...has a bunch of bends...but it makes opening the hatch much easier ;)
User avatar
atcttge
Sergeant
Posts: 661
Joined: Wed May 13, 2015 4:35 am

Re: Something I've been doing the past days

Post by atcttge »

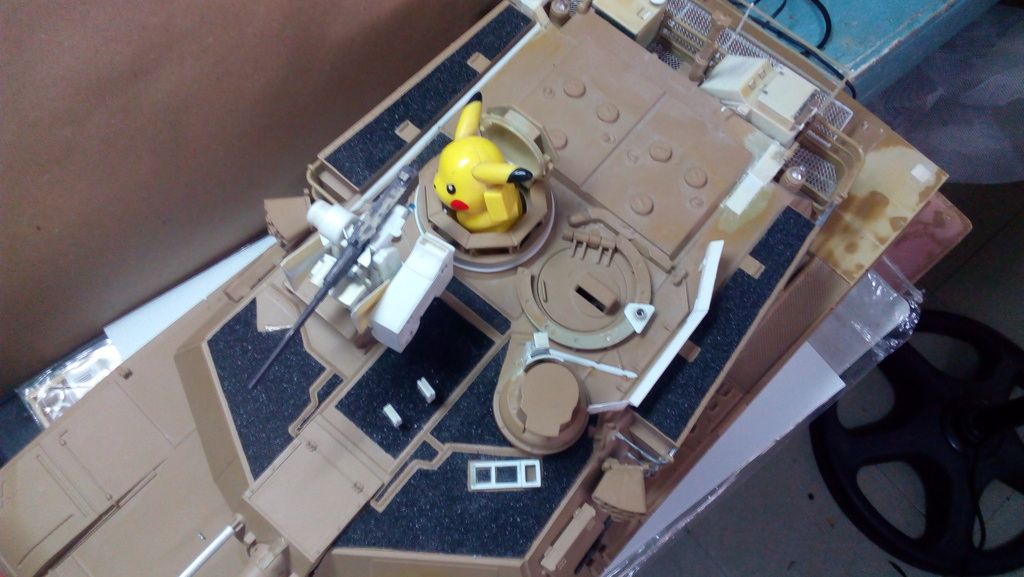

Front half of the turret's got anti-slip:

User avatar
HERMAN BIX
Major-General
Posts: 11336
Joined: Sun Jan 12, 2014 12:15 am
Location: Gold Coast,Australia

Re: Something I've been doing the past days

Post by HERMAN BIX »

Massive effort mate, there sure is a lot to know about these modern tanks.
Makes it even more impressive when there is no real availability of aftermarket parts too. :clap: :clap:
HL JAGDPANTHER,HL TIGER 1,HL PzIII MUNITIONSCHLEPPER, HL KT OCTOPUS,HL PANTHER ZU-FUSS,HL STuG III,HL T34/85 BEDSPRING,
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
User avatar
atcttge
Sergeant
Posts: 661
Joined: Wed May 13, 2015 4:35 am

Re: Something I've been doing the past days

Post by atcttge »

Thanks Herman! :)

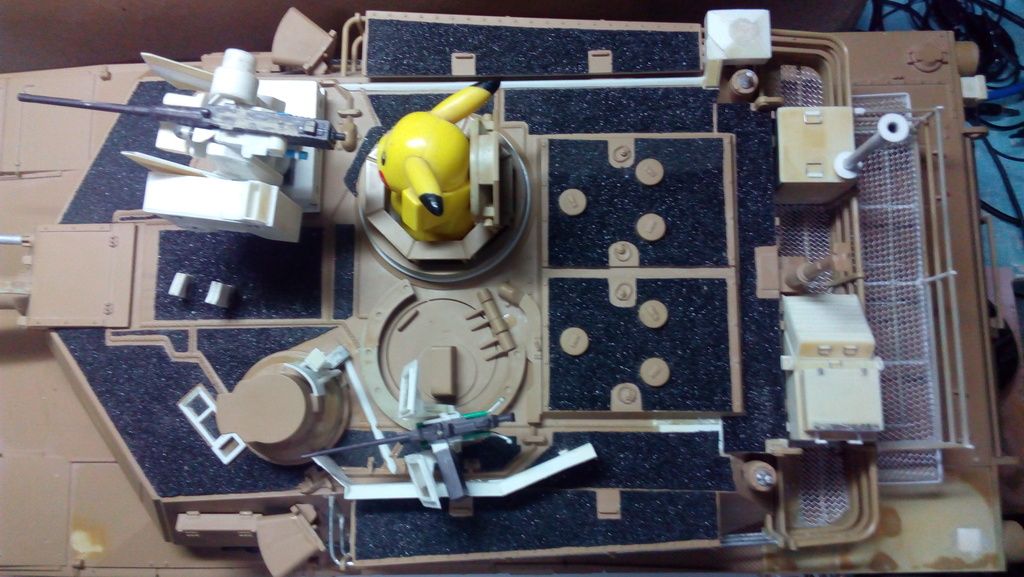

Turret anti-slip is DONE.


Next: hull stuff.
ALPHA
Major-General
Posts: 10960
Joined: Thu Oct 03, 2013 1:06 am

Re: Something I've been doing the past days

Post by ALPHA »

I have to hand it to you ATG...that there is some precise cutting...makes me wonder why you didn't go with your original thought of using sandpaper...something like emery cloth or wet ....looks great from here...Perfect PIKACHU scale :thumbup: ..... :D


ALPHA
User avatar
atcttge
Sergeant
Posts: 661
Joined: Wed May 13, 2015 4:35 am

Re: Something I've been doing the past days

Post by atcttge »

Thanks Alpha! For some areas, I made use of a template using cardboard and then flipped it on the back side of the anti-slip tape then cut to shape. For some, I just drew directly on the anti-slip backing, with lots of measuring and guess-timates, then cut to shape. Not one of the anti-slip tapes here is of multiple pieces. All are in one piece. For the anti-slip on the blast panels, I did some measuring and drawing on the backside of the anti-slip. The circles I punched out with a punch and hammer. Most of the cutting was with scissors, some with the knife.

I didn't use the sandpaper route because the paper would be too thick and thinning it by removing most of the paper would be difficult and uneven. Anti-slip tape, OTOH, is thinner with the additional benefit of being self-adhesive. I actually have some acrylic paint and a stiff brush to do the anti-slip-by-paint-stippling like I did to my 1/35 Challenger 2 build many years ago, but then I found the anti-slip tape at the hardware so.... :D

I think the turret is ready for a coat of grey primer, but I don't have one right now plus the weather isn't nice for painting (raining here since yesterday).
ALPHA
Major-General
Posts: 10960
Joined: Thu Oct 03, 2013 1:06 am

Re: Something I've been doing the past days

Post by ALPHA »

atcttge wrote:Thanks Alpha! For some areas, I made use of a template using cardboard and then flipped it on the back side of the anti-slip tape then cut to shape. For some, I just drew directly on the anti-slip backing, with lots of measuring and guess-timates, then cut to shape. Not one of the anti-slip tapes here is of multiple pieces. All are in one piece. For the anti-slip on the blast panels, I did some measuring and drawing on the backside of the anti-slip. The circles I punched out with a punch and hammer. Most of the cutting was with scissors, some with the knife.

I didn't use the sandpaper route because the paper would be too thick and thinning it by removing most of the paper would be difficult and uneven. Anti-slip tape, OTOH, is thinner with the additional benefit of being self-adhesive. I actually have some acrylic paint and a stiff brush to do the anti-slip-by-paint-stippling like I did to my 1/35 Challenger 2 build many years ago, but then I found the anti-slip tape at the hardware so.... :D

I think the turret is ready for a coat of grey primer, but I don't have one right now plus the weather isn't nice for painting (raining here since yesterday).
With that kind of patience...still not understanding why you aren't doing the Grab Handles :haha: :haha: ...No worries ..No pressure lol
To bad about the rain...would love to see it in one color ;)

ALPHA
User avatar
atcttge
Sergeant
Posts: 661
Joined: Wed May 13, 2015 4:35 am

Re: Something I've been doing the past days

Post by atcttge »

BWUHAHAHAHAHAHAHAHA! Grab handles are too tedious to do! :D :D :D

Yeah, I wanna see it in one colour as well. :)
ALPHA
Major-General
Posts: 10960
Joined: Thu Oct 03, 2013 1:06 am

Re: Something I've been doing the past days

Post by ALPHA »

atcttge wrote:BWUHAHAHAHAHAHAHAHA! Grab handles are too tedious to do! :D :D :D

Yeah, I wanna see it in one colour as well. :)
:wtf: One Day ATC... I need to hear your definition of Tedious...cause DAYUM!...what you make look like a walk in the park....is mind boggling and waffling in Tedium for the rest of us normal people :haha: :haha:

ALPHA
ALPHA
Major-General
Posts: 10960
Joined: Thu Oct 03, 2013 1:06 am

Re: Something I've been doing the past days

Post by ALPHA »

atcttge wrote:Front half of the turret's got anti-slip:

By the way ATC...noticed you did some work to the rear of the hull...removed the gas filler ...did you do the AVU hatch mod that Giant did? I was going to do mine...but couldn't find any clear images of those ...so might just do without...for the same reasons you don't do grab handles ;)

ALPHA
