The following posts are for the 5.7 cm Maxim-Nordenfelt main gun mount as seen on a First Lot Krupp production vehicle. At first, i thought the A7V had no turret, just a simple gun mount. It is actually more complex than anticipated, it's a turret with rotation, elevation, and it needs recoil and flash. Notice the slot on the right of the gun for the visor.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build

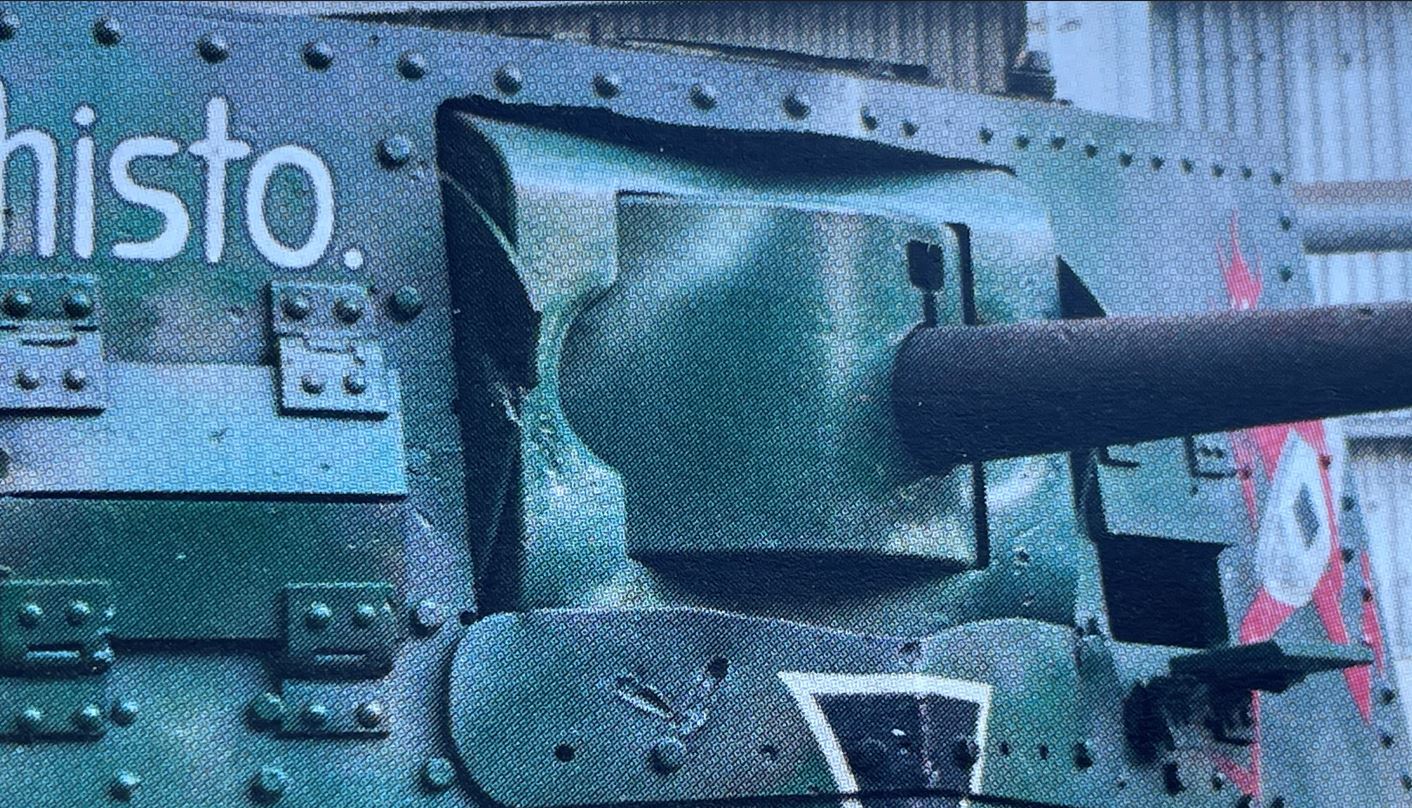

This is a good shot of the angle of the front plate versus the angle of the rotating gun shield on Wilhem. Notice the enlarging gap in the armor towards the bottom of the gun shield. Hard to believe such bullet trap was conceived.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build

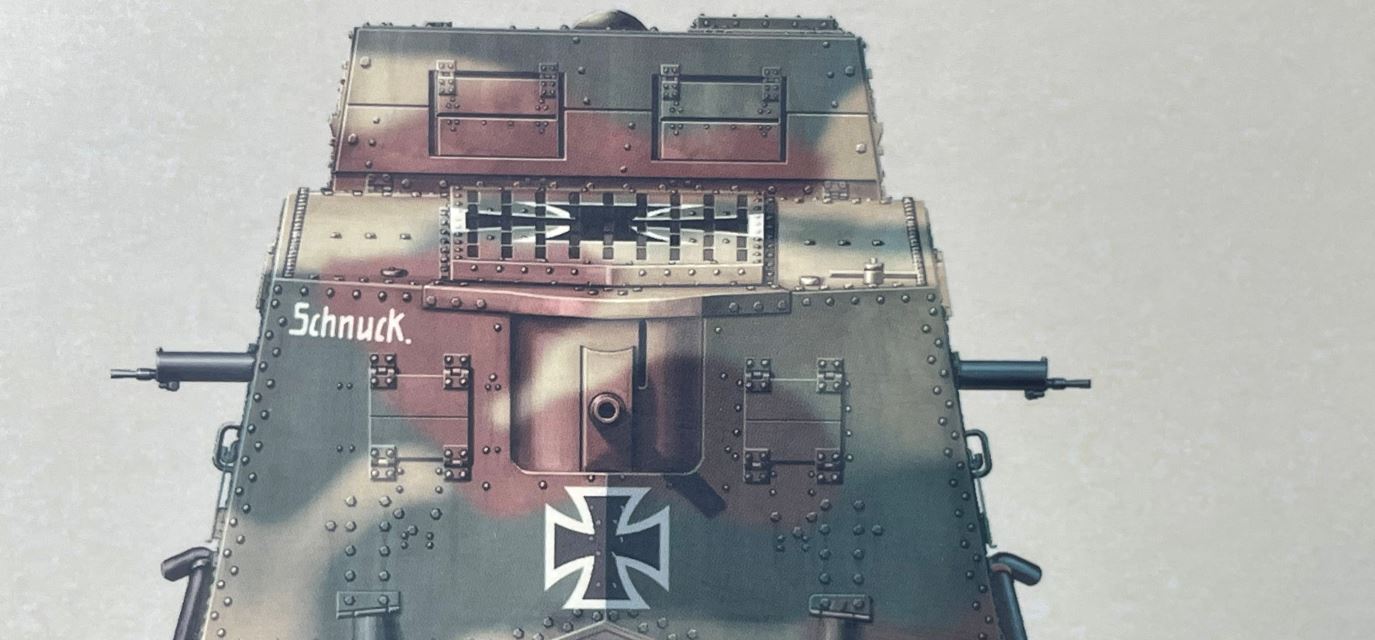

A similar gun mount on Prinz Oskar.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build
See the difference in gun mount on Mephisto. It's a totally different design so it is important to select a production batch or a specific vehicle and not mix the different specifications.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build
I am relying on the Meng 1/35 kit for specs, rotating shield below.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build

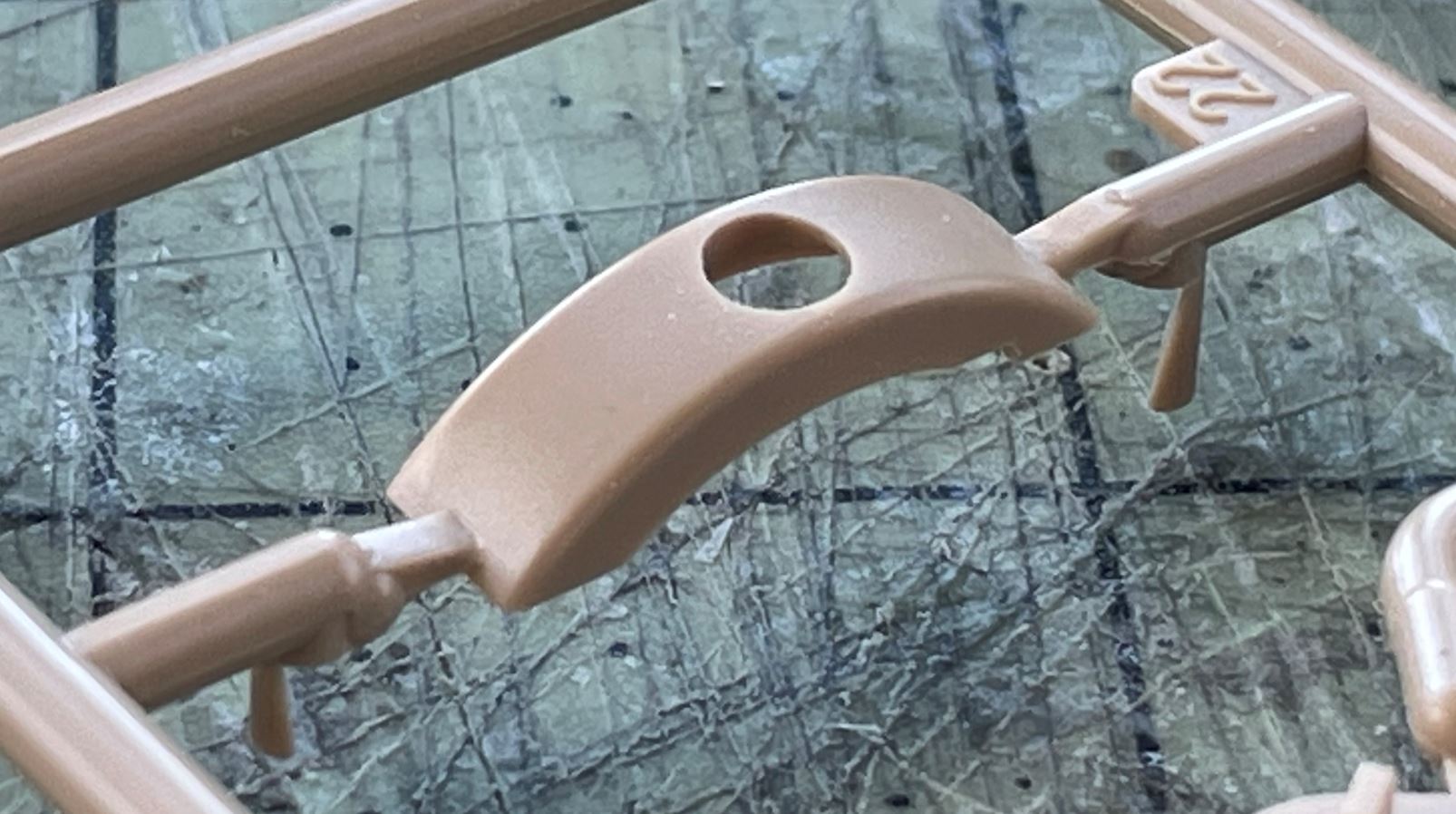

Elevation mantlet.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build
My idea is to create something similar, minus the need for a detailed accurate interior. Otherwise, i would have to spend the winter on this model.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build

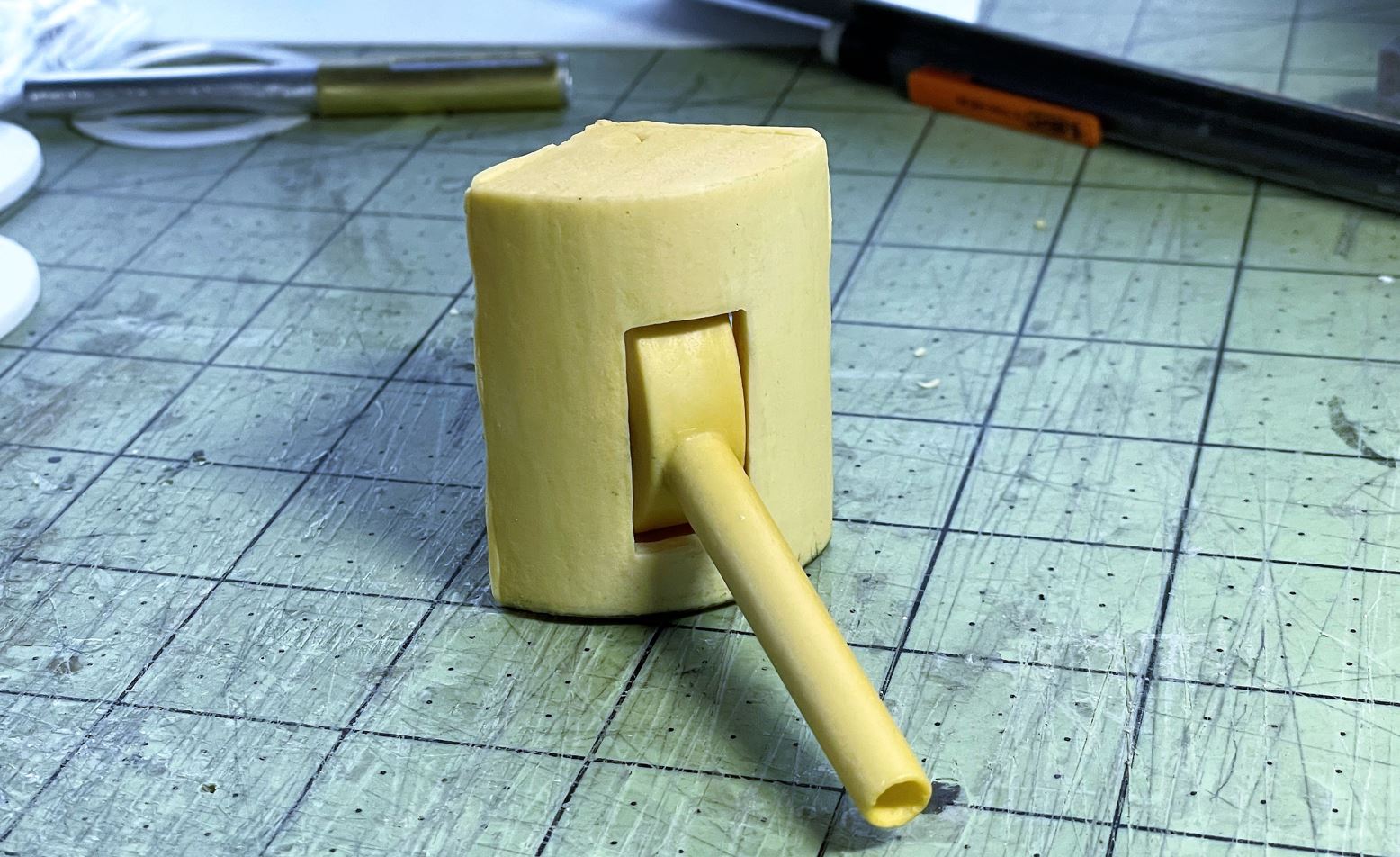

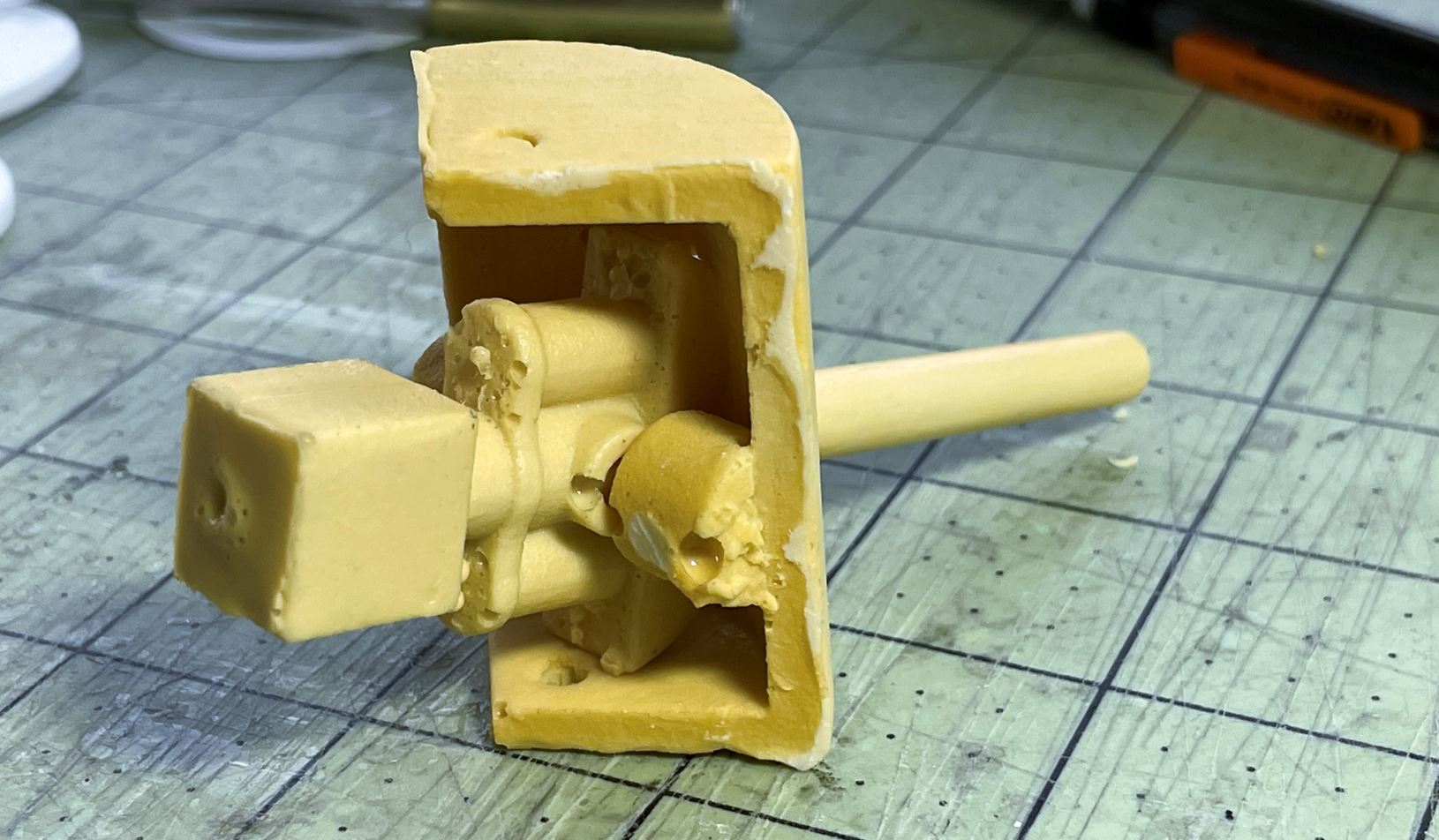

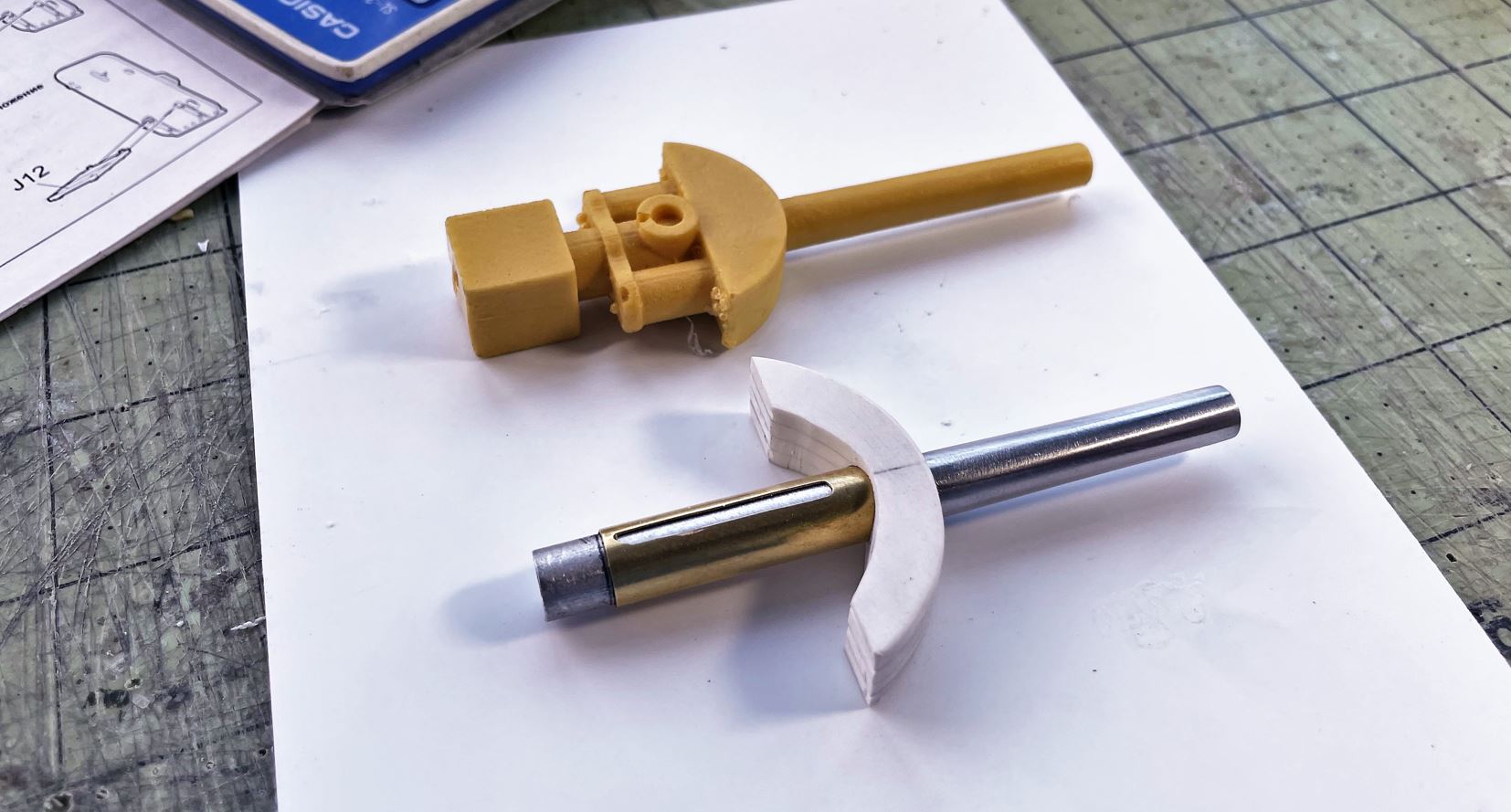

These are the two resin parts coming with the Ludwig kit. It is made to be static, no way to reuse this for a working RC model gun.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build

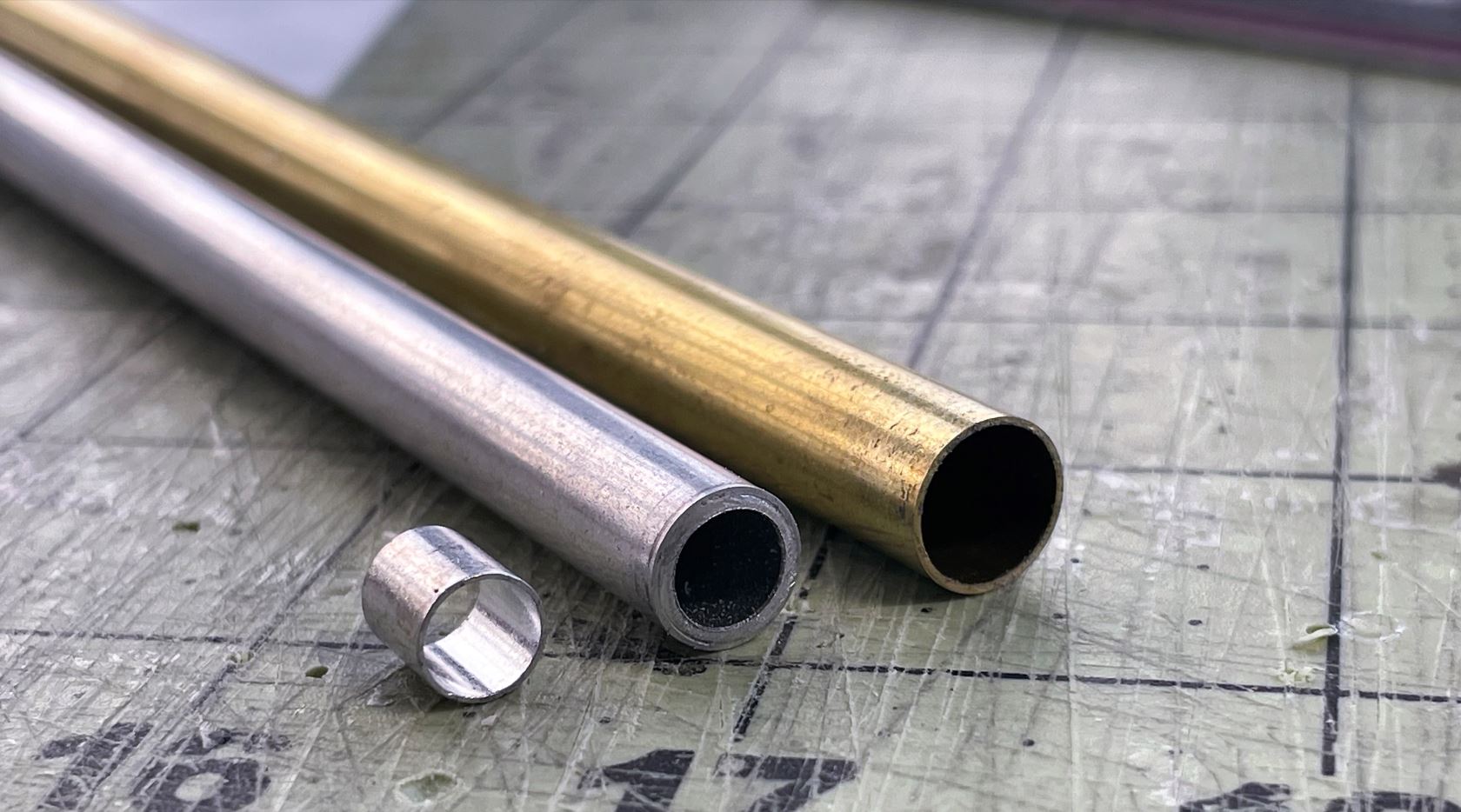

A metal gun is made of a thick aluminum tube that will be sanded towards the muzzle to give it a good reduction, with an overlapping brass sleeve for the recoil, and a small tube to fit inside the barrel tip to keep the thickness of the muzzle.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build
Continuing of following post
User avatar
lmcq11
2nd Lieutenant
Posts: 2657
Joined: Mon Dec 19, 2016 7:42 pm
Location: Quebec, Canada

Re: A7V German WW1 tank 1/16 RC - Build

Post by lmcq11 »

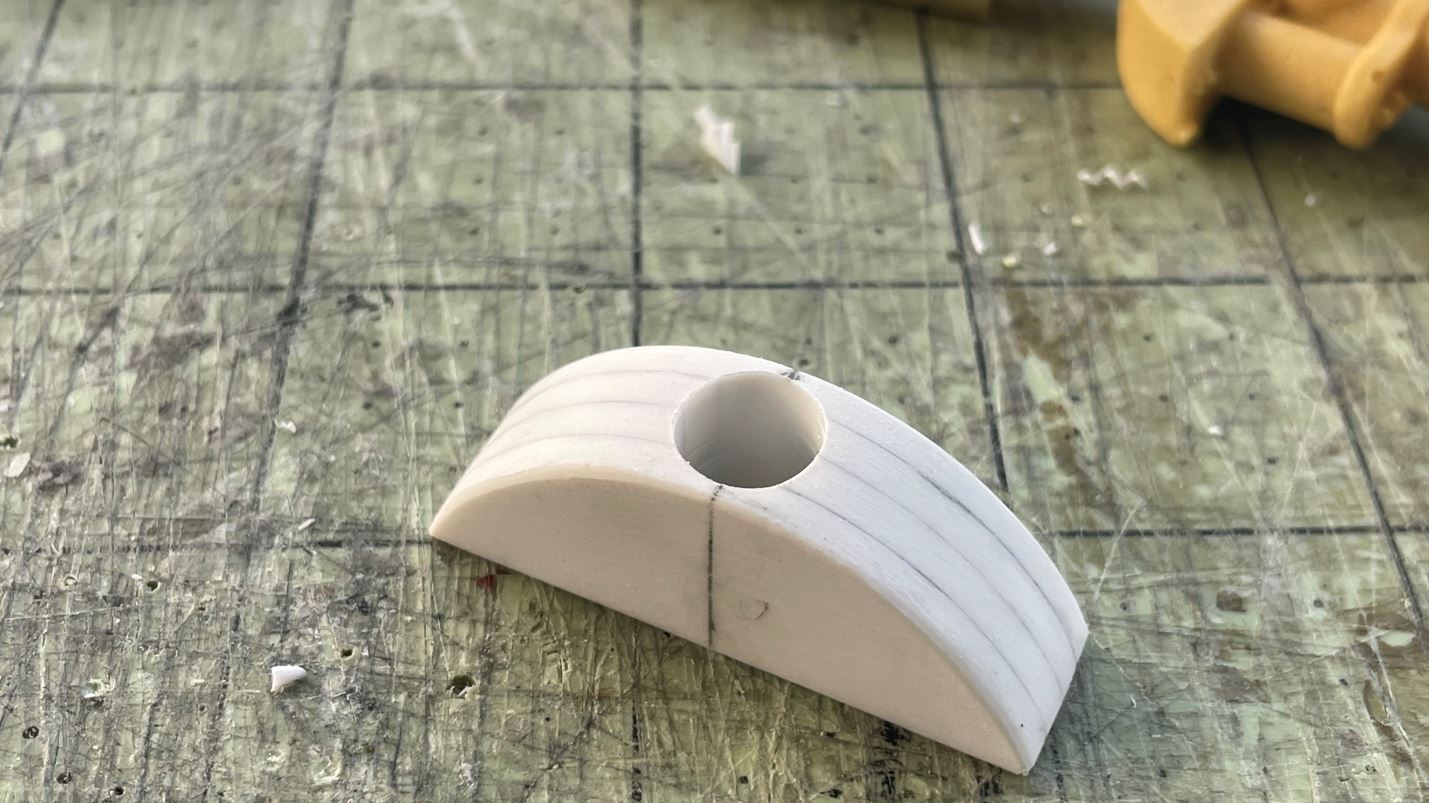

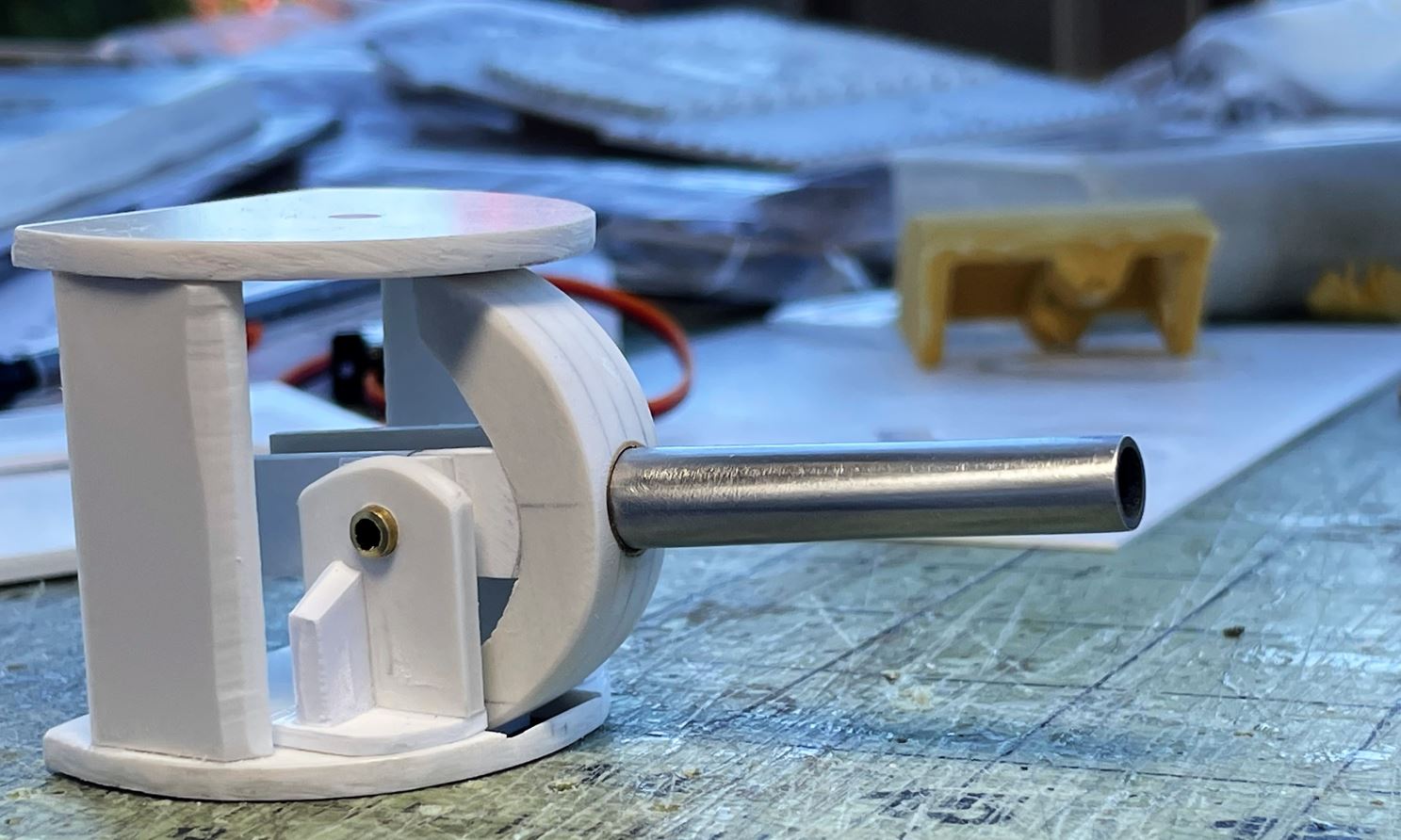

A new mantlet is created

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build

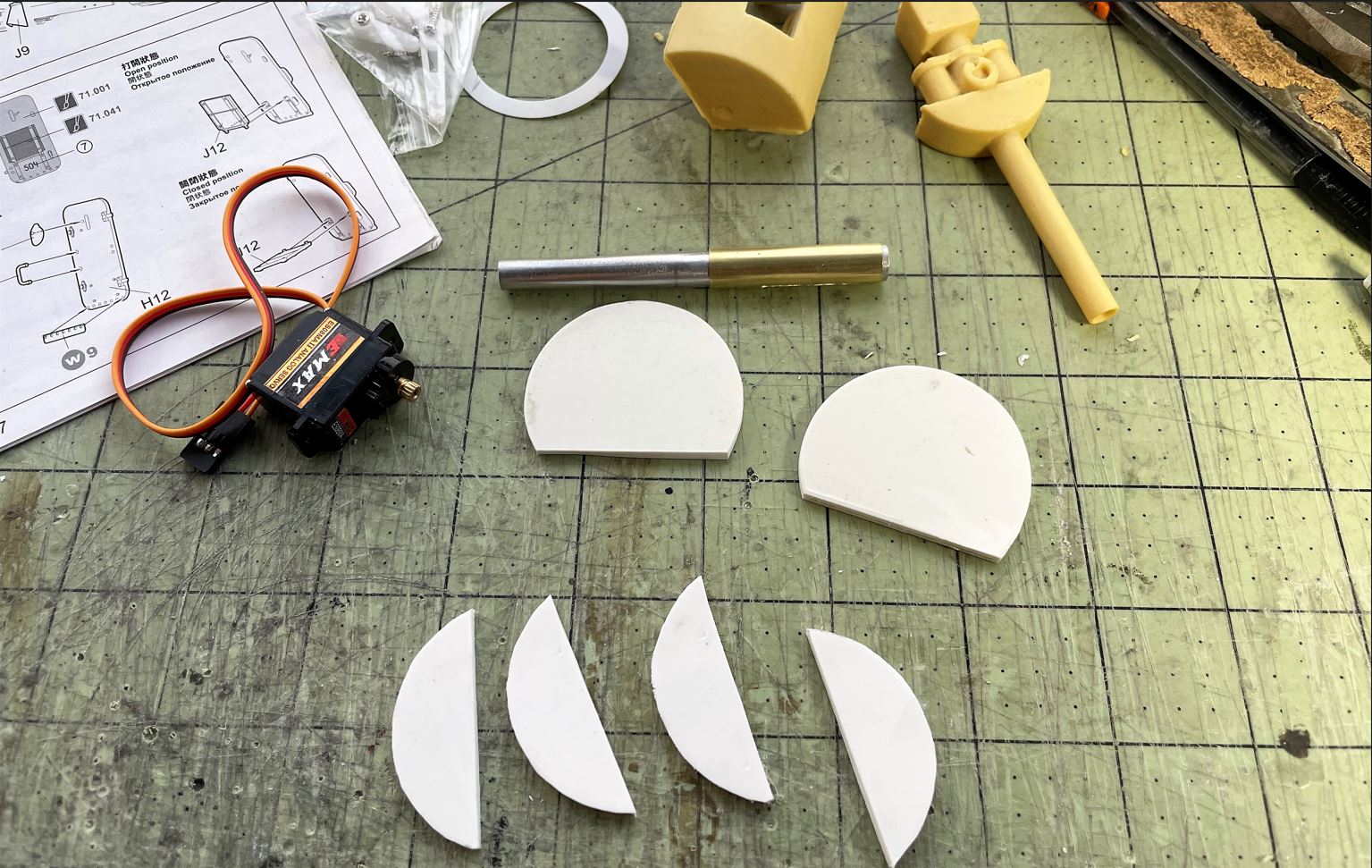

New gun sleeve and barrel are created and made to be inserted in the mantlet.


A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build

Basic components for the mini turret are created with extrapolated specs from the 1/35 kit.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build

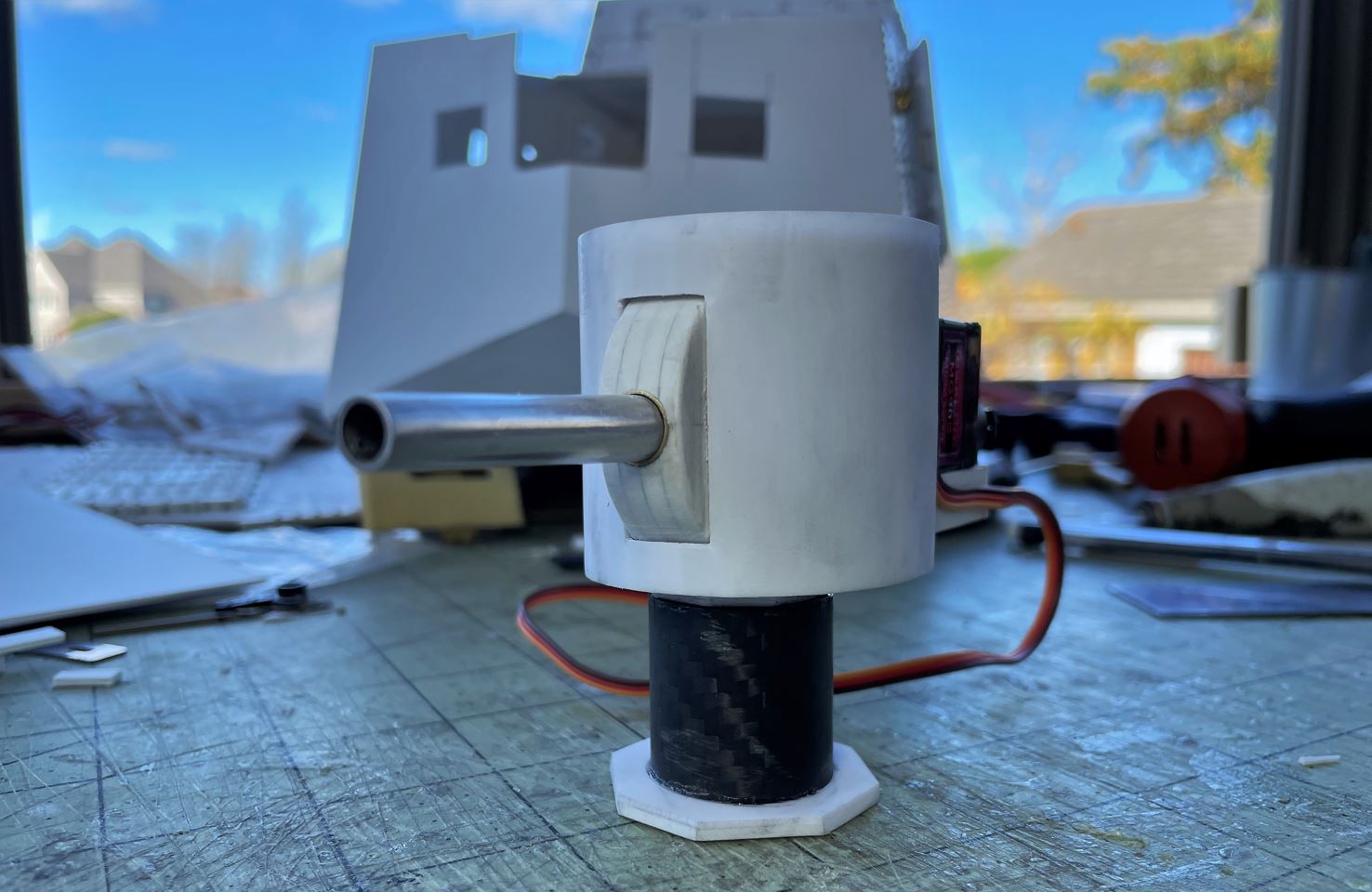

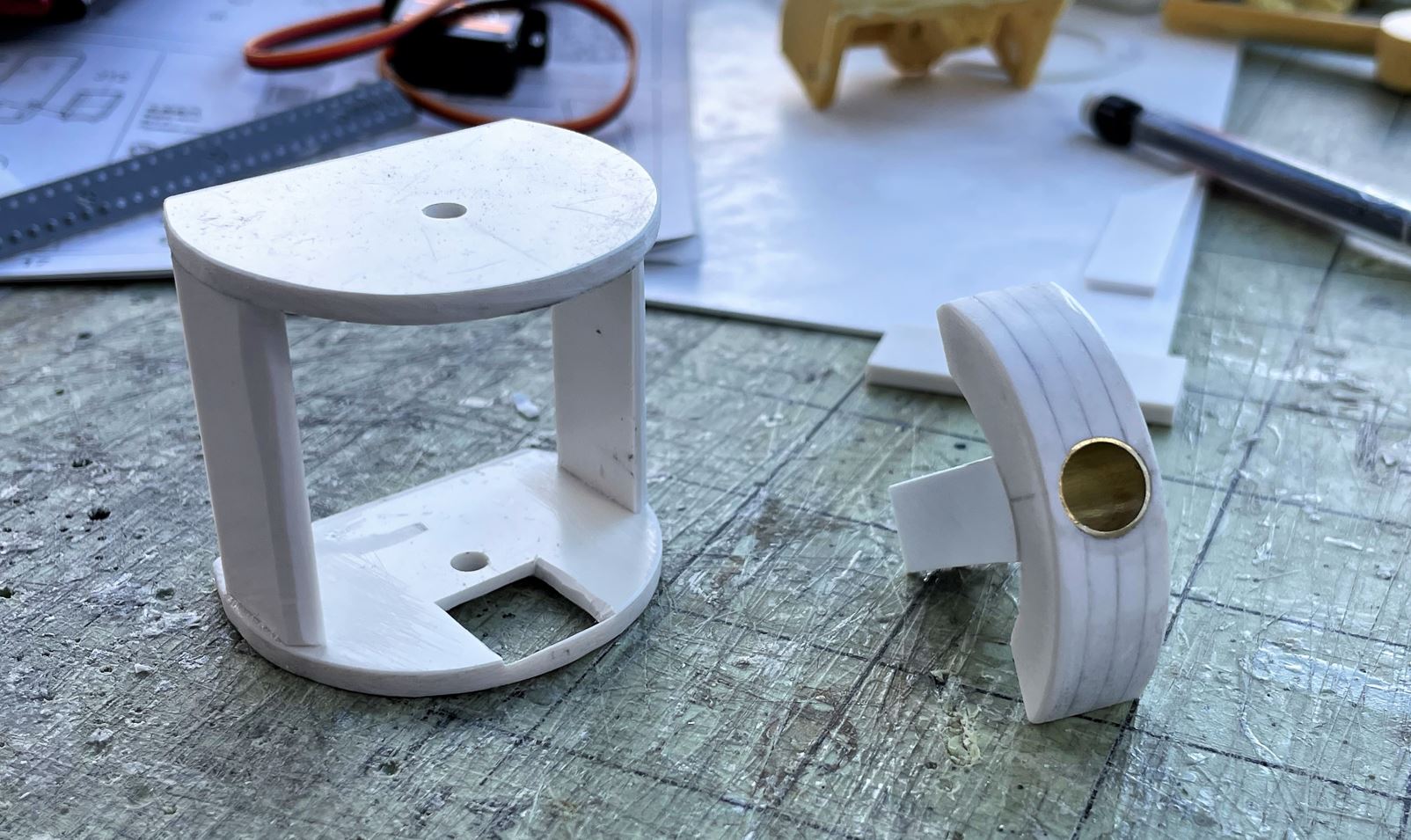

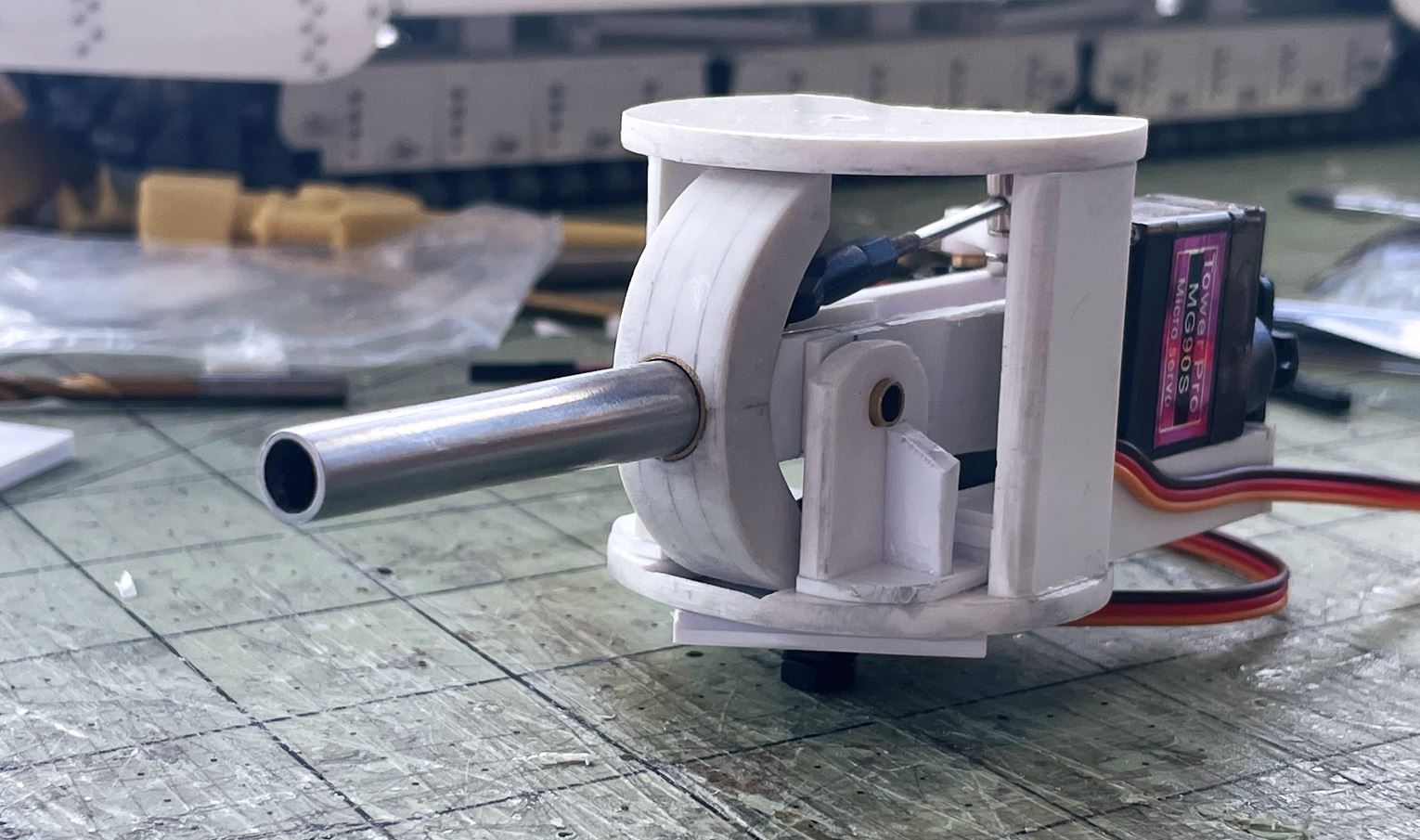

Basic assembly of the mini turret.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build

It is mostly designed on the fly, one component at a time in a telescopic fashion.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build

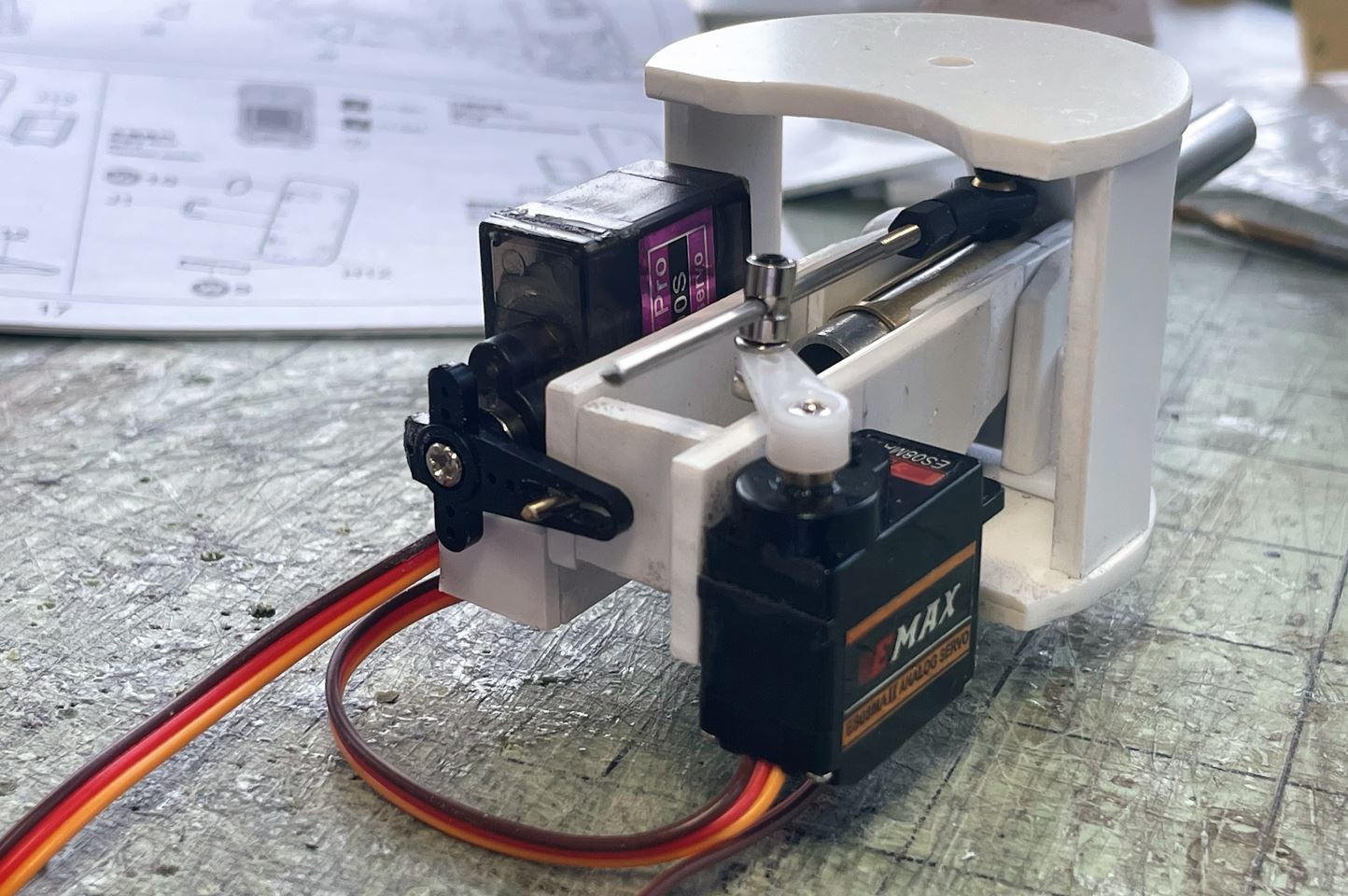

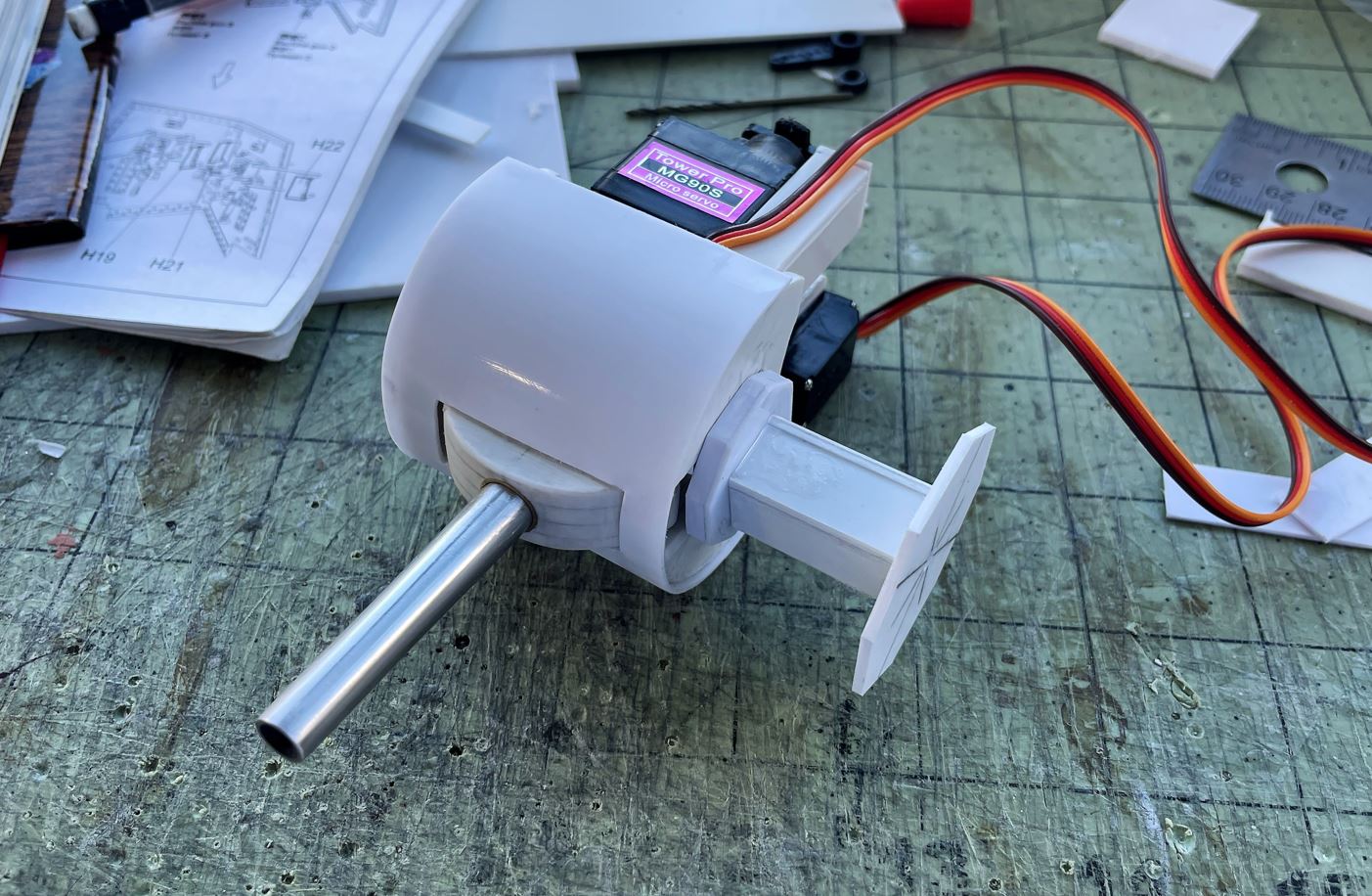

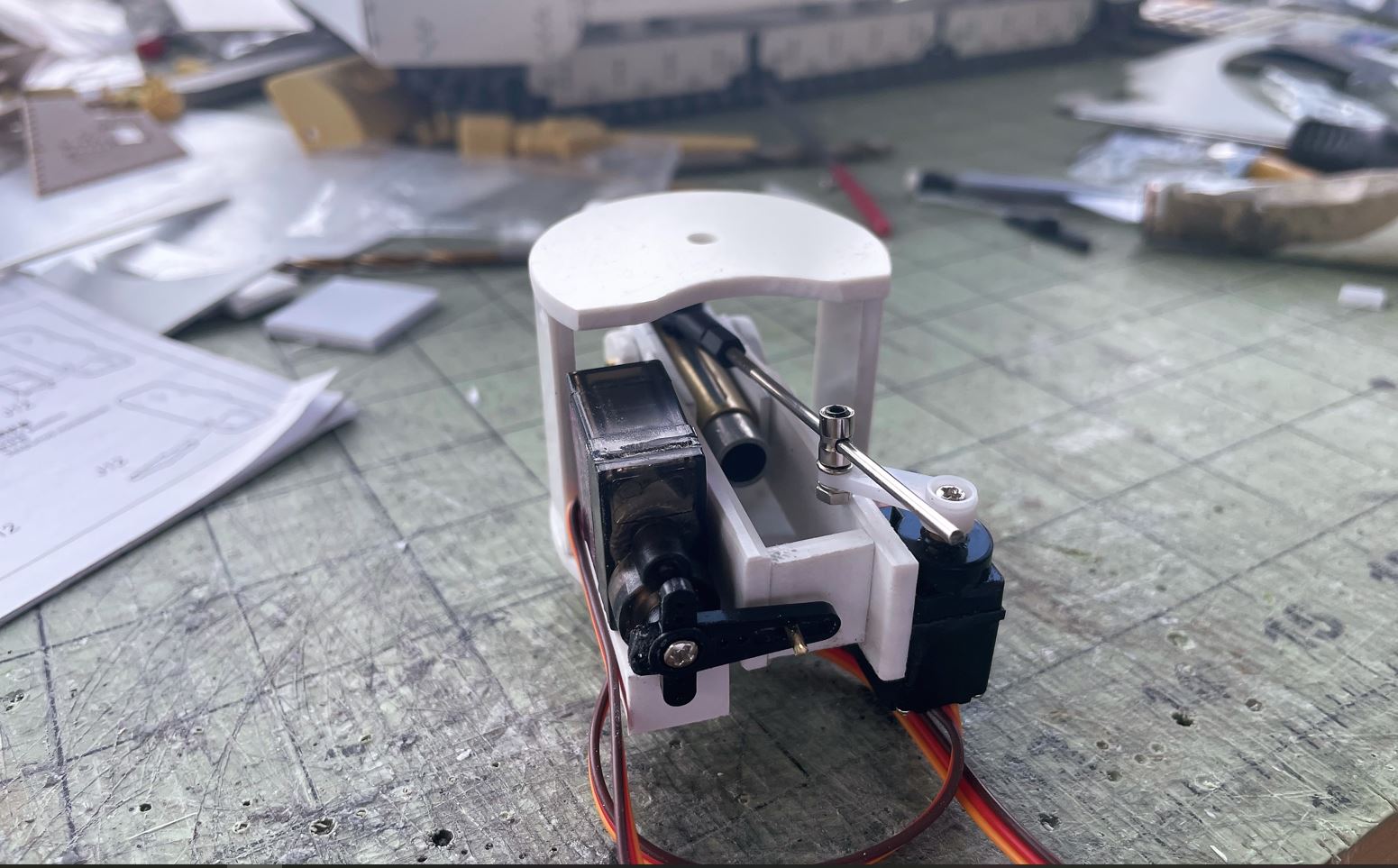

The recoil servo is attached to the gun, while the elevation servo is attached to the mount. Simple design are used, done in a couple of hours. No need for over engineering. The recoil is tested and works perfectly.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build

The gun shield is put on after adding a few internal braces to keep the gun shield strait at the weak gun elevation area. A simple base mount is created to determine the proper height of the turret through a lot of dry fitting with the hull.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build

Once the height is determine, an stronger round base mount is added to the base. As the interior is not detailed on this build, i did not bother recreating the octagonal mount.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build
Continuing on following post
User avatar
lmcq11
2nd Lieutenant
Posts: 2657
Joined: Mon Dec 19, 2016 7:42 pm
Location: Quebec, Canada

Re: A7V German WW1 tank 1/16 RC - Build

Post by lmcq11 »

After a lot of dry fitting, the gun mount is glued in place. Notice that the gap between the gun shield and the main armor plate has been correctly replicated. This gap is not a mistake as you can compare to the pictures on the above posts.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build

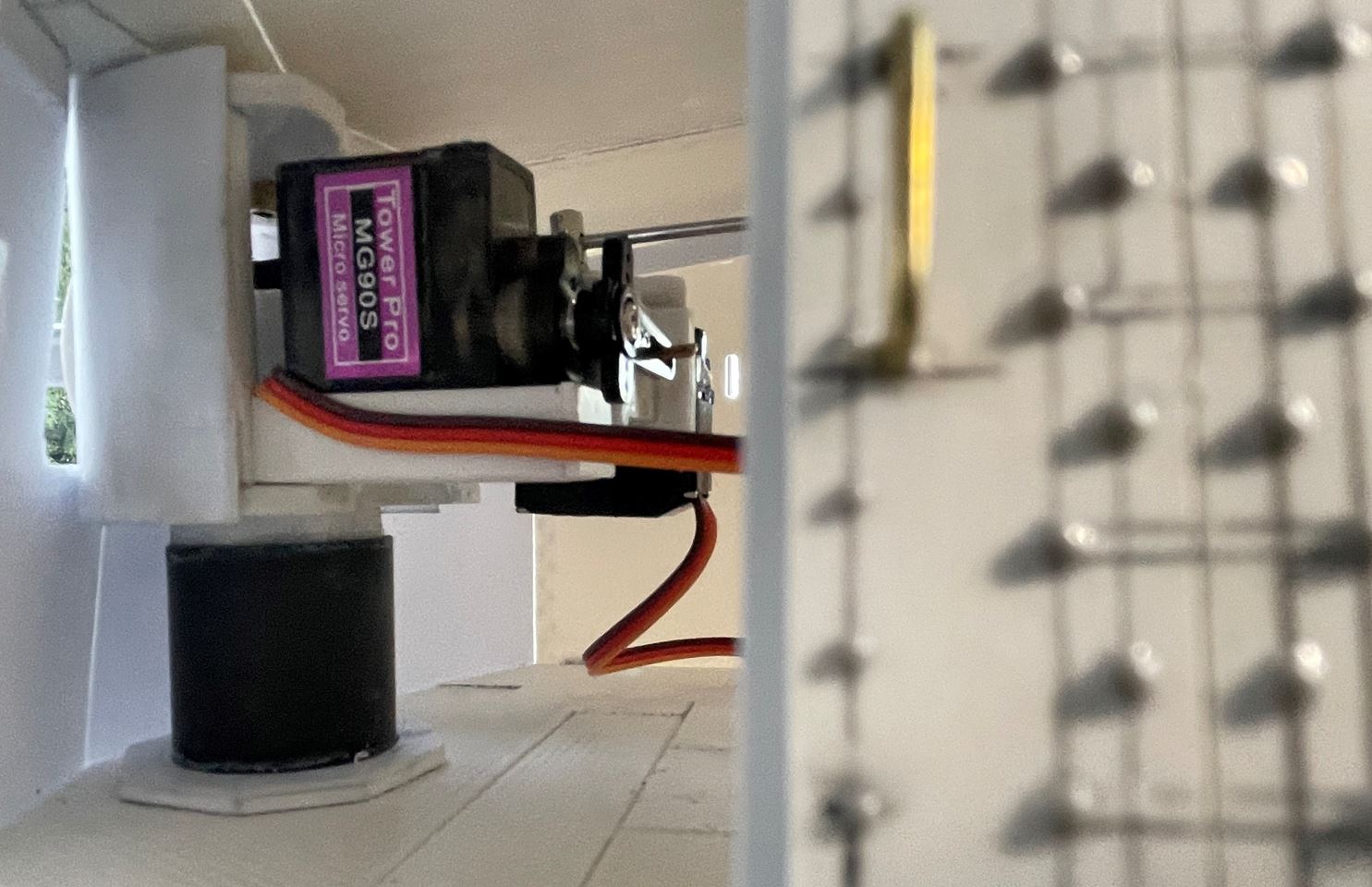

View from inside the hull. I still have to install the rotation servo. The plan is to do something simple using a push rod attached to the mount.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build

The top is composed of two overlayed plasticard. This one is attached to the hull and fixed the upper pinion for the rotation.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build

The visible upper part is attached to the top plate.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build

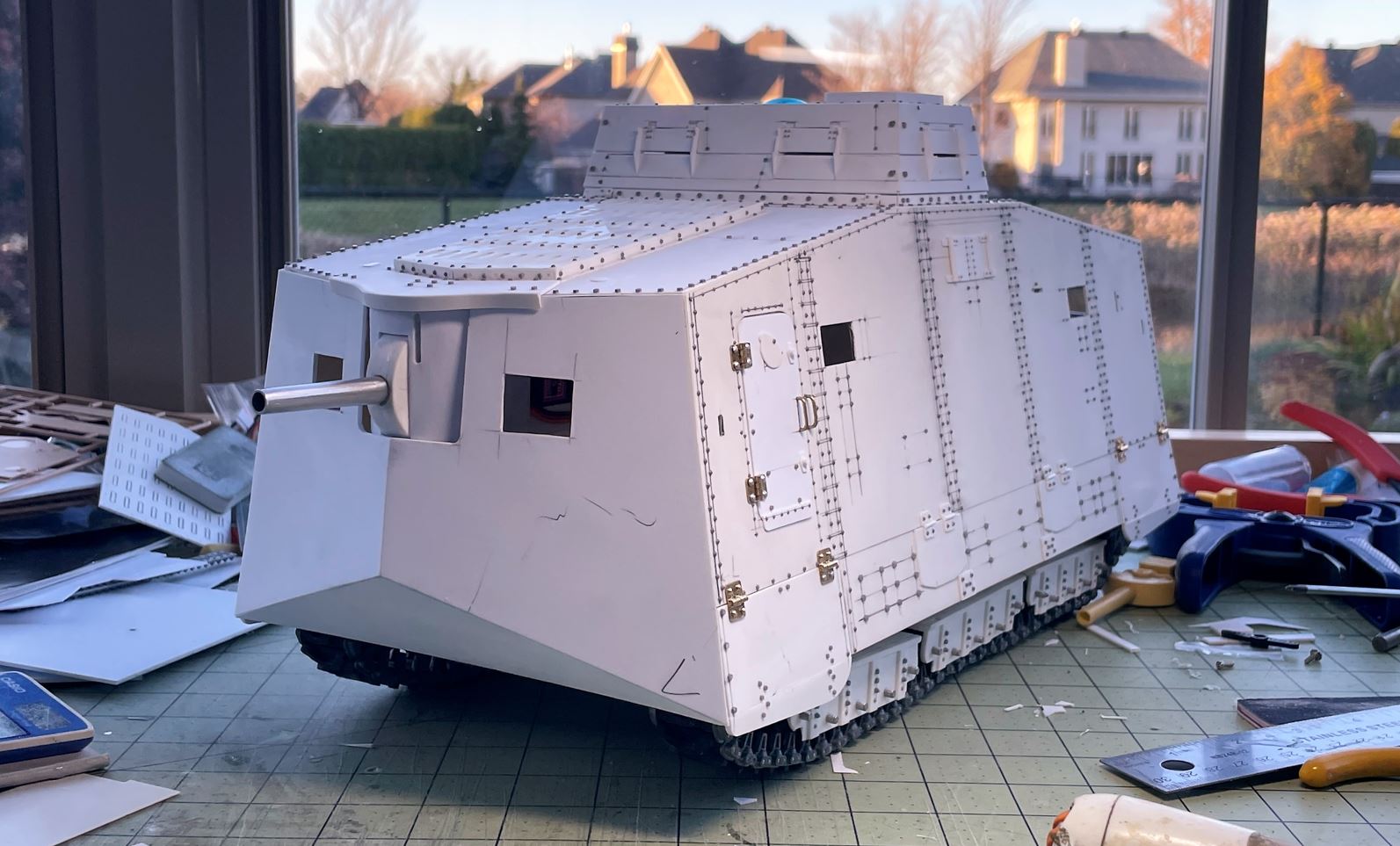

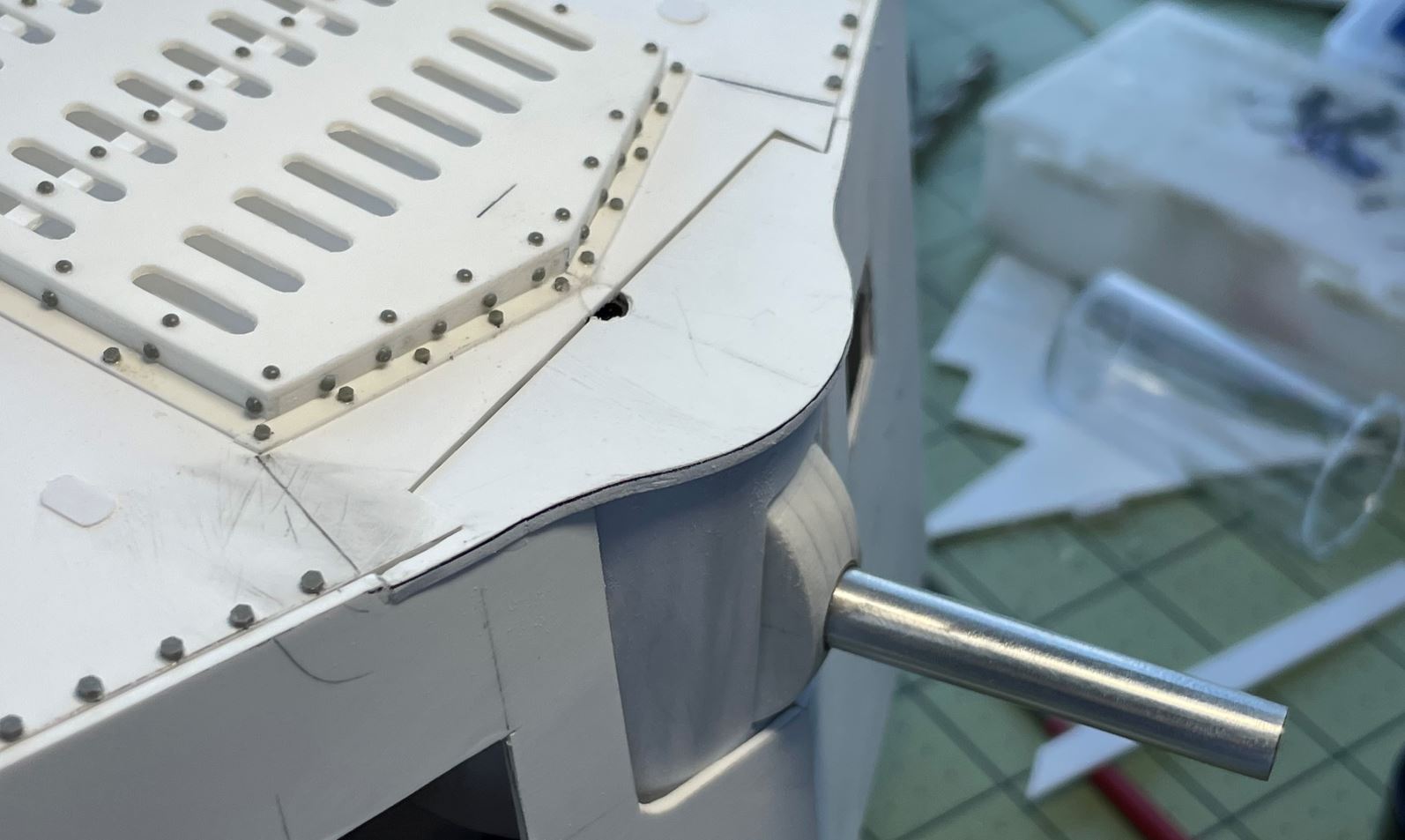

View of the A7V with its gun mount in place.

A7V German WW1 tank 1/16 RC - Build
A7V German WW1 tank 1/16 RC - Build
Next step is to detail the front armored plate.

Regards, Louis
