Re: Mato M36B1 Tank Destroyer (full metal)

Post by PainlessWolf »

Doc,
I am amazed by the indepth focus of the work done here. I think I will have to coat my exhaust pieces in a brushed on liquid metal before painting to avoid the breakage issue. I plan to replace the phillips head screws with scale hardware as well just to clean up the view wherever possible. (something else I should have mentioned in my email to MATO, surely they can afford hex head hardware for something this pricey?) Doc, you have made the rear end look 1000% more accurate! Following along and thanks for the heads up on the exhaust pipes.
regards,
Painless
...Here for the Dawn...
User avatar
Dr Phibes
Corporal
Posts: 300
Joined: Wed Sep 23, 2015 9:38 pm
Location: Southampton, England, UK

Re: Mato M36B1 Tank Destroyer (full metal)

Post by Dr Phibes »

The following is a little more detailed than it perhaps needs to be but i know a few people have had problems with their Mato all metal lower hulls in particular so I thought it would be helpful to articulate what I found on this tear-down and how I dealt with it on the build up. So, returning to the VVSS bogies:
I had, like some other owners, one or two wheels that started to bind a little, or at least not as free-running as I would like so when putting these together I tried to match the parts for optimum fit. I carefully cleaned the surfaces, sanded where necessary, and plumbed for molybdenum grease as it is relatively thin and less sticky that other options,

However, I found that when the two part axle was fitted to some wheels there was still some tightness in a few of the wheels. I discovered, in the end, that this was mainly due to the varying width of the wheel hubs. These measured roughly between 15.20mm and 15.50mm and even matching them to different axle combinations (in the case of thicker measurements) didn't cure the potential for problems. The solution was to simply file down one of the hubs (the axle halves are fixed length and lock into each other), so this is what I did with the naughty ones.
Attachments
Lower Hull14.jpg

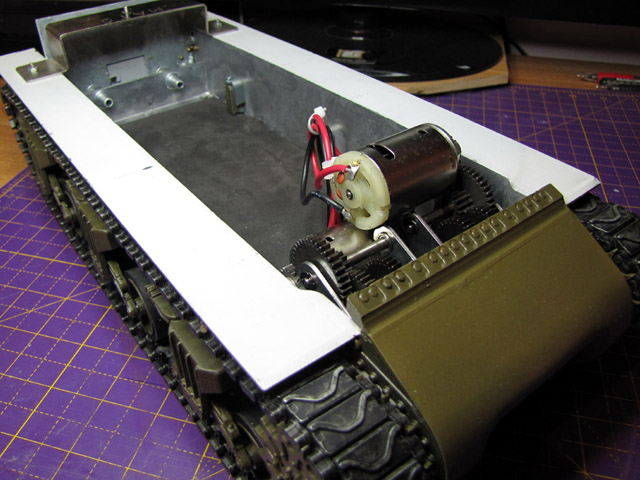

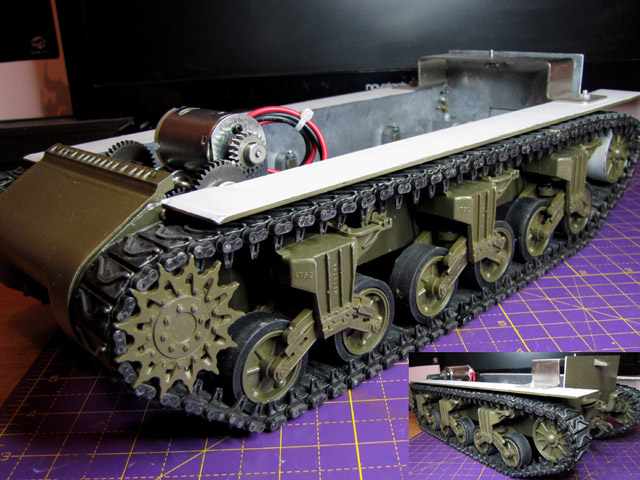

I eventually got the motors in , front sprockets and transmission cover fitted and tracks back on (the pin outer links of which, I would add, are quite prone to breaking) . The electronics including the TK24, smoker and speaker are needed but, otherwise the lower hull is now pretty much complete
I eventually got the motors in , front sprockets and transmission cover fitted and tracks back on (the pin outer links of which, I would add, are quite prone to breaking) . The electronics including the TK24, smoker and speaker are needed but, otherwise the lower hull is now pretty much complete

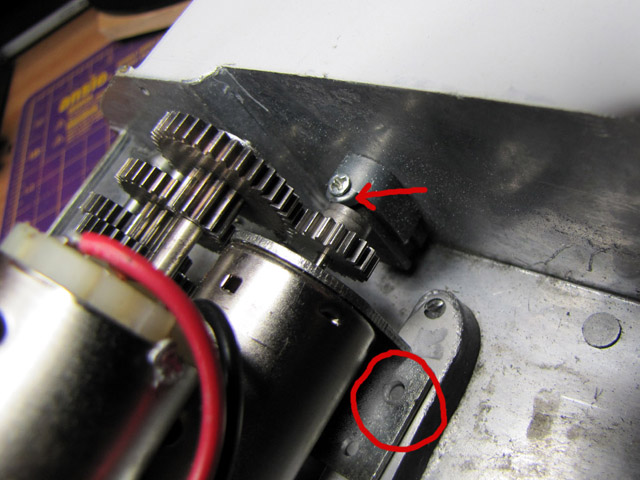

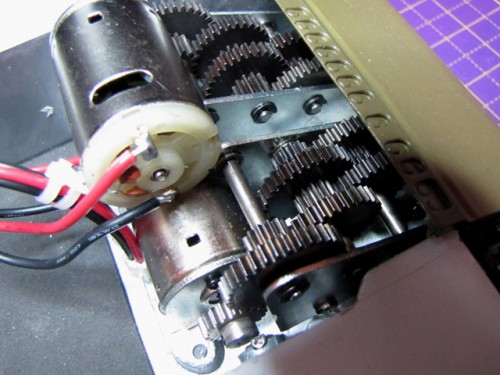

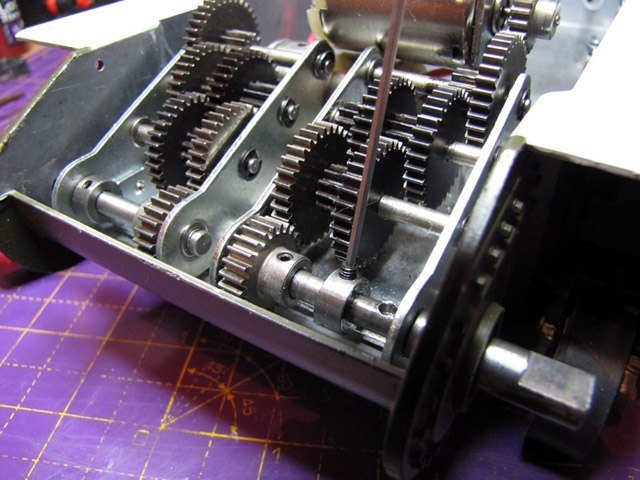

Having fixed the bogies securely in place (at last) I continued to finish bolting up the gearboxes and discovered that one of the output shafts was tight and notchy. After investigating I found the Colet opposite the final gear was pressing tight against the bearing. I loosened it off, removed it, and filed down the side where it was being thrust against the bearing. When I put it back together it was still not right (though it was better). I then noticed that one of the gearbox frame plates was a little bent inwards. After a bit of adjustment it is perfectly free again (it's not clear how this come about, or more likely, it was like it from the start)
Having fixed the bogies securely in place (at last) I continued to finish bolting up the gearboxes and discovered that one of the output shafts was tight and notchy. After investigating I found the Colet opposite the final gear was pressing tight against the bearing. I loosened it off, removed it, and filed down the side where it was being thrust against the bearing. When I put it back together it was still not right (though it was better). I then noticed that one of the gearbox frame plates was a little bent inwards. After a bit of adjustment it is perfectly free again (it's not clear how this come about, or more likely, it was like it from the start)
As this picture demonstrates. the screw can still be fitted at the front, though it needs a bit grinding itself, not ideal but better than simply gluing everything up. And it doesn't explain why Mato didn't use the screws in the other five bogie wedges that didn't foul anything
As this picture demonstrates. the screw can still be fitted at the front, though it needs a bit grinding itself, not ideal but better than simply gluing everything up. And it doesn't explain why Mato didn't use the screws in the other five bogie wedges that didn't foul anything
The bogies are held in place on the inner side of the hull by a horseshoe shaped wedge that pulls the bogies tight into the hull. On top (see pic) there is hole in the horseshoe wedge and one corresponding in the part of the bogies that protrudes into the hull and which the wedge slots down on. This hole is intended for a self tapping screw hold the horseshoe clip down and in place. Mato left all the screws off of my M36 which I thought was strange. This now explains the Mato glue monster, Mato had glued all the horseshoe clips, and the bogies themselves, to the hull because they were leaving off the retaining screws. The question is why? Anyway, I managed to replace them all. However, the clip/wedge on the right of the picture - the part at the top where the screw goes through is missing, as is part of bogie block that protrudes through the hull. This has actually been ground away by Mato but again, I wondered, why? I soon found out as can be seen in the next picture. When I went to replace the gearboxes I found the the front most bogie retaining wedge fouled the motor pinion gear sufficiently to move the gearboxes off their bolt hole centers - this is why Mato ground down the front bogies and retaining wedges, and why they thought they needed to dispense with the screws (and get their glue monster on the job). I had inadvertently placed the ground down bogies at the rear instead of the front.
The bogies are held in place on the inner side of the hull by a horseshoe shaped wedge that pulls the bogies tight into the hull. On top (see pic) there is hole in the horseshoe wedge and one corresponding in the part of the bogies that protrudes into the hull and which the wedge slots down on. This hole is intended for a self tapping screw hold the horseshoe clip down and in place. Mato left all the screws off of my M36 which I thought was strange. This now explains the Mato glue monster, Mato had glued all the horseshoe clips, and the bogies themselves, to the hull because they were leaving off the retaining screws. The question is why? Anyway, I managed to replace them all. However, the clip/wedge on the right of the picture - the part at the top where the screw goes through is missing, as is part of bogie block that protrudes through the hull. This has actually been ground away by Mato but again, I wondered, why? I soon found out as can be seen in the next picture. When I went to replace the gearboxes I found the the front most bogie retaining wedge fouled the motor pinion gear sufficiently to move the gearboxes off their bolt hole centers - this is why Mato ground down the front bogies and retaining wedges, and why they thought they needed to dispense with the screws (and get their glue monster on the job). I had inadvertently placed the ground down bogies at the rear instead of the front.
Lower Hull8.jpg (97.58 KiB) Viewed 3974 times

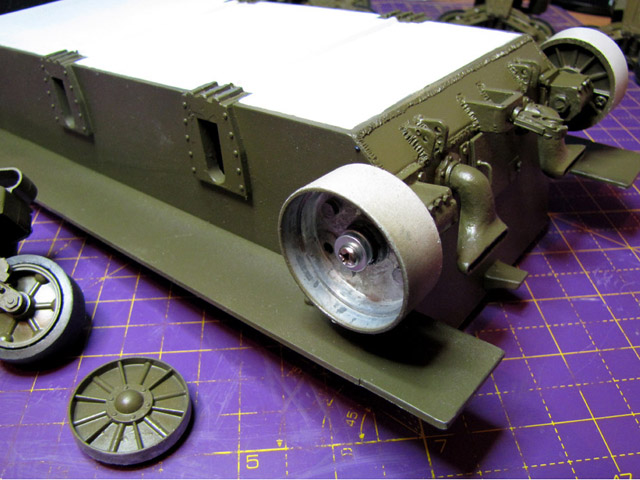

Next was the assembly of the lower hull, starting with the idlers. Here I came across my next little problem. I wrongly said earlier in the thread that none of the wheels have bearings - that was wrong as, in fact the idlers, and only the idlers, do have ball races fitted (whaho!) - but this wasn't the problem. The first idler I fitted with no issues but the second, the one in the picture with the outer shell/cap removed, had a big issue. That screw in the centre that holds the wheel on to the concentric adjuster stripped it's thread. Consequently I had to tap a new thread and fit an over-size screw to which I added a spring washer.
Next was the assembly of the lower hull, starting with the idlers. Here I came across my next little problem. I wrongly said earlier in the thread that none of the wheels have bearings - that was wrong as, in fact the idlers, and only the idlers, do have ball races fitted (whaho!) - but this wasn't the problem. The first idler I fitted with no issues but the second, the one in the picture with the outer shell/cap removed, had a big issue. That screw in the centre that holds the wheel on to the concentric adjuster stripped it's thread. Consequently I had to tap a new thread and fit an over-size screw to which I added a spring washer.

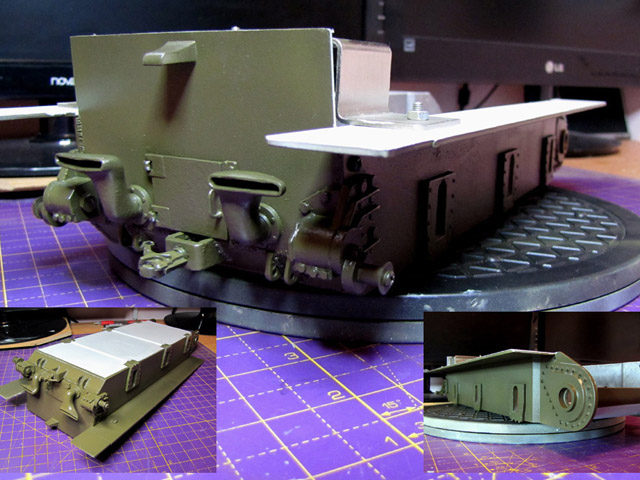

The next step was to paint the lower hull tub. For this, as for the rest of the tank, I used first a coat of Mr Hobby metal primer followed by Vallejo grey surface primer, and top coats of Mig Ammo dark base and base olive drab. I finished this (for now) with light coats of Vallejo satin vanish (these pictures taken under florescent/tungsten are showing the colour lighter/different than it is - I'll hopefully get better ones later)
The next step was to paint the lower hull tub. For this, as for the rest of the tank, I used first a coat of Mr Hobby metal primer followed by Vallejo grey surface primer, and top coats of Mig Ammo dark base and base olive drab. I finished this (for now) with light coats of Vallejo satin vanish (these pictures taken under florescent/tungsten are showing the colour lighter/different than it is - I'll hopefully get better ones later)

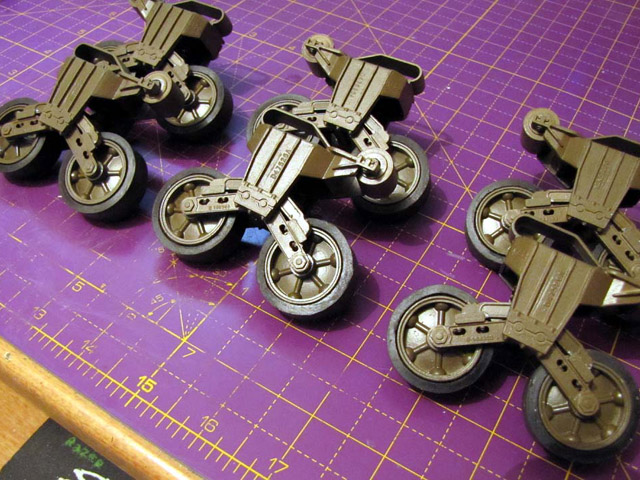

Finally I have my completed set of VVSS bogies all set for the lower hull
Finally I have my completed set of VVSS bogies all set for the lower hull

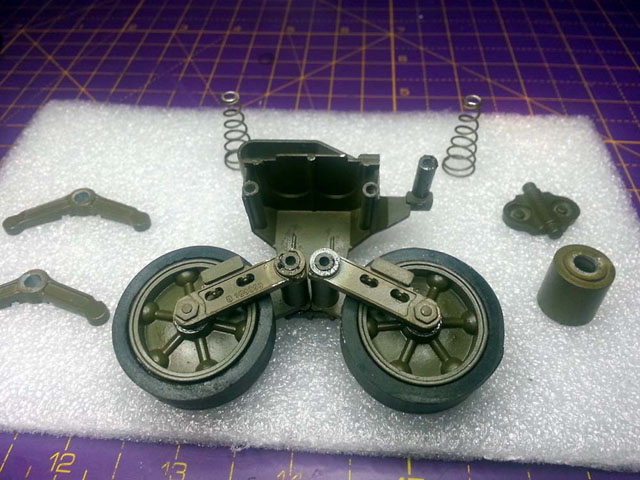

Here is an example of the wheels now assembled on the pivot arms. The springs, sliding arms, etc, are yet to be added. As can be seen, all the pivoting points, including the return roller, have been lightly lubricated (moly - the excess is cleaned up before putting back in the hull of course)
Here is an example of the wheels now assembled on the pivot arms. The springs, sliding arms, etc, are yet to be added. As can be seen, all the pivoting points, including the return roller, have been lightly lubricated (moly - the excess is cleaned up before putting back in the hull of course)
VVSS Units6.jpg (99.34 KiB) Viewed 3974 times
Last edited by Dr Phibes on Thu Jul 20, 2017 2:20 pm, edited 1 time in total.
User avatar
PainlessWolf
Lieutenant-Colonel
Posts: 7608
Joined: Sun Feb 26, 2012 9:09 pm
Location: Southern Colorado Rocky Mountains

Re: Mato M36B1 Tank Destroyer (full metal)

Post by PainlessWolf »

Doc Phibes,
Detailed thread full of excellently illustrated Dos and Donts as related to this vehicle. It's again interesting in these 'hand assembled' models why things ( like the retaining screws ) are left off and glue substituted. Good job on the gearbox fixes. I haven't noticed anything amiss with mine so far but that is only due to Jacks prior diligence with it.
regards,
Painless
...Here for the Dawn...
User avatar
tomhugill
Captain
Posts: 4862
Joined: Thu Apr 15, 2010 11:21 am

Re: Mato M36B1 Tank Destroyer (full metal)

Post by tomhugill »

Apologies if I've missed it but did you removed the doubled up springs front and back? I've done this on mine and whilst you do get a much more realistic lurch starting and stopping I'm not sure if it will cause issues on the roughy terrain.
User avatar
Dr Phibes
Corporal
Posts: 300
Joined: Wed Sep 23, 2015 9:38 pm
Location: Southampton, England, UK

Re: Mato M36B1 Tank Destroyer (full metal)

Post by Dr Phibes »

Thanks Painless, yes, it's just my experience not every owner will necessarily come across the issues I have and, as you say, you had the benefit of a previous careful owner. What do you think of the 'double spring' set up on the bogies, as below?

Tom, that's interesting, I have double springs in the foremost bogies (next to the sprockets) and have left these in but not in the rear, just singles there - if I,m understanding you correctly? I did think about taking the extra springs out, and might still do because with the doubles in the suspension seems too stiff at the front to me. The only reason I haven't, so far, is that I assumed Mato doubled up the springs for some reason, but I'm beginning to wonder now. What do you think?
User avatar
HERMAN BIX
Major-General
Posts: 11336
Joined: Sun Jan 12, 2014 12:15 am
Location: Gold Coast,Australia

Re: Mato M36B1 Tank Destroyer (full metal)

Post by HERMAN BIX »

As I have zero experience with Sherman type suspension I can only summise, that the lead and trailing wheels are stiffened to allow the shape of the track to be retained when the lead or rear roadwheel is deflected .
If not then the whole lot could slacken enough to either derail or be baggy enough to skip the sprocket ?
HL JAGDPANTHER,HL TIGER 1,HL PzIII MUNITIONSCHLEPPER, HL KT OCTOPUS,HL PANTHER ZU-FUSS,HL STuG III,HL T34/85 BEDSPRING,
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
User avatar
Tiggr
Staff Sergeant
Posts: 819
Joined: Wed Jul 13, 2016 6:19 pm
Location: North Wales near Chester

Re: Mato M36B1 Tank Destroyer (full metal)

Post by Tiggr »

Top work Doc.

It's almost like you are building the full size vehicle.
Tiger 1 Early Taigen,
Tiger 1 Mid Torro,
Tiger 1 Late Taigen,
King Tiger Taigen (P)
Jagdtiger Torro
King Tiger (H)
King Tiger Torro (H)
Tiger 1 late Torro
Panther G Taigen
User avatar
PainlessWolf
Lieutenant-Colonel
Posts: 7608
Joined: Sun Feb 26, 2012 9:09 pm
Location: Southern Colorado Rocky Mountains

Re: Mato M36B1 Tank Destroyer (full metal)

Post by PainlessWolf »

Good morning, Doc Phibes,
The suspension on my TD is softer in the rear but stiff up front so I am thinking that Jack removed the rear double spring set up ( due to stiffness I assume ) but left the ones up front because of the weight of the gearboxes. When the main gun fires you get a perfectly scaled little lurch rearwards. Same if the tank takes off fast from the start. The whole vehicle sits level when off so I am leaving it alone in that regard.
regards,
Painless
Last edited by PainlessWolf on Fri May 12, 2017 3:50 pm, edited 1 time in total.
...Here for the Dawn...
User avatar
tomhugill
Captain
Posts: 4862
Joined: Thu Apr 15, 2010 11:21 am

Re: Mato M36B1 Tank Destroyer (full metal)

Post by tomhugill »

I think the reason is as Herman surmises, when stationary she does sit level and in motion fractionally sits down at the back. However I'm not sure if it will cause the tracks to bunch on grass, I shall have to give it a try!
User avatar
Dr Phibes
Corporal
Posts: 300
Joined: Wed Sep 23, 2015 9:38 pm
Location: Southampton, England, UK

Re: Mato M36B1 Tank Destroyer (full metal)

Post by Dr Phibes »

Hi All, well at last I have found a little time to update my build thread. Progress has been slow mainly because of those annoying little features of life such family, work, all of which keep one from the important stuff! And then there is Painless, making sure that just when I thought I had it all covered....I really hadn't! :haha: (but seriously, your build has been an inspiration and education). Anyway, on to business, as they say.
The next phase in my build, still on the lower hull, was to figure out just how to get everything into what is after all quite limited floor space in the Sherman M4 hull of this M36. What I eventually come up with is the idea of having two decks. What the Mato M4 hull lacks in floor area is, to some extent, compensated by a taller hull and this makes it more viable to have multiple decks in this tank in particular.
To begin with I to come up with a rough idea of where I wanted to place everything so I decided the battery and smoke unit were best placed on what would become the lower deck. I also had to do some plumbing for the smoker to the newly installed exhaust outlets. Two things to notice in the first picture below
is the little metal tabs (there is one on the other side too) fixed to the hull wall and the cutaway on the rear bracket, both will be explained in due course. Next I made a two-piece removal clear perspex upper deck. This fits tightly between the rear idler adjuster nuts and is conveniently supported by the horseshoe blocks securing the bogies in place. The second picture better explains this.

Overall I think this has worked out quite well. The switches are in an easy to reach position now and there is more than ample space with the two deck to put in all and any extras I might want such voltage stepper, additional audio amplifier, bigger battery, bigger speaker, etc, and that's without using the 'shelf space' on the hull over the tracks.
Well as Bugs used to say, that's all for now folks, I still need to fit a volume control and one or two other bits and pieces but otherwise I should be able to move on to the exterior/upper hull and/or turret soon - even more fun I reckon :D
Attachments

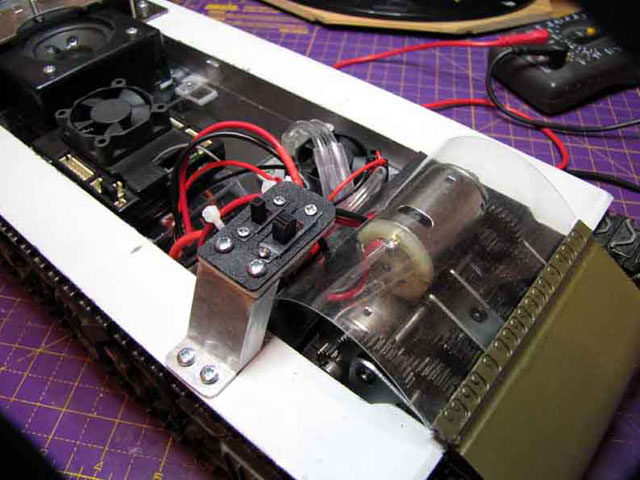

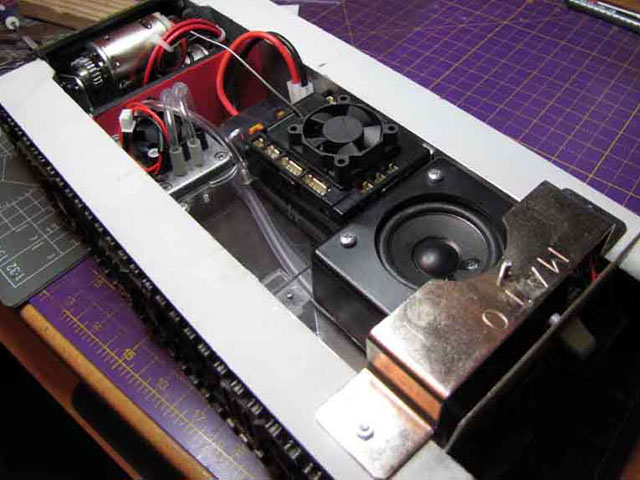

Finally I come to rewiring the electronics (or what I can for now) and the inclusion of a switch board for power and the smoker was needed. I placed this at the front so as to be accessible through the driver's mate's hatch. The tricky part was setting it so it gave sufficient clearance for the periscope box that drops below the hatch when closed
Finally I come to rewiring the electronics (or what I can for now) and the inclusion of a switch board for power and the smoker was needed. I placed this at the front so as to be accessible through the driver's mate's hatch. The tricky part was setting it so it gave sufficient clearance for the periscope box that drops below the hatch when closed
Upper Deck10.jpg (88.05 KiB) Viewed 3974 times

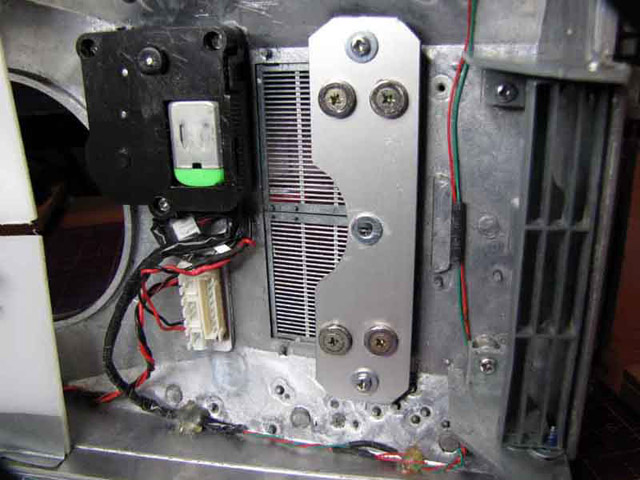

I had to modify the fixing plate that is used to secure the upper hull to the lower hull. This is one of the few things I have done on the upper hull so far (the other being modifying the exhaust deflector) but it was necessary to ensure it all worked together. I also added four magnets to replace the fiddly screw fixing that can't be got to when the turret if facing forward or aft (the screw is still in place on the reverse of the lower plate but now only acts as a locating pin for the upper magnetized plate
I had to modify the fixing plate that is used to secure the upper hull to the lower hull. This is one of the few things I have done on the upper hull so far (the other being modifying the exhaust deflector) but it was necessary to ensure it all worked together. I also added four magnets to replace the fiddly screw fixing that can't be got to when the turret if facing forward or aft (the screw is still in place on the reverse of the lower plate but now only acts as a locating pin for the upper magnetized plate
Upper Deck08.jpg (93.83 KiB) Viewed 3974 times

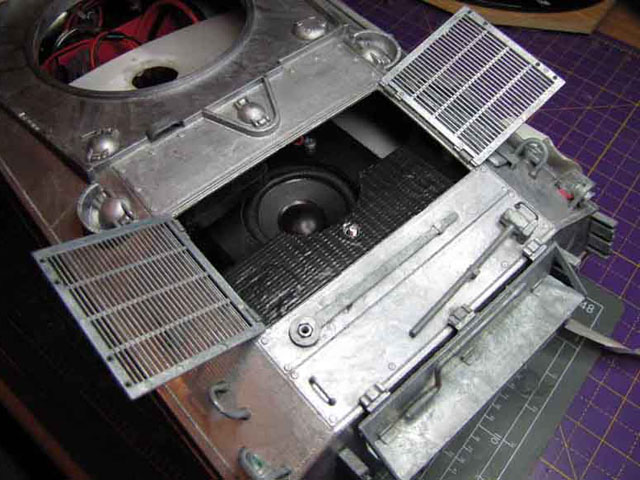

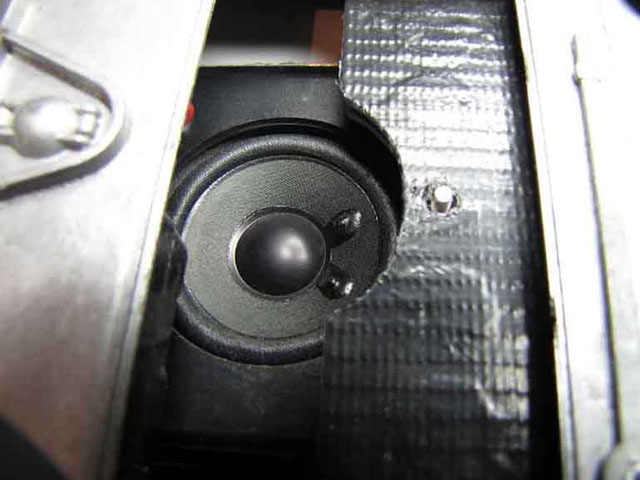

The reason for the cutaway now becomes more obvious - the added benefit here is raising the speaker much closer to the engine deck doors
The reason for the cutaway now becomes more obvious - the added benefit here is raising the speaker much closer to the engine deck doors
Upper Deck09a.jpg (64.5 KiB) Viewed 3974 times
Upper Deck09.jpg
Upper Deck09.jpg (93.14 KiB) Viewed 3974 times

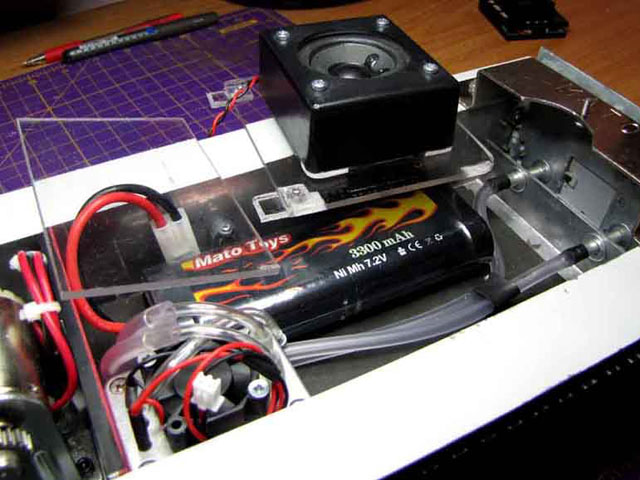

Here I have used a boxed Visaton FRS5 from RCTanks but there is ample space for a larger box and speaker if I decide it is needed (I don't think it will be). In the following picture is everything back in place, the Taigen unit is just to check fit, etc, as I am still waiting on my upgraded TK24 which Clark assures me is winging it way back to me soon
Here I have used a boxed Visaton FRS5 from RCTanks but there is ample space for a larger box and speaker if I decide it is needed (I don't think it will be). In the following picture is everything back in place, the Taigen unit is just to check fit, etc, as I am still waiting on my upgraded TK24 which Clark assures me is winging it way back to me soon
Upper Deck07.jpg (86.22 KiB) Viewed 3974 times

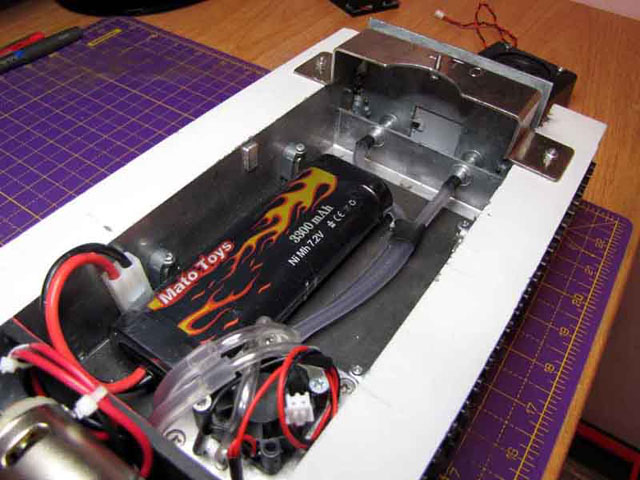

With this upper deck fitted the floor area is increased around 70%. The battery is easily removable and indeed the space allocated will accommodate a larger battery if required (I doubt it). There is also additional space now available beside the smoker plumbing for electonics, accessories, etc. The next step is to fix the other components in place, starting with the speaker
With this upper deck fitted the floor area is increased around 70%. The battery is easily removable and indeed the space allocated will accommodate a larger battery if required (I doubt it). There is also additional space now available beside the smoker plumbing for electonics, accessories, etc. The next step is to fix the other components in place, starting with the speaker
Upper Deck06.jpg (87.14 KiB) Viewed 3974 times

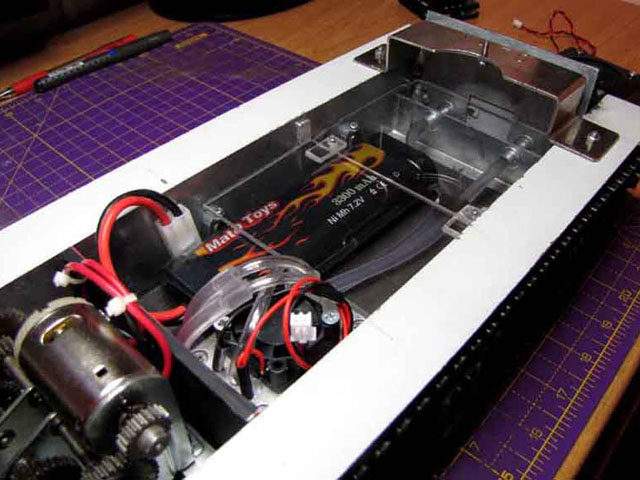

Because of the position of the tabs in relation to the bogie blocks the deck rests on it is tightly secure in place but will slide out easily when needed
Because of the position of the tabs in relation to the bogie blocks the deck rests on it is tightly secure in place but will slide out easily when needed
Upper Deck04.jpg (87.35 KiB) Viewed 3974 times

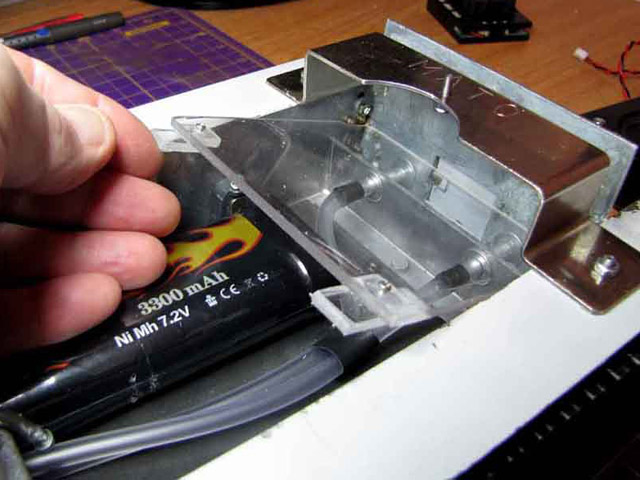

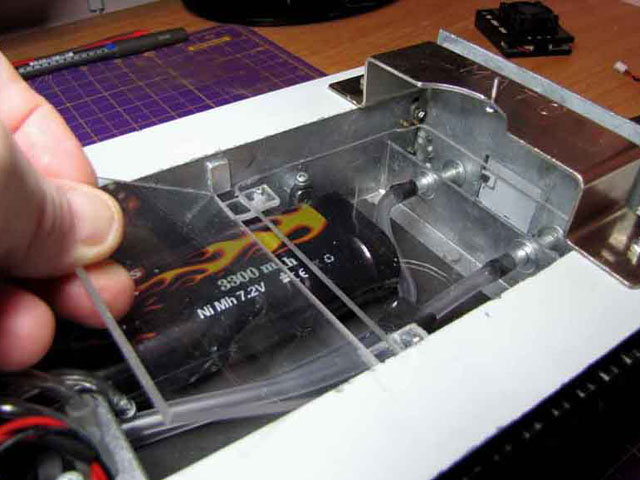

The second half of what will be a removal upper deck now slots in above the tabs on the first part and below those metal tabs fixed to the hull side walls.
The second half of what will be a removal upper deck now slots in above the tabs on the first part and below those metal tabs fixed to the hull side walls.
Upper Deck03.jpg (74.25 KiB) Viewed 3974 times
Upper Deck02.jpg
Upper Deck02.jpg (92.55 KiB) Viewed 3974 times
Upper Deck01.jpg
Upper Deck01.jpg (90.75 KiB) Viewed 3974 times
Last edited by Dr Phibes on Thu Jul 20, 2017 1:51 pm, edited 1 time in total.
