Re: Leopard A4 Build
looks like another great build on its way john
regards, cliff
regards, cliff
Part 2: Leopard A4 Build Update

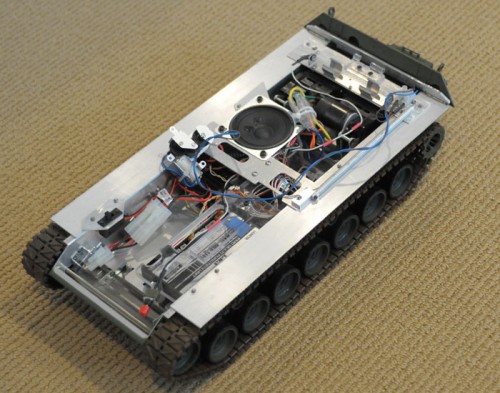

The build goal now is to add Tamiya KV-1 DMD Units, main gun recoil & elevation, barrel flash, mantlet flashing machine gun, a TBU with the emitter housed in the mantlet, road wheel bearings and to brace the hull plus adding hull improvements to a second Tamiya Leopard 1 A4 Static kit.

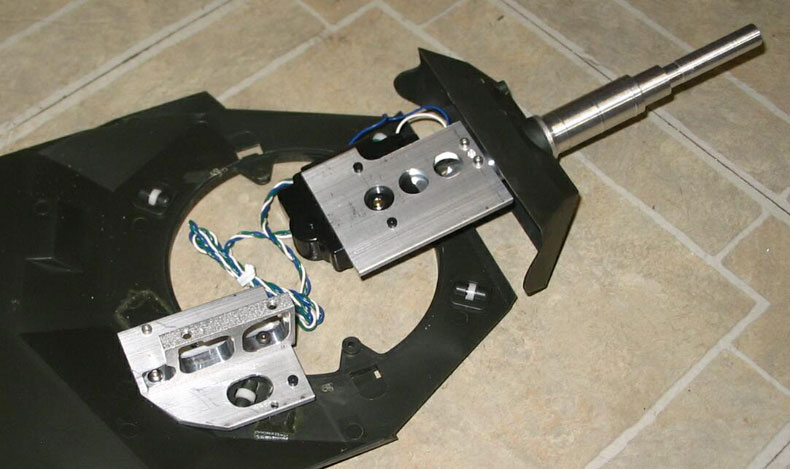

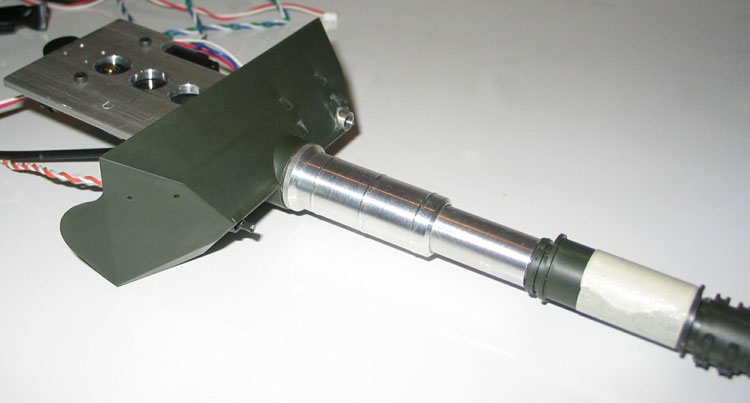

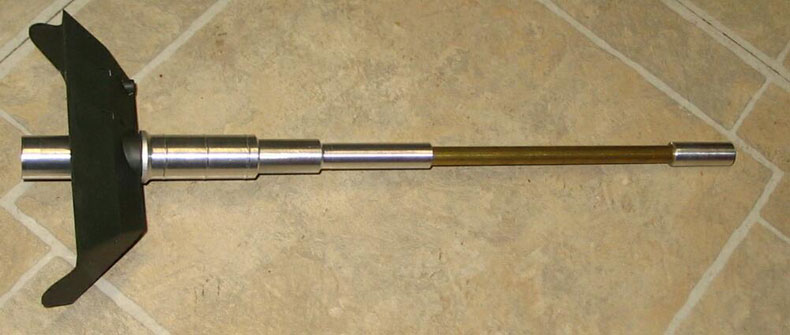

We commissioned Daryl Turner for custom designed parts and relying on his design advice and his advance machining and fabrication capabilities the photos start to show what he has come up with.
The build is at the point were it is just about ready for me to tear down the hull and start the detail parts build, primer and paint steps. Progress has been slow, but kinda steady over the last few months and more progress is anticipated during the fall.

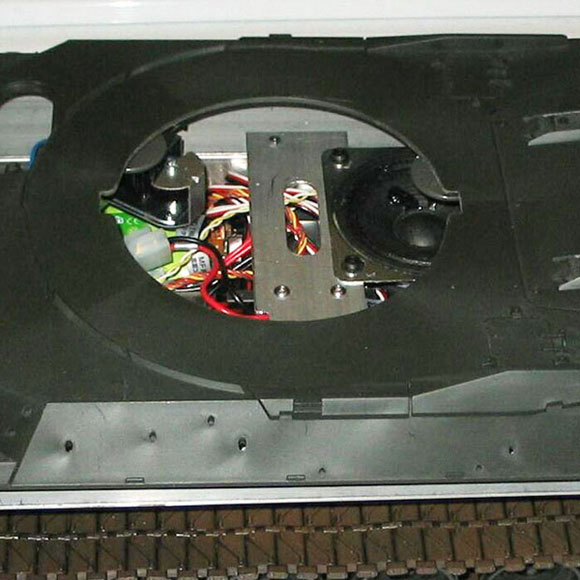

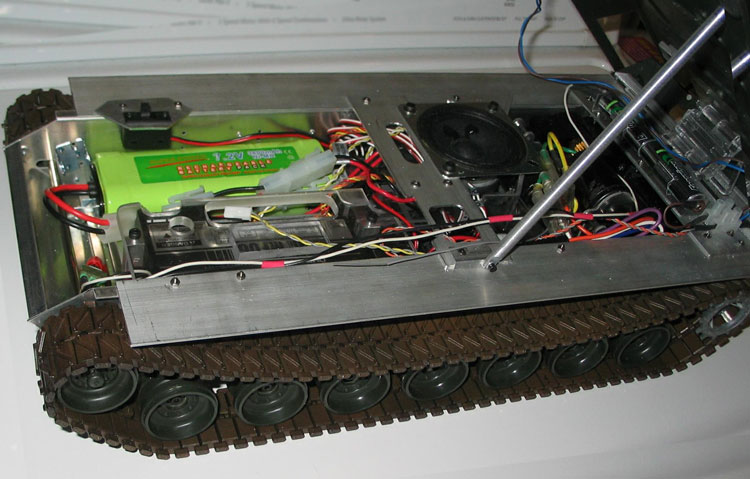

One interesting feature is that the top deck raises for battery changes like a good old NHRA Funny Car.
John
We commissioned Daryl Turner for custom designed parts and relying on his design advice and his advance machining and fabrication capabilities the photos start to show what he has come up with.
The build is at the point were it is just about ready for me to tear down the hull and start the detail parts build, primer and paint steps. Progress has been slow, but kinda steady over the last few months and more progress is anticipated during the fall.
One interesting feature is that the top deck raises for battery changes like a good old NHRA Funny Car.
John
- Attachments
-
- Funny-Car.jpg (21.87 KiB) Viewed 4734 times
-
-
-
-
Last edited by Pcomm1 on Sat Jun 22, 2013 11:38 pm, edited 1 time in total.
Part 2: Leopard A4 Build Update
Forgot, been traveling with the wife and other fun chores, so no time for summer builds....
Re: Leopard A4 Build
How has this build been comming along? Do you have any detail photos of the road wheel bearing conversion? Would love to see the progress on this with all your improvements!
Bill
Bill
Re: Leopard A4 Build

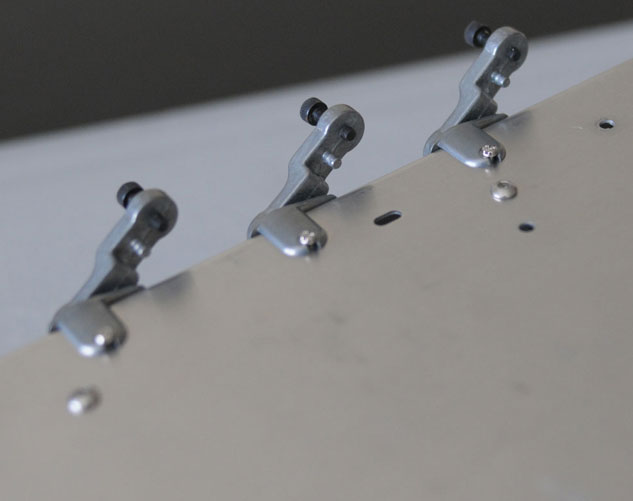

Hi, I will take and post some detail images of the road wheels. I just started working on the Leo again this week. John
- Attachments
-
- Road-wheels.jpg (20.89 KiB) Viewed 4700 times
Re: Leopard A4 Build
Nice, this is a mod I will be doing. Thanks for posting more photos!
Leopard A4 Build v2

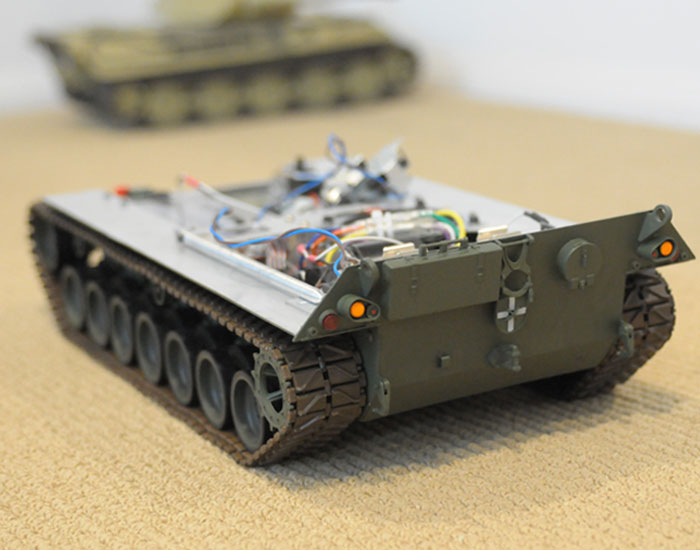

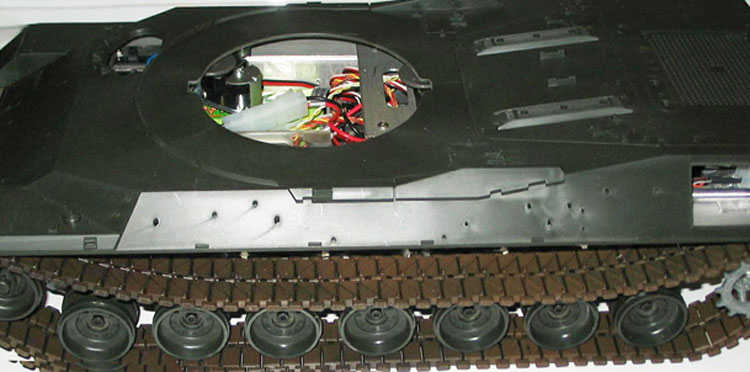

Chassis is running now, on to the deck assembly. Undecided as whether to run Impact Leo 1 A4 tracks.
- Attachments
-
-
Re: Leopard A4 Build
FYI:BillDe wrote:Nice, this is a mod I will be doing. Thanks for posting more photos!
Leopard & Flakpanzer DIY road wheel bearing tip:
1. Bearing Size, 4 x 8 unflanged.
2. Each road wheel is machined with a shoulder in the bearing bore to allow fit.
3. The axle is just an M4 socket head.
4. No crush sleeve or spacer is required.
5. Each suspension arm is drilled and threaded to receive the M4 socket head.
Re: Leopard A4 Build
Nice Tank! like the paint job.
