Winter 23-24. And the wall came down
- Ecam
- Warrant Officer 1st Class
- Posts: 1562
- Joined: Sun Jul 13, 2014 6:30 pm
- Location: Lake of the Ozarks, USA
Re: Winter 23-24. And the wall came down
Stash box/bin, there will always be another build. Glad you weren't on the naughty list.
"Don't believe everything you see on the internet" - George S. Patton
Eric
Eric
-
- Warrant Officer 2nd Class
- Posts: 1013
- Joined: Wed Aug 05, 2020 7:33 pm
- Location: By the sea in Argyle and Bute
Re: Winter 23-24. And the wall came down

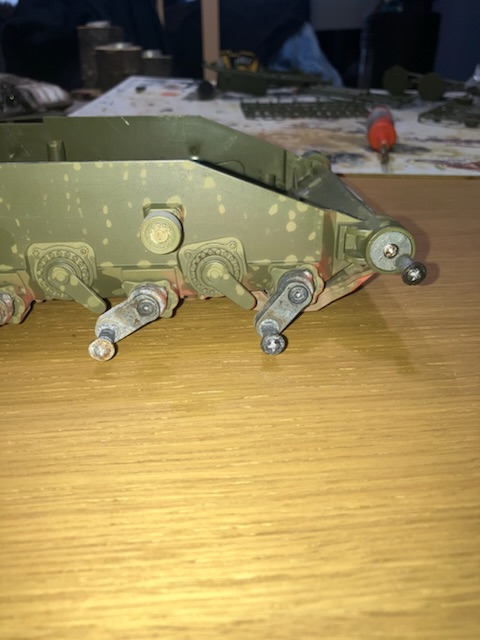

Now that the Christmas season is over, and the in laws, and other family have all gone, it was time to take stock of this build. Firstly I need to find some books on the T72. Secondly brace yourselves for questions. Stripped some more off the lower hull. Hum, small amount of warping. Not overly bothered, as I want to use magnets to hold the upper on, I will build a frame for it and bond it in.
As I do not like screws into plastic the track adjusters will be drilled out and stainless nuts and bolts will be used.
Next the battery box was removed, with the old switch position removed from the floor. I just need to decide where to put it. The original position on the rear bulwark is also not ideal.
That’s it for now. More of this rubbish to follow.
As I do not like screws into plastic the track adjusters will be drilled out and stainless nuts and bolts will be used.
Next the battery box was removed, with the old switch position removed from the floor. I just need to decide where to put it. The original position on the rear bulwark is also not ideal.
That’s it for now. More of this rubbish to follow.
- Herr Dr. Professor
- Lieutenant
- Posts: 3841
- Joined: Mon Apr 22, 2019 10:48 pm
- Location: Southern Wisconsin USA
Re: Winter 23-24. And the wall came down
I see Torro's sticker on the bottom of the hull. I know that Torro has started selling HengLong tanks, too, apparently with their own sticker added. Is that right? And in the photo, do you already have the track tension adjusters changed out? Part looks to be metal.
-
- Warrant Officer 2nd Class
- Posts: 1013
- Joined: Wed Aug 05, 2020 7:33 pm
- Location: By the sea in Argyle and Bute
Re: Winter 23-24. And the wall came down
I seems to be Heng Long with a Torro sticker put on it. Track tensioners are metal, but screwed into plastic, which has stripped on one side, hence using nuts and bolts as I progress.Herr Dr. Professor wrote: ↑Tue Jan 02, 2024 3:58 pm I see Torro's sticker on the bottom of the hull. I know that Torro has started selling HengLong tanks, too, apparently with their own sticker added. Is that right? And in the photo, do you already have the track tension adjusters changed out? Part looks to be metal.
Re: Winter 23-24. And the wall came down
Don't sell yourself short. I find it all interesting.
"Charlie don't surf"- Lt. Col. Bill Kilgore
- tankme
- Warrant Officer 1st Class
- Posts: 2024
- Joined: Tue Oct 31, 2017 3:51 pm
- Location: Elgin, TX
- Contact:
Re: Winter 23-24. And the wall came down
I love a good T72 build...
BTW, if you use the external tanks on the back of the tank they pretty much hide the on/off switch. To counter using the external fuel tanks, I've ripped them off on several occasions while traversing ditches in my T72 as I never glued them on.
I've used the adjustable idler from Henntec and the one Stanlley sells from RC Tank Legion. Both have worked well.
BTW, if you use the external tanks on the back of the tank they pretty much hide the on/off switch. To counter using the external fuel tanks, I've ripped them off on several occasions while traversing ditches in my T72 as I never glued them on.
I've used the adjustable idler from Henntec and the one Stanlley sells from RC Tank Legion. Both have worked well.
Derek
Too many project builds to list...
Too many project builds to list...
-
- Warrant Officer 2nd Class
- Posts: 1013
- Joined: Wed Aug 05, 2020 7:33 pm
- Location: By the sea in Argyle and Bute
Re: Winter 23-24. And the wall came down
Small amount of work, and because I am trying to get an hour a night, and before departure and isolation to the kitchen to cook fish pie.

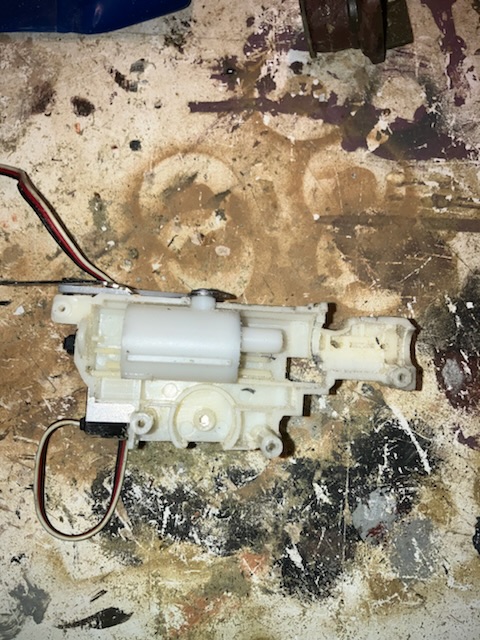

Inspired by Mr Imcq11, I dismantled the the old air gun thing and cut off the bottom.
I then filed and cleaned it all up, which gave me a sliding mechanism with a piece of plastic tube attached.
This was a tight fit (an excellent band from the 1980’s ) over the original aluminium tube of the gun as I like to be able to remove the gun barrel if required

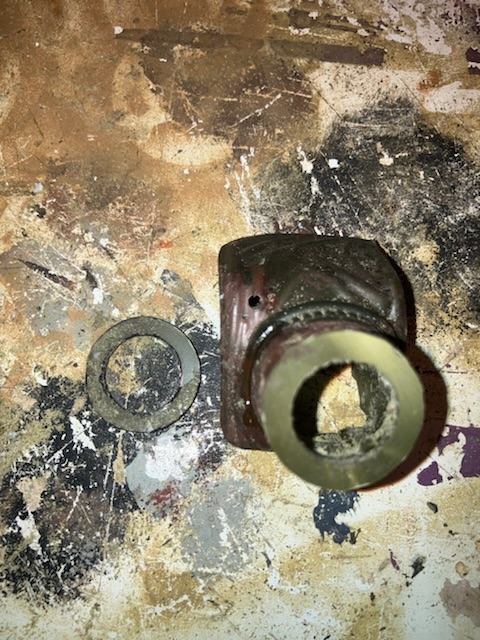

As I intend to attempt using Mr Tankalot’s method of creating a gun cover using an old umbrella cover, two discs were cut. One was attached to the existing frame cover, and gently cleaned up so everything slide smoothly. The second disc will be attached after the cover has been attached. I noticed on a frontal photograph the the cover was clamped between what appears to be the two discs. Six small hex shaped plastic rod will be cut and added later to represent the bolts.
Finally, borrowing again from Mr Imcq11, a servo was glued to the side and a piece of rod was bent to the correct length and fitted between the servo arm and the sliding part.
The last thing to do was to test the whole recoil with the gun attached. This needs a little bit of finessing to give a smooth action. It also need some proper servo arms with ball joints.
I now have two methods of giving a recoil to models thanks to the good folk on this site. Even though one cannot be done according to some folk over on FB.
Inspired by Mr Imcq11, I dismantled the the old air gun thing and cut off the bottom.
I then filed and cleaned it all up, which gave me a sliding mechanism with a piece of plastic tube attached.
This was a tight fit (an excellent band from the 1980’s ) over the original aluminium tube of the gun as I like to be able to remove the gun barrel if required
As I intend to attempt using Mr Tankalot’s method of creating a gun cover using an old umbrella cover, two discs were cut. One was attached to the existing frame cover, and gently cleaned up so everything slide smoothly. The second disc will be attached after the cover has been attached. I noticed on a frontal photograph the the cover was clamped between what appears to be the two discs. Six small hex shaped plastic rod will be cut and added later to represent the bolts.
Finally, borrowing again from Mr Imcq11, a servo was glued to the side and a piece of rod was bent to the correct length and fitted between the servo arm and the sliding part.
The last thing to do was to test the whole recoil with the gun attached. This needs a little bit of finessing to give a smooth action. It also need some proper servo arms with ball joints.
I now have two methods of giving a recoil to models thanks to the good folk on this site. Even though one cannot be done according to some folk over on FB.
-
- Sergeant
- Posts: 686
- Joined: Sat Jan 14, 2023 8:50 pm
- Location: Ontario, Canada
Re: Winter 23-24. And the wall came down
I'm not sure if you've seen this website before but it has a massive collection of armour books you can download. Here are a couple I've downloaded for my T-72 and there are a couple more, too! The site seems safe, at least my cousin who's being held by the Mexican Police until I send them $500 in Amazon gift cards for "bail", says so!
https://epdf.pub/t-72-main-battle-tank-1974-93.html
https://epdf.pub/t-72-soviet-main-battle-tank.html
This is a most righteous thread since there's a T-72 waiting in the assembly line here, and it's dying for some recoil!
Mike.
https://epdf.pub/t-72-main-battle-tank-1974-93.html
https://epdf.pub/t-72-soviet-main-battle-tank.html
This is a most righteous thread since there's a T-72 waiting in the assembly line here, and it's dying for some recoil!
Mike.
- Herr Dr. Professor
- Lieutenant
- Posts: 3841
- Joined: Mon Apr 22, 2019 10:48 pm
- Location: Southern Wisconsin USA
Re: Winter 23-24. And the wall came down
Thank you for even more links to bookmark. Maybe your cousin knows my sister; she's been there a few times, too.
-
- Warrant Officer 2nd Class
- Posts: 1013
- Joined: Wed Aug 05, 2020 7:33 pm
- Location: By the sea in Argyle and Bute
Re: Winter 23-24. And the wall came down
Mike. Thank you for the information. I had not seen this website before. I will provide some late night reading.ColemanCollector wrote: ↑Wed Jan 03, 2024 8:13 pm I'm not sure if you've seen this website before but it has a massive collection of armour books you can download. Here are a couple I've downloaded for my T-72 and there are a couple more, too! The site seems safe, at least my cousin who's being held by the Mexican Police until I send them $500 in Amazon gift cards for "bail", says so!
https://epdf.pub/t-72-main-battle-tank-1974-93.html
https://epdf.pub/t-72-soviet-main-battle-tank.html
This is a most righteous thread since there's a T-72 waiting in the assembly line here, and it's dying for some recoil!
Mike.
Herr Dr. Professor wrote: ↑Wed Jan 03, 2024 8:41 pm Thank you for even more links to bookmark. Maybe your cousin knows my sister; she's been there a few times, too.
Both your cousin and sister must know my relative who passed away in an African country. I apparently stand to inherit millions. When I get it I will pay off the bail for your relatives.
