The Final Stages Of The Painting & Weathering Have Now Been Completed:
The painting & weathering has now been completed & I have applied a matt clear coat to protect the finish.
No tools or accessories have been fitted at this stage.
Please see photos below:
A brief note has been added to some of the photos below highlighting & recapping on some of the extra detailing work I’ve added & some of the replacement parts I’ve made for this model.

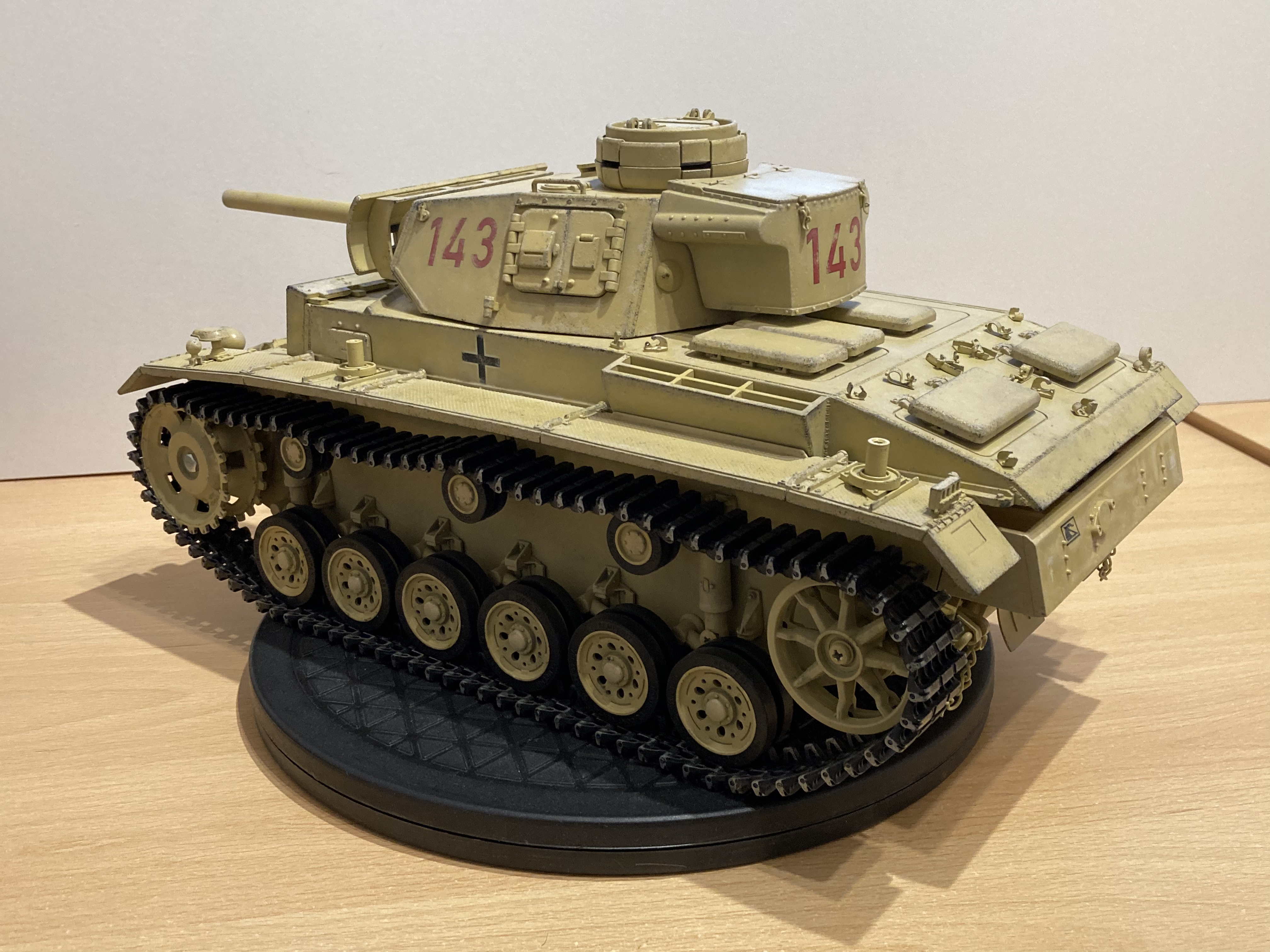

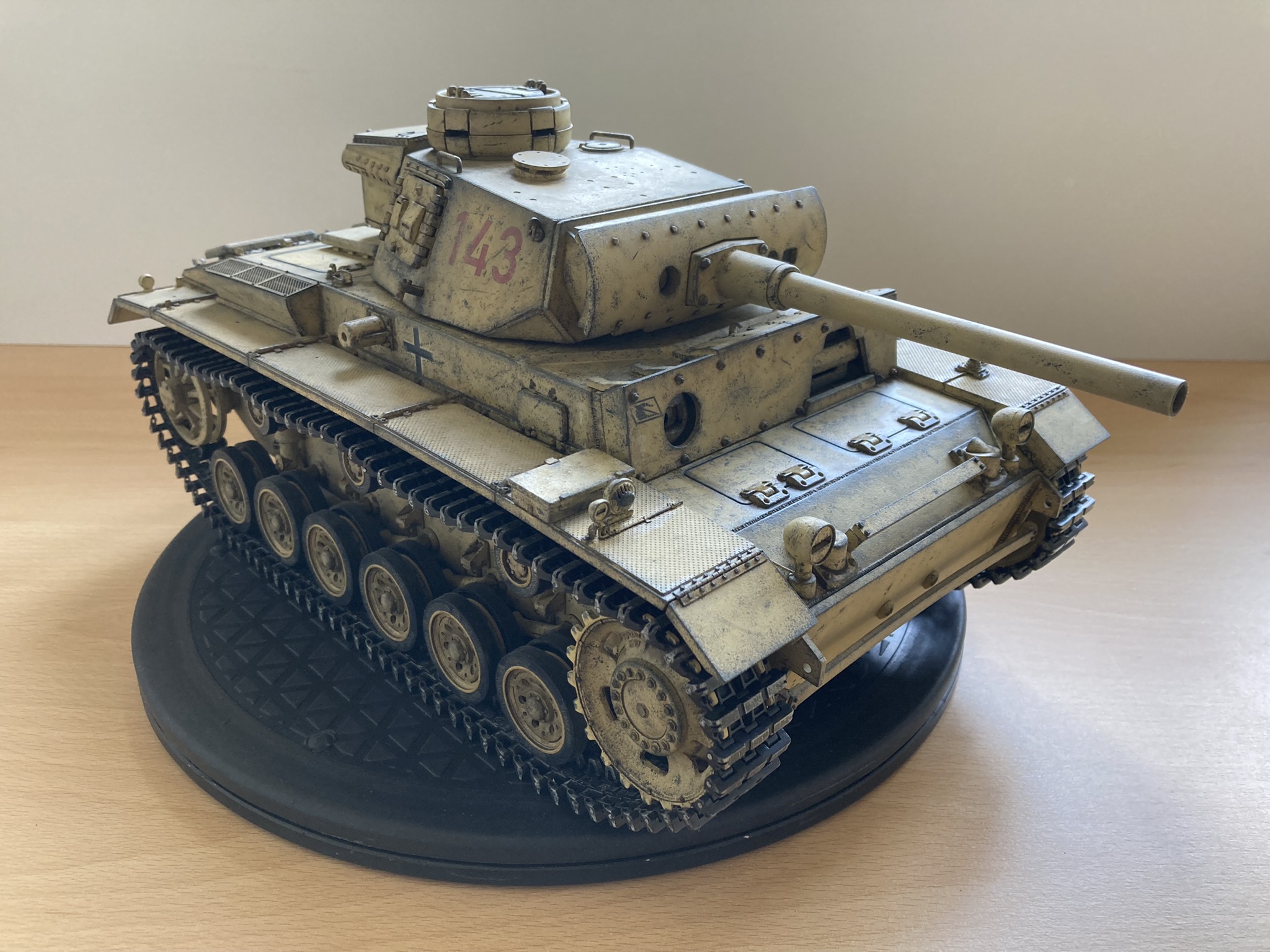

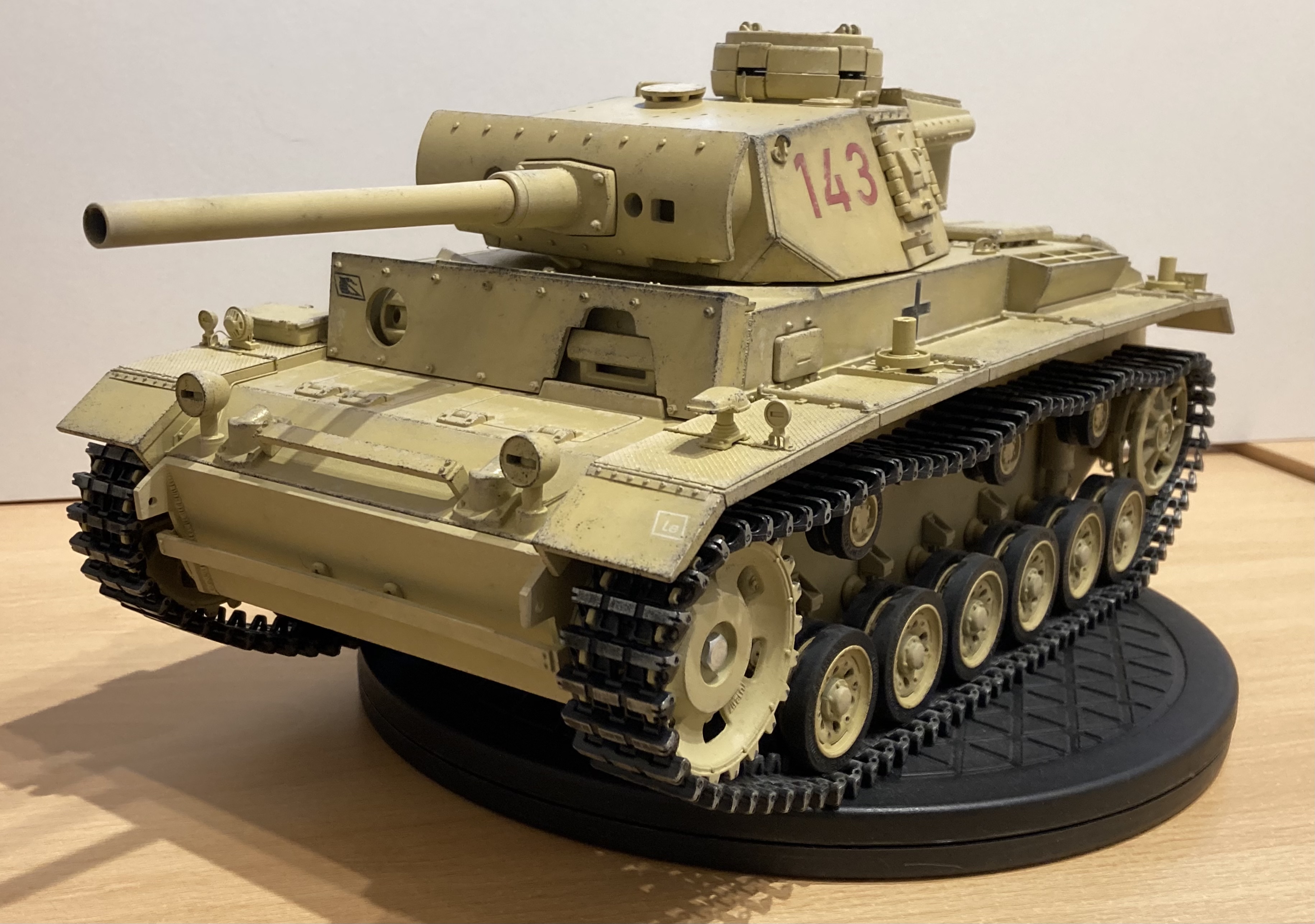

- 1/16 scale Taigen Panzer III Ausf L - Metal Edition
- 8F0B637E-D5C7-45DD-8B23-8AA12DADF470.jpeg (630.55 KiB) Viewed 2875 times

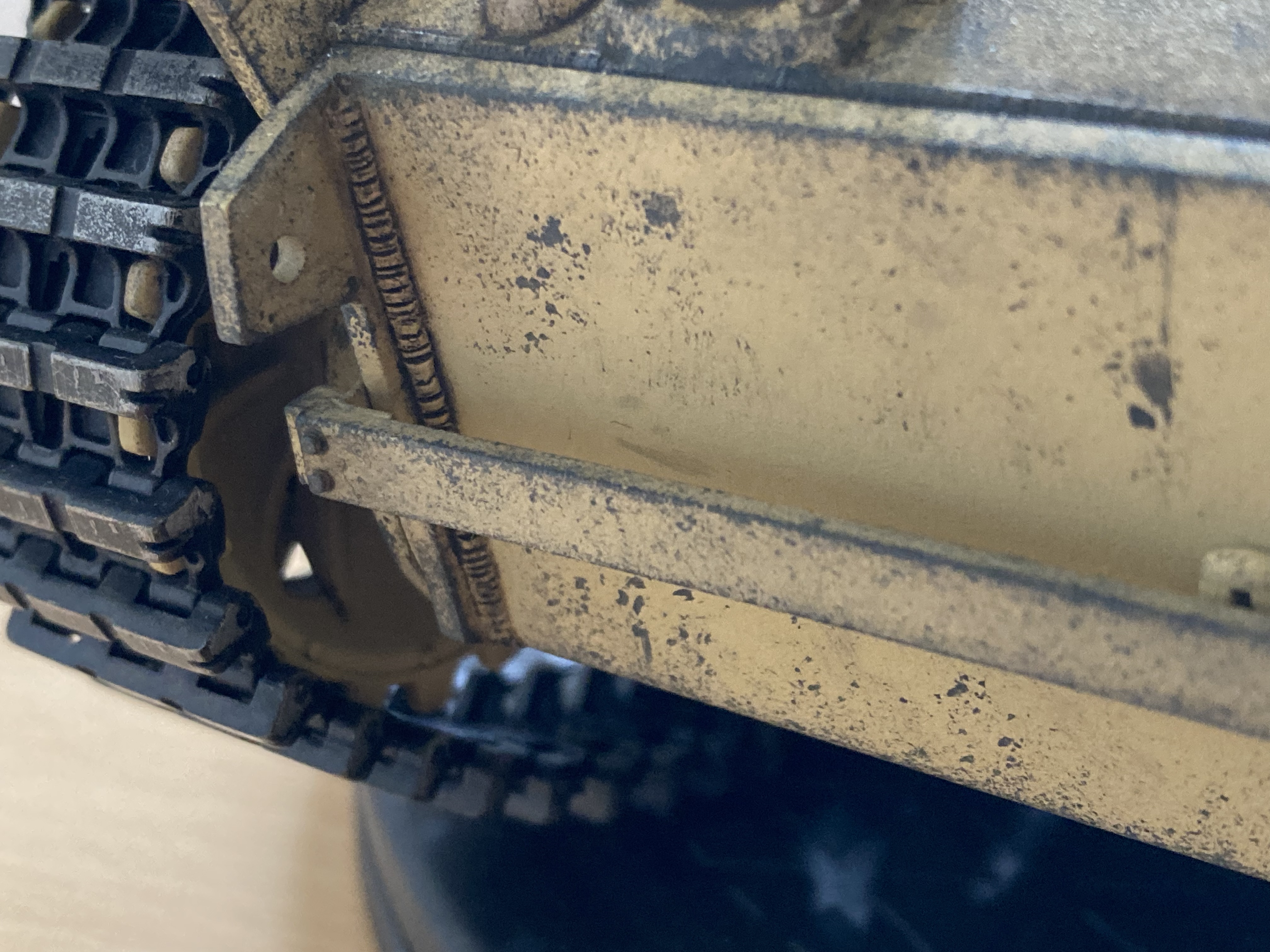

The two photos below show the the front hull armour plate weld seams along with the replacement spare track holder I made for the lower front hull, I also made one for the upper front hull.
- Front Lower Hull+Spare Track Holder+Weld Seam RHS
- BAB541C4-7B99-4AFB-A498-C8B597F2D7BC.jpeg (2.61 MiB) Viewed 2875 times

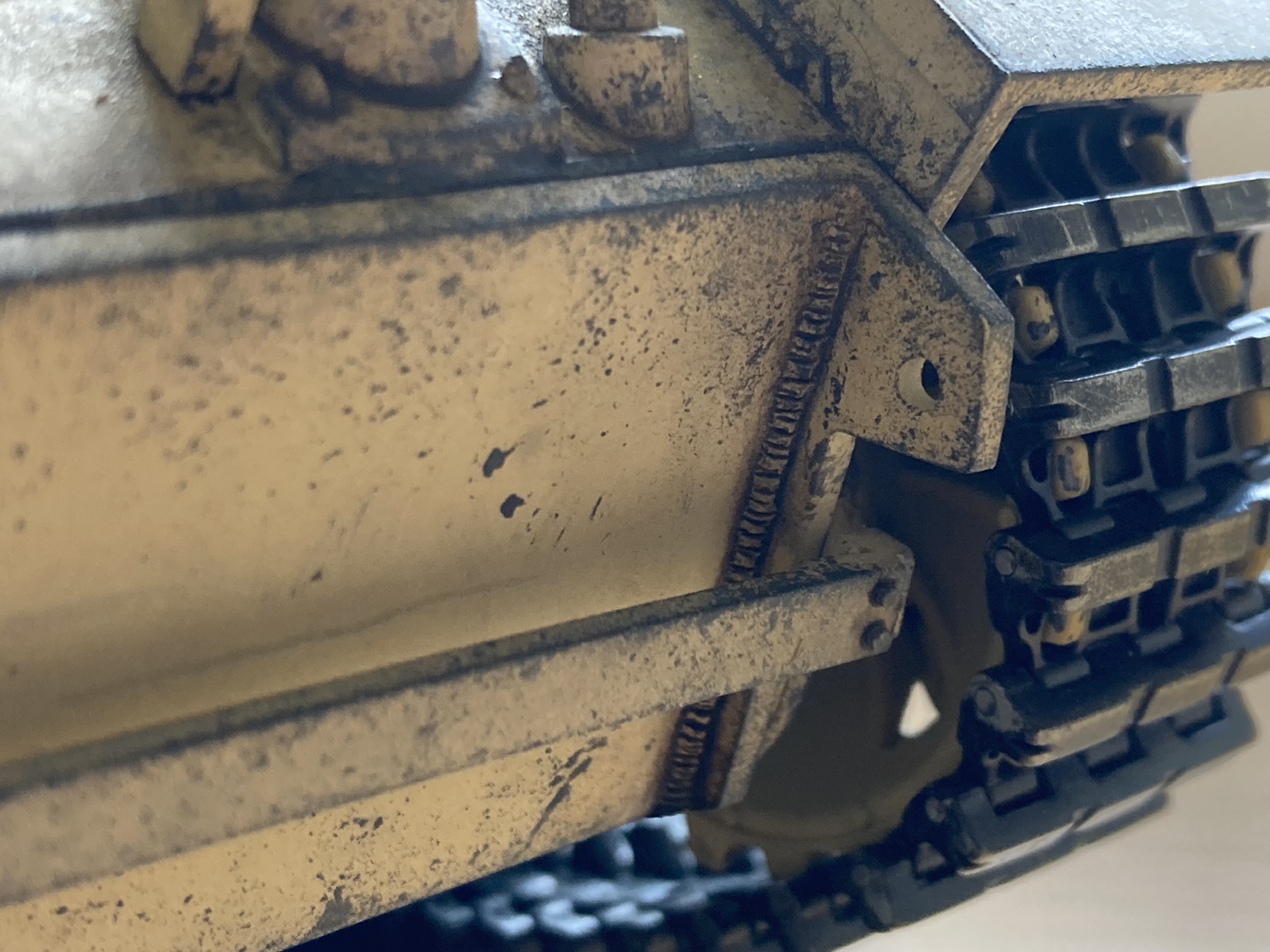

- Front Lower Hull+Spare Track Holder+Weld Seam LHS
- 1275EFD2-5074-4C54-8617-C608589FD591.jpeg (637.65 KiB) Viewed 2875 times

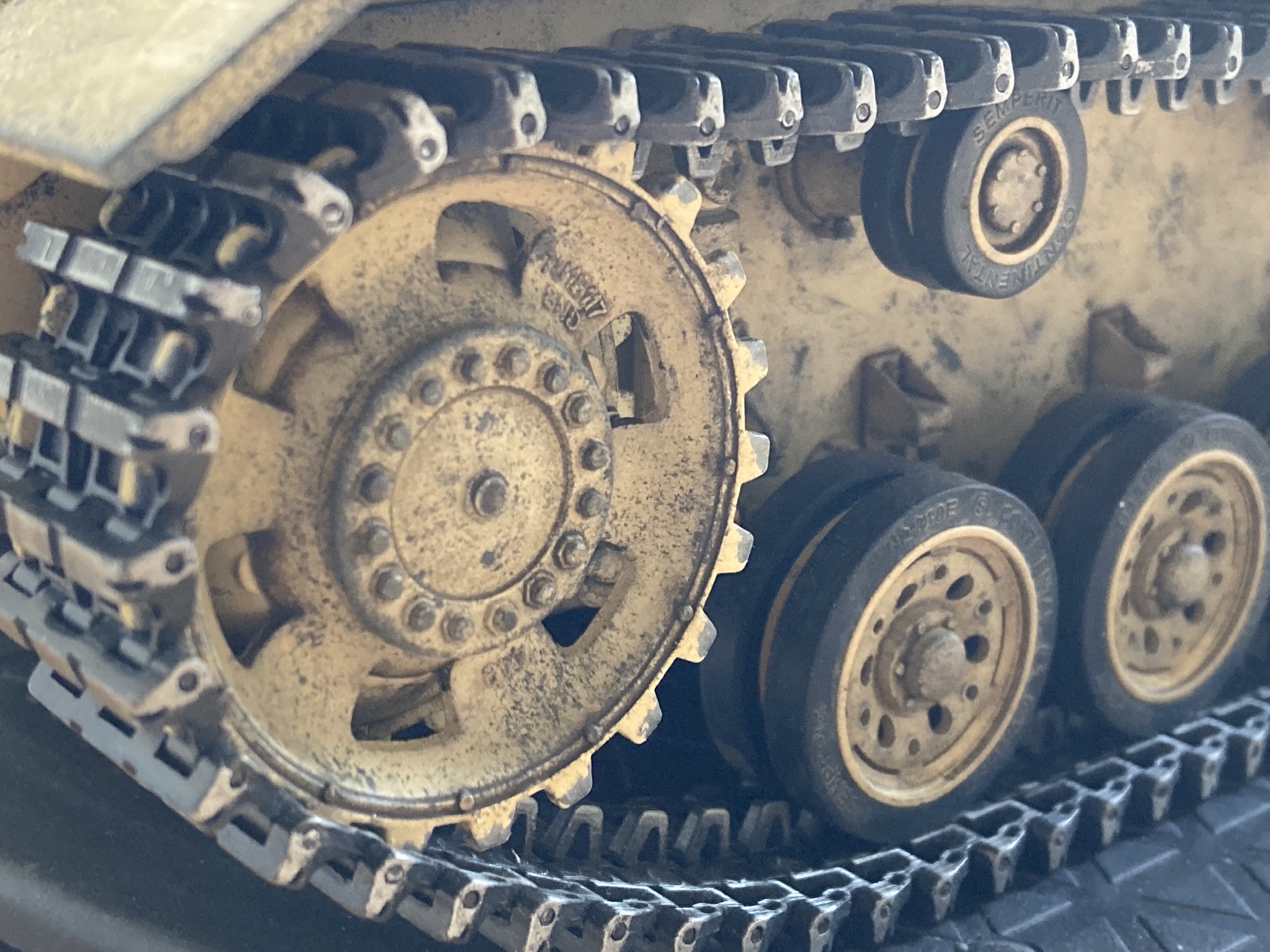

- Track Drive Sprocket LHS
- 01DA8970-AB0B-4C3C-8571-7DD9960B1A9A.jpeg (758.76 KiB) Viewed 2875 times

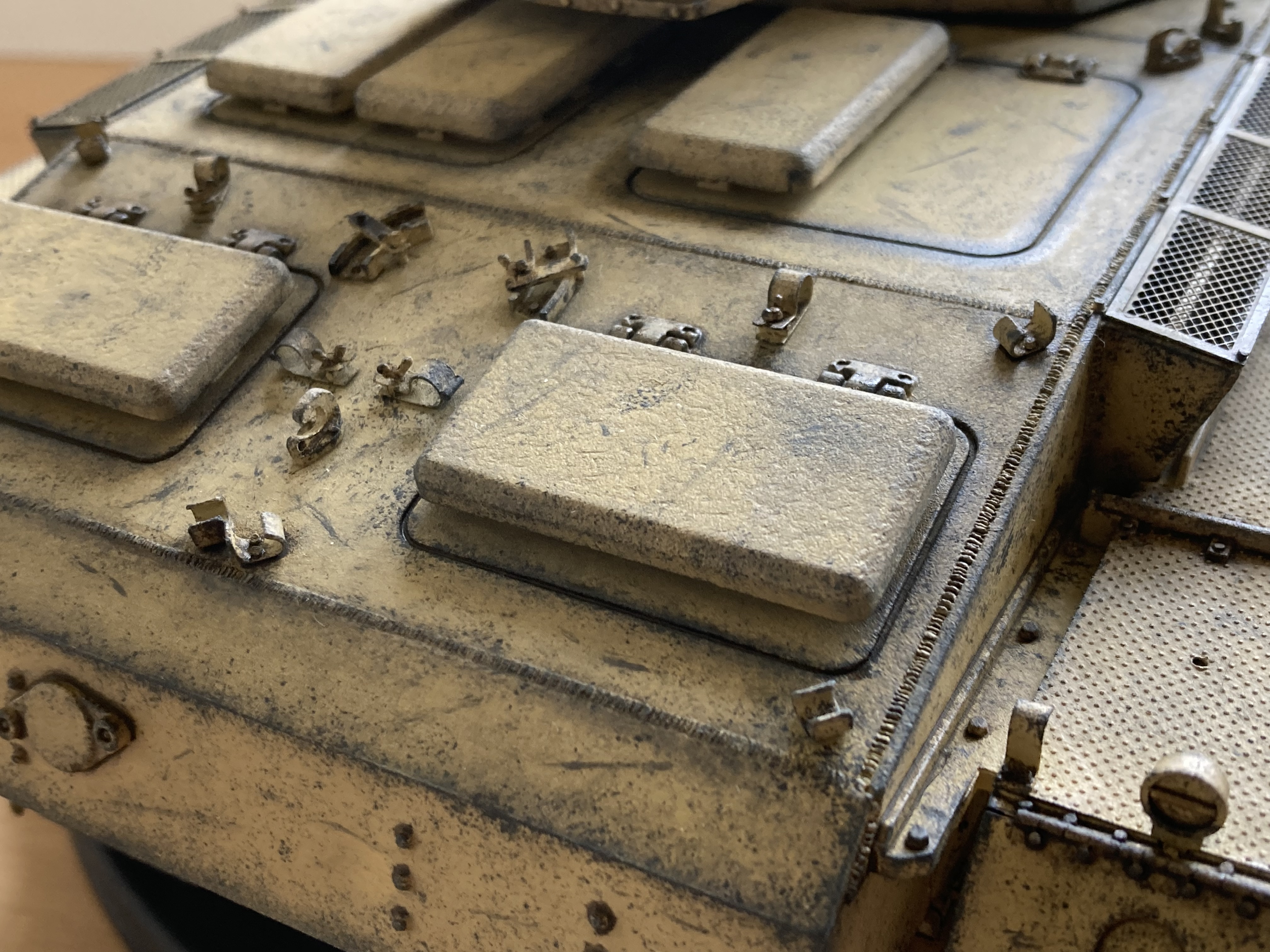

Pictured below are the replacement tow cable clamps & brackets I made & fitted to the engine deck, the engine deck lifting hook I made can also be seen.
- Rear 1/4 Engine Deck RHS
- B83B8AF4-2395-492D-9658-C6124564EFB1.jpeg (2.91 MiB) Viewed 2875 times

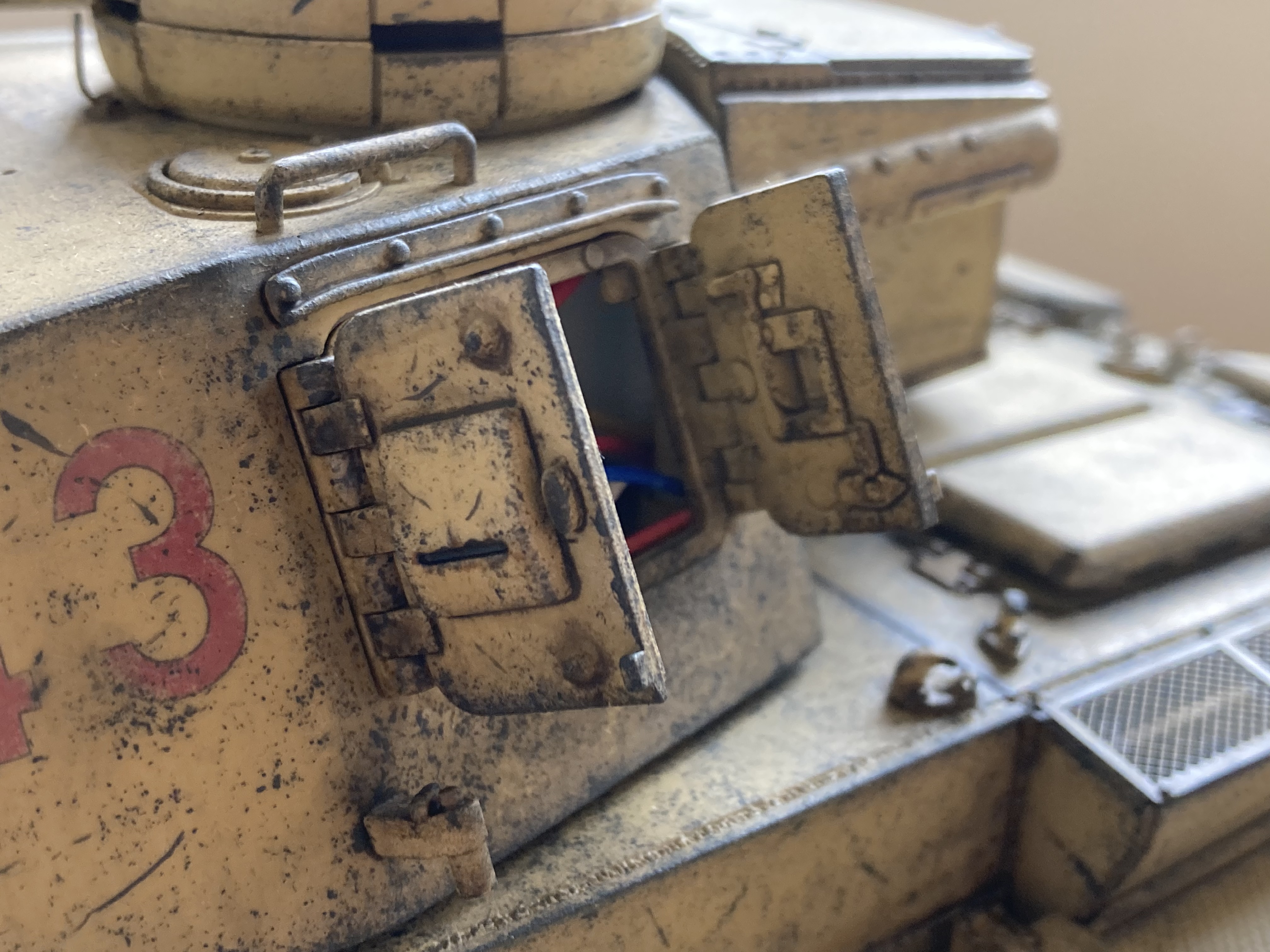

- Turret Side Doors LHS
- 3A4284F7-5E31-4A1B-9B0B-C2E3AFAEAA7F.jpeg (2.33 MiB) Viewed 2875 times

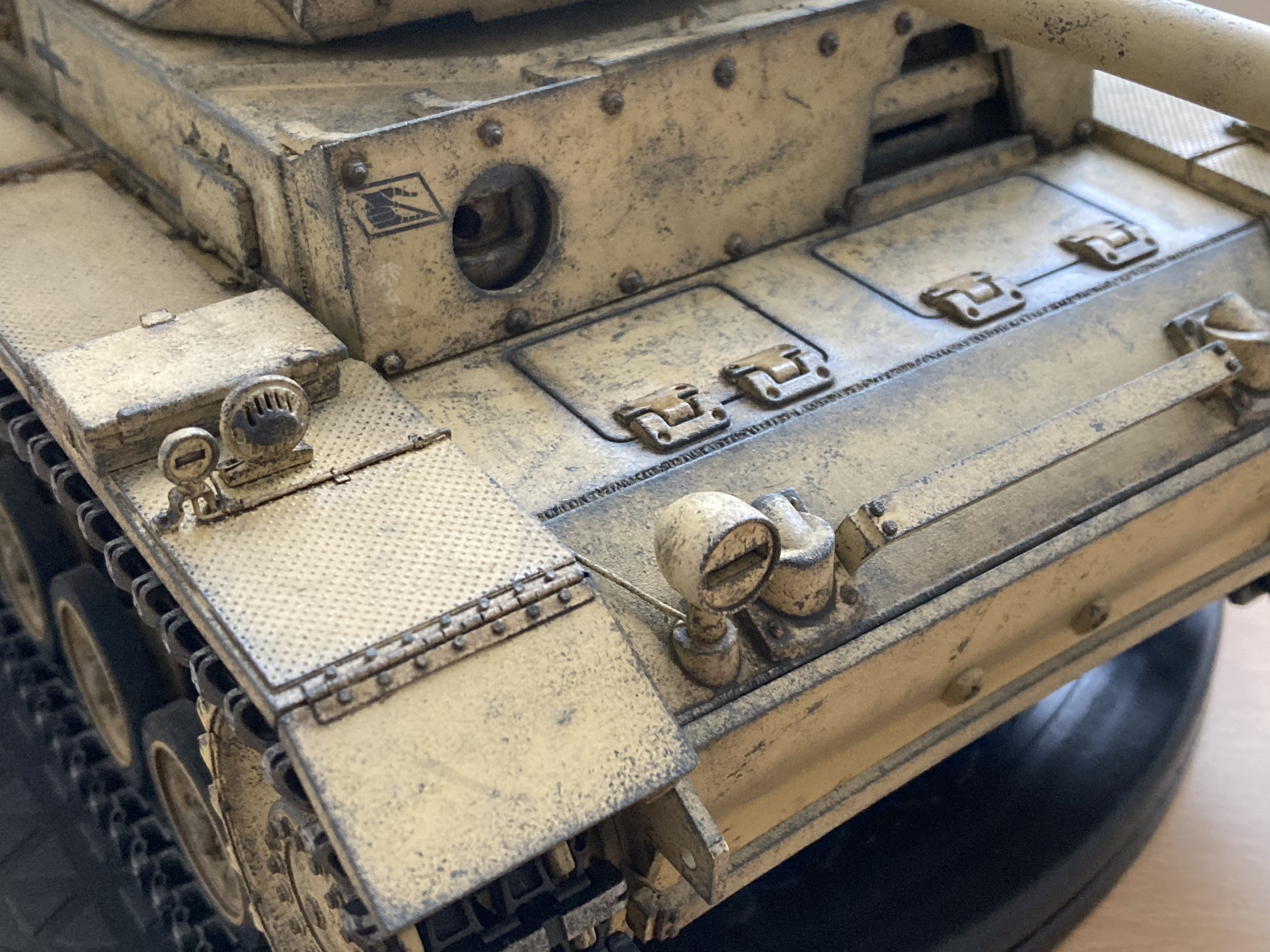

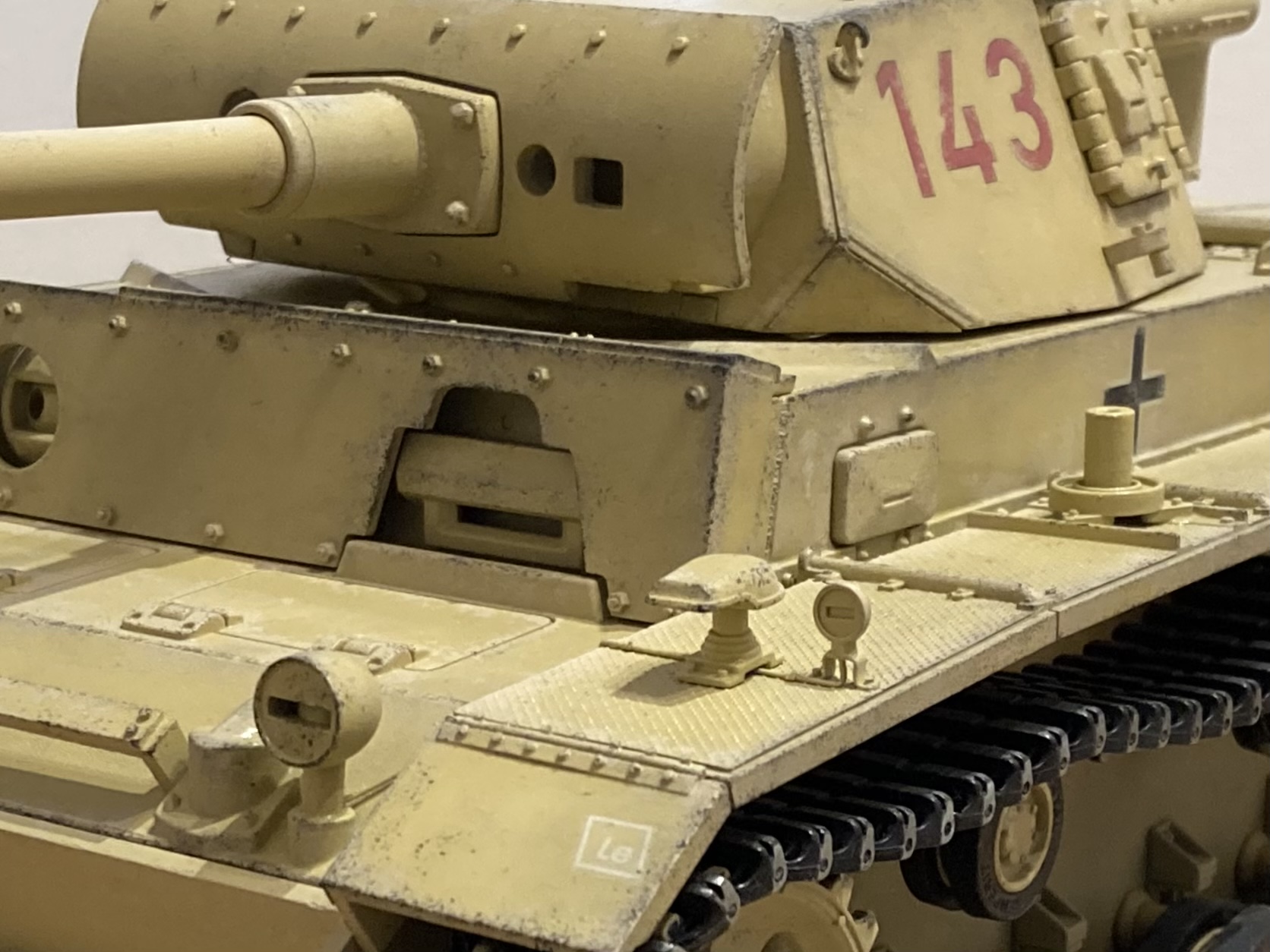

The photo below shows some of the extra work I’ve done, including one of the replacement track guard hinges & bolt heads, some extra details I’ve added to the toolbox, the cable wiring & cable clamps for the headlights & horn, the replacement upper spare track holder can also be seen in the photo below.
- Front Upper Hull+Track Guard Hinge RHS
- 0EFFABA5-F3BB-40E9-BB30-551E0E49E2C6.jpeg (2.91 MiB) Viewed 2875 times

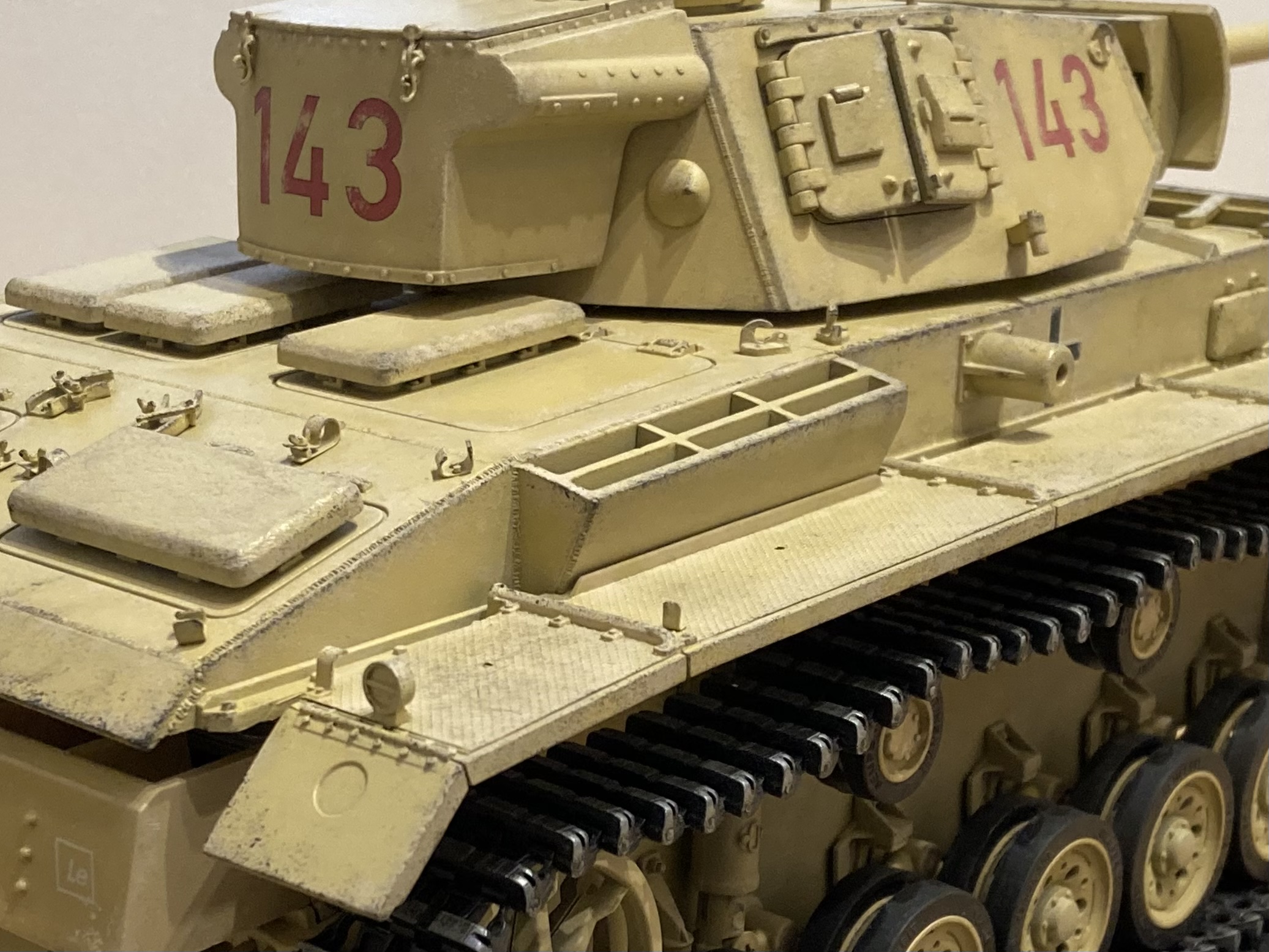

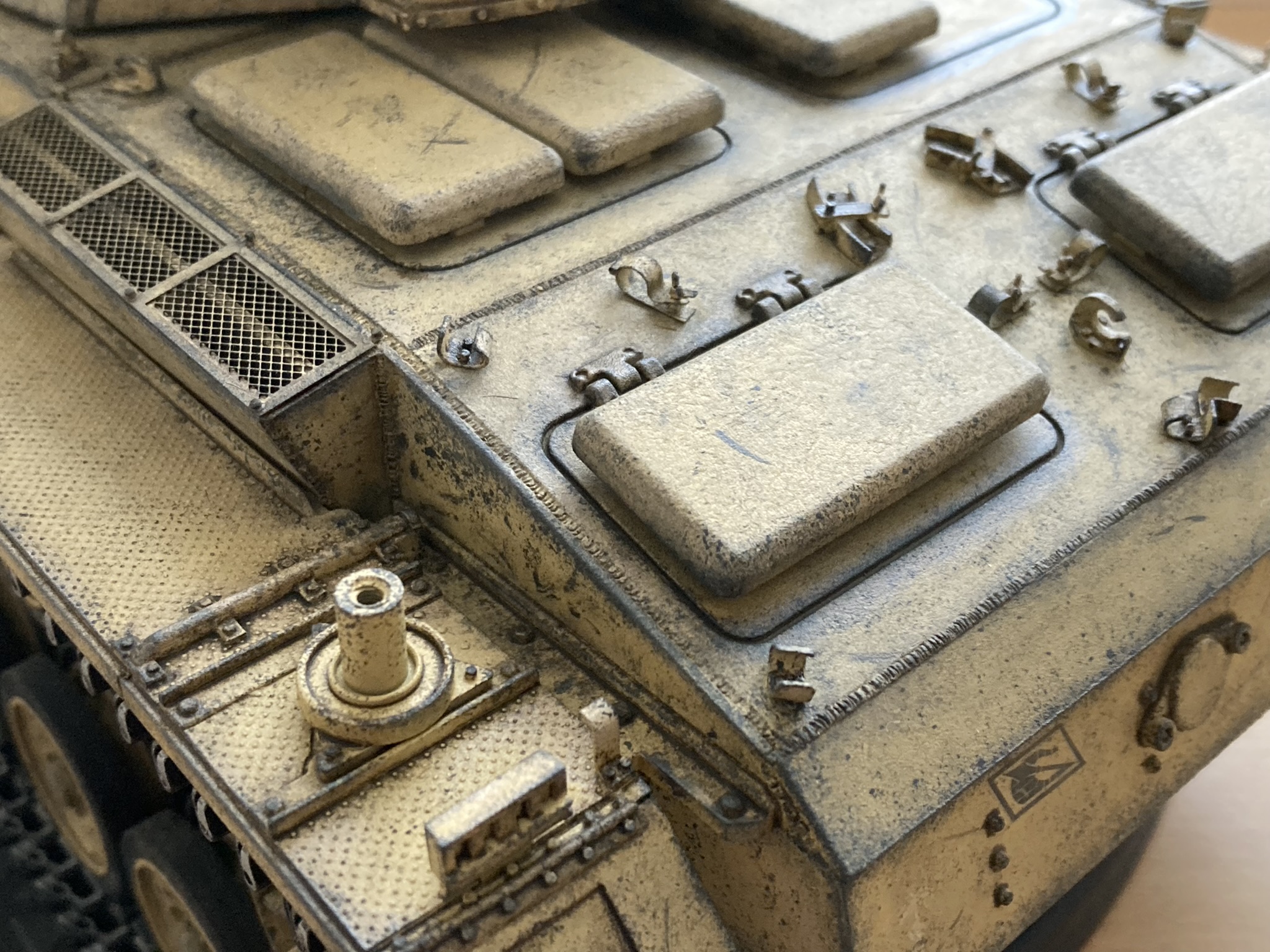

Another view of the tow cable brackets & the engine deck lifting hook, also one of the retaining brackets I made for the hinged rear track guard end flaps.
- Rear 1/4 Engine Deck LHS
- 76E7D1B3-141B-4D06-A425-00D94855BF27.jpeg (866.47 KiB) Viewed 2875 times

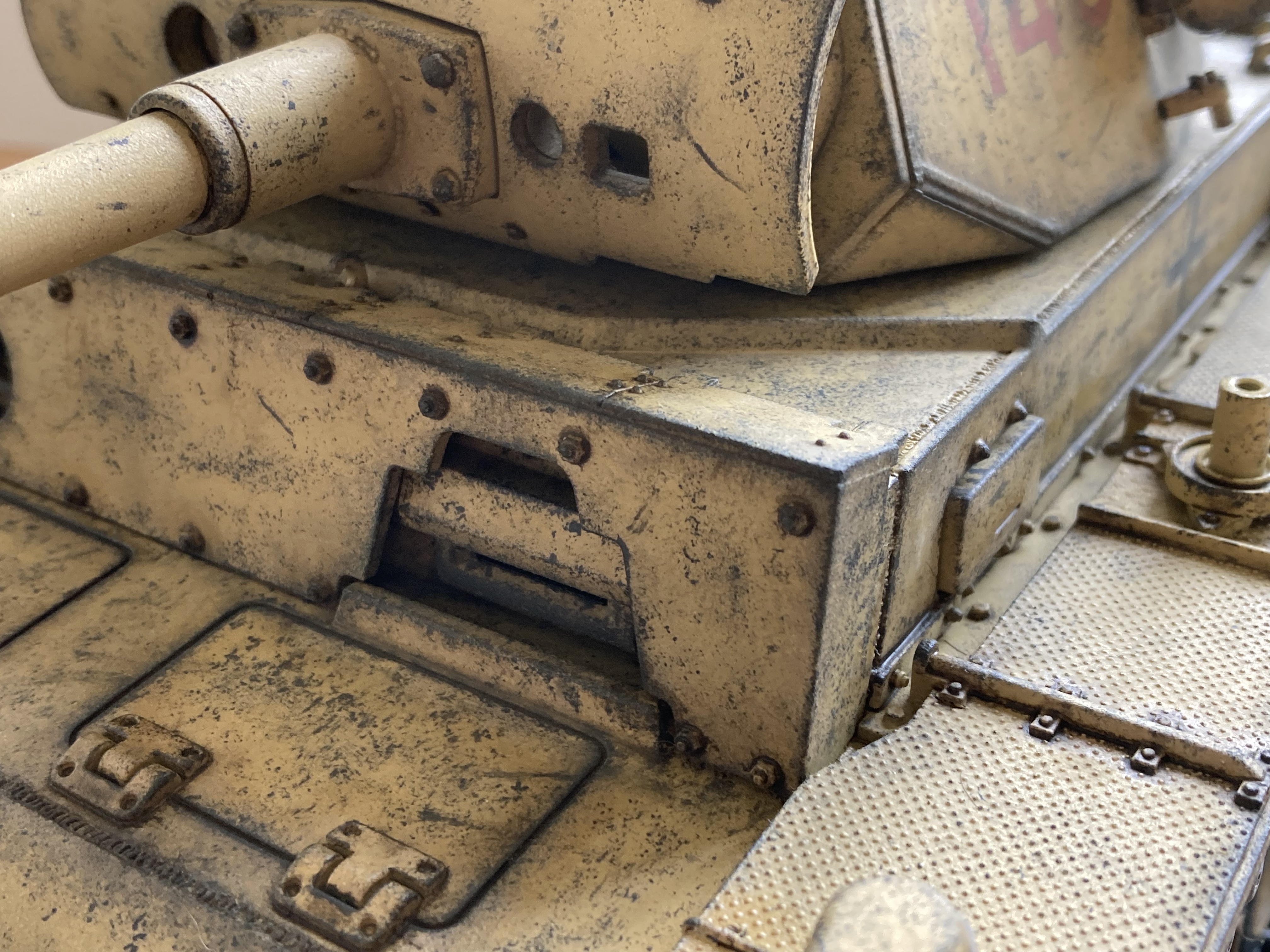

The upper hull on the full size tank is made up of two separate sections that bolt directly to the lower hull, namely the rear engine deck section & the front upper hull section to which the turret is attached, as this important detail was missing on the model I decided to include it.

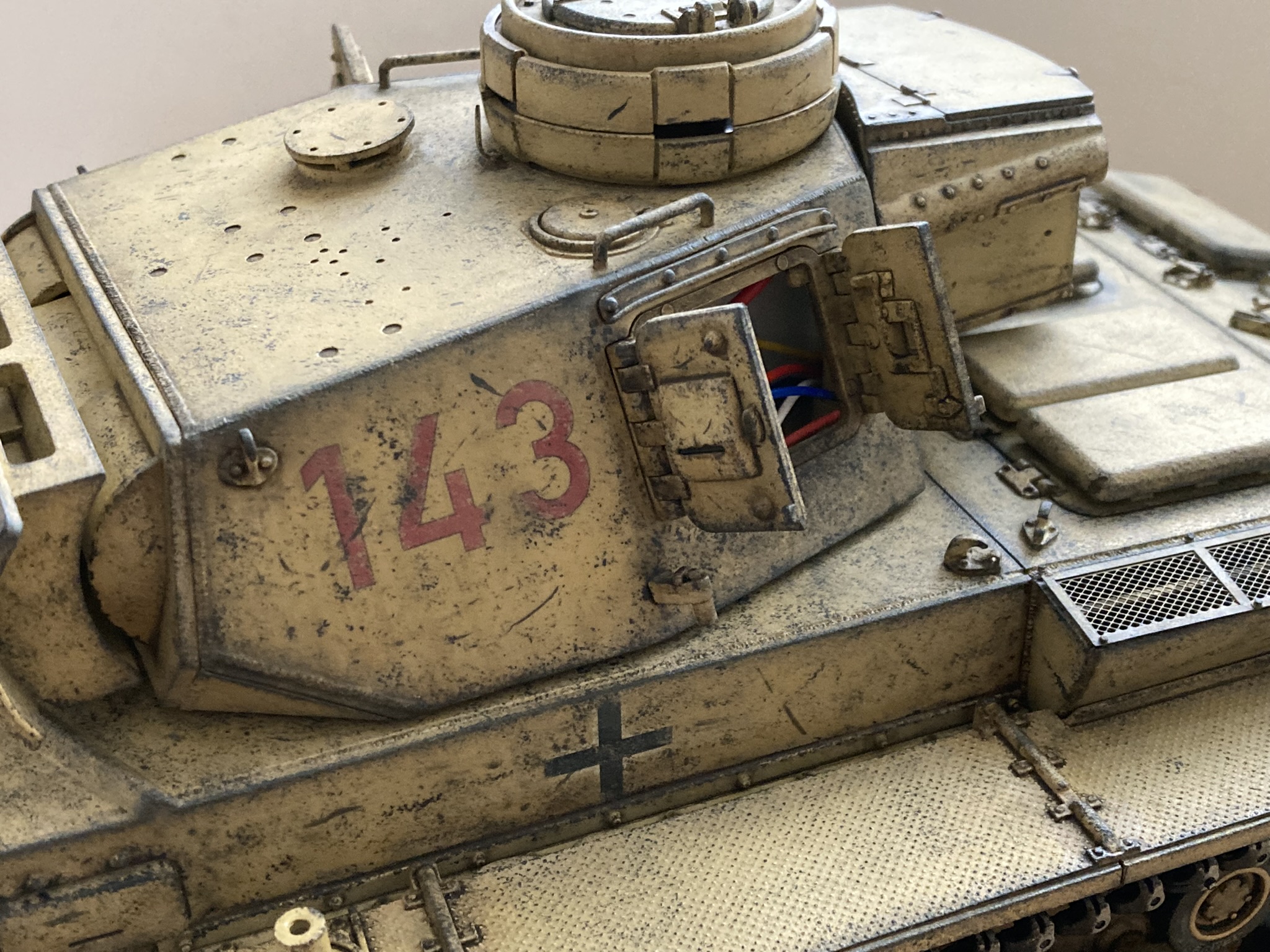

In the photo below the missing detail I added can be seen. I did this by cutting a groove to represent the separation between the rear upper hull engine deck section & the front upper hull turret section.
One of the turret lifting hooks I made can also be seen below (one fitted to each side of the turret).
- Upper Hull Side+Turret LHS
- B96007C1-8D83-40CE-86C4-5321E533CBBF.jpeg (880.03 KiB) Viewed 2875 times

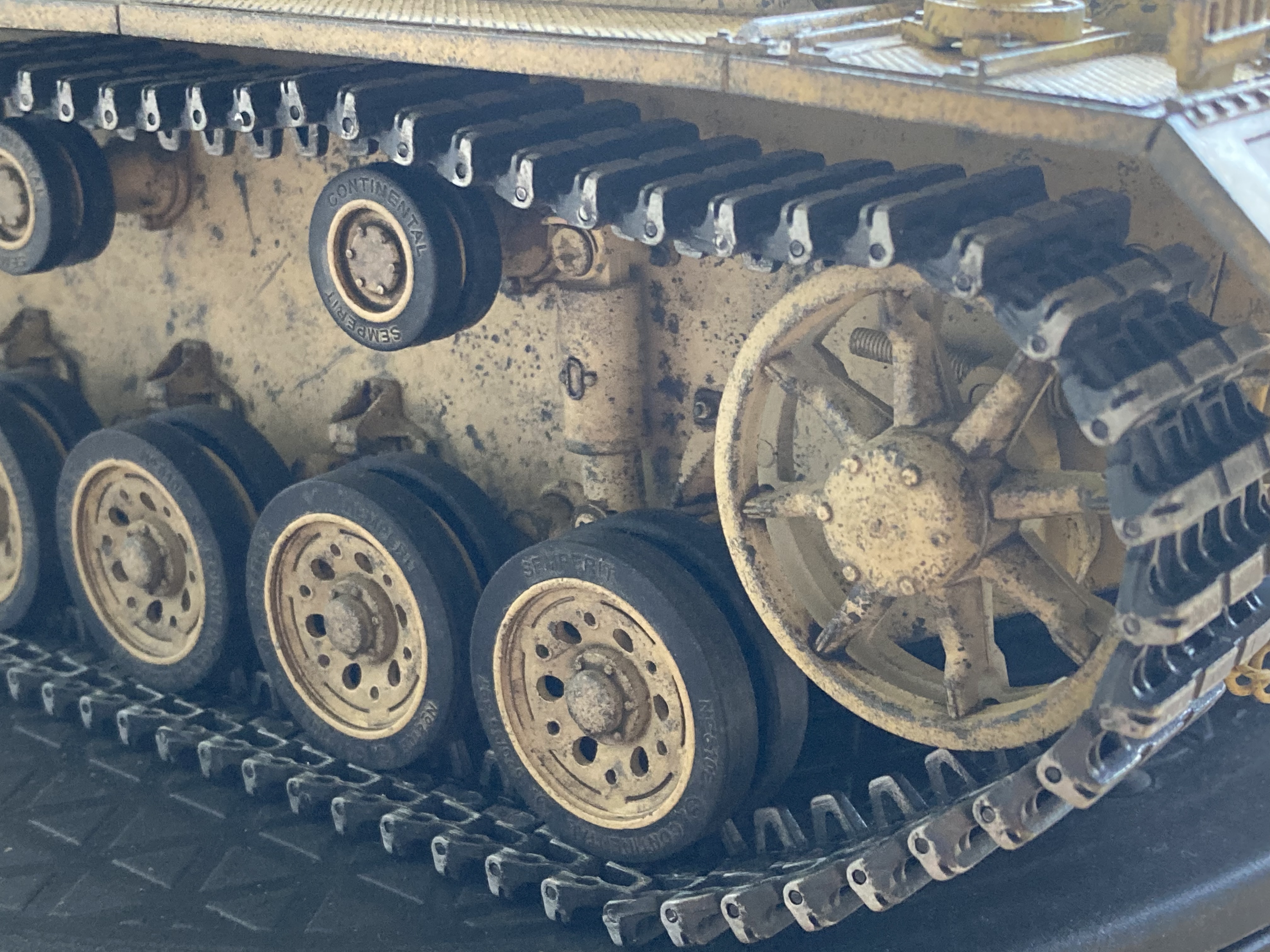

- Rear Track Idler-LHS
- 9DFF3A77-046C-4FCB-9D04-81F4E6A2D708.jpeg (2.93 MiB) Viewed 2875 times
Below is a closeup photo of the new Aber brass track guard tread plates I fitted & the brackets I made.
- Front Upper Hull+Turret LHS
- DE6020B1-CEA1-4312-B688-7A048F09BD9E.jpeg (2.91 MiB) Viewed 2875 times

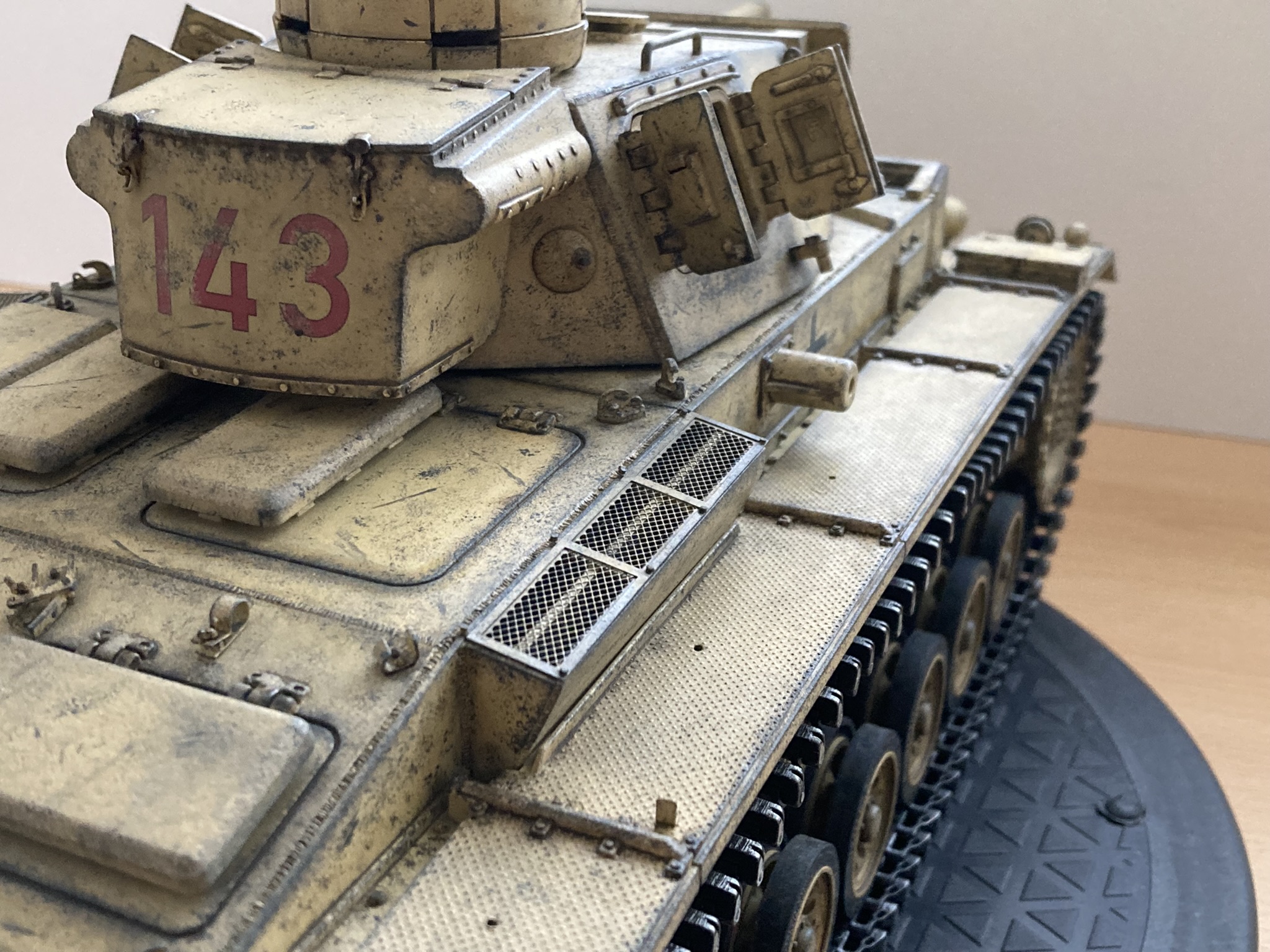

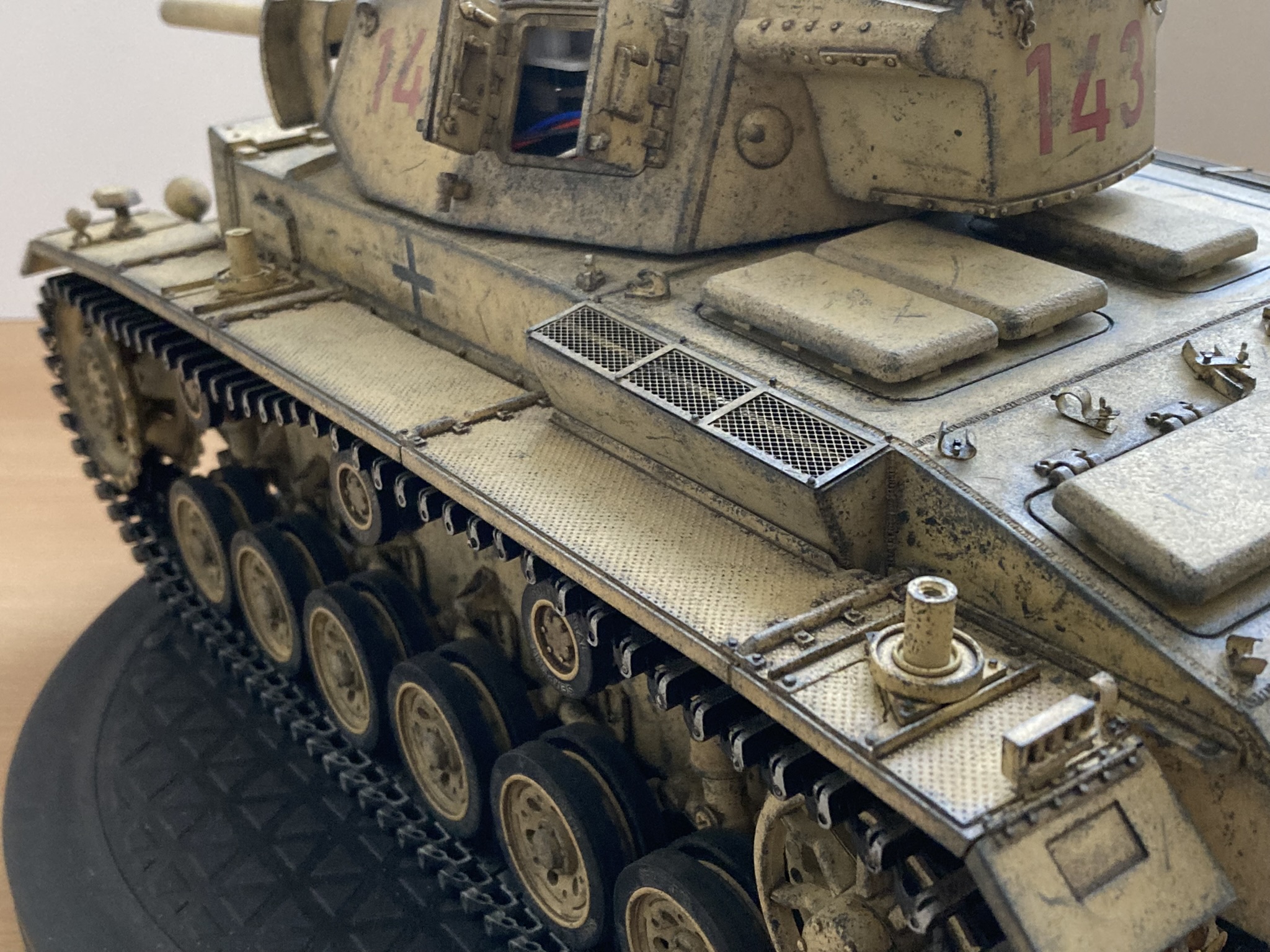

The two photos below show the frame & bolt heads I added to the air intake mesh screens. The upper hull lifting hooks I made can also be seen.
- Upper Hull Side+Rear+Turret LHS
- E9EBE821-C35B-43DB-BB56-8068FA8A8498.jpeg (824.77 KiB) Viewed 2849 times
The turret storage bin has some extra details added & the bracket for the spade can also be seen below.
- Upper Hull Upper Side+Rear+Turret RHS
- 437C78C8-747E-45C2-833D-3C944489623E.jpeg (814.92 KiB) Viewed 2849 times

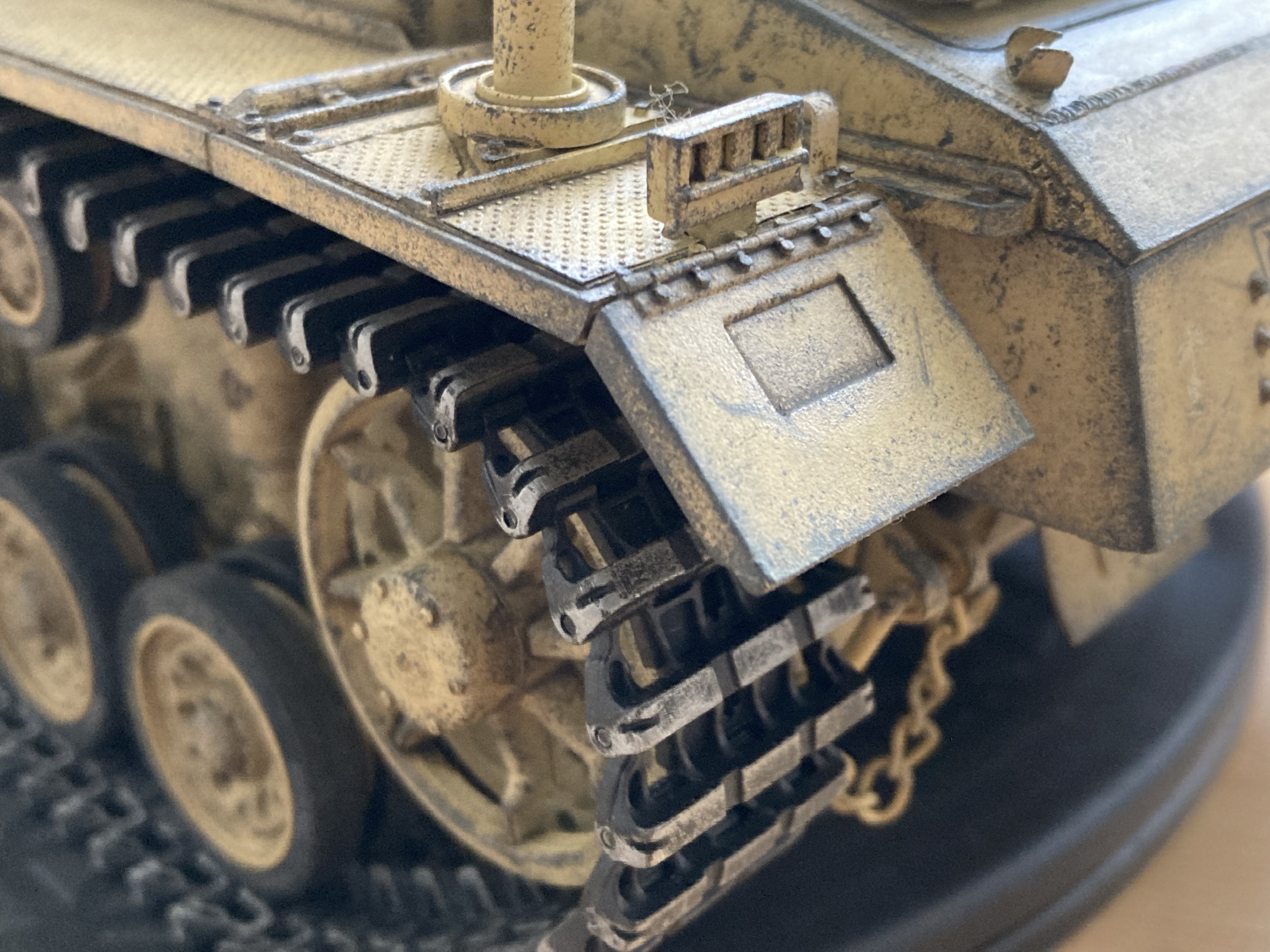

A closeup of the rear track guard hinge & bolt heads. Also to improve the appearance of the track guards I separated the different sections by cutting through them.
- LHS Rear Track Idler
- 851D3655-8107-436E-9671-E21035ED51FA.jpeg (2.82 MiB) Viewed 2846 times

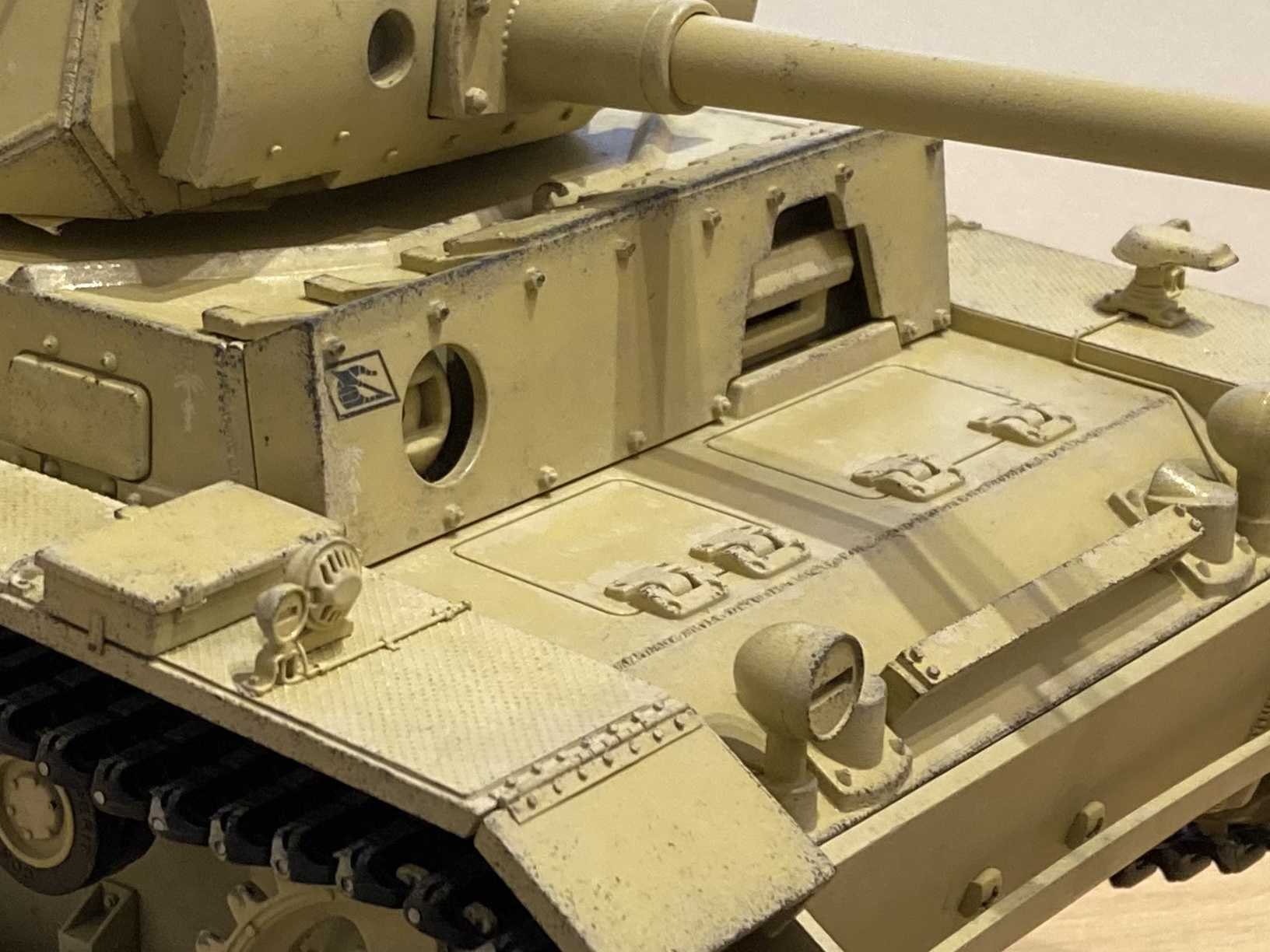

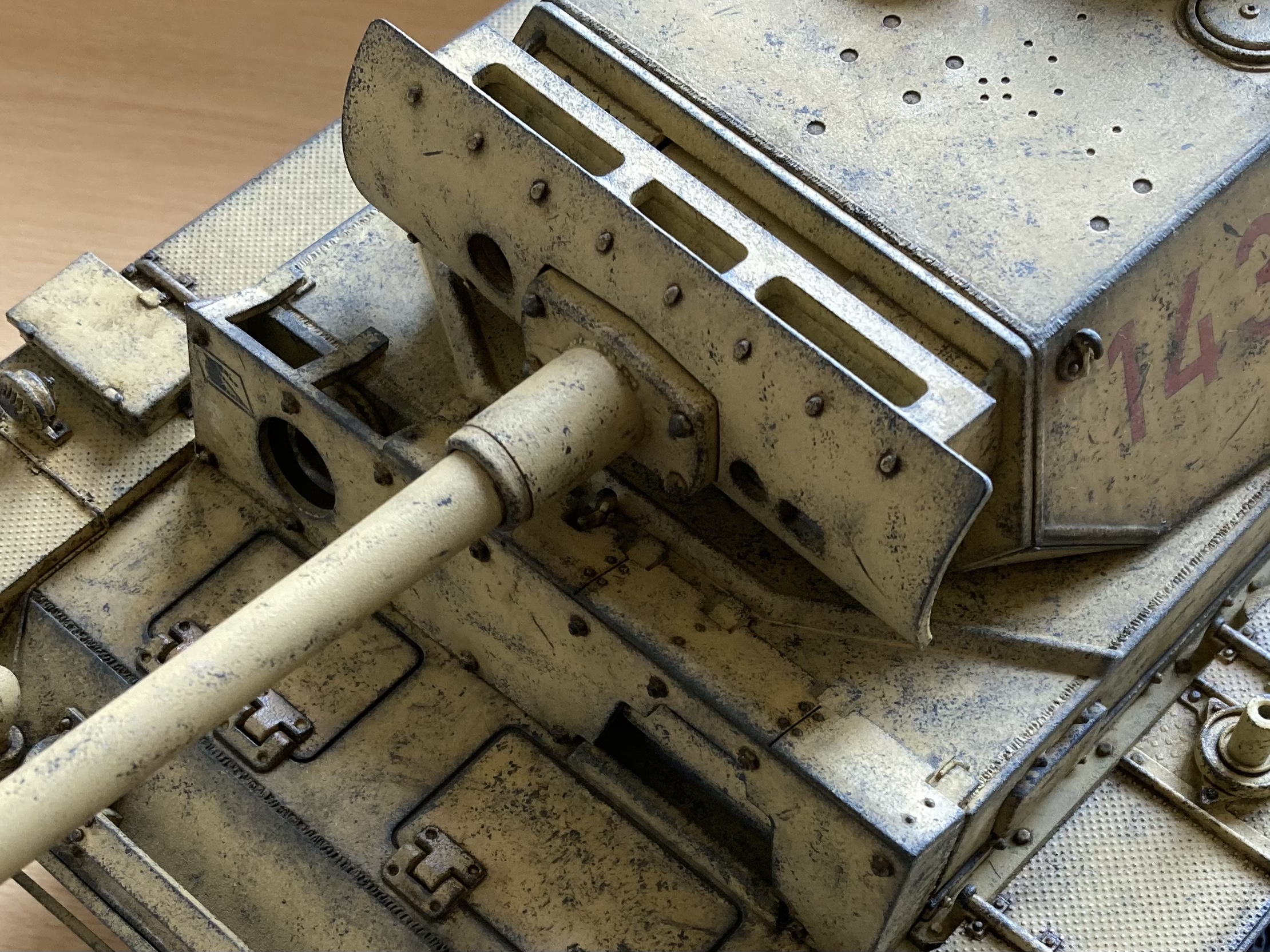

- Front Top Hull+Turret
- BDCF193C-EB85-4402-B027-C5AB181EAE6E.jpeg (1.44 MiB) Viewed 2844 times
Next Up - The Fitting Of The Tools, Spare Track, Spare Road Wheels & Machine Guns Etc.
Bye for now……..
Cheers Martin
..................................
