Building a Mid-Production Normandy Tiger 1

[PainlessWolf]

Good Afternoon,
Now that the December Pershing repair is complete, I can finally unbox my Taigen Tiger 1 kit and get started. Your work is inspiring and I know I will be visiting these pages along with other folks. Following along, ;o)
regards,
Painless

[tanks_for_the_memory]

So there are the various stages to this modification...

First I had to thicken the turret sides.

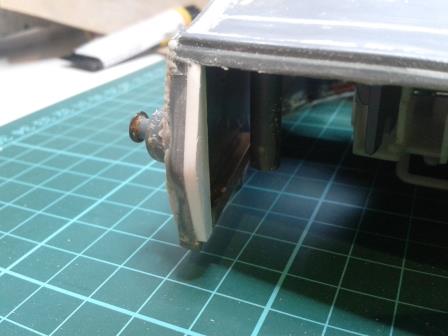

A fillet of 2mm thick plastic card inserted inside the front of the turret on each side.jpg (29.83 KiB) Viewed 4014 times

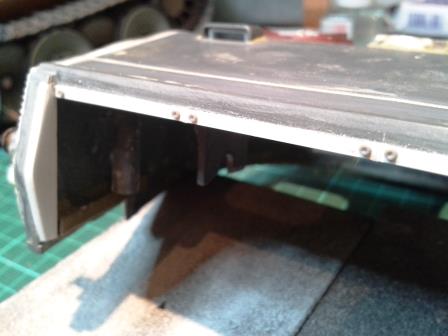

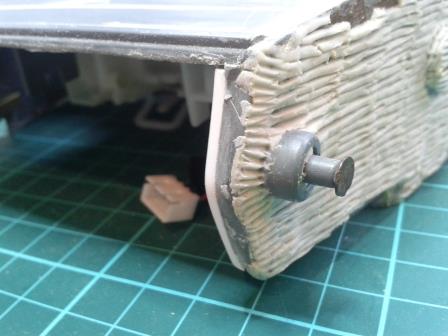

The fillets of plastic card also help the mantlet to sit better in its correct position and prevent lateral movement.jpg (28.83 KiB) Viewed 4014 times

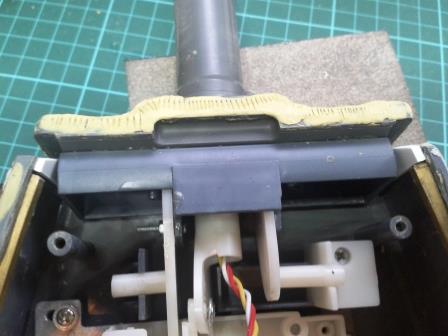

Here both sides of the front turret sides have been thickened - but note the incorrect strip of plastic which runs between them.jpg (97.25 KiB) Viewed 4014 times

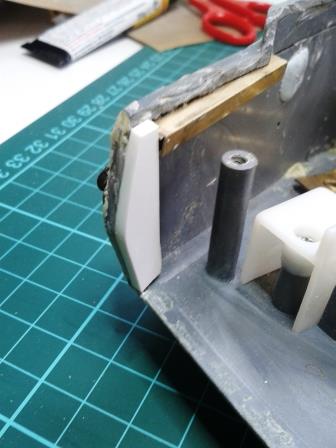

The idea is to recreate something approaching the scale thickness of the original armour.jpg (29.06 KiB) Viewed 4014 times

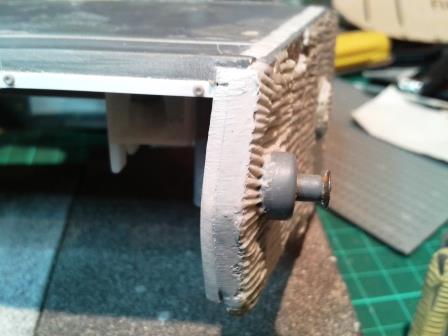

This was then smoothed with fine grade sandpaper to match the profile of the front of the turret.jpg (26.33 KiB) Viewed 4014 times

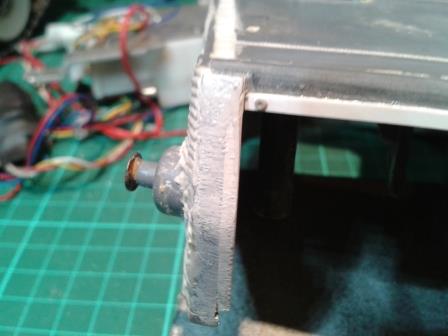

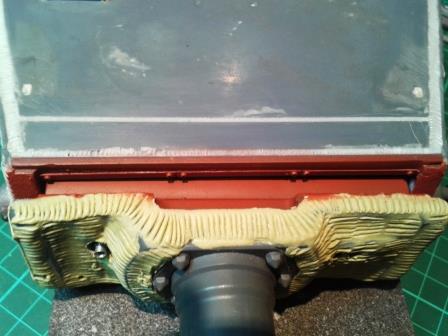

Mr Surfacer 1200 was then applied to cover the join and recreate the texture of the milled armour plate.jpg (27.15 KiB) Viewed 4014 times

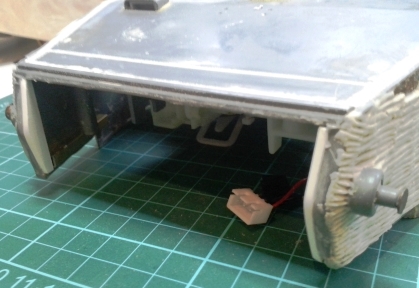

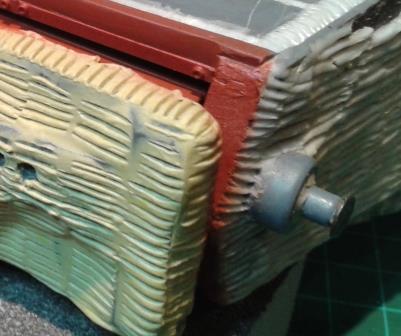

The other side - I just love Mr Surfacer because you can texture and cover a multitude of sins at the same time.jpg (24.76 KiB) Viewed 4014 times

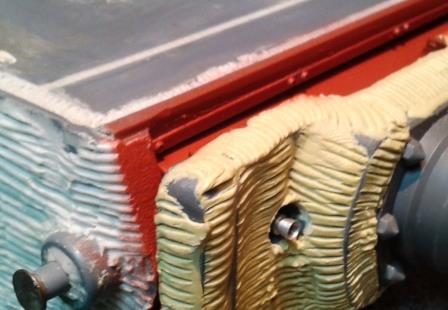

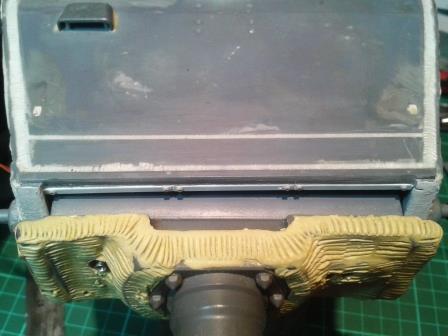

After a touch of primer the join between the old and new is invisible and the impression of thick textured steel is complete....jpg (31.13 KiB) Viewed 4014 times

Looking back at the unmodified HL turret you can see that the although the 'bogus' plastic strip at the front of the turret has been removed in the last two shots, where it crossed over the front of the turret sides it was simply sanded back to match their profile - this allowing them to reach up to the turret roof...

Here is another 'before' shot (from another unmodifed turret):

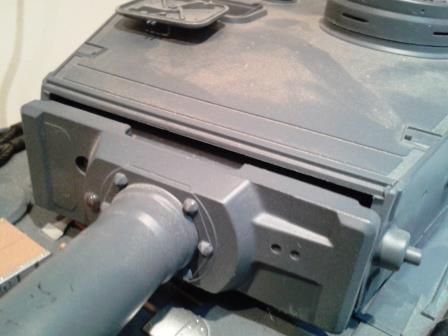

Another view of the unmodified HL turret and mantlet.jpg (27.38 KiB) Viewed 4005 times

The rest should be clearer in the next post!

[tanks_for_the_memory]

The next stage:

This was my first attempt before I realized that I needed to sand back the plastic strip along the turret roof.jpg (32.25 KiB) Viewed 4005 times

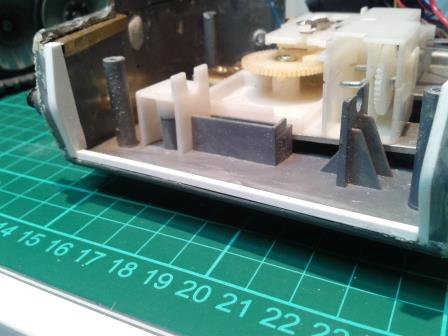

Here a piece of square section plastic rod has been glued beneath the turret roof - in the later mod I did the same but moved it back in line with the new turret roof profile.jpg (31.06 KiB) Viewed 4005 times

After sanding back the front of the turret roof I then glued the square rod back in place but left it slightly protruding to give the impression of the thin metal strip.

The square section plastic rod was fixed beneath the roof so that it stuck forward very slightly to give the illusion of the metal strips.jpg (25.64 KiB) Viewed 4005 times

On the real tank this was split into three equal parts with each piece secured by two bolts. To measure the splits correctly I used a ruler: each turned out to be exactly 3cms long:

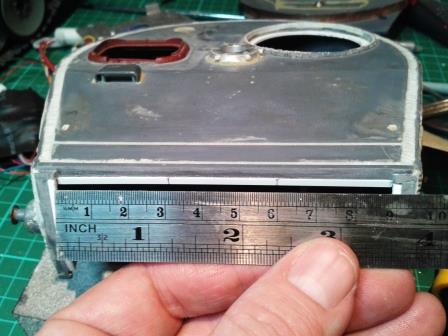

The strip was marked into thirds each 3cms across and the two joins etched in with a file.jpg (33.53 KiB) Viewed 4005 times

The joins between the three sections of strip were etched in with the edge of a triangular needle file - this might have been a little easier had I done it before gluing the square rod in place!

The bolts securing this strip in place were quite distinctive - round on the outside with recessed hex-head bolts in the middle. Luckily I found the perfect solution in a Meng Nuts & Bolts set.

These Meng sets are excellent value - £4.60 each and identical on each side they provide literally hundreds of different sized bolts in varying sizes moulded in good quality styrene (so almost a lifetime's supply!). You simply have to slice them off using a sharp blade and glue them in place.

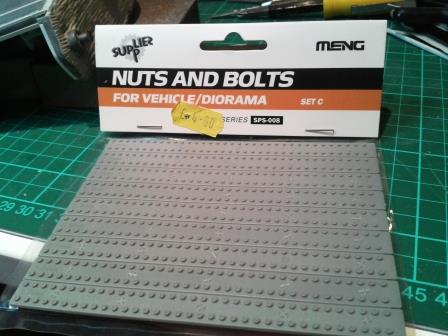

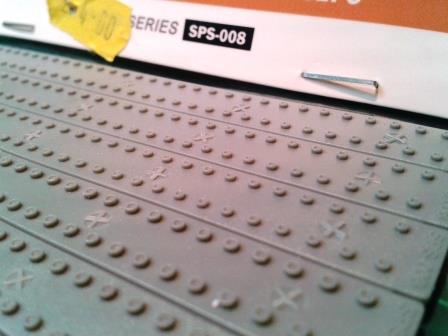

The Meng Nuts & Bolts Set C is the ideal source for the correct pattern fixings.jpg (35.81 KiB) Viewed 4005 times

These can simply be shaved off with a sharp knife and glued in place.jpg (28.16 KiB) Viewed 4005 times

Here you can see the new front profile of the turret roof front and the fixing strips with bolt detail in place.jpg (28.65 KiB) Viewed 4005 times

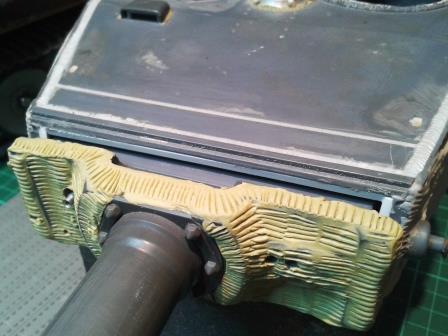

An overhead view shows how the front of the turret roof has been set back and the front of the turret sides are now thicker and more prominent.jpg (31.14 KiB) Viewed 4005 times

A close up with primer applied....jpg (31.96 KiB) Viewed 4005 times

Well I hope that's not too hard to follow. The good news is that now I have finally finished the 'mechanicals' on my turret I no longer need to keep taking it apart. Which means I can now start putting all of that lovely detail back on for good: the new cupola, the track hangers, the stowage bin - I can hardly wait!

[edpanzer]

Excellent build can't wait for the next installment

[Abe Froman]

What a great thread. Hello, I am a Newby to 1/16 tanks, but have bought the Heng Long Tiger a few weeks ago after seeing some dioramas on the RPF site. Well they got the juices flowing.

I have been studying this thread over and over and just have to say thanks for 1...indicating what needs to be done and 2. showing beautiful responses to the models problems. Your Tiger is a work of Art. Will be following this thread till the end.



Hi all BTW

[HERMAN BIX]

I agree Mr Froman, it will almost be a shame to have it completed ....................Almost Mr Tanks

[Abe Froman]

Tanks FTM, just a quick question. When you did the weld seams along the top deck length of the tank, it looks like you removed the two pole things (sorry awaiting reference books) which are moulded into the hull ( one either side towards the rear of the tank ). What were they and would a Tiger really have two of them?

My Tiger will be a Jan 43 model so Early.

My Tiger will also be no where near as good as yours but I can live with that

[jarndice]

Hi Abe, Welcome to the Forum, Those "Pole Things" are Aerial Stowage Tubes, and their inclusion on 1/16 Tiger 1s is a never ending source of annoyance,
TAMIYA were the originators of the 1/16 r/c mass produced Tank. The first Tiger 1 that they sold had two aerial stowage tubes EVEN though the real thing only had ONE on the left rear flank (looking from the front) They were very expensive kits and indeed for a kit they are still pricey which is why they had no competition for many years,
Then The Peoples Republic of China discovered the market economy and with labour costs so much less than Japan, HENG LONG produced the RTR (Ready to Run) Tiger 1, there were cries of copy from people in the trade which were denied by HENG LONG, a denial which would have been more believable if only it too didn't also have TWO AERIAL STOWAGE TUBES!!!!
It is not as easy to remove the extra tube as some people think, I have a scar on my thumb to prove it! but it is worth doing.
ABE read the builds on the HENG LONG BUILDS section of the Forum and you will soon see the same old faults being corrected again and again, TAMIYA no longer fit two tubes I believe but everyone else does and that includes a wrongly mounted Cupola and a lot of other mistakes. shaun

[DavidByrden]

My Tiger will be a Jan 43 model so Early.

Interesting. A January '43 would require a lot of work to make it accurate.

Will it have the S-mine system or not? Because the Tiger always has an antenna tube on the rear right hull, but if it's previous to the S-mine system, the tube should have its wide end at the back and should overhang the hull rear a little.

Like this;



David

[SovereignZuul]

It is not as easy to remove the extra tube as some people think

You ain't just wistlin' Dixie.

The turret mods look great, TFTM!
