Maxmekker's Tamiya King Tiger

Post by **maxmekker** » Fri Mar 16, 2012 11:07 pm

Nothing special today. Just a quick shot with the canon 60d.

http://www.youtube.com/watch?v=WZ9Dbs7qrKg

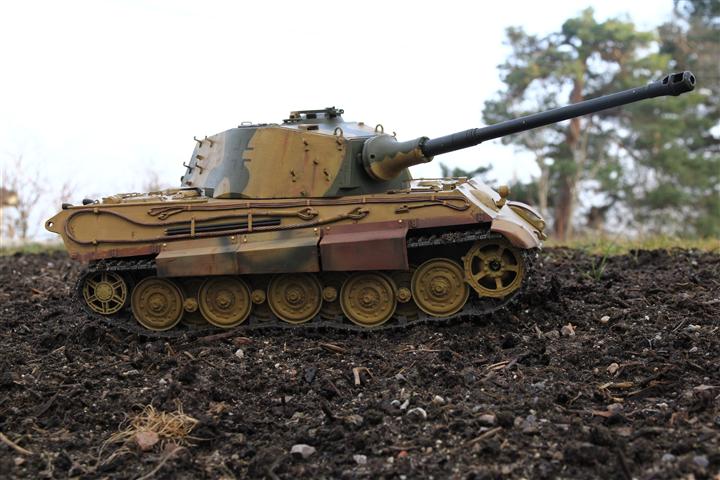

And a photo

Post by **maxmekker** » Sat Mar 17, 2012 11:48 pm

Forest patrol.

http://www.youtube.com/watch?v=7ce6FPr8 ... ature=plcp

Post by **maxmekker** » Mon Mar 19, 2012 10:25 pm

Latest 'doings'

: IMG_3564 (Small).JPG (34.24 KiB) Viewed 3432 times

: IMG_3566 (Small).JPG (37.91 KiB) Viewed 3432 times

: IMG_3569 (Small).JPG (46.08 KiB) Viewed 3432 times

Post by **maxmekker** » Sun Mar 25, 2012 11:27 am

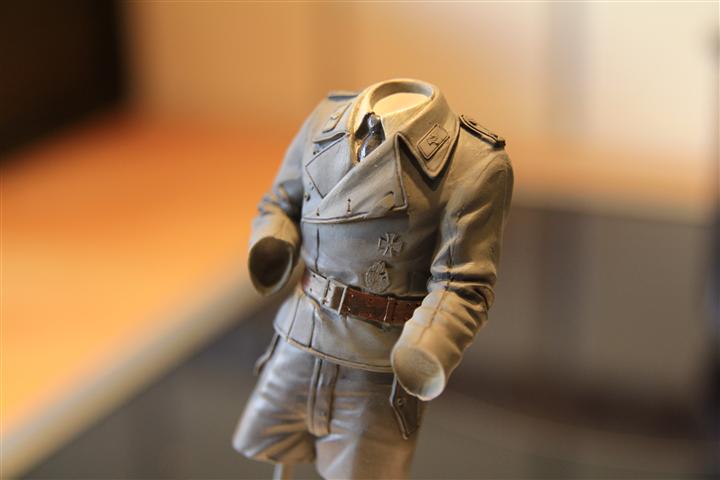

Started on the figure. That's tricky.

: IMG_2705 (Small).JPG (44.47 KiB) Viewed 3418 times

Post by **maxmekker** » Mon Apr 02, 2012 8:10 am

Ok, since last. I've:
got some more paint on the figure.

: IMG_3585%20(Small).JPG (44.59 KiB) Viewed 3401 times

And installed (as shown in the general tread) a gear down.

: IMG_3586%20(Small).JPG (46.17 KiB) Viewed 3401 times

My job on grinding down the output axel was somewhat poor, so it left a small wobble in the pinion, thus making the gap just a tad on the scary side.

: IMG_3592%20(Medium).jpg (43.58 KiB) Viewed 3401 times

Post by **maxmekker** » Mon Apr 02, 2012 8:19 am

But the speed from stock motor pinion and 10 tooth on the output axel made the tank ( to me) move about great, maybe a tad slow, but I like it.

http://www.youtube.com/watch?v=4gKVW-9V ... ature=plcp

Post by **maxmekker** » Mon Apr 02, 2012 8:26 am

And another clip ( flipp to HD) Enjoy

http://www.youtube.com/watch?v=5_h2eagv ... ure=relmfu

Not sure how to get the tube video to show in the tread in this forum, is there a guide ?

[youtube]http://www.youtube.com/watch?v=5_h2eagv ... ure=relmfu[/youtube]

Carnage · Post by **Carnage** » Mon Apr 02, 2012 1:20 pm

I have the same reduction gears installed in my KT. Only thing i am wondering, why did you use other pinions?? Looking at you picture they do not mesh correctly, wich will cause a lot of wear and tear. I used the stock Tamiya motors and pinions wich mesh perfectly. To get it to mesh properly, put some paper between the gears and then tighten it, remove the paper and you will have the correct distance between gears

It does provide a lot more torque with these reduction gears, although the concept is so simple, they work a treat!

Post by **maxmekker** » Mon Apr 02, 2012 4:14 pm

let me explain. what you se in the pic is the pinion from the outgoing axel on the maxx gearbox, not the motor pinion. I did the blunder of not getting the axel even all the way. I manged to get the tip of the axel just a hair thinner than the inner part, so the pinion has a tiny play, and when thighting down the screw it will lift the front of the pinion ever so slightly, making the gap just a little to much to my liking. So when I drive I don't make any power turns on grass ore sand/dirt ( on pave yes), but large forward moving turns on grass.( oh and I have been racing 1/10 carpet and been into the rc since I was 14, 36 now, so I know about that great little paper trick

use it all the time , but as you see, no good here )

: IMG_3598 (Medium) (Small).JPG (42.62 KiB) Viewed 3397 times

Post by **maxmekker** » Wed Apr 18, 2012 9:25 pm

Been a while since I did anything now, but just started on something I wanted to do. Not flinging out for brass parts now I did a eco approach on it.

Remove

IMG_3607 (Small) by maxsollie, on Flickr

drill

IMG_3608 (Medium) by maxsollie, on Flickr

glue back on

IMG_3618 (Medium) by maxsollie, on Flickr

IMG_3619 (Medium) by maxsollie, on Flickr

IMG_3620 (Medium) by maxsollie, on Flickr

Test

IMG_3621 (Medium) by maxsollie, on Flickr

Evergreen and small bolts

IMG_3622 (Medium) by maxsollie, on Flickr

IMG_3623 (Medium) by maxsollie, on Flickr
