Re: British FV432/30 Bull dog

Post by Son of a gun-ner »

Cool, thank you, it so happens I purchased some from them at Blackpool :D
Mick - The grit in the underpants of life!
Always happy to spare the bytes
Apparently my mind works in mysterious ways :think:

TOTM needs YOU :thumbup: support YOUR TOTM competition, I'm doing my part, are YOU?
Sub
Sergeant
Posts: 699
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Re: British FV432/30 Bull dog

Post by Sub »

Hi.
Stick a 220 ohm resistor on the positive and you good for 7.4v. :thumbup:
Sub.
User avatar
Son of a gun-ner
Lieutenant-Colonel
Posts: 7361
Joined: Sun May 07, 2017 8:49 pm
Location: Surrey UK

Re: British FV432/30 Bull dog

Post by Son of a gun-ner »

Sub wrote:Hi.
Stick a 220 ohm resistor on the positive and you good for 7.4v. :thumbup:
Sub.
Thank you :thumbup: But I want them for another project that runs on 3 volts, to light up a Christmas decorative house :{
Mick - The grit in the underpants of life!
Always happy to spare the bytes
Apparently my mind works in mysterious ways :think:

TOTM needs YOU :thumbup: support YOUR TOTM competition, I'm doing my part, are YOU?
Sub
Sergeant
Posts: 699
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Re: British FV432/30 Bull dog

Post by Sub »

Hi.

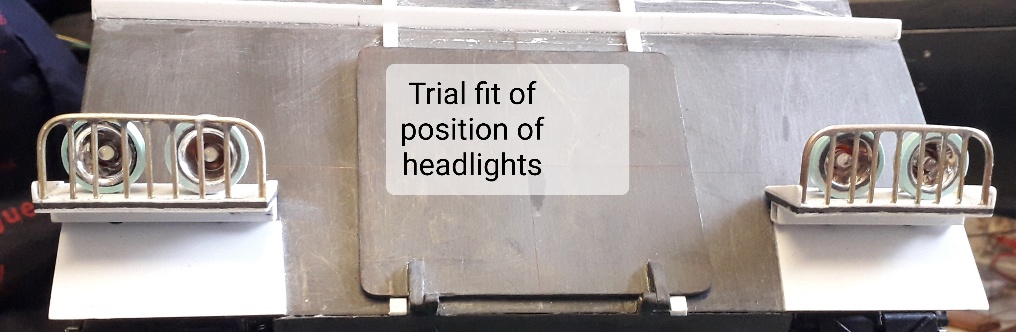

Position test for headlights and brackets, nothing glued just held in place by wires and brackets.
Sub.
Attachments
Sub
Sergeant
Posts: 699
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Re: British FV432/30 Bull dog

Post by Sub »

Hi.

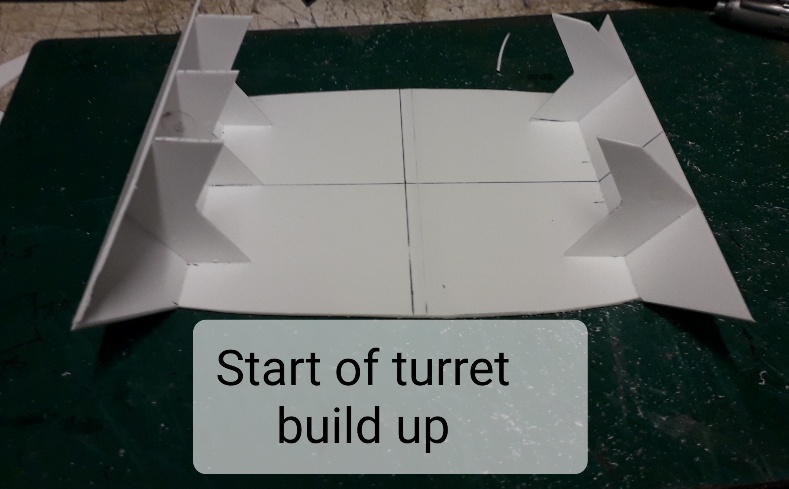

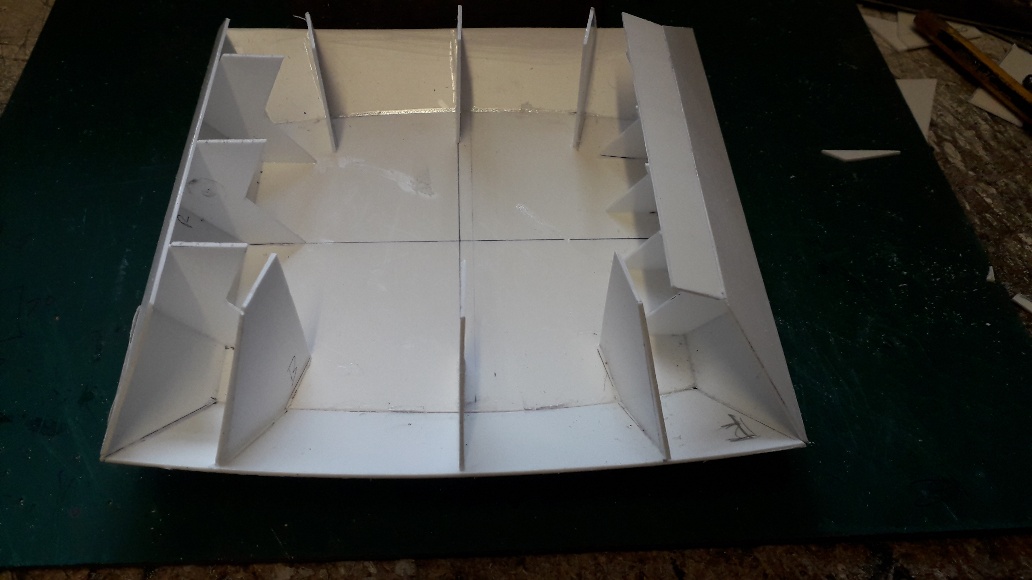

Turret construction.
Due to its complex shape and angular design, was not an easy task.
Sub.
Attachments
Sub
Sergeant
Posts: 699
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Re: British FV432/30 Bull dog

Post by Sub »

Further.

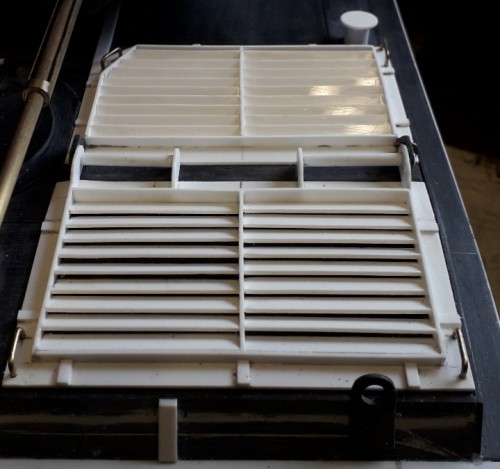

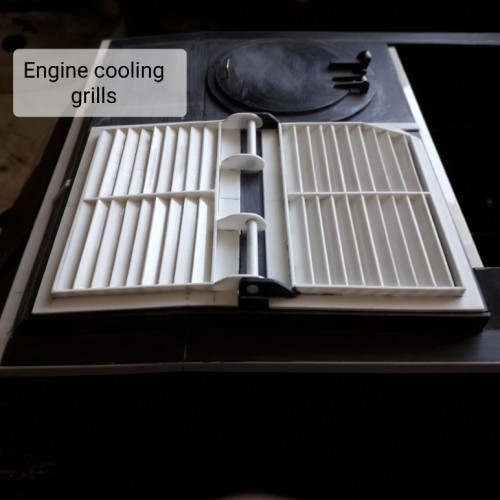

Engine cooling grills added.
Sub.
Attachments
Sub
Sergeant
Posts: 699
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Re: British FV432/30 Bull dog

Post by Sub »

Further,

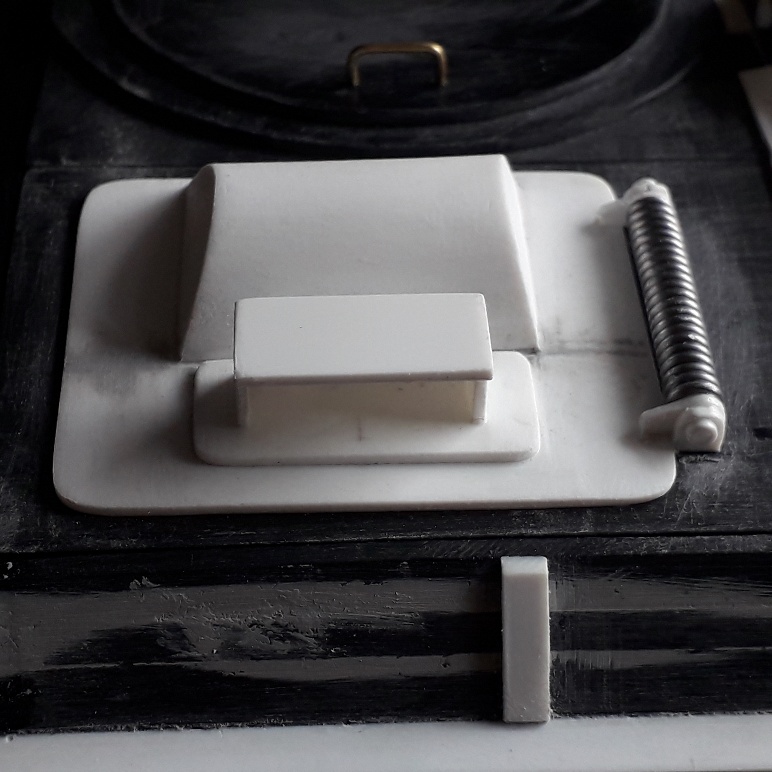

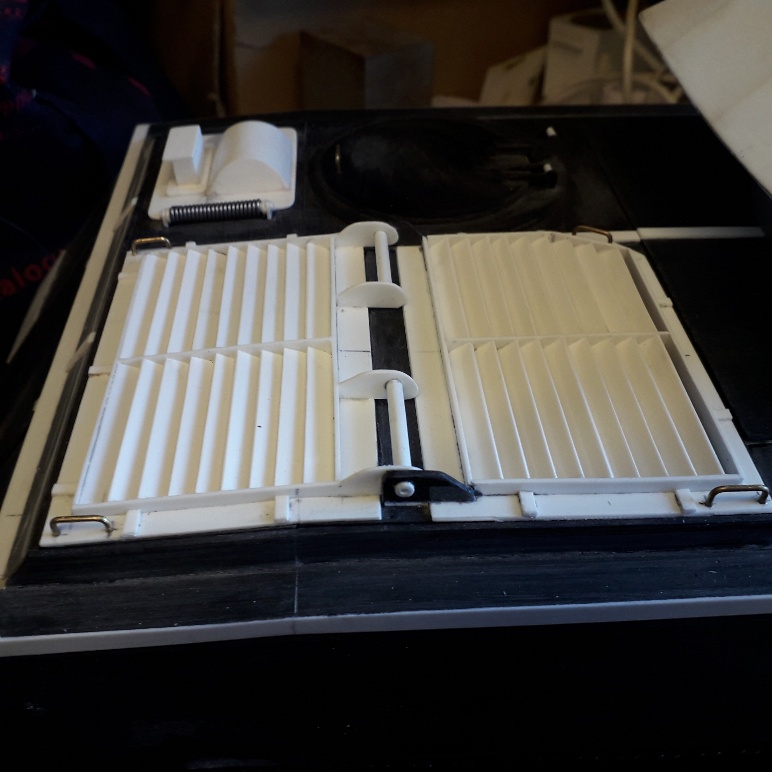

More work on the engine grills plus drivers hatch.
Sub.
Attachments
Sub
Sergeant
Posts: 699
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Re: British FV432/30 Bull dog

Post by Sub »

More.

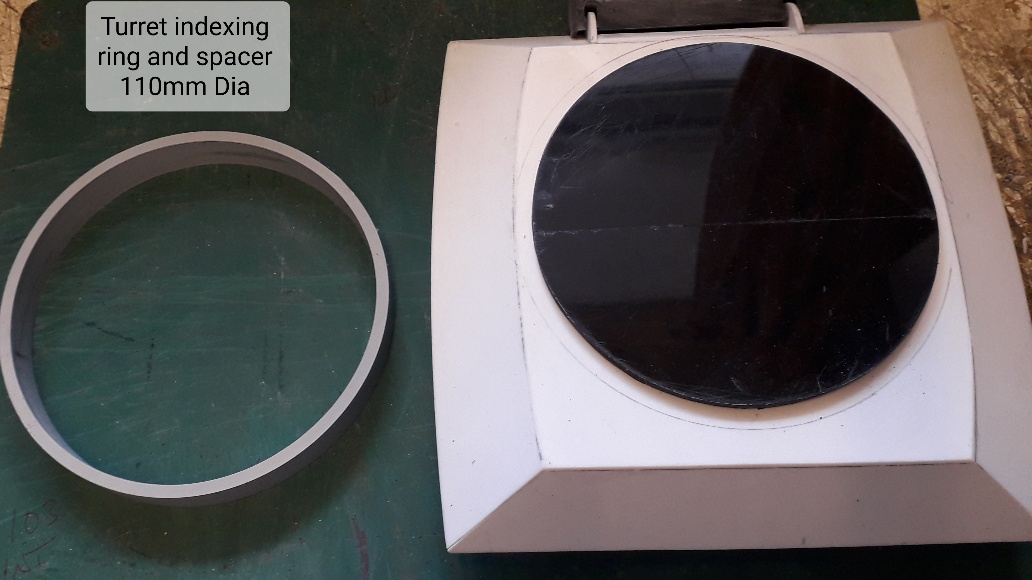

Turret indexing ring added plus turret spacer as the turret is raised up off the upper deck on the FV432
Turret rotation Futaba FPS148 servo modified for 360 ° and output gear added to modified heng long turret ring to give full 360° rotation.
Sub.
Attachments
Sub
Sergeant
Posts: 699
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Re: British FV432/30 Bull dog

Post by Sub »

Further.

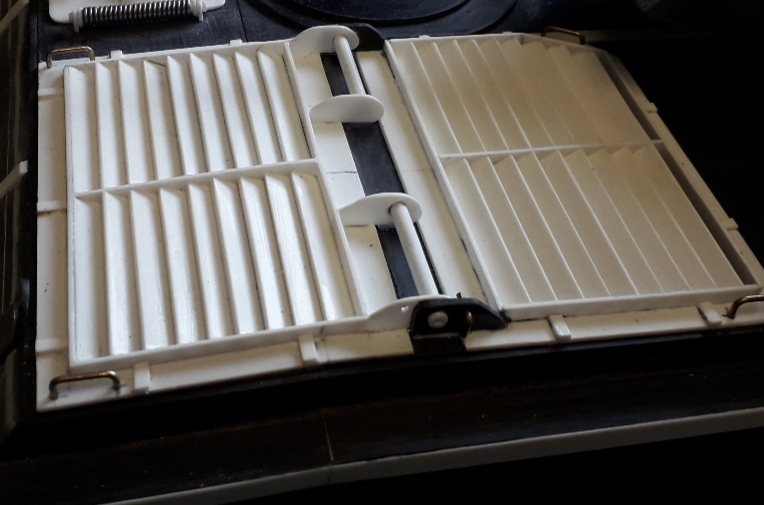

More work done on the engine grills plus hull lifting eyes added.
Sub
Attachments
Sub
Sergeant
Posts: 699
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Re: British FV432/30 Bull dog

Post by Sub »

More pics.

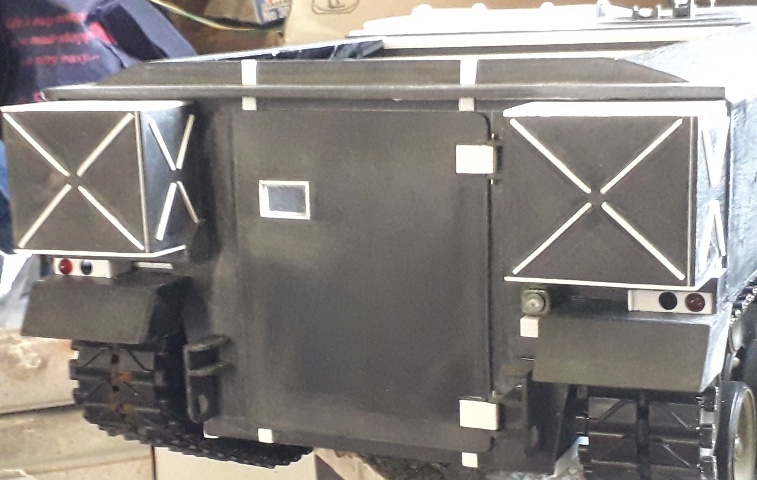

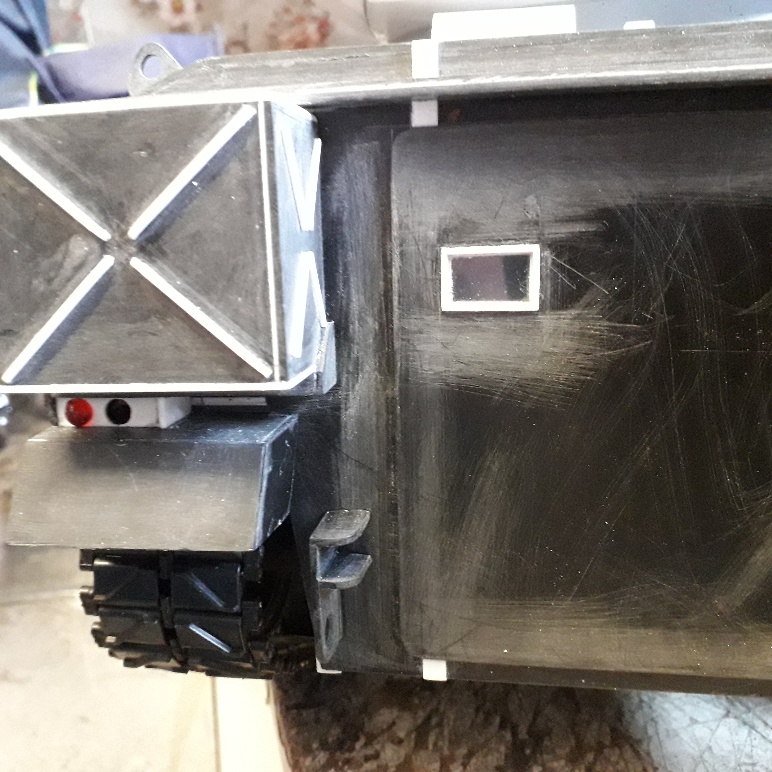

This time the rear of the vehicle, troop door added with armoured viewing port, HD hinges, rear towing mounts and track pad holder and offside electtrical outlets plus rear light boxes and temp fitted and unfinished storage bins just to make sure it all lined up and fitted in the space available.
Sub.
Attachments
