Re: Oshkosh 6x6 truck build
The new Arduino board arrived, I plugged it in and was printing like a champ again. I sent Arduino a few pics of the old board, and although it appeared genuine to me, right down to their gold coloured custom chip, they told me it wasn't, so I will get a VR and solder it myself.

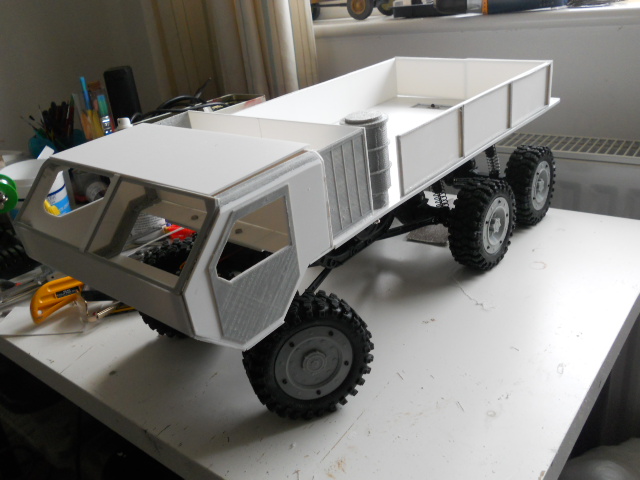

Anyhow, here is where I am at the moment.
Anyhow, here is where I am at the moment.
Tiger 1 Late
Panther G
King Tiger
M36 B1
Panther G
King Tiger
M36 B1
Re: Oshkosh 6x6 truck build
Hi Rob looking good ,still saving for mine LOL
regards pete
regards pete
Re: Oshkosh 6x6 truck build
Rob, that's coming along nicely.
John
John
- wibblywobbly
- Major
- Posts: 6395
- Joined: Fri Oct 17, 2008 9:30 am
- Location: South Wales Valley
- Contact:
Re: Oshkosh 6x6 truck build
Its taking shape, done a bit more now, will post some pics when I get the chance. Waiting for a new reel of filament before I print anything else, just a few bits to go behind the cab. I also want to do a static hoist to go on the back. Then its fuel tanks, lights and mudguards, and some stowage.
The nice thing about these trucks is that all of the parts and hop ups are available. To change it into an eight wheeler all I buy is two chassis extension rails, a servo, and a steering axle. with wheels.
I'll also look at upgrading the motor to a rock crawler one, and installing a decent esc.
The nice thing about these trucks is that all of the parts and hop ups are available. To change it into an eight wheeler all I buy is two chassis extension rails, a servo, and a steering axle. with wheels.
I'll also look at upgrading the motor to a rock crawler one, and installing a decent esc.
Tiger 1 Late
Panther G
King Tiger
M36 B1
Panther G
King Tiger
M36 B1
- wibblywobbly
- Major
- Posts: 6395
- Joined: Fri Oct 17, 2008 9:30 am
- Location: South Wales Valley
- Contact:
Re: Oshkosh 6x6 truck build

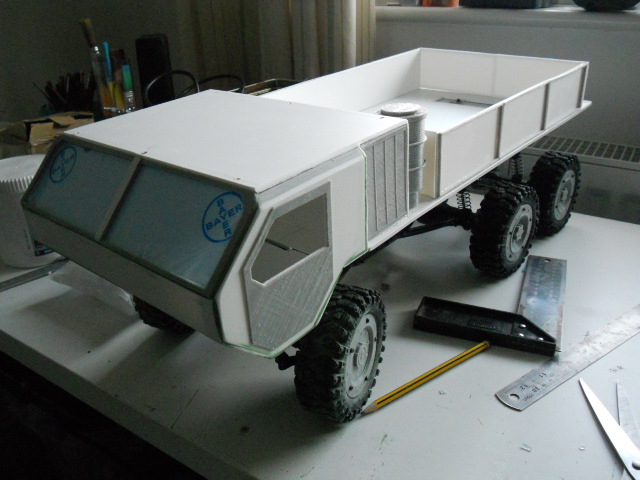

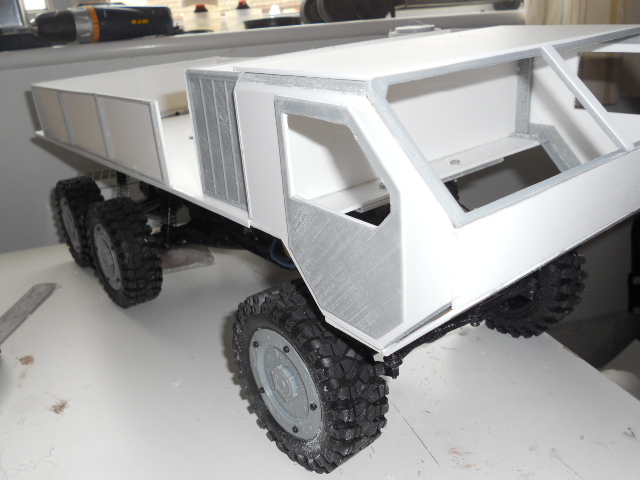

Waiting for the new reel of filament before I can do much else, but this is where I am. The cab is all rock solid, I started designing a dashboard and interior, but soon realised that the centre of gravity would be too high to go adding too much stuff up there. If its used for rock crawling then rollovers go with the territory, so a low c of g is the thing to go for. I'll dust the windows with an airbrush, so no one can see inside. ![Angel :angel:](./images/smilies/icon_angel.gif)
![Angel :angel:](./images/smilies/icon_angel.gif)
Tiger 1 Late
Panther G
King Tiger
M36 B1
Panther G
King Tiger
M36 B1
- AlwynTurner
- 2nd Lieutenant
- Posts: 2608
- Joined: Thu Oct 23, 2014 10:47 am
- Location: Chapel-en-le-Frith, Derbyshire
Re: Oshkosh 6x6 truck build
Coooolll, can't wait to see it in action. If top weight is an issue you could always use balsa for the load bed as I did on my trucks (mind you for a rock crawler it probably wouldn't stand up to the wear and tear)? Alwyn
YOU'RE NEVER TOO OLD TO HAVE A HAPPY CHILDHOOD!
Saladin scratchbuild, Matilda scratchbuild, Churchill scratchbuild, Crusader scratchbuild, M10 Achiĺles scratchbuild, Universal Carrier scratchbuild
Saladin scratchbuild, Matilda scratchbuild, Churchill scratchbuild, Crusader scratchbuild, M10 Achiĺles scratchbuild, Universal Carrier scratchbuild
- wibblywobbly
- Major
- Posts: 6395
- Joined: Fri Oct 17, 2008 9:30 am
- Location: South Wales Valley
- Contact:
Re: Oshkosh 6x6 truck build
It wouldn't do a lot of good, there is already a large sheet of alloy running front to back that I have used to take the flex out of the chassis. The other minor issue I have is that the steering servo is chassis mounted, so the front axle moves when steering, which means I lose the full steering lock. I need to either remount the servo on the axle, or stiffen up the front end using a panhard rod, or an Axial A frame. Just another problem to apply myself to.... ![Problem :problem:](./images/smilies/icon_problem.gif)
![Problem :problem:](./images/smilies/icon_problem.gif)
Tiger 1 Late
Panther G
King Tiger
M36 B1
Panther G
King Tiger
M36 B1
- wibblywobbly
- Major
- Posts: 6395
- Joined: Fri Oct 17, 2008 9:30 am
- Location: South Wales Valley
- Contact:
Re: Oshkosh 6x6 truck build

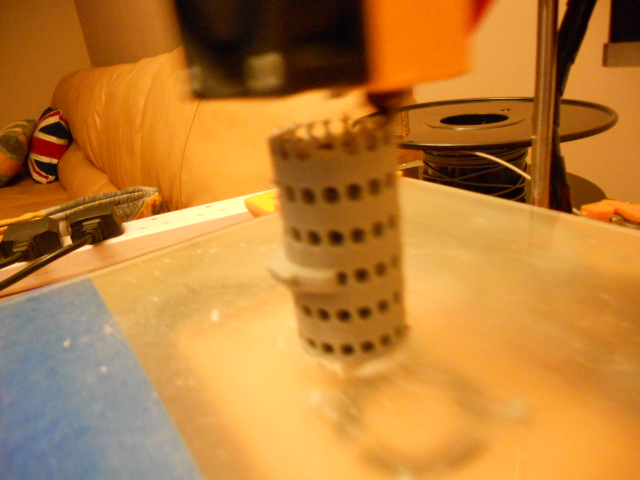

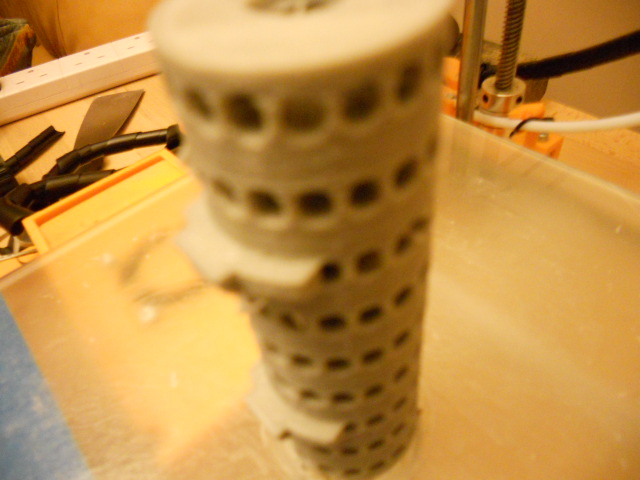

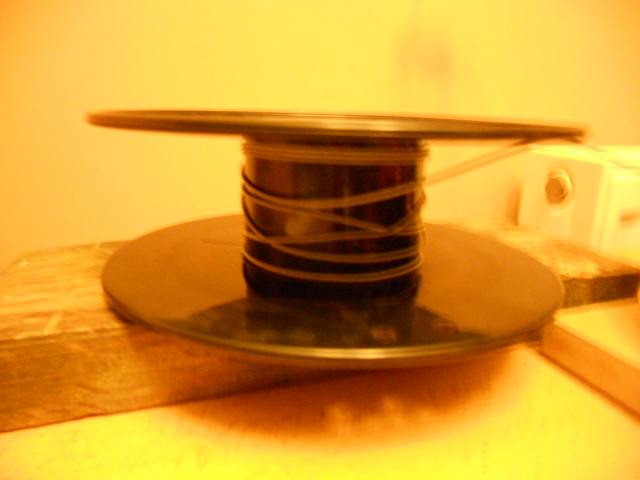

3 hours into a 5 hour print, just using up the last of the filament on the reel, its touch and go as to whether there is enough there to complete the exhaust... ![:icon_eek: 8O](./images/smilies/icon_eek.gif)
![:icon_eek: 8O](./images/smilies/icon_eek.gif)
Tiger 1 Late
Panther G
King Tiger
M36 B1
Panther G
King Tiger
M36 B1
- wibblywobbly
- Major
- Posts: 6395
- Joined: Fri Oct 17, 2008 9:30 am
- Location: South Wales Valley
- Contact:
- AlwynTurner
- 2nd Lieutenant
- Posts: 2608
- Joined: Thu Oct 23, 2014 10:47 am
- Location: Chapel-en-le-Frith, Derbyshire
Re: Oshkosh 6x6 truck build
Hi Rob, can you please give me the stats on the chassis - track width and wheelbase, because I saw the chassis and a sudden thought came to my head - DUKW. I wondered if the transfer box and motor could be waterproofed in which case the rest is just scratch build.....
Incidentally I saw this and got excited - how does the spec compare with the one you bought?
http://www.ebay.co.uk/itm/221985481951? ... EBIDX%3AIT
At this price it's almost sneakable!! I don't think the missus would go with the auto cake icer story, she's much too tech savvy to let that one get by!
Cheers
Alwyn
Incidentally I saw this and got excited - how does the spec compare with the one you bought?
http://www.ebay.co.uk/itm/221985481951? ... EBIDX%3AIT
At this price it's almost sneakable!! I don't think the missus would go with the auto cake icer story, she's much too tech savvy to let that one get by!
Cheers
Alwyn
