Re: Tamiya 1/35 M4A Sherman 2.4G beginnings

Post by puramo »

Painless, good idea, I think I actually have some in my spares box haha :lolno:
here's a bit more for greengiant (ps great pic for your avatar :thumbup: )

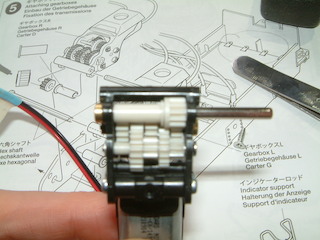

I would strongly advice TESTING your motors before going further, as once they are in they are pretty much inaccesible. Be very CAREFFUL about fitting of small parts, gears, not to confuse direction, L and R. There are a few picture ERRORS in the manual that I have pointed out
Attachments
screws for motor mount are TIGHT but do not OVERtighten, flush fit is important
screws for motor mount are TIGHT but do not OVERtighten, flush fit is important

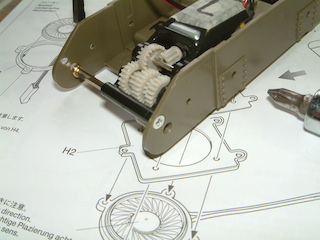

From here the difficulty ramps up. Fitting the first motor is easy the 2nd one is more fiddly
From here the difficulty ramps up. Fitting the first motor is easy the 2nd one is more fiddly
Make sure motor mount is fully FLUSH top and side, temperature in my hobby room right now is a lovely 3deg
Make sure motor mount is fully FLUSH top and side, temperature in my hobby room right now is a lovely 3deg
WARNING ERROR IN MANUAL
WARNING ERROR IN MANUAL
BC: I couldn't do that. Could you do that? Why can they do it? Who are those guys?
Top
User avatar
puramo
Lance Corporal
Posts: 127
Joined: Tue Feb 03, 2015 6:35 am

Re: Tamiya 1/35 M4A Sherman 2.4G beginnings

Post by puramo »

Youtube stuff for your interest
Panzer IV, Panzer IV outside lol, modified Panther with workable suspension, Panther Older FM no sound chip model build and running, Sherman running without top, unfinished Sherman, workable Sherman suspension (amazing not mine), T34, JGSDF Type 10
https://www.youtube.com/watch?v=W-ISZvmxgu4
https://www.youtube.com/watch?v=FBCNRmIh3i8
https://www.youtube.com/watch?v=-cDKV6vmMS4
https://www.youtube.com/watch?v=HLRbUkS3bfo
https://www.youtube.com/watch?v=_WBUn9NAKP0
https://www.youtube.com/watch?v=v-0Nxy0Oqjc
https://www.youtube.com/watch?v=x7T3dAPaJms
https://www.youtube.com/watch?v=vcoXoYICluw
https://www.youtube.com/watch?v=LqW3UdjBMJw

Sherman individual spring suspension full tutorial :crazy: :crazy: :crazy: :crazy: :crazy:
- parts are from either Italeri or Dragon kits
a pin vice would be handy too
https://www.youtube.com/watch?v=bVvOtb8Bws0
BC: I couldn't do that. Could you do that? Why can they do it? Who are those guys?
Top
User avatar
puramo
Lance Corporal
Posts: 127
Joined: Tue Feb 03, 2015 6:35 am

Re: Tamiya 1/35 M4A Sherman 2.4G beginnings

Post by puramo »

Here's the next step. I did a workable suspension using original parts (simpler than the spring modified version). If there's anything that needs explaining let me know
Attachments
This suspension unit is actually on the WRONG side facing the wrong way it was just for the photo but sorry for the error
This suspension unit is actually on the WRONG side facing the wrong way it was just for the photo but sorry for the error
this part took a lot of persuasion to get a clean fit
this part took a lot of persuasion to get a clean fit
I did not like this gap (too much flex from chasis) so I filled it with cut sprue and sanded it flush
I did not like this gap (too much flex from chasis) so I filled it with cut sprue and sanded it flush

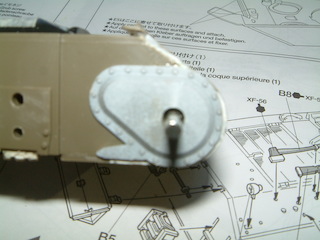

flush fit
flush fit
Last edited by puramo on Sun Feb 15, 2015 1:32 pm, edited 1 time in total.
BC: I couldn't do that. Could you do that? Why can they do it? Who are those guys?
Top
User avatar
puramo
Lance Corporal
Posts: 127
Joined: Tue Feb 03, 2015 6:35 am

Re: Tamiya 1/35 M4A Sherman 2.4G beginnings

Post by puramo »

moving on
Attachments
A little out of sequence but voila a type of workable suspension
A little out of sequence but voila a type of workable suspension
brass monkeys
brass monkeys

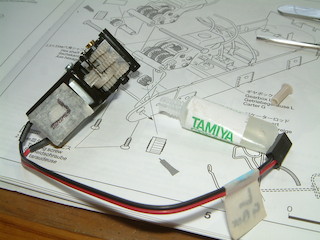

TIP pull the 2 thick black wires up thro' the turret rotation unit AS FAR AS THEY WILL COMFORTABLY GO it will then be easy to install the IR unit (if not it's madness)
TIP pull the 2 thick black wires up thro' the turret rotation unit AS FAR AS THEY WILL COMFORTABLY GO it will then be easy to install the IR unit (if not it's madness)
BC: I couldn't do that. Could you do that? Why can they do it? Who are those guys?
Top
User avatar
puramo
Lance Corporal
Posts: 127
Joined: Tue Feb 03, 2015 6:35 am

Re: Tamiya 1/35 M4A Sherman 2.4G beginnings

Post by puramo »

OK dunno if anyone is really following this. Upcoming, painting, disaster strikes, Tamiya's amazing after sales parts service. Fantastic kits tho', but the painting takes me months, more on that later...
Attachments
Ah finally a picture that is in focus, my digi cam is 10 years old and counting
Ah finally a picture that is in focus, my digi cam is 10 years old and counting

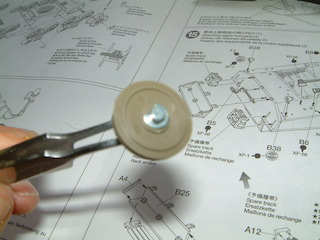

assembling this piece drove me nuts, it kept wiggling around, lol
assembling this piece drove me nuts, it kept wiggling around, lol
My hobby is watching spots on the wall - wow fun
My hobby is watching spots on the wall - wow fun
I was using the inner hull to practice some painting techniques
I was using the inner hull to practice some painting techniques
instructions shows both ways
instructions shows both ways

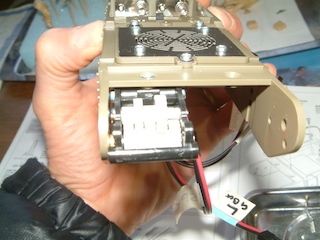

You will need to push all wires DOWN very very flat and very very tight and it is TIGHT in there
You will need to push all wires DOWN very very flat and very very tight and it is TIGHT in there
BC: I couldn't do that. Could you do that? Why can they do it? Who are those guys?
Top
User avatar
PainlessWolf
Lieutenant-Colonel
Posts: 7425
Joined: Sun Feb 26, 2012 9:09 pm
Location: Southern Colorado Rocky Mountains

Re: Tamiya 1/35 M4A Sherman 2.4G beginnings

Post by PainlessWolf »

Good Morning,
I am following along. ;o) I appreciate the photos and attention to the build. I ocassionally get dragooned into building in 1:35 but have not done RC in that scale since the Tiger1 we spoke of earlier. The build I am working on now, a Taigen\Profiline StuG III B was set in motion by how nice Tamiya's 1:35 kit of that type went together. Please keep up the pics, Puramo. ;o)
regards,
Painless
...Here for the Dawn...
Top
User avatar
puramo
Lance Corporal
Posts: 127
Joined: Tue Feb 03, 2015 6:35 am

Re: Tamiya 1/35 M4A Sherman 2.4G beginnings

Post by puramo »

Painless,
thanks a lot for the interest. :D My 2cents worth is this kit is really great for 1/35 enthusiasts. :D :D The finish is excellent, but for the Sherman the fit is really TIGHT !!! and you need to go slowly, following the intructions ruthlessly, being careful to put glue where it is needed and not anywhere else for the moving parts.

For all the wires plugged into the MC unit they must be very flat and tight B| , all tucked away or the upper hull will not sit tight and this causes the turret to deconect from the rotating ring

Do not get any paint or varnish on the turret ring portion of the hull !!! (I made this mistake) and make sure once the turret is glued to it's ring that it is as smooth as baby's bottom :lolno: and light as a feather, if not it will jam and it's very frustrating to fix :problem:

Getting the IR unit with the rubber washer in for me was cruel :-< , it was a really tight fit, so I suggest several dry runs before you knock all the little bits off your tank struggling to get it on. (You do not glue this part it can be removed)
