Dasmikro (TBS Benedini clone)

[ModelMaker]

Well, I have managed to change the sound set, but don’t think that I will be able to control the switching with the Sanwa M12 radio I am using. It doesn’t have any three position switches, only toggle on/off, or momentary on.
I did test all the light patterns using the Flash software, it’s all there. Pretty cool module.

[ModelMaker]

Okay, great news! I found a way to convert the rotary dial on my M12 so it acts like a two way toggle switch. We’re not dead yet.
Now I am able to use the Indirect 2-key coder method to activate the A pin outs.
I can get the engine start sound, but it doesn’t react to throttle inputs.. not sure what I’m missing?
I’ll give you a screen shot.

[ModelMaker]

So I worked on this again today and found that if I leave the ENGINE TYPE on AUTOSTART the sound set plays in conjunction with throttle inputs. But I can also turn it on/off with the selection method. I can also trigger the A pin outs.

This seems contrary to the Benedini manuals that state that no controls are available when in autostart mode. ?

I also found the the Brake (Break) and Reversing light functions work when programmed using TBS Flash, I assume this only works if your ESC has a brake function.

This unit requires a lot of trial & error so I hope this will help others.

[Rad_Schuhart]

Hi, the micro is using 3ch.
1) Is the throttle responsive one.
2) Is the two functions one. No need to have a three pos switch. You can program your radio to use two normal switches or push buttons.
3) Is the crazy complicated to config 12 functions channel. It helps to have a rotary switch for that, and with the rotary you select one sound, and then with a trigger button you play it. It is very advanced and needs a decent programable radio.

The break and reverse lights work when the board feels you are braking or reversing in your throttle channel, and it has nothing to do with the ESC.

And yep, the unit has a hard learning process, but in this thread and in my blog there is a nice bunch of info, hope it helps.

[ModelMaker]

Rad_Schuhart have you been able to access the PWM 1-2 outputs A10 & A11? I can open the fields if I choose the mini profile on Flash, but not when I select micro.
Do I need newer version of Flash?

[Rad_Schuhart]

Rad_Schuhart have you been able to access the PWM 1-2 outputs A10 & A11? I can open the fields if I choose the mini profile on Flash, but not when I select micro.
Do I need newer version of Flash?

Honestly I have not tested those outputs yet... But for sure newer versions of the flash won't do any good because they are not compatible with the micro, unfortunately

[wolodya295]

Hello.Please tell me which connector is used for programming in the dasmicro mini Board.

[jhamm]

Hello,
please take a Look at the first posting of this tread.....

[wolodya295]

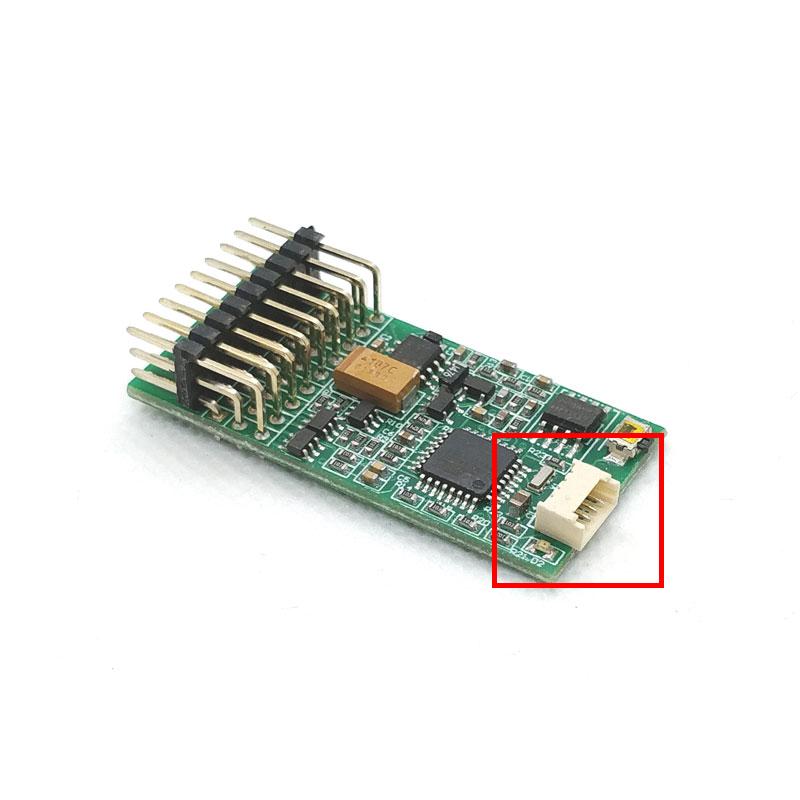

Good afternoon.Help please.Which connector is needed to connect the DasMikro tbs mini.The photo shows.

[Rad_Schuhart]

Good afternoon.Help please.Which connector is needed to connect the DasMikro tbs mini.The photo shows.

Hi, that board is the cloned benedini mini. I have no idea about that connector name. I just connected micro pins and done.
Beware, the pirated board usually comes with no teach button. that button is in the picture, but not always comes.
