Man this is to cool, XRAD. The engine is just perfect and so well detailed, beautiful use of brass and aluminium. The hull could be lined with cork gasket material as an insulator. Keep the pictures coming.Sax
Re: Marine Steam
Some more detail:
- Attachments
-

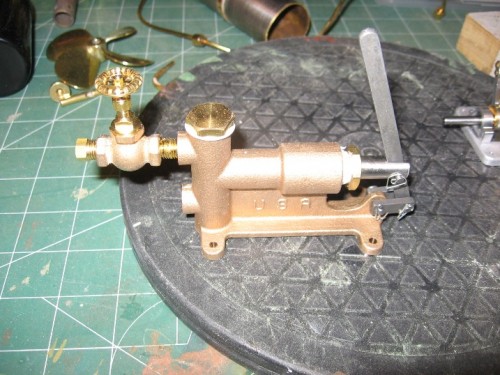

- hand operated boiler pump with globe valve..
-

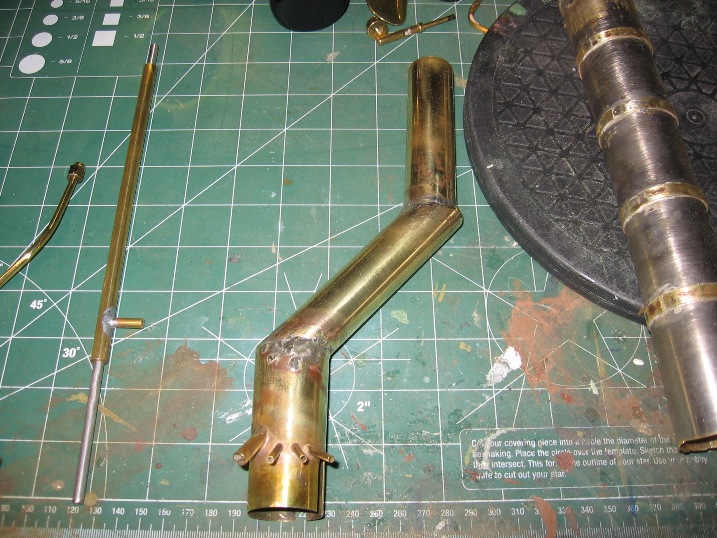

- Primary exhaust stack from boiler had to be re-directed to keep scale appearance...it will empty up into obove metal stack.
-

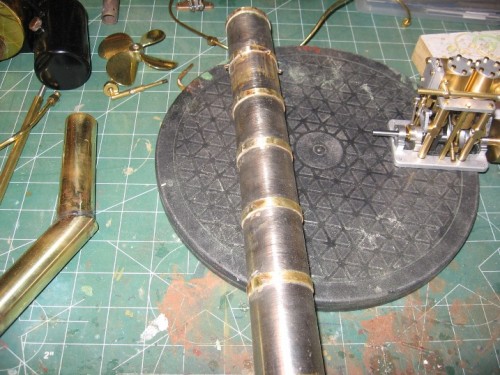

- Thin wall smoke stack (plumbers U trap from Home good store) with brazed brass rings..
-

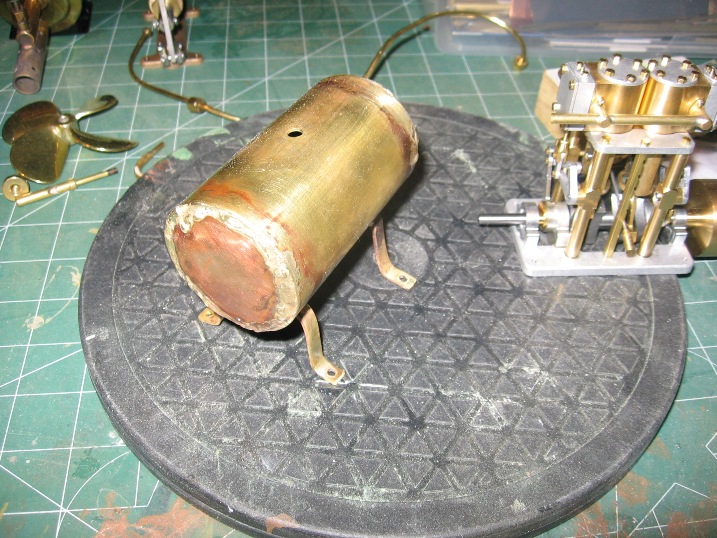

- extra water tank I brazed with silver wire and MAPP torch
-

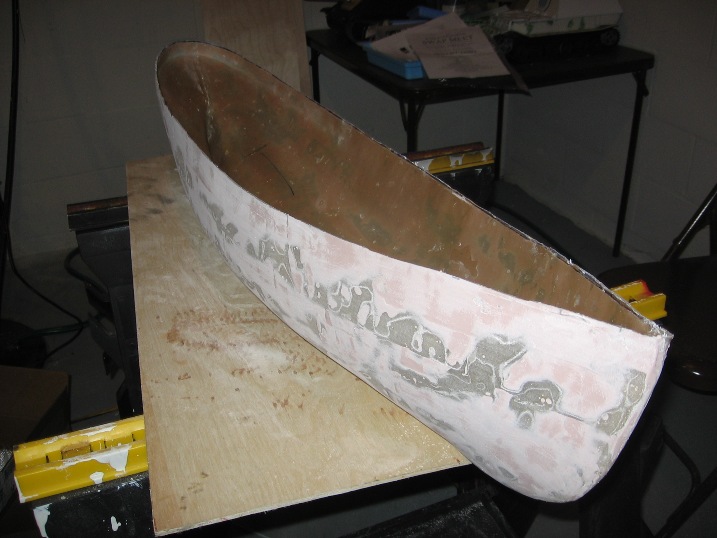

- Hull nearly complete: a few more fiberglass layers and Bondo to fill some low spots..have to frame up the inside... scribe cut line with indelible marker then trimmed with dremmel small rotary saw
Re: Marine Steam
XRAD this fab stuff and an excellent bit of modelmaking. I love looking at that brass boiler and steam engine. Fabulous well done.
Re: Marine Steam

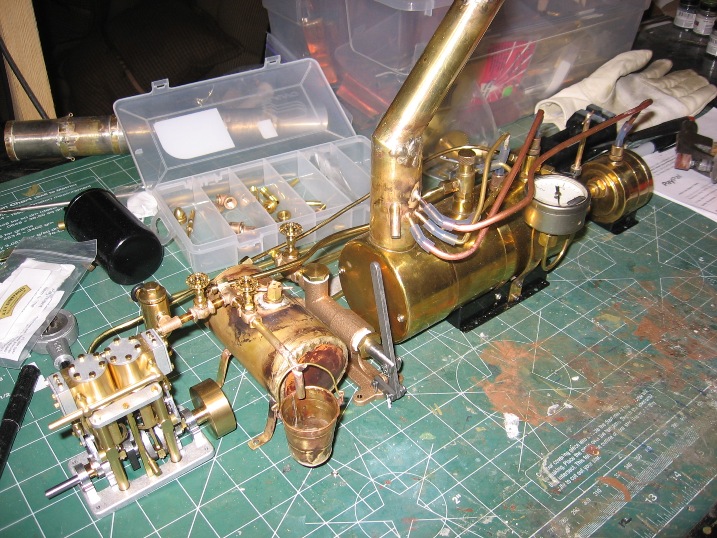

general layout complete:
Yes, I made the bucket. rolled metal edge and silver brazed leakproof. some of the piping is just for position and not fitted.
Yes, I made the bucket. rolled metal edge and silver brazed leakproof. some of the piping is just for position and not fitted.
- Attachments
-
Re: Marine Steam
steam tug coming along ...but found a new steam subject in a good deal I could not refuse:
scale is 1/16 so I could use it with the tanks...
scale is 1/16 so I could use it with the tanks...
- Attachments
-

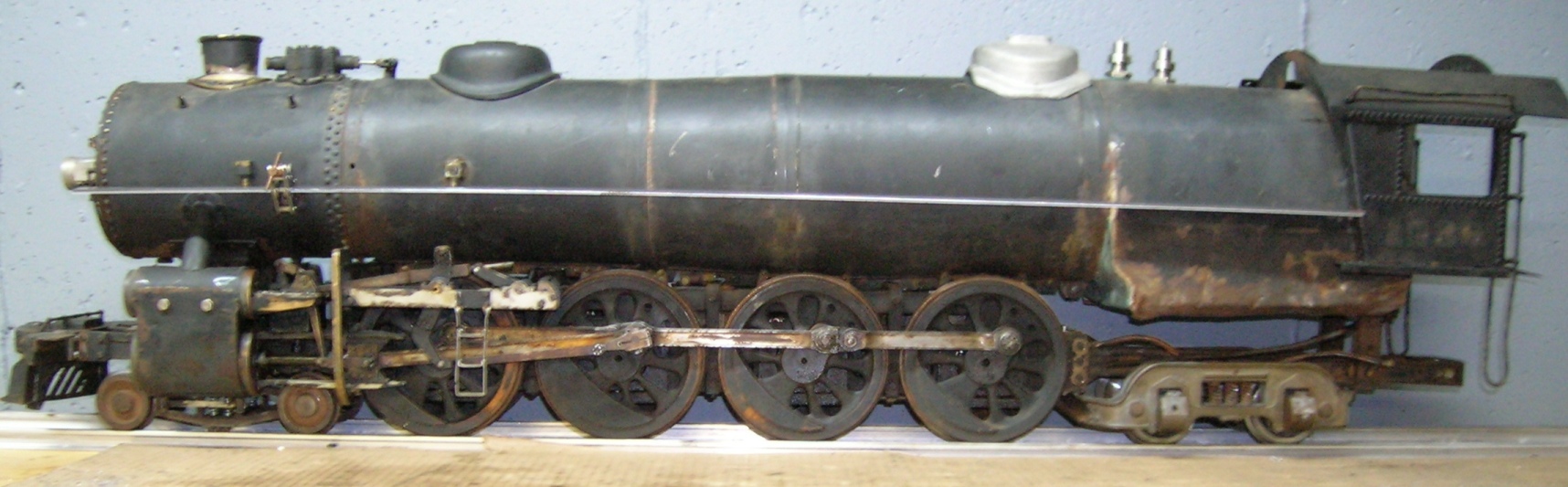

- 4-8-4 norther type locomotive
Re: Marine Steam
Does the outside walchertz valve gear work, or is it cosmetic and driven by an inside twin cylinder arrangement? What is it made of? I like these large pacifics. I've not made one for a while. The last big one I made was a 3.5 inch gauge live steam re-built LMS Patriot Sir Frank Ree. I have got a photo of it somewhere.
Re: Marine Steam
wow, love to see your pics!
this is a fully functional unit with steam injector and axle water pump. outside cylinders are real and reversible working links. weighs about 140lbs and 48 inches long 10 inches tall , ~ 8in wide
unfortunately small boiler leak, but copper so likely fixable...
plan is careful take apart, clean and see where I am....then boiler reapir and pressure test
this is a fully functional unit with steam injector and axle water pump. outside cylinders are real and reversible working links. weighs about 140lbs and 48 inches long 10 inches tall , ~ 8in wide
unfortunately small boiler leak, but copper so likely fixable...
plan is careful take apart, clean and see where I am....then boiler reapir and pressure test
Re: Marine Steam
The only practical use for that steam Locomotive would be to pull a set of Tigers,Panthers on rail. That would be very unique xrad,
Re: Marine Steam
When I find the picture I'll add it in. Yes you could have it as one of those German armoured trains. I guess the tender is missing?
Re: Marine Steam
guess I will have to make some ssym cars......
