Sherman M4A3 76 Free French

[Jofaur86]

Okay, if the voltage doesn't drop any further? Personally, I'm leaning more towards an electronics issue (ECS or something else) than a battery problem. Because even at the lowest voltage where the problem occurs, it should still work, right? Check all your electronics, see if anything is overheating, or if there are any loose connections on the cables.

[MrChef]

Superb creation! This tank had three other companions named after French departments: Champaubert, Montmirail, and Romilly. The latter is on display in the town of Romilly-sur-Seine, despite the controversy surrounding it. Is it not the real thing, but a pale imitation? A mystery!
https://www.chars-francais.net/index.ph ... c&catid=31
http://www.romilly-aviation.fr/caron.htm
http://www.romilly-aviation.fr/char.htm

Ohhhh a mystery tank, I can get behind this. Maybe something supernatural? Or Ghosts? I do prefer Zombies over Vampires but lastly Werewolves...

[Herr Dr. Professor]

Panzermechaniker, You do mean Strasbourg, Sask., right? https://townofstrasbourg.ca/ I admit that I would like to see the classic "Sentinel of the Prairie" grain elevator there.

[Panzermechaniker]

HDP. Canada is a special place. It's actually no more expensive to fly to the real Strasbourg from Toronto than Saskatchewan. Being bent over for everything is a Canadian thing,

[Panzermechaniker]

So the tank is back after having all it's servos and re-wiring done and Clark TK-50S installed and programmed. Runs fantastic and recoil and elevation are real nice. Now it has been torn down again so I can start working on all the turret details which is going to take quite awhile. In the meantime I did some detail work on the lower hull

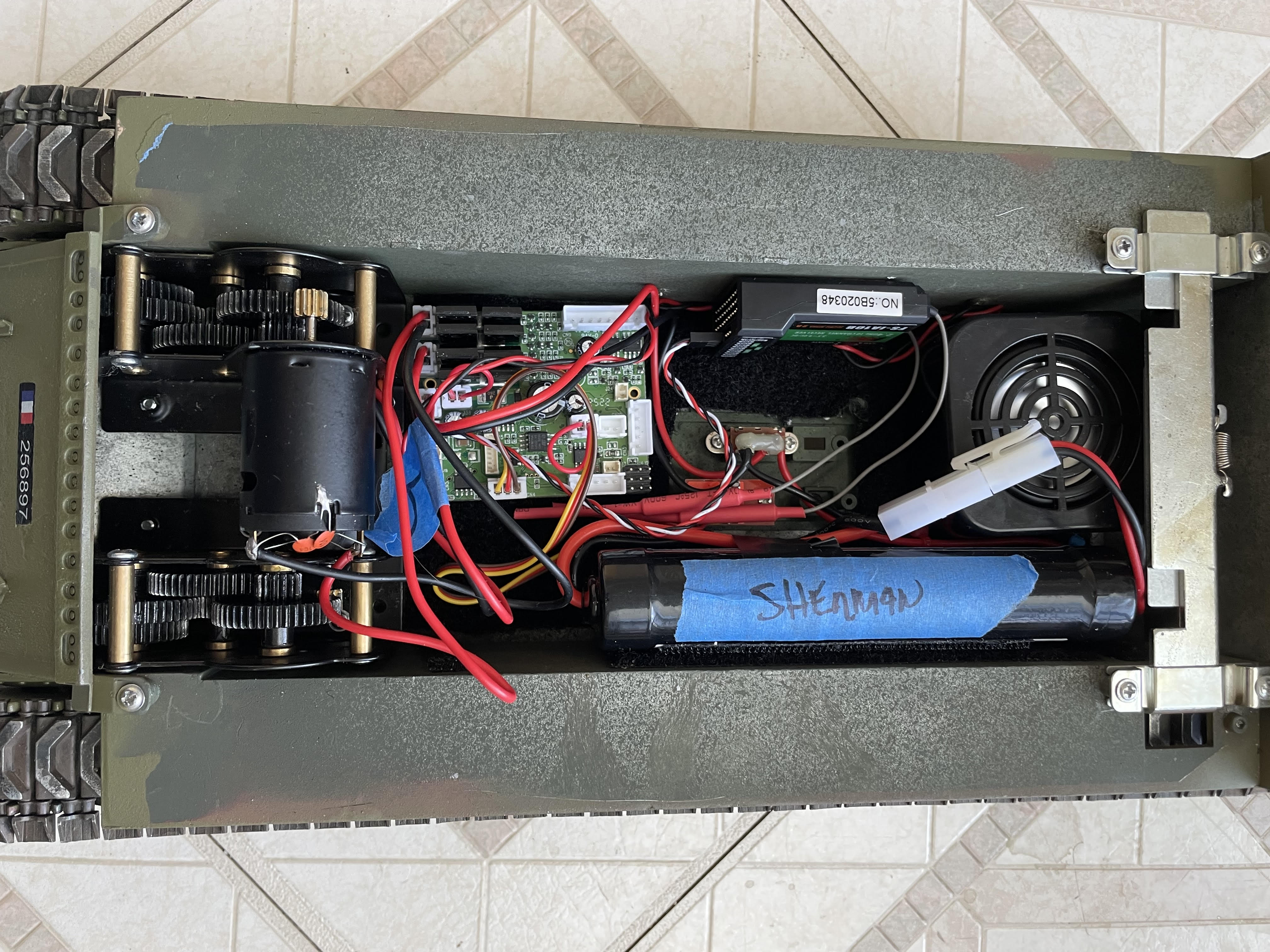

Here is the inside layout with the Clark board

sherman clark.jpg (1.35 MiB) Viewed 296 times

Added the comb device that is missing on the Taigen's transmission cover. Texturing was done with dissolved putty

comb device.jpg (868.53 KiB) Viewed 296 times

I was working on the original tow hitch but like the muzzle brake it's way oversized so it has been replaced. Since this area is going to be muddied put some texture in before messing around with the little chain for the pin

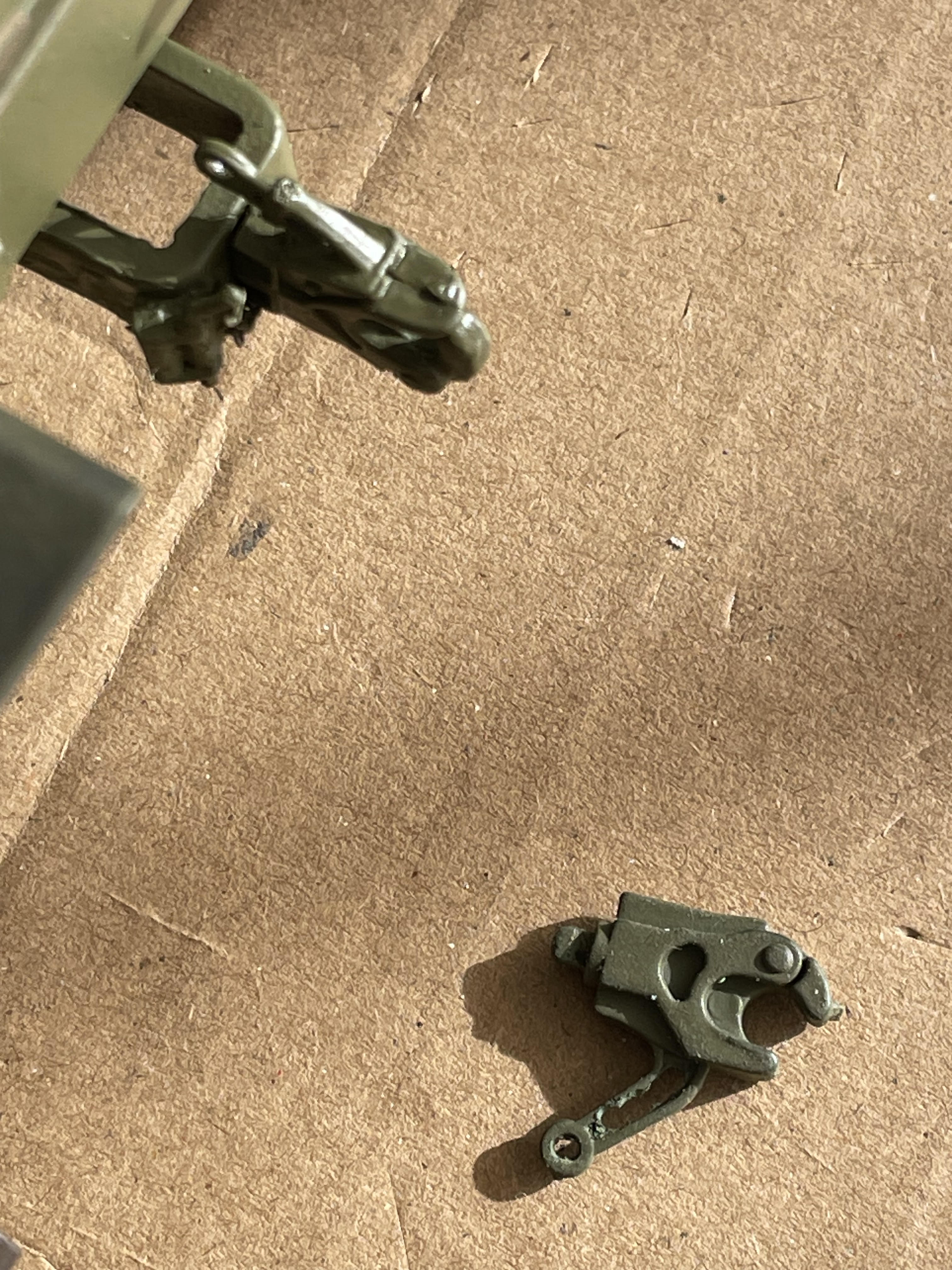

Original hitch

tow hitch with original.jpg (1.46 MiB) Viewed 296 times

and a couple of closer shots of the new tow hitch

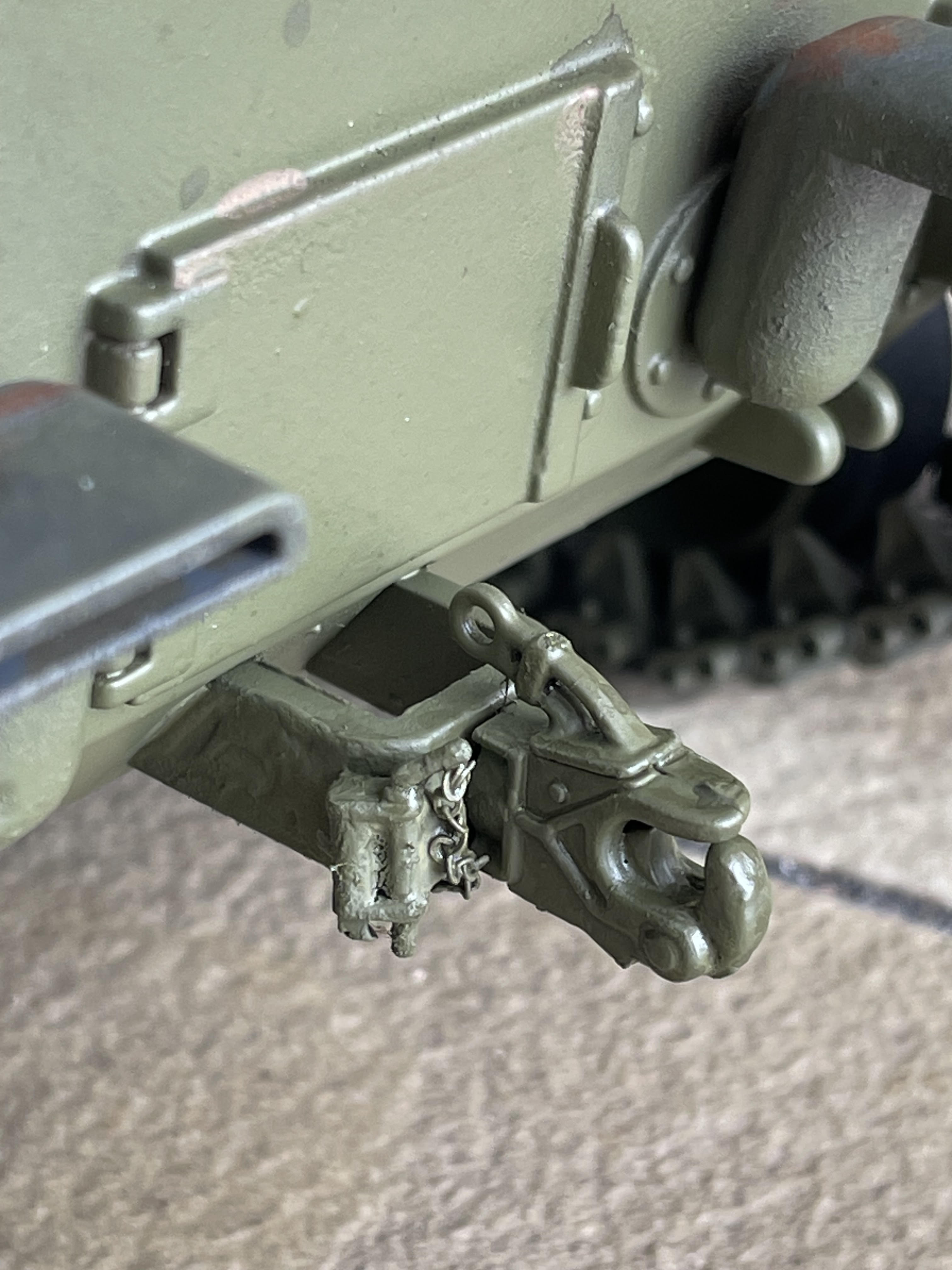

tow hitch left.jpg (678.22 KiB) Viewed 296 times

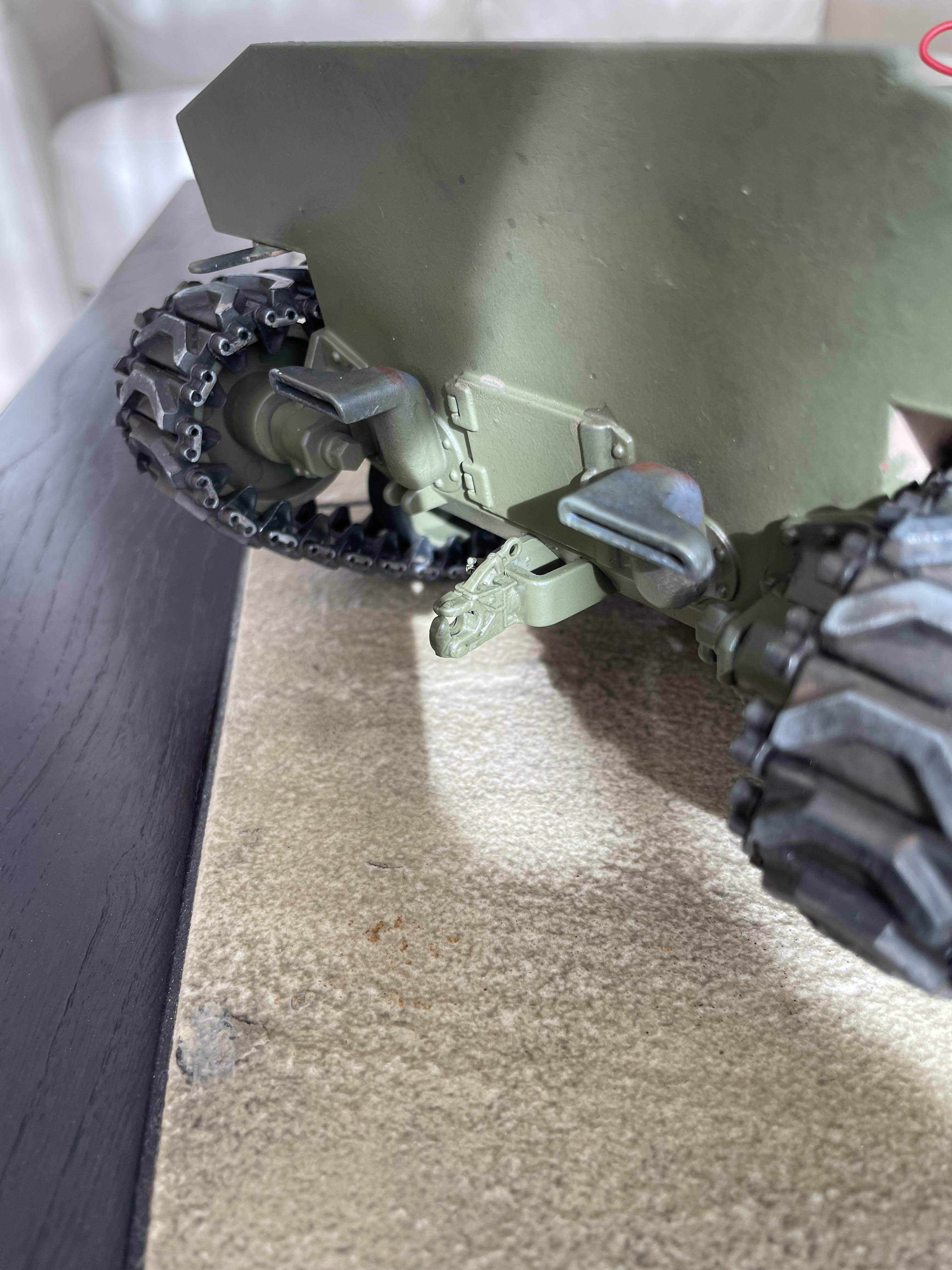

tow hitch right.jpg (1018.69 KiB) Viewed 296 times

[Panzermechaniker]

After doing more research into this tank I found out that because these were in the first batch of M4A3 (76) They used the original surplus turrets from the T-23 program. Hence they did not have the welded on bars on the rear of the turret for storing the MG 50 barrels and gun and mount. So this meant a change in my original plan of having the MG and barrels stored. The only photo I have seen is with the 50 cal in the storage mount with the barrel belted to the lifting ring. So that was not going to fly as this tank is being built for battling and I did not want the MG permanently attached to just get ripped off running around the field so it will be omitted altogether. Finally got everything attached on the turret. Being a total klutz I knocked both the vane sight and searchlight off a couple of times. So as of now the vane sight is not lined up but as it will probably get knocked off first time out on the field I'll just end up with the base. Did some casting numbers but I drew the line at the 7 or 8 number ones in multiple places on the hatches,cupola ring. What tenuous grip on sanity I have would have been lost trying to line up 50+ individual tiny decals from the Archer set. Any way this is how it sits now. I wanted to very slightly the darken the Vallejo OD so made a filter out their Green Model Wash. I just need to put a varnish coat on it for the next step of slight chipping and streaking the green. This will end as a dusty tank but that is quite a few steps from now. I really do like this tank and I've never been interested in Shermans before.

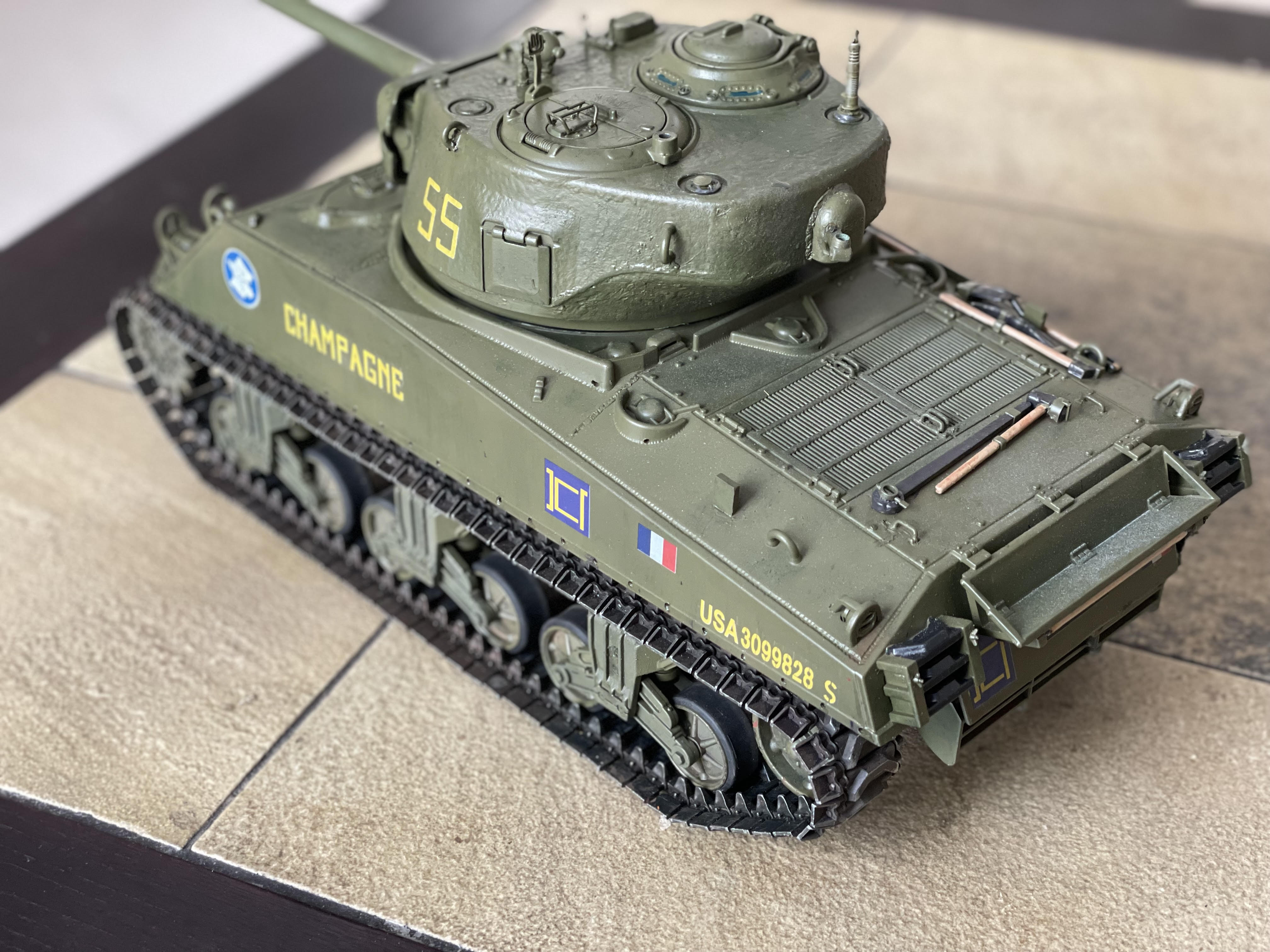

sh24 rr.jpg (1.13 MiB) Viewed 168 times

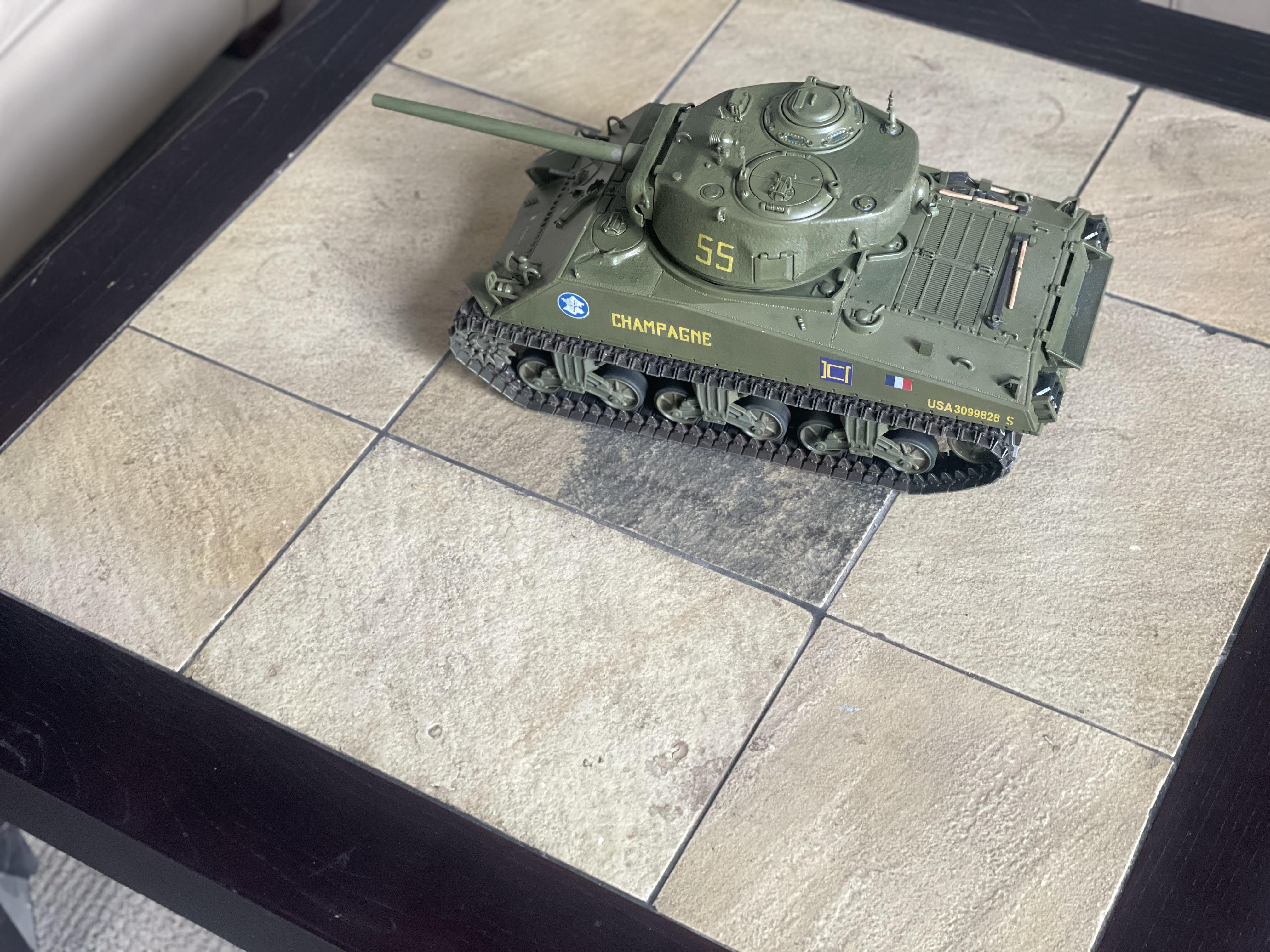

sh24 lup.jpg (1.15 MiB) Viewed 168 times

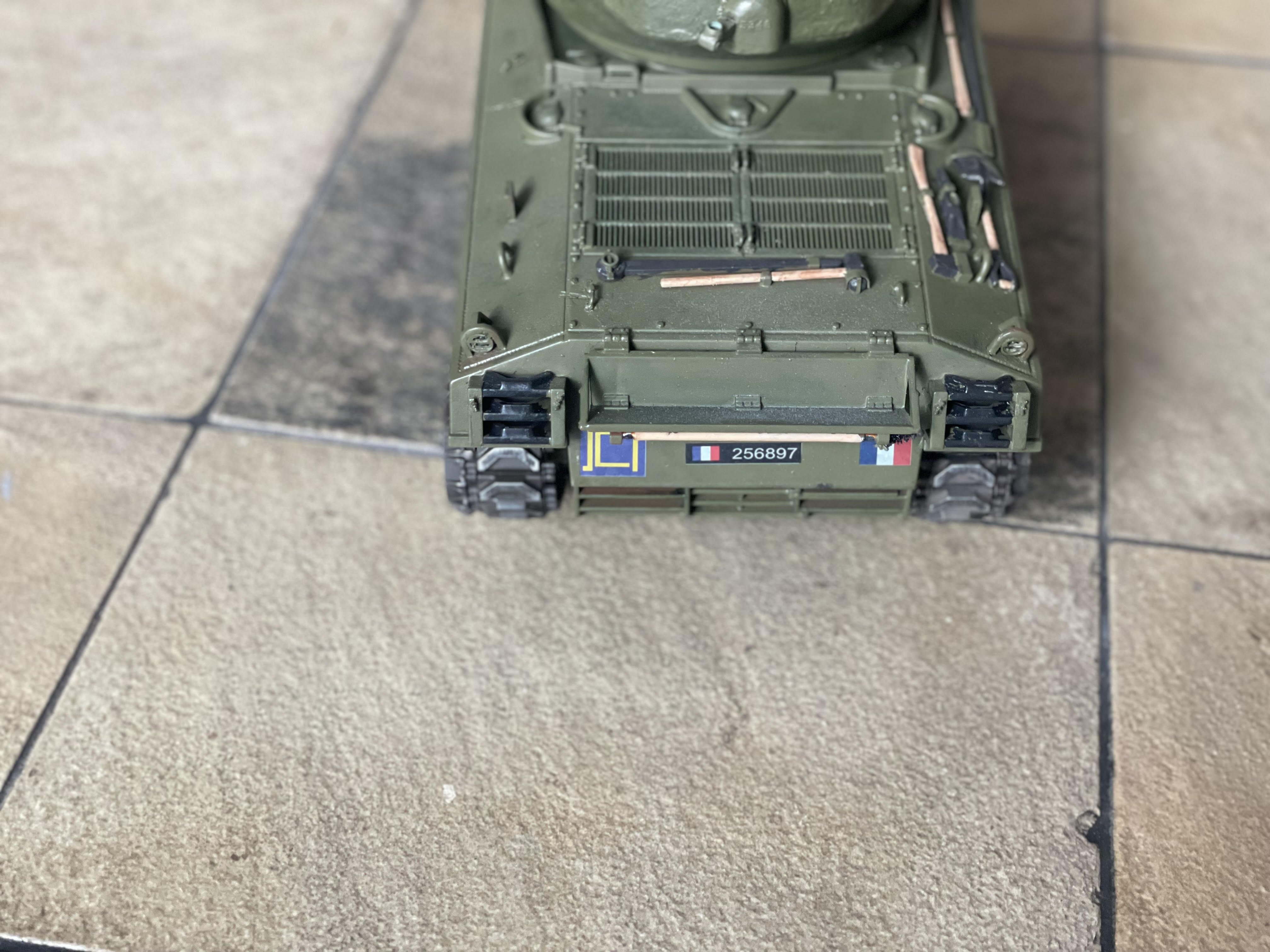

Just a couple of details I added to the rear tools. The clamp and pin for the track tool and the clamp for the sledgehammer handle

sh24 rear tools.jpg (862.36 KiB) Viewed 168 times

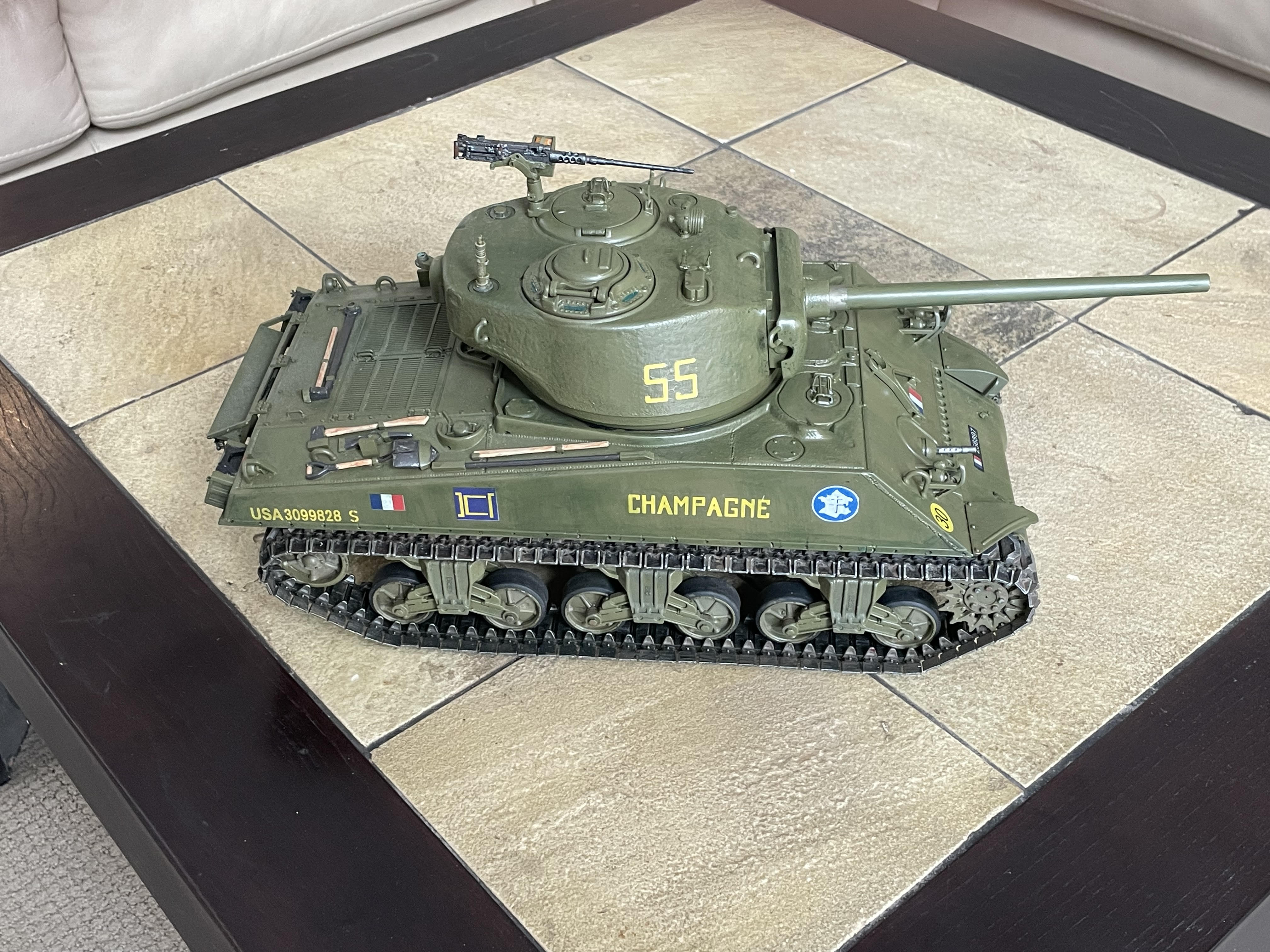

A shot with the 50 cal in place. Although I'm not going to use it I will detail it with chains and pins for a future project

sh with mg.jpg (1.39 MiB) Viewed 168 times

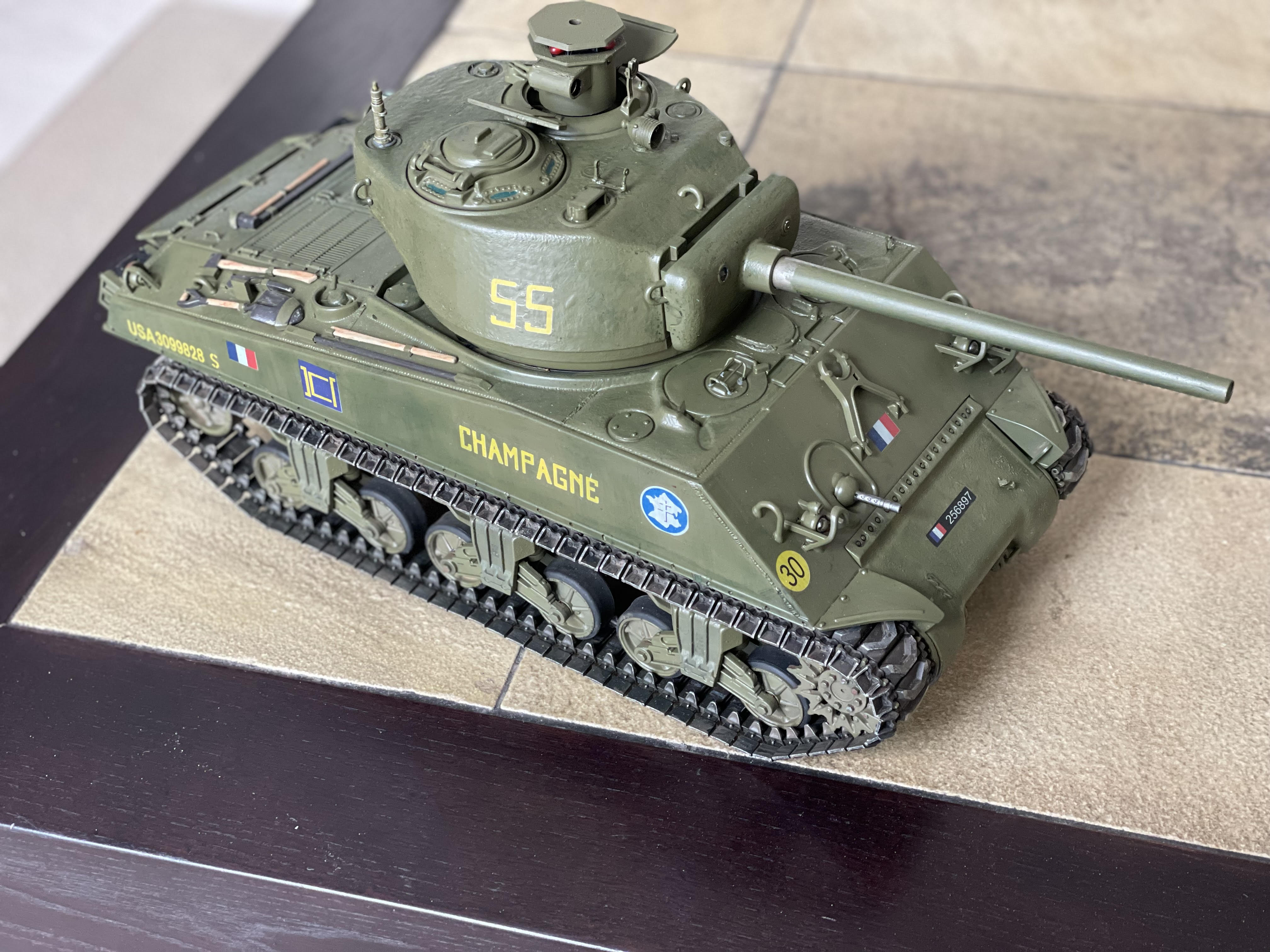

This is the reason why the 50 cal is superfluous to my needs as it is primarily an IR battler and will look like this once finished

sh apple.jpg (1.11 MiB) Viewed 168 times

[Stormbringer]

That looks stunning mate I really like it

[Jofaur86]

Good evening, superb work, well done! What type of putty was used for the cast iron effect? ​​Please?

[Jofaur86]

https://www.google.com/search?q=char+ch ... e&ie=UTF-8

[ColemanCollector]

The cast texture on the hullnis righteous! You mention putting on casting numbers. Could you go over your process please. Sounds interesting!

Mike.
