Tamiya 1/35 Panzer III M/N build

Post all your Smaller Scale RC Tanks, Half Tracks and Vehicles, including build threads here. From below 1/18 to way down as far as you can go, H.O. 1/87th scale or less. Even your Smaller Scale figures are welcome here.
Post Reply
User avatar
modler
Sergeant
Posts: 614
Joined: Sat Feb 02, 2019 2:33 pm
Location: North Ridgeville Ohio USA

Re: Tamiya 1/35 Panzer III build

Post by modler »

Herr Dr. Professor wrote: ↑Wed Apr 30, 2025 3:18 pm Modler: wenn Sie vor 58 Jahren in Heilbronn war, können Sie vielleicht Deutsch?

Herr Doctor, I did learn some German while in Heilbronn but have forgot most of it. If you don't use it, you lose it.

Meanwhile I tested the Panzer III chassis and it gets a pass although the poly tracks are not the best as sitting in the box for 54 years, they are a bit deformed but still just work. I will look into some ITL tracks for this Panzer.
Attachments

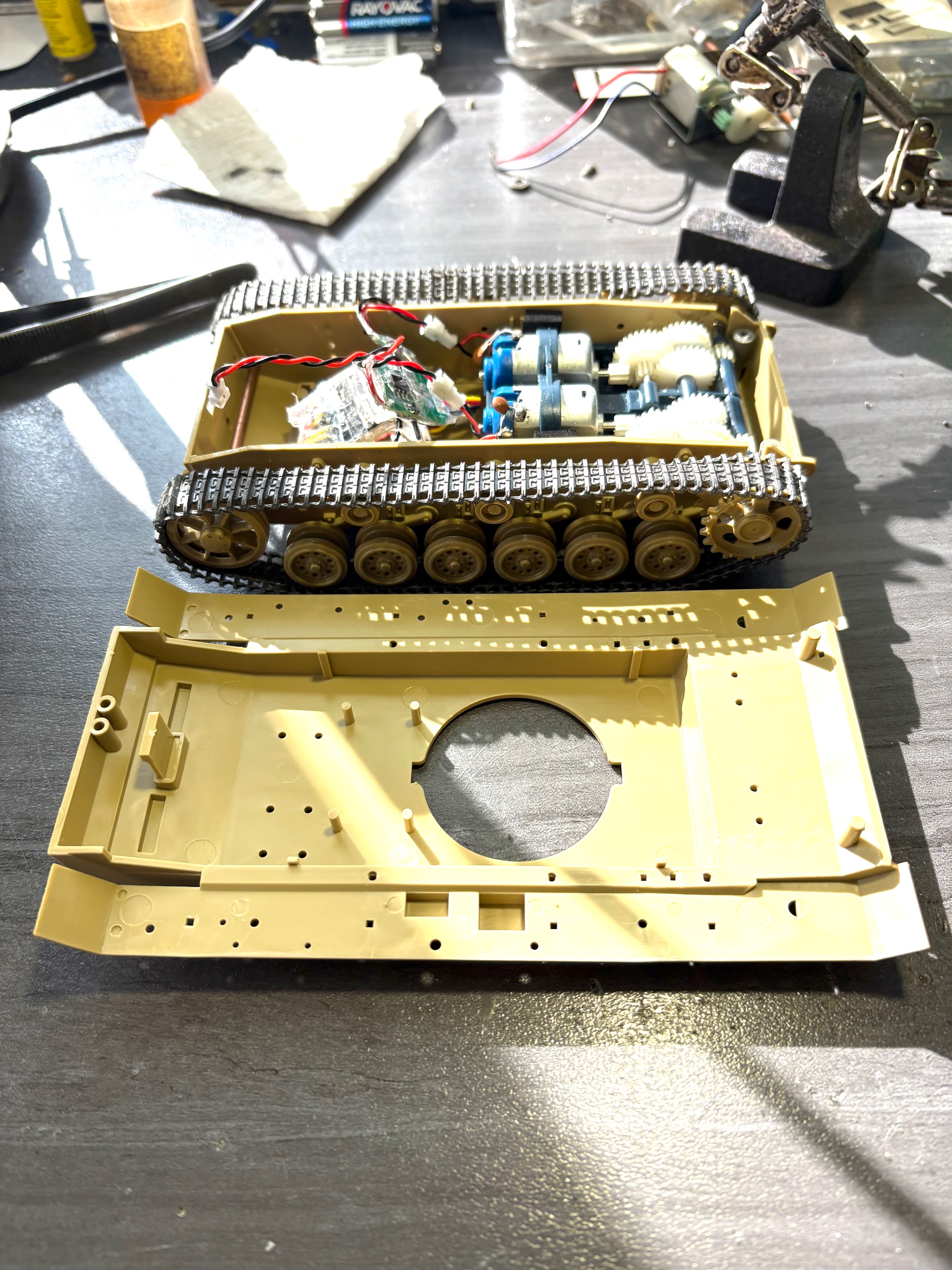

ready to install upper hull.
ready to install upper hull.
IMG_0432 (1).jpg (1.72 MiB) Viewed 636 times

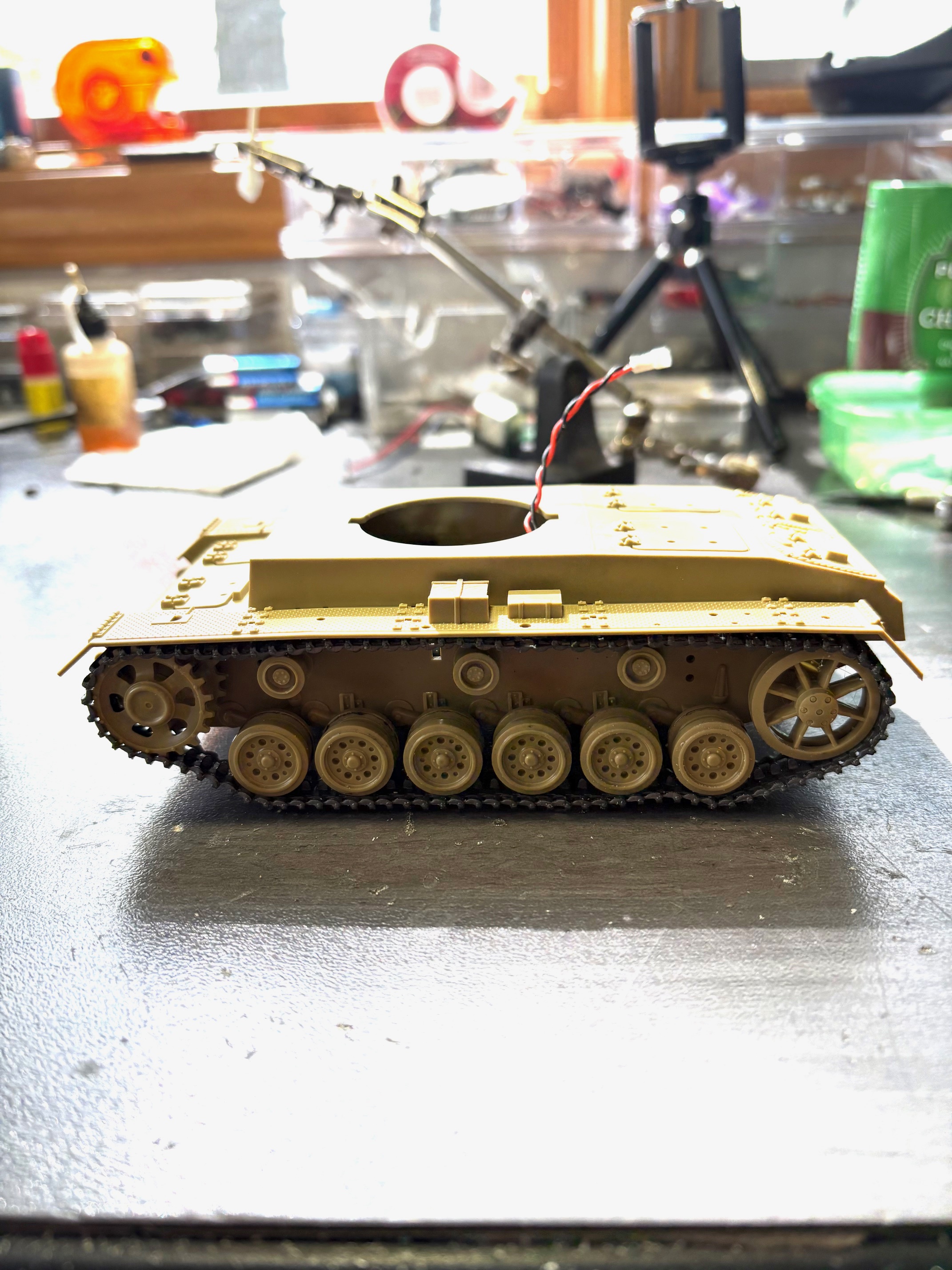

More testing now to make sure the tracks don't bind or rub anything on the upper hull. You can see some of that track deformity on the lower right track in this picture.
More testing now to make sure the tracks don't bind or rub anything on the upper hull. You can see some of that track deformity on the lower right track in this picture.
IMG_0433 (2).jpg (1.4 MiB) Viewed 636 times
Last edited by modler on Fri May 02, 2025 4:15 pm, edited 1 time in total.
Top
User avatar
modler
Sergeant
Posts: 614
Joined: Sat Feb 02, 2019 2:33 pm
Location: North Ridgeville Ohio USA

Re: Tamiya 1/35 Panzer III M/N build

Post by modler »

A little bit off topic discussion about the M-26 tank retriever then back to the Panzer III M\N build.

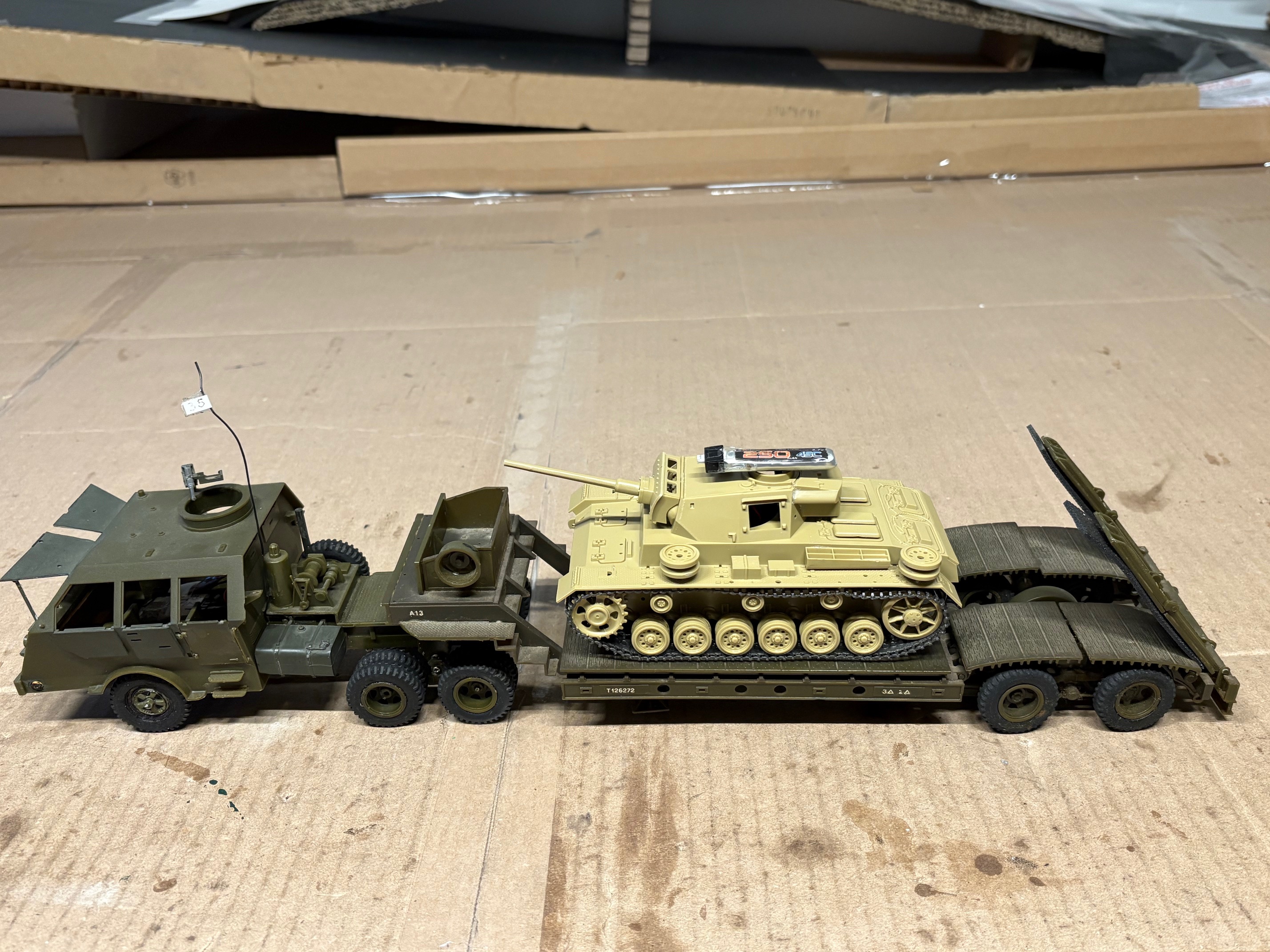

Here is the video i said I would post earlier in this thread. It shows the M-26 hauling around a Panzer III L :D
https://www.youtube.com/watch?v=9uDhTe6dP3s

This new Panzer III I an building in this thread is a "M" version so its one level higher then the old Panzer "L" series. One of the changes in the "M" series is the wider tracks with revised drive sprockets.

It can be be built as a M or N so this kit is a Panzer III M\N.
Attachments

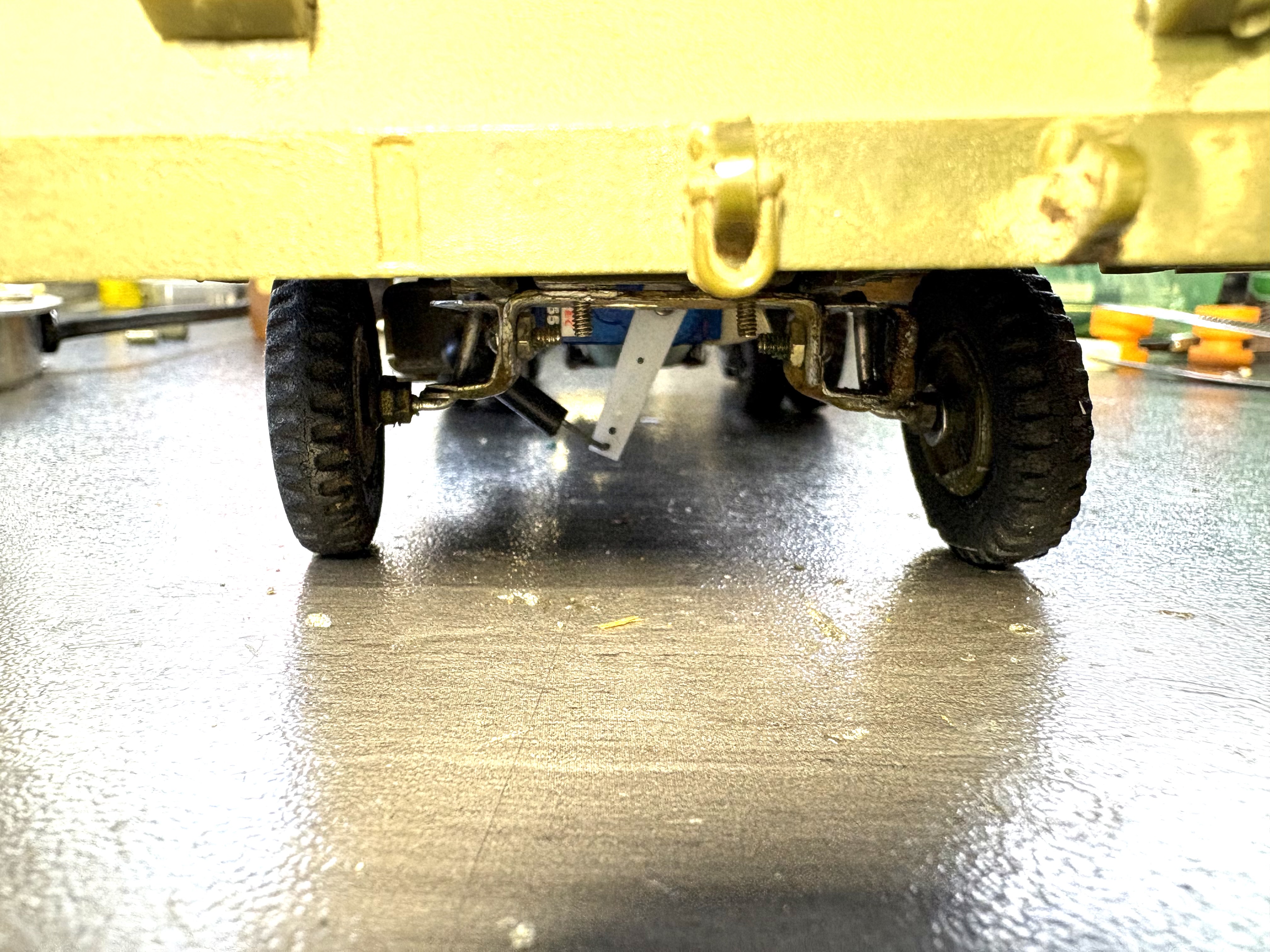

This is a view of the hand made metal front end under this M-26. I used to run this truck outside back when I lived in Tucson AZ. To run there, I needed a 4WD rear dually axle with wider front tires. I just changed the rims today to the stock width military front wheels as I no longer run it outside. In the video you can see the older white front rims inner rim extensions as the truck is coming towards the camera. Those extenders have been removed and are now back to stock width as seen in the first picture above. Yes that is an extra long servo horn to give me a tight turning radius as required for my indoor track.
This is a view of the hand made metal front end under this M-26. I used to run this truck outside back when I lived in Tucson AZ. To run there, I needed a 4WD rear dually axle with wider front tires. I just changed the rims today to the stock width military front wheels as I no longer run it outside. In the video you can see the older white front rims inner rim extensions as the truck is coming towards the camera. Those extenders have been removed and are now back to stock width as seen in the first picture above. Yes that is an extra long servo horn to give me a tight turning radius as required for my indoor track.
4WD dually dual axles made of steel. Hand made just for this truck. I would not have the patience to build one today. This gearbox\axles were built in 1983. The front suspension on this truck is handmade as well and is also all metal. I built stuff HD back then lol. After looking at this picture, I may have to redo that taillight.
4WD dually dual axles made of steel. Hand made just for this truck. I would not have the patience to build one today. This gearbox\axles were built in 1983. The front suspension on this truck is handmade as well and is also all metal. I built stuff HD back then lol. After looking at this picture, I may have to redo that taillight.
IMG_0441 (1).jpg (1.09 MiB) Viewed 613 times

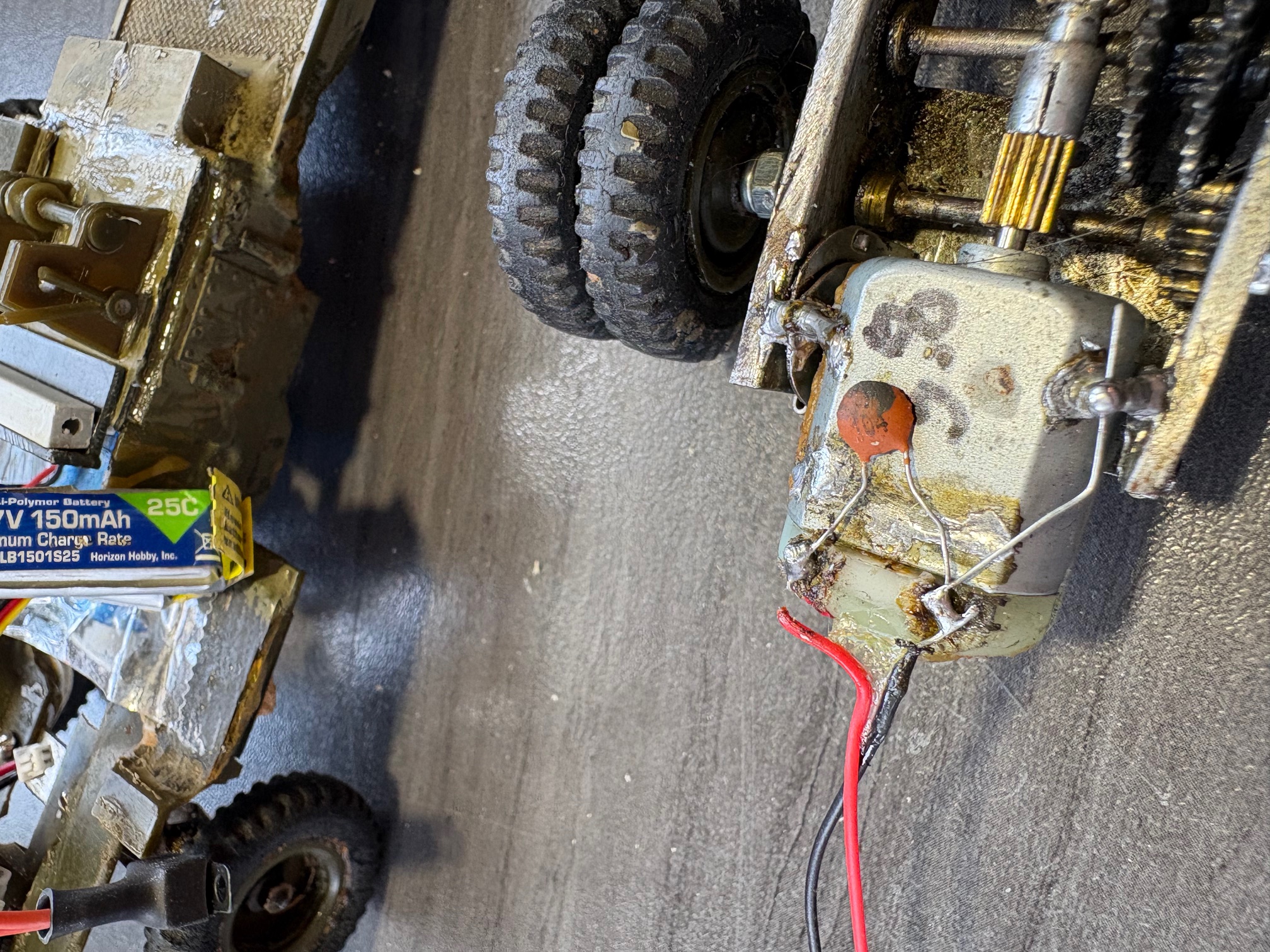

Here is why it took so long to do a video. Red wire is broken. The other wire has a solid wire going to the metal frame and the frame of the motor. This eliminates electrical noise from the moving metal parts which can cause RF glitches in receivers.
Here is why it took so long to do a video. Red wire is broken. The other wire has a solid wire going to the metal frame and the frame of the motor. This eliminates electrical noise from the moving metal parts which can cause RF glitches in receivers.
micro 250 mAh 2s wiring harness. With that removed, the chassis wiring looks a bit more resonable.
micro 250 mAh 2s wiring harness. With that removed, the chassis wiring looks a bit more resonable.
This chassis could be used for a 10 wheeled military cargo truck. Shown here with a 350 mAh 2s lipo.
This chassis could be used for a 10 wheeled military cargo truck. Shown here with a 350 mAh 2s lipo.
IMG_0438 (1).jpg (1.34 MiB) Viewed 615 times
It is old but it runs great.
It is old but it runs great.
IMG_0439 (1).jpg (2.45 MiB) Viewed 615 times
Last edited by modler on Sat May 03, 2025 3:44 pm, edited 8 times in total.
Top
User avatar
Herr Dr. Professor
Major
Posts: 5298
Joined: Mon Apr 22, 2019 10:48 pm
Location: Southern Wisconsin USA

Re: Tamiya 1/35 Panzer III M/N build

Post by Herr Dr. Professor »

After 42 years, your truck runs better than most! A move from Arizona to Ohio, however, does cramp one's style. I am reminded of my own Christmas train layout: around and around in a oval. But mine lacked the flashing receiver light in the front---or any light for that matter. :haha:
Top
User avatar
modler
Sergeant
Posts: 614
Joined: Sat Feb 02, 2019 2:33 pm
Location: North Ridgeville Ohio USA

Re: Tamiya 1/35 Panzer III M/N build

Post by modler »

Herr Dr. Professor wrote: ↑Sat May 03, 2025 3:11 am After 42 years, your truck runs better than most! A move from Arizona to Ohio, however, does cramp one's style. I am reminded of my own Christmas train layout: around and around in a oval. But mine lacked the flashing receiver light in the front---or any light for that matter. :haha:
Yes Herr Doctor, my indoor track is a vestige of the model train days. As kids we spent countless hours on these tracks going round and round :crazy: U.S Army Sergeant Kowalski (Fort Carson Colorado), a good friend of my Dad, built a 4x8 rural diorama with a train track and 2 lane slot car track with a railroad crossing with flashing lights 8) for my brother and myself as a Christmas gift (1965). Needless to say we had many hours of fun with that gift. These days my indoor track is for small scale R\C models as a test and video track that is clean and free of dirt and such as my wife does not like dirt in the house. I also have a outdoor track where I run RC Dozers and such..

Short Dozer video in the dirt

https://youtu.be/EwTuyz-jfdU
Attachments
Panzer III M is nearing completion.
Panzer III M is nearing completion.
IMG_0447 (1).jpg (1.65 MiB) Viewed 510 times
Panzer III M on the left, Panzer III L on the right.
Panzer III M on the left, Panzer III L on the right.

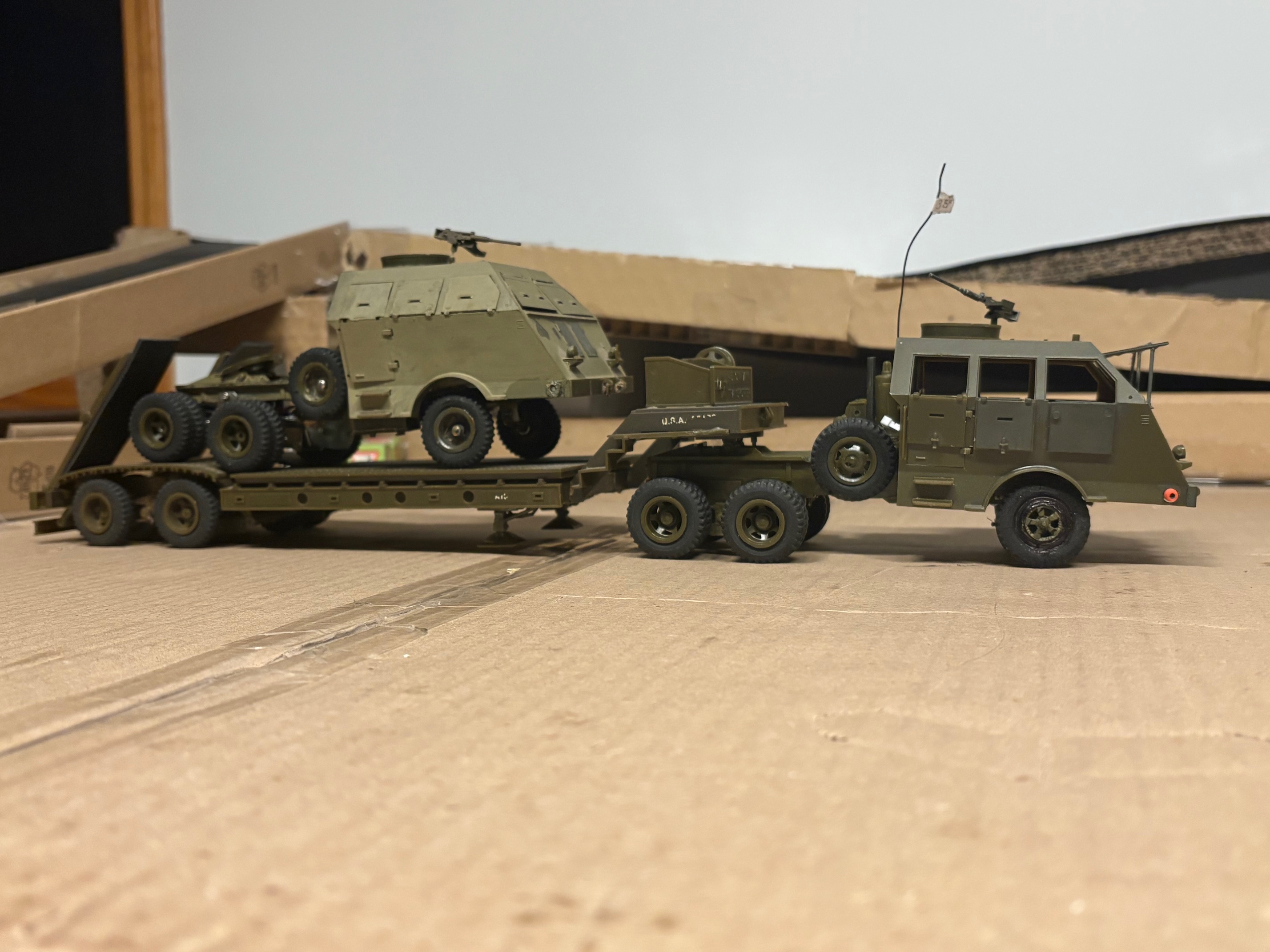

Don't see this too often. Two RC Peerless MAX trucks, one hauling the other. The one in front has the factory stance which I think is too low in the front. The spare tire on these trucks is actually a motor on\off switch in the factory setup up. The truck in front has a 72 mHz ch 35 RC aircraft radio receiver that works perfect. These trucks had plastic wheels on the front and were changed over to rubber tires like on the rear axles.
Don't see this too often. Two RC Peerless MAX trucks, one hauling the other. The one in front has the factory stance which I think is too low in the front. The spare tire on these trucks is actually a motor on\off switch in the factory setup up. The truck in front has a 72 mHz ch 35 RC aircraft radio receiver that works perfect. These trucks had plastic wheels on the front and were changed over to rubber tires like on the rear axles.
Last edited by modler on Mon May 05, 2025 1:33 am, edited 2 times in total.
Top
User avatar
Herr Dr. Professor
Major
Posts: 5298
Joined: Mon Apr 22, 2019 10:48 pm
Location: Southern Wisconsin USA

Re: Tamiya 1/35 Panzer III M/N build

Post by Herr Dr. Professor »

:haha: Don’t doze that Hosta, or you’re in BIG trouble.
Top
User avatar
modler
Sergeant
Posts: 614
Joined: Sat Feb 02, 2019 2:33 pm
Location: North Ridgeville Ohio USA

Re: Tamiya 1/35 Panzer III M/N build

Post by modler »

Yes Herr Doctor, I was cleaning up the plant garden with the RC Dozer. That's what I call playing in the dirt RC :D

The Panzer III M is running very well. Track issues disappeared with the upper hull in place. This P-III M is superior in mobility to the previous P-III L build due to the poly tracks even though the the tracks are wider. Rubber tracks like on the P-III L are OK for outside running.

Here are a few short P-III-M videos
https://www.youtube.com/watch?v=iiq-nQGI-cE

https://www.youtube.com/watch?v=Y_yRa28-ljs

https://www.youtube.com/watch?v=9uDhTe6dP3s
Attachments
Panzer III M running good and ready for final assembly and details.
Panzer III M running good and ready for final assembly and details.
Top
User avatar
Herr Dr. Professor
Major
Posts: 5298
Joined: Mon Apr 22, 2019 10:48 pm
Location: Southern Wisconsin USA

Re: Tamiya 1/35 Panzer III M/N build

Post by Herr Dr. Professor »

:P Your PzKfW III runs quite smoothly, although I wonder if at 0:47-0:49 you sneezed. https://youtu.be/iiq-nQGI-cE?t=47
Top
User avatar
modler
Sergeant
Posts: 614
Joined: Sat Feb 02, 2019 2:33 pm
Location: North Ridgeville Ohio USA

Re: Tamiya 1/35 Panzer III M/N build

Post by modler »

Herr Dr. Professor wrote: ↑Mon May 05, 2025 11:33 pm :P Your PzKfW III runs quite smoothly, although I wonder if at 0:47-0:49 you sneezed. https://youtu.be/iiq-nQGI-cE?t=47
Well, it looks that way Herr Doctor but actually the yaw axis (L\R turning) needs some expo as the motors in this tank are low voltage (~1.2 ohms) so they are very sensitive to yaw inputs. You might have noticed at one point the engines got up to full speed then shut down momentary due to LVC. The battery I used in this video is very old and small and I exceeded its capacity showing off the top speed ;)
Attachments
250 mAh 45c (11 amps peak) but these are old and well used and no longer work in the Heli but still good for 1/35 scale tanks.
250 mAh 45c (11 amps peak) but these are old and well used and no longer work in the Heli but still good for 1/35 scale tanks.
that's a small battery for a set of 130 motors. the truck uses the same battery
that's a small battery for a set of 130 motors. the truck uses the same battery
IMG_0469 (1).jpg (1.71 MiB) Viewed 371 times

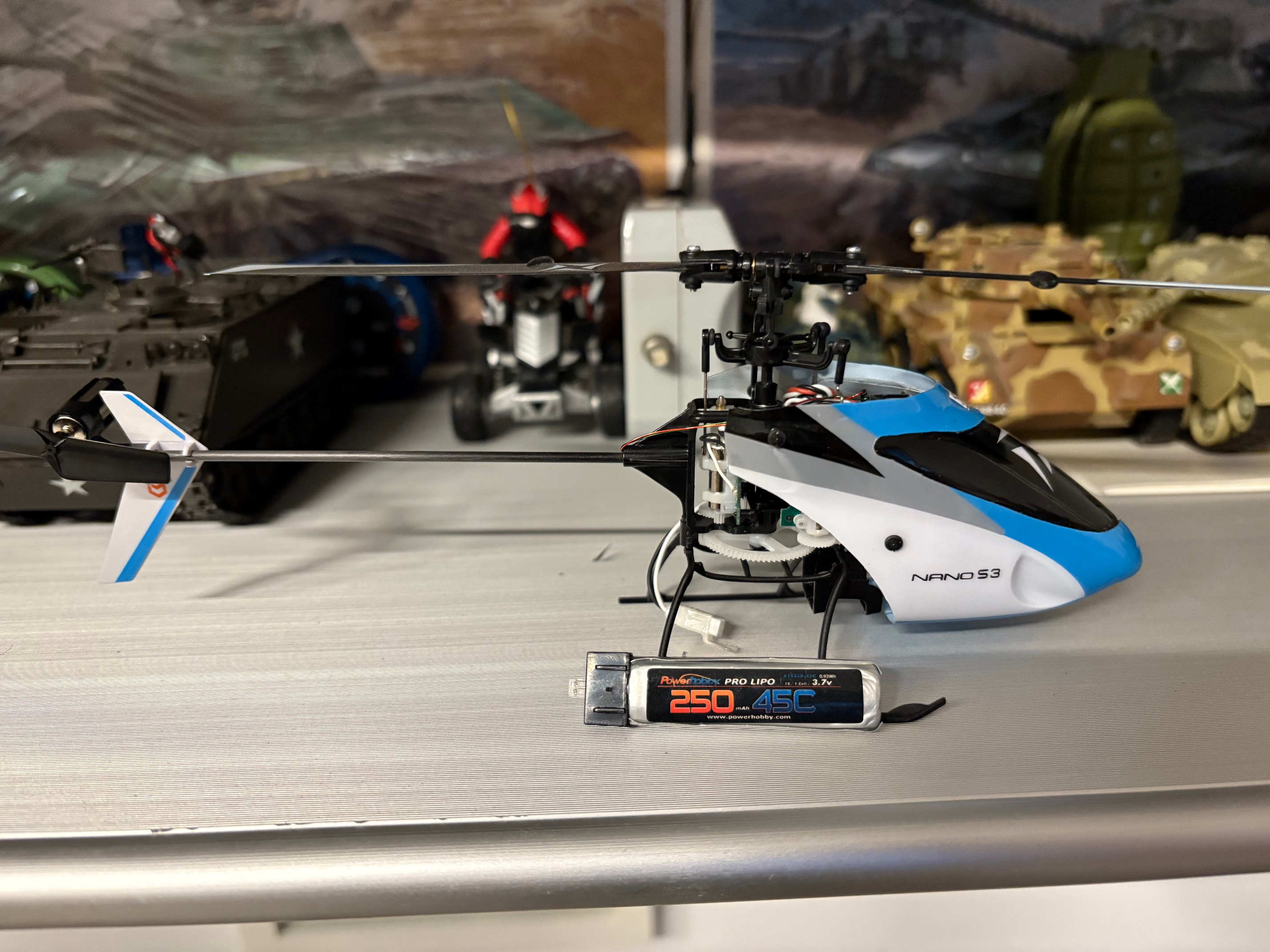

The batteries I am using come from a Nano S3 UM Heli.<br />The battery in this picture is fairly new and is very potent and will easily fly this Heli 7 minutes.
The batteries I am using come from a Nano S3 UM Heli.
The battery in this picture is fairly new and is very potent and will easily fly this Heli 7 minutes.
IMG_0470 (1).jpg (1.57 MiB) Viewed 371 times
Top
