Re: 1/16 King Tiger Tamiya Help
Posted: Sat Mar 01, 2025 1:46 pm
by Jofaur86

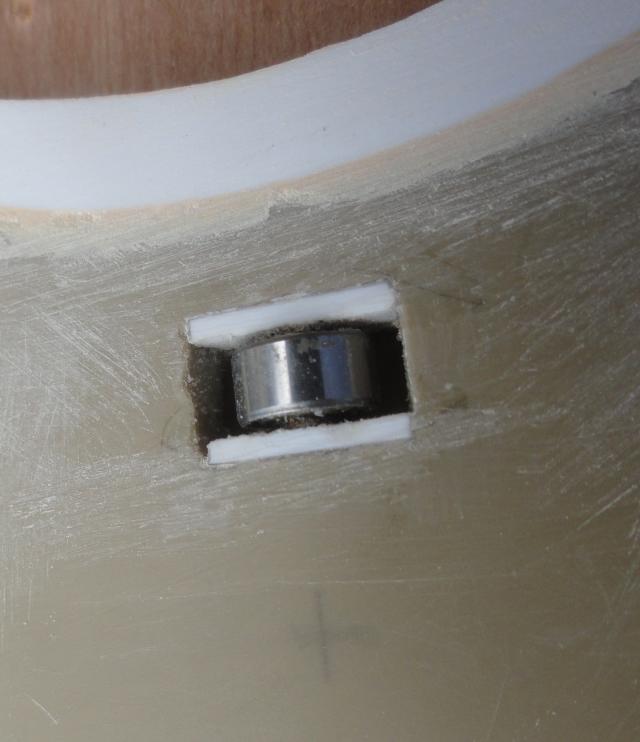

Hello, effectively replaced the bronze rings with bearings, on the entire running gear (purchase on eBay) plus the dimensions in mind? also for the turret rotation, with adaptation, replacing plastic rollers, photos attached, for many modifications

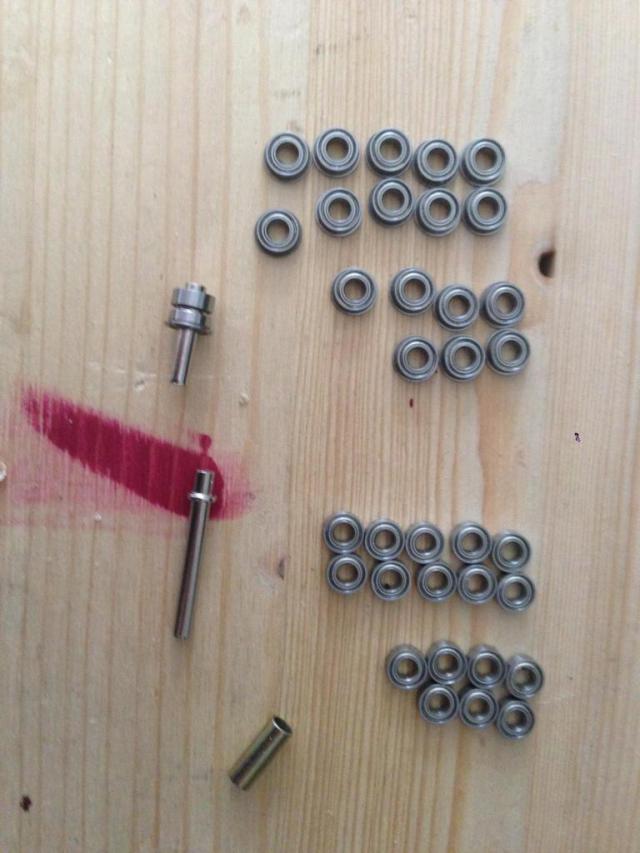

roller bearings
- IMG_4371.jpeg (66.16 KiB) Viewed 1159 times

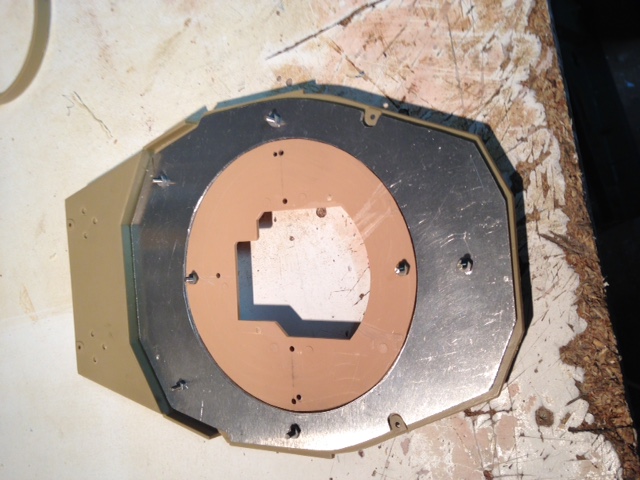

1.5 mm aluminum turret vase reinforcement
- IMG_4375.jpeg (119.24 KiB) Viewed 1159 times

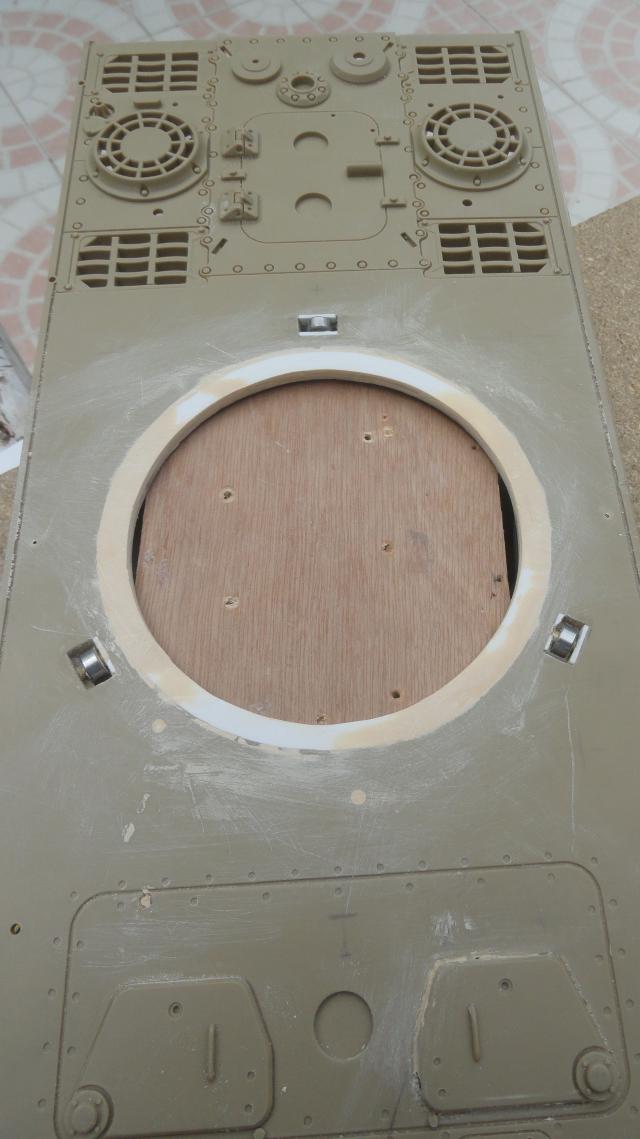

Upper chassis reinforcement
- IMG_4383.jpeg (68.49 KiB) Viewed 1159 times
- IMG_4376.jpeg (73.04 KiB) Viewed 1159 times
Re: 1/16 King Tiger Tamiya Help
Posted: Sat Mar 01, 2025 1:53 pm
by Jofaur86
Suite:
- IMG_4376.jpeg (73.04 KiB) Viewed 1157 times

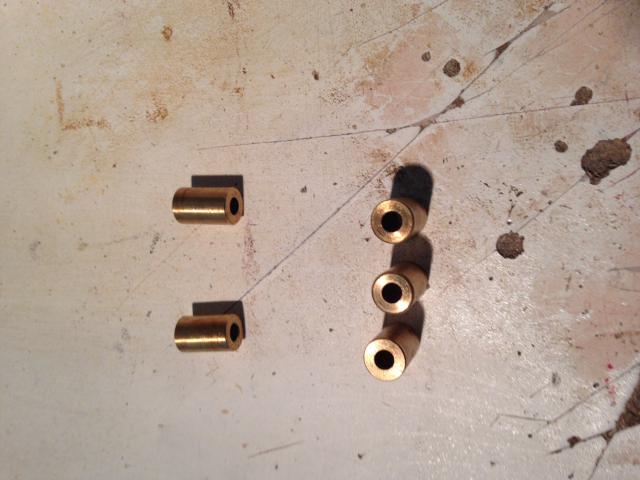

A friend also made me brass parts to reinforce the axles.
- IMG_4372.jpeg (46.4 KiB) Viewed 1157 times
- IMG_4373.jpeg (36.31 KiB) Viewed 1157 times
There were other modifications, because originally a model with a single engine,
Re: 1/16 King Tiger Tamiya Help
Posted: Sat Mar 01, 2025 6:31 pm
by John Glover
Excellent Mr Jofaur
Hopefully all the questions have been answered. regards John.
Re: 1/16 King Tiger Tamiya Help
Posted: Sun Mar 02, 2025 5:15 am
by Michael151722
John Glover wrote: ↑Sat Mar 01, 2025 6:31 pm
Excellent Mr Jofaur
Hopefully all the questions have been answered. regards John.
Hello,
Thank you thank you for your help and also thank you to Jofaur and everyone who has helped!
Thank you
Re: 1/16 King Tiger Tamiya Help
Posted: Sun Mar 02, 2025 12:11 pm
by Jofaur86
For bearings ? plus the reference ? just measure the dimensions of the axles and housings, and see on eBay

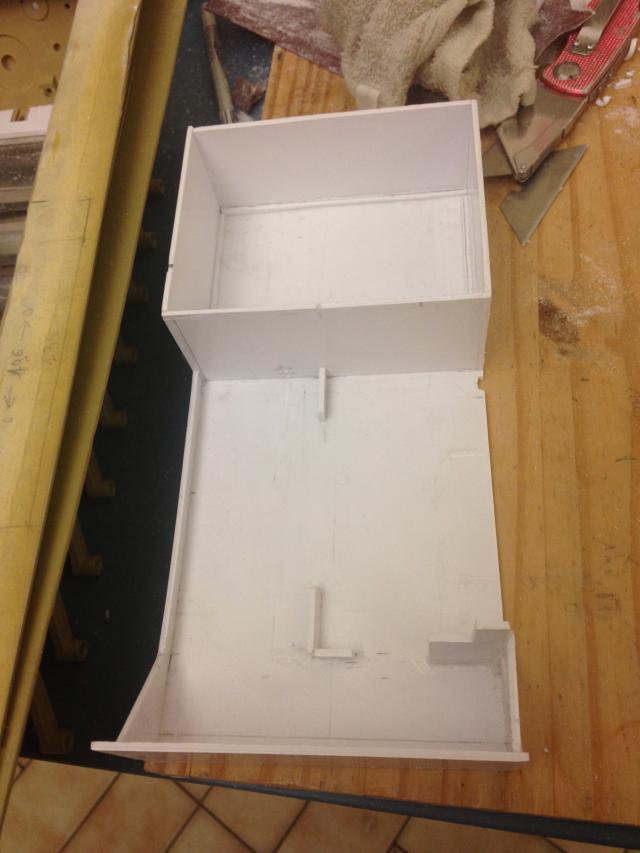

Here, if I can help? It's great, as a gift some additional photos, interior design

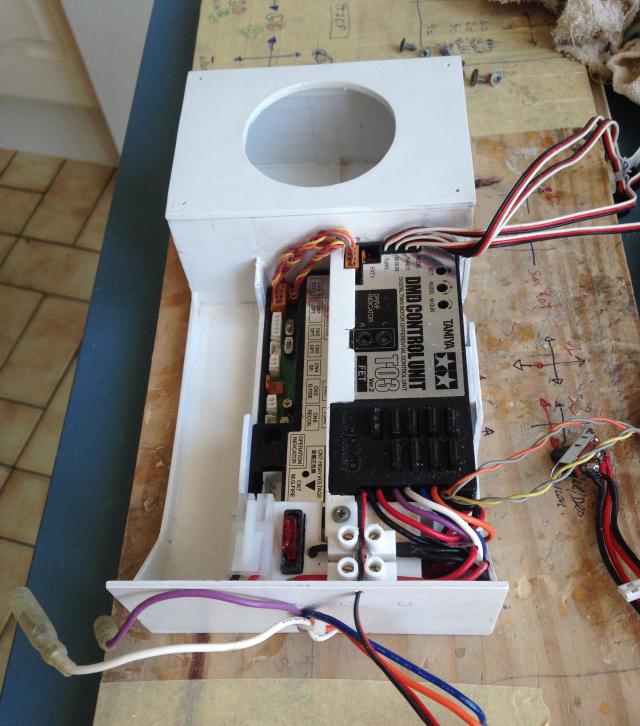

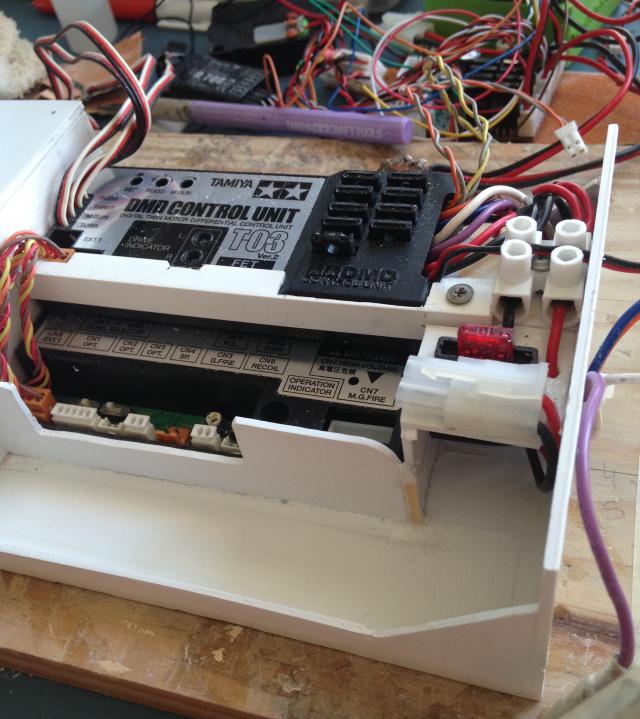

Platine Radio
- IMG_4381.jpeg (54.68 KiB) Viewed 1004 times
- IMG_4384.jpeg (81.81 KiB) Viewed 1004 times
- IMG_4385.jpeg (84.9 KiB) Viewed 1004 times
R
- IMG_4374.jpeg (44.55 KiB) Viewed 1004 times
