Continuing with the build

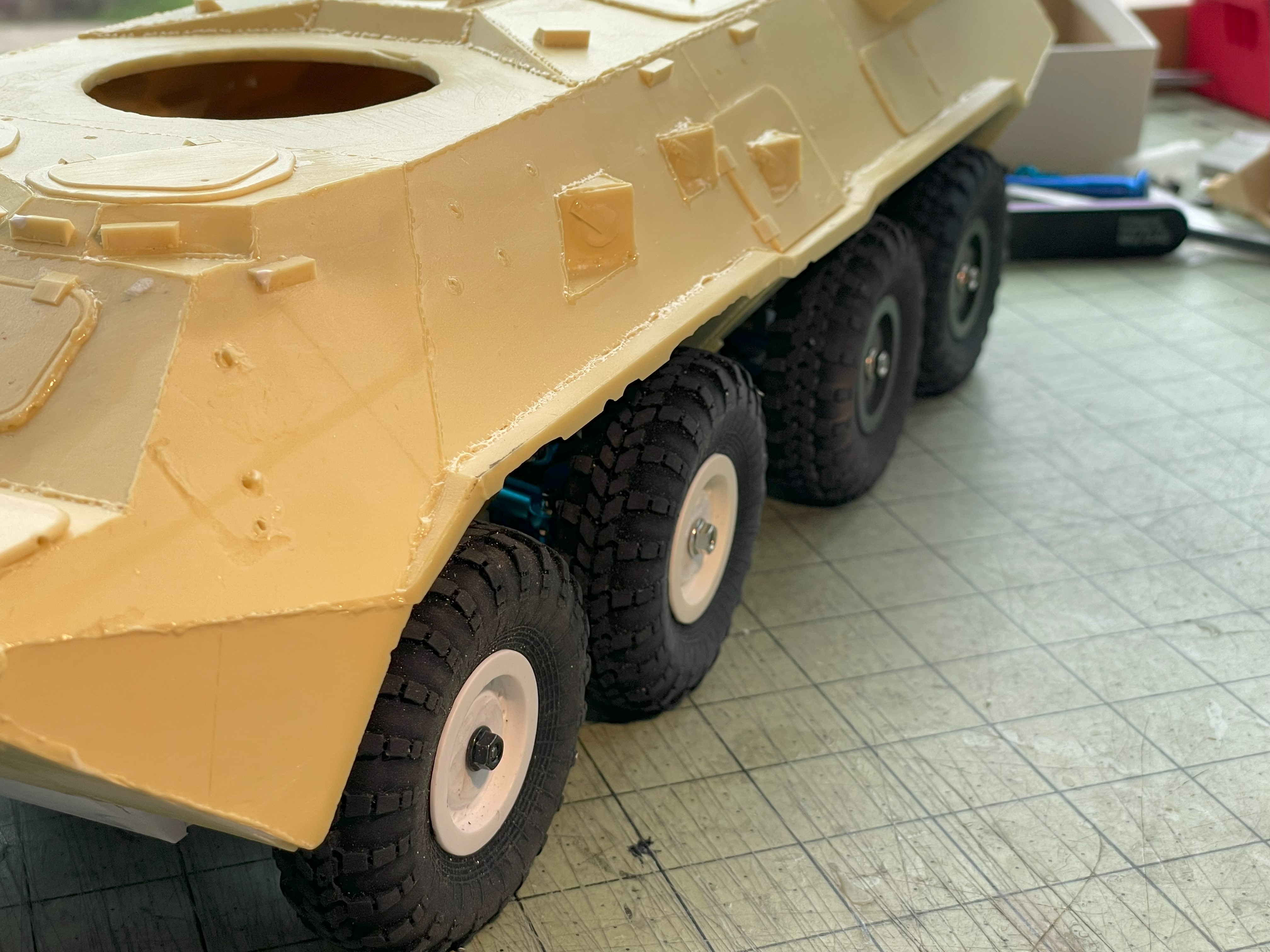

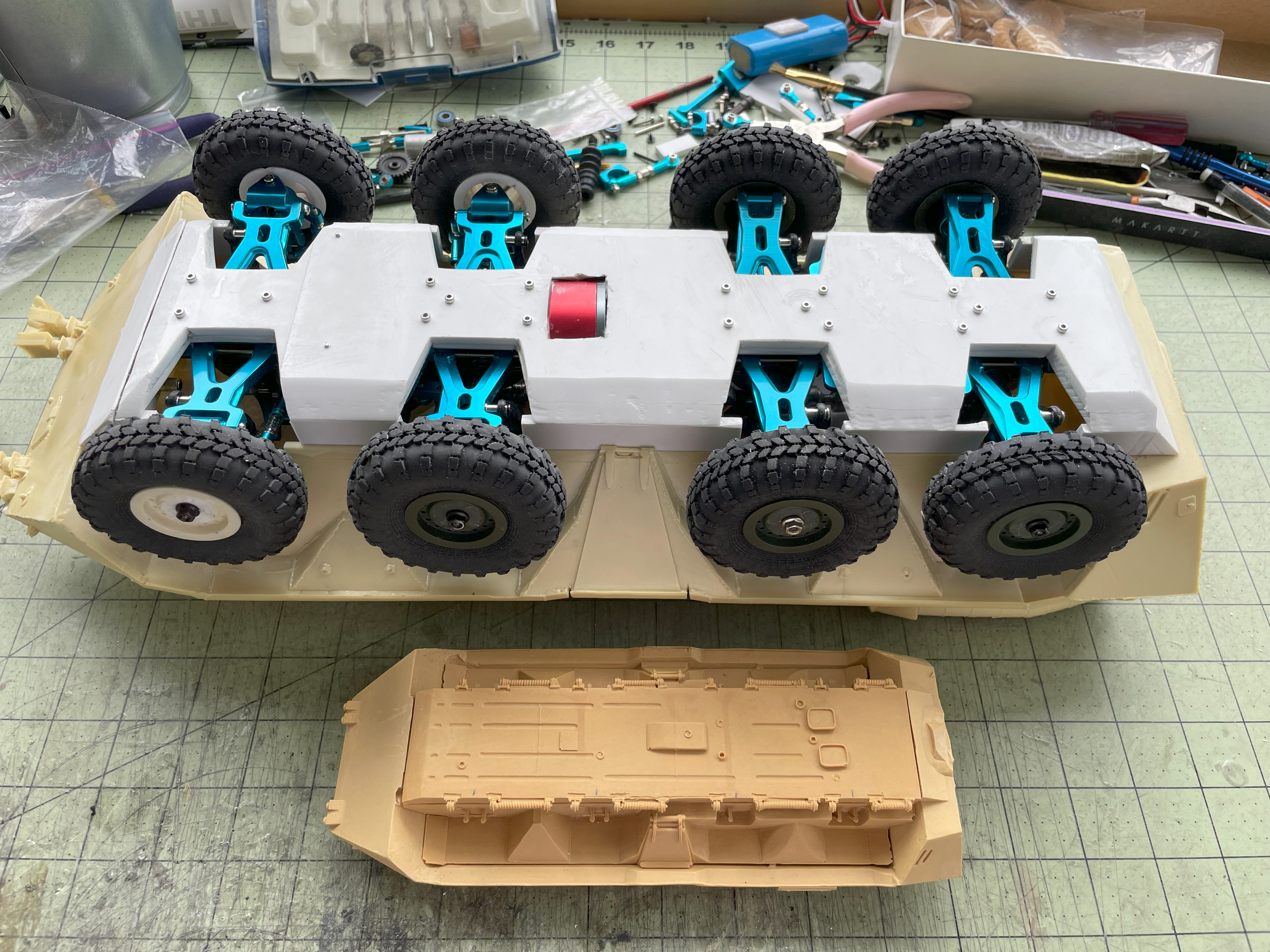

A quick study of the rough 1/35 kit shows the structure of the missing chassis under the 1/16 hull.
- 1/16 RC BTR-80 Russian 8x8 wheeled APC - build
- 1.jpg (1.25 MiB) Viewed 2331 times

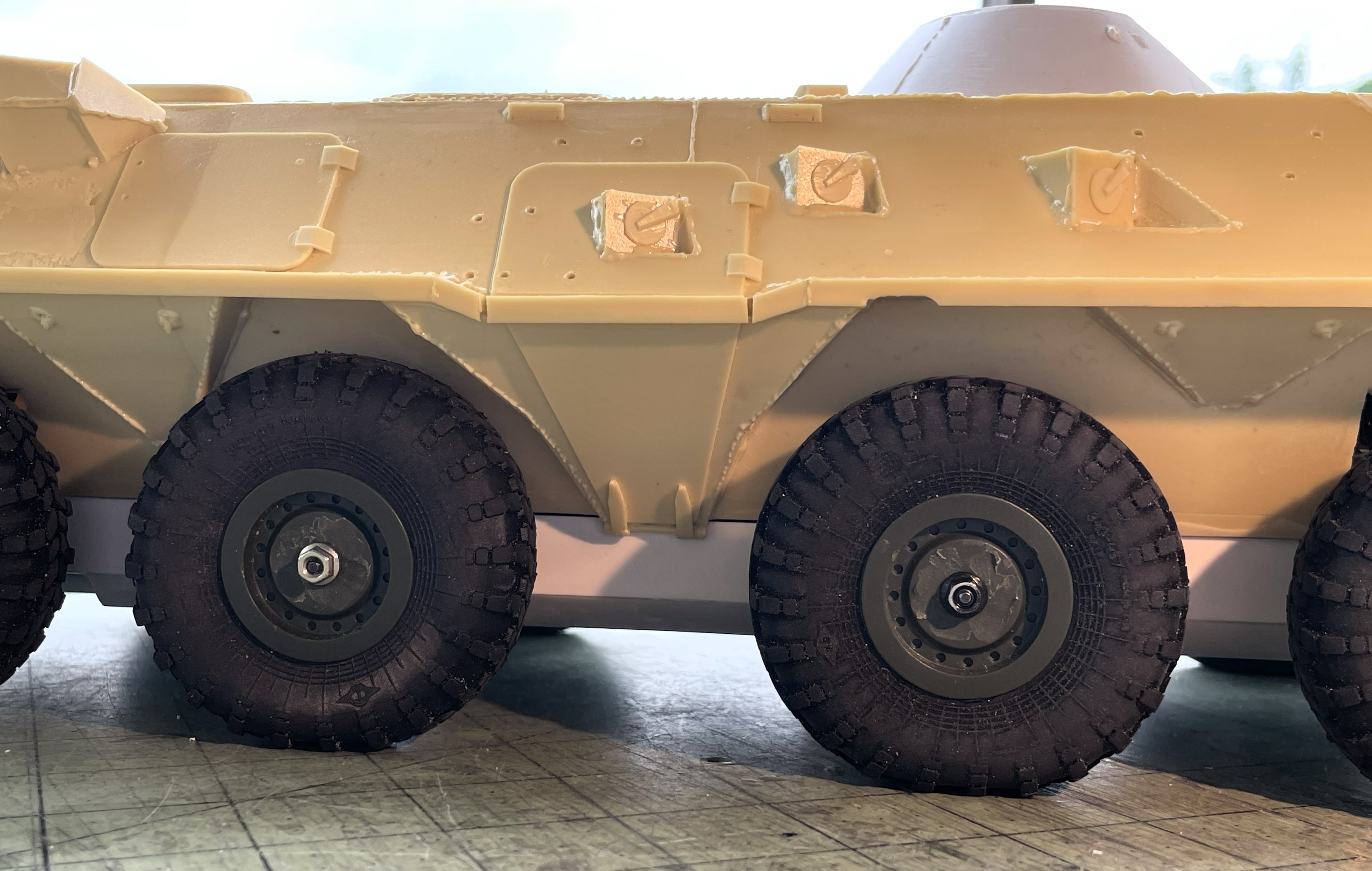

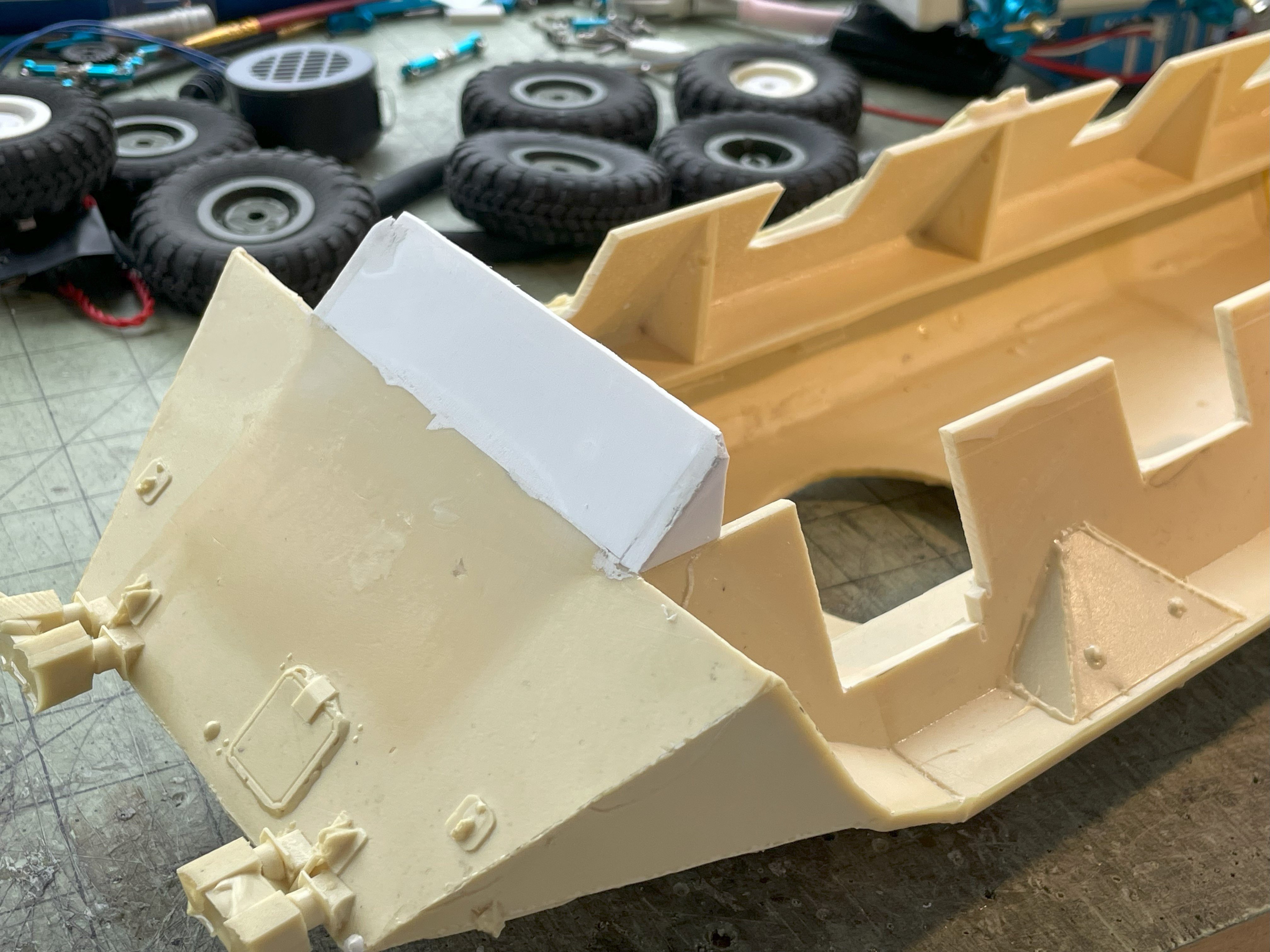

Needed to extend the front plate and create an anchor for the chassis, and design a way to make it removable.
- 1/16 RC BTR-80 Russian 8x8 wheeled APC - build
- 2.jpg (1.51 MiB) Viewed 2331 times

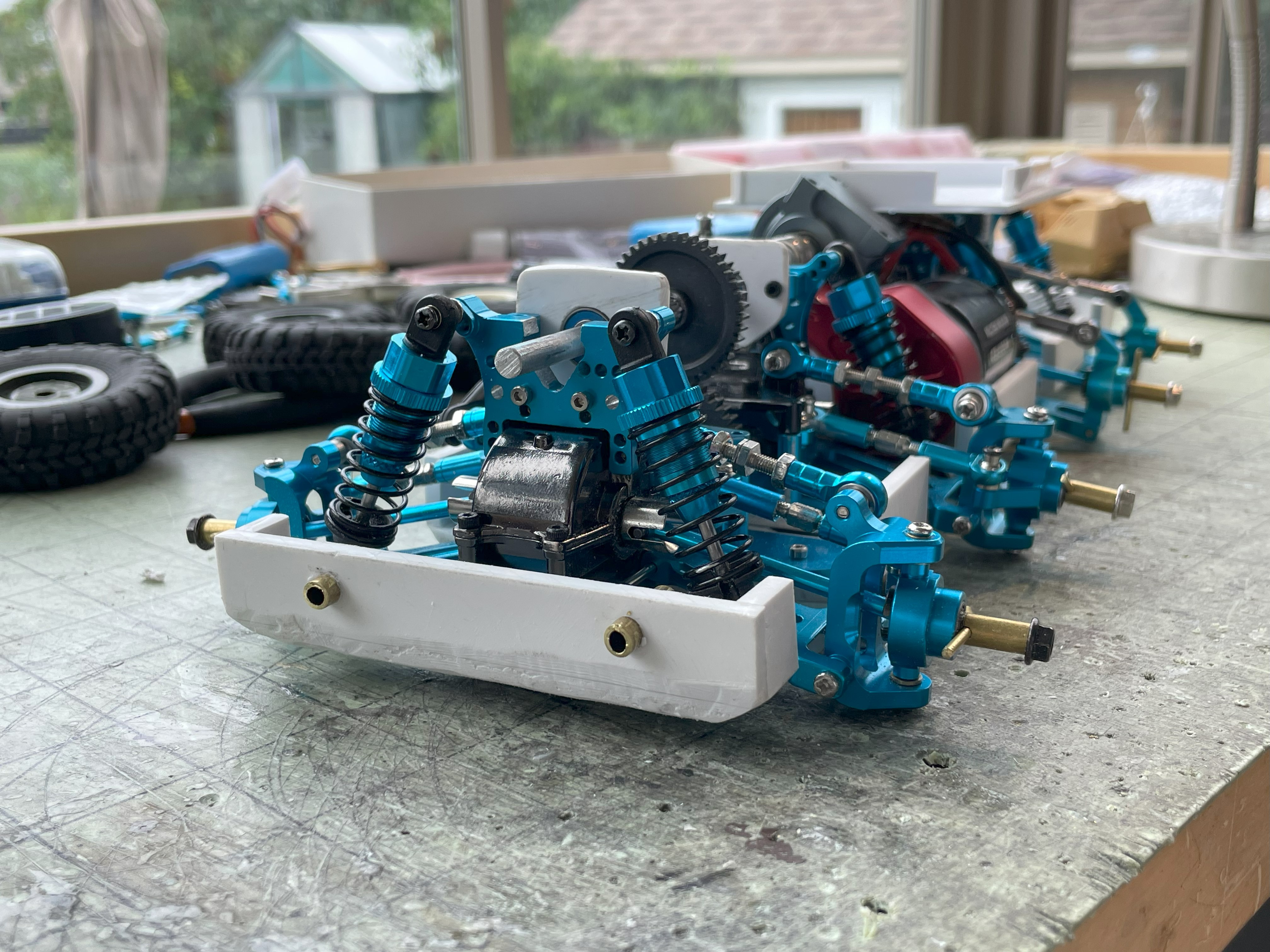

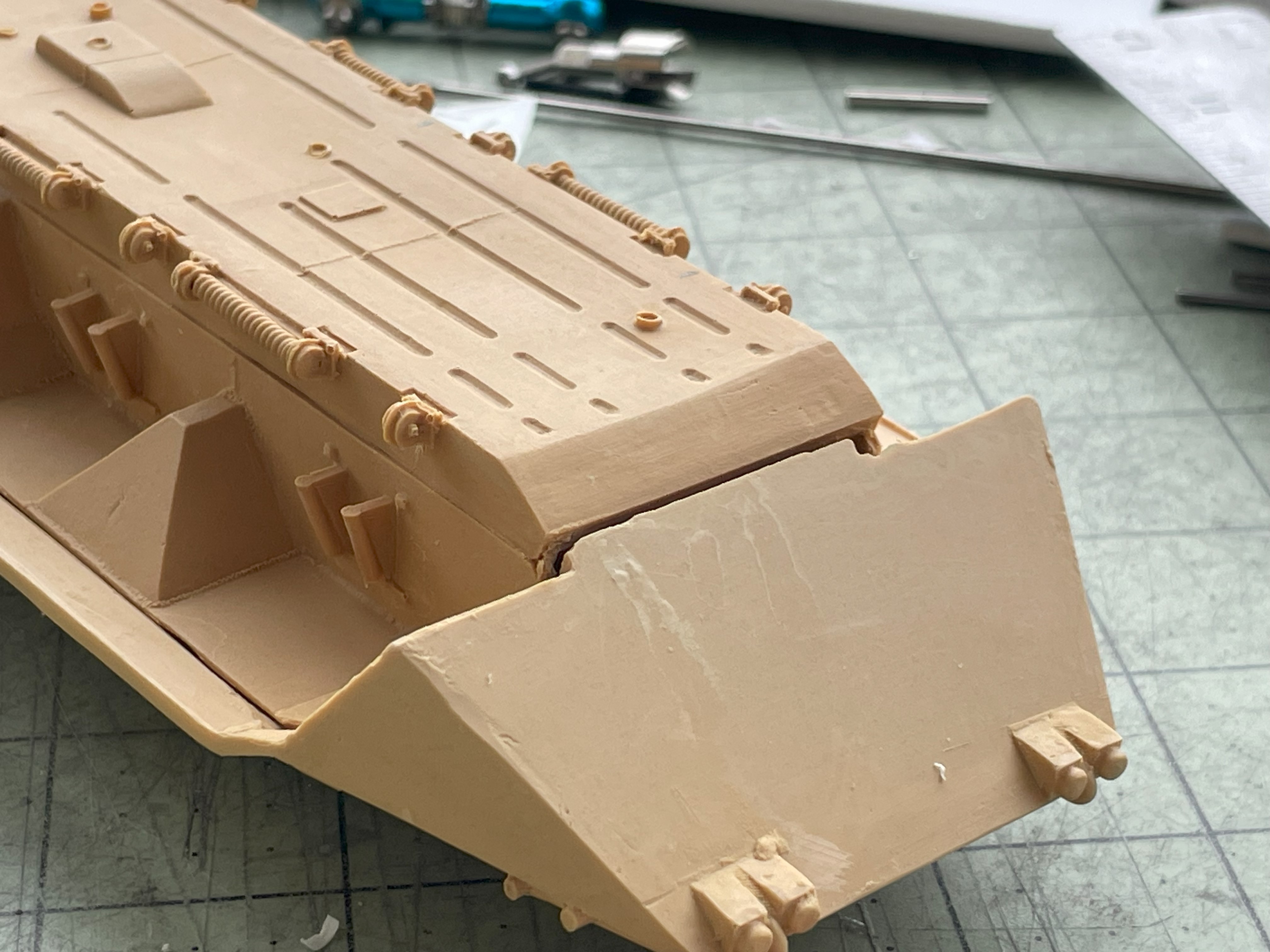

The front of the chassis is inserted first on the hull with the two metal pins. I still need to create a way to screw the chassis at the rear.
- 1/16 RC BTR-80 Russian 8x8 wheeled APC - build
- 2a.jpg (1.94 MiB) Viewed 2331 times

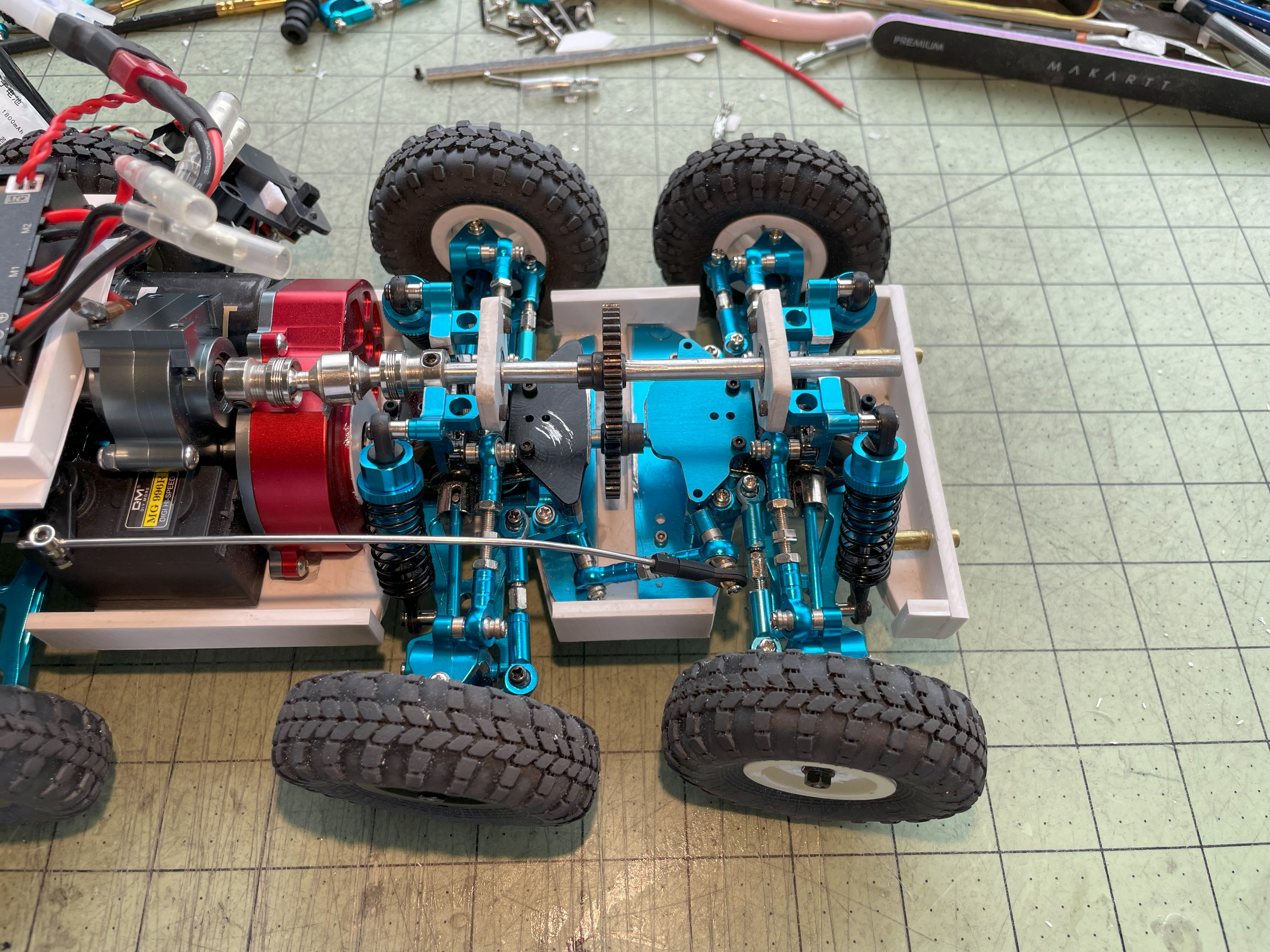

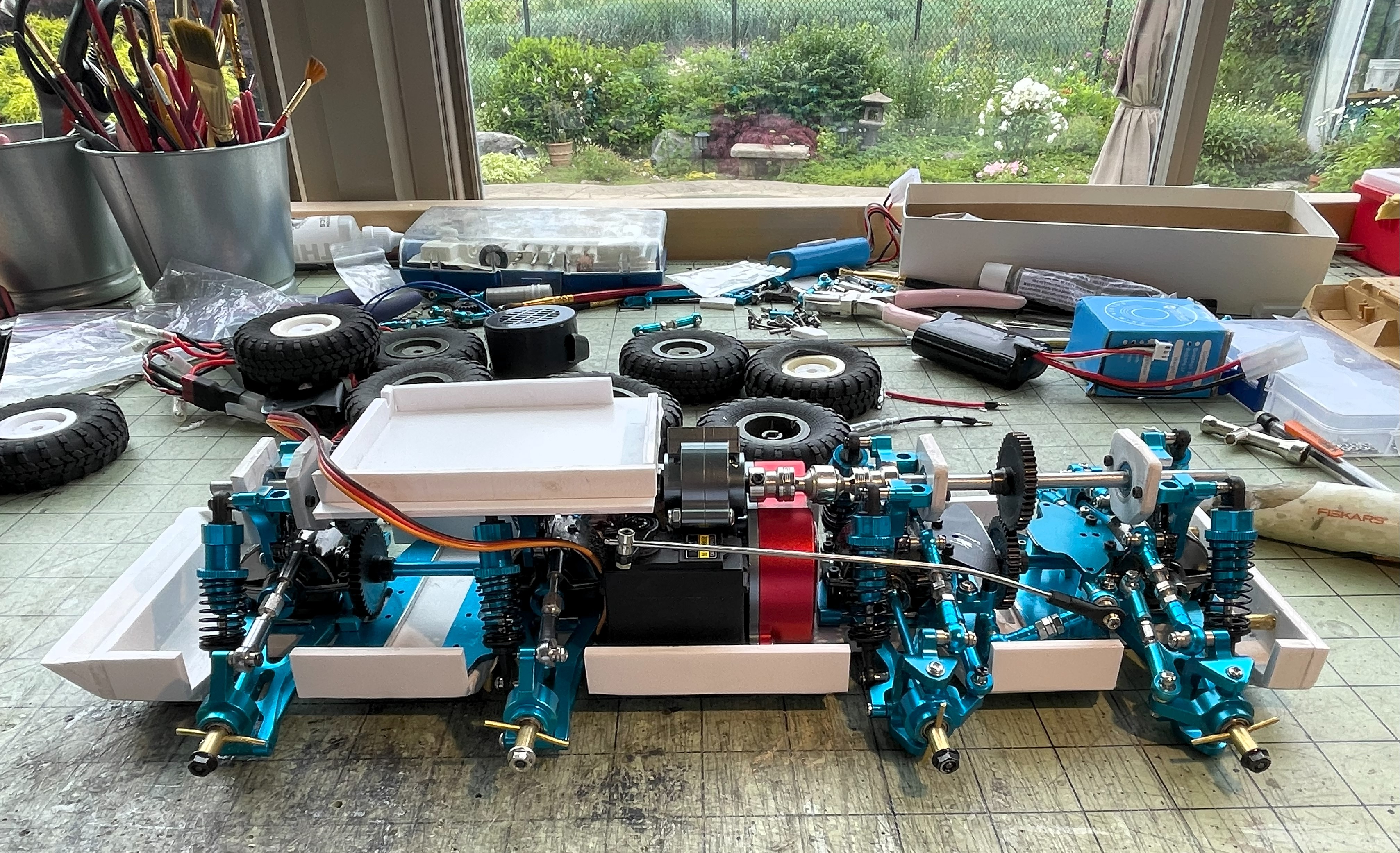

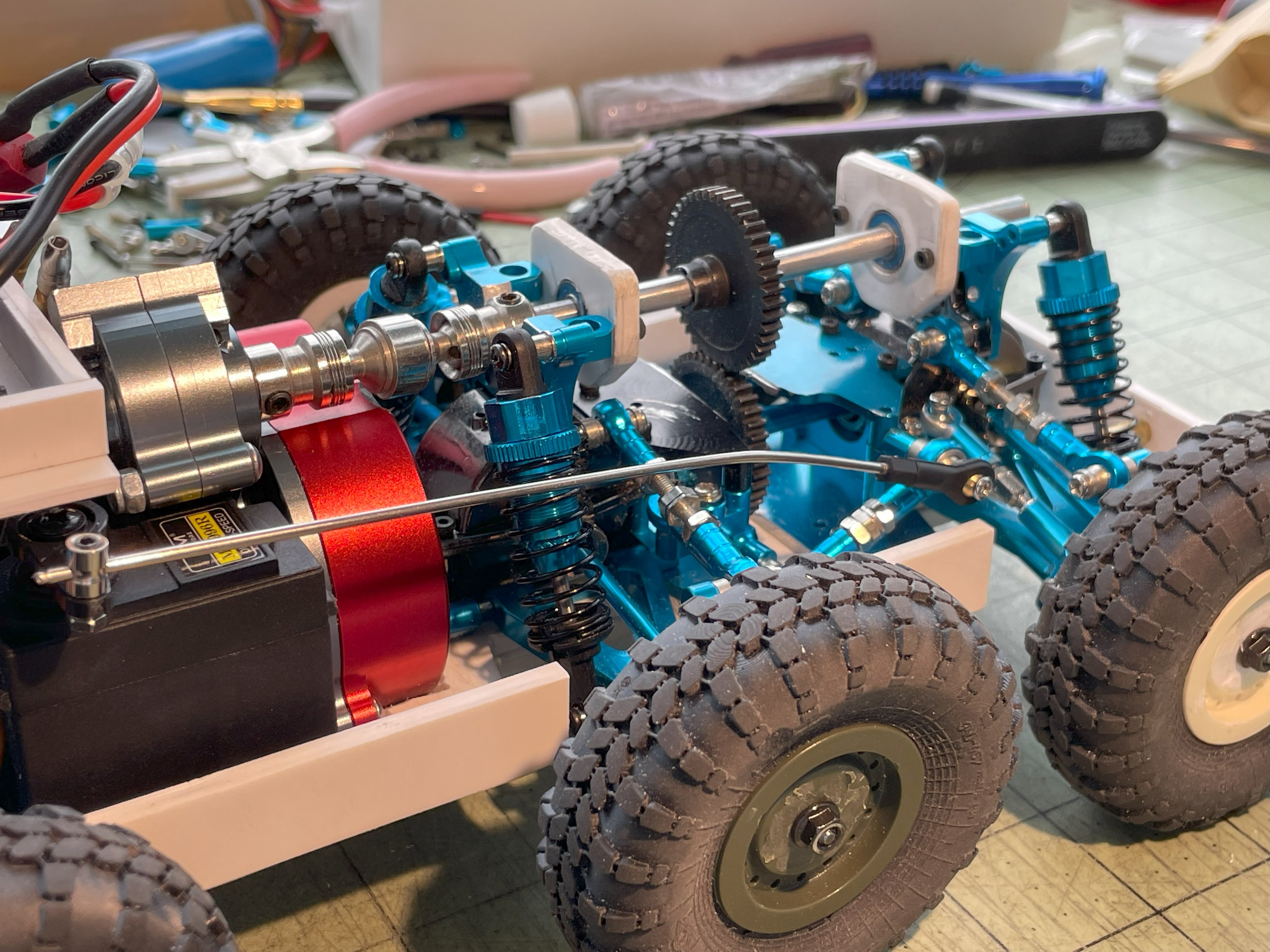

After more analysis, i decided to create a platform at the back for the control board. There is enough room between the board and the top of the hull for it and all the cables sticking out. The steering servo was installed on the right side of the gearbox with a long push rod connected to the steering pins linked together with a tie rod.
- 1/16 RC BTR-80 Russian 8x8 wheeled APC - build
- 3.jpg (2.71 MiB) Viewed 2331 times

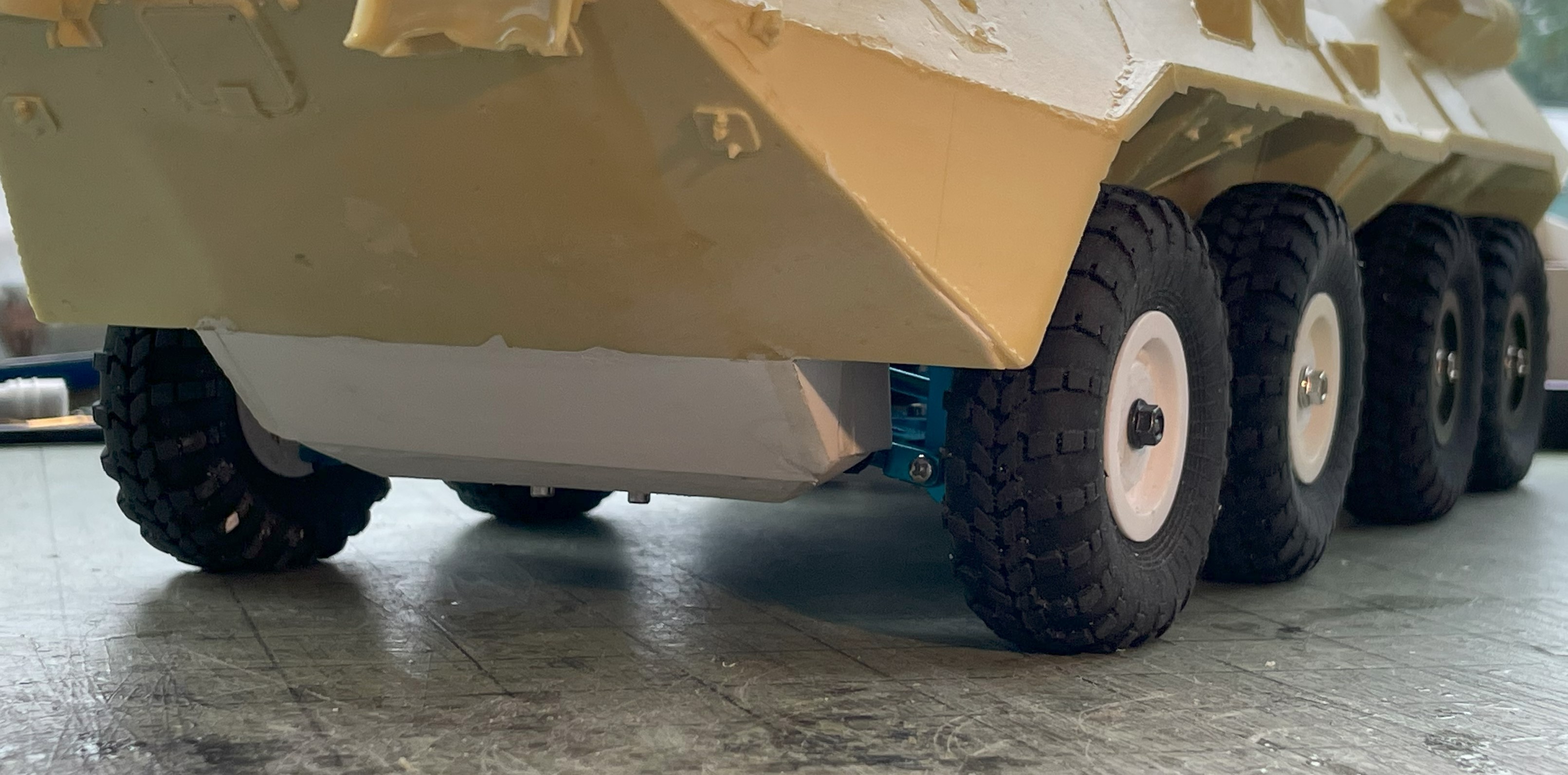

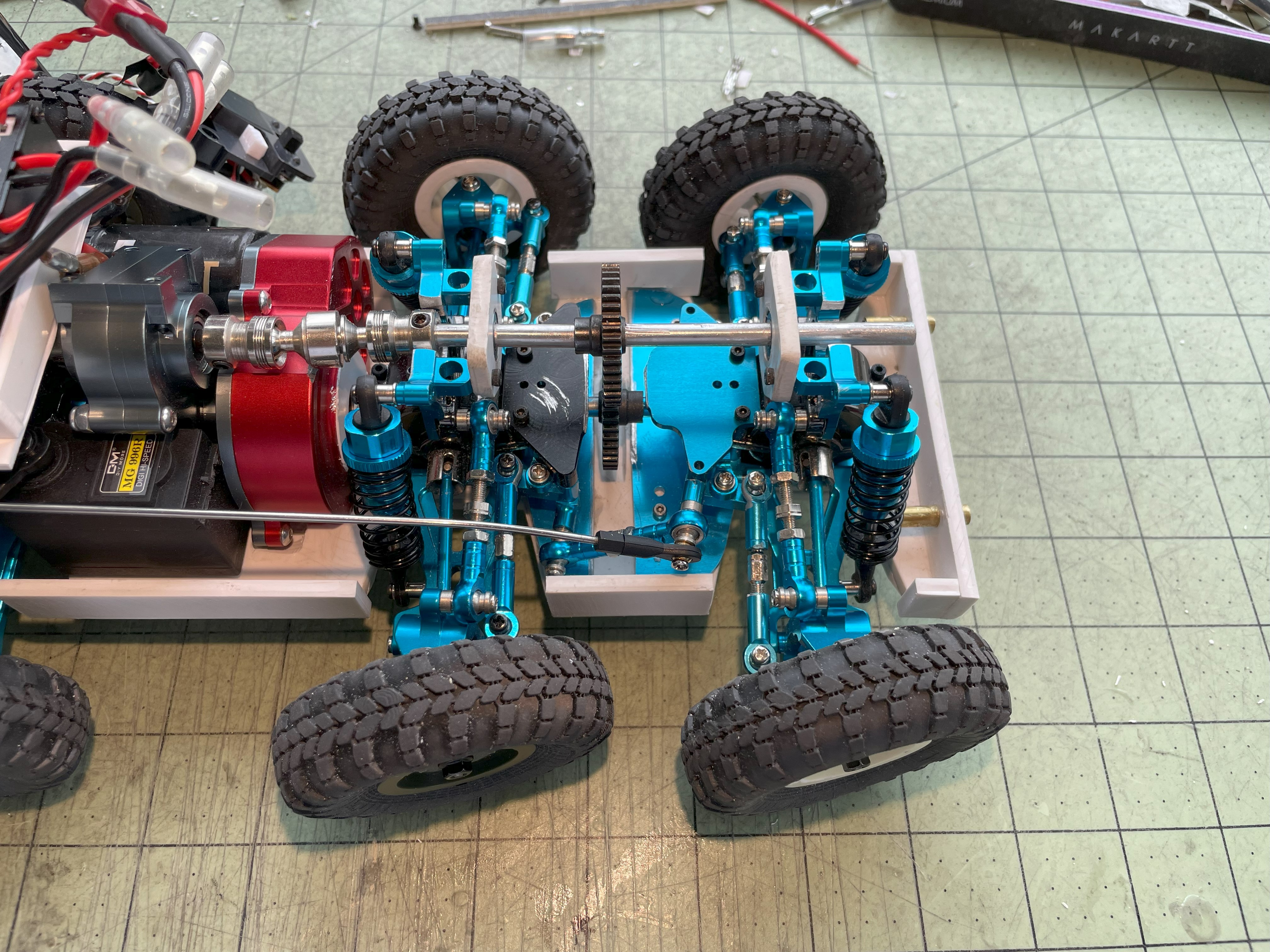

I gave the push rod a light curve to completely clear the suspension unit.
- 1/16 RC BTR-80 Russian 8x8 wheeled APC - build
- 4.jpg (2.15 MiB) Viewed 2331 times
- 1/16 RC BTR-80 Russian 8x8 wheeled APC - build
- 3a.jpg (1.81 MiB) Viewed 2331 times

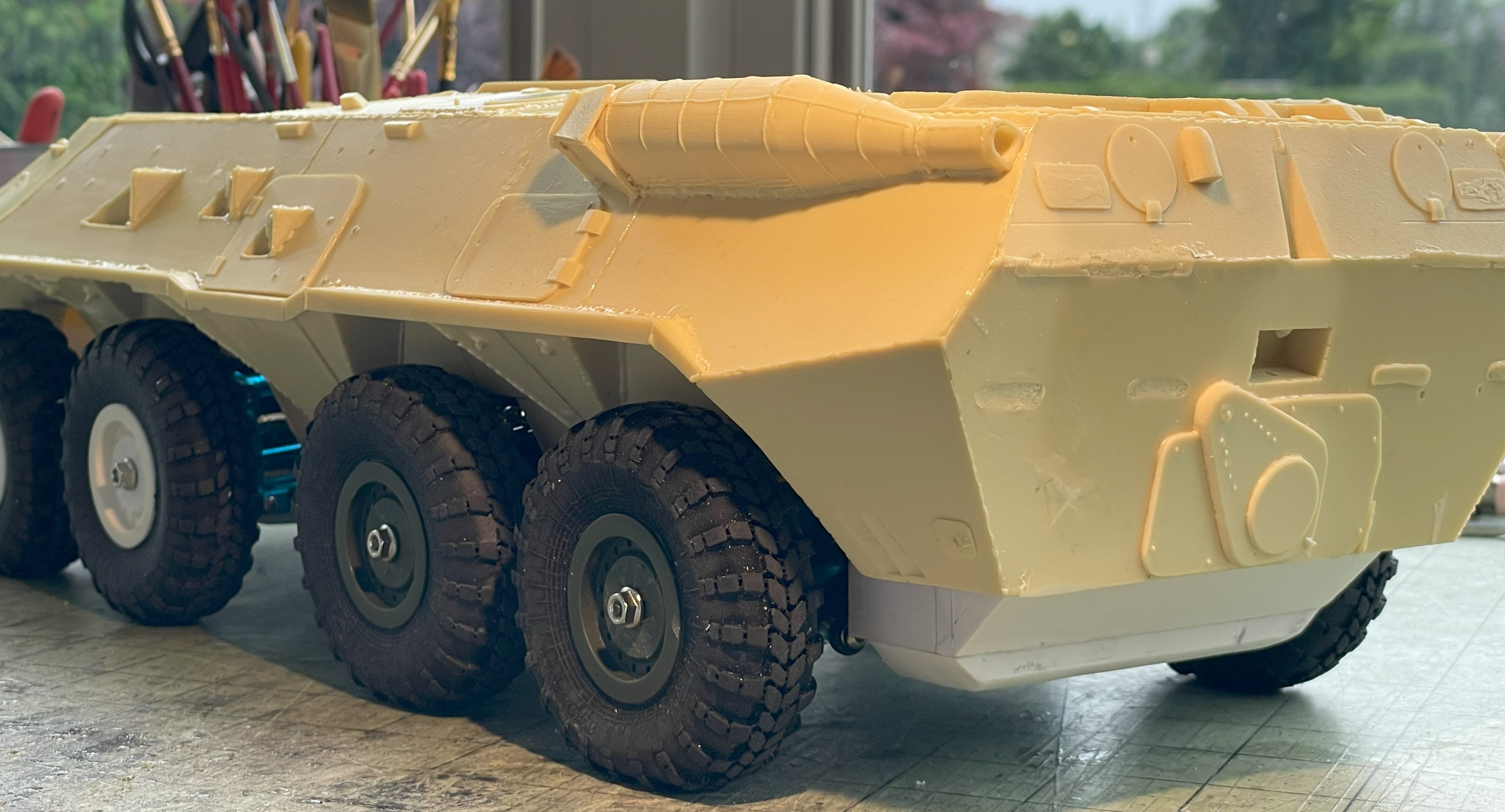

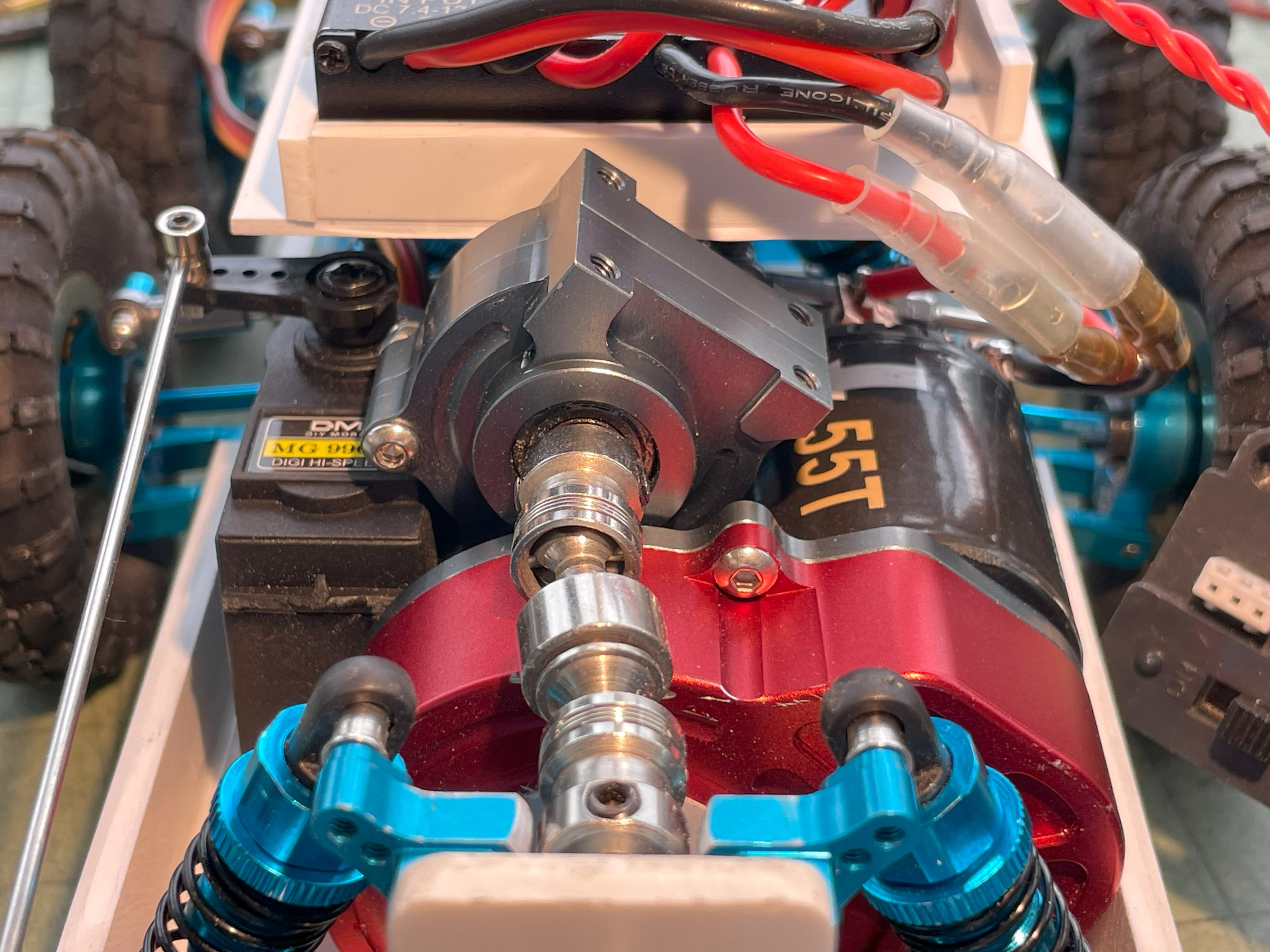

I gave the steering a powerful metal gear servo, making it easy to steer whether the vehicle is running or stopped. I had to limit the angle of steering in order to protect the operation of the dog bone with the outer cup. There were locking if the angle of steering was too great. I have new dog bones on order, i will try to improve the angle, it is currently enough but not great.
- 1/16 RC BTR-80 Russian 8x8 wheeled APC - build
- 5.jpg (2.57 MiB) Viewed 2331 times
- 1/16 RC BTR-80 Russian 8x8 wheeled APC - build
- 6.jpg (2.57 MiB) Viewed 2331 times

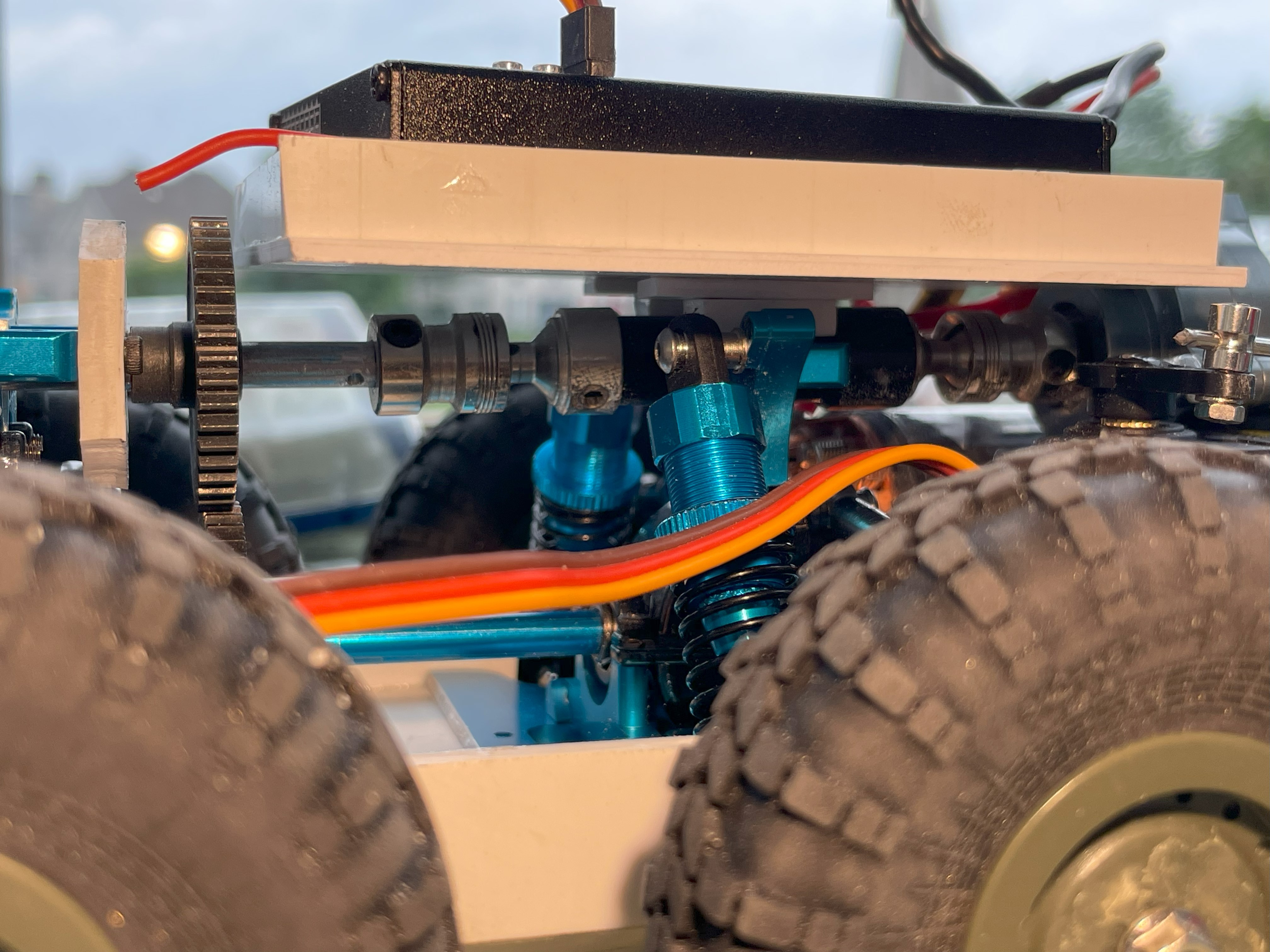

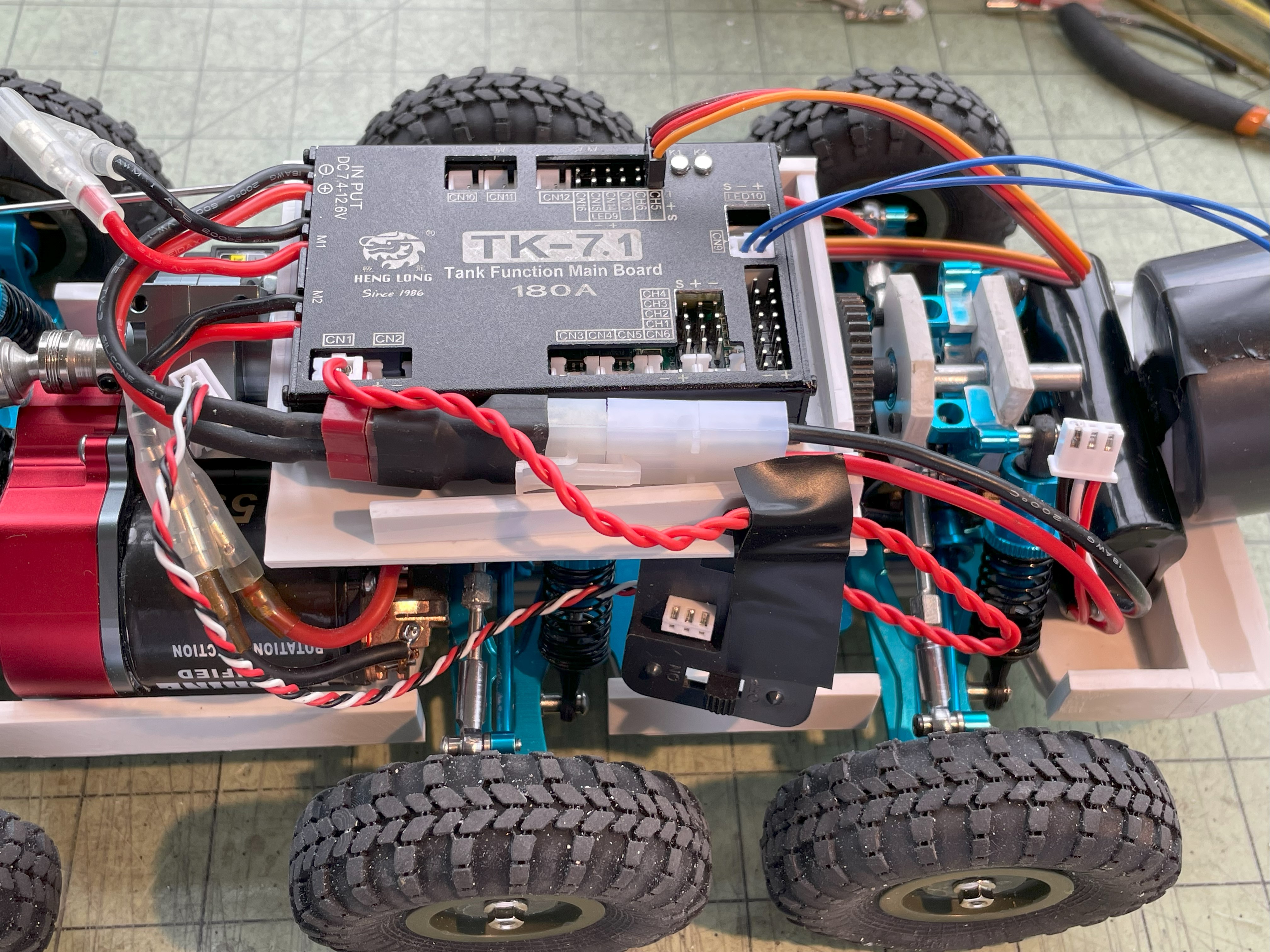

The control board platform clears the main drive shaft.
- 1/16 RC BTR-80 Russian 8x8 wheeled APC - build
- 7.jpg (1.55 MiB) Viewed 2331 times

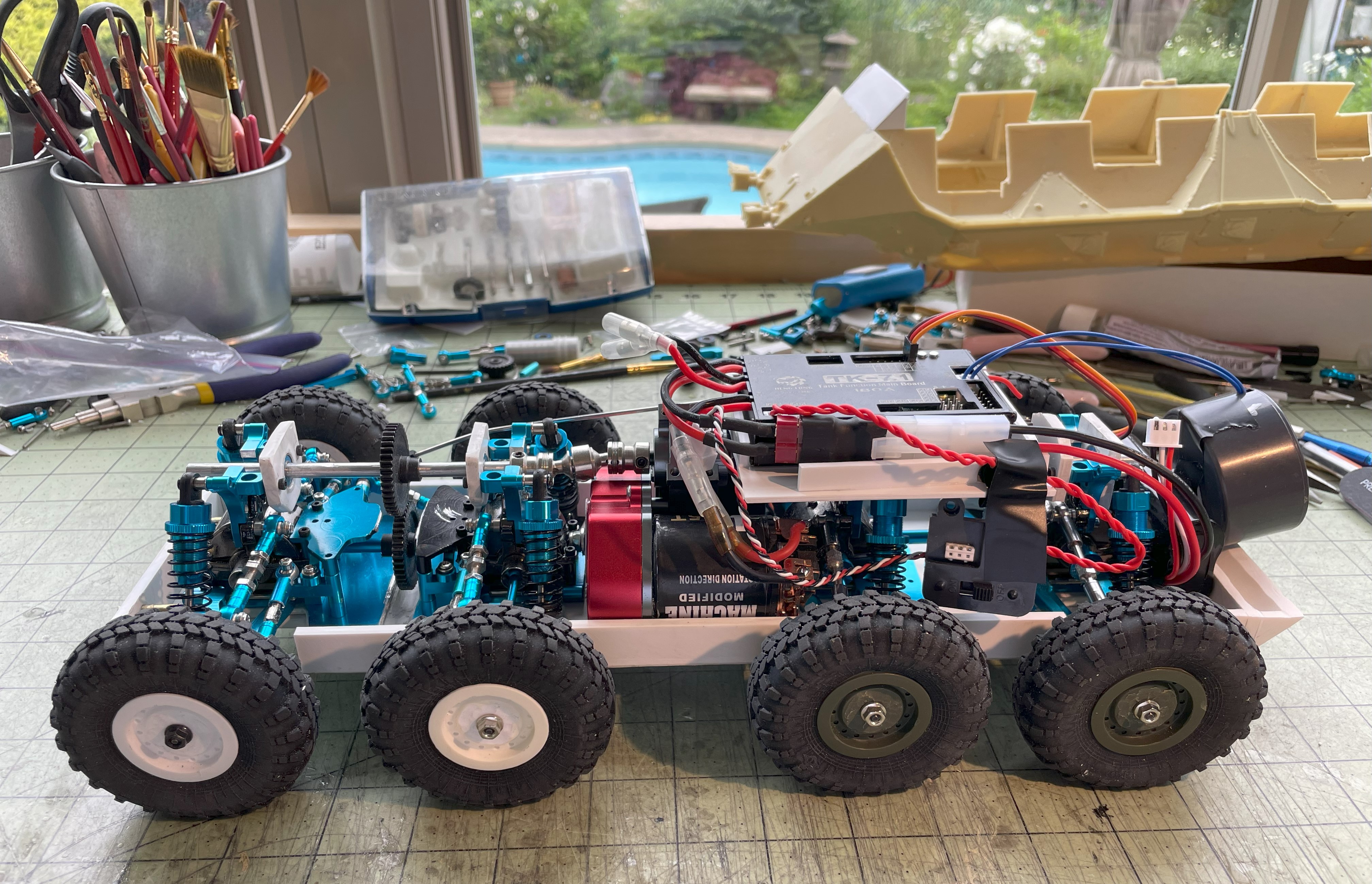

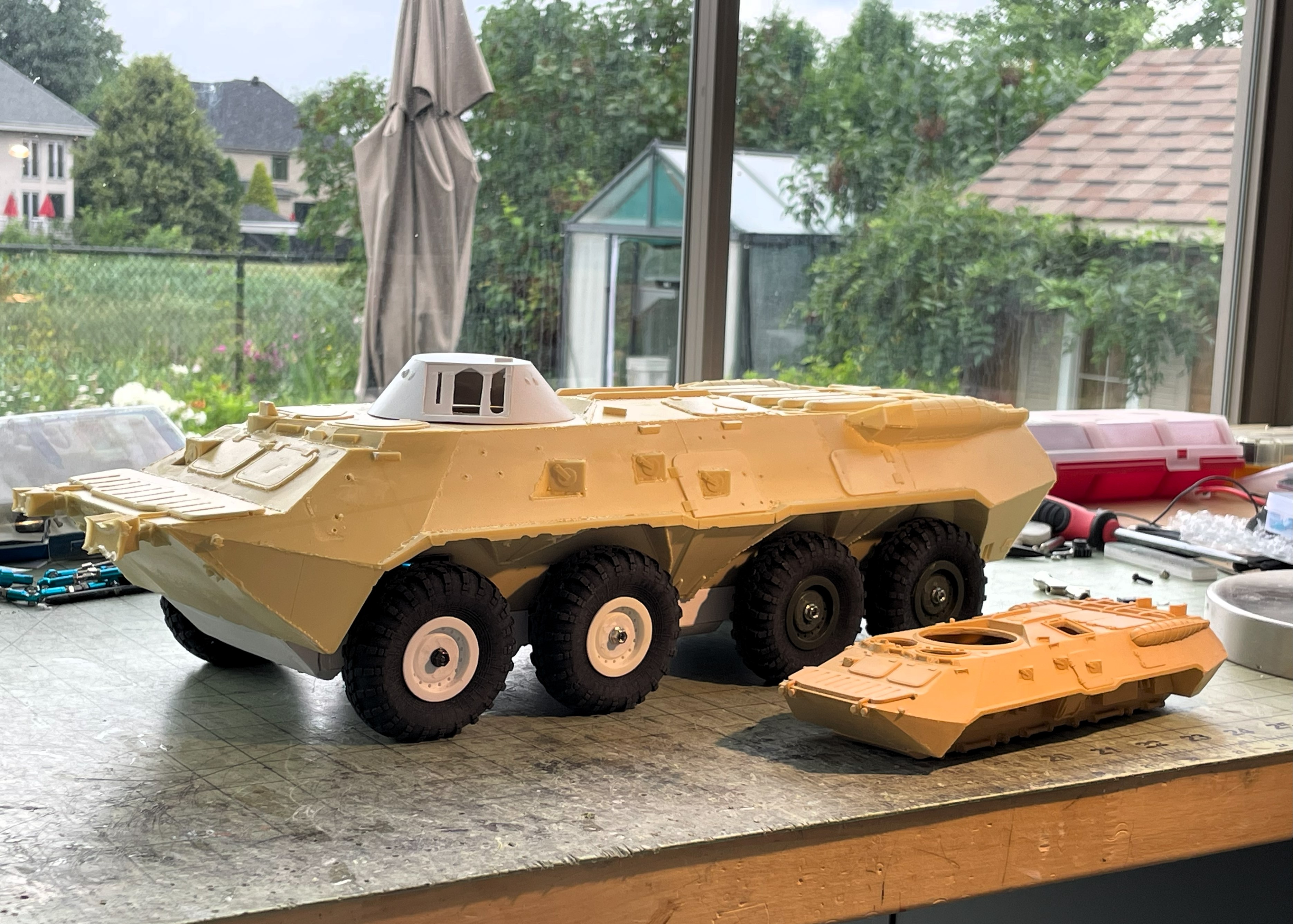

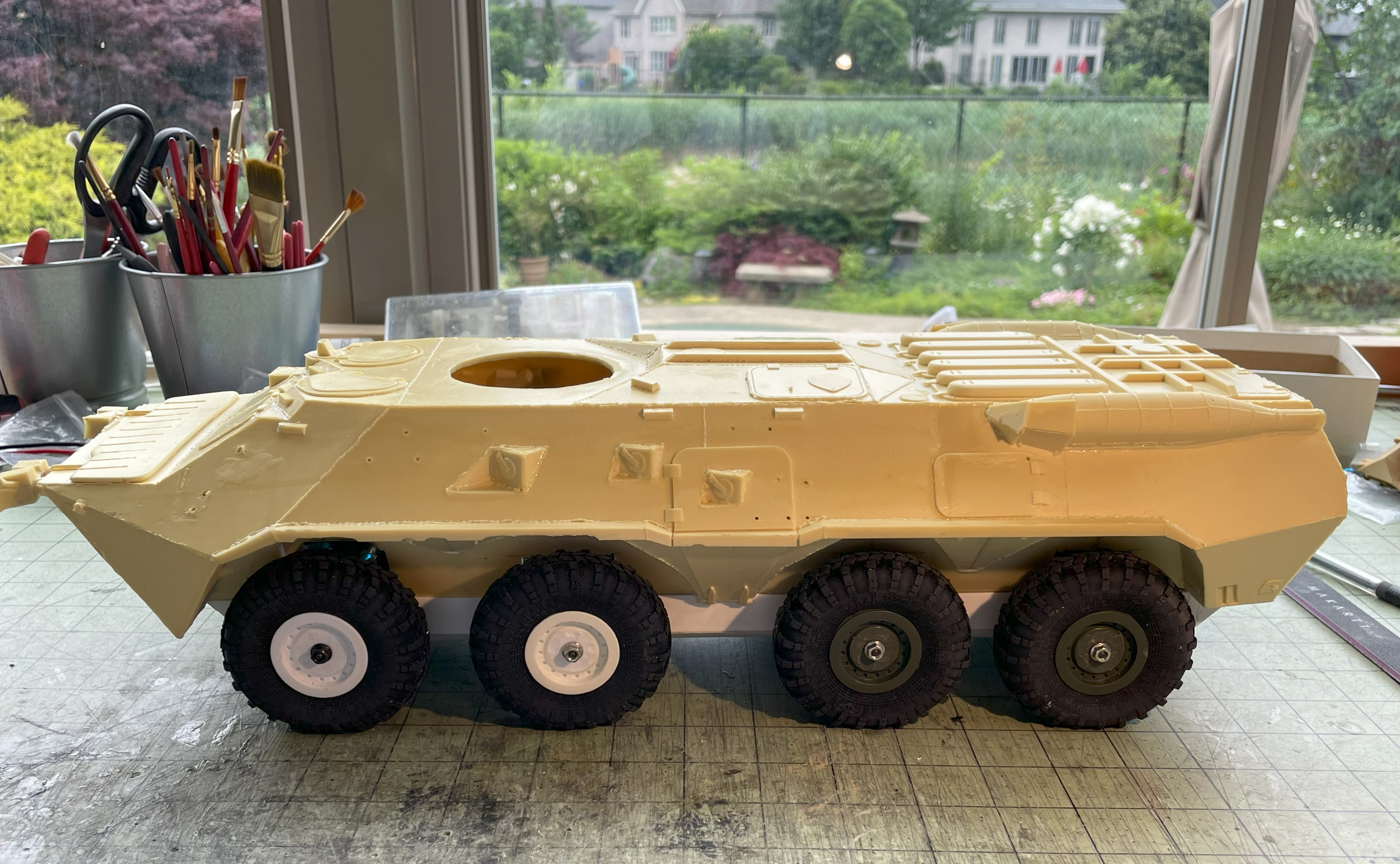

The chassis as used for the initial test run. The battery will be located at the back. However, i need to find a place for the speaker, or maybe change it for one or two smaller ones. TBD once the turret rotation is in place so that i can determine the available room at the front of the vehicle for the speaker.
I am using a Heng Long TK 7.1 control board. Vertical Stick 2 has the forward/reverse and controls the speed. The vehicle is steered using the horizontal slide bar under stick 2 (available only on TK 7.1), the steering servo is connected to CH5.
I did a test run of the chassis in the backyard. The vehicle is extremely powerful. The Axial gearbox coupled with the 540 motor, an 8x8 chassis and TK 7.1 are working perfectly together. The only issue encountered after a 10 minute run is a flat tire and one suspension screw that got loose. It is a real success so far. It's really enjoyable to see a chassis created from different parts working so well. I will post a video later.
- 1/16 RC BTR-80 Russian 8x8 wheeled APC - build
- 8.jpg (2.15 MiB) Viewed 2331 times
Continuing on following post.
