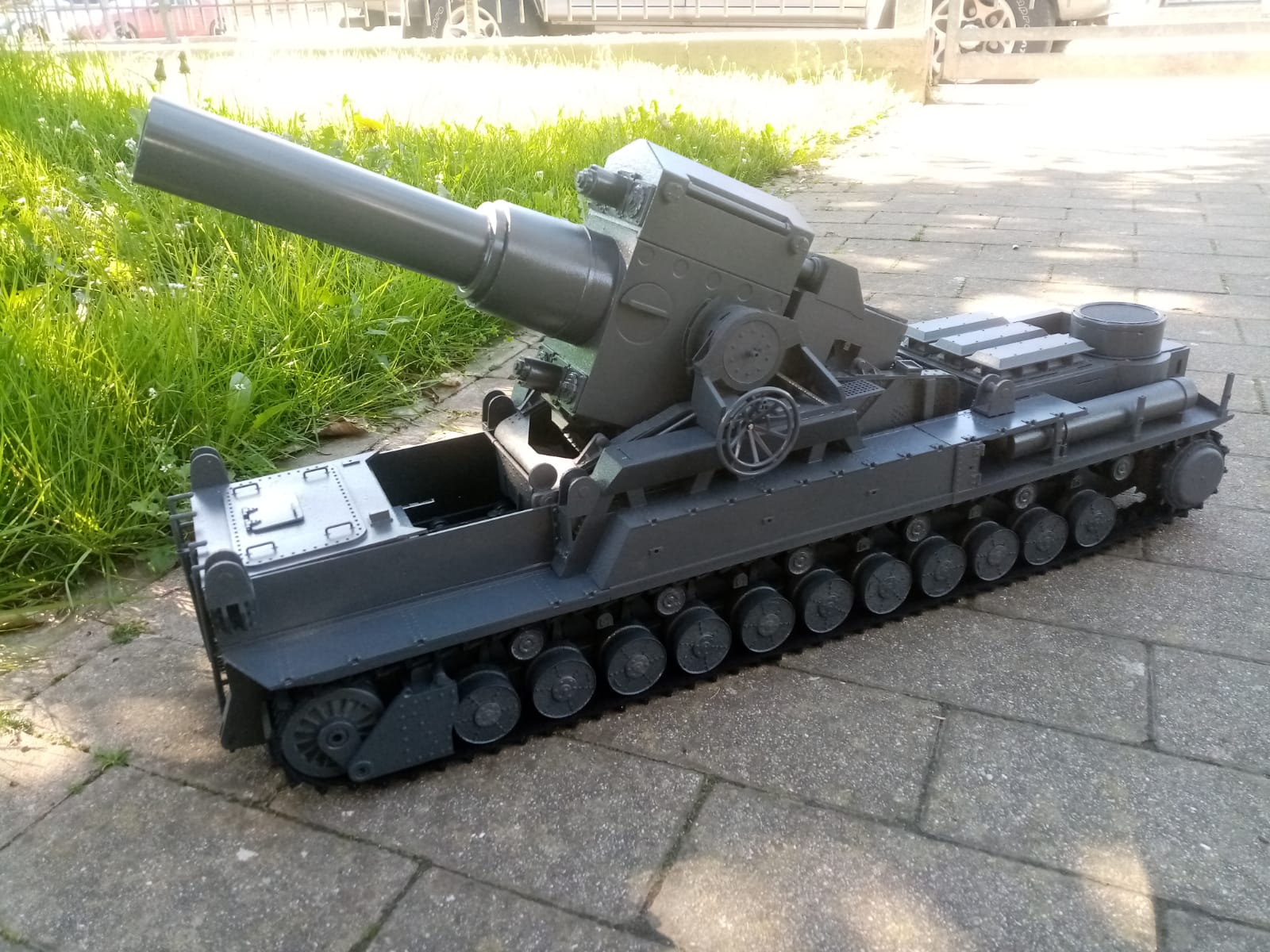

Karl Gerät

[HERMAN BIX]

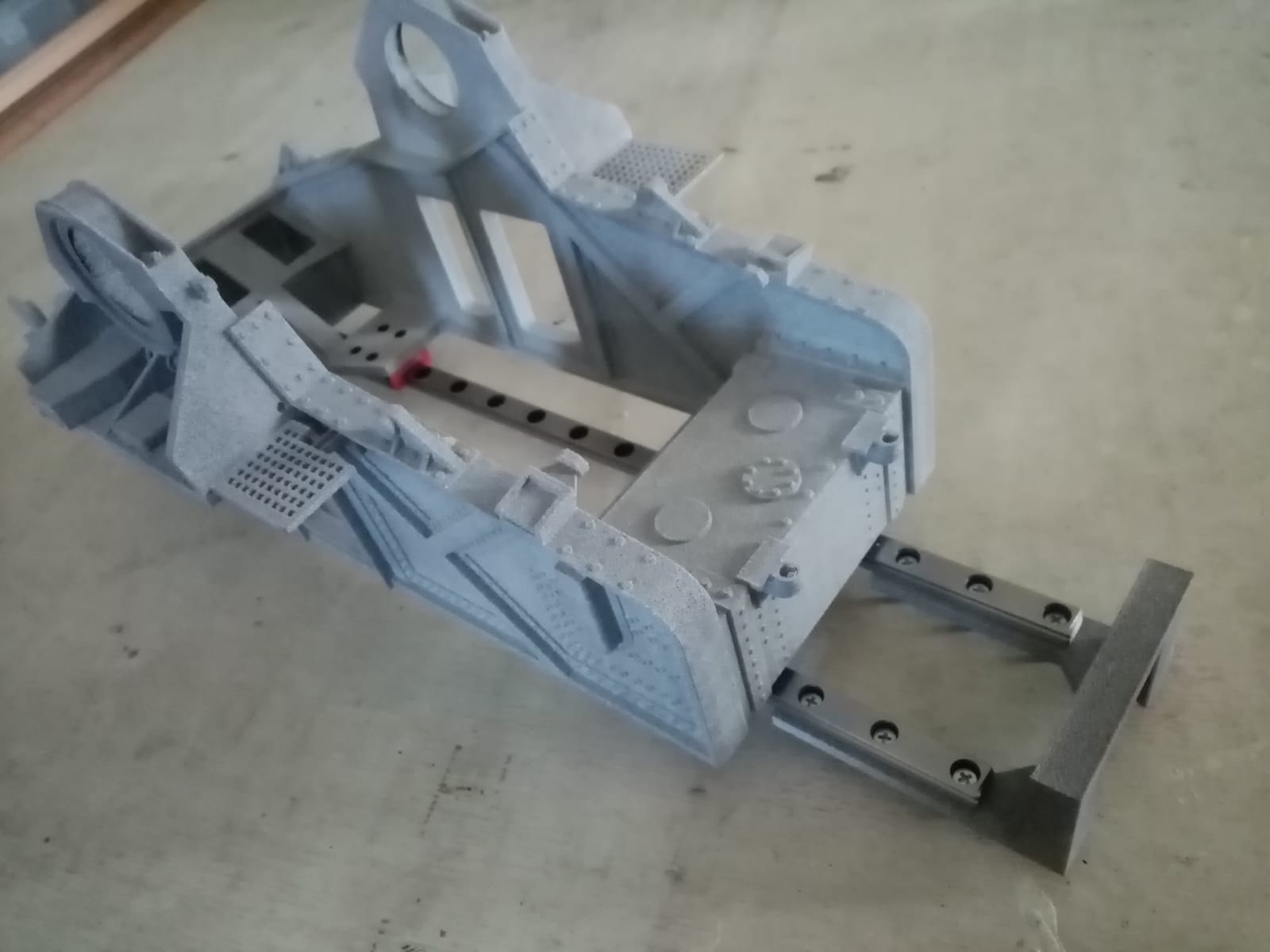

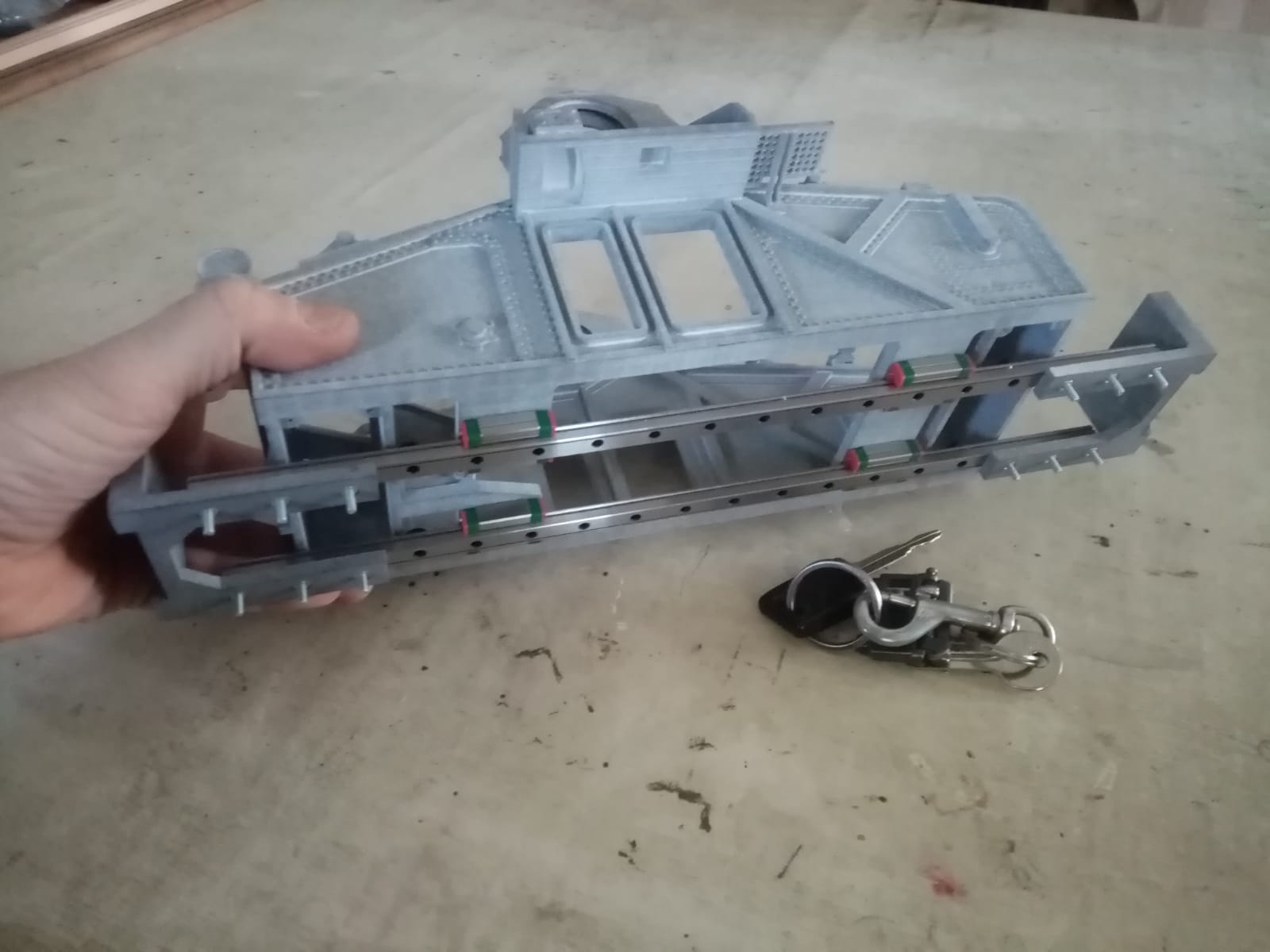

I see the mortar carriage will recoil along the linear bearings in the hull ?

[Tank79]

Yessss.

[Tank79]




[Tanker1966]

Beautiful engineering!

[Herr Dr. Professor]

Tank79, you are accomplishing remarkable results. Then, too, that bottom photo of the three above compensates for my astigmatism.

[Tank79]

For your info: this work is from Gullivers’ Factory aka Stefano Polentarutti. I post for him

[Tank79]






[Rob59]

Must have been a PITA back then to move that monster from A to B.
I‘ve seen huge mortars made to transport on railwaytracks, which made it a bit easier to move around I guess.
Nice project anyway.
