Panzer IV L/70 (A)

[SCHWEREPANZER]

Col. Bix,

I couldn't agree more. Despite looking like she was designed by an engineer after had imbibed one too many, there's a certain mystique about her. Fugly, as you say, but seductively alluring. Thanks for the kind comments.

Cheers,

Ralph

[quitcherbitchen]

Where can I buy this kit? I checked one of sources that was listed and there wasn't anything in the website which kinda says it is probably sold out.

[SCHWEREPANZER]

Hey Quit, here is the site in Germany selling this kit:

alu-panzer-bausatz.jimdosite.com

The kit seems to be very similar to this Juckenburg resin kit:

https://www.ebay.com/itm/393773442621?h ... SwzUJgbyuK

Hope this helps....good luck.

[43rdRecceReg]

Lots of admirable, and copy-worthy refinements and details, Ralph

[SCHWEREPANZER]

Chapter 3:

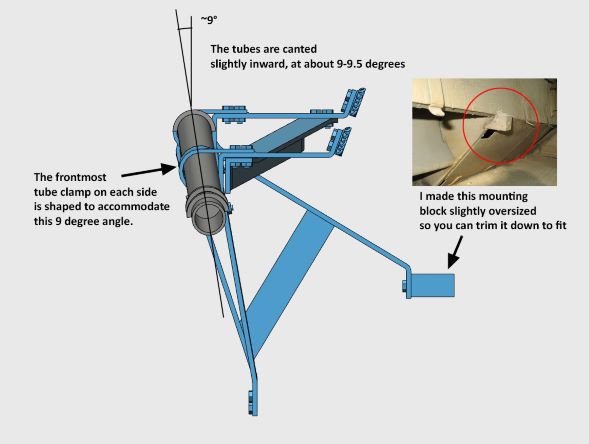

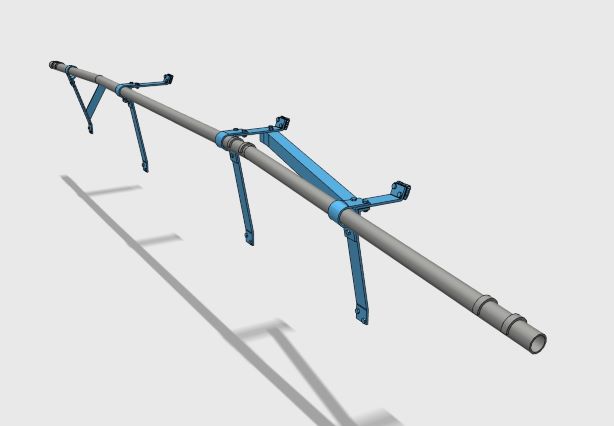

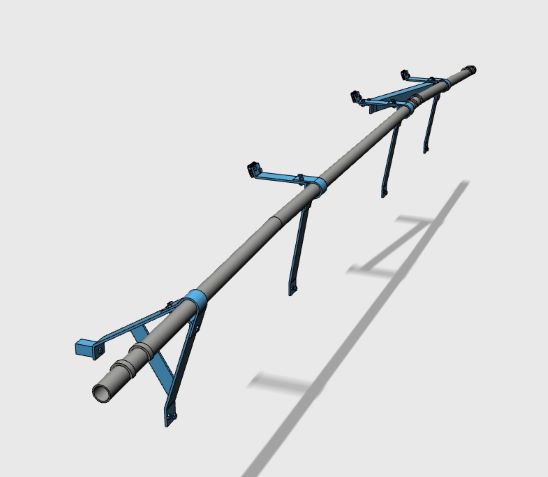

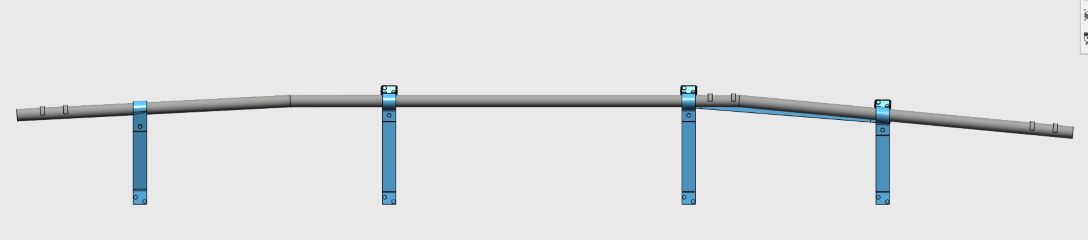

The Thoma mesh anti-armor Schurzen seems to have been standard equipment to the Panzer IV L/70 (A), at least after the initial entry of the (A) with operational units. Creating the proper profile hanging equipment from scratch was a bridge too far for my modeling skills. As a result I embarked on a campaign to have them created through the magic of the 3D printer. To that end, after much pestering and pleading with a forgiving friend in The Netherlands these very nicely molded pieces were created.The poles are thanks to Trumpeter Customer Service which was very responsive and timely in allowing me to purchase the applicable sprue from their Panzer IV J kit at a nominal price. Together, the hanging hardware and the poles were made to work together to produce what I consider a very good result. Here's is the thought process behind this Thoma hanging hardware:

RESIZE THOMA POLE 1.jpg (28.22 KiB) Viewed 2307 times

RESIZE THOMA POLE 3.jpg (23.7 KiB) Viewed 2307 times

RESIZE THOMA POLE 4.jpg (13.03 KiB) Viewed 2307 times

RESIZE THOMA POLE 5.jpg (15.85 KiB) Viewed 2307 times

RESIZE THOMA POLE 6.jpg (16.17 KiB) Viewed 2307 times

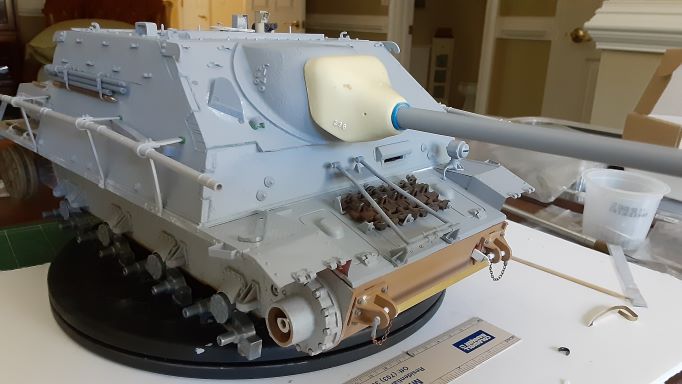

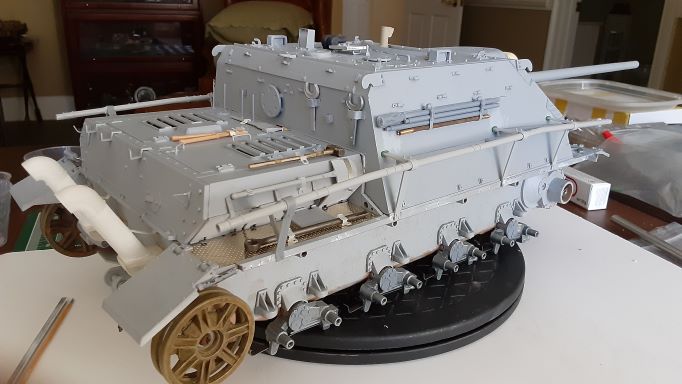

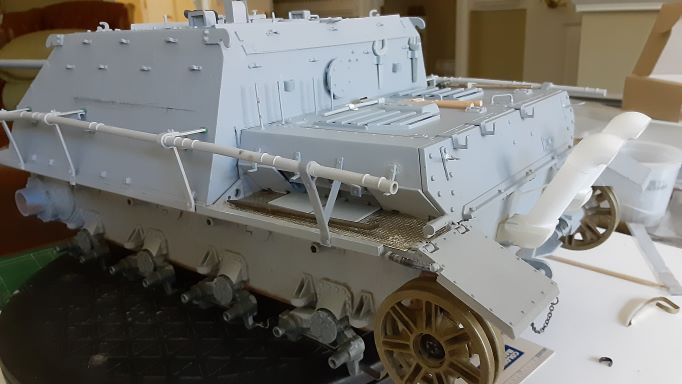

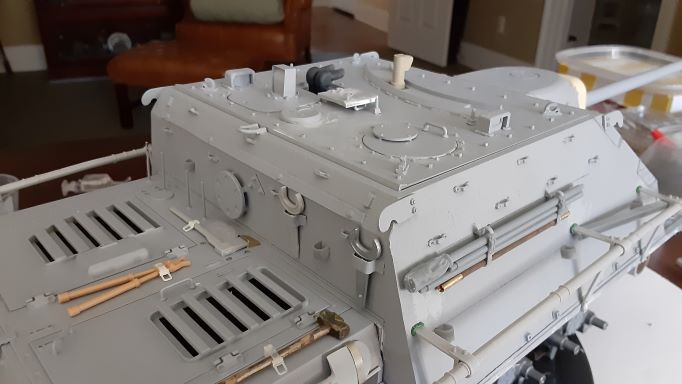

And here's the result of applied theory:

Resize P.jpg (46.07 KiB) Viewed 2307 times

Resize R.jpg (38.58 KiB) Viewed 2307 times

Resize S.jpg (41.95 KiB) Viewed 2307 times

Resize U.jpg (38.76 KiB) Viewed 2307 times

Chapter 4 upcoming

[quitcherbitchen]

That is fantastic. Thank you for sharing

[Guido Henn]

Hello Ralph,

a really very interesting project you have chosen.

It is very pleasing that you have worked out the project so strongly in detail. And if you had to find some compromises, that is certainly not detrimental to the project.

On the subject of 3D, I do not want to contribute anything, I think there are different qualities and you can be lucky or unlucky with the surfaces.

I look forward to further sections of the project


with kind regards,Guido

[HERMAN BIX]

The Thoma set up is fantastic.
Be great to see what you do for the mesh.
Tell ya what, you could flog a few sets off quick smart I bet ya

[Panzerjaeger66]

Hey Ralph,
you say "a ugly tank hunter" and for some of us maybe too, but your build and especially the very fine detailed work is marvellous!
I'd be glad to find the time and patience to do that exhausting work

Best regards,
Freddy

[EAO]

Dear God Ralph,

That looks fantastic! So nicely done!

Cheers,
Eric.
