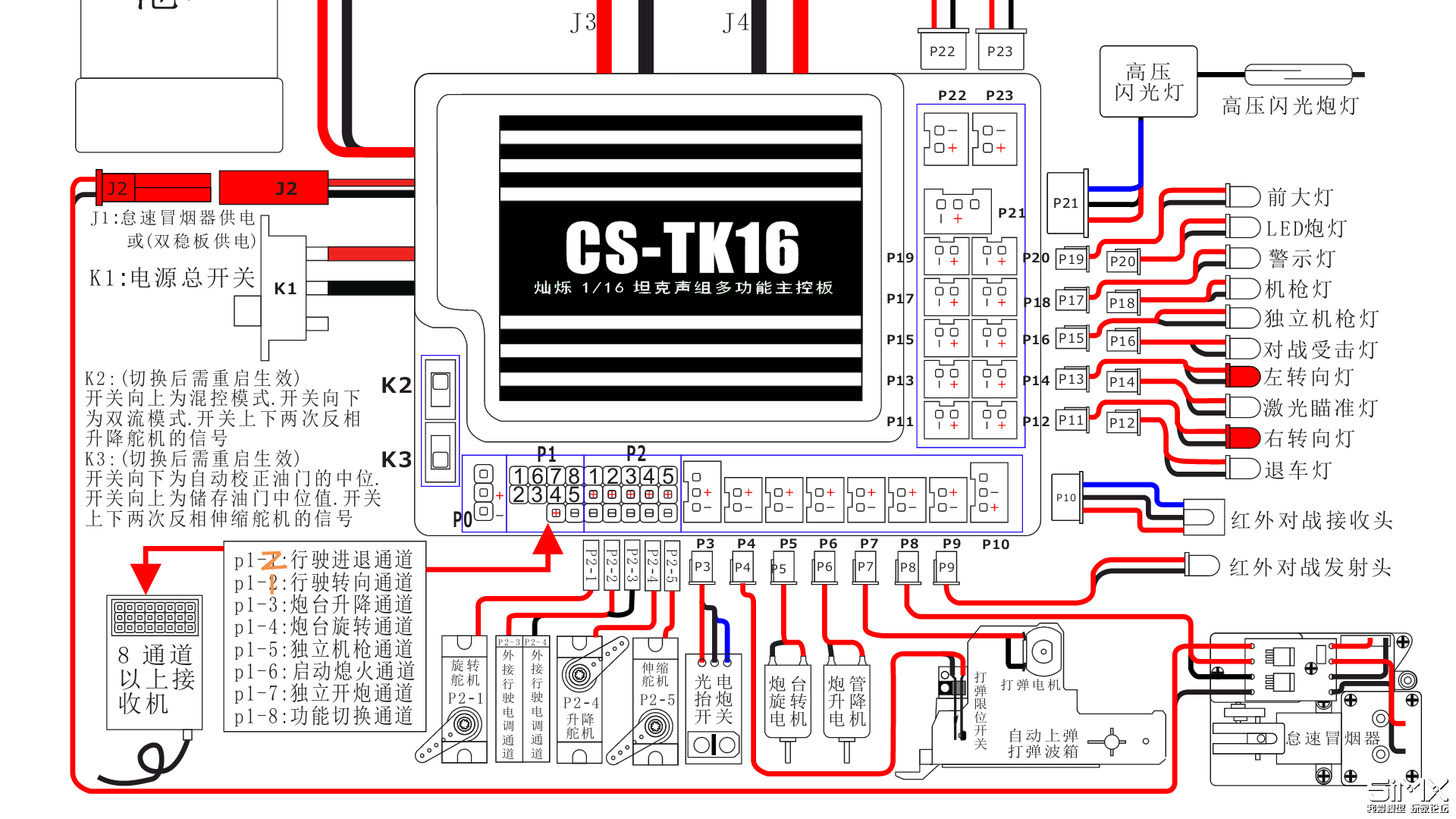

Cs-tk wiring diagram in English.

[Jofaur86]

download/file.php?id=96211
what I meant is that according to the diagram, there are only 8 wires represented? so can only be a Bus connection between the RX and the card? I was not talking about output 8, which if you read the PDF indicated here, explains that switch function? It is also specified the use of a system with "Radiolink" RX and Tx 9 channels, and I admit I don't know? but exists on other cards too.

[Jofaur86]

on PDF, see post below....
8 channels remote receiver has added three independent channels, which are “5”, “6”, “7”, and can be customized as receiver channel 6, 7 and 8.
diagram on the right, perhaps this function is only active with a 9-channel RX, Same as Radiolink?

[Shagnifico]

I’m sorry for the confusion. I’m talking about the nameless three prong connection between k3 and p1.

[Jofaur86]

on the PDF it is indicated PC or PO , looks very similar to taking for servo, found no explanation
Japanese version, PO??

[jhamm]

Hi,
it is´nt PO it is P0=Pzero possible a Programming-Port or for Sbus...

[Jofaur86]

it would not be a power supply, for another additional module? view that a plus, a minus, and maybe the 3rd wire, any connection, as on the 2 Tam modules? PC / PO would not Power?

[jhamm]

Look at it...
There is P1 and P2 - which one is missing?
Correct P0
It can be for anything as long as there is no manual,
you won't be able to sort it out.

[Jofaur86]

Look at it...
There is P1 and P2 - which one is missing?
Correct P0
It can be for anything as long as there is no manual,
you won't be able to sort it out.

exact, but on this Japanese version, there is a plus and a minus? but on the other hand, indeed PO is not listed in the scriptures around?

[General Jumbo01]

I guess you could just place the two probes of a multi meter in the + and - sockets and see if there is a current. If not, try all the transmitter positions, switches and combinations and see if that provides a reading. Just a thought.

[Shagnifico]

It’s Mandarin actually.

Anyway I learned something new. GBS calibration.



Notice the “short-circuit three times to calibrate..” bit. I’ll put a toggle switch there.
