And here we have the motorization of the model, with two short YOUTUBE videos of the model in action at the end of the post.

View of the material coming with the purchase of the 35RCTANK MTC-2 control board and ACU unit. Ordered directly from Hong Kong from their website contact info, these are pretty much the only items they are not Out of stock. All cables, a speaker, on/off switch, LEDs, resistors for LEDs and capacitors for the motors are provided, which is great. This is my second purchase of these units, allowing me better flexibility when switching these boards from one small tank to another, all pre-wired for them. It basically plug and play, dramatically reducing the cost of each build. For larger heavy tanks, i use the same Clark TK40 and TK60.
Overview of the features, quite rich for the size of these boards.
Close ups of the 2 units. Installation of the wiring, motor capacitors and configuration with the receiver took only about one hour. Its basically plug and play.
Configuration of basic preferences is done by dip switch on both boards. I think this is great, its so simple and fast compared to the configuration of a Clark board. I mean, when you are not too difficult and just want the basics like me.
The single cheap capacitor on the 130 motor is replaced by 3 better ones provided for each motor, along with new better wires that connect directly to the board motor ports.
The other tracks from R-Model was completed and gearbox installed. I was left with only 4 spare track links but with a few more track pins. Assembly is fast, about 2 hours in total, and few issues.

Everything is made ready for testing. I was so anxious that i installed the right track in the wrong direction. Something i will correct. Electronics are just deposited on the rack for testing purposes.
And now, here are two youtube videos of the integration.

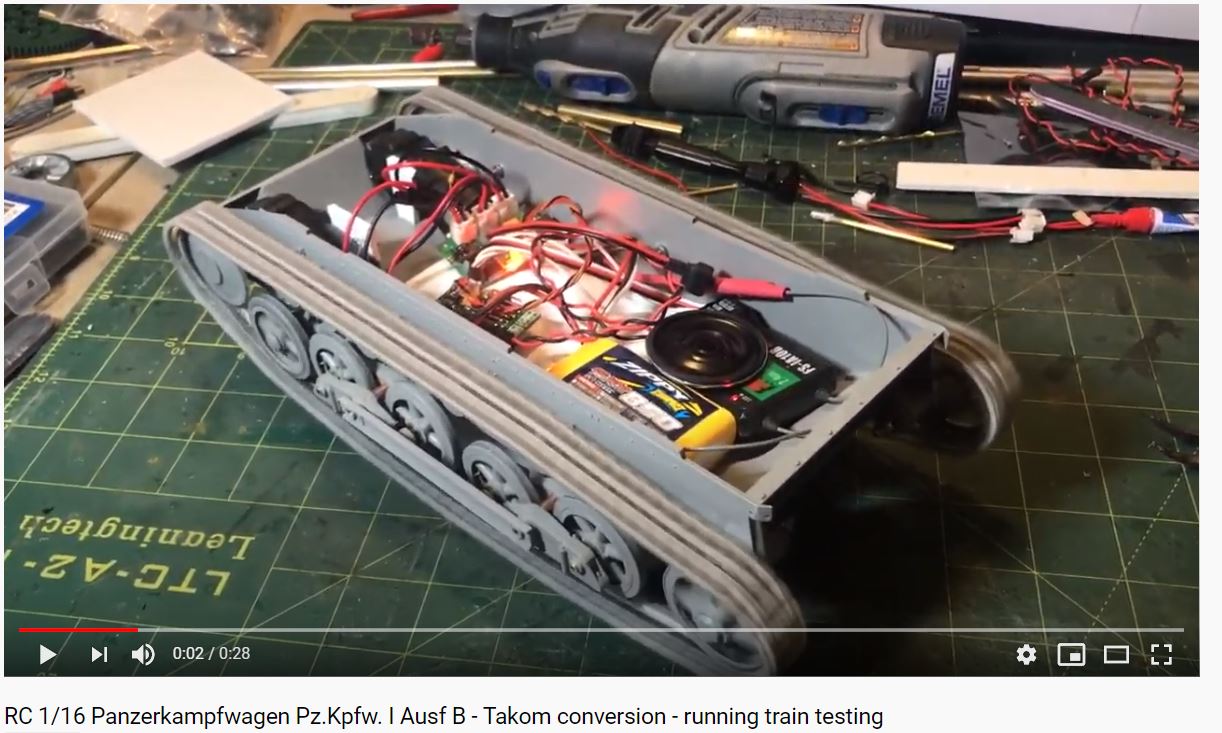

First, the initial testing of the motor, gearbox and tracks. It required no adjustments. Tracks are running great.

https://youtu.be/i3rLrThA-iU

Link above

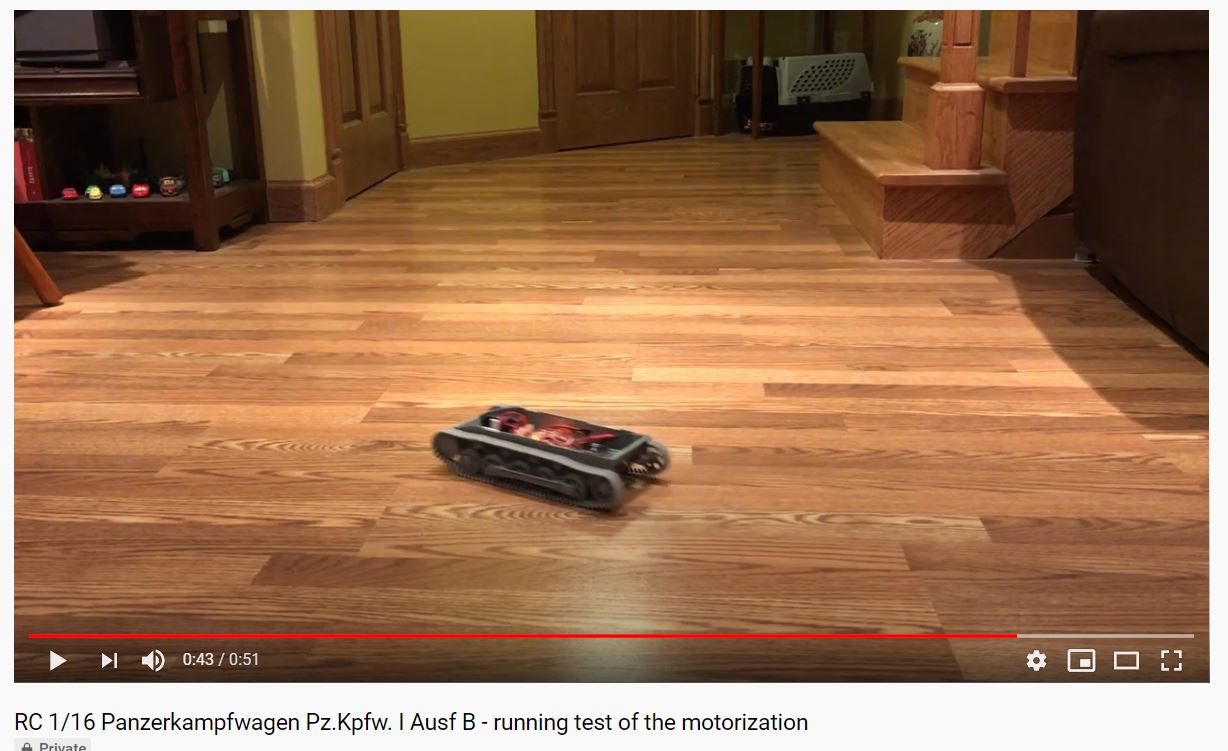

And here is a Youtube video of the running test, going slow at first and then faster. I never went up to full speed. I am very satisfied with the low to high speed control. I think its good, very easy to control.

https://youtu.be/om9HMxOimiU

Regards, Louis

Link above

Excellent work once again Louis this is yet again another of your conversions that I have bookmarked for future reference

Cheers, Lee.

I am watching this with great interest, hoping I can up my skill levels to produce an operating conversion of my Ausf A. I was intending to use the electronics from 35rctank, as you have done. I am wondering which engine sound you selected for the ACU.

Thank you,

silversurfer1947 wrote: I am wondering which engine sound you selected for the ACU.

He had two engine sounds available last summer when ordered, 38T or Sherman. I picked the Sherman because i thought i would use the board on the M5A1 Stuart but then decided to use the Clark TK instead for that build when the Mato gearbox was determined to be possible.

Knowing it would be used first on a Panzer I, the 38T would have been a better fit.

Looks great.
I think you will have a hard time staying under your $200 budget... LOL!

Jarlath wrote:I think you will have a hard time staying under your $200 budget... LOL!

thanks, So far this is what i have, and these include all shipping costs.
- Takom no 1010 Panzer 1B kit: $58
- Arduino chassis for gearbox: $22
- Mato Sherman track adjuster: $20
- R-Model metal tracks: $44
- Aber16L-17 brass MG13 barrels: $28
- Servos, turret rotation, various: $25
Total $197

The 35RCTANK boards were $80 with shipping but i do not include them as part of the cost because i reuse these and the receiver for various builds pre-wired for them.

lmcq11 wrote:Thank you,

silversurfer1947 wrote: I am wondering which engine sound you selected for the ACU.

He had two engine sounds available last summer when ordered, 38T or Sherman. I picked the Sherman because i thought i would use the board on the M5A1 Stuart but then decided to use the Clark TK instead for that build when the Mato gearbox was determined to be possible.

Knowing it would be used first on a Panzer I, the 38T would have been a better fit.

Thanks for that. I will get them ordered up.

lmcq11 wrote: thanks, So far this is what i have, and these include all shipping costs.
- Takom no 1010 Panzer 1B kit: $58
- Arduino chassis for gearbox: $22
- Mato Sherman track adjuster: $20
- R-Model metal tracks: $44
- Aber16L-17 brass MG13 barrels: $28
- Servos, turret rotation, various: $25
Total $197

The 35RCTANK boards were $80 with shipping but i do not include them as part of the cost because i reuse these and the receiver for various builds pre-wired for them.

See... I'd likely never remove the boards from an RC unless they died or were to be upgraded... So I was already figuring you at higher costs. (Labour does not even factor into stuff like this...)
You'll be close, but you have not even finished the upper hull yet (More hardware/poly/brass/CA/etc...)

Any LED's? Turret rotation gear? Magnets for upper/lower hull?
