RC control for Tami Pershing

[Jofaur86]

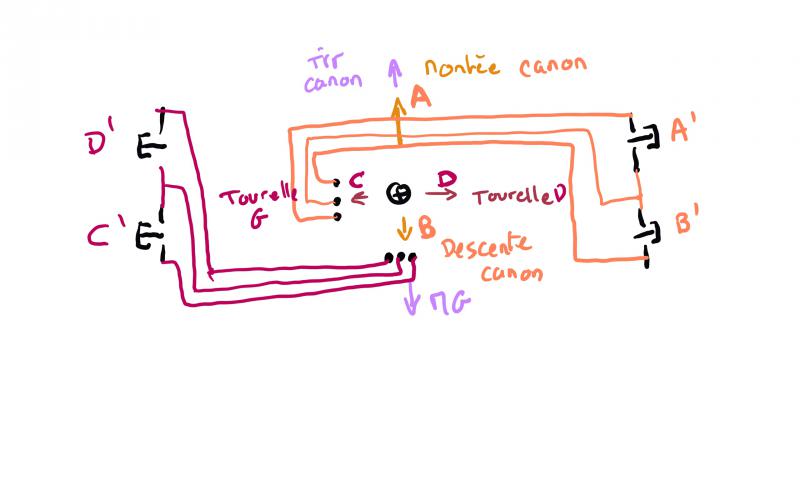

For this you have to install a 3 positions ON/OFF/ON switch in parallel on the corresponding trim.It is very easy with a little knowledge.Or 2 push buttons as bellow


in reality to have cano and machine gun function, only need A 'and B' taken in parallel on pot Vertical trim stick, if DMD set for gun elevation to 75% and 100% cannon and machine gun fire
cannon firing, up and machine gun down, brief impulse for the cannon, and maintained by machine gun, hope for clear explanations

[silversurfer1947]

I use a transmitter with digital trims to fire both cannon and machine gun on my Tamiya Tiger. I reset the end points for the cannon elevation channel to 125%. A quick flip up to maximum fired the cannon and down fired the machine gun.

[Jofaur86]

In principle,the canon and machine gun firing is on the left vertical stick,so t’y où have to connect 3 wires to the corresponding trim ......

[Ad Lav]

In principle,the canon and machine gun firing is on the left vertical stick,so t’y où have to connect 3 wires to the corresponding trim ......

Depending on the way you drive your tank - Tamiya setup is right stick

[silversurfer1947]

In principle,the canon and machine gun firing is on the left vertical stick,so t’y où have to connect 3 wires to the corresponding trim ......

Depending on the way you drive your tank - Tamiya setup is right stick

I drive mine with throttle on the left. I just swapped the channels over on the receiver. Elevation is on the right stick as is turret rotation. A simple job

[Winalot]

Is that +125% or -, ? Do you leave it there? I found at max setting the gun would start to elevate. Does that do mg and main fire?

[Ad Lav]

Is that +125% or -, ? Do you leave it there? I found at max setting the gun would start to elevate. Does that do mg and main fire?

125% for up and down on the right stick. That way elevation will continue to work for all but the very ends of the travel.

[Tiger6]

You need to calibrate the DMD first with the end point set to 100% (or a little less), and then once you have set the DMD, you can move your end points to 125%. Simply setting the end points to 125% and then calibrating will not achieve the desired result.

[silversurfer1947]

You need to calibrate the DMD first with the end point set to 100% (or a little less), and then once you have set the DMD, you can move your end points to 125%. Simply setting the end points to 125% and then calibrating will not achieve the desired result.

I omitted to mention that I calibrated the DMD when I first fitted the radio gear.

[Jofaur86]

Hello,all you have to dois reset the DMD and resume the settings not pushing the stick concerned to the maximum shooting and machine Gun,that’s what I did ,and it works
