Re: M36B1 Jackson

Post by MichaelC »

cfredbandeira wrote:Do you have any photos on the hiden servo recoil installation?
cfredbandeira,

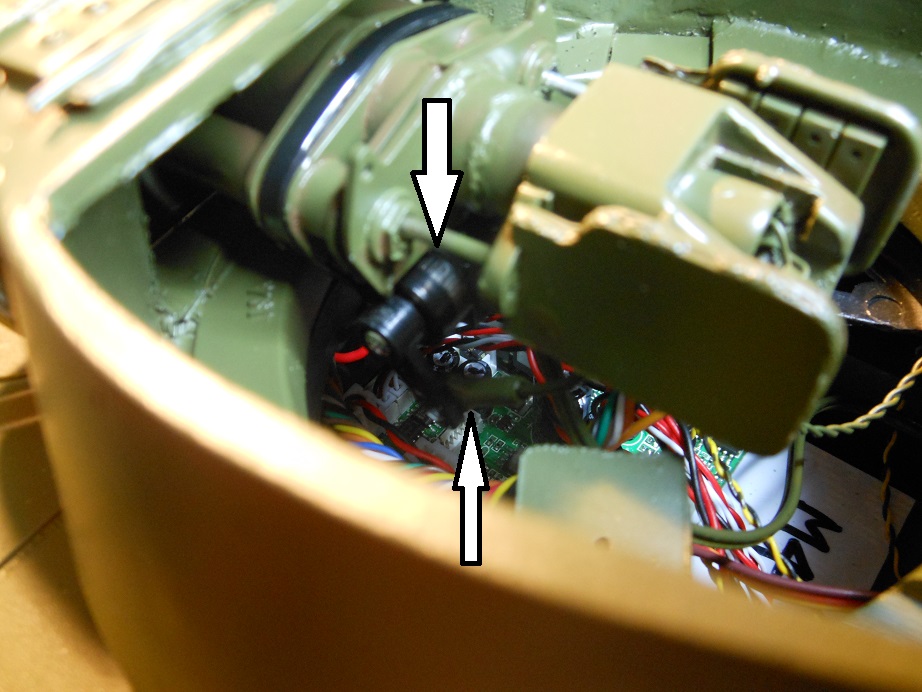

Top arrow points to the servo which is mounted directly underneath the barrel, the bottom arrow points to the control arm and it is attached to the breech block but is hidden by the breech guard so you don't actually see the mounting point.

Eastern Front, Thanks for you kind comment !

MichaelC
Attachments
Top
User avatar
MichaelC
2nd Lieutenant
Posts: 2449
Joined: Tue Oct 16, 2012 4:03 pm
Location: Toronto, Canada

Re: M36B1 Jackson

Post by MichaelC »

Here is the video prior to the mounting of the breech guard so you can see the mount point for the servo control rod.

http://youtu.be/N5FWmE5T_u8

MichaelC
Top
User avatar
cfredbandeira
Private
Posts: 65
Joined: Fri Nov 04, 2011 11:48 am

Re: M36B1 Jackson

Post by cfredbandeira »

Excelent job! Thank you for this post. I'm having some problems with the recoil on my M36.
