t34 to heng long problem

[MichaelC]

Glad its all working out. It runs much nicer with the HL electronics. You might also want to think about upgrade to metal gear set and also 400 motors.

[Tankbear]

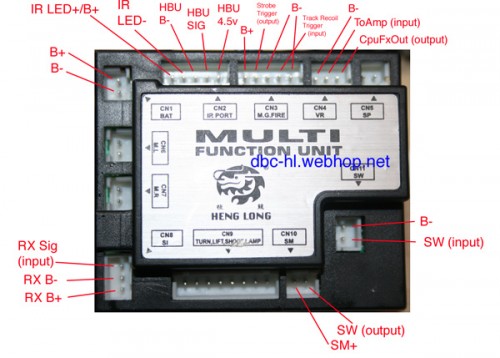

The flash LED should be connected to the first 2 pins on CN5 I believe. Is that right, Ian ? The POS and the Strobe trigger.

The HL flash (well in IR versions) is wired LED positive to the pin 5 (HBU 4.5v) of CN2 and the negative to one of the trigger wires in CN3 (think pin 4, recoil trigger).



But good you got it all working painkiller.
