First of all, Sorry for the lousy pictures. I really need a better camera.
Okay now for some fun! Want that little extra detail? HOw about some really cool and simple weld lines? No putty and no fuss....well maybe a little fuss.
Get your self a bottle of liquid plastic glue. I used AMBROID PROWELD.
Next at your hobby store purchase some of the very thin plastic stips or better yet rounds.

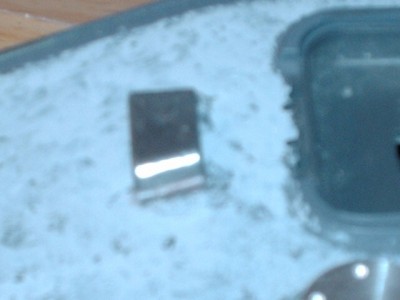

In these pictures (bad as they are) I am applying a weld to the loaders periscope cover.
Just lay the strip of plastic along the joint. With a small brush apply the glue.
Wait about a minute, then trim the plastic to size.
Now apply the cement to the plastic again. After about ten seconds use the tip of your X-Acto to replicate the weld. Let dry and bang! You have a nice little weld line.
Easy Fast Weld Lines
Forum rules
This section is for posting helpful Tips and Tricks only. Questions need to be posted within general questions section viewforum.php?f=14
This section is for posting helpful Tips and Tricks only. Questions need to be posted within general questions section viewforum.php?f=14
-
torpedochief
- Lance Corporal
- Posts: 194
- Joined: Fri Oct 30, 2009 12:47 am
- Location: Charleston SC USA
- Contact:
Easy Fast Weld Lines
- Attachments
-
- Now once it is dry trim it to length. Once dry add another bit of cement and with your knife replicate the weld. Done!
-
- Just lay the Strip where you need it and apply the first glue to hold it in place.
D. Clayton Meadows
Author of
OF ICE AND STEEL
EPITAPH
TIGER!
Author of
OF ICE AND STEEL
EPITAPH
TIGER!
Re: Easy Fast Weld Lines
Good tips Don,is the small round strip flexible once the glue is applied? What I mean is can you form it around say the machine gun mount on a Jagdpanther? Then use your hobby knife method after piece has set/bonded to the object? Have you tried dipping the end of the rod in the bottle of glue to soften the rod enough to form around components? Am working on a Jagdpanther as you know and their are several seams that require welds.Sax
-
torpedochief
- Lance Corporal
- Posts: 194
- Joined: Fri Oct 30, 2009 12:47 am
- Location: Charleston SC USA
- Contact:
Re: Easy Fast Weld Lines
You sure can. Here is aother picture. Once the cement has saturated the plastic it is almost like an extremly thin line of putty.
Don
Don
- Attachments
-
- Just glue down a little of the arc at a time until the vent is surrounded.
D. Clayton Meadows
Author of
OF ICE AND STEEL
EPITAPH
TIGER!
Author of
OF ICE AND STEEL
EPITAPH
TIGER!
Re: Easy Fast Weld Lines
Thanks Don,Sax
Re: Easy Fast Weld Lines
Great idea. Theres an even cheaper method to getting the plastic strp in just the size you want though. If you make plastic model kits you'll probably have a few left over sprue's which hold the kit parts together in the box. Cut a peice off, hold it over a candle or flame until it starts to melt, rotate the sprue to ensure its evenly heated but dont let it burn. Once soft enough slowly pull the sprue apart and stretch out a thin length of plastic. Trim and use as above.
If you let the plastic cool a little before stretching you'll get a thicker strip.
If you let the plastic cool a little before stretching you'll get a thicker strip.
