Radiomaster TX16S ... Help!?

[jfulls94]

Hi guys im trying my best to get my Radiomaster TX16S to work with my Taigen V3 board so far i have followed all the instructions to the letter, my Flysky reciever has bound to my TX16S, but i cant seem to bind my controls in the menu... its most likely user error, im very new to the TX16S

Running the latest version of EdgeTX

When i go into imputs i dont see an option to bind an axis to channel 1 for example.

Bit of a long shot but maybe someone in here is also running this radio and can help!



Sent from my SM-A908B using Tapatalk

[Jofaur86]

Hello, don't you follow a specialist in programmable radios? Like some members here? but just found this on the net, can you help? sorry if in French, but google translate is your friend
https://forum.adal.club/uploads/short-u ... K1XED2.pdf
https://radindustries.wordpress.com/2020/06/25/radios/

[Herr Dr. Professor]

Maybe this will help: viewtopic.php?t=34676&start=10.

[Jofaur86]

I think our friend can't program his transmitter properly? personally at first and if you have correctly carried out the Binding (pairing) between TX and RX, I would do a test, by connecting servo motors, on the first 4 channels of the RX, activating the 2 handles (vertical and Horizontal) if your servos react, the problem is elsewhere, you need to look in the radio menu,

[jfulls94]

Yes im nearly sure its something im not doing correct, my problem is i dont have any servos laying about at the moment although im sure they are cheap so i can always buy one for a test, im quite new to all this

Sent from my SM-A908B using Tapatalk

[Jofaur86]

look in the "electronics" post of this forum, Radio equipment line, will you find it there? could be a solution, on the other hand even if I am not a big pro of this type of equipment? I notice in this post that many people use the Open TX Firmware. On the other hand, my test solution with a servo, which you connect alternately to the TX outputs 1/2/3/4 corresponding to the handles, will confirm visually if works

[Ecam]

Servos can be had cheap and are very useful at times. I wonder if anyone near you might have one they'd be willing to lend.

[Jofaur86]

Gifts
viewforum.php?f=31

[jfulls94]

So on further investigation I've got 4 mini servos to plug into my FS reciever and hey presto all functionality is there so the problem lies with the Taigen V3 board it would seem!

Sent from my SM-A908B using Tapatalk

[Jofaur86]

Great, so already a first doubt is lifted

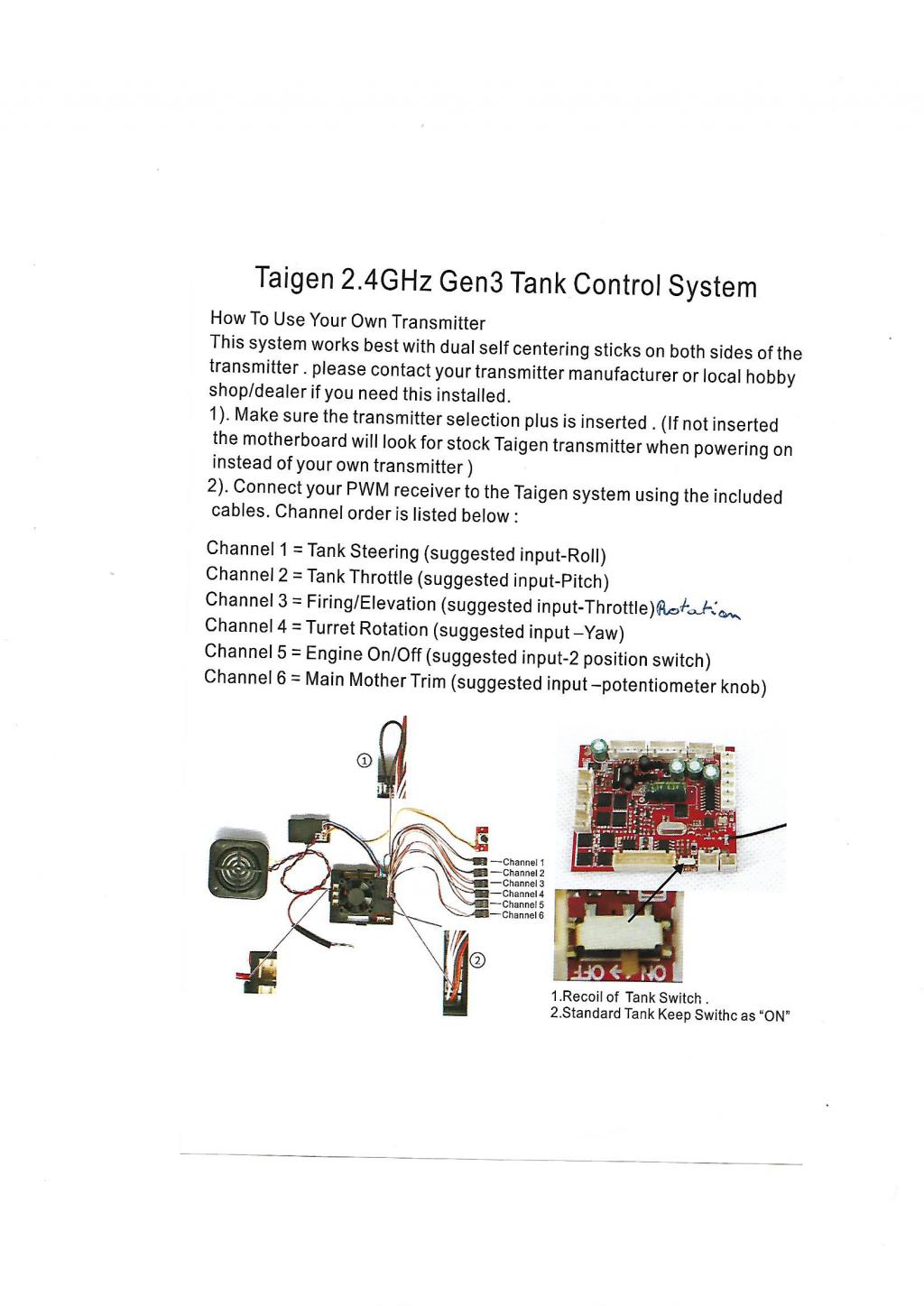

So let's return to the board? There are no functions, nothing works when activating the sticks? Already connect the 4 channels functioning as with the servos, you will find attached a diagram of the connection direction and what corresponds on the tank...


Also pay attention to this wire, black or red? It depends, it must be connected to the minus of the general interchange


it is also necessary to check, in relation to the tests with the servos, which stick does what? don't forget that these are radios for planes, or helicopters, let me explain, depending on the type of receiver, the outputs are not necessarily identical? channel 1 will not necessarily operate the same function as another RX on an aircraft? ( example )
