Büssing NAG 4500 - 4.5 ton medium-duty all-wheel drive truck of the Wehrmacht 1942/43

Post by jhamm »

Hello,
my last build...
As a combined Christmas and birthday present I received a 1/16 scale kit from Veroma of the Büssing 8000 S13.
However, the driver's cab is nothing for converting this into a 4.5 ton Wehrmacht truck - no dimensions, no shape, nothing fits the Büssing NAG 4500.
And if you're going to convert everything, then do it properly - i.e. all-wheel drive!

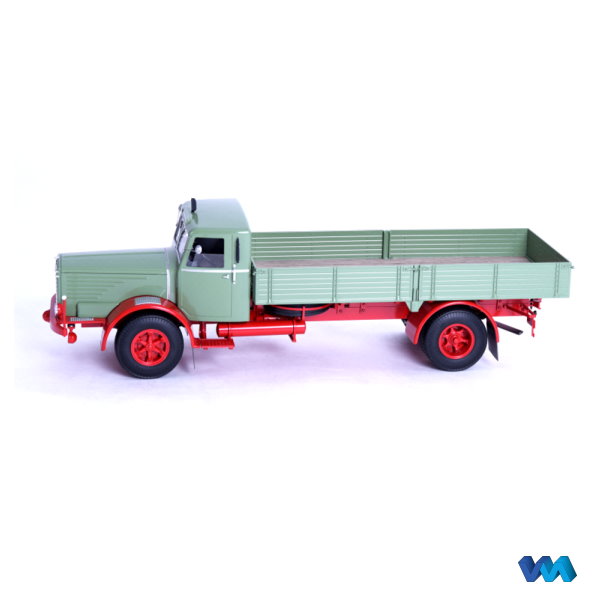

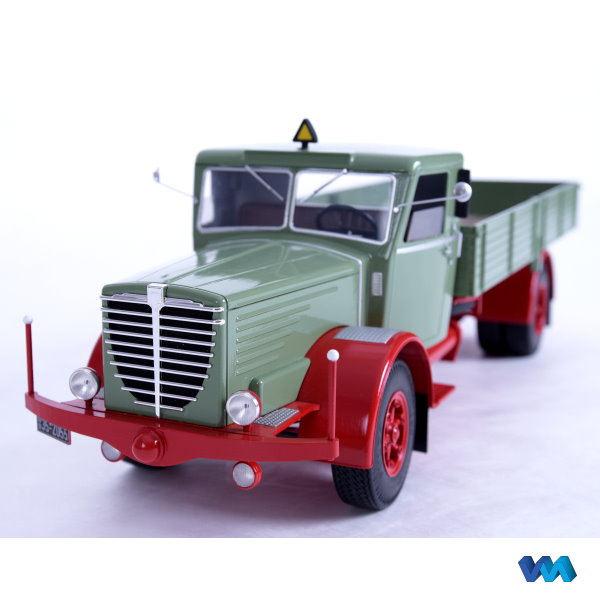

Here are some pictures of the Veroma Büssing 8000 S13 model:

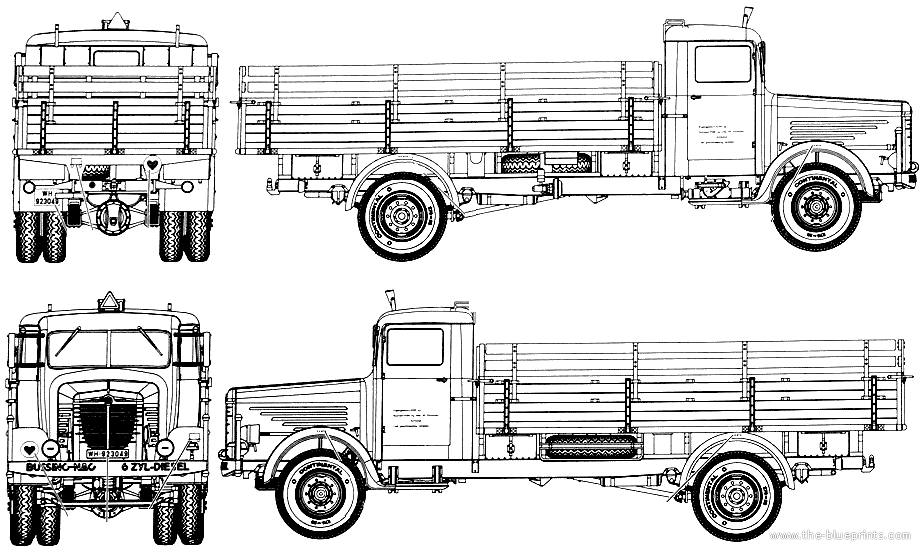

And here is a drawing of the Büssing NAG 4500 (no all-wheel drive Version):
But first I thought about what I could do and what solutions were available...
- Make your own driver's cab and mudguards
- Driven front axle => convert a Veroma rear axle
- Take the flatbed from the kit
- Gearbox from the kit drive package and a 1:1 transfer case
- Rims and tires from AFV-Modell
- Make your own wheel hubs
- Electronics Beier SFR-1

Then to the computer and started Fusion360...
A few hours later a result:

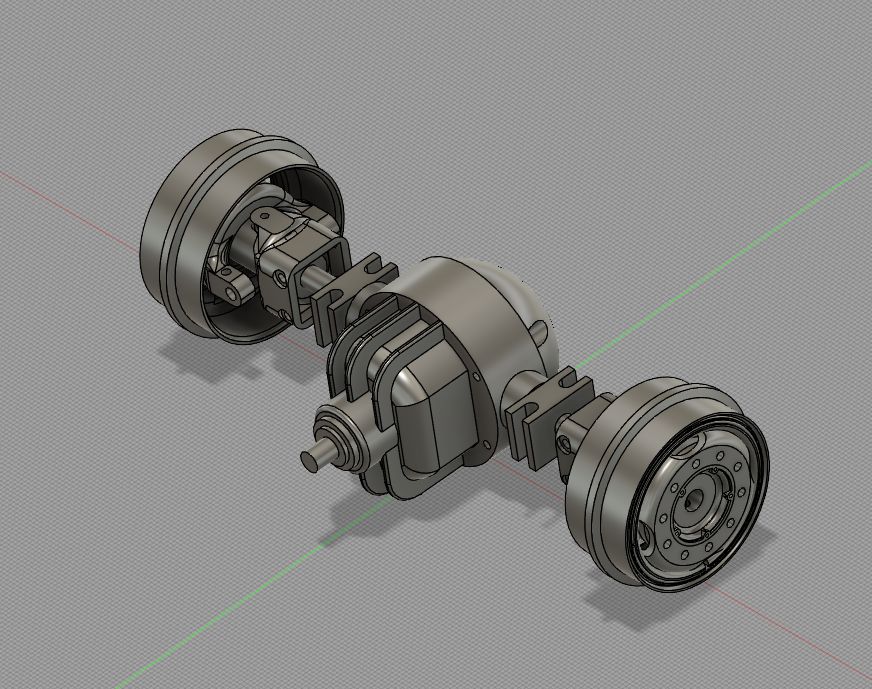

Here is a drawn solution if and how you can convert a rear axle to a front axle:
Yes, I know, the steering joints are shown twisted...

Then the 3D printer got to work...
First printed sample parts in PLA and checked if everything fits....
Then the conversion parts were printed from PETG-CF (carbon fiber reinforced)

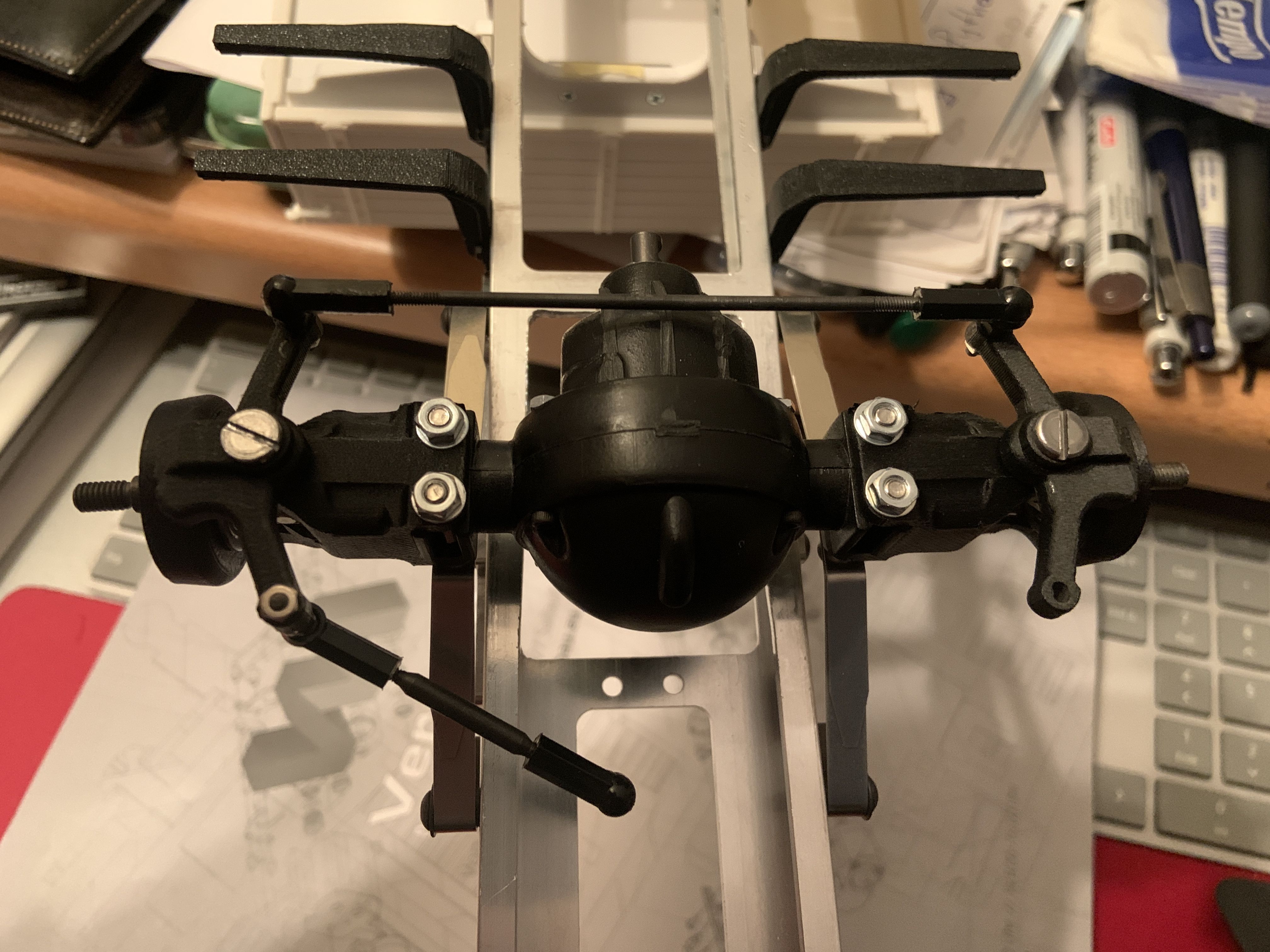

Here is the finished front axle "test-fitting" in the frame:
I also printed many additional parts from PETG-CF.

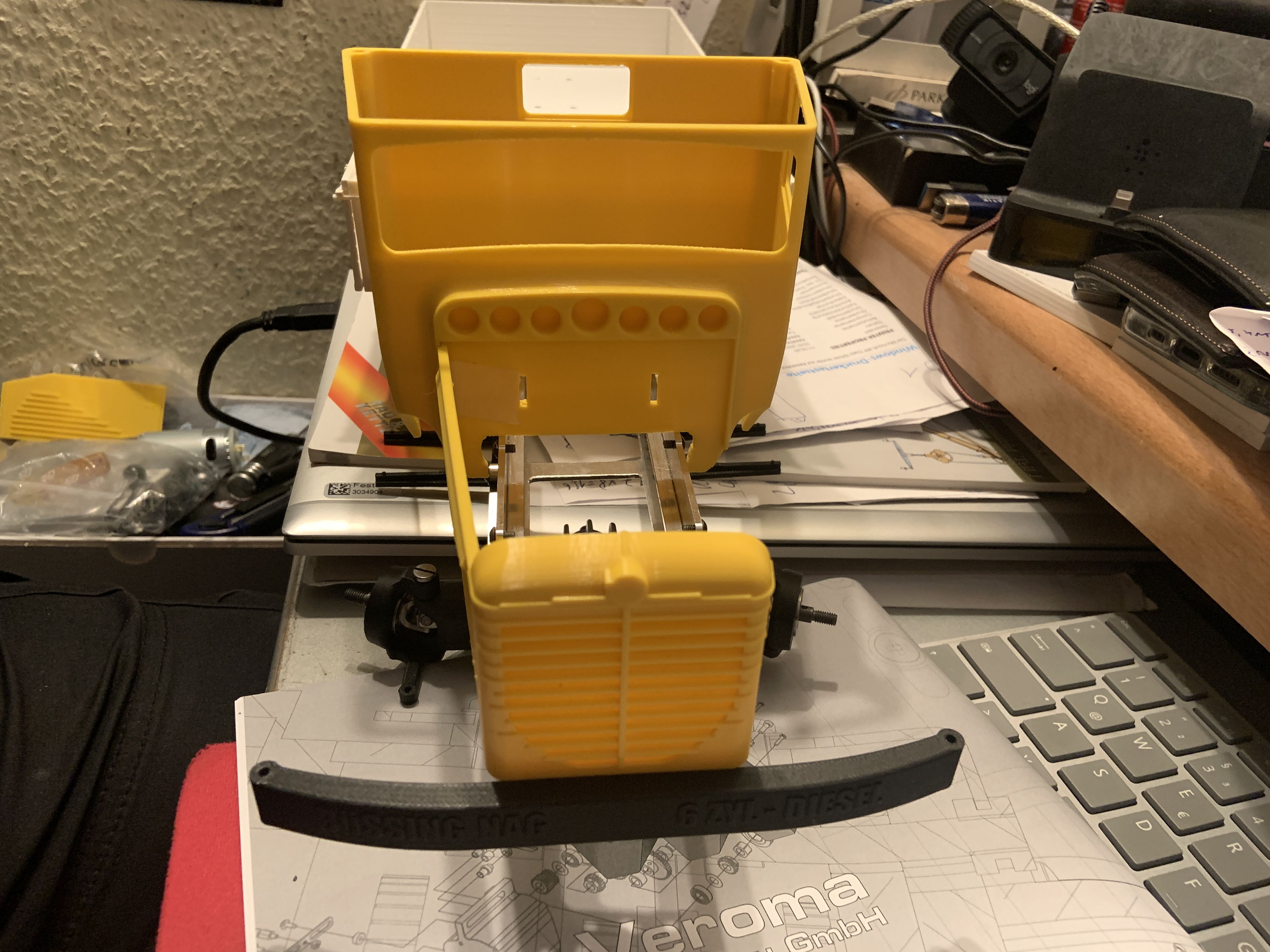

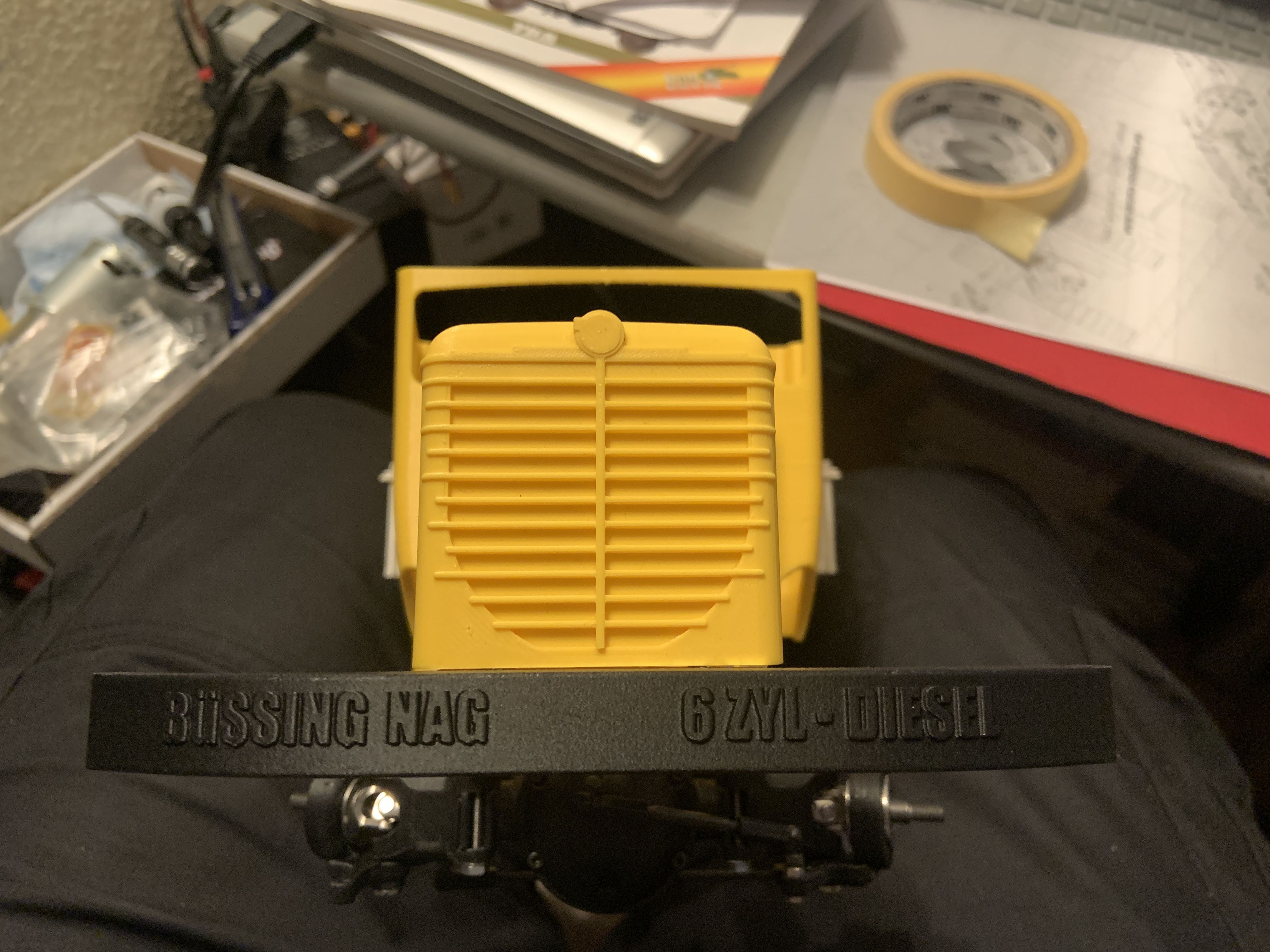

Then it was the turn of the driver's cab, which was also printed in PETG, including test prints of the mudguards in gray:

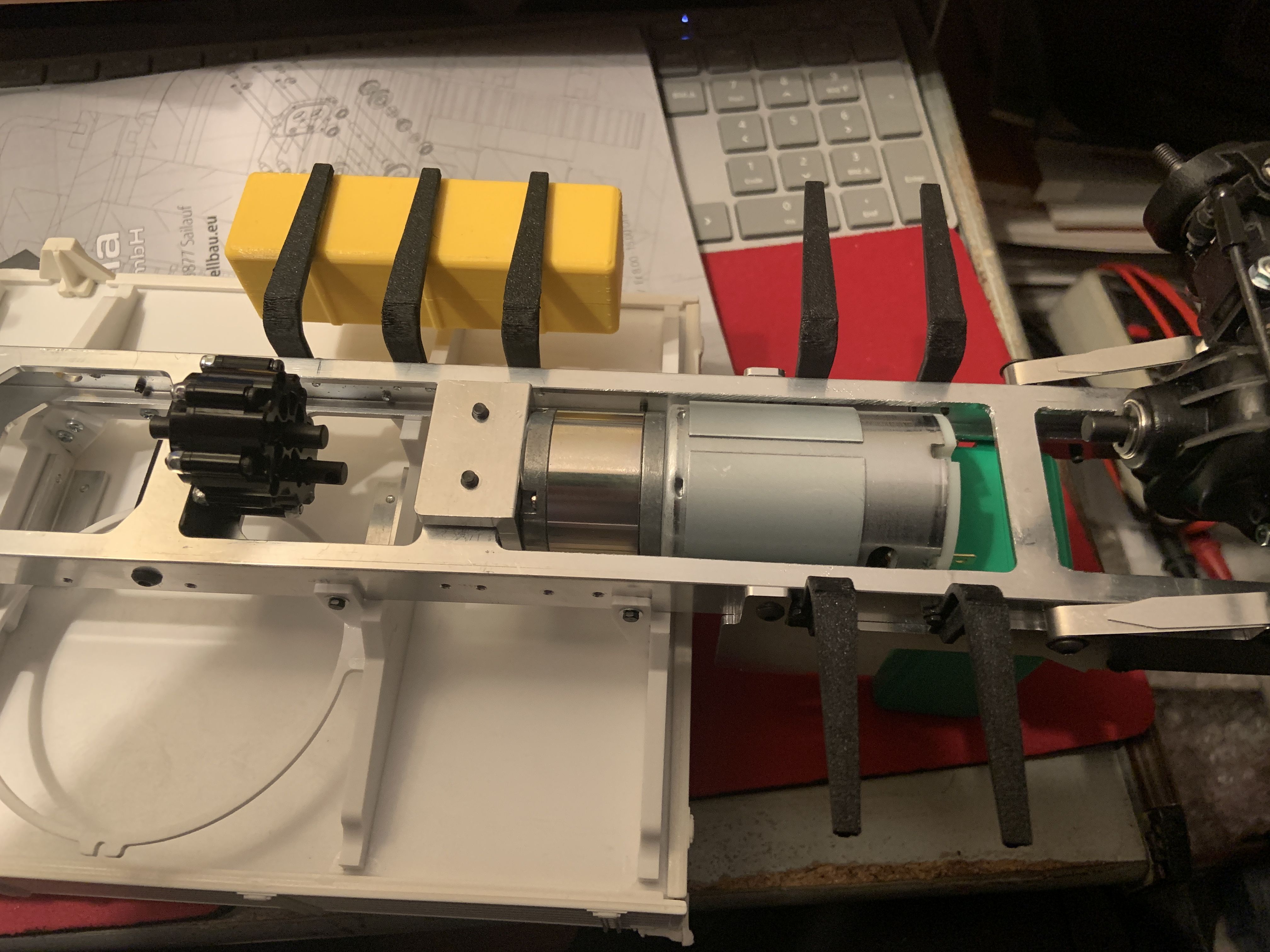

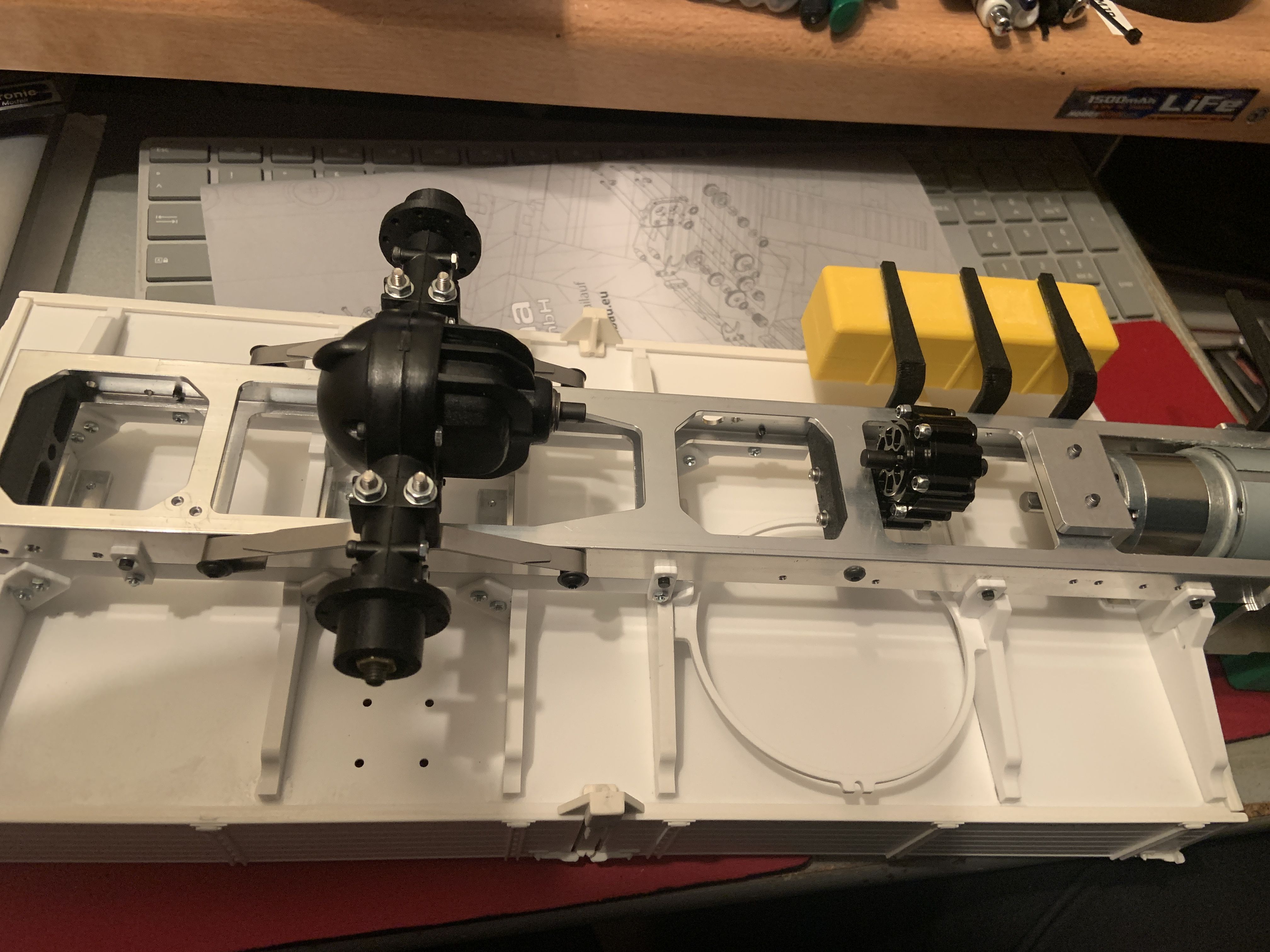

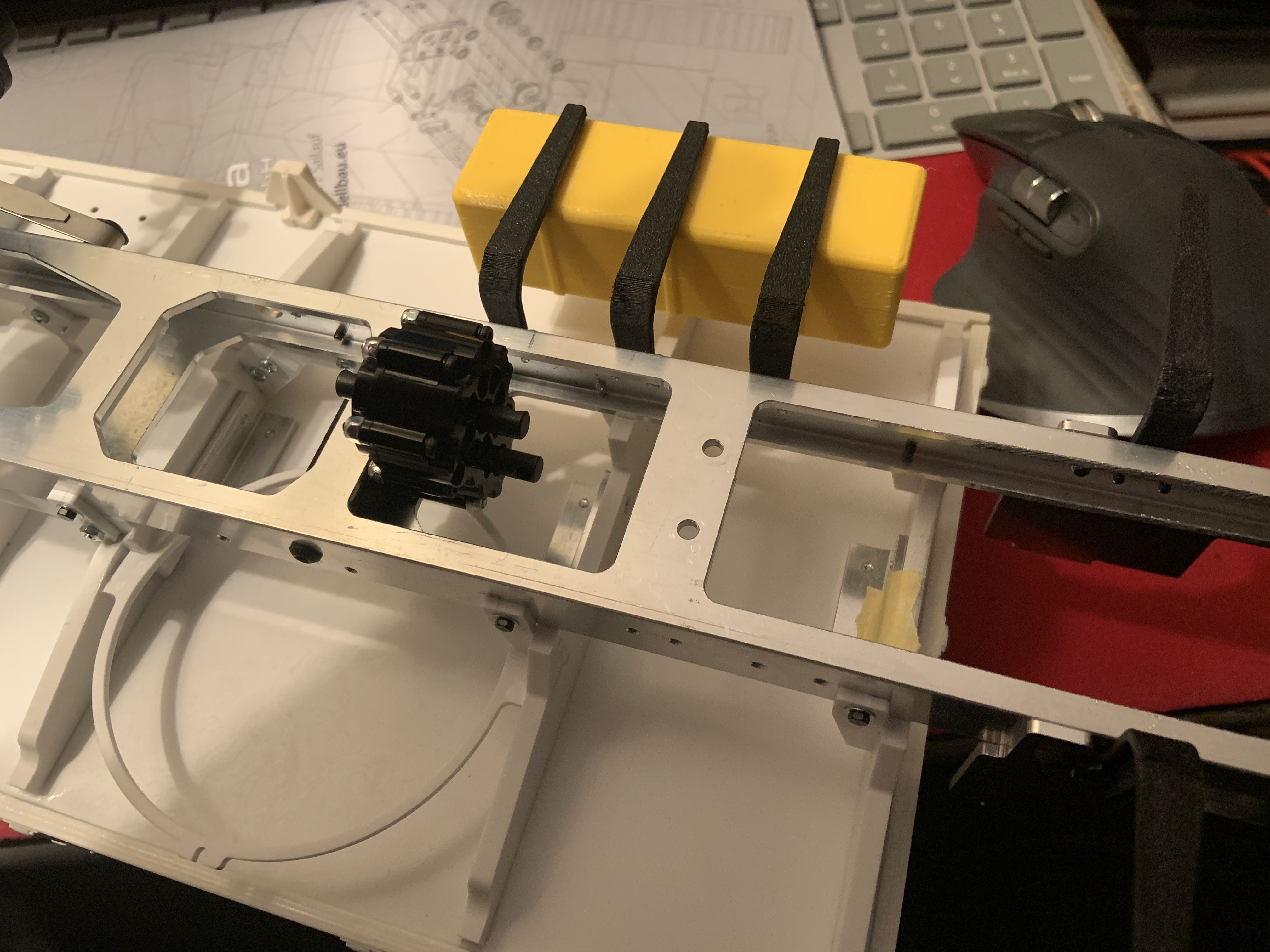

And here are some more pictures of the chassis with engine installation, transfer case and rear axle:
This made it possible to determine the required length of the cardan shafts, which were then ordered from Veroma.

That's it for today, I'll continue tomorrow.
Thanks for looking and see you soon...
Tiger6
Warrant Officer 2nd Class
Posts: 1339
Joined: Fri Mar 09, 2018 10:38 pm

Re: Büssing NAG 4500 - 4.5 ton medium-duty all-wheel drive truck of the Wehrmacht 1942/43

Post by Tiger6 »

Good start :thumbup: Are you using the commercial version of F360, or the hobbyist licence?
User avatar
Herr Dr. Professor
Captain
Posts: 4062
Joined: Mon Apr 22, 2019 10:48 pm
Location: Southern Wisconsin USA

Re: Büssing NAG 4500 - 4.5 ton medium-duty all-wheel drive truck of the Wehrmacht 1942/43

Post by Herr Dr. Professor »

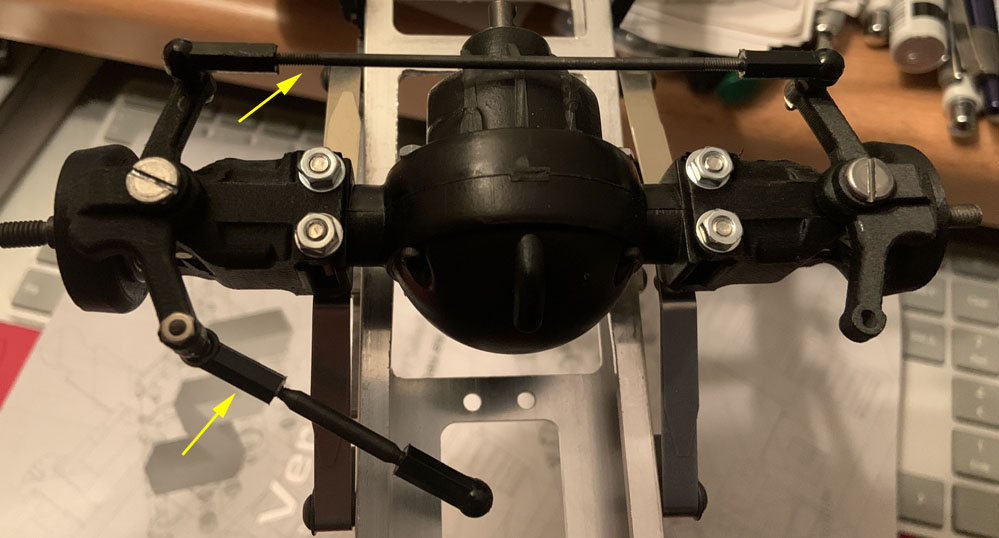

I am again so impressed by your skill, Herr Hamm! I have one question. Your front axle steering is equipped with a fine adjustable tie rod and what I know as a "drag link," the link to the steering gear (i.e. the servo). Did you print those? ...machine them yourself? ...buy them somewhere?
User avatar
jhamm
Staff Sergeant
Posts: 993
Joined: Fri May 19, 2017 7:21 am
Location: Germany
Contact:

Re: Büssing NAG 4500 - 4.5 ton medium-duty all-wheel drive truck of the Wehrmacht 1942/43

Post by jhamm »

Hello,
i am use the hobbyist license of Fusion360.
The steering linkage with the cone heads is included in the kit

Let's continue with time-consuming add-on parts...

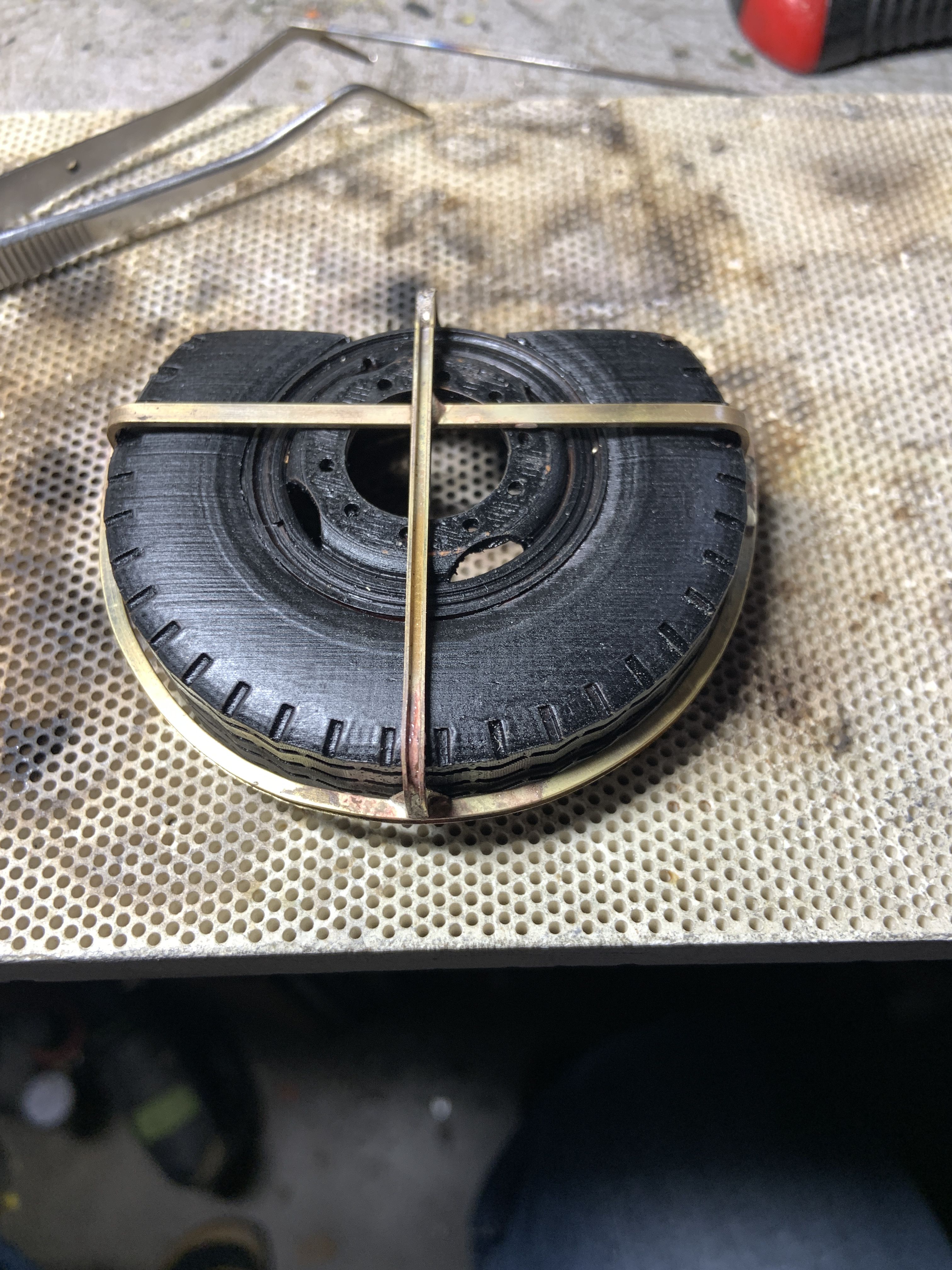

The holder for the spare wheel was brazed from brass profiles:
Since the shift servo is located behind it in the frame, the tire has to make some space:
Fits perfectly:
There's still something to be done at the rear...

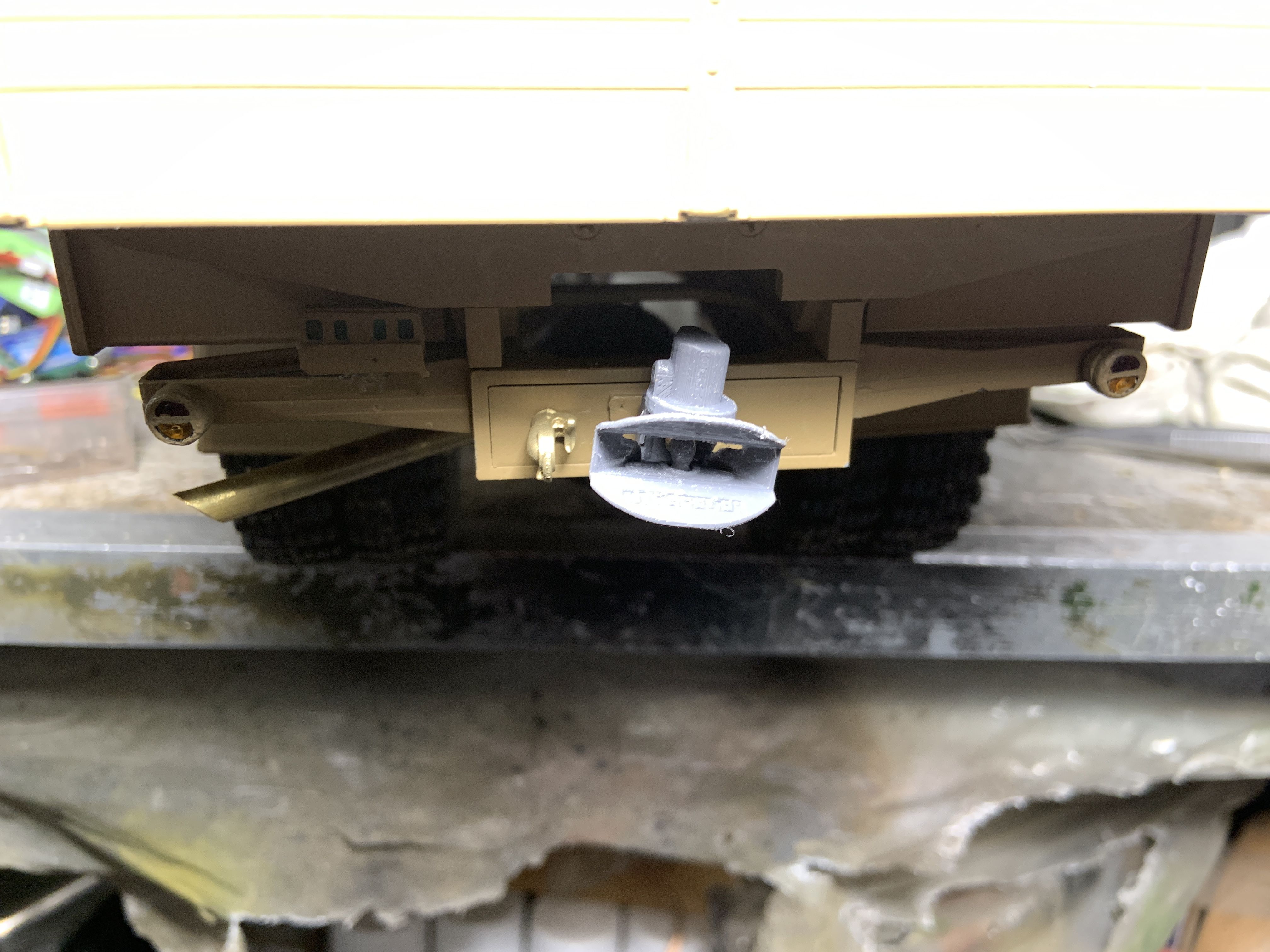

A trailer coupling and compressed air connector have now been fitted:
Thanks for looking.
See you there.....
Tiger6
Warrant Officer 2nd Class
Posts: 1339
Joined: Fri Mar 09, 2018 10:38 pm

Re: Büssing NAG 4500 - 4.5 ton medium-duty all-wheel drive truck of the Wehrmacht 1942/43

Post by Tiger6 »

jhamm wrote: Tue Feb 13, 2024 6:12 pm I am use the hobbyist license of Fusion360.
Thats a pity, I have the AFV club kit in the 'mountain of shame' that I could have pulled out and helped with a few detail parts for you, but Autodesk take a dim view of mixing files from hobby and commercial versions :(
User avatar
jhamm
Staff Sergeant
Posts: 993
Joined: Fri May 19, 2017 7:21 am
Location: Germany
Contact:

Re: Büssing NAG 4500 - 4.5 ton medium-duty all-wheel drive truck of the Wehrmacht 1942/43

Post by jhamm »

Hello,

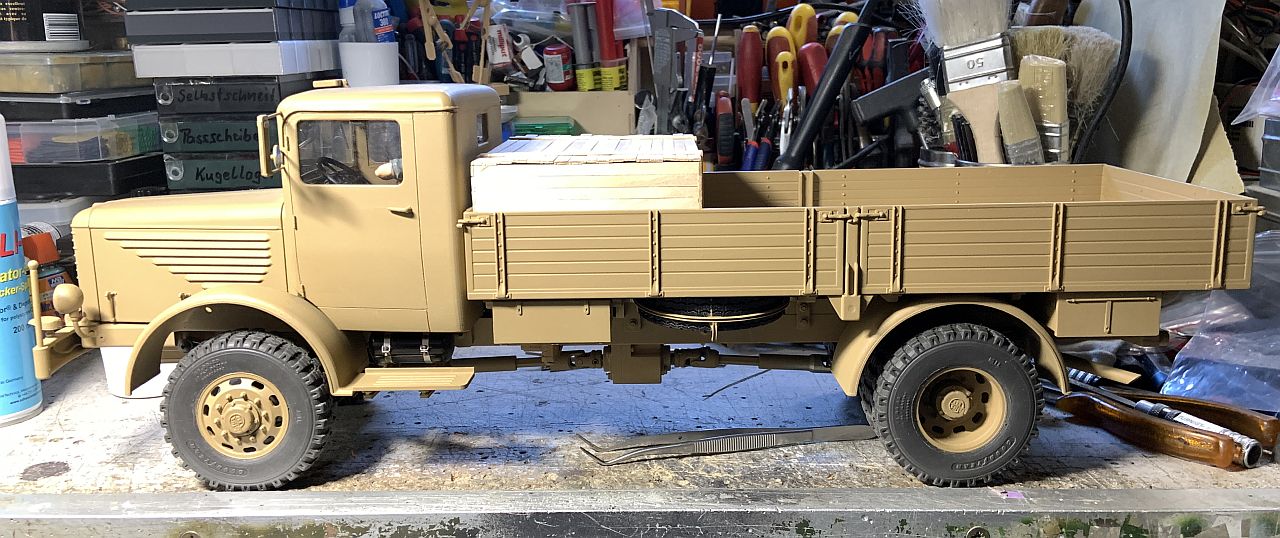

The last parts have been fitted.

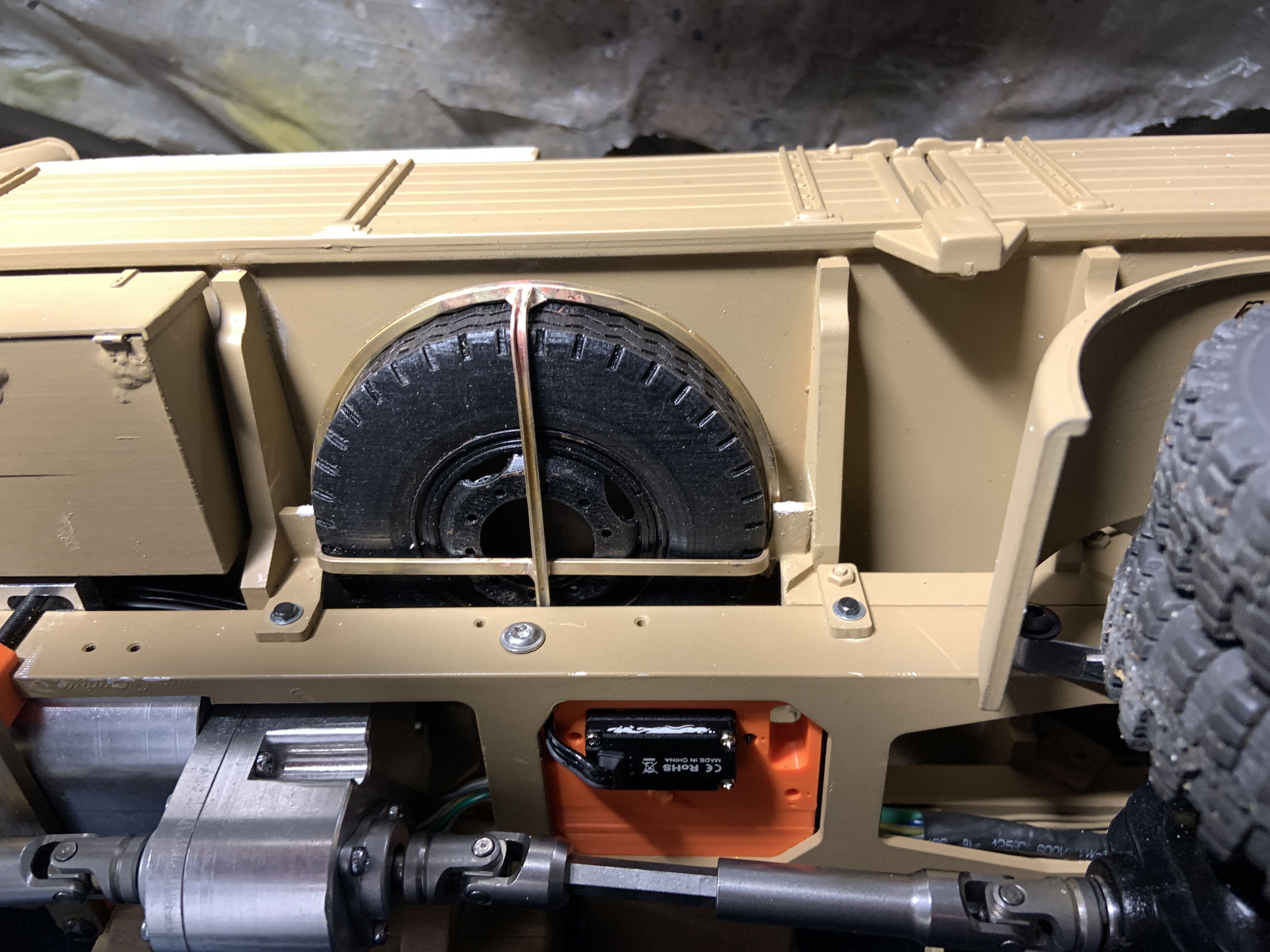

These are a compressed air tank under the driver's cab and the spare wheel under the flatbed:
Now the license plates, rail loading class + tactical signs and the camouflage paint are still missing.

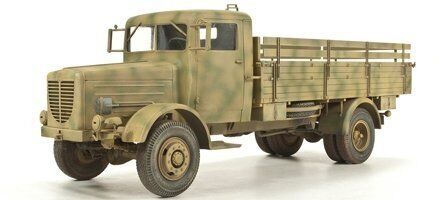

I have the following in mind for the camouflage paint:
Thanks for watching
Tiger6
Warrant Officer 2nd Class
Posts: 1339
Joined: Fri Mar 09, 2018 10:38 pm

Re: Büssing NAG 4500 - 4.5 ton medium-duty all-wheel drive truck of the Wehrmacht 1942/43

Post by Tiger6 »

:thumbup:
User avatar
Herr Dr. Professor
Captain
Posts: 4062
Joined: Mon Apr 22, 2019 10:48 pm
Location: Southern Wisconsin USA

Re: Büssing NAG 4500 - 4.5 ton medium-duty all-wheel drive truck of the Wehrmacht 1942/43

Post by Herr Dr. Professor »

jhamm, I am continually impressed by your skill, and your Büssing is yet another example. I was intrigued to see a quite familiar taillight shape on this model, for that is the taillight I recall seeing on real trucks here in the U.S., including a few that I drove in the late 1960s and early 1970s. I have no idea what firm(s) made that taillight, but I saw it on various brands of medium duty trucks.
Ubiquitous Taillight.jpg
Ubiquitous Taillight.jpg (119.07 KiB) Viewed 385 times
Oh, I do pity the driver when he needs to install the spare tire. :O
User avatar
jhamm
Staff Sergeant
Posts: 993
Joined: Fri May 19, 2017 7:21 am
Location: Germany
Contact:

Re: Büssing NAG 4500 - 4.5 ton medium-duty all-wheel drive truck of the Wehrmacht 1942/43

Post by jhamm »

Hi,
the housings of the the taillights are 3d-printed.
The colored lenses are available from Veroma:
https://www.veroma-modellbau.eu/produkt ... tenglaser/

Veroma have a lot of parts for 16 scale trucks.
User avatar
Kaczor
Warrant Officer 1st Class
Posts: 1942
Joined: Fri May 18, 2018 9:58 am
Location: Ciechanow, Poland
Contact:

Re: Büssing NAG 4500 - 4.5 ton medium-duty all-wheel drive truck of the Wehrmacht 1942/43

Post by Kaczor »

What a great looking truck. Well done!
