Help: HL M1A2 (Pro) + TUSK II (Metal)

Post by KuldueV »

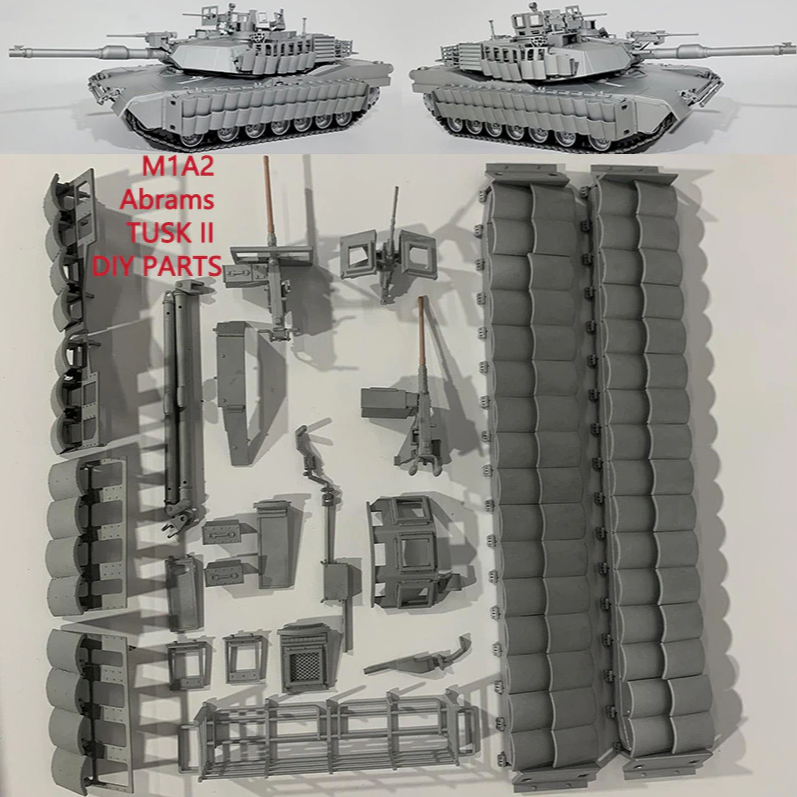

Hello everyone, i just ordered a HL M1A2 and while im waiting for it to arrive im thinking to get a metal TUSK II package, but the description clearly says:
"Warning: there are no installation instructions. You need to drill holes and use glue to fix them yourself."

Maybe someone got the same package and could give a few advices on how to correctly install it, thanks in advance
User avatar
BarryC
2nd Lieutenant
Posts: 2491
Joined: Sun Jan 03, 2016 11:43 am
Location: Savannah, GA. USA

Re: Help: HL M1A2 (Pro) + TUSK II (Metal)

Post by BarryC »

Hi sir,

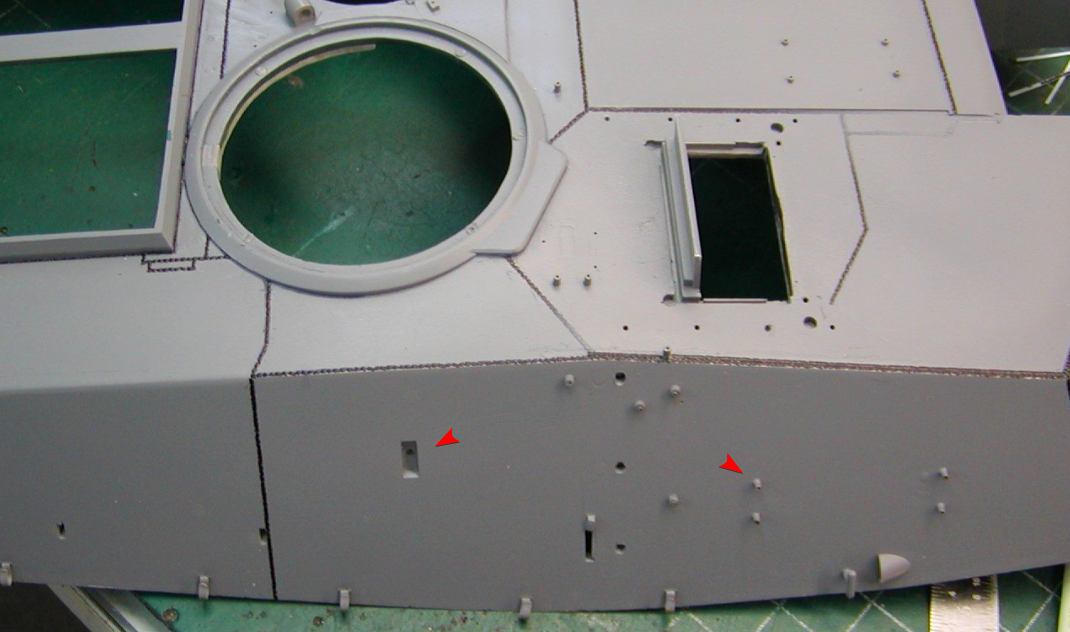

I can advise you a little as I have fabricated and installed the TUSK I fit to the Heng Long M1 hull. You can view my build here:

viewtopic.php?p=168510#p168510

I have many photos of the process post and even more that are not.


Please let me know if I can be of help.

Barry
"Details make perfection, and perfection is not a detail."
Leonardo Da Vinci
KuldueV
Recruit
Posts: 18
Joined: Mon Feb 20, 2023 4:25 pm

Re: Help: HL M1A2 (Pro) + TUSK II (Metal)

Post by KuldueV »

BarryC wrote: Mon Feb 20, 2023 8:59 pm Hi sir,

I can advise you a little as I have fabricated and installed the TUSK I fit to the Heng Long M1 hull. You can view my build here:

viewtopic.php?p=168510#p168510

Barry
Wow! Stunning work!
Ill need to mount a metal TUSK kit on regular plastic Heng Long hull and turret, i never worked with metal and have no idea how to "glue" it all together
will the plastic handle weight and stress, or should i leave this idea...
I see mounts on your build, but i cant figure out if they are decorative or actually hold parts together
User avatar
tankme
2nd Lieutenant
Posts: 2862
Joined: Tue Oct 31, 2017 3:51 pm
Location: Elgin, TX
Contact:

Re: Help: HL M1A2 (Pro) + TUSK II (Metal)

Post by tankme »

I'm not sure that anyone here has actually installed the metal TUSK2, at least not that I've seen here. It seems some of those items have mounting points so you will probably have to drill holes in your HL turret and side skirts. Personally I wouldn't use glue alone. Glue with a mechanical connection (IE: screws) would be much better. I know when I attached my 3D printed TUSK2 to my side skirts, I drilled holes in the back of the ERA panels to accept countersunk screws from the inside. If you've never done this type of thing of drilling holes and tapping them in metal, it might be a little daunting for a beginner. We can help out as much as possible, but the metal pieces are going to be heavy.

Derek
Derek
Too many project builds to list...
KuldueV
Recruit
Posts: 18
Joined: Mon Feb 20, 2023 4:25 pm

Re: Help: HL M1A2 (Pro) + TUSK II (Metal)

Post by KuldueV »

tankme wrote: Mon Feb 20, 2023 10:11 pm I'm not sure that anyone here has actually installed the metal TUSK2, at least not that I've seen here.

Derek
Thank you Derek! I guess it will be a little tricky, but I'm not new to working with my hands.
Your comment gave me required confidence, i will buy the kit and i think everything will become clear once i get it
as we say in Russia "the eyes are afraid but the hands are doing" :)

My final goal is to make my signature work a reality (but with TUSK II instead)
User avatar
BarryC
2nd Lieutenant
Posts: 2491
Joined: Sun Jan 03, 2016 11:43 am
Location: Savannah, GA. USA

Re: Help: HL M1A2 (Pro) + TUSK II (Metal)

Post by BarryC »

Thank you for your kind words.

All the mounts are functional. Many of these parts are very heavy and are subject to being banged and bumped. Plus I am going for maximum accuracy of detail. I also want to be able to disassemble for repair or replacement. Any of the parts I "glue" is accomplished with metal based epoxy.

If you intend run you tank hard I absolutely recommend using screws or other types of fasteners to allow you to remove parts as needed. Just in normal handling for maintenance they will be subject to bumps and bangs.

Barry
"Details make perfection, and perfection is not a detail."
Leonardo Da Vinci
KuldueV
Recruit
Posts: 18
Joined: Mon Feb 20, 2023 4:25 pm

Re: Help: HL M1A2 (Pro) + TUSK II (Metal)

Post by KuldueV »

BarryC wrote: Tue Feb 21, 2023 12:00 am Thank you for your kind words.

All the mounts are functional.

Barry
So nuts and bolts are actually holding parts together? That's just crazy, very impressive
Looks like great fun awaits me :D
User avatar
tankme
2nd Lieutenant
Posts: 2862
Joined: Tue Oct 31, 2017 3:51 pm
Location: Elgin, TX
Contact:

Re: Help: HL M1A2 (Pro) + TUSK II (Metal)

Post by tankme »

KuldueV wrote: Tue Feb 21, 2023 8:56 am
BarryC wrote: Tue Feb 21, 2023 12:00 am Thank you for your kind words.

All the mounts are functional.

Barry
So nuts and bolts are actually holding parts together? That's just crazy, very impressive
Looks like great fun awaits me :D
Barry *IS* nuts...litterally...lol Have you seen that attention to detail? I wouldn't want to work for that guy with that need for perfection. :haha:

Derek
Derek
Too many project builds to list...
KuldueV
Recruit
Posts: 18
Joined: Mon Feb 20, 2023 4:25 pm

Re: Help: HL M1A2 (Pro) + TUSK II (Metal)

Post by KuldueV »

Barry *IS* nuts...litterally...lol Have you seen that attention to detail? I wouldn't want to work for that guy with that need for perfection. :haha:

Derek
Hah, nice one
I love details, there is never too much, especially when you enjoy doing it
