Herr Doc's Famo

[Herr Dr. Professor]

Those of you who have built the Asiatam Famo can help me limp through this one. I am going to take on this project despite a paucity of skills, as demonstrated by my WCP 4X4 build at viewtopic.php?f=23&t=32221&hilit=Jeep.

I have a few print sources on the Famo, and lots of others online. (I have to go into town to get any internet connection, so I don't have the sources to cite them, but I can get them a.s.a.p.).

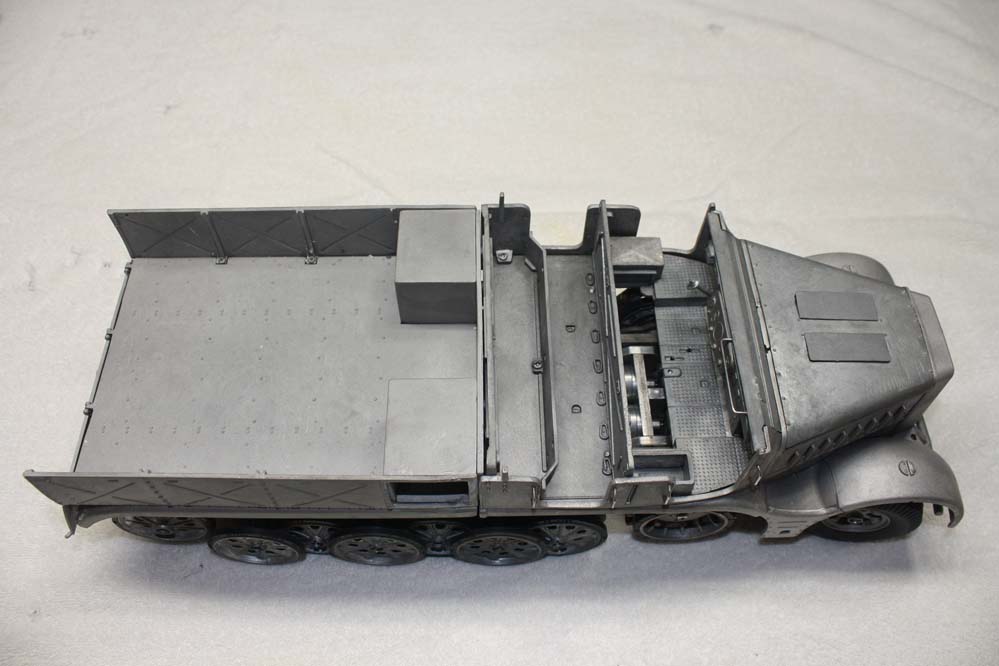

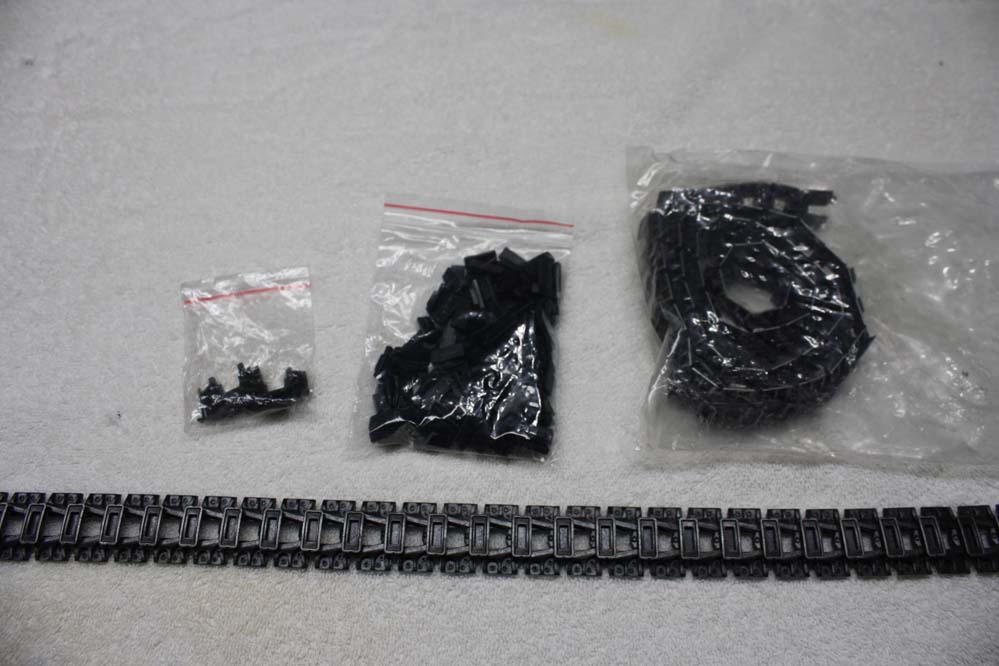

For starters, here is part one of my current inventory. I can identify most of the detail parts, and I can see how to disassemble the main body and chassis. However, the electronics will be more of a challenge, so after this inventory, I will have an initial question.

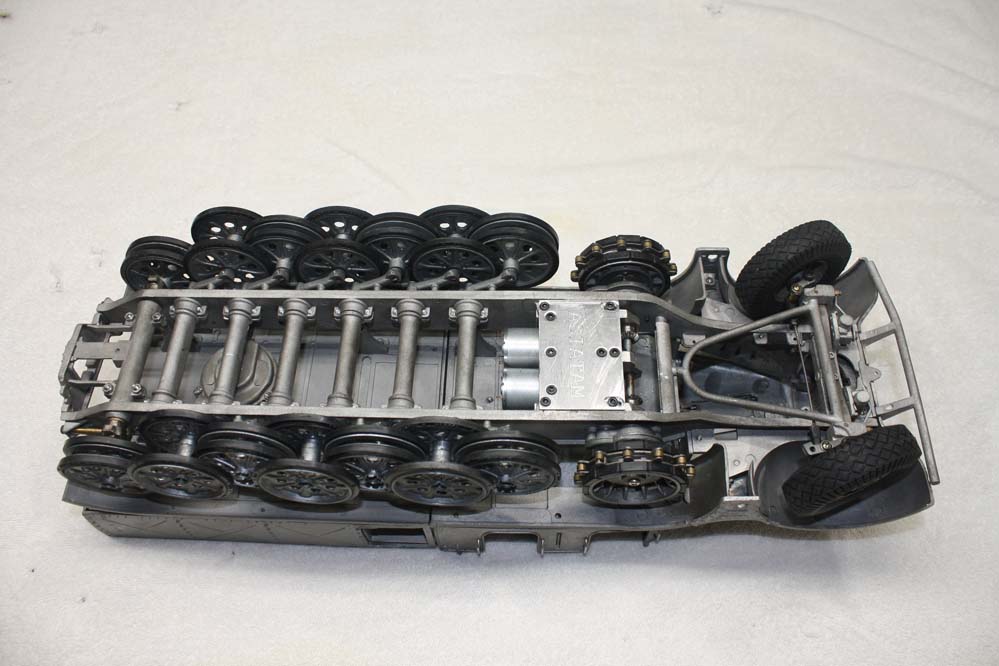

Famo Inventory _01.JPG (70.71 KiB) Viewed 80933 times

Famo Inventory _03.JPG (87.59 KiB) Viewed 80933 times

Famo Inventory _05.JPG (89.28 KiB) Viewed 80933 times

[Herr Dr. Professor]

Part two of my current inventory:

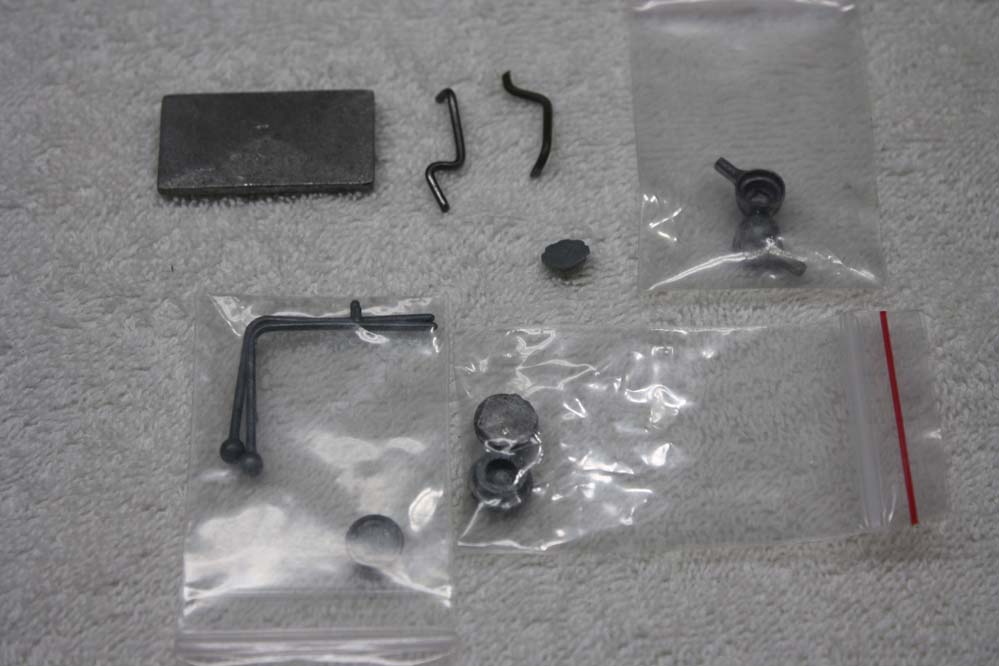

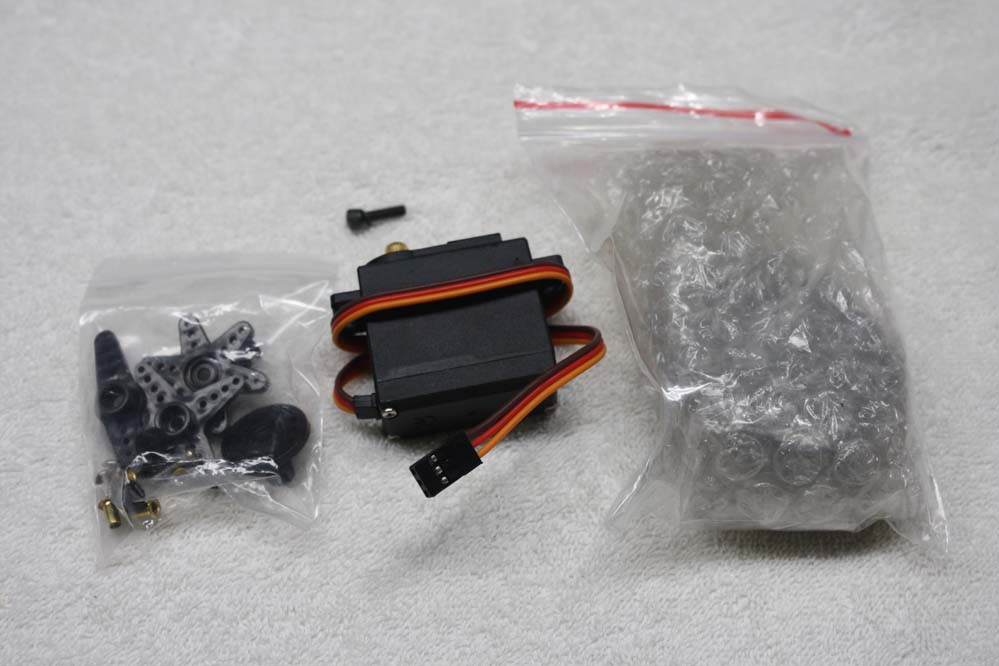

Famo Inventory _06.JPG (87.37 KiB) Viewed 80932 times

Famo Inventory _07.JPG (77.38 KiB) Viewed 80932 times

Famo Inventory _08.JPG (90 KiB) Viewed 80932 times

Famo Inventory _09.JPG (87.23 KiB) Viewed 80932 times

[Herr Dr. Professor]

Part three of my current inventory:

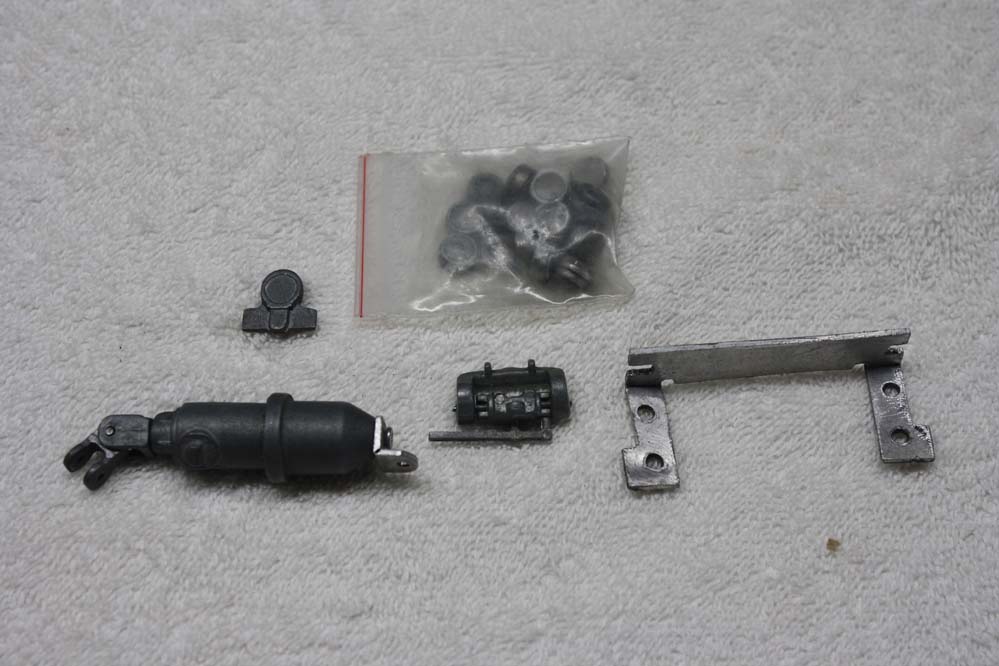

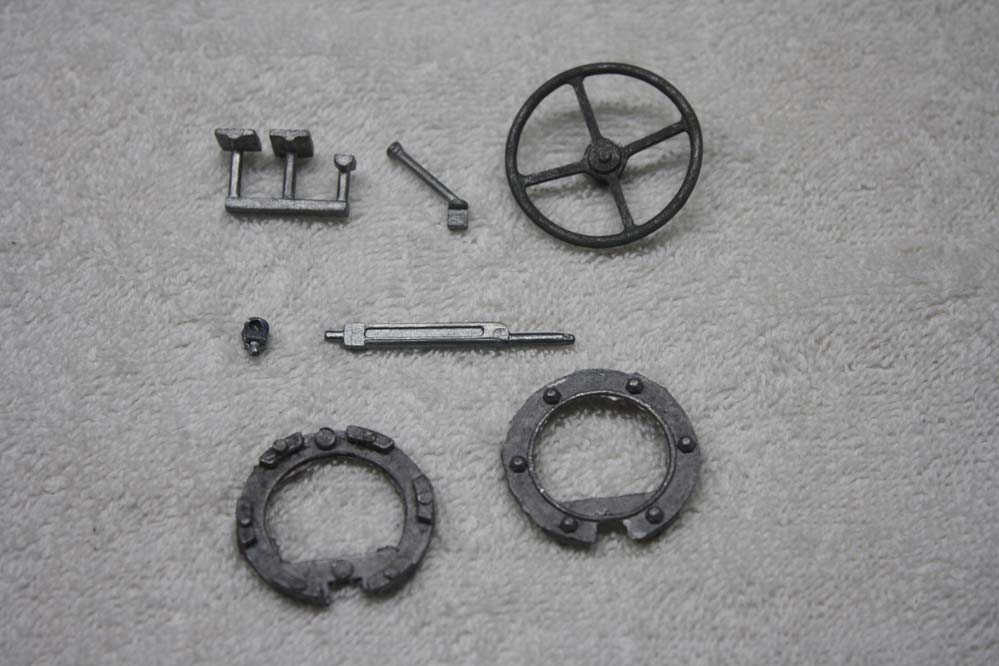

Famo Inventory _10.JPG (85.81 KiB) Viewed 80931 times

Famo Inventory _11.JPG (75.66 KiB) Viewed 80931 times

Famo Inventory _13.JPG (75.54 KiB) Viewed 80931 times

[Herr Dr. Professor]

(I have no idea why the photo appears twice; it is not so in the editing screen); however,
Here are my initial questions of many sure to come:

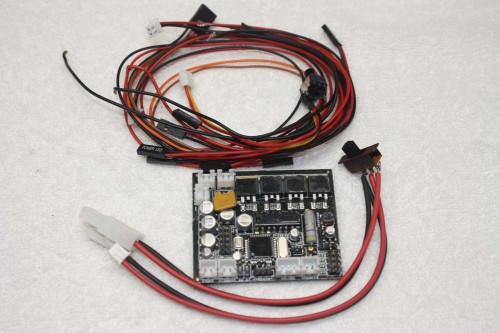

The nominal instructions from Asiatam show the link between the board shown in photo of electronics to a HengLong or Taigen motherboard.
1) I surmise that this is Asiatam's version of the ESC, correct?
2) If so, I should be able to link this board to a Taigen V3 with the appropriate Maybach sound, right?
3) If this is Asiatam's version of the ESC, is it designed so as to coordinate the track speed and steering?

[Jimster]

Looks like a complete control unit to me. I can’t quite read the printed lettering below the plug sockets though.

[jhamm]

Hello Herr Dr. Dr. Professor Hc Tanker,
normal, these electronics are connected to a commercially available receiver.
Asiatam also sold this as a set with a Multiplex Smart SX FLEXX.
It will not work with Taigen electronics.

The best thing to do is to write an email to Asiatam and ask for the operating instructions.
E-MAIL: asiatam66@yahoo.de

[Herr Dr. Professor]

I have put up the citations for two books regarding the Famo at: viewtopic.php?f=108&t=33382. If anyone knows of more, please do add citations.

[Herr Dr. Professor]

Jimster says, "Looks like a complete control unit to me." And so it seems to me, too.

Herr Hamm explained, "Asiatam also sold this as a set with a Multiplex Smart SX FLEXX." Yes, I have one, complete with its 9-channel receiver and a fat instruction booklet.

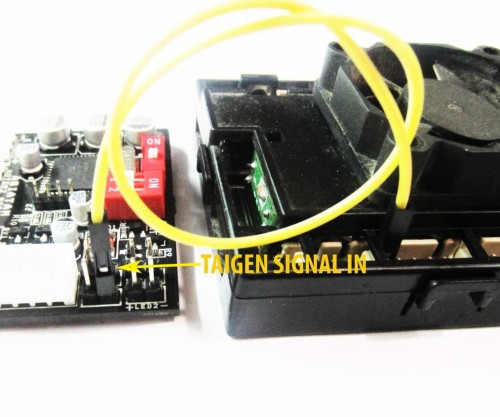

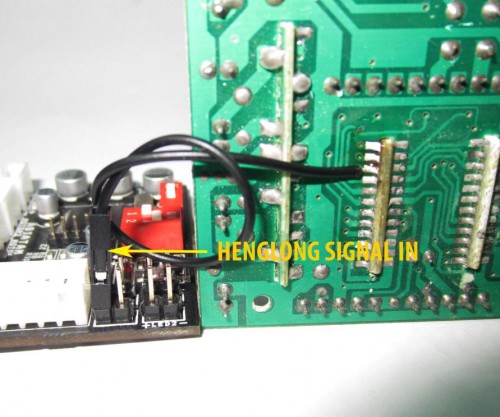

And "It will not work with Taigen electronics." Now this is a puzzle. Note in the attached images I took from Asiatam's rather sparse instructions that there are connections to...

...HengLong

...Taigen

...Asiatam

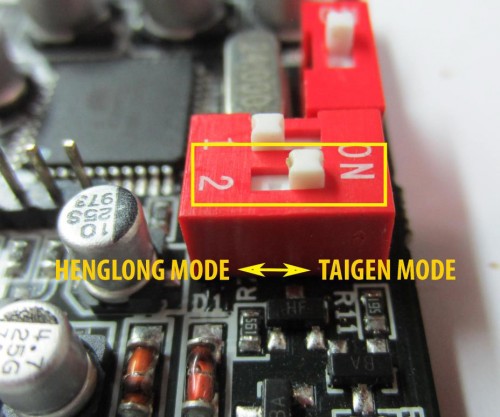

...and a HengLong/Taigen (compatibily?) switch

My guess is that the connection to the other boards provides a receiver that can be bound to the respective maker's board. Am I right? ...or even close to right? IF SO, I have an idea affecting two RC AFVs projects.

[jhamm]

Jimster says, "Looks like a complete control unit to me." And so it seems to me, too.

Herr Hamm explained, "Asiatam also sold this as a set with a Multiplex Smart SX FLEXX." Yes, I have one, complete with its 9-channel receiver and a fat instruction booklet.

And "It will not work with Taigen electronics." Now this is a puzzle. Note in the attached images I took from Asiatam's rather sparse instructions that there are connections to...

My guess is that the connection to the other boards provides a receiver that can be bound to the respective maker's board. Am I right? ...or even close to right? IF SO, I have an idea affecting two RC AFVs projects.

You are wrong....
the other electronic which is connected to the Taigen electronic did not provided a reciever.
Asiatam sold this electronic for Coelian and other double-barrel Flak-Panzer, it brings servo elevation, double servo recoil and muzzle flash.
I still have such electronics lying around in my box of leftovers - somewhere I also have the instructions for it...

[Herr Dr. Professor]

Thank you for the clarification. When I have time, I am going to lay out the electronics and test the action of the servo. I have read others' Famo builds here on RCTW, but I still need to study others' Famo builds more closely.
