Heng long panzer 3.. 9.6v battery model

Discuss the good old Heng Long electronics here, whether its mods on them or anything else, it goes here!

Postby ARIA53 » Tue Jan 12, 2021 11:33 am

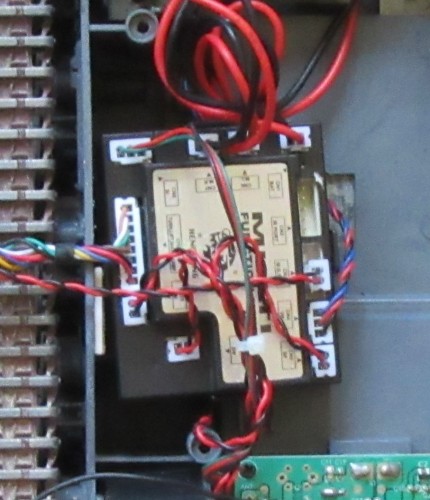

Hi, i posted on the general discussion page about my heng long panzer 3 constantly going into endless firing mode, ive got the tank apart and disconnected the wire to the turret and it stopped, trouble is when i reconnected as soon as i went for firing again off it went endlessly again, im assuming the multi function unit is broke, being it old style with a crystal etc and aerial can i easily upgrade and what do i need to buy please, seems a shame to junk the tank as its a metal tracks/gbox/smoke/sound one !

ARIA53
Recruit

Posts: 12
Joined: Fri Jul 10, 2015 8:00 pm

Postby jarndice » Tue Jan 12, 2021 12:22 pm

It is a pretty easy changeover to a Heng Long RX18,
So goodbye to crystals,
It would mean a newer Heng Long Transmitter to match the RX18 MFU but it is still plug and play,
That is the easy way and probably the cheapest but not necessarily the best.
User avatar
jarndice
Major

Posts: 6438
Joined: Mon Sep 03, 2012 11:27 am
Location: the mountains of hertfordshire

Postby Jofaur86 » Tue Jan 12, 2021 3:20 pm

jarndice wrote:It is a pretty easy changeover to a Heng Long RX18,
So goodbye to crystals,
It would mean a newer Heng Long Transmitter to match the RX18 MFU but it is still plug and play,
That is the easy way and probably the cheapest but not necessarily the best.

indeed it is a very easy manipulation, but maybe not the best? all depend on what you want to do with your tank?

Jofaur86
Corporal

Posts: 492
Joined: Wed Dec 26, 2018 12:28 am

Postby Son of a gun-ner » Tue Jan 12, 2021 3:39 pm

jarndice wrote:It is a pretty easy changeover to a Heng Long RX18,
So goodbye to crystals,
It would mean a newer Heng Long Transmitter to match the RX18 MFU but it is still plug and play,
That is the easy way and probably the cheapest but not necessarily the best.

And the battery would need changing to 7.2 or 7.4 depending on which RX18 was acquired.

Like I said in the other thread. I had this problem, and it was caused by a faulty firing control on the transmitter. The other common fault that causes this is a sticking micro switch on the bb unit.
User avatar
Son of a gun-ner
TOTM Admin

Posts: 4778
Joined: Sun May 07, 2017 8:49 pm
Location: Surrey UK

Postby Jofaur86 » Tue Jan 12, 2021 6:34 pm

Hello :D
9.6 volts? not sure that this very old type of RX accepts this voltage :'( 8O As suggested by "son of a shooter" check that the small switch on the side is not blocked or that the two fuls touch each other

Jofaur86
Corporal

Posts: 492
Joined: Wed Dec 26, 2018 12:28 am

Postby Jofaur86 » Tue Jan 12, 2021 6:36 pm

: sorry, meant, that the two sons touch each other?

Jofaur86
Corporal

Posts: 492
Joined: Wed Dec 26, 2018 12:28 am
