Postby 50koruny » Wed Feb 28, 2018 1:31 am

hi.let me introduce my first RC tank - 3D printed T-14, scale 1/16.
at the first, i was just drawing Armata for printing myself one little static model to shelf.but i have drawed too much details so i have decided to print a big one to see that details.from there was only short way to go RC.
i am making that tank since november 2016 and i am printing second and final vehicle right now.
first was prototype with limited functions, mostly printed from PLA.i have tested all that stuff and redesigned whole vehicle according to experience with printing, assembling and test drives.
rework took another 6 months but i have fully-operational T-14 ready to print.
drawed completely with solidworks, printed on my own full-steel dyi printer.
few of the biggest improvements:

- completely reworked outer body
- optimized suspension system
- new mounts for suspensions
- better mounting for smoke generator
- new universal mounts for gearboxes, all holes ale blinded now
- universal sytem for cables organization added
- on/of switch under the hatch
- optimized traces for front lights cables (2 ways for every light)
- smaller turret rotation system
- added/removed some parts for easier printing and better details
- upper engine cover prepared for Mato MF3010 speakers
- videocamera on the side of the canon
- 2 different miniturrets (with 360° rotation or solid for IR battles )
- all rubber on tank is printable from flex now
- new servo-controlled canon

i am so excited from that second vehicle :thumbup:
i am printing some of the last parts right now and i have to prepare that beast for the paint.
using XTC-3D for surface finishing.tank is printed mostly from ASA (i love that filament), some parts have to be printed from PET(G), PMMA and FLEX.
first one was equipped with RX-18.now i have Elmod PRO for the second one because i have 4 servos in turret (and because is much better).
its designed to be equipped with wide range of heng-long/torro mechanic parts.long or short shaft gearboxes of different shapes (i have tried 4 types).HL airsoft or recoil unit (or servo controlled canon) etc.i can use HL T-90 tracks too, but i like my printed tracks (ABS).

first T-14 with tiger for scale


on the first show.problematic suspensions has been reworked

big part of second T-14 on the table (too much sanding)

detail of the second ones surface finish.XTC-3D and filler

second hull with reworked interior

new cover with Mato speakers

from the upside

some parts for the new turret

video of the recoil
phpBB [video]


and videocamera
phpBB [video]
User avatar
50koruny
Private

Posts: 94
Joined: Mon Sep 04, 2017 6:49 pm
Location: Slovakia

Postby midlife306 » Wed Feb 28, 2018 12:04 pm

OMG 50koruny, that looks absolutely breathtaking!!!!!
Quality job
Cheers
Wayne


Sent from my iPhone using Tapatalk
User avatar
midlife306
Warrant Officer 1st Class

Posts: 1759
Joined: Sun Aug 27, 2017 10:34 am

Postby AlwynTurner » Wed Feb 28, 2018 12:08 pm

That is one awesome build. 8O :clap: :clap: :clap:

50koruny are you planning to make any of the STLs available on something like thingiverse, I am sure there would be many people who would love to build this model?

Alwyn :thumbup: :wave:
User avatar
AlwynTurner
Warrant Officer 1st Class

Posts: 2225
Joined: Thu Oct 23, 2014 10:47 am
Location: Chapel-en-le-Frith, Derbyshire

Postby midlife306 » Wed Feb 28, 2018 12:23 pm

AlwynTurner wrote:That is one awesome build. 8O :clap: :clap: :clap:

50koruny are you planning to make any of the STLs available on something like thingiverse, I am sure there would be many people who would love to build this model?

Alwyn :thumbup: :wave:


You could count me in on that
Cheers
Wayne


Sent from my iPhone using Tapatalk
User avatar
midlife306
Warrant Officer 1st Class

Posts: 1759
Joined: Sun Aug 27, 2017 10:34 am

Postby 50koruny » Wed Feb 28, 2018 4:11 pm

thank you.
i have some of my designs published on thingiverse (not related to RC) i like to publish a free files there
https://www.thingiverse.com/50koruny/designs
but this is not that kind of STLs.for example, there is 3400 sketches in basic hull model (basic 1/1 model of real hull).this Armata STLs is most valuable thing in my house right now.i am not sure what to do with that right now.

even if i wanted to publish that files, you are not able to assemble that kit without the assembly guide (non existing) because theres lots of things what need to be done in some order.for example - you need to put 3mm screw for smoke launcher axis before you put glue on the last part of the shield.if you dont make all in proper sequences you are not able to put that screws inside.making an assembly guide can take another 3-6 months of my life.

anyway, i am not that kind of people whats offering almost 2 years of work for free.sorry. :{
i like to design RC tanks and i want to make more of this.maybe i can try to ask UVZ for licence and become pro.
if it changes from dream to reality, I will be able to release at least one new tank yearly and make it even cheaper like heng-long.

ps.: next one will be STRV-103.
User avatar
50koruny
Private

Posts: 94
Joined: Mon Sep 04, 2017 6:49 pm
Location: Slovakia

Postby midlife306 » Thu Mar 01, 2018 1:12 am

I've sent you a PM
Ohh, the S-Tank is a favourite of mine
Cheers
Wayne



Sent from my iPad using Tapatalk
User avatar
midlife306
Warrant Officer 1st Class

Posts: 1759
Joined: Sun Aug 27, 2017 10:34 am

Postby c.rainford73 » Thu Mar 01, 2018 2:01 am

This is simply awesome
User avatar
c.rainford73
Major

Posts: 5617
Joined: Thu Aug 25, 2016 7:34 pm
Location: Connecticut USA

Postby 50koruny » Thu Mar 01, 2018 5:33 am

thank you :)
i have to prepare that kit for painting now.need to take more photos.
i have some 3D model previews for now.

2 different configurations of the turret (3 canons)
turret is ready for both options.dont need to cut or drill.

overlay of heng-long airsoft gun

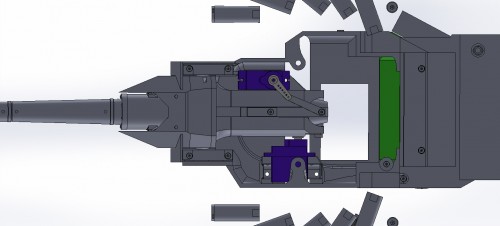

overlay of my own servo-driven gun

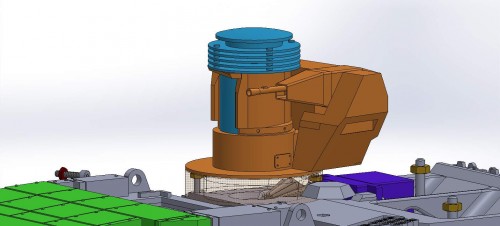

miniturret with 360° rotation

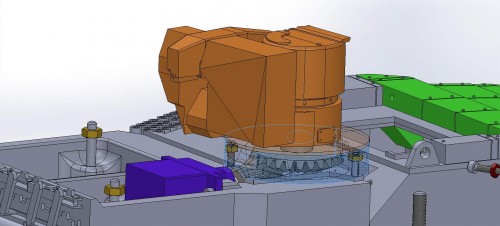

and with heng-long IR receiver (static one).IR emitter is in the little hole beside the canon.in the tube off course.


miniturret can be changed within 10 minutes.its just 2 screws there.

oh - and commanders hatch and that big service doors on the upside of the turret can be opened.big doors are used to feed the airsoft gun with balls and there is main switch under the commanders hatch.
User avatar
50koruny
Private

Posts: 94
Joined: Mon Sep 04, 2017 6:49 pm
Location: Slovakia

Postby UZI » Thu Mar 08, 2018 7:45 am

Your model looks very good, bravo!
User avatar
UZI
Recruit

Posts: 28
Joined: Sun Mar 27, 2016 10:40 am
Location: Świdnica Poland

Postby 50koruny » Thu Mar 08, 2018 11:01 am

dziękuję :)
i have turret prepared for XTC-3D coating, i will post some new photos soon.
Curing a XTC-3D can take 3-4 days, so i have to make that today.i need to send that Armata for final painting.season is coming and i dont have other tank.
User avatar
50koruny
Private

Posts: 94
Joined: Mon Sep 04, 2017 6:49 pm
Location: Slovakia

Postby 50koruny » Tue Apr 03, 2018 1:32 am

hi.
T-14 is ready for some nice camo.everything is prepared.
i am not good with colors, so i have to take that beast to my friend for final painting.
i hope i can obtain some nice digital camo.
its like a christmass :)

here is a direct link to album
https://imgur.com/a/5hsGR

User avatar
50koruny
Private

Posts: 94
Joined: Mon Sep 04, 2017 6:49 pm
Location: Slovakia

Postby c.rainford73 » Tue Apr 03, 2018 1:51 am

Such an amazing tank, can't wait to see it painted
User avatar
c.rainford73
Major

Posts: 5617
Joined: Thu Aug 25, 2016 7:34 pm
Location: Connecticut USA

Postby 50koruny » Tue Apr 03, 2018 11:01 pm

i can't wait to see it too :crazy:
i dont know...how long does it take?to paint it in digital camo?that man is an old professional, making that for 50 years maybe.
it can take days?weeks?months?
but tank is very huge.i used 2 liters of filler/primer even with XTC-3D coating.also a relatively large amount of coating was used.its big and heavy even without metal parts.
and after that paint, i need to complete AND DONT DRIVE IT!!! :D before weathering.
weathering is an long time job? :D
User avatar
50koruny
Private

Posts: 94
Joined: Mon Sep 04, 2017 6:49 pm
Location: Slovakia

Postby 50koruny » Tue Apr 24, 2018 9:16 am

still waiting to be painted :'(
i have an complete set of wheels and tracks ready.
wheels was printed with ASA.
"old" ABS tracks are from the first prototype and "rubber" is TPE 88 (FLEX)
everything printed with 0,1mm layer and 0,3mm nozzle.

i am calling this done.finally.

User avatar
50koruny
Private

Posts: 94
Joined: Mon Sep 04, 2017 6:49 pm
Location: Slovakia

Postby wibblywobbly » Wed Apr 25, 2018 3:24 pm

Truly stunning work, I always wondered who would be the first to create an Armata, and you have not only done it, you have produced an exceptional model. :clap:

I see that you used the XTC trick to smooth the parts, was this easy to do? I have read about it but none of the results that I have seen on the internet look as good as yours?

I fully understand that you are not going to put all of that hard work on Thingiverse for free, you would have to be mad to do that. If you wanted to make it available you could try using Pinshape? If you post STL's on there you can set a price for the download, and importantly include a Creative Commons licence that is enforceable globally that prevents anyone from selling copies of the download, or selling copies of the printed model.

The assembly instructions would be a huge task though, and the different filaments required would probably deter most people from even attempting the challenge. Interestingly one guy placed a stress relieving bracket for a Creality CR-10 on Thingiverse, just a simple bracket. Creality contacted him and asked if they could use his STL to manufacture the part as a standard one on their printers. He said yes, and they sent him two printers to say 'thank you'?

Excellent work, incredibly impressive! :wave:
User avatar
wibblywobbly
Major

Posts: 6266
Joined: Fri Oct 17, 2008 9:30 am
Location: South Wales Valley

Postby 50koruny » Wed Apr 25, 2018 7:51 pm

thank you very much :)
where to start...
filaments - you can make a whole T-14 from the ABS and some little bit of PET(G) if you dont want to print with that exotic fillaments.you dont need to print PMMA anf FLEX if you dont want to.
but you will stay without some nice details.its more toy-looking without that flex.
i am trying to make that accessible for newbies, but its still very complex and i can not recommend that to 3D printing rookies.but i am working on new tank and this one will be much more easier to build and to print.

XTC-3D - yes.i absolutely love that stuff.you need some practice with that to achieve great result.my first attempts was very poor.other trick is alcohol.i am using an denatured alcohol to thin XTC-3D to be usable for me.its very thick in its natural form.

pinshape - no.i will provide my tanks via my own website only.i dont care about pinshape or gambody.
you can include CC licence in your own business.thats no problem.that pishape style pages is only taking high amount of money only for providing place for STLs.sorry, but i dont see nothing worth of that money on pinshape.no advanced protection for STLs, no help with law-related things...just nothing.

assembly instructions - nah :D its huge task, but i have some ideas for that.
here is an concept of the assembly guide.its very old, from the times of the first prototype
its an classic roadwheel without the rubber.whole guide have to be maked in this style.just renders.

Last edited by 50koruny on Wed Apr 25, 2018 10:27 pm, edited 1 time in total.
User avatar
50koruny
Private

Posts: 94
Joined: Mon Sep 04, 2017 6:49 pm
Location: Slovakia

Postby c.rainford73 » Wed Apr 25, 2018 8:18 pm

Very cool
User avatar
c.rainford73
Major

Posts: 5617
Joined: Thu Aug 25, 2016 7:34 pm
Location: Connecticut USA

Postby 50koruny » Wed Apr 25, 2018 8:24 pm

tanks a lot :haha:

...and that thing with fillaments...every printer is different, people too.i have recommended some types of fillaments, wich i have used on T-14.first prototype was from PLA.you can make it even from PLA if you avoid sun and high temperatures.or if you have PLA HD and have skill to make it dimensionally correct (PLA HD need to be annealed in the oven, so dimensions can vary).everybody can use what he want to print that tank.but result can vary.i think its a freedom of 3D printing to choose the material what you like to print with.
one example - there is only 2 gears on the T-14.i have printed that with ASA (for now), but my recommendation is POM.if you can print POM, its the best choice and you can print really high quality gears.but still, you have 2-3 alternatives in the assembly/printing guide to choose, because only a small number of people know to print with POM.
there is only one part wich MUST be printed from PET(G) on the whole T-14.other parts are on your choice and my recommendation.
but you have to think about the mass.prints from high density materials like PET(G) or CPE are heavy.i think less weighing ABS armata move smoother.especially in the grass.
i can remember times, when we have choice of ABS or PLA only.and now?we have new materials in 3D print every year.and printers are better and better.
User avatar
50koruny
Private

Posts: 94
Joined: Mon Sep 04, 2017 6:49 pm
Location: Slovakia

Postby Niels jansen » Mon May 28, 2018 6:00 am

Wow. Thats a nice looking tank.

Are thise road wheels strong enough to drive with?
I im buildibg also a model from scratch and i was wondering if printed wheels are good enough to drive with.

Niels

Niels jansen
Recruit

Posts: 24
Joined: Mon Feb 26, 2018 1:56 pm

Postby wibblywobbly » Mon May 28, 2018 9:52 am

I've printed lots of tank wheels, sprockets and idlers using plain PLA, No problems at all. It's quite hard as long as you use plenty of infill, 100% is solid plastic. Never tried printing with the exotic filaments...but as you can see with this model, exceptional results are possible.

I always worry about leaving tanks in a hot car, I printed a phone holder once and left it on the dashboard, came back a few hours later and it was completely mishaped! Tanks have never suffered though.
User avatar
wibblywobbly
Major

Posts: 6266
Joined: Fri Oct 17, 2008 9:30 am
Location: South Wales Valley
