Asiatam track tension adjusters for H.L. Panzer IV

Post by strmnd54 »

Well, there's an item for witch the term " upgrade " is used loosely... :crazy:

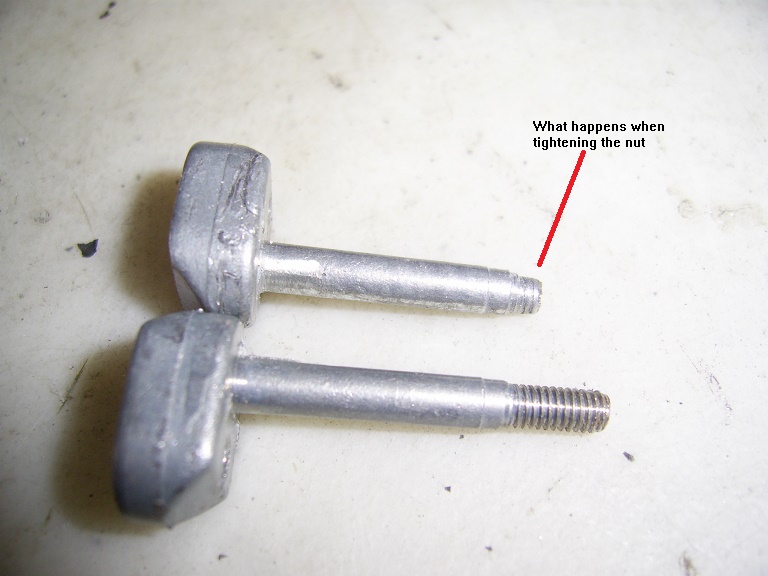

To lock the adjuster in place, you have to tighten the nut at the end of the shaft...

Sadly, since the adjuster is made of "pot metal"; this results in the shaft breaking off...

And there goes $20.00... :'(

When the smoke finally cleared, I decided to build my own adjusters; kind of like I did a couple years ago for my H.L. Pershing: Low costs home-made track tensioners H.L. Pershing:viewtopic.php?f=22&t=9366

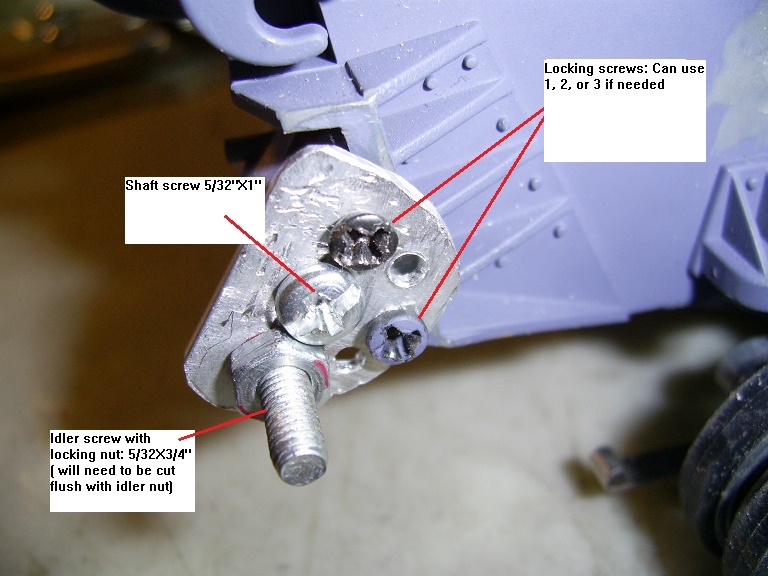

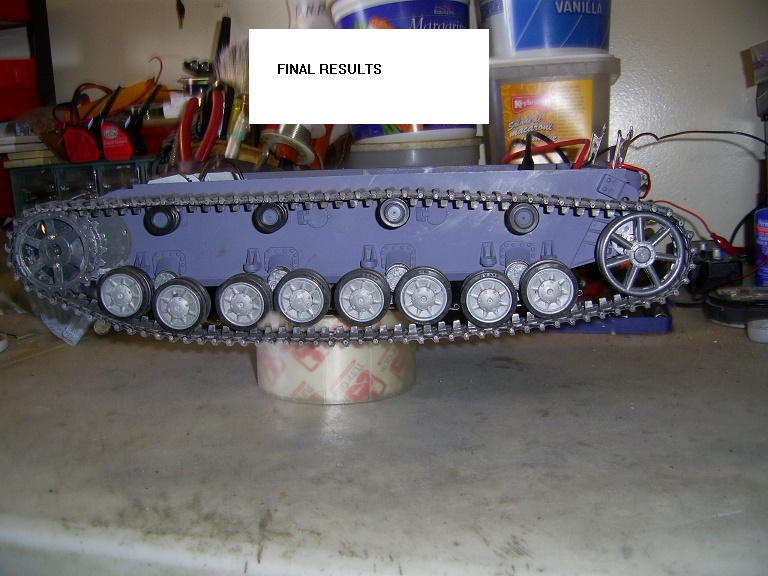

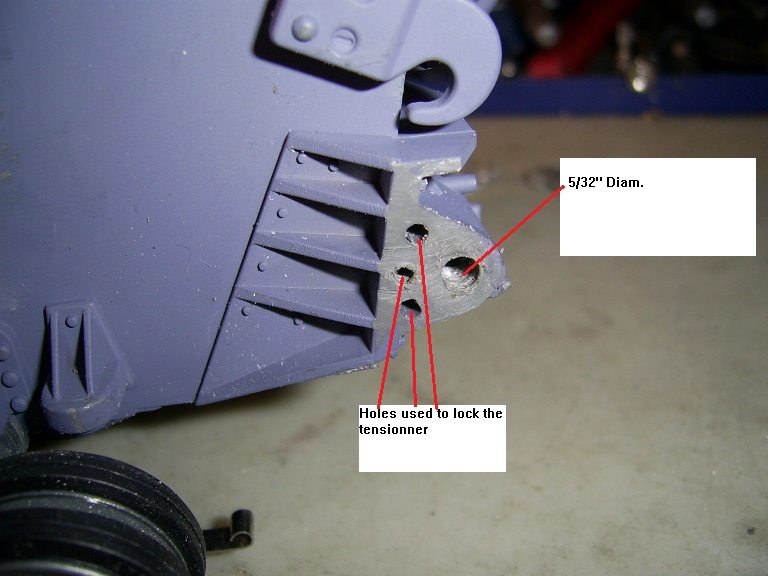

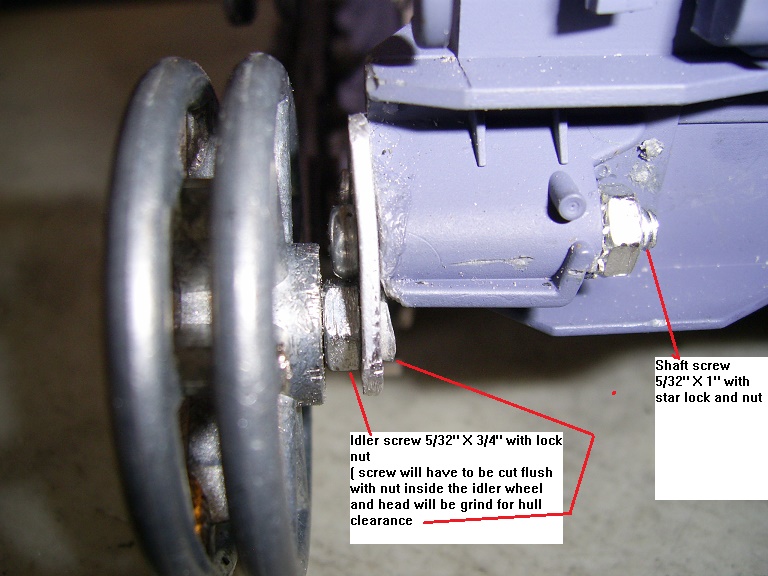

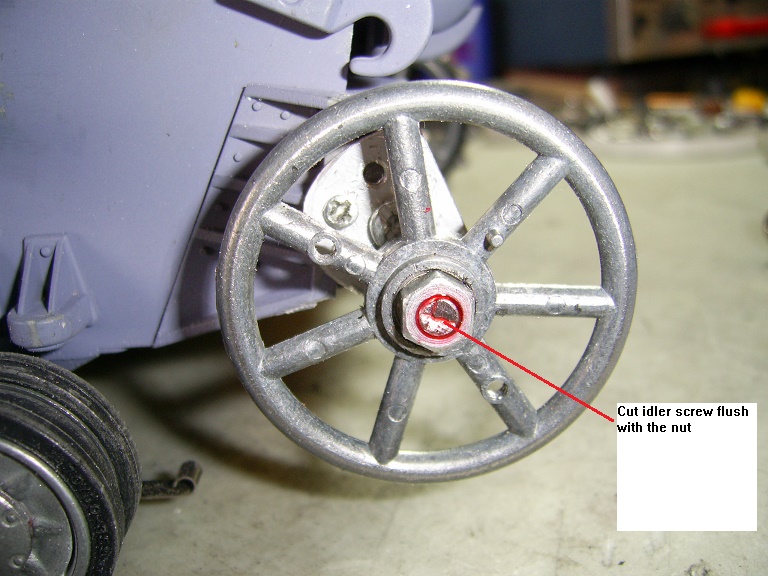

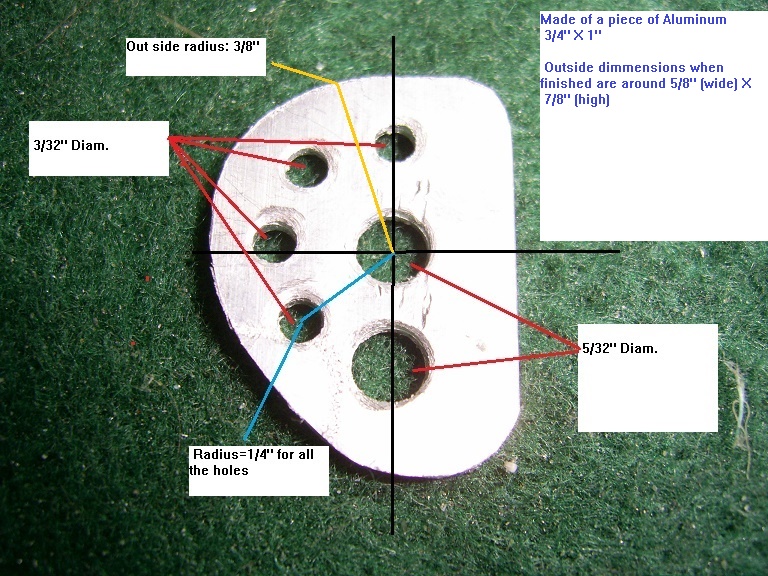

The new design is very simple but It works...
Attachments
Heated debates on climate changes contribute to global warming!!!
User avatar
SovereignZuul
Corporal
Posts: 452
Joined: Sat Aug 25, 2012 11:50 pm
Location: Connecticut, USA

Re: Asiatam track tension adjusters for H.L. Panzer IV

Post by SovereignZuul »

Good clean ingenuity. Looks great. :)
