Large Scale crane models

This section is for all of you who would like to 'show and tell' about your Trains / Locomotives - whatever the scale or gauge!

Postby thegalline » Mon Apr 05, 2021 6:50 pm

hello All

Posting some pictures of Railroad crane models that I designed and built.

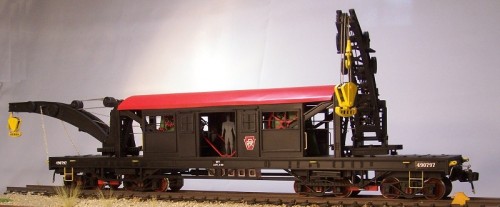

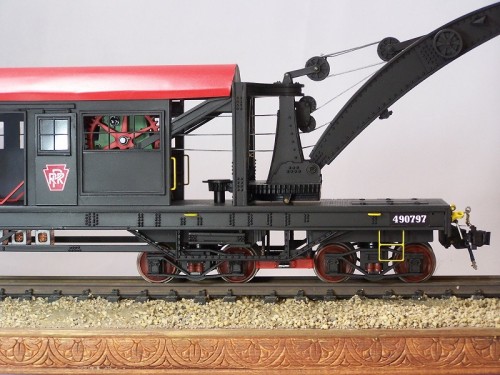

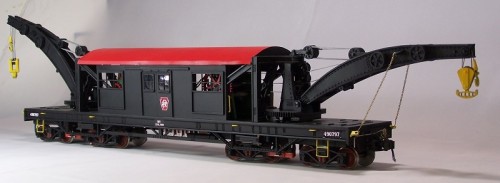

This is the PRR 490797. a double ended tunnel crane. It was used in the tunnels under NYC by the Pensy.

It was 3rd rail electric powered and had a battery back up. What was unique about this crane is that only the booms pivoted due to the confines of the tunnels.

The model is made of laser cut and etched styrene and has over 2400 hand placed rivets.

Alan
Attachments

thegalline
Recruit

Posts: 7
Joined: Fri Apr 02, 2021 4:00 pm

Postby BarryC » Tue Apr 06, 2021 3:20 pm

Excellent work on a very cool 8) model, what scale is it?

Barry
User avatar
BarryC
Warrant Officer 1st Class

Posts: 1891
Joined: Sun Jan 03, 2016 12:43 pm
Location: Savannah, GA. USA

Postby Herr Dr. Professor » Tue Apr 06, 2021 4:31 pm

I have Barry’s question, too. You wrote “large scale,” so I’d guess G scale.
User avatar
Herr Dr. Professor
Corporal

Posts: 370
Joined: Mon Apr 22, 2019 10:48 pm
Location: Southern Wisconsin USA

Postby thegalline » Tue Apr 06, 2021 5:31 pm

hello Guys

The crane is in 1/29th scale which falls into the broad category of G scale.

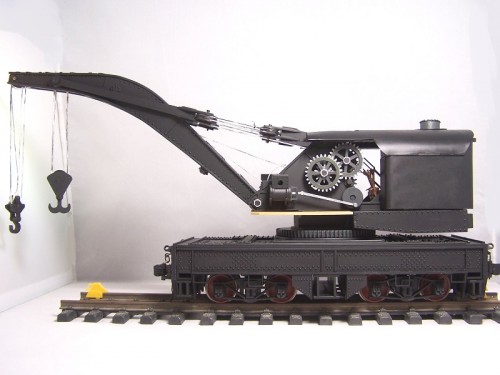

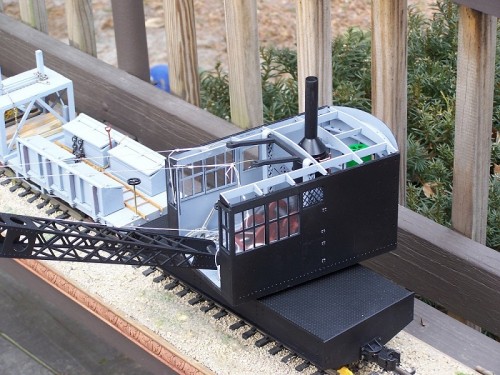

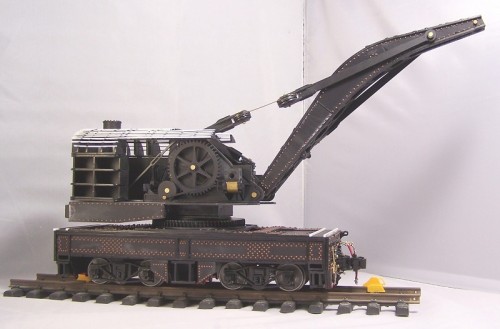

Here are a couple of more cranes I have done. Both are also 1/29th scale.

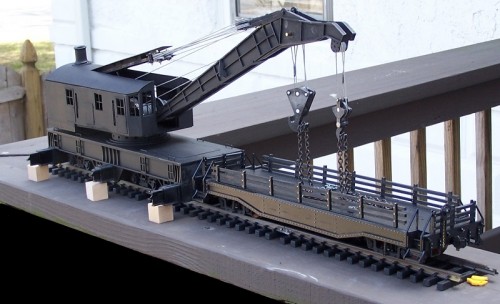

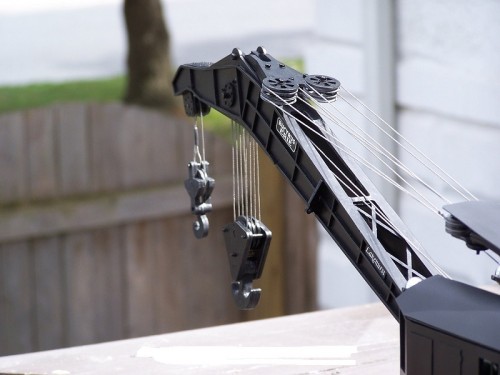

First is 120 ton and the second is 250 ton steam cranes.

Alan
Attachments
gal 120t 2.jpg
gal 120t 20.jpg
gal clam 3.jpg
winch 4 THE GAL LINE 12-2020.jpg
250 ton and idler 1 THE GAL LINE.jpg
250 ton 3S THE GAL LINE.jpg
GAL 250 ton crane 2S.jpg

thegalline
Recruit

Posts: 7
Joined: Fri Apr 02, 2021 4:00 pm

Postby sassgrunt » Tue Apr 06, 2021 11:26 pm

Those are absolutely gorgeous models! I retired from Pearl Harbor Naval Shipyard some years ago, and was able to find a few (very few) photos of the steam cranes they used in the Yard from 1903 until the early 1950's. All were narrow gauge, self-propelled, lattice-boom cranes, (mostly Brownhoist, Ohio, and Orton, I think...it's been awhile). They used to use them to go to the edge of the drydocks and lift machinery from the ships & submarines, and put that onto a flatcar, which they would then tow to the appropriate shop for repairs. Because they were around 8 or 10 feet wide but rode on a 3-foot gauge track, they had retractable steel beams to place wooden jacking pads under, as well as each end of the crane was equipped with a pair of rail clamps that would lock it to the track. Despite this, photos show the results of the operators trying to make a quick pickup, and not using these things; with the result of the crane toppling over into the bottom of the dock and being completely destroyed.

I toyed with the idea of building a display piece for the Shipyard Commander's office, but never made any headway. And, after seeing your museum-quality masterpieces; I'd feel out of my league to even try! Great work, and thank you for sharing them! -Mike
Last edited by sassgrunt on Tue Apr 06, 2021 11:43 pm, edited 1 time in total.

sassgrunt
Sergeant

Posts: 611
Joined: Wed Oct 29, 2008 10:08 am
Location: Hawaii, USA

Postby Jimster » Tue Apr 06, 2021 11:32 pm

Beautiful model. I dabble in everything from Nn3 to G scale and your model is absolutely first rate work!
Simply out of curiosity, why did you choose 1:29 scale?
User avatar
Jimster
Warrant Officer 1st Class

Posts: 1981
Joined: Mon Dec 10, 2018 2:51 am
Location: Illinois

Postby Herr Dr. Professor » Wed Apr 07, 2021 5:13 pm

At the risk of repetition: what incredible modeling! Bravo!
User avatar
Herr Dr. Professor
Corporal

Posts: 370
Joined: Mon Apr 22, 2019 10:48 pm
Location: Southern Wisconsin USA

Postby thegalline » Thu Apr 08, 2021 1:59 pm

Jimster

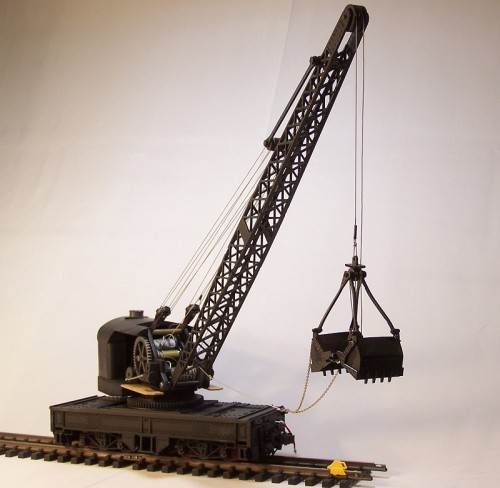

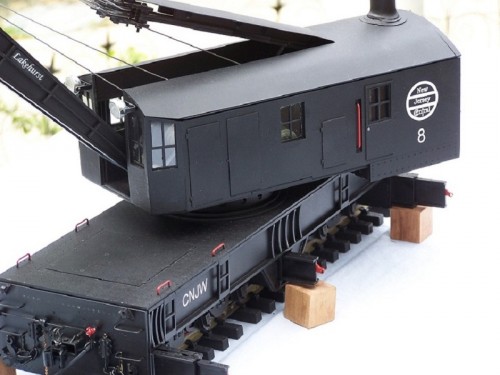

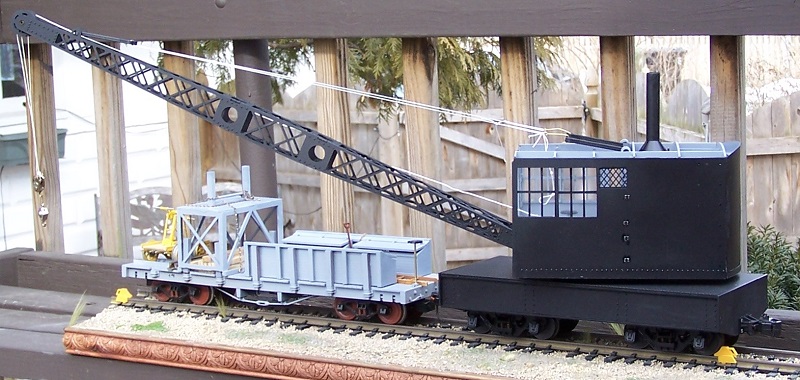

Why 1/29th scale? That is what I was commissioned to design in. The first crane I did was in 1/20.3 scale see below. It was an experiment and I was not crazy about it. I then received a commission to do the 250 ton crane in 1/29th scale. 1/29th is a scale made popular by Aristocraft and USA trains using G scale track. I kept the prototype. The 120 and the double ender were capability models that came later and I just kept them all to the same scale. My personal train collection is in both 1/29th and 1/32nd scales.

I will start a thread soon on my HW passenger equipment and engines.

Alan
Attachments
steam crane 1 THE GAL LINE.jpg
steam crane 2 THE GAL LINE.jpg

thegalline
Recruit

Posts: 7
Joined: Fri Apr 02, 2021 4:00 pm

Postby Jimster » Thu Apr 08, 2021 3:42 pm

Beautiful museum quality modeling for sure.
User avatar
Jimster
Warrant Officer 1st Class

Posts: 1981
Joined: Mon Dec 10, 2018 2:51 am
Location: Illinois
